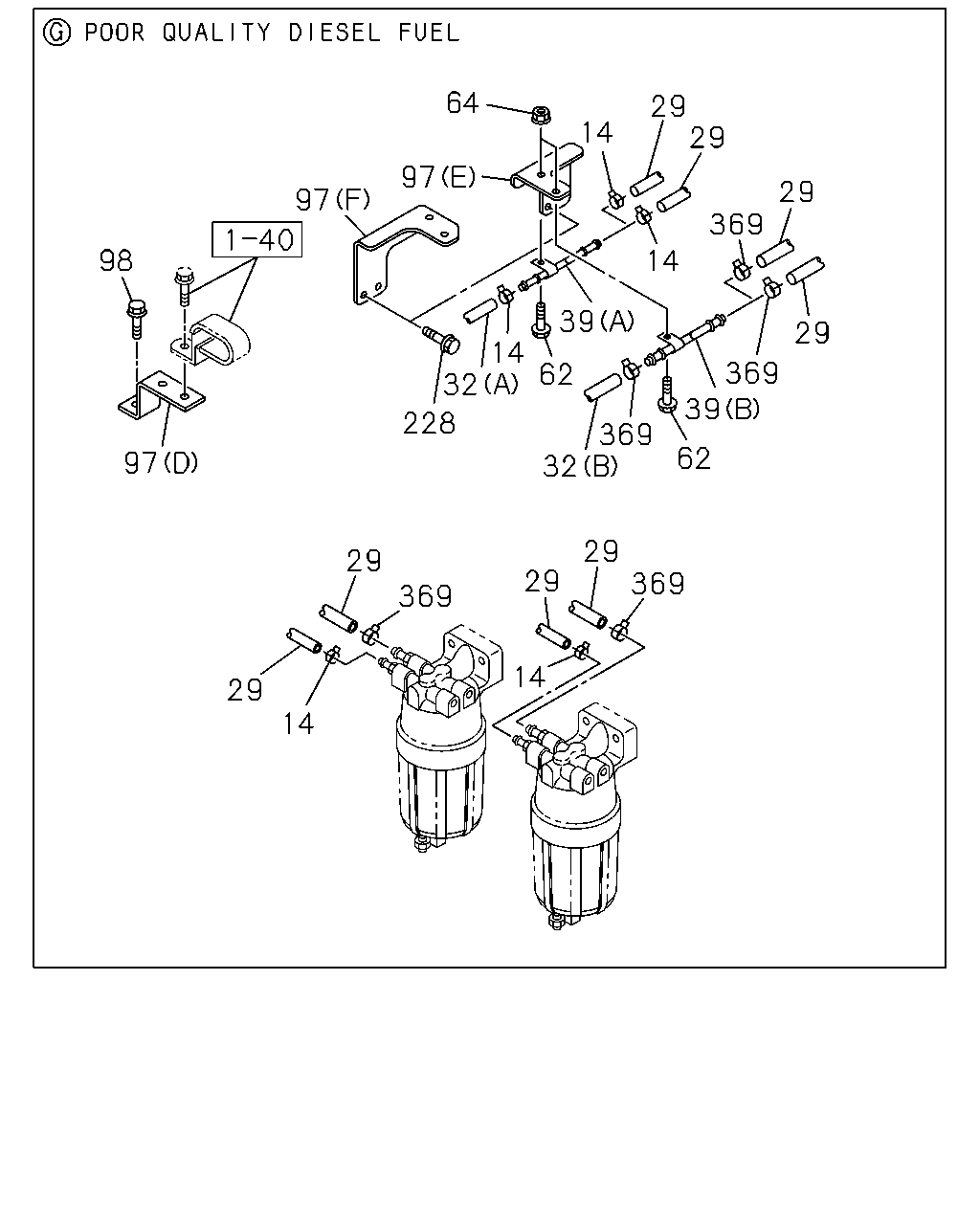

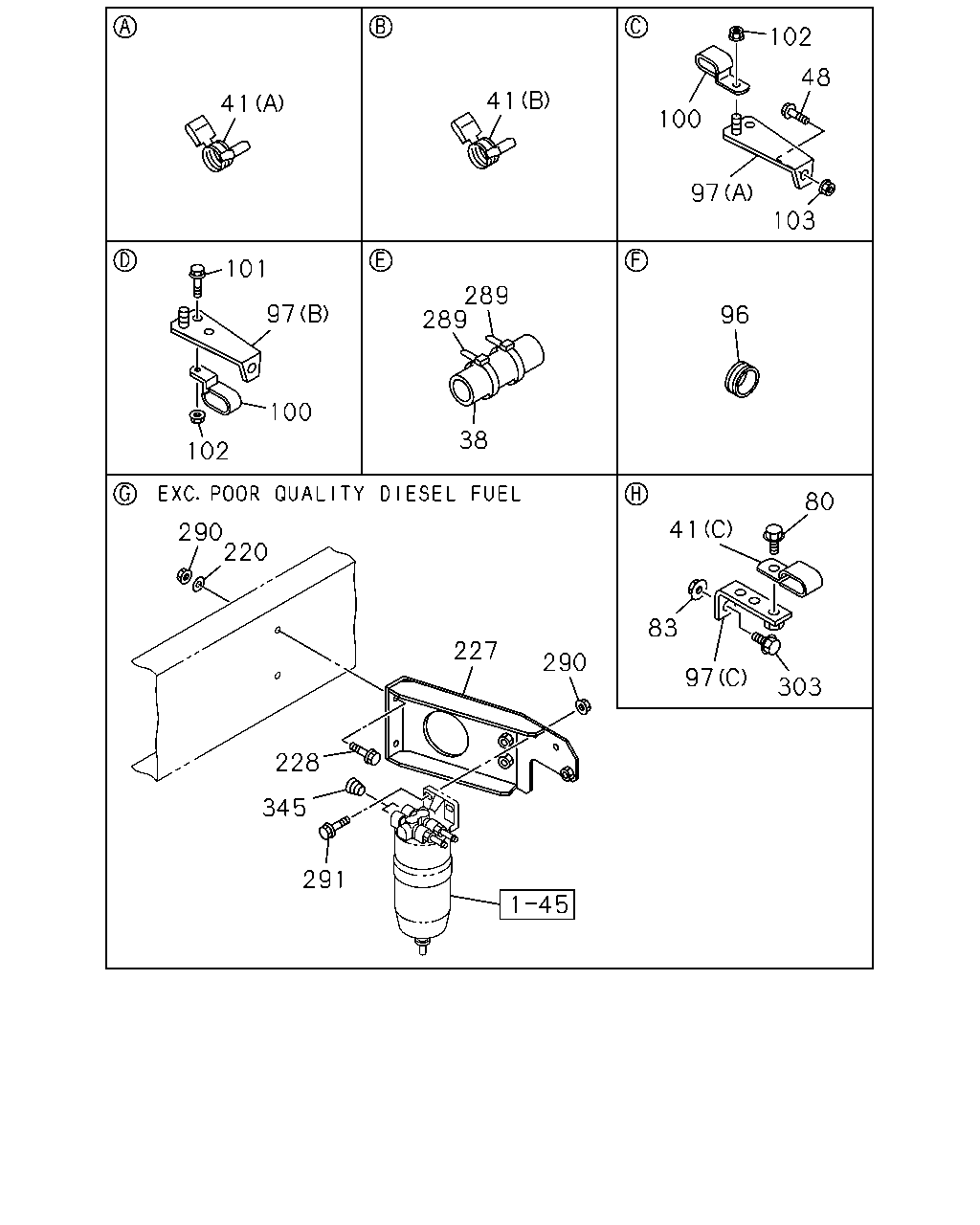

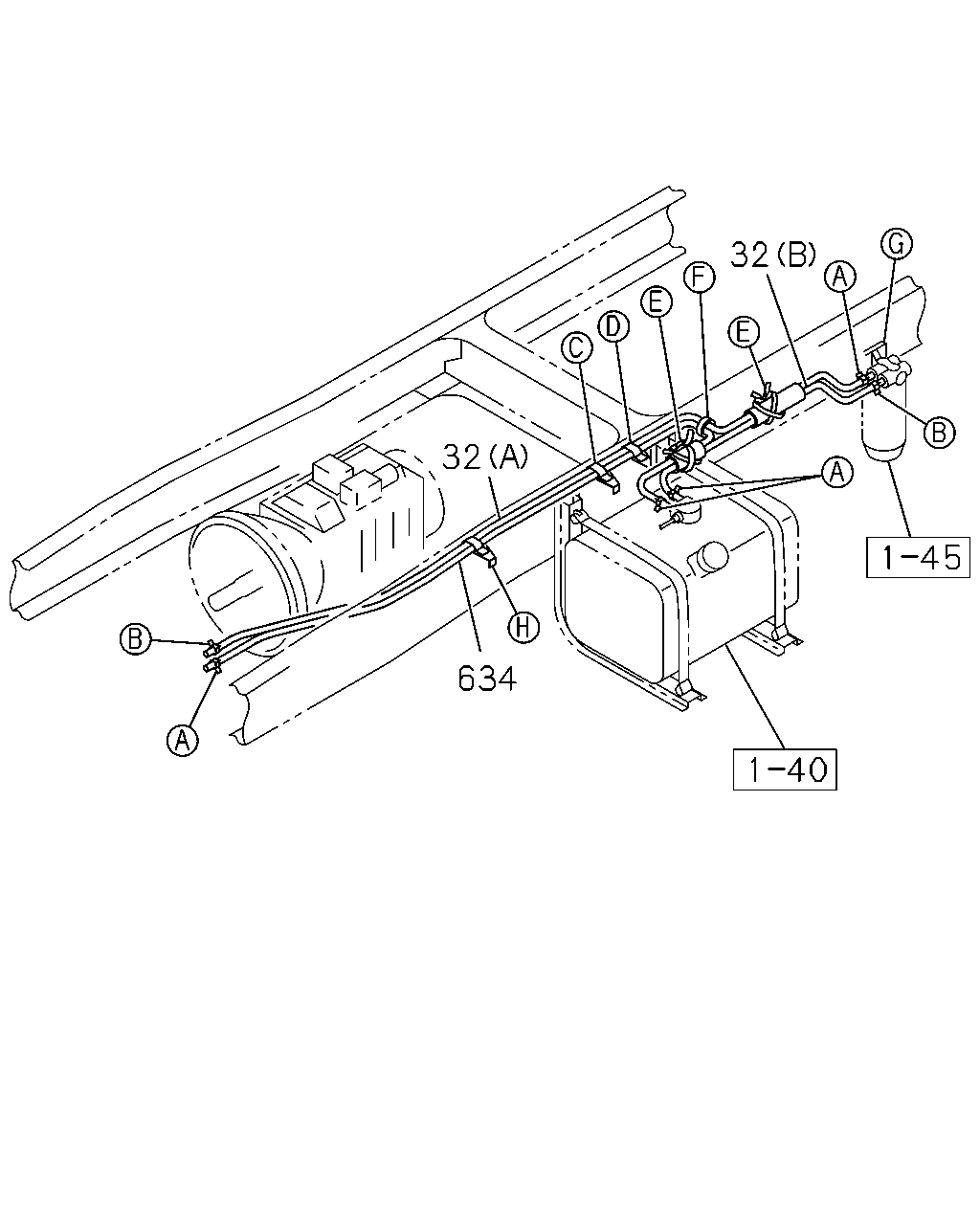

1-41 — FUEL PIPING; CHASSIS (#56170) — 102 parça

102 48 41 41 100 97 103 101 289 289 97 96 100 38 102 80 41 290 220 83 227 290 97 303 228 345 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1106-1505
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1106-1505
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1506-
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1008-1105
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	04	1	1106-1505
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 550L<EDP> L=150 SERVICED BY L=1300	1-09360-677-1	04	1	1506-
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 550L<EDP> L=150 SERVICED BY L=1300	1-09360-677-1	04	1	1008-1105
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1106-1505
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1008-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1008-
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1008-1105
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1106-1505
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1506-
48	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1008-
80	BOLT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8X25 FLANGE	0-28650-825-0	01	1	1008-1105
80	BOLT; CLIP,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> M8X25 FLANGE	0-28650-825-0	01	1	1106-1505
80	BOLT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8X25 FLANGE	0-28650-825-0	01	1	1506-
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1008-1105
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	01	1	1106-1505
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1506-
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	01	1	1008-
97	BRACKET; CLIP FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (E)	8-98186-869-0	01	1	1106-1505
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (D)	1-47479-482-0	01	1	1106-1505
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (F)	8-98186-871-0	01	1	1106-1505
97	BRACKET; CLIP (A)	1-47471-283-0	01	1	1008-
97	BRACKET; CLIP (B)	8-98172-058-0	01	1	1008-
97	BRACKET; CLIP FUEL TANK 400L<SDH> (C) L=120 H=35	1-82698-088-0	01	1	1008-1105
97	BRACKET; CLIP FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) L=120 H=35	1-82698-088-0	01	1	1106-1505
97	BRACKET; CLIP FUEL TANK 400L<SDH> (C) L=120 H=35	1-82698-088-0	01	1	1506-
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	1008-
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	01	1	1008-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	1008-
103	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1008-
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1008-
227	BRACKET; FUEL SEDIMENTER	8-98144-957-0	01	1	1008-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	02	1	1106-1505
228	BOLT; BRKT,SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	1008-
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=250	5-09707-030-1	02	1	1106-1505
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	06	1	1106-1505
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> L=250	5-09707-030-1	06	1	1506-
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> L=250	5-09707-030-1	06	1	1008-1105
289	CLIP; BAND,HOSE FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	08	1	1106-1505
289	CLIP; BAND,HOSE FUEL TANK 550L<EDP> L=250	5-09707-030-1	08	1	1506-
289	CLIP; BAND,HOSE FUEL TANK 550L<EDP> L=250	5-09707-030-1	08	1	1008-1105
289	CLIP; BAND,HOSE FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1106-1505
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1008-
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1008-
303	BOLT; BRKT FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1008-1105
303	BOLT; BRKT FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE	0-28650-830-0	01	1	1106-1505
303	BOLT; BRKT FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1506-
345	PLUG RUSSIA EQUIPMENT(B12),CHINA EQUIPMENT(YT2) NPTF3/8-18	8-97329-623-0	02	1	1009-

32 32 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (A) L=1550 SERVICED BY L=3000	0-01262-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=290 SERVICED BY L=3000	0-01260-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK (A) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1008-1105
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK (A) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1506-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1506-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> (B) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> (B) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1506-
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=1400 SERVICED BY L=3000	0-01260-300-0	01	1	1008-
634	HOSE; RUBBER RETURN FUEL TANK 550L<EDP> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1008-

64 29 29 14 97 29 97 369 98 14 39 29 14 32 369 39 62 228 369 32 62 97 29 369 29 29 369 14 29 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1106-1505
29	HOSE; FUEL FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> L=780 OD=14.5	8-98188-449-0	01	1	1106-1505
29	HOSE; FUEL FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> L=800 OD=19	8-98188-467-0	01	1	1106-1505
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> L=920 OD=14.5	8-98188-450-0	01	1	1106-1505
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> L=940 OD=19	8-98188-468-0	01	1	1106-1505
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=1080 OD=14.5	8-98188-451-0	01	1	1106-1505
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=1080 OD=19	8-98188-470-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (B) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (A) L=1550 SERVICED BY L=3000	0-01262-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=290 SERVICED BY L=3000	0-01260-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK (A) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1008-1105
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK (A) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1506-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1506-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> (B) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1008-1105
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1106-1505
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 550L<EDP> (B) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1506-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-862-1	01	1	1106-1505
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-864-1	01	1	1106-1505
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1106-1505
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1106-1505
97	BRACKET; CLIP FUEL TANK 550L<EDP> POOR QUALITY DIESEL FUEL<KF0> (E)	8-98186-869-0	01	1	1106-1505
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (D)	1-47479-482-0	01	1	1106-1505
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (F)	8-98186-871-0	01	1	1106-1505
97	BRACKET; CLIP (A)	1-47471-283-0	01	1	1008-
97	BRACKET; CLIP (B)	8-98172-058-0	01	1	1008-
97	BRACKET; CLIP FUEL TANK 400L<SDH> (C) L=120 H=35	1-82698-088-0	01	1	1008-1105
97	BRACKET; CLIP FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) L=120 H=35	1-82698-088-0	01	1	1106-1505
97	BRACKET; CLIP FUEL TANK 400L<SDH> (C) L=120 H=35	1-82698-088-0	01	1	1506-
98	BOLT; BRKT,FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1106-1505
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> M8X35 FLANGE	0-28650-835-0	02	1	1106-1505
228	BOLT; BRKT,SEDIMENTER M10X30 FLANGE	0-28051-030-0	02	1	1008-
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1106-1505
