1-31 — AIR DUCT (#56167) — 87 parça

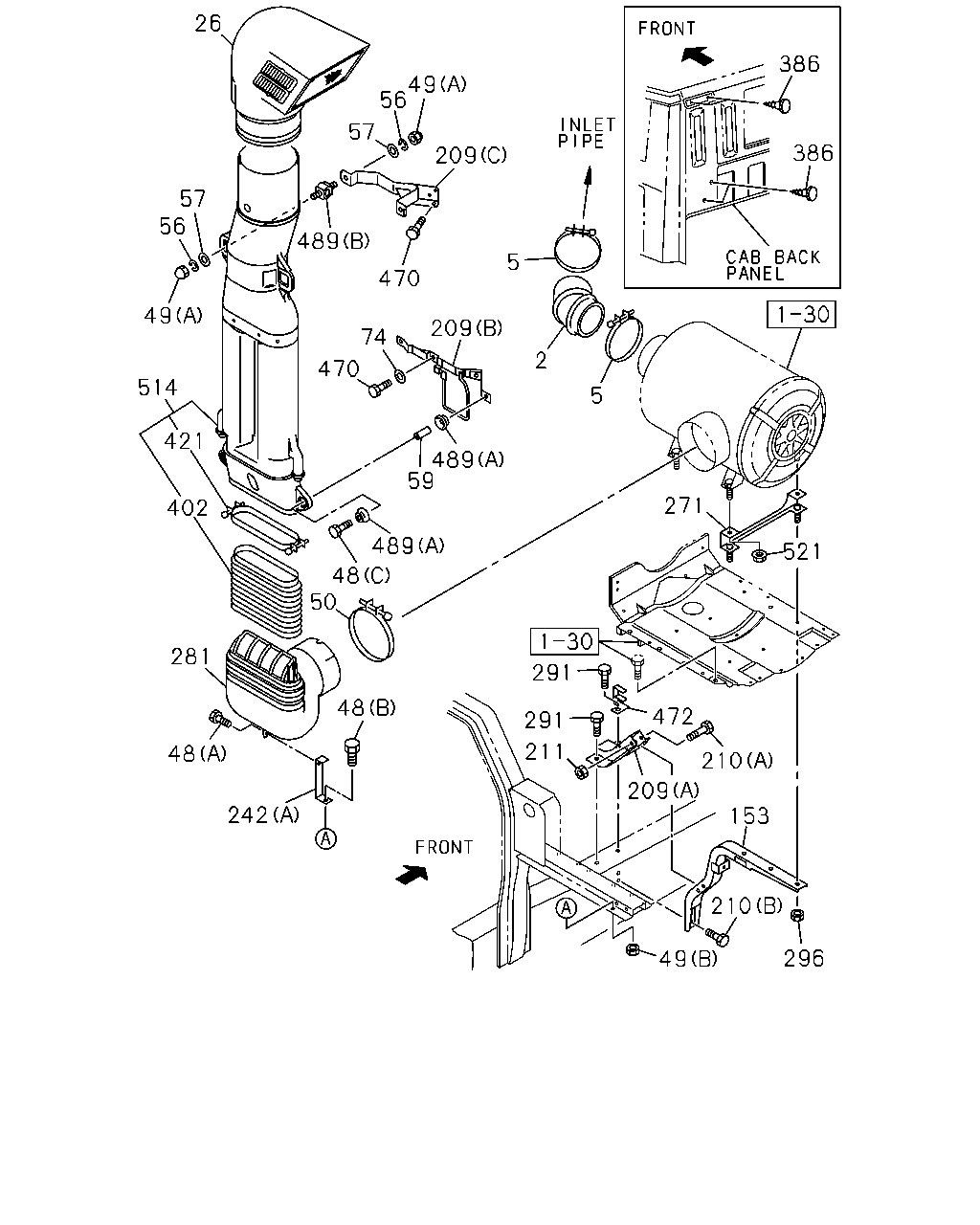

26 386 49 56 57 386 209 57 56 489 5 470 49 209 74 2 470 514 5 421 489 59 271 402 521 489 48 50 281 291 48 472 291 211 48 210 209 242 153 210 296 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-955-1	01	1	1008-	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	1008-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14219-258-1	01	1	1008-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	8-98122-904-2	01	1	1008-	●	●
48	BOLT; AIR DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
48	BOLT; AIR DUCT (A) M10X25 FLANGE	0-28651-025-0	01	1	1008-	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	1008-	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	1008-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	04	1	1008-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-122-0	01	1	1008-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	01	1	1008-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	1008-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	1008-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	1008-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	04	1	1008-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	02	1	1008-	●	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	1008-	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	1008-	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	1008-	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	1008-		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	1008-	●	●
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	1008-	●	●
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	1008-	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	1008-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	1008-	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	1008-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-53419-325-1	01	1	1008-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (C)	8-98041-993-1	01	1	1008-	●	●
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	1008-	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	1008-	●	●
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	1008-	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	1008-	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	1008-	●	●
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-2	01	1	1008-	●	●
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	1008-	●	●
470	BOLT; BRKT PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	04	1	1008-	●	●
472	STOPPER; LINK ROD	8-98163-013-0	01	1	1008-	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	1008-	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	1008-	●	●
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-1	01	1	1008-	●	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	1008-	●	●

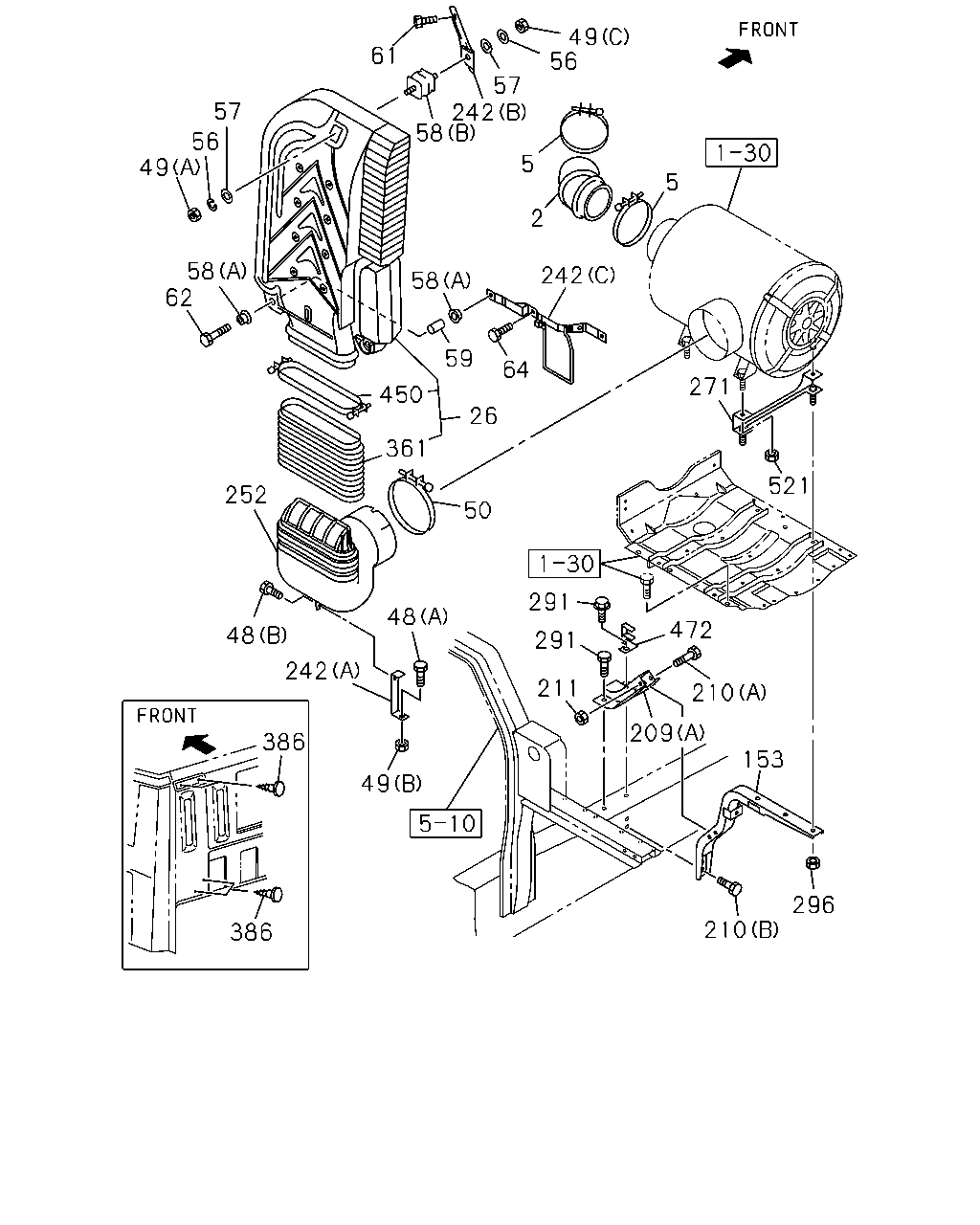

49 56 61 57 242 58 57 56 5 49 5 2 58 62 242 58 59 64 271 450 26 361 521 252 50 291 48 472 48 291 242 211 210 209 386 153 49 296 210 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-955-1	01	1	1008-	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	1008-	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14219-258-1	01	1	1008-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	8-98122-904-2	01	1	1008-	●	●
48	BOLT; AIR DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-	●	●
48	BOLT; AIR DUCT (A) M10X25 FLANGE	0-28651-025-0	01	1	1008-	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	1008-	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	1008-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	04	1	1008-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-122-0	01	1	1008-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	01	1	1008-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	1008-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	1008-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	1008-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	04	1	1008-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	02	1	1008-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	1008-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	1008-	●	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	1008-	●	●
61	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	1008-	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X60	1-09030-044-1	02	1	1008-	●	●
64	BOLT; BRKT,AIR DUCT EXC. PRE CLEANER<W17> M8X25 FLANGE	8-98074-570-0	02	1	1008-	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	1008-	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	1008-		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	1008-	●	●
209	BRACKET; ACL PRE CLEANER<W17> (C)	1-79990-045-2	01	1	1008-	●	●
209	BRACKET; ACL PRE CLEANER<W17> (B)	8-98115-405-1	01	1	1008-	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	1008-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	1008-	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-	●	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	1008-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-53419-325-1	01	1	1008-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (C)	8-98041-993-1	01	1	1008-	●	●
252	DUCT; AIR INT PRE CLEANER<W17>	1-14232-059-0	01	1	1008-	●	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	1008-	●	●
271	SPACER; BRKT,ACL	1-53419-343-1	02	1	1008-	●	●
291	BOLT; ACL M12X30 FLANGE	0-28051-230-0	02	1	1008-	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-2	01	1	1008-	●	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	1008-	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	1008-	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	1008-	●	●
472	STOPPER; LINK ROD	8-98163-013-0	01	1	1008-	●	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	1008-	●	●
