◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25B - REAR FINAL DRIVE ▶
4-25B — REAR FINAL DRIVE (#5616) — 62 parça

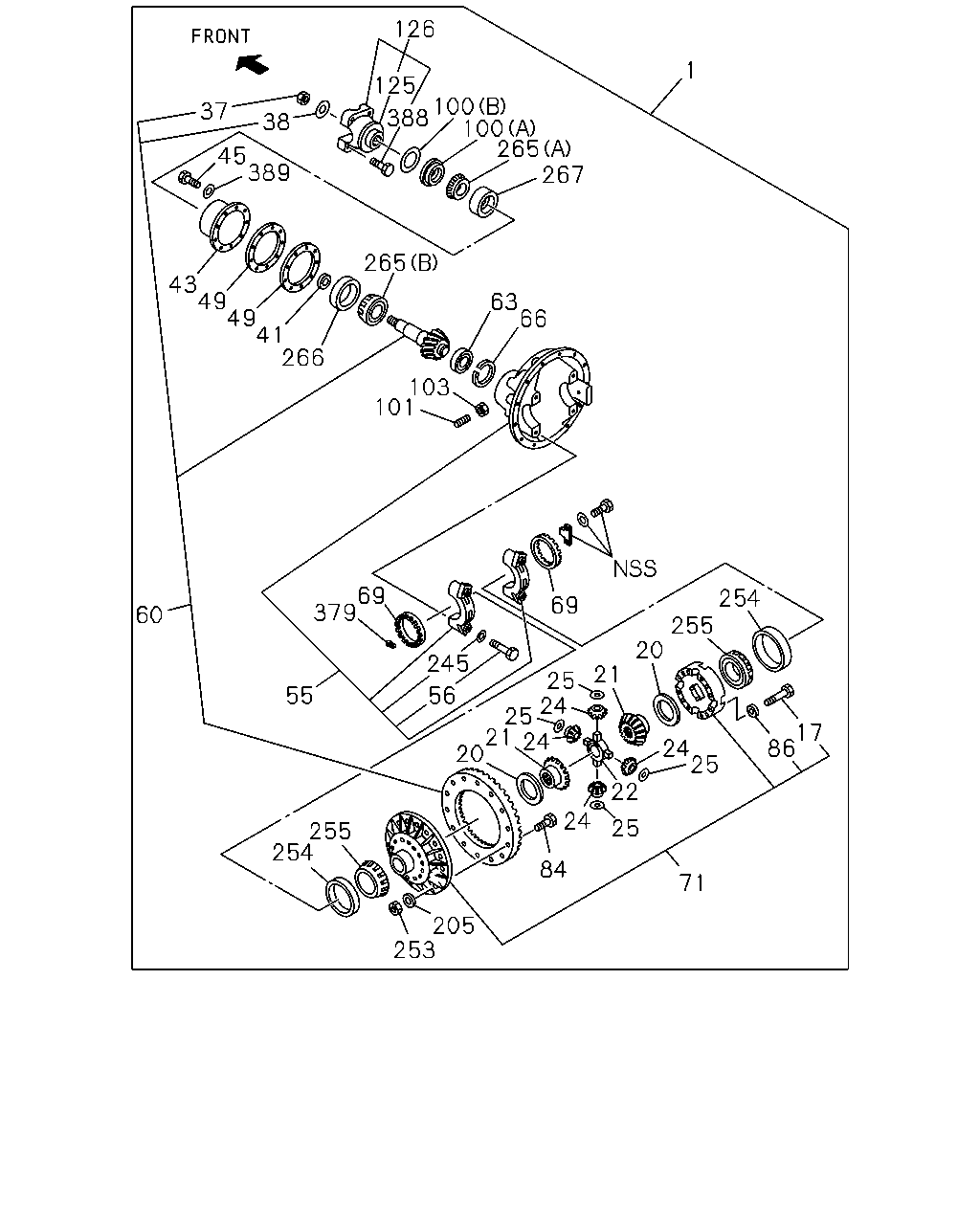

çizim 8677
126 1 125 100 388 100 265 267 37 38 45 389 265 43 49 49 41 266 63 66 103 101 69 379 254 255 20 69 60 245 21 25 24 25 21 24 20 55 56 17 86 24 25 22 24 25 25 254 84 71 205 253
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
41/9 		1-41001-687-0 01 1 9811-9904 ●
1 DRIVE ASM; FINAL,RR
44/9 		1-41001-686-0 01 1 9811-9904 ●
1 DRIVE ASM; FINAL,RR
43/8 		1-41001-718-0 01 1 9811-9904 ●
1 DRIVE ASM; FINAL,RR
43/10 		1-41001-852-0 01 1 9811-9904 ●
17 BOLT; DIFF CAGE SETTING 1-41519-037-0 12 1 9811-9904 ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 9811-9904 ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-113-0 02 1 9811-9904 ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 9811-9904 ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 9811-9904 ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 9811-9904 ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 9811-9904 ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 9811-9904 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.35 		1-41229-283-0 01 1 9811-9904 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.38 		1-41229-284-0 01 1 9811-9904 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.40 		1-41229-285-0 01 1 9811-9904 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.43 		1-41229-286-0 01 1 9811-9904 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.45 		1-41229-287-0 01 1 9811-9904 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.50 		1-41229-288-0 01 1 9811-9904 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.60 		1-41229-289-0 01 1 9811-9904 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.63 		1-41229-290-0 01 1 9811-9904 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.65 		1-41229-291-0 01 1 9811-9904 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.68 		1-41229-292-0 01 1 9811-9904 ● ● ● ●
43 CAGE; FINAL PINION 1-41151-064-0 01 1 9811-9904 ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-010-0 08 1 9811-9904 ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.050 		1-41154-085-0 AR 1 9811-9904 ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.125 		1-41154-086-0 AR 1 9811-9904 ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.200 		1-41154-087-0 AR 1 9811-9904 ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-088-0 AR 1 9811-9904 ● ● ● ●
55 CARRIER; DIFF 1-41110-106-0 01 1 9811-9904 ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 9811-9904 ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-505-0 01 1 9811-9904 ●
60 GEAR SET; FINAL DRIVE,RR
44/9 		1-41210-559-0 01 1 9811-9904 ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-560-0 01 1 9811-9904 ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		1-41210-558-0 01 1 9811-9904 ●
63 BEARING; PINION PILOT 1-41219-034-0 01 1 9811-9904 ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-035-0 01 1 9811-9904 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 01 1 9811-9904 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-041-0 01 1 9811-9904 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-234-0 01 1 9811-9904 ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-236-0 01 1 9811-9904 ●
84 BOLT; FINAL DRIVE GEAR 1-41519-036-0 16 1 9811-9904 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41519-035-0 01 1 9811-9904 ● ● ● ●
100 SEAL; OIL,FINAL PINION
(A) 		1-41219-029-0 01 1 9811-9904 ● ● ● ●
100 SEAL; OIL,FINAL PINION
(B) 		1-41219-051-0 01 1 9811-9904 ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41259-001-0 01 1 9811-9904 ● ● ● ●
103 NUT; ADJ BOLT 1-41259-002-0 01 1 9811-9904 ● ● ● ●
125 THROWER; OIL,COUPLING 1-37249-145-0 01 1 9811-9904 ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-318-0 01 1 9811-9904 ● ● ● ●
205 WASHER; PL 1-41519-035-0 16 1 9811-9904 ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 9811-9904 ● ● ● ●
253 NUT 1-41519-034-0 16 1 9811-9904 ● ● ● ●
254 CUP; DIFF BRG 1-41519-052-0 01 1 9811-9904 ● ● ● ●
254 CUP; DIFF BRG 1-41519-031-0 01 1 9811-9904 ● ● ● ●
255 CONE; DIFF BRG 1-41519-053-0 01 1 9811-9904 ● ● ● ●
255 CONE; DIFF BRG 1-41519-033-0 01 1 9811-9904 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 9811-9904 ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 9811-9904 ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-032-0 01 1 9811-9904 ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41219-031-0 01 1 9811-9904 ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 02 1 9811-9904 ● ● ● ●
388 BOLT; COUPLING 1-37249-165-0 04 1 9811-9904 ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41329-034-0 08 1 9811-9904 ● ● ● ●
