0-57 — EMISSION PIPING (#56157) — 106 parça

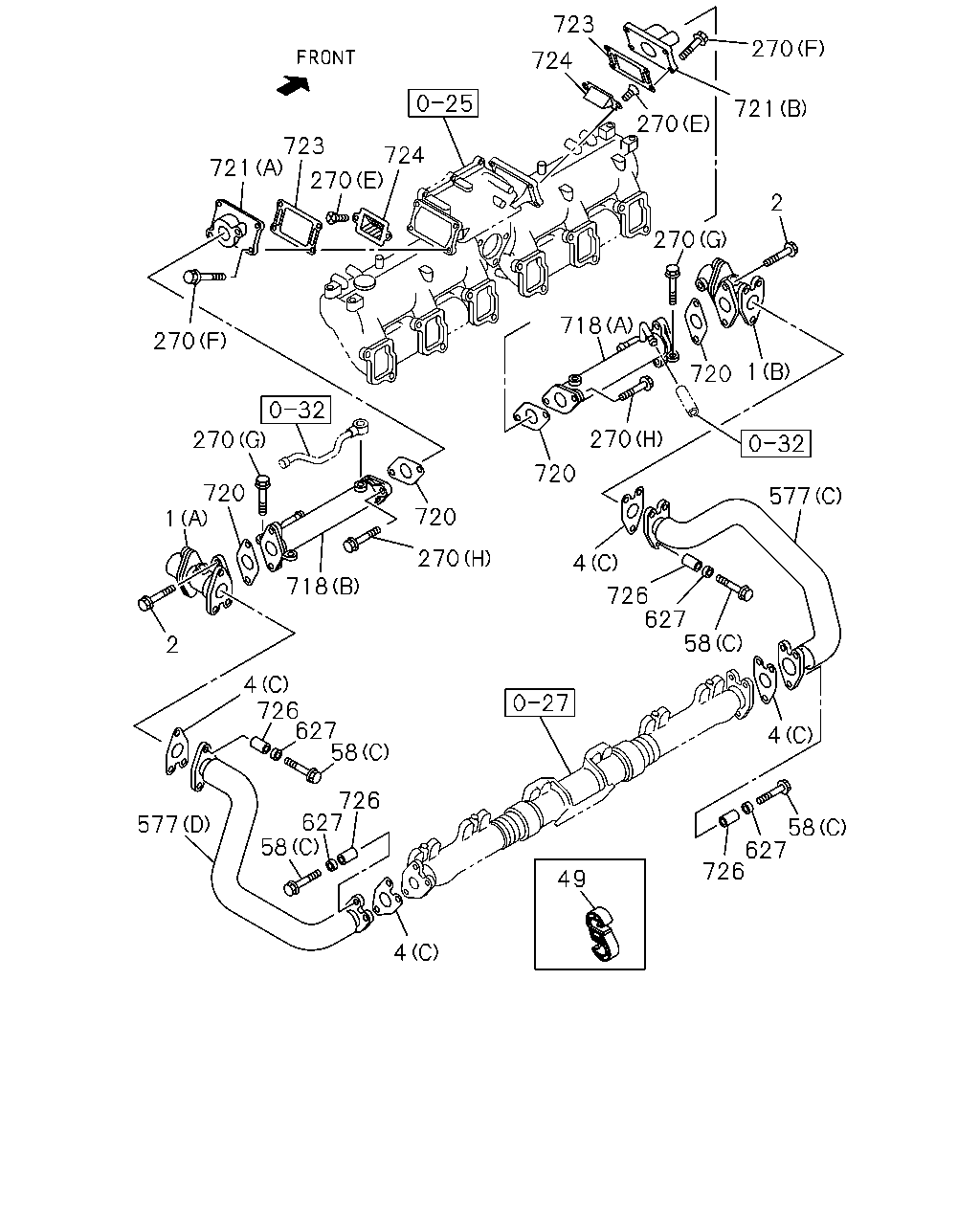

723 270 724 721 270 723 724 270 721 2 270 718 270 1 720 270 270 720 720 577 720 1 270 4 718 726 627 58 2 4 726 627 58 4 726 627 58 577 58 627 726 49 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR EURO3 SPECIFICATION<NJX> (B)	1-16110-015-3	01	1	1008-	●
1	VALVE; EGR EURO3 SPECIFICATION<NJX> (A)	1-16110-016-3	01	1	1008-	●
1	VALVE; EGR (C)	8-98029-595-7	02	1	1008-1502		●
1	VALVE; EGR (C)	8-98238-266-1	02	1	1503-		●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NJX> M10X20 FLANGE	0-28151-020-0	04	1	1008-	●
2	BOLT; EGR VLV M10X30 FLANGE	0-28751-030-0	08	1	1008-1405		●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	08	1	1406-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (C)	1-16157-015-0	04	1	1008-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97601-836-0	04	1	1008-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97608-423-0	02	1	1008-		●
49	CLIP; HOSE EURO3 SPECIFICATION<NJX> ID=10 & 10	1-09709-277-1	01	1	1008-	●
58	BOLT; PIPE EURO3 SPECIFICATION<NJX> (C) M10X55 FLANGE	8-97365-449-0	12	1	1008-	●
58	BOLT; PIPE (A) M8X25 FLANGE	0-28650-825-0	06	1	1008-		●
58	BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	06	1	1008-		●
270	BOLT (F) M10X35 FLANGE	0-28151-035-0	08	1	1008-	●
270	BOLT EURO3 SPECIFICATION<NJX> (G) M10X20 FLANGE	0-28151-020-0	04	1	1008-	●
270	BOLT EURO3 SPECIFICATION<NJX> (H) M10X30 FLANGE	0-28151-030-0	04	1	1008-	●
270	BOLT EURO3 SPECIFICATION<NJX> (E) M6X12 HEX SOCKET	9-05820-612-0	04	1	1008-1502	●
270	BOLT (E) M6X12 HEX SOCKET	9-05820-612-0	04	1	1008-1502		●
270	BOLT EURO3 SPECIFICATION<NJX> (E) M6X12 HEX SOCKET	8-98272-417-0	04	1	1503-	●
270	BOLT (E) M6X12 HEX SOCKET	8-98272-417-0	04	1	1503-		●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	08	1	1008-		●
270	BOLT (B) M10X70 FLANGE	0-28151-070-0	04	1	1008-		●
270	BOLT (A) M10X35 FLANGE	0-28751-035-0	20	1	1008-		●
270	BOLT (D) M10X40 FLANGE	0-28751-040-0	02	1	1008-		●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NJX> (C)	1-16181-083-2	01	1	1008-	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NJX> (D)	1-16181-084-2	01	1	1008-	●
577	PIPE; AIR,EGR (A)	8-97608-515-0	01	1	1008-		●
577	PIPE; AIR,EGR (B)	8-97608-516-0	01	1	1008-		●
627	WASHER; LK,EGR PIPE EURO3 SPECIFICATION<NJX> T=2.2	1-09556-015-0	12	1	1008-	●
718	COOLER; EGR EURO3 SPECIFICATION<NJX> (A)	1-16127-016-2	01	1	1008-	●
718	COOLER; EGR EURO3 SPECIFICATION<NJX> (B)	1-16127-017-2	01	1	1008-	●
718	COOLER; EGR (A)	8-97608-517-1	02	1	1008-		●
718	COOLER; EGR (B)	8-97608-886-1	01	1	1008-		●
718	COOLER; EGR (C)	8-97608-887-1	01	1	1008-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>	1-16157-016-0	04	1	1008-	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=80	8-97603-889-0	04	1	1008-		●
721	DUCT; COOLER EURO3 SPECIFICATION<NJX> (B)	1-16183-064-0	01	1	1008-1502	●
721	DUCT; COOLER EURO3 SPECIFICATION<NJX> (B)	8-98276-293-0	01	1	1503-	●
721	DUCT; COOLER EURO3 SPECIFICATION<NJX> (A)	1-16183-065-1	01	1	1008-1502	●
721	DUCT; COOLER EURO3 SPECIFICATION<NJX> (A)	8-98276-296-0	01	1	1503-	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-16185-004-0	02	1	1008-1502	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97648-198-0	02	1	1503-	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97621-936-0	02	1	1008-1502		●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97647-880-0	02	1	1503-		●
724	VALVE; REED EURO3 SPECIFICATION<NJX>	8-98186-738-0	02	1	1008-1502	●
724	VALVE; REED	8-98186-738-0	02	1	1008-1502		●
724	VALVE; REED EURO3 SPECIFICATION<NJX>	8-98272-702-0	02	1	1503-1503	●
724	VALVE; REED	8-98272-702-0	02	1	1503-1503		●
724	VALVE; REED EURO3 SPECIFICATION<NJX>	8-98291-639-0	02	1	1503-	●
724	VALVE; REED	8-98291-639-0	02	1	1503-		●
726	TUBE; DISTANCE EURO3 SPECIFICATION<NJX> L=28	8-97250-073-1	12	1	1008-	●

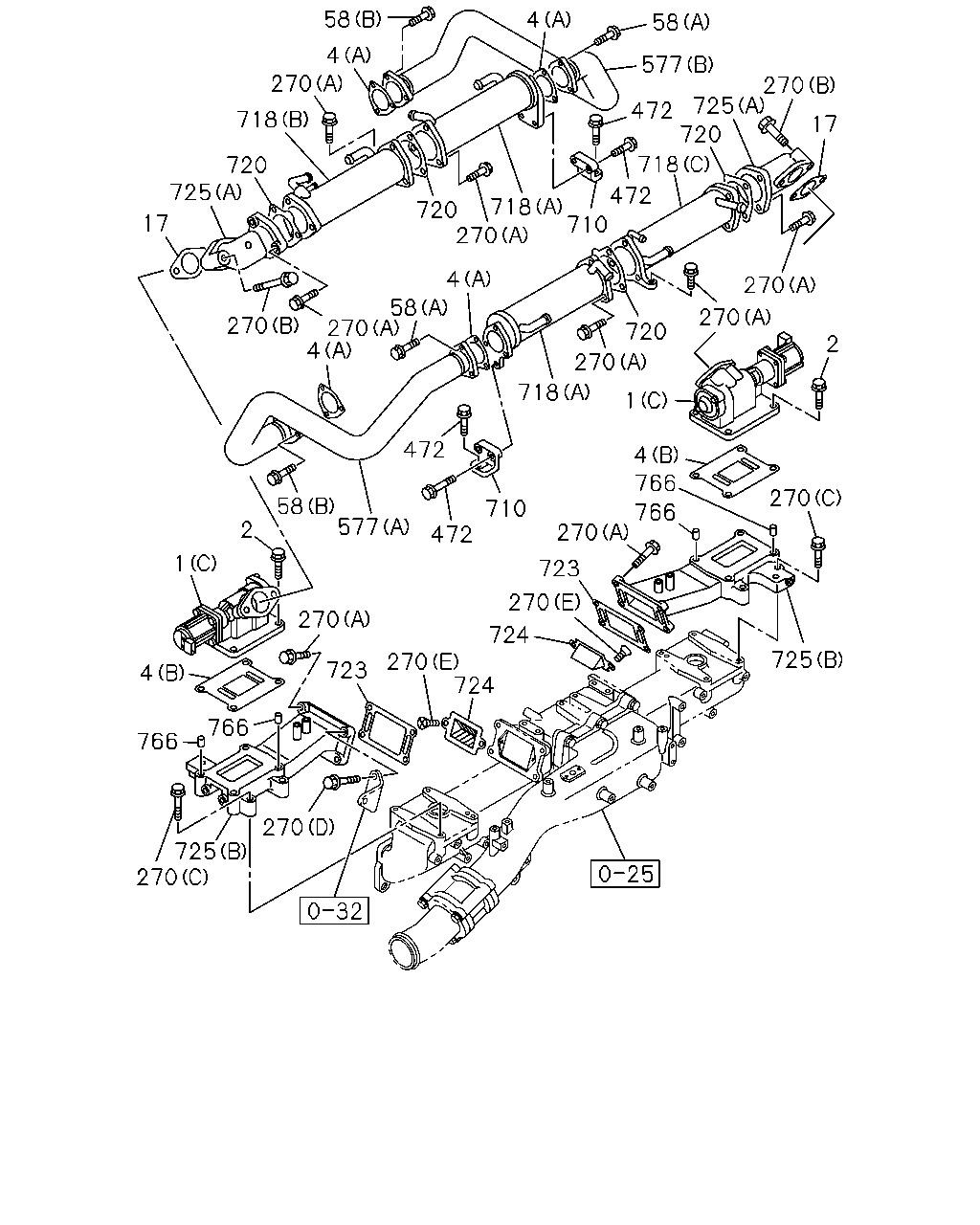

58 4 58 4 577 270 270 725 472 720 718 17 718 720 725 472 718 710 720 270 17 4 270 58 270 270 270 4 720 2 270 718 1 472 4 766 270 58 577 710 766 2 270 472 1 723 270 270 724 725 270 724 723 4 766 766 270 725 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR EURO3 SPECIFICATION<NJX> (B)	1-16110-015-3	01	1	1008-	●
1	VALVE; EGR EURO3 SPECIFICATION<NJX> (A)	1-16110-016-3	01	1	1008-	●
1	VALVE; EGR (C)	8-98029-595-7	02	1	1008-1502		●
1	VALVE; EGR (C)	8-98238-266-1	02	1	1503-		●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NJX> M10X20 FLANGE	0-28151-020-0	04	1	1008-	●
2	BOLT; EGR VLV M10X30 FLANGE	0-28751-030-0	08	1	1008-1405		●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	08	1	1406-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (C)	1-16157-015-0	04	1	1008-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97601-836-0	04	1	1008-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97608-423-0	02	1	1008-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=47	8-97603-282-0	02	1	1008-		●
58	BOLT; PIPE EURO3 SPECIFICATION<NJX> (C) M10X55 FLANGE	8-97365-449-0	12	1	1008-	●
58	BOLT; PIPE (A) M8X25 FLANGE	0-28650-825-0	06	1	1008-		●
58	BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	06	1	1008-		●
270	BOLT (F) M10X35 FLANGE	0-28151-035-0	08	1	1008-	●
270	BOLT EURO3 SPECIFICATION<NJX> (G) M10X20 FLANGE	0-28151-020-0	04	1	1008-	●
270	BOLT EURO3 SPECIFICATION<NJX> (H) M10X30 FLANGE	0-28151-030-0	04	1	1008-	●
270	BOLT EURO3 SPECIFICATION<NJX> (E) M6X12 HEX SOCKET	9-05820-612-0	04	1	1008-1502	●
270	BOLT (E) M6X12 HEX SOCKET	9-05820-612-0	04	1	1008-1502		●
270	BOLT EURO3 SPECIFICATION<NJX> (E) M6X12 HEX SOCKET	8-98272-417-0	04	1	1503-	●
270	BOLT (E) M6X12 HEX SOCKET	8-98272-417-0	04	1	1503-		●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	08	1	1008-		●
270	BOLT (B) M10X70 FLANGE	0-28151-070-0	04	1	1008-		●
270	BOLT (A) M10X35 FLANGE	0-28751-035-0	20	1	1008-		●
270	BOLT (D) M10X40 FLANGE	0-28751-040-0	02	1	1008-		●
472	BOLT; BRKT M10X35 FLANGE	0-28751-035-0	06	1	1008-		●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NJX> (C)	1-16181-083-2	01	1	1008-	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NJX> (D)	1-16181-084-2	01	1	1008-	●
577	PIPE; AIR,EGR (A)	8-97608-515-0	01	1	1008-		●
577	PIPE; AIR,EGR (B)	8-97608-516-0	01	1	1008-		●
710	BRACKET; EGR COOLER	8-97608-521-0	02	1	1008-		●
718	COOLER; EGR EURO3 SPECIFICATION<NJX> (A)	1-16127-016-2	01	1	1008-	●
718	COOLER; EGR EURO3 SPECIFICATION<NJX> (B)	1-16127-017-2	01	1	1008-	●
718	COOLER; EGR (A)	8-97608-517-1	02	1	1008-		●
718	COOLER; EGR (B)	8-97608-886-1	01	1	1008-		●
718	COOLER; EGR (C)	8-97608-887-1	01	1	1008-		●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>	1-16157-016-0	04	1	1008-	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=80	8-97603-889-0	04	1	1008-		●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-16185-004-0	02	1	1008-1502	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97648-198-0	02	1	1503-	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97621-936-0	02	1	1008-1502		●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97647-880-0	02	1	1503-		●
724	VALVE; REED EURO3 SPECIFICATION<NJX>	8-98186-738-0	02	1	1008-1502	●
724	VALVE; REED	8-98186-738-0	02	1	1008-1502		●
724	VALVE; REED EURO3 SPECIFICATION<NJX>	8-98272-702-0	02	1	1503-1503	●
724	VALVE; REED	8-98272-702-0	02	1	1503-1503		●
724	VALVE; REED EURO3 SPECIFICATION<NJX>	8-98291-639-0	02	1	1503-	●
724	VALVE; REED	8-98291-639-0	02	1	1503-		●
725	DUCT; EGR VLV (A)	8-97608-519-1	02	1	1008-1304		●
725	DUCT; EGR VLV (A)	8-98239-398-1	02	1	1305-		●
725	DUCT; EGR VLV (B)	8-98110-541-0	02	1	1008-1304		●
725	DUCT; EGR VLV (B)	8-98239-399-0	02	1	1305-1502		●
725	DUCT; EGR VLV (B)	8-98273-010-0	02	1	1503-		●
766	DOWEL; EGR VLV OD=14 L=10	9-11319-065-3	04	1	1008-		●
