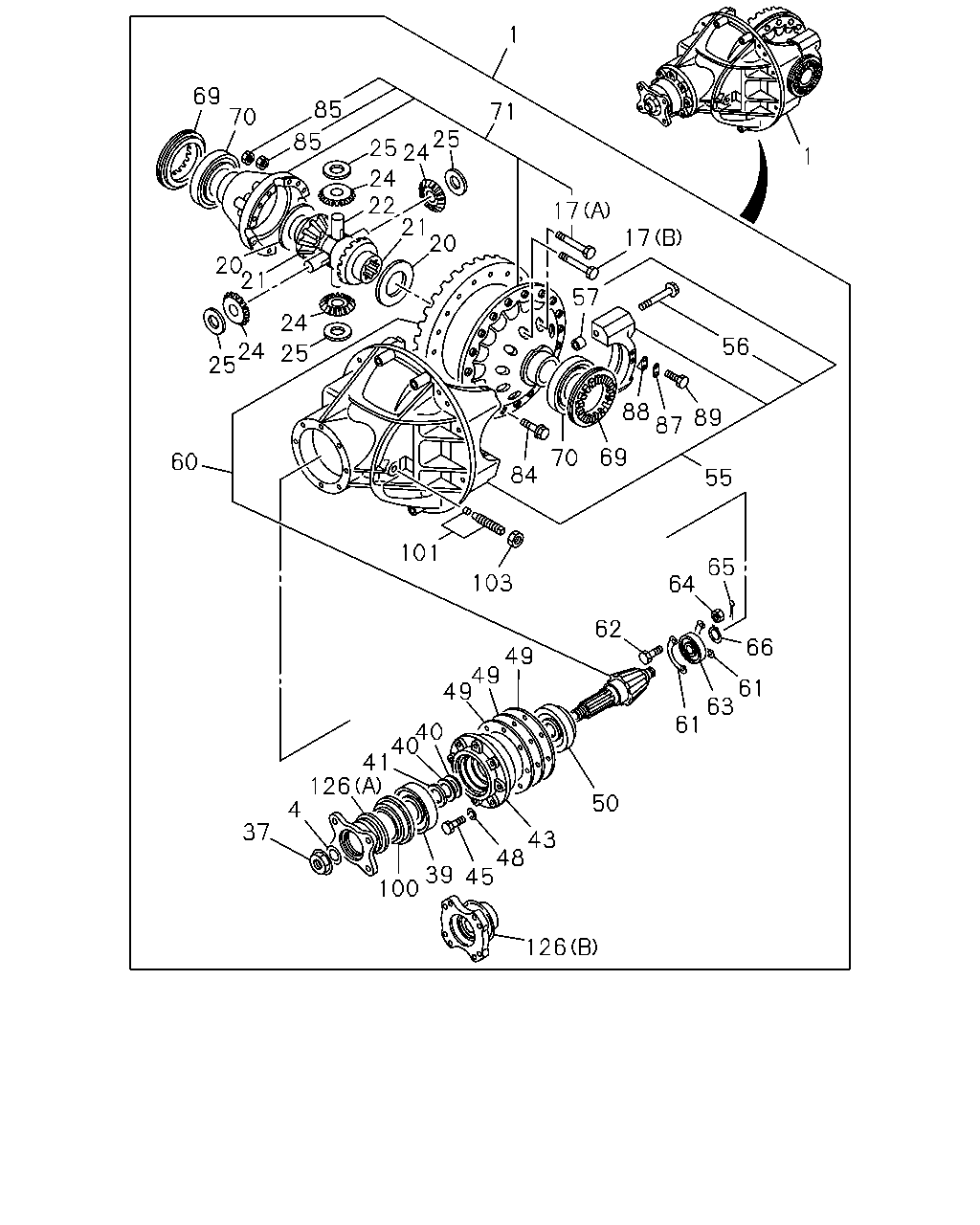

4-25A — REAR FINAL DRIVE (#5615) — 464 parça

1 69 70 85 71 25 25 24 24 22 21 20 85 1 17 17 20 21 57 24 56 24 25 25 88 87 89 69 70 60 84 55 101 65 103 64 62 66 49 49 49 61 63 61 40 40 41 126 4 50 37 43 48 45 39 100 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 39/8	1-41002-186-0	01	1	9905-9907	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/8	1-41002-158-0	01	1	9703-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41001-447-0	01	1	9603-9904	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 39/8	1-41001-447-0	01	1	9905-9907	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41001-447-0	01	1	9908-	●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> LIMITED SLIP DIFF(G86) 38/7	1-41002-340-0	01	1	9905-		●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> EXC. LIMITED SLIP DIFF(G86) 38/7	1-41001-489-0	01	1	9603-		●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> LIMITED SLIP DIFF(G86) 38/7	1-41001-042-0	01	1	9905-		●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF(G86) 38/7	1-41000-853-0	01	1	9603-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 41/8	1-41002-185-0	01	1	9905-9907			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/8	1-41001-819-0	01	1	9603-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-474-0	01	1	9603-9904			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 41/8	1-41001-474-0	01	1	9905-9907			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-474-0	01	1	9908-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 41/9	1-41002-187-0	01	1	9905-9907				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/9	1-41002-339-0	01	1	9905-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/9	1-41001-448-0	01	1	9603-9904				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 41/9	1-41001-448-0	01	1	9905-9907				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/9	1-41001-448-0	01	1	9908-				●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> LIMITED SLIP DIFF(G86) 41/7	1-41001-820-0	01	1	9603-					●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> EXC. LIMITED SLIP DIFF(G86) 41/7	1-41001-588-0	01	1	9603-					●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> LIMITED SLIP DIFF(G86) 41/7	1-41001-041-0	01	1	9603-					●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF(G86) 41/7	1-41000-857-0	01	1	9603-					●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 39/9	1-41002-192-0	01	1	9905-9907						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/9	1-41002-338-0	01	1	9905-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/9	1-41001-371-0	01	1	9603-9904						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-371-0	01	1	9905-9907						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/9	1-41001-371-0	01	1	9908-						●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> 37/6	1-41001-953-0	01	1	9604-9904							●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF(G86) 37/6	1-41001-953-0	01	1	9905-9907							●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> EXC. LIMITED SLIP DIFF(G86) 37/6	1-41001-953-0	01	1	9908-							●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> LIMITED SLIP DIFF(G86) 37/6	1-41001-847-0	01	1	9806-							●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> LIMITED SLIP DIFF(G86) 37/6	1-41001-040-0	01	1	9604-							●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF(G86) 37/6	1-41000-854-0	01	1	9604-							●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	9603-9603	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	9604-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	9603-9603	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	9604-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	9603-9603	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	9604-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.8	1-41562-260-0	AR	1	9603-9603	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.8	1-41562-260-0	AR	1	9604-9709	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.8	1-41562-270-1	AR	1	9710-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.9	1-41562-261-0	AR	1	9603-9603	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.9	1-41562-261-0	AR	1	9604-9709	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.9	1-41562-271-1	AR	1	9710-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.0	1-41562-262-0	AR	1	9603-9603	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.0	1-41562-262-0	AR	1	9604-9709	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.0	1-41562-272-1	AR	1	9710-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.1	1-41562-263-0	AR	1	9603-9603	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.1	1-41562-263-0	AR	1	9604-9709	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.1	1-41562-273-1	AR	1	9710-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.2	1-41562-264-0	AR	1	9603-9603	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.2	1-41562-264-0	AR	1	9604-9709	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.2	1-41562-274-1	AR	1	9710-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.3	1-41562-265-0	AR	1	9603-9603	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.3	1-41562-265-0	AR	1	9604-9709	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.3	1-41562-275-1	AR	1	9710-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.4	1-41562-266-0	AR	1	9603-9603	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.4	1-41562-266-0	AR	1	9604-9709	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.4	1-41562-276-1	AR	1	9710-	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-111-0	02	1	9603-9603	●	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-111-0	02	1	9604-9709	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-114-0	02	1	9710-	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86) OD=35	1-41521-052-0	01	1	9603-9603	●	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86) OD=35	1-41521-052-0	01	1	9604-	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-034-0	04	1	9603-9603	●	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-034-0	04	1	9604-	●	●	●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) T=1.6	1-41552-003-0	04	1	9603-9603	●	●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) T=1.6	1-41552-003-0	04	1	9604-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	9603-9603	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	9604-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9603-9603	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9604-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-0	01	1	9603-9603	●	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9604-	●	●	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9603-9603	●	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9604-9904	●	●	●	●	●	●	●
43	CAGE; FINAL PINION EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> T=82	1-41151-057-0	01	1	9905-9907	●	●	●	●	●	●	●
43	CAGE; FINAL PINION INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> T=82	1-41151-057-0	01	1	9905-9907	●		●	●		●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9908-	●	●	●	●	●	●	●
43	CAGE; FINAL PINION INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2>	1-41151-087-0	01	1	9905-9907	●		●	●		●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	9603-9603	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	9604-	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	9603-9603	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	9604-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	9603-9603	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	9604-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9603-9603	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9604-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	9603-9603	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	9604-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	9603-9603	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	9604-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-0	01	1	9603-9603	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	9604-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-0	01	1	9603-9603	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	9604-	●	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9603-9603	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9604-	●	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9603-9603	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9604-	●	●	●	●	●	●	●
57	DOWEL; BRG CAP	9-41119-033-1	04	1	9603-9603	●	●	●	●	●	●
57	DOWEL; BRG CAP	9-41119-033-1	04	1	9604-	●	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-487-1	01	1	9603-9901	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	9902-9904	●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 39/8	1-41210-618-0	01	1	9905-9907	●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 39/8	1-41210-618-0	01	1	9905-9907	●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86) 39/8	1-41210-618-0	01	1	9908-	●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 39/8	1-41210-618-0	01	1	9908-	●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 39/8	1-41210-487-1	01	1	9905-9907	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-456-1	01	1	9603-9901		●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-616-0	01	1	9902-		●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-486-1	01	1	9603-9901			●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-617-0	01	1	9902-9904			●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 41/8	1-41210-617-0	01	1	9905-9907			●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 41/8	1-41210-617-0	01	1	9905-9907			●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 41/8	1-41210-617-0	01	1	9908-			●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86) 41/8	1-41210-617-0	01	1	9908-			●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 41/8	1-41210-486-1	01	1	9905-9907			●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-488-1	01	1	9603-9802				●
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G86) 41/9	1-41210-488-1	01	1	9803-9901				●
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G86) 41/9	1-41210-619-0	01	1	9902-9904				●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 41/9	1-41210-619-0	01	1	9905-9907				●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 41/9	1-41210-619-0	01	1	9905-9907				●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 41/9	1-41210-619-0	01	1	9908-				●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86) 41/9	1-41210-619-0	01	1	9908-				●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 41/9	1-41210-488-1	01	1	9905-9907				●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-485-0	01	1	9603-9901					●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-615-0	01	1	9902-					●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-489-1	01	1	9603-9802						●
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G86) 39/9	1-41210-489-1	01	1	9803-9901						●
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G86) 39/9	1-41210-620-0	01	1	9902-9904						●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 39/9	1-41210-620-0	01	1	9905-9907						●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-620-0	01	1	9905-9907						●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 39/9	1-41210-620-0	01	1	9908-						●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86) 39/9	1-41210-620-0	01	1	9908-						●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 39/9	1-41210-489-1	01	1	9905-9907						●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-484-0	01	1	9604-9901							●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	9902-							●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9603-9603	●	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9604-	●	●	●	●	●	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	9603-9603	●	●	●	●	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	9604-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9603-9603	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9604-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	9603-9603	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	9604-	●	●	●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9603-9603	●	●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9604-9707	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9603-9603	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9604-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9603-9603	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9604-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9603-9603	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9604-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9603-9603	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9604-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9603-9603	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9604-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9603-9603	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9604-	●	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-155-0	01	1	9603-9603	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-155-0	01	1	9604-9709	●	●	●		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-255-0	01	1	9710-9912	●	●	●		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-277-0	01	1	0001-	●	●	●		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-157-0	01	1	9603-9709				●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-257-0	01	1	9710-9912				●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-279-0	01	1	0001-				●		●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	9603-9603	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	9604-	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	9603-9603	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	9604-	●	●	●	●	●	●	●
87	WASHER; LK	9-41124-014-0	02	1	9603-9603	●	●	●	●	●	●
87	WASHER; LK	9-41124-014-0	02	1	9604-9809	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	1-41124-001-0	01	1	9603-9603	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	1-41124-001-0	01	1	9604-9807	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	01	1	9603-9603	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	01	1	9604-9807	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	02	1	9808-	●	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20	0-23801-020-0	04	1	9603-9603	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20	0-23801-020-0	04	1	9604-9809	●	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	9810-	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	9603-9603	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	9604-	●	●	●	●	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9603-9603	●	●	●	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9604-	●	●	●	●	●	●	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9603-9603	●	●	●	●	●	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9604-	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION P115 PROP SHAFT<C5X> (A)	1-37245-211-2	01	1	9603-9603	●	●	●	●	●	●
126	COUPLING; DRIVING PINION P115 PROP SHAFT<C5X> (A)	1-37245-211-3	01	1	9604-9901	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION P115 PROP SHAFT<C5X> (B)	1-37245-267-2	01	1	9902-	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION P90 PROP SHAFT<C5T> (A)	1-37245-143-2	01	1	9603-9603		●			●
126	COUPLING; DRIVING PINION P90 PROP SHAFT<C5T> (A)	1-37245-143-2	01	1	9604-9901		●			●		●
126	COUPLING; DRIVING PINION P90 PROP SHAFT<C5T> (B)	1-37245-265-2	01	1	9902-		●			●		●

1 69 70 85 85 71 1 108 107 106 105 17 105 106 107 108 109 17 57 56 104 60 88 89 87 69 70 84 55 65 101 64 103 62 66 49 49 49 61 63 61 40 40 41 126 50 4 37 43 48 45 39 100 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 39/8	1-41002-186-0	01	1	9905-9907	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/8	1-41002-158-0	01	1	9703-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41001-447-0	01	1	9603-9904	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 39/8	1-41001-447-0	01	1	9905-9907	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41001-447-0	01	1	9908-	●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> LIMITED SLIP DIFF(G86) 38/7	1-41002-340-0	01	1	9905-		●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> EXC. LIMITED SLIP DIFF(G86) 38/7	1-41001-489-0	01	1	9603-		●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> LIMITED SLIP DIFF(G86) 38/7	1-41001-042-0	01	1	9905-		●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF(G86) 38/7	1-41000-853-0	01	1	9603-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 41/8	1-41002-185-0	01	1	9905-9907			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/8	1-41001-819-0	01	1	9603-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-474-0	01	1	9603-9904			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 41/8	1-41001-474-0	01	1	9905-9907			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-474-0	01	1	9908-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 41/9	1-41002-187-0	01	1	9905-9907				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/9	1-41002-339-0	01	1	9905-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/9	1-41001-448-0	01	1	9603-9904				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 41/9	1-41001-448-0	01	1	9905-9907				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/9	1-41001-448-0	01	1	9908-				●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> LIMITED SLIP DIFF(G86) 41/7	1-41001-820-0	01	1	9603-					●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> EXC. LIMITED SLIP DIFF(G86) 41/7	1-41001-588-0	01	1	9603-					●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> LIMITED SLIP DIFF(G86) 41/7	1-41001-041-0	01	1	9603-					●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF(G86) 41/7	1-41000-857-0	01	1	9603-					●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 39/9	1-41002-192-0	01	1	9905-9907						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/9	1-41002-338-0	01	1	9905-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/9	1-41001-371-0	01	1	9603-9904						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41001-371-0	01	1	9905-9907						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/9	1-41001-371-0	01	1	9908-						●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> 37/6	1-41001-953-0	01	1	9604-9904							●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF(G86) 37/6	1-41001-953-0	01	1	9905-9907							●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> EXC. LIMITED SLIP DIFF(G86) 37/6	1-41001-953-0	01	1	9908-							●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> LIMITED SLIP DIFF(G86) 37/6	1-41001-847-0	01	1	9806-							●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> LIMITED SLIP DIFF(G86) 37/6	1-41001-040-0	01	1	9604-							●
1	DRIVE ASM; FINAL,RR P90 PROP SHAFT<C5T> EXC. LIMITED SLIP DIFF(G86) 37/6	1-41000-854-0	01	1	9604-							●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	9603-9603	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	9604-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	9603-9603	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	9604-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	9603-9603	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	9604-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	9603-9603	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	9604-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9603-9603	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9604-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-0	01	1	9603-9603	●	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9604-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9603-9603	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9604-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9603-9603	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9604-	●	●	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9603-9603	●	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9604-9904	●	●	●	●	●	●	●
43	CAGE; FINAL PINION EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> T=82	1-41151-057-0	01	1	9905-9907	●	●	●	●	●	●	●
43	CAGE; FINAL PINION INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. BRAKE SYSTEM RETARDER<RE2> T=82	1-41151-057-0	01	1	9905-9907	●		●	●		●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9908-	●	●	●	●	●	●	●
43	CAGE; FINAL PINION INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2>	1-41151-087-0	01	1	9905-9907	●		●	●		●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	9603-9603	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	9604-	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	9603-9603	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	9604-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	9603-9603	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	9604-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9603-9603	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9604-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	9603-9603	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	9604-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	9603-9603	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	9604-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-0	01	1	9603-9603	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	9604-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-0	01	1	9603-9603	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	9604-	●	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9603-9603	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9604-	●	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9603-9603	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9604-	●	●	●	●	●	●	●
57	DOWEL; BRG CAP	9-41119-033-1	04	1	9603-9603	●	●	●	●	●	●
57	DOWEL; BRG CAP	9-41119-033-1	04	1	9604-	●	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-487-1	01	1	9603-9901	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	9902-9904	●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 39/8	1-41210-618-0	01	1	9905-9907	●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 39/8	1-41210-618-0	01	1	9905-9907	●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86) 39/8	1-41210-618-0	01	1	9908-	●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 39/8	1-41210-618-0	01	1	9908-	●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 39/8	1-41210-487-1	01	1	9905-9907	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-456-1	01	1	9603-9901		●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-616-0	01	1	9902-		●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-486-1	01	1	9603-9901			●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-617-0	01	1	9902-9904			●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 41/8	1-41210-617-0	01	1	9905-9907			●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 41/8	1-41210-617-0	01	1	9905-9907			●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 41/8	1-41210-617-0	01	1	9908-			●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86) 41/8	1-41210-617-0	01	1	9908-			●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 41/8	1-41210-486-1	01	1	9905-9907			●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-488-1	01	1	9603-9802				●
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G86) 41/9	1-41210-488-1	01	1	9803-9901				●
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G86) 41/9	1-41210-619-0	01	1	9902-9904				●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 41/9	1-41210-619-0	01	1	9905-9907				●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 41/9	1-41210-619-0	01	1	9905-9907				●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 41/9	1-41210-619-0	01	1	9908-				●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86) 41/9	1-41210-619-0	01	1	9908-				●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 41/9	1-41210-488-1	01	1	9905-9907				●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-485-0	01	1	9603-9901					●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-615-0	01	1	9902-					●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-489-1	01	1	9603-9802						●
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G86) 39/9	1-41210-489-1	01	1	9803-9901						●
60	GEAR SET; FINAL DRIVE,RR EXC. LIMITED SLIP DIFF(G86) 39/9	1-41210-620-0	01	1	9902-9904						●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 39/9	1-41210-620-0	01	1	9905-9907						●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41210-620-0	01	1	9905-9907						●
60	GEAR SET; FINAL DRIVE,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 39/9	1-41210-620-0	01	1	9908-						●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. LIMITED SLIP DIFF(G86) 39/9	1-41210-620-0	01	1	9908-						●
60	GEAR SET; FINAL DRIVE,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF(G86) 39/9	1-41210-489-1	01	1	9905-9907						●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-484-0	01	1	9604-9901							●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	9902-							●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9603-9603	●	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9604-	●	●	●	●	●	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	9603-9603	●	●	●	●	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	9604-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9603-9603	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9604-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	9603-9603	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	9604-	●	●	●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9603-9603	●	●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9604-9707	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9603-9603	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9604-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9603-9603	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9604-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9603-9603	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9604-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9603-9603	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9604-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9603-9603	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9604-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9603-9603	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9604-	●	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-155-0	01	1	9603-9603	●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-155-0	01	1	9604-9709	●	●	●		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-255-0	01	1	9710-9912	●	●	●		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-277-0	01	1	0001-	●	●	●		●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-157-0	01	1	9603-9709				●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-257-0	01	1	9710-9912				●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-279-0	01	1	0001-				●		●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	9603-9603	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	9604-	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	9603-9603	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	9604-	●	●	●	●	●	●	●
87	WASHER; LK	9-41124-014-0	02	1	9603-9603	●	●	●	●	●	●
87	WASHER; LK	9-41124-014-0	02	1	9604-9809	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	1-41124-001-0	01	1	9603-9603	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	1-41124-001-0	01	1	9604-9807	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	01	1	9603-9603	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	01	1	9604-9807	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	02	1	9808-	●	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20	0-23801-020-0	04	1	9603-9603	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20	0-23801-020-0	04	1	9604-9809	●	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	9810-	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	9603-9603	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	9604-	●	●	●	●	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9603-9603	●	●	●	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9604-	●	●	●	●	●	●	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9603-9603	●	●	●	●	●	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9604-	●	●	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-022-0	01	1	9603-9603			●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-022-0	01	1	9604-9702			●		●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-022-0	01	1	9703-9709	●		●		●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-047-0	01	1	9710-9904	●		●		●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-047-0	01	1	9905-	●	●	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-026-0	02	1	9603-9603			●		●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-026-0	02	1	9604-9702			●		●		●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-026-0	02	1	9703-9709	●		●		●		●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-040-0	02	1	9710-9904	●		●		●		●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-040-0	02	1	9905-	●	●	●	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41535-004-0	02	1	9603-9603			●		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41535-004-0	02	1	9604-9702			●		●		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41535-004-0	02	1	9703-9904	●		●		●		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41535-004-0	02	1	9905-	●	●	●	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-006-0	02	1	9603-9603			●		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-006-0	02	1	9604-9702			●		●		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-006-0	02	1	9703-9709	●		●		●		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-014-0	02	1	9710-9904	●		●		●		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-014-0	02	1	9905-	●	●	●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-024-1	02	1	9603-9603			●		●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-024-1	02	1	9604-9702			●		●		●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-024-1	02	1	9703-9709	●		●		●		●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-023-0	01	1	9603-9603			●		●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-023-0	01	1	9604-9702			●		●		●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-023-0	01	1	9703-9904	●		●		●		●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-023-0	01	1	9905-	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION P115 PROP SHAFT<C5X> (A)	1-37245-211-2	01	1	9603-9603	●	●	●	●	●	●
126	COUPLING; DRIVING PINION P115 PROP SHAFT<C5X> (A)	1-37245-211-3	01	1	9604-9901	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION P115 PROP SHAFT<C5X> (B)	1-37245-267-2	01	1	9902-	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION P90 PROP SHAFT<C5T> (A)	1-37245-143-2	01	1	9603-9603		●			●
126	COUPLING; DRIVING PINION P90 PROP SHAFT<C5T> (A)	1-37245-143-2	01	1	9604-9901		●			●		●
126	COUPLING; DRIVING PINION P90 PROP SHAFT<C5T> (B)	1-37245-265-2	01	1	9902-		●			●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
