◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11195 - GVR CNG(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#56144) — 46 parça

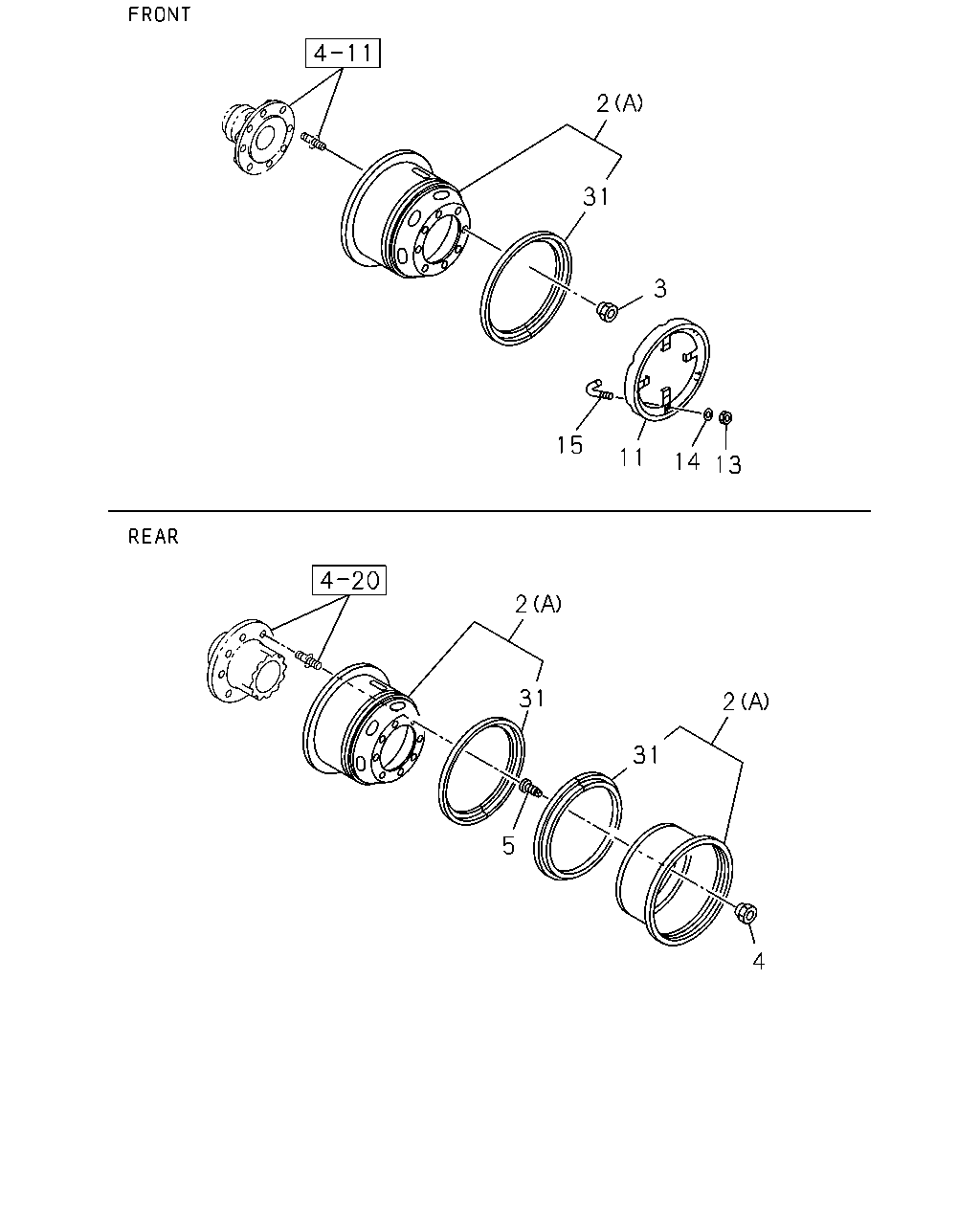

çizim 163123
2 31 3 15 11 14 13 2 31 2 31 5 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR 		1-42350-667-0 04 1 1008-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> (A) FRONT,REAR 		1-42350-478-0 06 1 1006-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE 		1-42350-478-0 01 1 1006-
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) FRONT,REAR 		1-42350-362-0 06 1 1006-
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE 		1-42350-362-0 01 1 1006-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE 		1-42350-758-0 01 1 1006-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE 		1-42350-667-0 01 1 1006-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT,REAR 		1-42350-758-0 06 1 1006-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT,REAR 		1-42350-667-0 06 1 1006-1007
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT 		1-42350-667-0 02 1 1008-
3 NUT; WHEEL,FRT AXLE
WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M24 THA 		8-97916-063-0 08 1 1006-
3 NUT; WHEEL,FRT AXLE
WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M24 LH THREAD THA 		8-97916-064-0 08 1 1006-
4 NUT; WHEEL,RR AXLE
WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M30 THA 		8-97916-066-0 08 1 1006-
4 NUT; WHEEL,RR AXLE
WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M30 LH THREAD THA 		8-97916-121-0 08 1 1006-
5 NUT; WHEEL,INNER,RR AXLE
WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 RH THREAD THA 		8-97916-065-0 08 1 1006-
5 NUT; WHEEL,INNER,RR AXLE
WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 LH THREAD THA 		8-97916-676-0 08 1 1006-
11 STEP; DISC WHEEL SIDE
WHEEL 8STUD 7.00TX20 162-12<Q54> DISC WHEEL STEP<W66> THA 		1-43139-028-0 02 1 1006-
13 NUT; STEP DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> DISC WHEEL STEP<W66> M10 THA 		0-91110-510-0 06 1 1006-
14 WASHER; LK,STEP DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> DISC WHEEL STEP<W66> ID=10.2 		0-91510-810-0 06 1 1006-
15 BOLT; STEP DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> DISC WHEEL STEP<W66> L=44 THA 		9-43139-023-1 06 1 1006-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12<Q54> FRONT,REAR 		1-42355-003-1 06 1 1006-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL REAR<R46> SPARE 		1-42355-003-1 01 1 1006-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.50VX20 165-13<Q62> FRONT,REAR 		1-42355-004-1 06 1 1006-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> SPARE 		1-42355-004-1 01 1 1006-

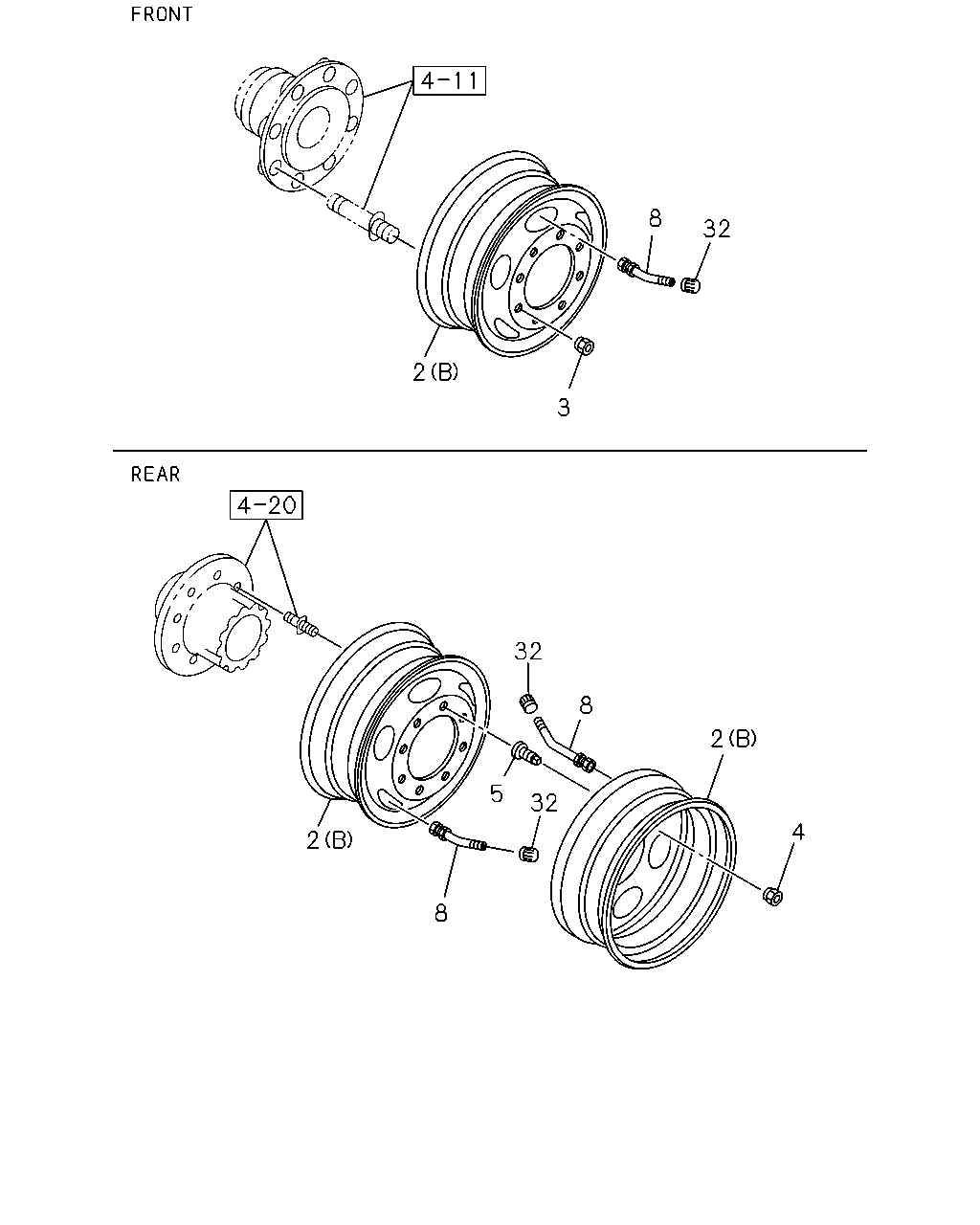

çizim 163140
8 32 2 3 32 8 2 5 32 4 2 8
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR 		1-42350-667-0 04 1 1008-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> (A) FRONT,REAR 		1-42350-478-0 06 1 1006-
2 WHEEL; DISC
WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE 		1-42350-478-0 01 1 1006-
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> (A) FRONT,REAR 		1-42350-362-0 06 1 1006-
2 WHEEL; DISC
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE 		1-42350-362-0 01 1 1006-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE 		1-42350-758-0 01 1 1006-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE 		1-42350-667-0 01 1 1006-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT,REAR 		1-42350-758-0 06 1 1006-
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT,REAR 		1-42350-667-0 06 1 1006-1007
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT 		1-42350-667-0 02 1 1008-
3 NUT; WHEEL,FRT AXLE
WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M24 THA 		8-97916-063-0 08 1 1006-
3 NUT; WHEEL,FRT AXLE
WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M24 LH THREAD THA 		8-97916-064-0 08 1 1006-
4 NUT; WHEEL,RR AXLE
WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M30 THA 		8-97916-066-0 08 1 1006-
4 NUT; WHEEL,RR AXLE
WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> M30 LH THREAD THA 		8-97916-121-0 08 1 1006-
5 NUT; WHEEL,INNER,RR AXLE
WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 RH THREAD THA 		8-97916-065-0 08 1 1006-
5 NUT; WHEEL,INNER,RR AXLE
WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 LH THREAD THA 		8-97916-676-0 08 1 1006-
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR 		1-42370-020-3 04 1 1008-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE 		1-42370-020-3 01 1 1006-
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT,REAR 		1-42370-020-3 06 1 1006-1007
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT 		1-42370-020-3 02 1 1008-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46> EXC. WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-42374-001-0 07 1 1006-
32 CAP; VALVE
EXC. WHEEL 8STUD 7.00TX20 162-12<Q54>,WHEEL 8STUD 7.50VX20 165-13<Q62>,SPARE TIRE & DISC WHEEL REAR<R46> 		1-42374-001-0 06 1 1006-
