◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11195 - GVR CNG(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#56143) — 23 parça

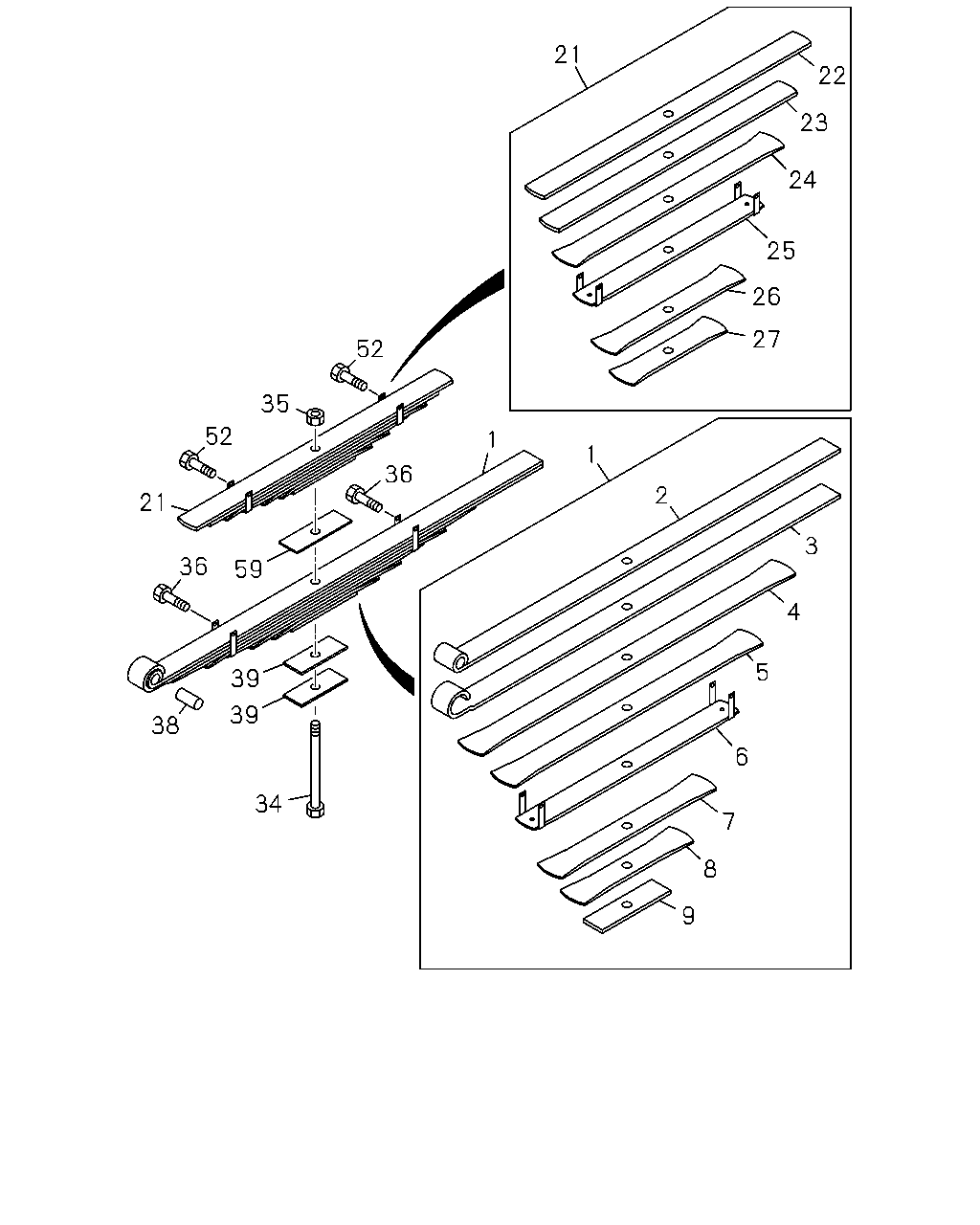

çizim 163127
21 22 23 24 25 26 27 52 35 52 1 1 36 2 21 3 36 59 4 5 39 39 38 6 34 7 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
THA ASM PART: A = 1-51300-532-0 		1-51310-721-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
THA ASM PART: A = 1-51300-532-0 		1-51311-721-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
THA ASM PART: A = 1-51300-532-0 		1-51312-721-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
THA ASM PART: A = 1-51300-532-0 		1-51313-721-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
THA ASM PART: A = 1-51300-532-0 		1-51314-721-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
W/CLIP, THA ASM PART: A = 1-51300-532-0 		1-51315-721-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
THA ASM PART: A = 1-51300-532-0 		1-51316-721-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
THA ASM PART: A = 1-51300-532-0 		1-51317-721-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
THA ASM PART: A = 1-51300-532-0 		1-51318-721-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
THA ASM PART: A = 1-51300-532-0 		1-51340-450-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
THA ASM PART: A = 1-51300-532-0 		1-51341-450-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
THA ASM PART: A = 1-51300-532-0 		1-51342-450-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
THA ASM PART: A = 1-51300-532-0 		1-51343-450-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
THA ASM PART: A = 1-51300-532-0 		1-51344-450-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
THA ASM PART: A = 1-51300-532-0 		1-51345-450-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
THA ASM PART: A = 1-51300-532-0 		1-51346-450-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210, THA ASM PART: A = 1-51300-532-0 		1-51356-146-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16, THA ASM PART: A = 1-51300-532-0 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117, THA ASM PART: A = 1-51300-532-0 		1-09000-334-0 02 1 -
38 BUSHING; LEAF SPR,RR
THA ASM PART: A = 1-51300-532-0 		1-51351-010-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10, THA ASM PART: A = 1-51300-532-0 		1-51377-118-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117, THA ASM PART: A = 1-51300-532-0 		1-09000-334-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10, THA ASM PART: A = 1-51300-532-0 		1-51377-118-0 01 1 -
