Isuzu WW
▶
TRUCKS
▶
GVR
▶
11195 - GVR CNG(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#56141) — 29 parça
◀

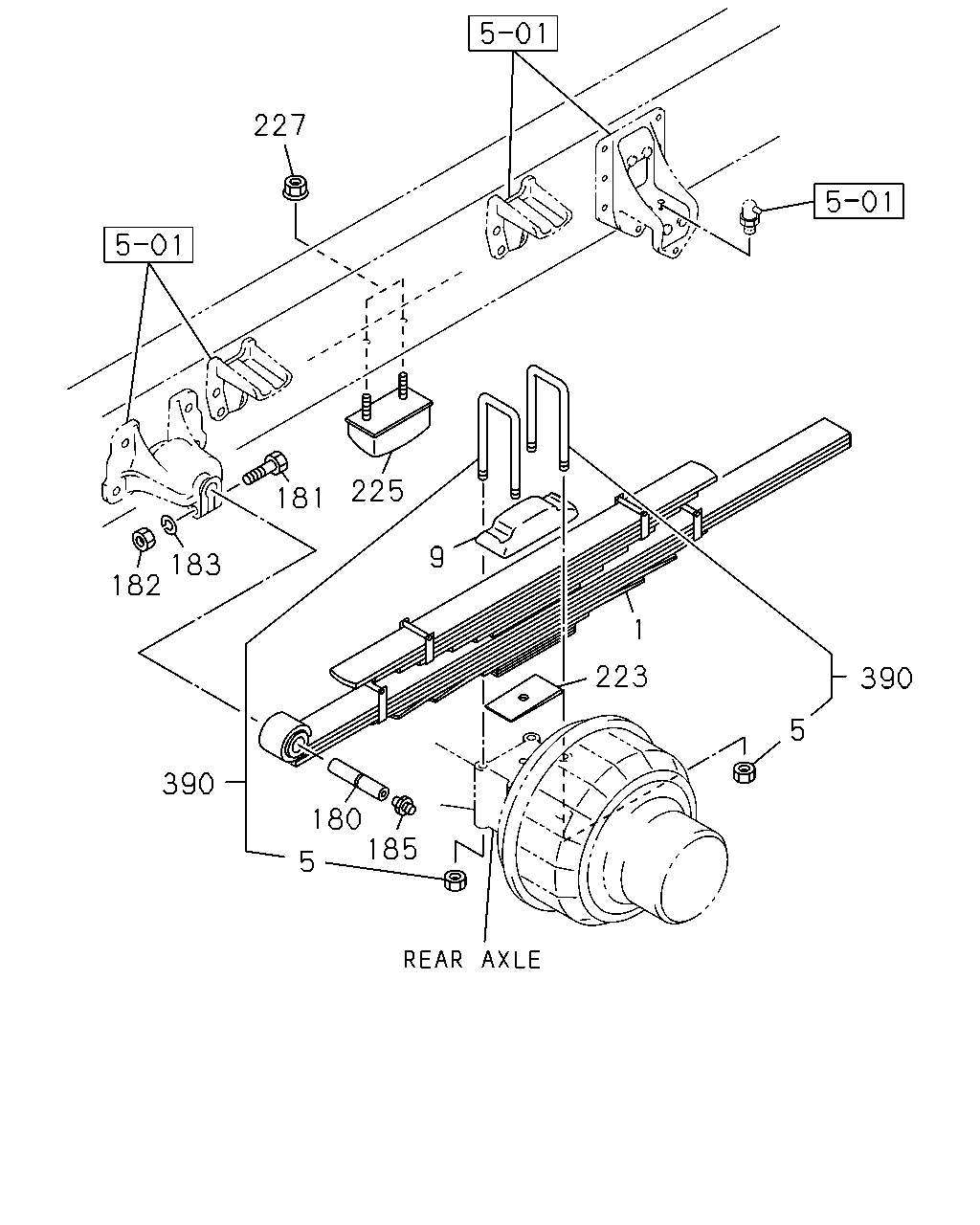

[460A] LEAF SPRING (12 parça)

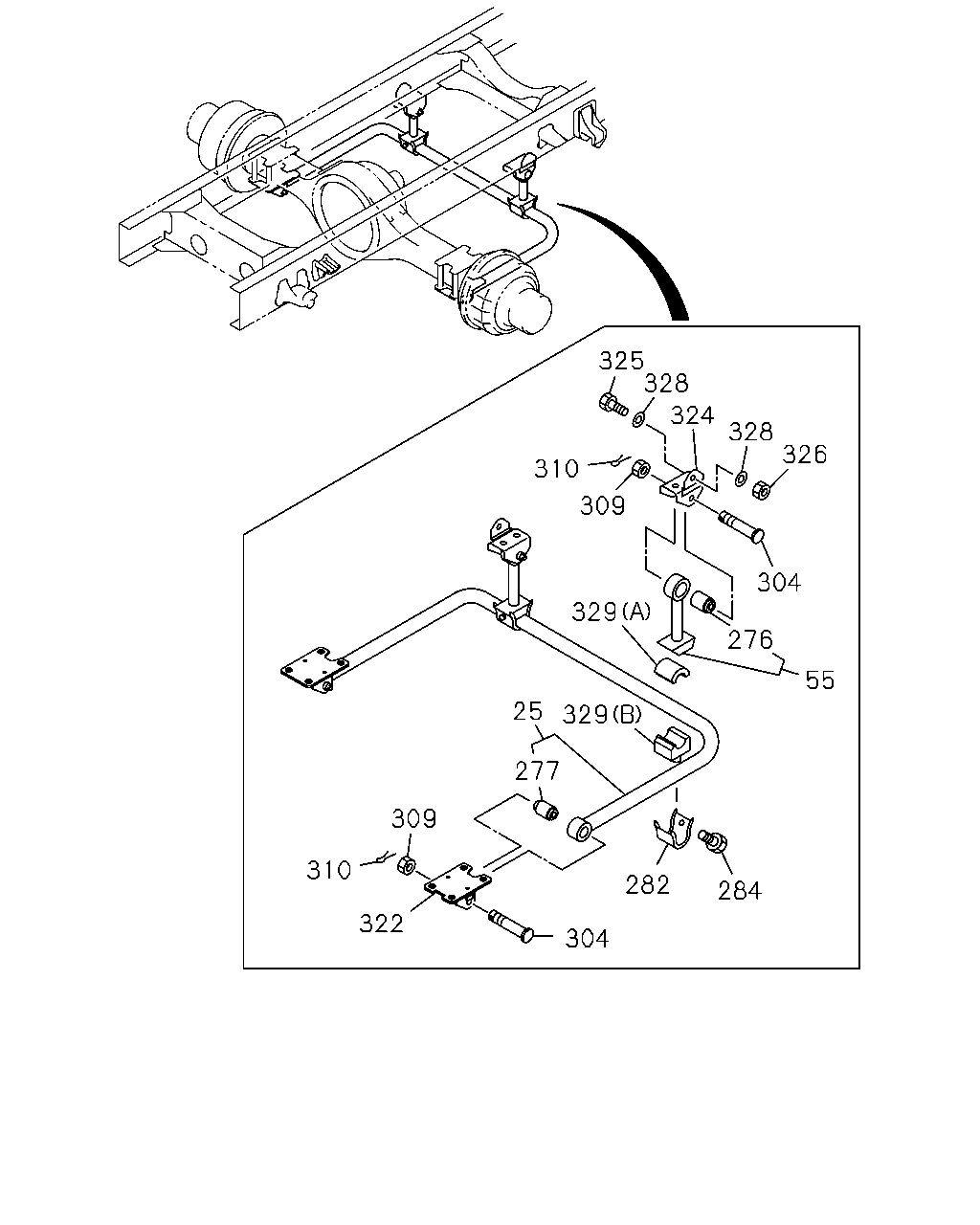

[460A] STABILIZER (17 parça)
▶
227
225
181
9
183
182
1
223
390
5
390
180
185
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA
1-51300-532-0
02
1
1006-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1006-
9
PAD; U BOLT,RR SPR
1-51372-030-0
02
1
1006-
180
PIN; RR SPR
1-51361-020-0
02
1
1006-
181
BOLT; SPR & SHACKLE
M14X80
0-10856-480-0
02
1
1006-
182
NUT; PIN,RR SPR
M14 THA
0-91110-514-0
02
1
1006-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1006-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1006-
223
SPACER; U BOLT,RR SPR
8-98091-873-0
02
1
1006-1212
225
RUBBER; CUSHION,RR SPR
1-53366-081-1
02
1
1006-
227
NUT; CUSHION RUBBER
M12 FLANGE THA
0-91180-212-0
04
1
1006-
390
U-BOLT SET; RR SPRING
L=490
1-87870-299-1
04
1
1006-
325
328
324
328
326
310
309
304
329
276
55
25
329
277
309
310
282
284
322
304
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BAR ASM; STAB,RR SUSP
1-51770-030-2
01
1
1006-
55
ROD; STAB
1-51770-035-1
02
1
1006-
276
BUSHING; STAB ROD
1-51779-019-0
02
1
1006-
277
BUSHING; STAB,RR UPR
1-51779-067-0
02
1
1006-
282
RETAINER; STAB BAR
1-51789-015-2
02
1
1006-
284
BOLT; RET TO RET
M10X25
8-94463-351-0
08
1
1006-
304
PIN; STAB ROD
1-51789-020-2
04
1
1006-
309
NUT; STAB ROD
M24
9-99116-424-0
04
1
1006-
310
PIN; SPLIT,STAB ROD
OD=4.6 L=45
0-81125-045-0
04
1
1006-
322
BRACKET; STAB BAR TO RR AXLE
1-51781-048-4
01
1
1006-
322
BRACKET; STAB BAR TO RR AXLE
1-51781-127-0
01
1
1006-
324
BRACKET; STAB BAR TO FRAME
1-51781-059-0
02
1
1006-
325
BOLT; BRKT TO FRAME
M14X40
0-20951-440-0
06
1
1006-
326
NUT; BRKT TO FRAME
M14 THA
0-91110-514-0
06
1
1006-
328
WASHER; PL,BRKT
ID=15
8-98010-627-1
12
1
1006-
329
BUSHING; STAB ROD
(A)
1-51789-051-1
02
1
1006-
329
BUSHING; STAB ROD
(B)
1-51789-052-0
02
1
1006-
