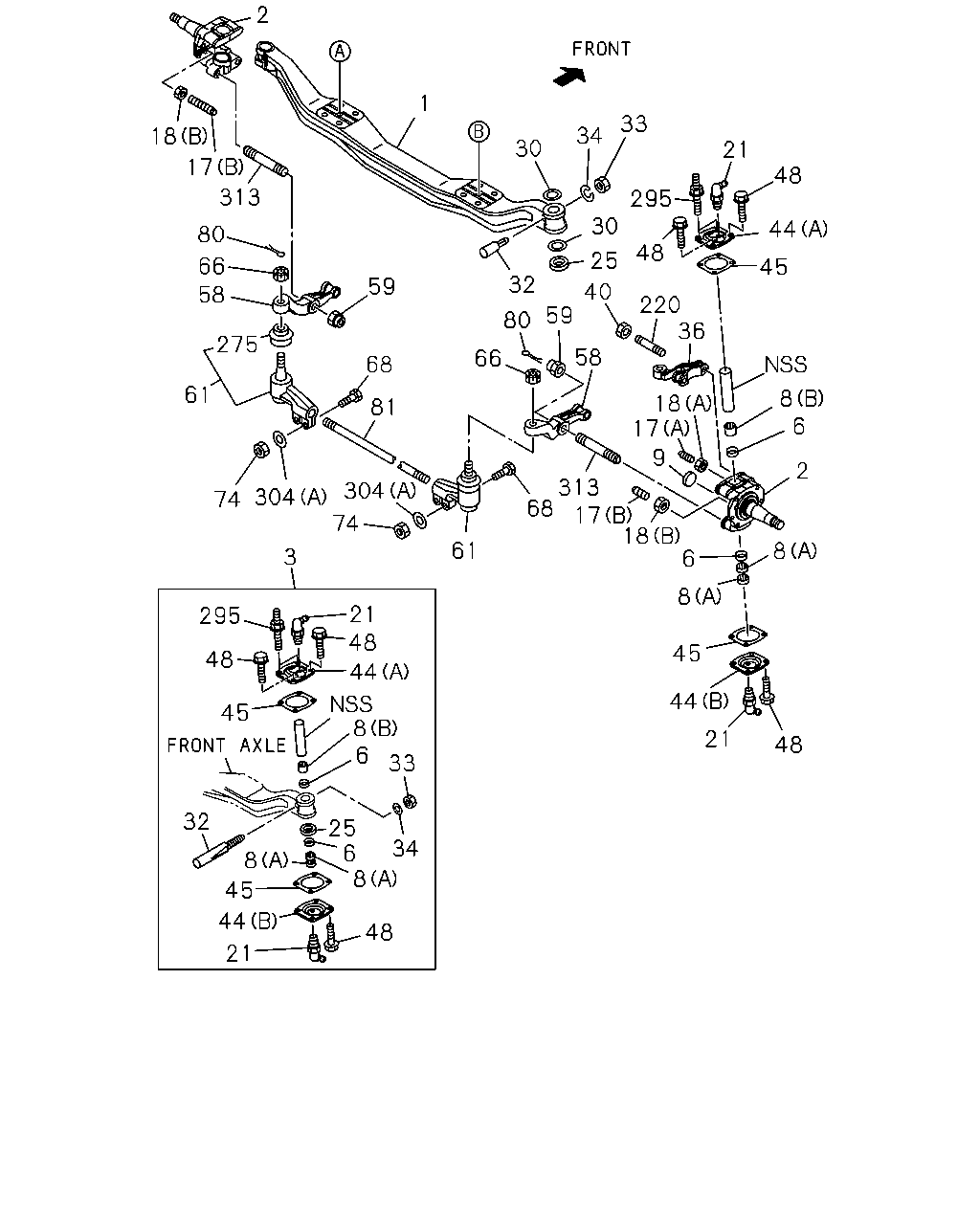

4-10 — FRONT AXLE (#56128) — 174 parça

2 1 33 34 18 30 21 17 48 313 295 30 44 80 48 25 66 45 32 59 40 58 220 36 59 80 275 58 66 68 18 17 61 8 6 81 9 2 313 68 17 18 6 304 304 74 74 61 8 3 8 21 48 295 45 48 44 44 8 6 45 21 48 33 32 25 6 8 34 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT VIN MODEL YEAR 2011<VZB>	8-98170-180-2	01	1	1010-
1	AXLE; FRT	8-98061-842-2	01	1	1006-1009
1	AXLE; FRT EXC. VIN MODEL YEAR 2011<VZB>	8-98061-842-2	01	1	1010-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1006-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1006-
3	KING PIN SET VIN MODEL YEAR 2011<VZB>	1-87831-410-1	02	1	1010-
3	KING PIN SET	1-87831-349-2	02	1	1006-1009
3	KING PIN SET EXC. VIN MODEL YEAR 2011<VZB>	1-87831-349-1	02	1	1010-
6	SEAL; KING PIN	9-09926-024-0	04	1	1006-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1006-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1006-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1006-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1006-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1006-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	02	1	1006-1207
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	04	1	1208-1208
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	06	1	1209-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1006-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1006-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1006-
30	WASHER; THRUST,KING PIN T=4.875 -4.900 THA	1-43171-185-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=4.900 -4.925 THA	1-43171-186-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=4.925 -4.950 THA	1-43171-187-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=4.950 -4.975 THA	1-43171-188-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.075 -5.100 THA	1-43171-193-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.100 -5.125 THA	1-43171-194-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.125 -5.150 THA	1-43171-195-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.150 -5.175 THA	1-43171-196-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.175 -5.200 THA	1-43171-197-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.200 -5.225 THA	1-43171-198-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.225 -5.250 THA	1-43171-199-0	AR	1	1006-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	1006-
33	NUT; KEY BOLT VIN MODEL YEAR 2011<VZB> M10 THA	0-91110-510-0	06	1	1205-
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	1006-
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1010-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1006-1009
34	WASHER; LK,KEY BOLT EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1010-
36	ARM; KNUCKLE	1-43133-073-3	01	1	1006-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1006-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1006-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1006-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1006-
48	BOLT; COVER M10X25 FLANGE THA	0-28751-025-0	12	1	1006-
58	ARM; TIE ROD	1-43134-049-4	01	1	1006-
58	ARM; TIE ROD	1-43135-049-4	01	1	1006-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1006-
61	ROD END; TIE ROD	8-98054-851-0	01	1	1006-1009
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	01	1	1006-1009
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1006-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	02	1	1006-1009
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1006-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1006-
81	ROD; TIE	1-43151-157-0	01	1	1006-1009
81	ROD; TIE	8-98171-947-0	01	1	1010-
220	STUD; KNUCKLE ARM	1-09300-127-1	02	1	1006-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1006-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1006-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	1006-1009
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	1006-
313	STUD; TIE ROD ARM	1-09300-127-1	04	1	1006-

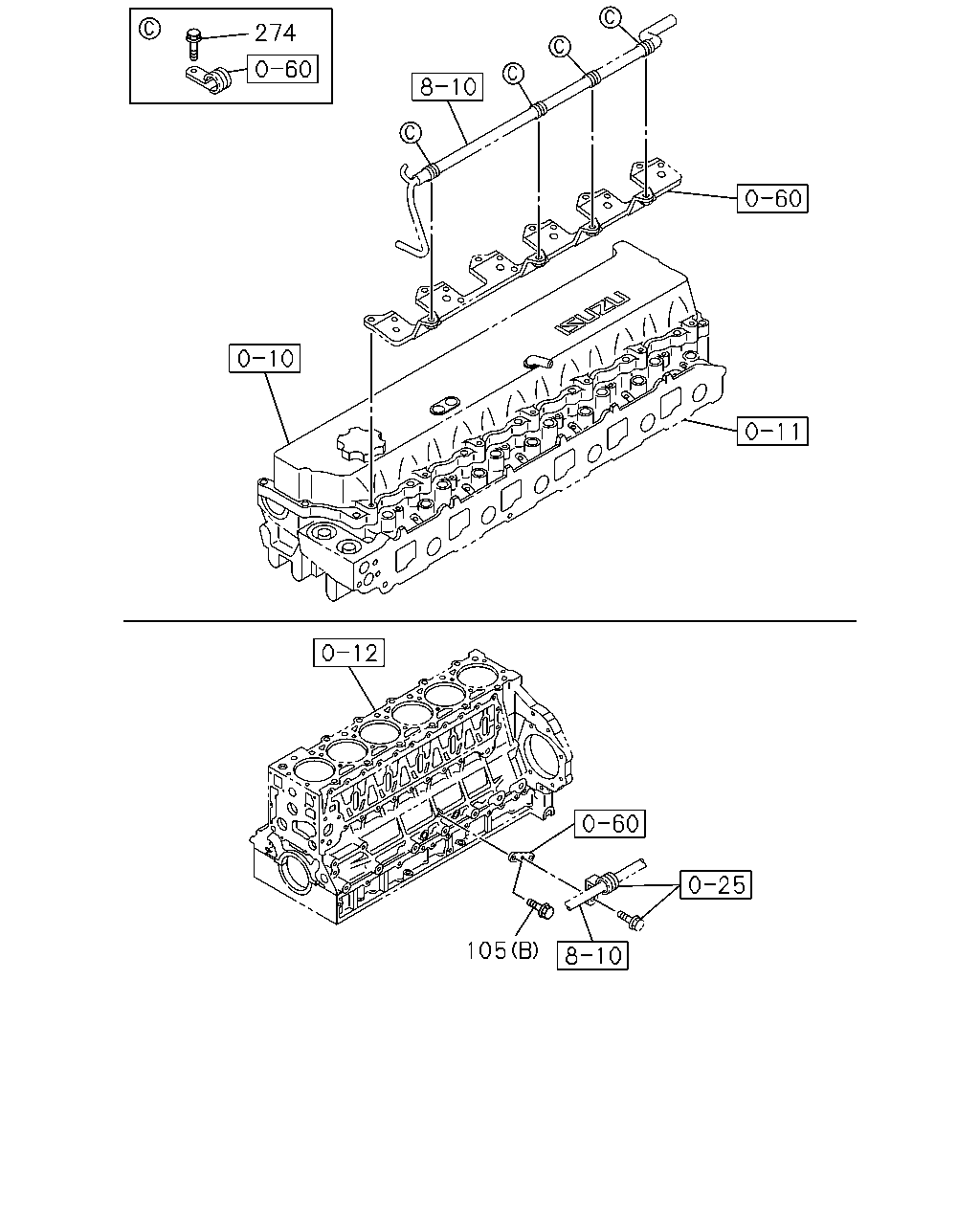

274 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
105	BOLT; BRKT FIX (A) M14X70	0-10956-470-0	04	1	1006-
105	BOLT; BRKT FIX (B) M10X25 FLANGE THA	0-28151-025-0	02	1	1006-
274	BOLT; CLIP M8X20 FLANGE THA	0-28050-820-0	04	1	1006-

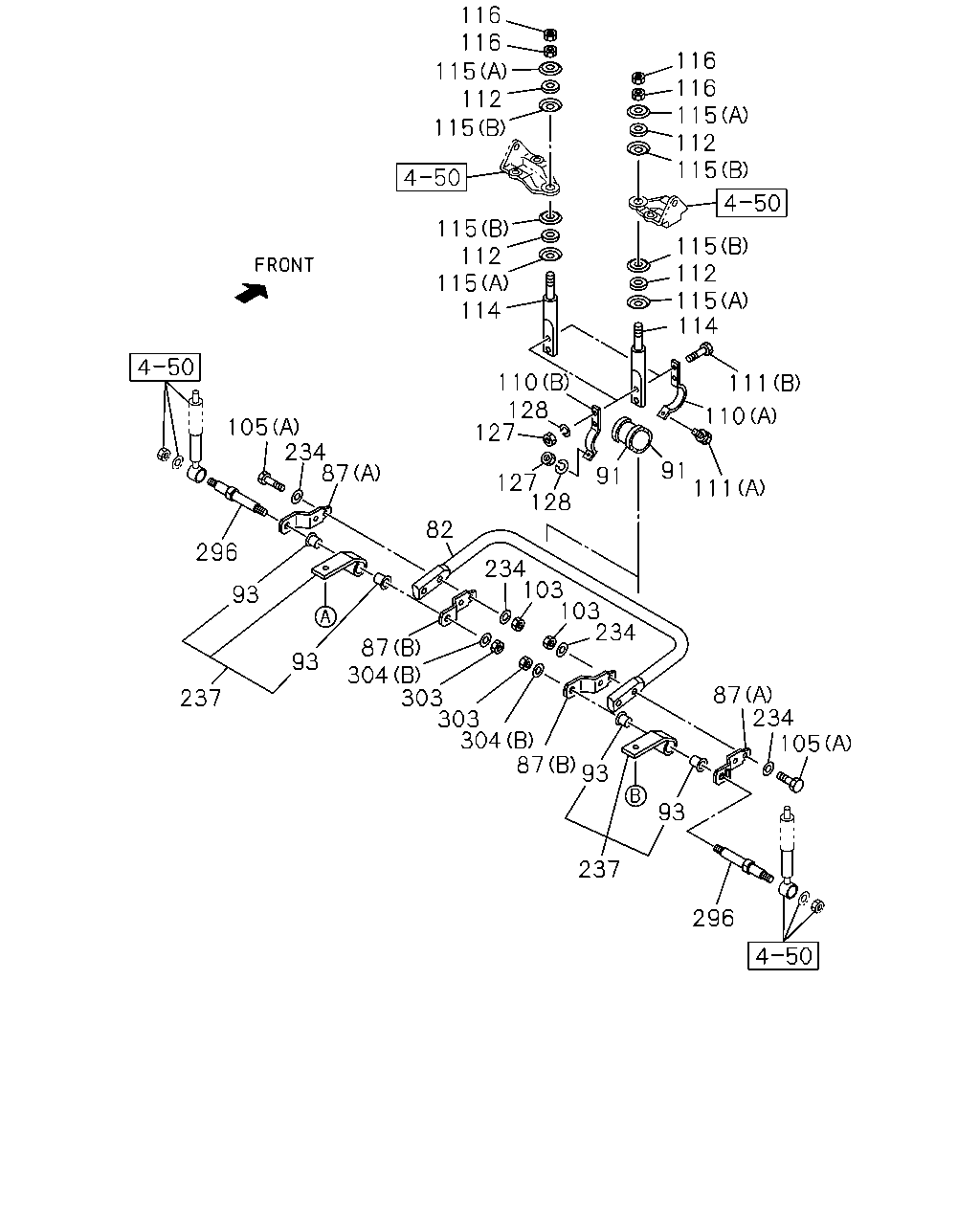

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 110 128 127 111 110 105 234 87 91 91 127 128 111 82 296 234 103 103 234 93 87 304 303 303 304 87 93 93 87 234 105 237 93 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP	8-98012-961-1	01	1	1006-
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1006-
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1006-
91	BUSHING; RUBBER,STAB BAR	1-51779-079-1	04	1	1006-
93	BUSHING; STABILIZER	1-51689-015-3	04	1	1006-
103	NUT; BRKT FIX M14 THA	0-91110-514-0	04	1	1006-
105	BOLT; BRKT FIX (A) M14X70	0-10956-470-0	04	1	1006-
105	BOLT; BRKT FIX (B) M10X25 FLANGE THA	0-28151-025-0	02	1	1006-
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	1006-
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	1006-
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	1006-
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	1006-
112	BUSHING; ROD	9-51631-050-0	04	1	1006-
114	ROD; STAB BAR THA	1-51773-065-0	02	1	1006-
115	WASHER; CENTER,STAB TO FRAME (B) ID=16.8	1-51631-022-0	04	1	1006-
115	WASHER; CENTER,STAB TO FRAME (A) ID=14.5	9-51631-051-0	04	1	1006-
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	1006-
127	NUT; CLAMP M12	0-91110-512-0	06	1	1006-
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1006-
234	WASHER; STAB ID=15	8-98010-627-1	08	1	1006-
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	1006-
296	PIN; STAB	8-98022-874-1	02	1	1006-
303	NUT; PIN M20	0-91110-520-0	02	1	1006-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	1006-1009
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	1006-

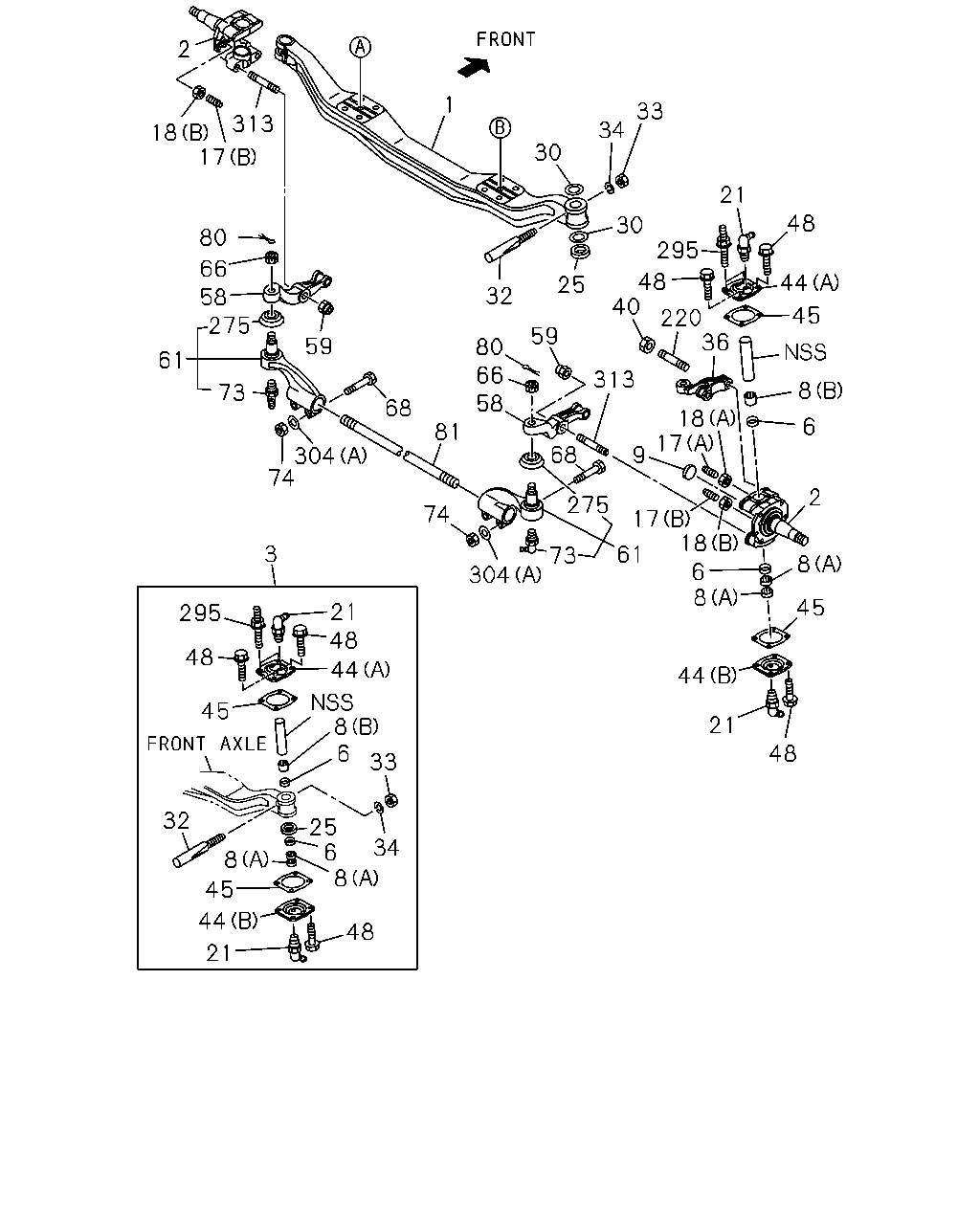

2 1 33 313 34 18 17 30 21 48 30 80 295 66 58 275 48 40 44 25 32 220 36 45 59 59 80 66 58 61 313 8 73 18 17 68 6 81 68 9 304 74 2 275 74 17 18 3 61 73 8 6 8 304 45 21 48 295 48 44 44 8 6 45 21 48 33 32 25 6 8 34 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT VIN MODEL YEAR 2011<VZB>	8-98170-180-2	01	1	1010-
1	AXLE; FRT	8-98061-842-2	01	1	1006-1009
1	AXLE; FRT EXC. VIN MODEL YEAR 2011<VZB>	8-98061-842-2	01	1	1010-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1006-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1006-
3	KING PIN SET VIN MODEL YEAR 2011<VZB>	1-87831-410-1	02	1	1010-
3	KING PIN SET	1-87831-349-2	02	1	1006-1009
3	KING PIN SET EXC. VIN MODEL YEAR 2011<VZB>	1-87831-349-1	02	1	1010-
6	SEAL; KING PIN	9-09926-024-0	04	1	1006-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1006-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1006-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1006-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1006-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1006-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	02	1	1006-1207
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	04	1	1208-1208
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	06	1	1209-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1006-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1006-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1006-
30	WASHER; THRUST,KING PIN T=4.875 -4.900 THA	1-43171-185-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=4.900 -4.925 THA	1-43171-186-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=4.925 -4.950 THA	1-43171-187-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=4.950 -4.975 THA	1-43171-188-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.075 -5.100 THA	1-43171-193-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.100 -5.125 THA	1-43171-194-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.125 -5.150 THA	1-43171-195-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.150 -5.175 THA	1-43171-196-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.175 -5.200 THA	1-43171-197-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.200 -5.225 THA	1-43171-198-0	AR	1	1006-
30	WASHER; THRUST,KING PIN T=5.225 -5.250 THA	1-43171-199-0	AR	1	1006-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	1006-
33	NUT; KEY BOLT VIN MODEL YEAR 2011<VZB> M10 THA	0-91110-510-0	06	1	1205-
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	1006-
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1010-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1006-1009
34	WASHER; LK,KEY BOLT EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1010-
36	ARM; KNUCKLE	1-43133-073-3	01	1	1006-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1006-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1006-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1006-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1006-
48	BOLT; COVER M10X25 FLANGE THA	0-28751-025-0	12	1	1006-
58	ARM; TIE ROD	1-43134-049-4	01	1	1006-
58	ARM; TIE ROD	1-43135-049-4	01	1	1006-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1006-
61	ROD END; TIE ROD	8-98054-851-0	01	1	1006-1009
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	01	1	1006-1009
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1006-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	02	1	1006-1009
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1010-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1006-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1006-
81	ROD; TIE	1-43151-157-0	01	1	1006-1009
81	ROD; TIE	8-98171-947-0	01	1	1010-
220	STUD; KNUCKLE ARM	1-09300-127-1	02	1	1006-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1006-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1006-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	02	1	1006-1009
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	1006-
313	STUD; TIE ROD ARM	1-09300-127-1	04	1	1006-
