4-01 — PROPELLER SHAFT (#56126) — 57 parça
çizim 163019
56 74 1 8 128 9 225 104 9 8 106 56 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1419 THA 		1-37124-625-0 01 1 1006- ●
1 SHAFT; PROP
(B) L=961 		1-37124-744-0 01 1 1006- ●
1 SHAFT; PROP
(C) L=730 		8-98149-062-0 01 1 1006- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 01 1 1006- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 02 1 1006- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST THA 		1-37300-111-0 01 1 1006- ●
9 JOURNAL ASM; PROP SHAFT
END THA 		1-37300-110-0 02 1 1006- ● ●
14 COVER; DUST,SPIDER
THA 		1-37249-131-0 16 1 1202- ●
14 COVER; DUST,SPIDER
THA 		1-37249-131-0 08 1 1006- ● ●
14 COVER; DUST,SPIDER
THA 		1-37249-131-0 04 1 1006- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1006- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1006- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 04 1 1006- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 08 1 1006- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1006- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1006- ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 1006- ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-067-0 01 1 1006- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1006- ● ●
128 SEAL; SLEEVE
THA 		1-37247-019-0 01 1 1006- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=330 THA 		1-37241-124-0 01 1 1006- ● ●

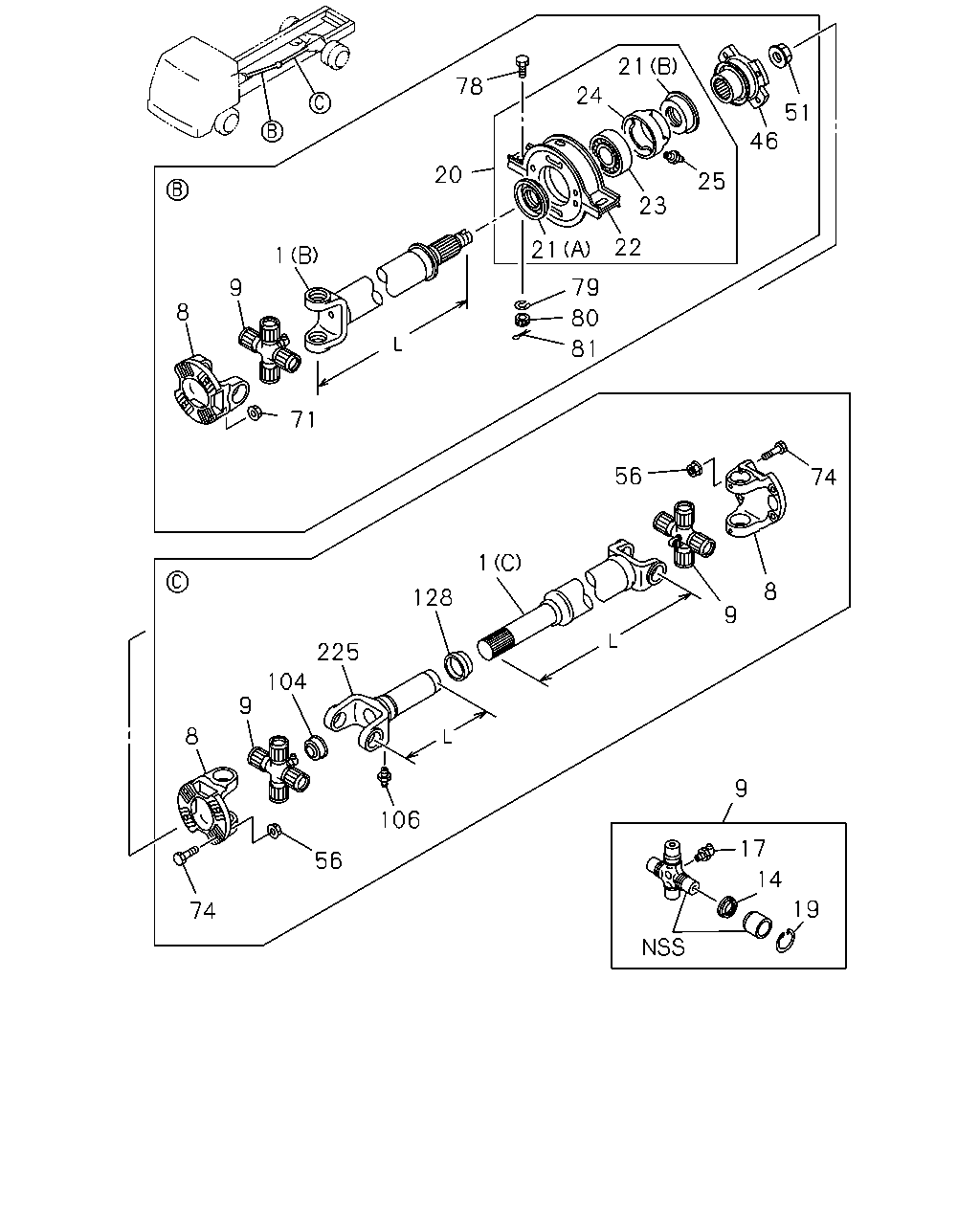

çizim 163171
21 78 24 51 46 20 25 23 22 21 1 79 9 8 80 81 71 56 74 1 8 128 9 225 104 9 8 9 106 17 56 14 19 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(A) L=1419 THA 		1-37124-625-0 01 1 1006- ●
1 SHAFT; PROP
(B) L=961 		1-37124-744-0 01 1 1006- ●
1 SHAFT; PROP
(C) L=730 		8-98149-062-0 01 1 1006- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 01 1 1006- ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 02 1 1006- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST THA 		1-37300-111-0 01 1 1006- ●
9 JOURNAL ASM; PROP SHAFT
END THA 		1-37300-110-0 02 1 1006- ● ●
14 COVER; DUST,SPIDER
THA 		1-37249-131-0 16 1 1202- ●
14 COVER; DUST,SPIDER
THA 		1-37249-131-0 08 1 1006- ● ●
14 COVER; DUST,SPIDER
THA 		1-37249-131-0 04 1 1006- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1006- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1006- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 04 1 1006- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 08 1 1006- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 THA 		1-37510-115-0 01 1 1006- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-127-0 01 1 1006- ●
21 SEAL; OIL,CENTER BRG
(B) THA 		1-09625-621-0 01 1 1006- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-048-2 01 1 1006- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1006- ●
24 RETAINER; CENTER BRG,1ST
THA 		1-37529-109-0 01 1 1006- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1006- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		1-37245-348-0 01 1 1006- ●
51 NUT; FLANGE,SPLINED
M39 FLANGE THA 		1-09440-046-0 01 1 1006- ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1006- ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1006- ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1006- ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 1006- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1006- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1006- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1006-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1006- ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-067-0 01 1 1006- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1006- ● ●
128 SEAL; SLEEVE
THA 		1-37247-019-0 01 1 1006- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=330 THA 		1-37241-124-0 01 1 1006- ● ●
