Isuzu WW
▶
TRUCKS
▶
GVR
▶
11195 - GVR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#56124) — 35 parça
◀

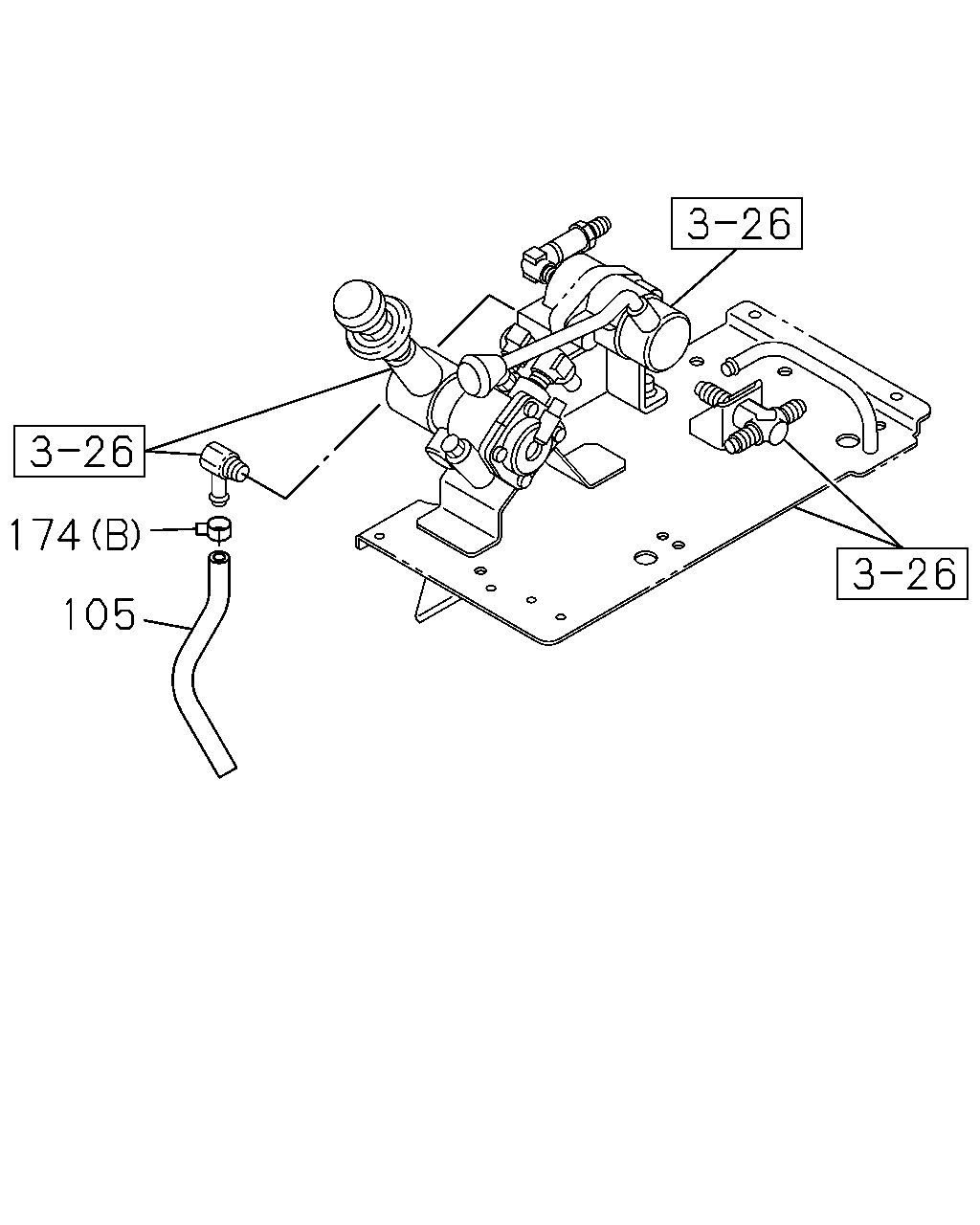

[380A] NO.1 (3 parça)

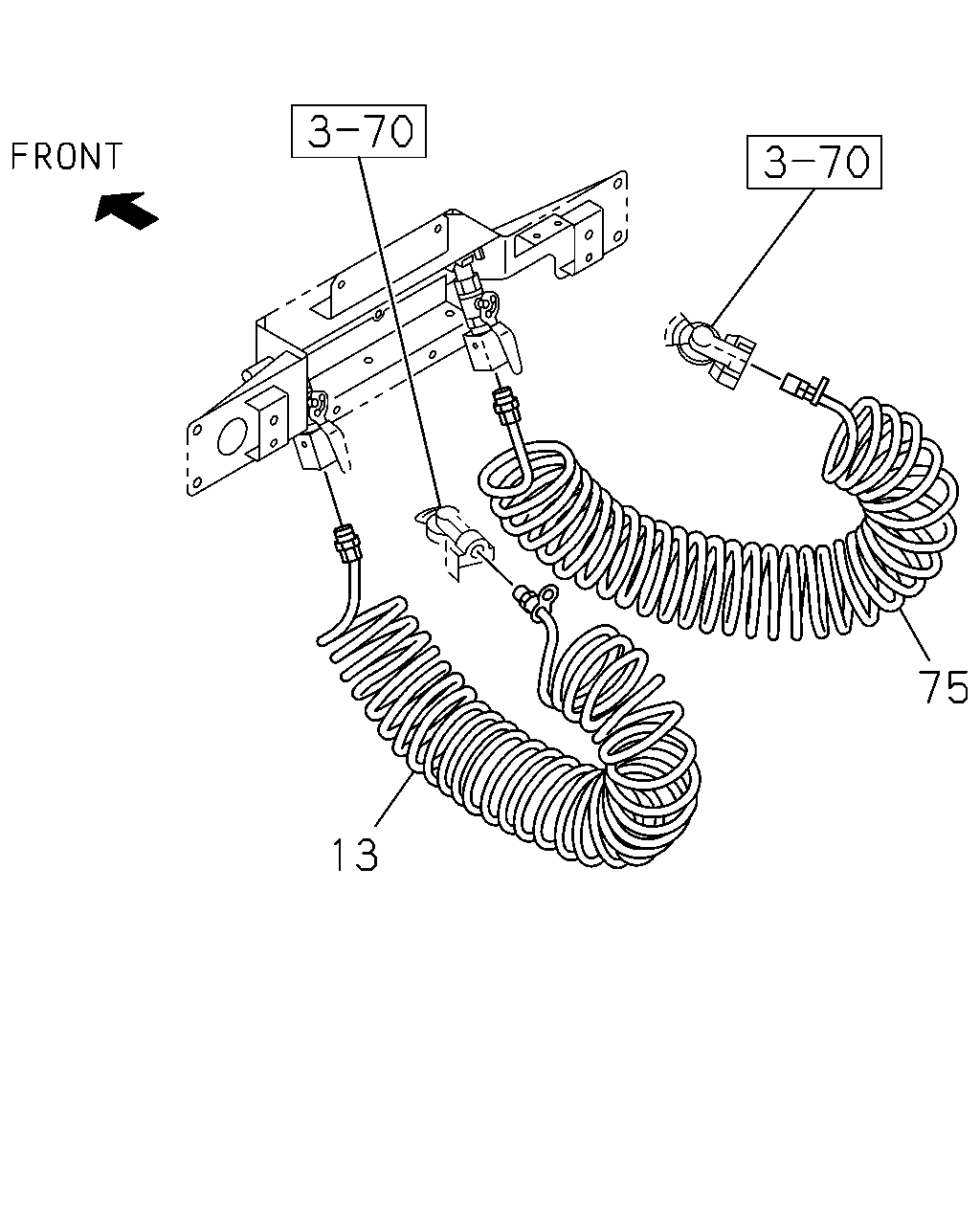

[380A] NO.3 (2 parça)

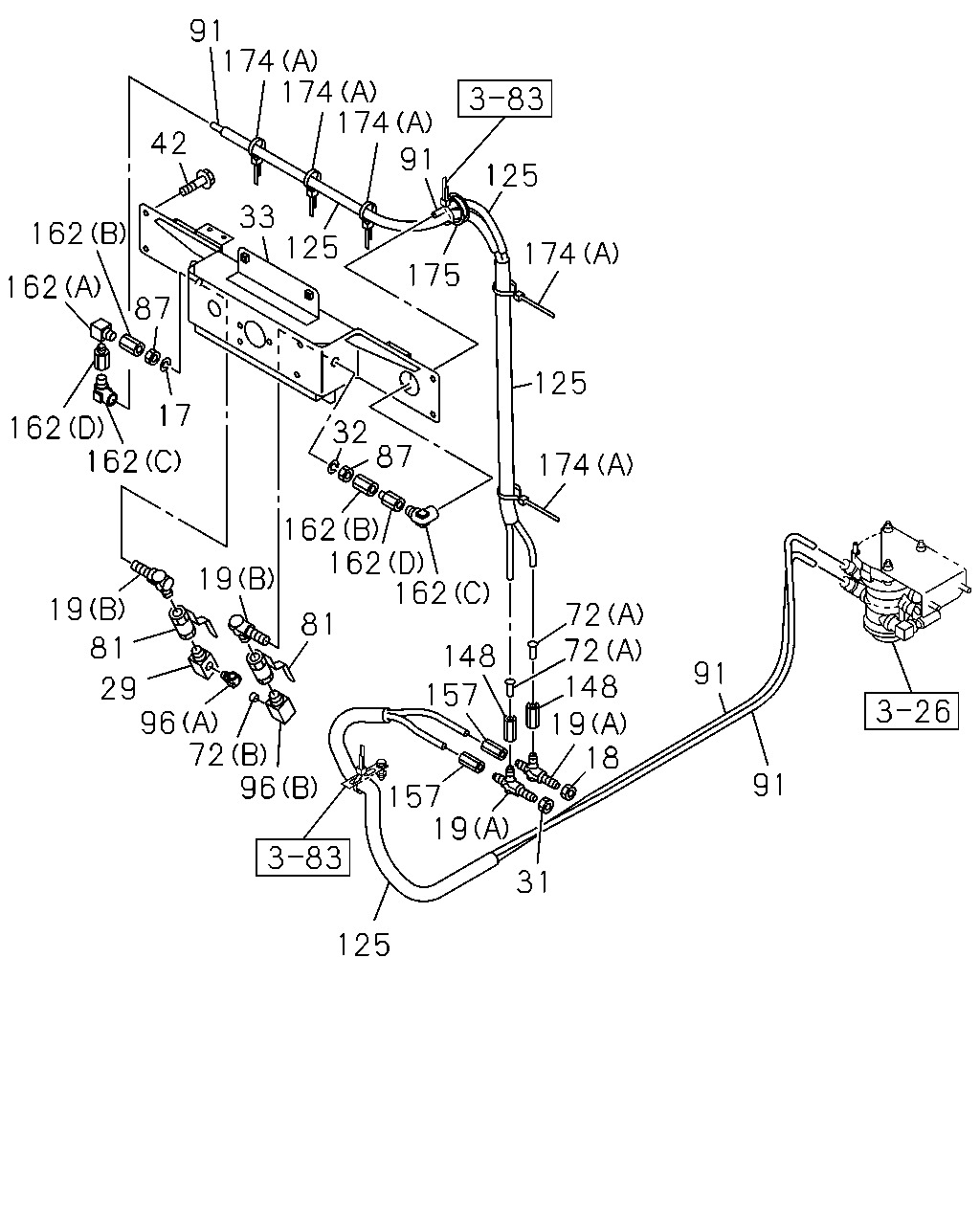

[380A] NO.2 (30 parça)
▶
174
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=240 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1006-1101
174
CLIP
(A) L=350
1-09707-183-0
07
1
1006-
174
CLIP
(B) ID=14
8-94238-572-0
01
1
1006-1101
75
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HOSE; FLEX,TRAILER SERVICE
1-49216-038-1
01
1
1006-
75
HOSE; FLEX,TRAILER EMERGENCY
1-49216-038-1
01
1
1006-
91
174
174
174
91
42
125
33
125
162
174
175
162
87
125
17
32
87
162
162
174
162
162
162
19
19
72
72
148
19
18
81
81
148
91
29
96
72
96
157
91
157
19
31
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
WASHER; LK,UNION
ID=20.2
0-91510-620-0
01
1
1006-
18
NUT; UNION
M12
0-91111-512-0
01
1
1006-
19
UNION; AIR PIPE
(A) M16 2WAY
1-09650-182-1
02
1
1006-
19
UNION; AIR PIPE
(B)
1-09650-516-0
02
1
1006-
29
CONNECTOR; COCK
PT1/2
1-09664-041-1
01
1
1006-
31
NUT; UNION
M12
0-91111-512-0
01
1
1006-
32
WASHER; LK,UNION
ID=20.2
0-91510-620-0
01
1
1006-
33
BRACKET
8-98144-788-0
01
1
1006-
42
BOLT; BRKT
M10X30 FLANGE THA
0-28651-030-0
04
1
1006-
72
PLUG
(A) OD=12
1-09661-617-0
02
1
1006-
72
PLUG
(B) THA
8-94403-163-0
01
1
1006-
81
COCK; AIR COUPLING
RED
1-09680-091-0
01
1
1006-
81
COCK; AIR COUPLING
BLUE
1-09680-092-0
01
1
1006-
87
NUT
M20
0-91111-520-0
02
1
1006-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12 THA
1-87411-011-0
02
1
1006-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12 THA
1-87411-012-0
02
1
1006-
96
CONNECTOR; FLEX HOSE
(A) PT1/4 2WAY
1-09660-693-0
01
1
1006-
96
CONNECTOR; FLEX HOSE
(B) PT1/2
1-09664-041-1
01
1
1006-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA
1-87411-022-0
02
1
1006-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA
1-87411-031-0
02
1
1006-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA
1-87411-031-0
01
1
1006-
148
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1006-
157
ADAPTER
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1006-
162
CONNECTOR; SUPPLY
(A) PT3/8 ELBOW
1-09660-696-0
01
1
1006-
162
CONNECTOR; SUPPLY
(B) M20 & RC3/8 STRAIGHT
1-09660-883-0
02
1
1006-
162
CONNECTOR; SUPPLY
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1006-
162
CONNECTOR; SUPPLY
(D) PT3/8
1-48319-058-0
02
1
1006-
174
CLIP
(A) L=350
1-09707-183-0
07
1
1006-
174
CLIP
(B) ID=14
8-94238-572-0
01
1
1006-1101
175
GROMMET
ID=44 OD=50 T=18
1-09332-120-0
01
1
1006-
