3-77 — BRAKE PIPING; AIR,REAR
(#56122) — 72 parça
◀

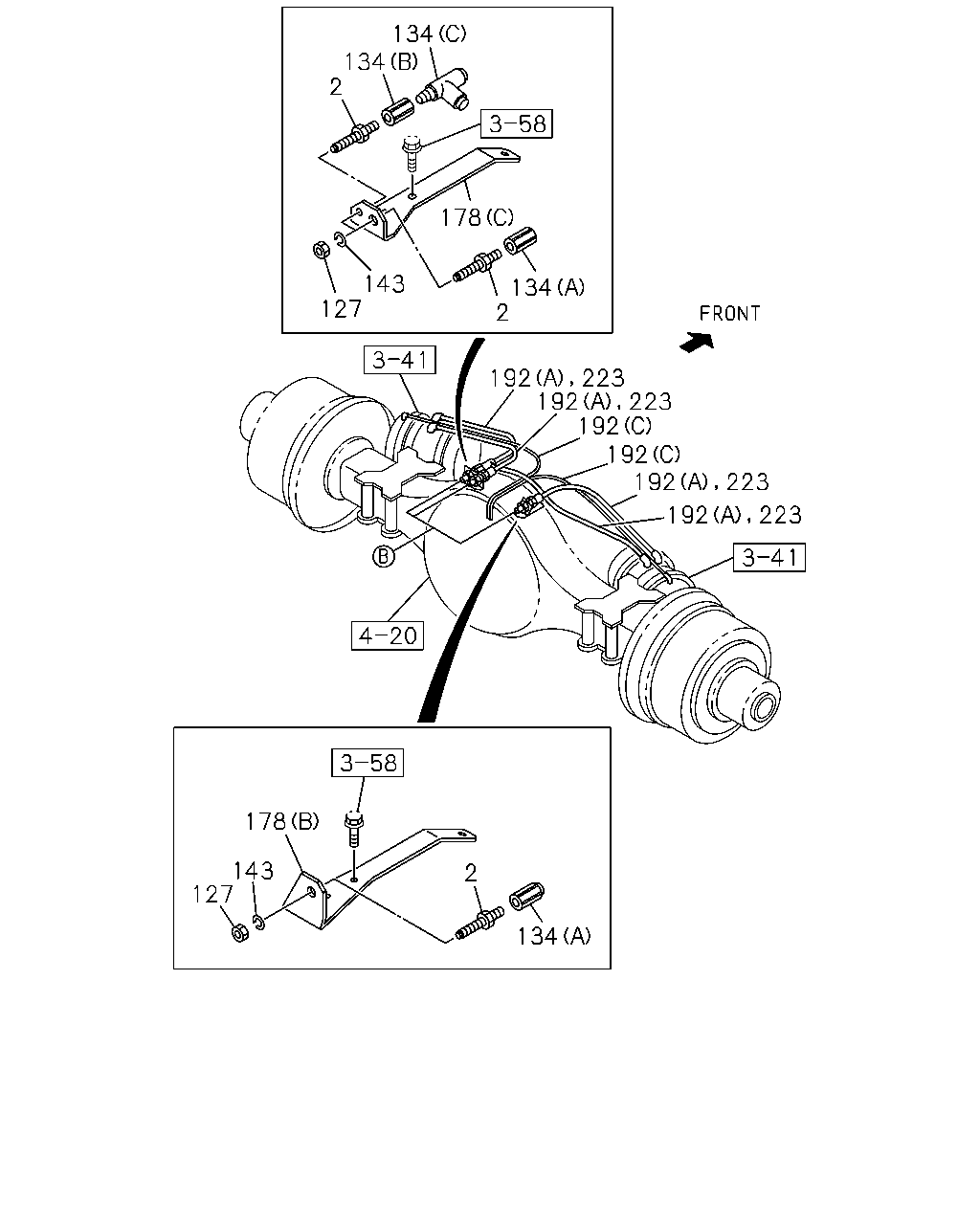

[377A] AXLE SIDE (16 parça)

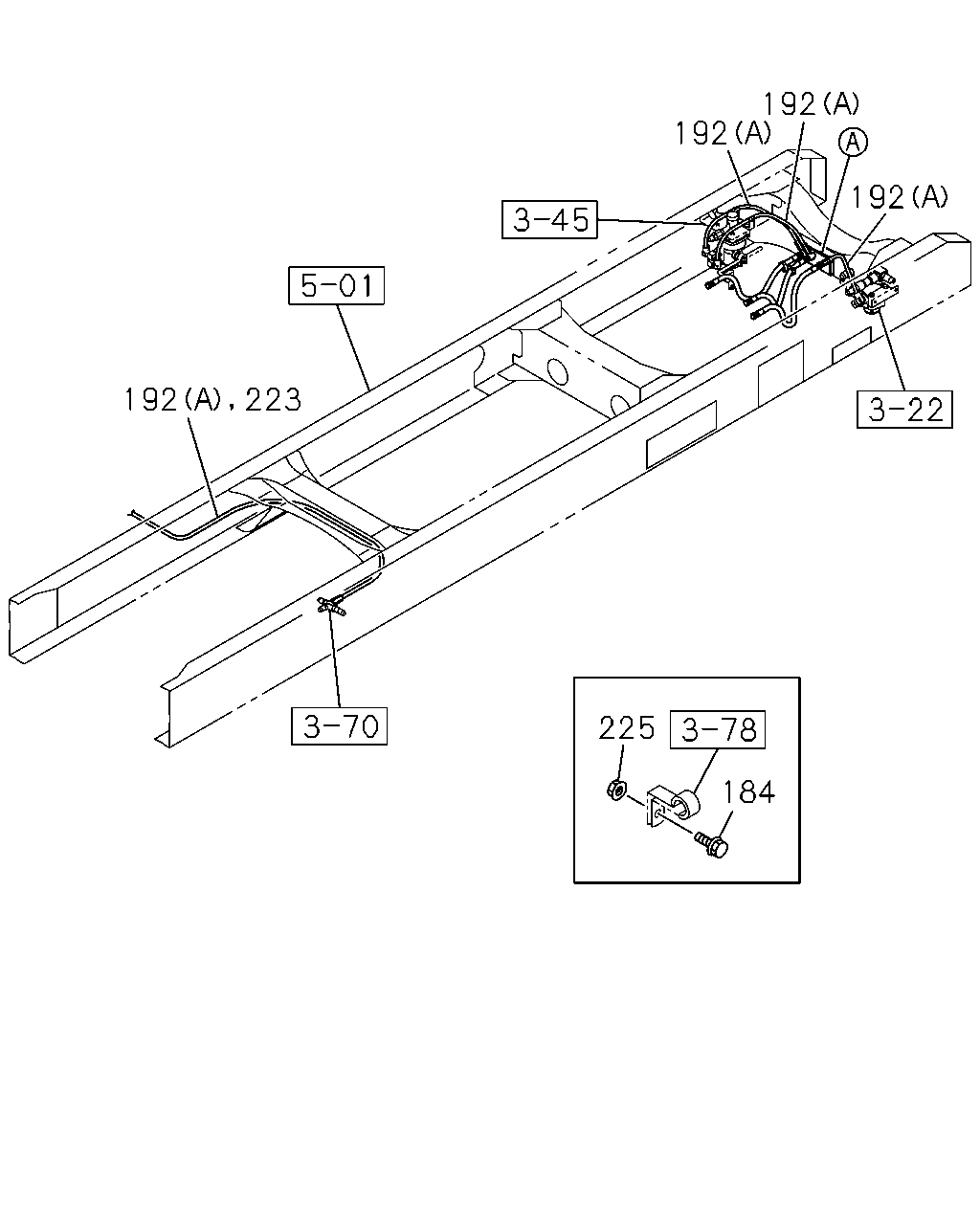

[377A] FRAME SIDE NO.1 (9 parça)

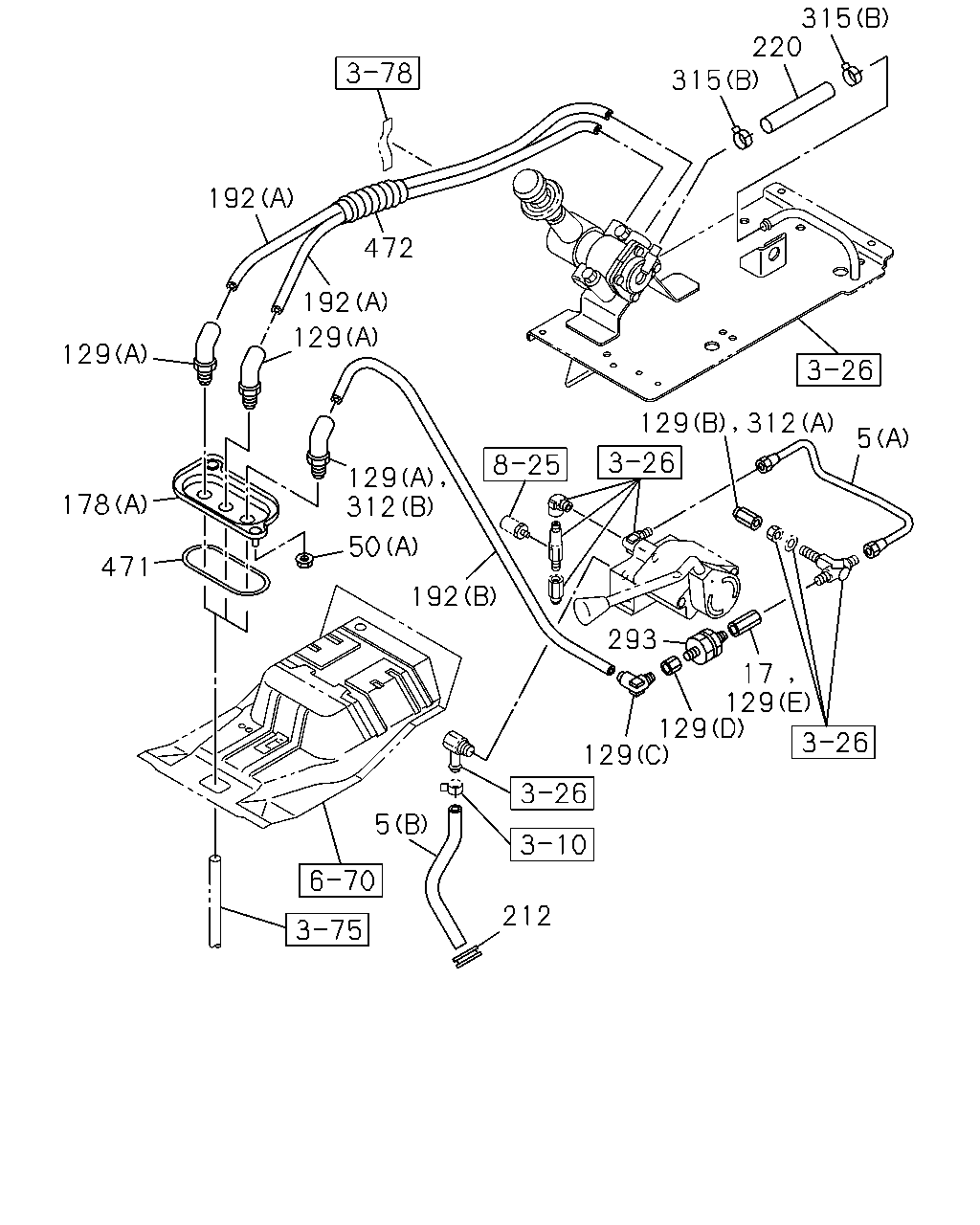

[377A] CAB SIDE (30 parça)
[377A] FRAME SIDE NO.2 (17 parça)
▶
134
134
2
178
143
127
134
2
192
192
192
223
192
223
178
143
127
2
134
192
223
192
223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
M16 L=74
0-92123-310-0
03
1
1006-
127
NUT; UNION
M16 THA
0-91111-516-0
03
1
1006-
134
CONNECTOR
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
1006-
134
CONNECTOR
(B) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1006-
134
CONNECTOR
(C) DIN12X2 & R3/8 3WAY
1-09661-007-0
01
1
1006-
143
WASHER; LK,UNION
ID=16.2
0-91510-816-0
03
1
1006-
178
BRACKET; UNION
(A)
8-98017-056-1
01
1
1006-
178
BRACKET; UNION
(B)
8-98031-033-1
01
1
1006-
178
BRACKET; UNION
(C)
8-98031-034-1
01
1
1006-
192
TUBE; NYLON
(C) L=990 OD=8 THA
1-49218-618-1
02
1
1006-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
03
1
1006-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
07
1
1006-
192
TUBE; NYLON
(B) THA
8-98017-537-0
01
1
1006-
192
TUBE; NYLON
EXC. PTO CONTROL<SV6> (A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
01
1
1006-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA
1-87411-022-0
04
1
1006-
223
TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=4000 ID=10 THA
1-87411-020-0
01
1
1006-
192
192
192
223
192
225
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
184
BOLT; TUBE CLIP
M8X20 FLANGE THA
0-28650-820-0
01
1
1006-
192
TUBE; NYLON
(C) L=990 OD=8 THA
1-49218-618-1
02
1
1006-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
03
1
1006-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
07
1
1006-
192
TUBE; NYLON
(B) THA
8-98017-537-0
01
1
1006-
192
TUBE; NYLON
EXC. PTO CONTROL<SV6> (A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
01
1
1006-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA
1-87411-022-0
04
1
1006-
223
TUBE; CORRUGATE
EXC. PTO CONTROL<SV6> SERVICED BY L=4000 ID=10 THA
1-87411-020-0
01
1
1006-
225
NUT; TUBE CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1006-
315
220
315
192
472
192
129
129
5
129
312
178
50
471
192
293
17
129
129
129
5
212
129
312
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
PIPE; AIR,UNION TO PARKING VLV
(B) L=240 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1102-1104
5
PIPE; AIR,UNION TO PARKING VLV
(A) THA
8-97610-775-1
01
1
1006-
17
UNION; AIR PIPE
M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1006-1101
50
NUT; UNION BRKT
(B) M12
0-91111-512-0
03
1
1006-
50
NUT; UNION BRKT
(A) M8 FLANGE THA
0-91180-108-0
02
1
1006-
129
CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
1006-1101
129
CONNECTOR; NYLON TUBE
(E) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1102-
129
CONNECTOR; NYLON TUBE
(C)
1-09660-924-1
01
1
1006-1006
129
CONNECTOR; NYLON TUBE
(C)
8-97633-756-0
01
1
1007-
129
CONNECTOR; NYLON TUBE
(D)
1-09660-930-1
01
1
1006-1006
129
CONNECTOR; NYLON TUBE
(D)
8-97633-768-0
01
1
1007-
129
CONNECTOR; NYLON TUBE
(A)
8-97611-963-1
03
1
1006-1101
129
CONNECTOR; NYLON TUBE
(A)
8-97611-963-1
02
1
1102-
178
BRACKET; UNION
(A)
8-98017-056-1
01
1
1006-
178
BRACKET; UNION
(B)
8-98031-033-1
01
1
1006-
178
BRACKET; UNION
(C)
8-98031-034-1
01
1
1006-
192
TUBE; NYLON
(C) L=990 OD=8 THA
1-49218-618-1
02
1
1006-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
03
1
1006-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
07
1
1006-
192
TUBE; NYLON
(B) THA
8-98017-537-0
01
1
1006-
192
TUBE; NYLON
EXC. PTO CONTROL<SV6> (A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
01
1
1006-
212
GROMMET; AIR PIPE
OD=24
9-61166-007-0
01
1
1102-
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=220 SERVICED BY L=10000
9-09914-701-0
01
1
1006-
293
VALVE; CHECK
1-48410-479-1
01
1
1006-
312
CONNECTOR; SUPPLY
(A) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
1102-
312
CONNECTOR; SUPPLY
(B)
8-97611-963-1
01
1
1102-
315
CLIP
(B) ID=14
8-94238-572-0
02
1
1006-
315
CLIP
(A) ID=18 & 18
8-94323-068-0
01
1
1006-
471
SEAL; BRKT
1-79738-832-0
01
1
1006-
472
TUBE; SPUTTER
THA
8-98067-708-0
01
1
1006-
192
50
79
90
172
192
172
10
10
10
67
71
71
192
172
161
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CONNECTOR; FLEX HOSE
M16 2WAY
1-09650-182-1
03
1
1006-
50
NUT; UNION BRKT
(B) M12
0-91111-512-0
03
1
1006-
50
NUT; UNION BRKT
(A) M8 FLANGE THA
0-91180-108-0
02
1
1006-
67
NUT; HOSE BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1006-
71
HOSE; FLEX,RWD RR
L=600
1-09363-746-0
01
1
1006-
71
HOSE; FLEX,RWD RR
L=580
1-09363-772-0
01
1
1006-
79
BOLT; HOSE BRKT
M8X25 FLANGE THA
0-28650-825-0
02
1
1006-
90
BRACKET; PIPE UNION
8-98130-763-0
01
1
1006-
161
HOSE; FLEX,QUICK RELEASE VLV
8-98031-452-0
01
1
1006-
172
ADAPTER; UNION
DIN12 & M16 STRAIGHT
1-09660-876-0
03
1
1006-
192
TUBE; NYLON
(C) L=990 OD=8 THA
1-49218-618-1
02
1
1006-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
03
1
1006-
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
07
1
1006-
192
TUBE; NYLON
(B) THA
8-98017-537-0
01
1
1006-
192
TUBE; NYLON
EXC. PTO CONTROL<SV6> (A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
01
1
1006-
315
CLIP
(B) ID=14
8-94238-572-0
02
1
1006-
315
CLIP
(A) ID=18 & 18
8-94323-068-0
01
1
1006-
