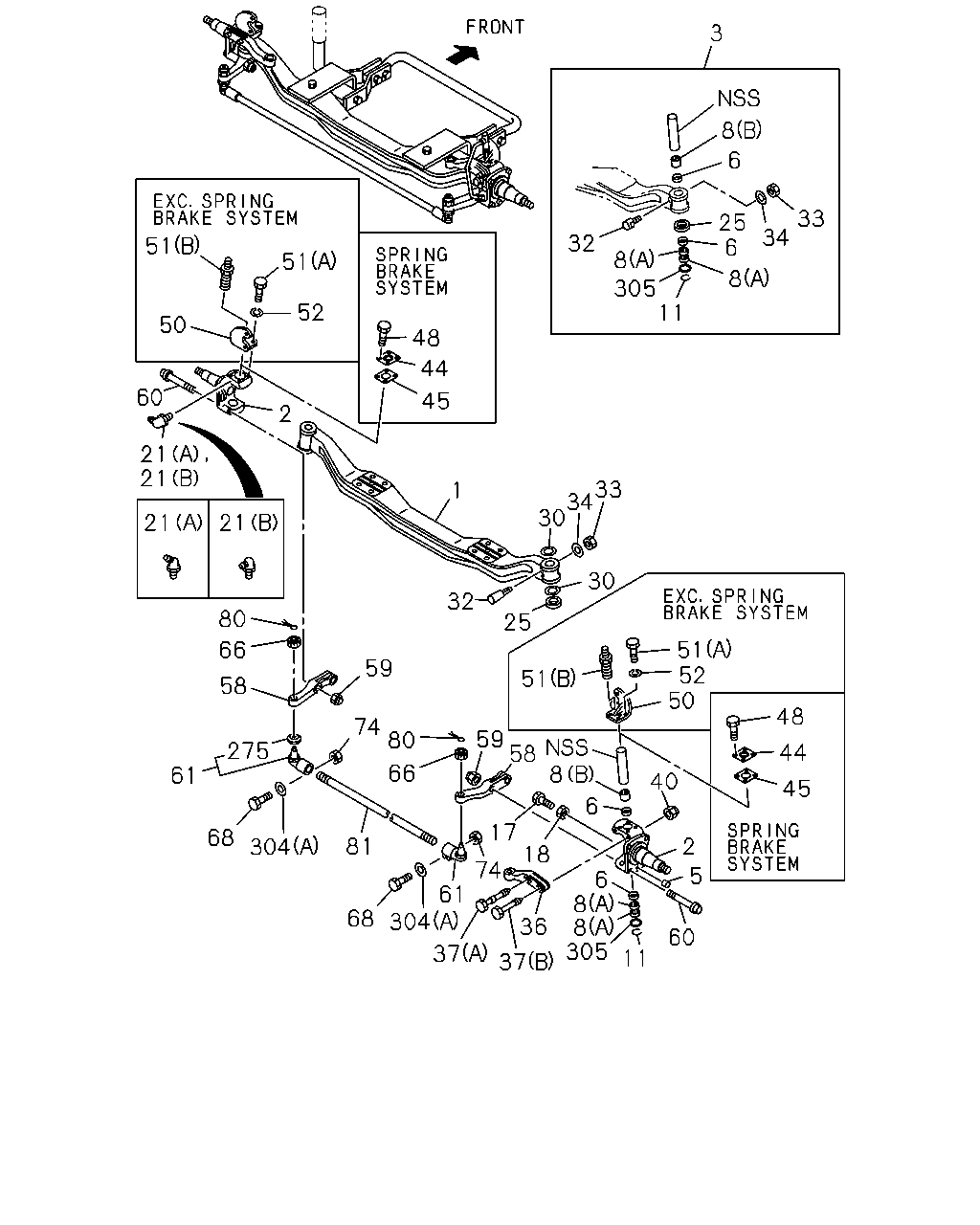

4-10 — FRONT AXLE (#5612) — 92 parça

3 8 6 33 34 25 6 32 51 8 305 11 51 8 52 50 48 44 60 45 2 21 21 33 34 30 1 21 21 30 32 80 25 51 52 50 66 59 51 58 48 74 80 59 58 8 275 44 40 66 61 45 6 17 18 68 81 2 304 6 8 8 305 74 5 61 304 68 36 60 11 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-107-5	01	1	9603-
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9603-
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9603-
3	KING PIN SET	1-87830-738-4	02	1	9603-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9603-
6	SEAL; KING PIN	9-09926-024-0	04	1	9603-
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	9603-
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	9603-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9603-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9603-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9603-
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9603-9704
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9705-
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW	9-09031-210-0	02	1	9603-9704
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	9603-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9603-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9603-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9603-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9603-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9603-
36	ARM; KNUCKLE BRAKE SYSTEM SPRING BRAKE(BCR)	1-43133-066-3	01	1	9603-
36	ARM; KNUCKLE EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-43133-063-3	01	1	9603-
37	BOLT; KNUCKLE ARM (B) M22X179	1-09000-578-1	01	1	9603-
37	BOLT; KNUCKLE ARM (A) M22X167	9-09806-847-3	01	1	9603-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9603-
44	COVER; KING PIN BRAKE SYSTEM SPRING BRAKE(BCR)	1-43175-014-1	02	1	9603-
45	GASKET; KING PIN COVER BRAKE SYSTEM SPRING BRAKE(BCR)	1-42319-044-0	02	1	9603-
48	BOLT; COVER BRAKE SYSTEM SPRING BRAKE(BCR) M12X16 FLANGE	0-28081-216-0	08	1	9603-
50	BRACKET; POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-43145-010-3	01	1	9603-
50	BRACKET; POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-43145-009-3	01	1	9603-
51	BOLT; POWER CHAMBER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) M12X60	0-10806-260-0	02	1	9603-0004
51	BOLT; POWER CHAMBER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) M12X60 FLANGE	0-28081-260-0	02	1	0005-
51	BOLT; POWER CHAMBER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) M12X28	0-20801-228-0	06	1	9603-0004
51	BOLT; POWER CHAMBER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) M12X25 FLANGE	0-28681-225-0	06	1	0005-
52	WASHER; LK,POWER CHAMBER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=12.2	9-09150-512-0	08	1	9603-0004
58	ARM; TIE ROD	1-43135-042-3	01	1	9603-
58	ARM; TIE ROD	1-43134-042-3	01	1	9603-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9603-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9603-
61	ROD END; TIE ROD	1-43150-737-1	01	1	9603-9812
61	ROD END; TIE ROD	1-43150-802-0	01	1	9901-
61	ROD END; TIE ROD	1-43150-736-1	01	1	9603-9812
61	ROD END; TIE ROD	1-43150-801-0	01	1	9901-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9603-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	9603-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9603-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9603-
81	ROD; TIE	1-43151-118-0	01	1	9603-
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9603-9812
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	9901-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9603-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	9603-
305	COVER; KNUCKLE	1-43175-021-0	02	1	9603-

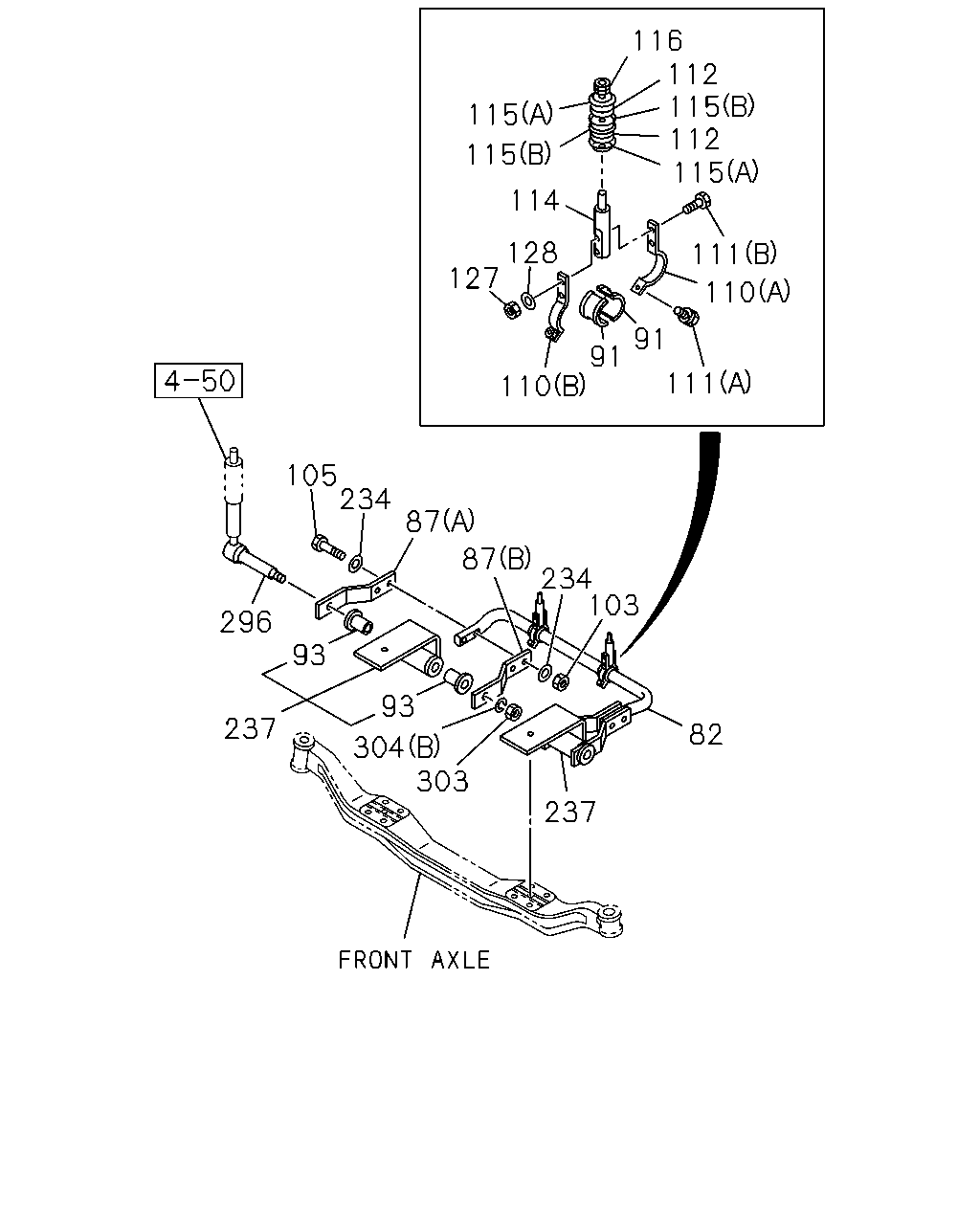

116 112 115 112 115 115 115 114 128 127 111 110 91 91 110 111 105 234 87 87 234 103 296 93 93 237 82 304 303 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-134-0	01	1	9603-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-0	02	1	9603-9802
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-0	02	1	9603-9802
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	9803-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	9803-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	9603-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-1	04	1	9603-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	9603-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91061-470-0	04	1	9603-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	9603-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	9603-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	9603-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	9603-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	9603-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	9603-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	9603-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	9603-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9603-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	9603-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9603-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	9603-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	9603-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	9603-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	9603-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	9603-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	9603-
