Isuzu WW
▶
TRUCKS
▶
GVR
▶
11195 - GVR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#56117) — 43 parça
◀

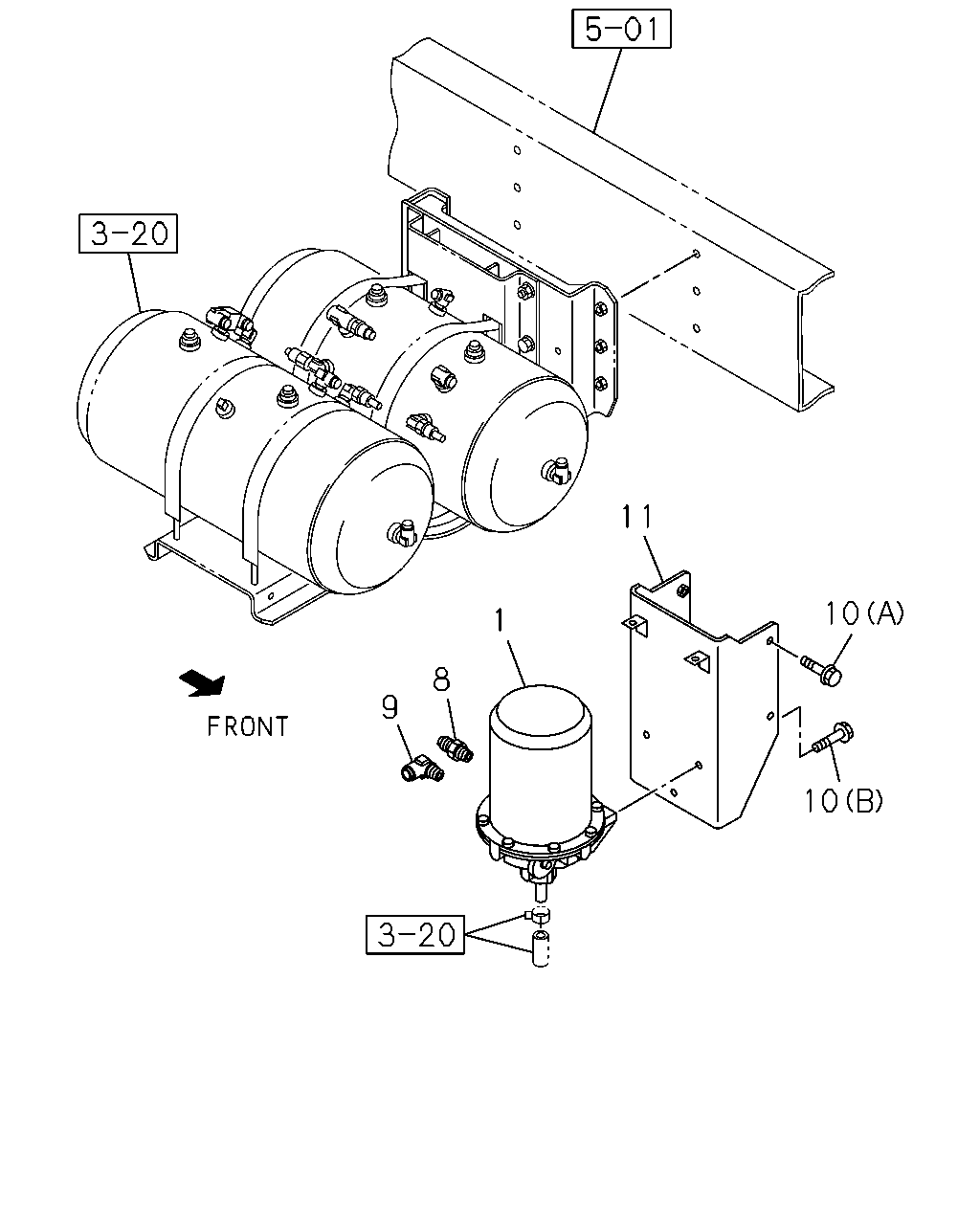

[346A] FIXING (7 parça)

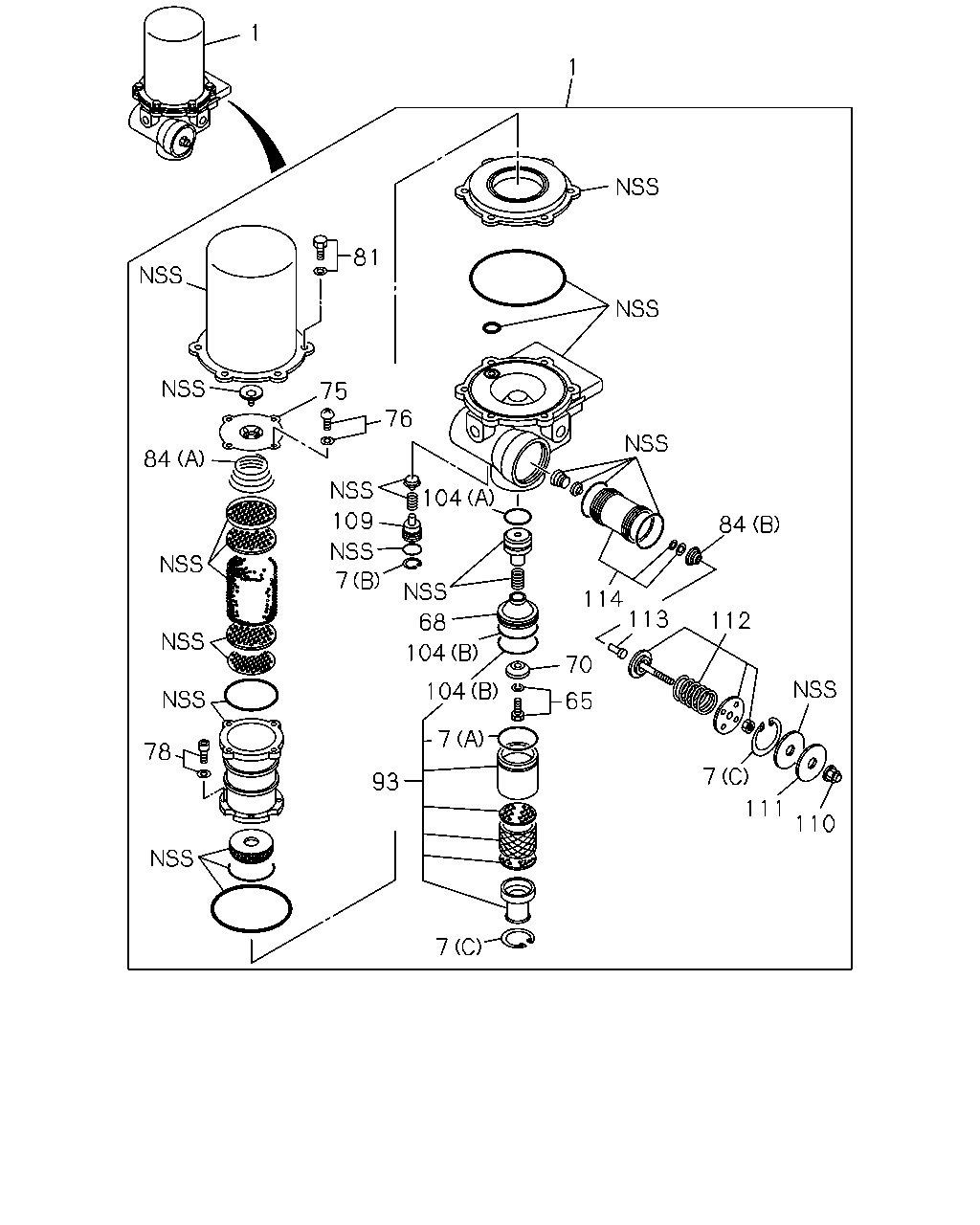

[346A] COMPONENT (26 parça)
[346A] PISTON AND REPAIR KIT (10 parça)
▶
11
10
1
8
9
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-372-3
01
1
1006-1211
1
DRYER; AIR
THA
8-98225-293-1
01
1
1212-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1006-
9
CONNECTOR; PIPE,AIR DRYER
FLARE M22 PT1/2
0-92121-815-0
01
1
1006-
10
BOLT; AIR DRYER
(A) M10X30 FLANGE THA
0-28651-030-0
04
1
1006-
10
BOLT; AIR DRYER
(B) M12X30 FLANGE THA
0-28651-230-0
03
1
1006-
11
BRACKET; AIR DRYER
8-98088-470-0
01
1
1006-
7
110
111
7
112
113
114
70
65
84
1
7
104
104
93
68
104
76
75
81
1
78
84
109
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-372-3
01
1
1006-1211
1
DRYER; AIR
THA
8-98225-293-1
01
1
1212-
7
RING; SNAP,AIR DRYER
(C) THA
1-48199-520-0
02
1
1006-
7
RING; SNAP,AIR DRYER
(B) THA
1-48199-529-0
01
1
1006-
7
RING; SNAP,AIR DRYER
(A) THA
1-48199-579-0
01
1
1006-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
1006-
68
BODY; VALVE
THA
1-48199-515-0
01
1
1006-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
1006-
75
COVER; CASE,AIR DRYER
1-48199-562-0
01
1
1006-
76
BOLT; COVER,AIR DRYER
1-48199-561-0
06
1
1006-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-557-0
04
1
1006-
81
BOLT; CASE,AIR DRYER
THA
1-48199-436-0
08
1
1006-
84
SPRING; AIR DRYER
(B) THA
1-48199-523-0
01
1
1006-
84
SPRING; AIR DRYER
(A)
1-48199-564-0
01
1
1006-
93
SILENCER; AIR DRYER
THA
1-48199-619-0
01
1
1006-
104
GASKET
(A)
1-48199-495-0
01
1
1006-1211
104
GASKET
(A) THA
8-98226-321-0
01
1
1212-
104
GASKET
(B) THA
1-48199-496-0
02
1
1006-
109
STOPPER; CHECK VALVE
THA
1-48199-539-0
01
1
1006-
110
NUT; CAP
THA
1-48199-527-0
01
1
1006-
111
PLATE; GOVERNOR
THA
1-48199-526-0
01
1
1006-
112
SCREW & SPRING ASM; AIR DRYER
THA
1-48199-524-0
01
1
1006-1408
112
SCREW & SPRING ASM; AIR DRYER
THA
8-98292-687-0
01
1
1409-
113
STEM; EXHAUST
THA
1-48199-522-0
01
1
1006-
114
PISTON ASM; GOVERNOR
THA
1-48199-521-0
01
1
1006-1408
114
PISTON ASM; GOVERNOR
THA
8-98292-688-0
01
1
1409-

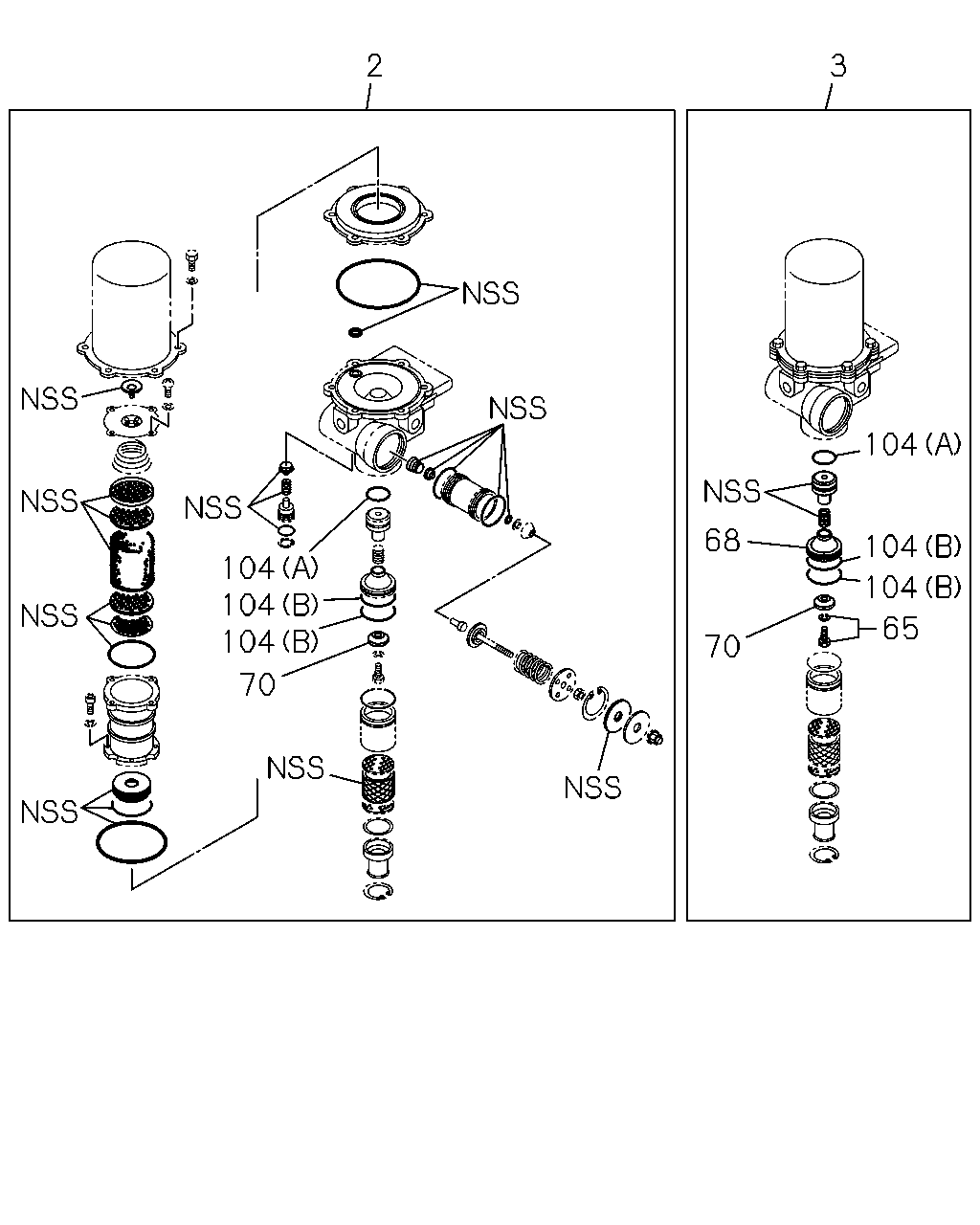

2
3
104
68
104
104
104
104
104
65
70
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-448-0
01
1
1006-1211
2
REPAIR KIT; AIR DRYER
8-98226-328-0
01
1
1212-
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
1006-1211
3
PISTON KIT; AIR DRYER
THA
8-98226-322-0
01
1
1212-
65
BOLT; PURGE VLV
THA
1-48199-517-0
01
1
1006-
68
BODY; VALVE
THA
1-48199-515-0
01
1
1006-
70
VALVE; AIR DRYER
THA
1-48199-504-0
01
1
1006-
104
GASKET
(A)
1-48199-495-0
01
1
1006-1211
104
GASKET
(A) THA
8-98226-321-0
01
1
1212-
104
GASKET
(B) THA
1-48199-496-0
02
1
1006-
