4-01 — PROPELLER SHAFT (#5611) — 91 parça

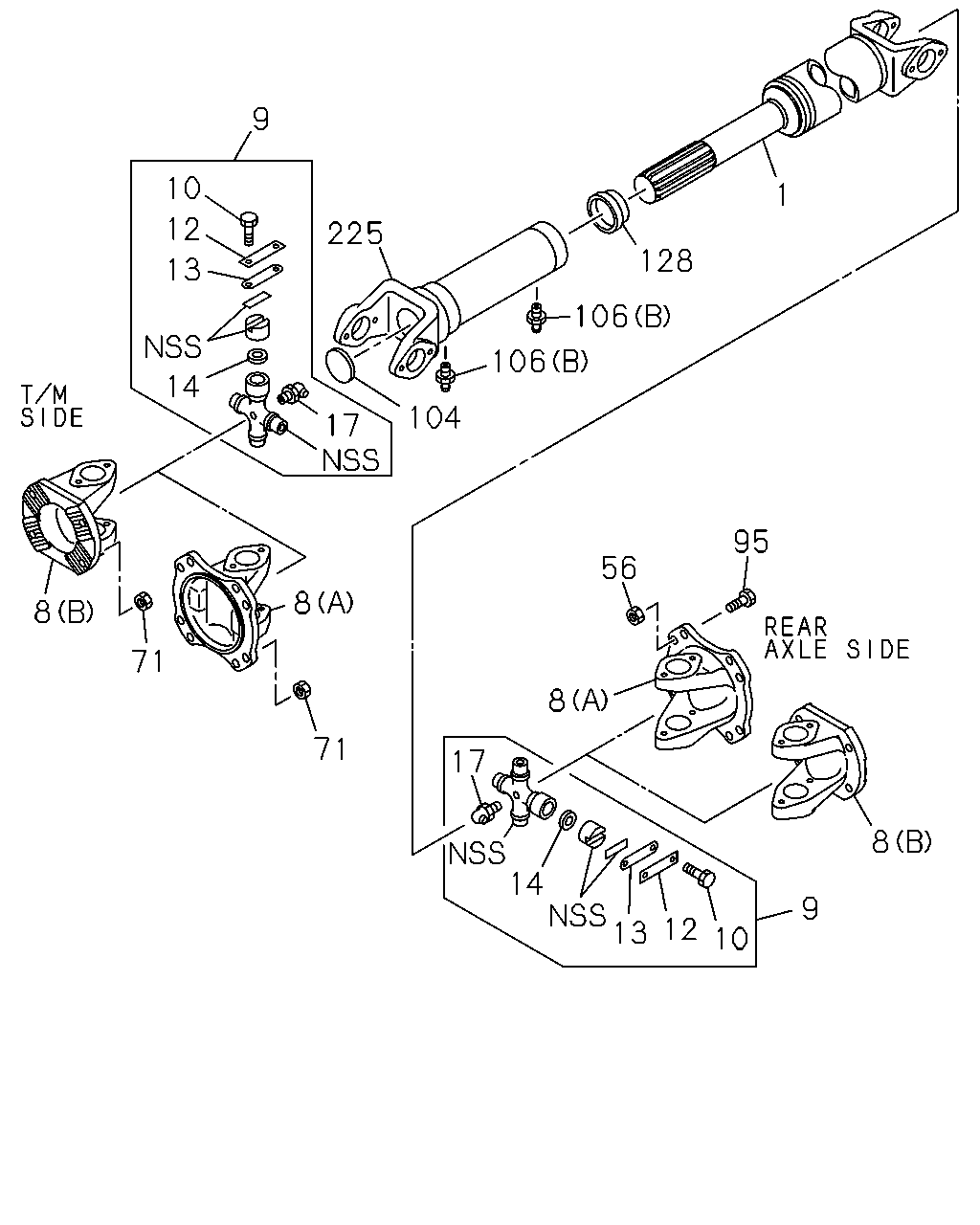

1 128 9 107 225 10 104 13 14 106 106 17 8 14 12 10 71 95 9 8 56 10 13 14 17 14 12 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP L TYPE ENG<90L> MJA7 M/T<X9Q> P115 PROP SHAFT<C5X> L=815	1-37124-143-0	01	1	9603-
1	SHAFT; PROP L TYPE ENG<90L> ZF M/T<X9E> P115 PROP SHAFT<C5X> L=830	1-37124-060-0	01	1	9603-9810
1	SHAFT; PROP L TYPE ENG<90L> ZF M/T<X9E> P115 PROP SHAFT<C5X> FINAL GEAR 18.5 INCH<C1C> L=830	1-37124-060-0	01	1	9811-9904
1	SHAFT; PROP L TYPE ENG<90L> ZF M/T<X9E> P115 PROP SHAFT<C5X> FINAL GEAR 19.5"<BDC> L=785	1-37123-834-0	01	1	9811-9904
1	SHAFT; PROP L TYPE ENG<90L> ZF M/T<X9E> P115 PROP SHAFT<C5X> L=830	1-37124-060-0	01	1	9905-
1	SHAFT; PROP P90 PROP SHAFT<C5T> L=1052	1-37124-138-0	01	1	9603-
1	SHAFT; PROP V TYPE ENG<91L> MJA6A M/T(X6V) P115 PROP SHAFT<C5X> L=1140	1-37124-142-0	01	1	9603-
1	SHAFT; PROP V TYPE ENG<91L> ZF M/T<X9E> P115 PROP SHAFT<C5X> L=1045	1-37124-144-0	01	1	9603-
8	YOKE; FLANGE,PROP SHAFT ISUZU M/T<X9A> P115 PROP SHAFT<C5X> (A)	1-37211-068-1	02	1	9603-
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T> (C)	1-37211-066-1	02	1	9603-
8	YOKE; FLANGE,PROP SHAFT ZF M/T<X9E> P115 PROP SHAFT<C5X> (A)	1-37211-068-1	01	1	9603-
8	YOKE; FLANGE,PROP SHAFT ZF M/T<X9E> P115 PROP SHAFT<C5X> (B)	1-37211-069-2	01	1	9603-9810
8	YOKE; FLANGE,PROP SHAFT ZF M/T<X9E> P115 PROP SHAFT<C5X> (B)	1-37211-069-2	02	1	9811-9904
8	YOKE; FLANGE,PROP SHAFT ZF M/T<X9E> P115 PROP SHAFT<C5X> (B)	1-37211-069-2	01	1	9905-
8	YOKE; FLANGE,PROP SHAFT ZF M/T<X9E> P115 PROP SHAFT<C5X> (B)	1-37211-069-2	01	1	9811-9904
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X>	1-37300-093-0	AR	1	9603-
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T>	1-37300-091-0	AR	1	9603-
10	BOLT; UJT M10X20	9-02061-020-0	AR	1	9603-
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37356-009-0	AR	1	9603-
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37356-008-0	AR	1	9603-
13	COVER; FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37355-021-0	AR	1	9603-
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-020-0	AR	1	9603-
14	COVER; DUST,SPIDER P115 PROP SHAFT<C5X>	1-37249-133-0	AR	1	9603-
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T>	1-37249-131-0	AR	1	9603-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	9603-
56	NUT; YOKE FINAL GEAR 19.5"<BDC> P115 PROP SHAFT<C5X> M14 FLANGE	1-09440-048-0	04	1	9811-9904
56	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	04	1	9905-
56	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	04	1	9603-9810
56	NUT; YOKE FINAL GEAR 18.5 INCH<C1C> P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	04	1	9811-9904
56	NUT; YOKE P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9603-
71	NUT; YOKE P115 PROP SHAFT<C5X> ISUZU M/T<X9A> M16 FLANGE	1-09449-065-0	04	1	9603-
71	NUT; YOKE P115 PROP SHAFT<C5X> ZF M/T<X9E> M14 FLANGE	1-09440-048-0	04	1	9603-
71	NUT; YOKE EXC. P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	04	1	9603-
95	BOLT; YOKE,FINAL P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	04	1	9603-
95	BOLT; YOKE,FINAL P90 PROP SHAFT<C5T> M16X48	1-09000-383-0	04	1	9603-
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X>	1-09600-049-0	01	1	9603-
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T>	1-09600-067-0	01	1	9603-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> (B) PT1/8 STRAIGHT	9-09031-010-0	02	1	9603-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT<C5T> (A) MT6 STRAIGHT	1-09380-006-0	01	1	9603-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT<C5T> (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9603-
107	COVER; RET,SLEEVE P90 PROP SHAFT<C5T>	1-37249-132-1	01	1	9603-
128	SEAL; SLEEVE P115 PROP SHAFT<C5X>	1-37247-020-0	01	1	9603-
128	SEAL; SLEEVE P90 PROP SHAFT<C5T>	1-37247-019-0	01	1	9603-
225	YOKE; SLEEVE,PROP SHAFT ISUZU M/T<X9A> P115 PROP SHAFT<C5X> L=410	1-37241-105-1	01	1	9603-
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT<C5T> L=332	1-37241-103-1	01	1	9603-
225	YOKE; SLEEVE,PROP SHAFT ZF M/T<X9E> P115 PROP SHAFT<C5X> L=345	1-37241-107-1	01	1	9603-

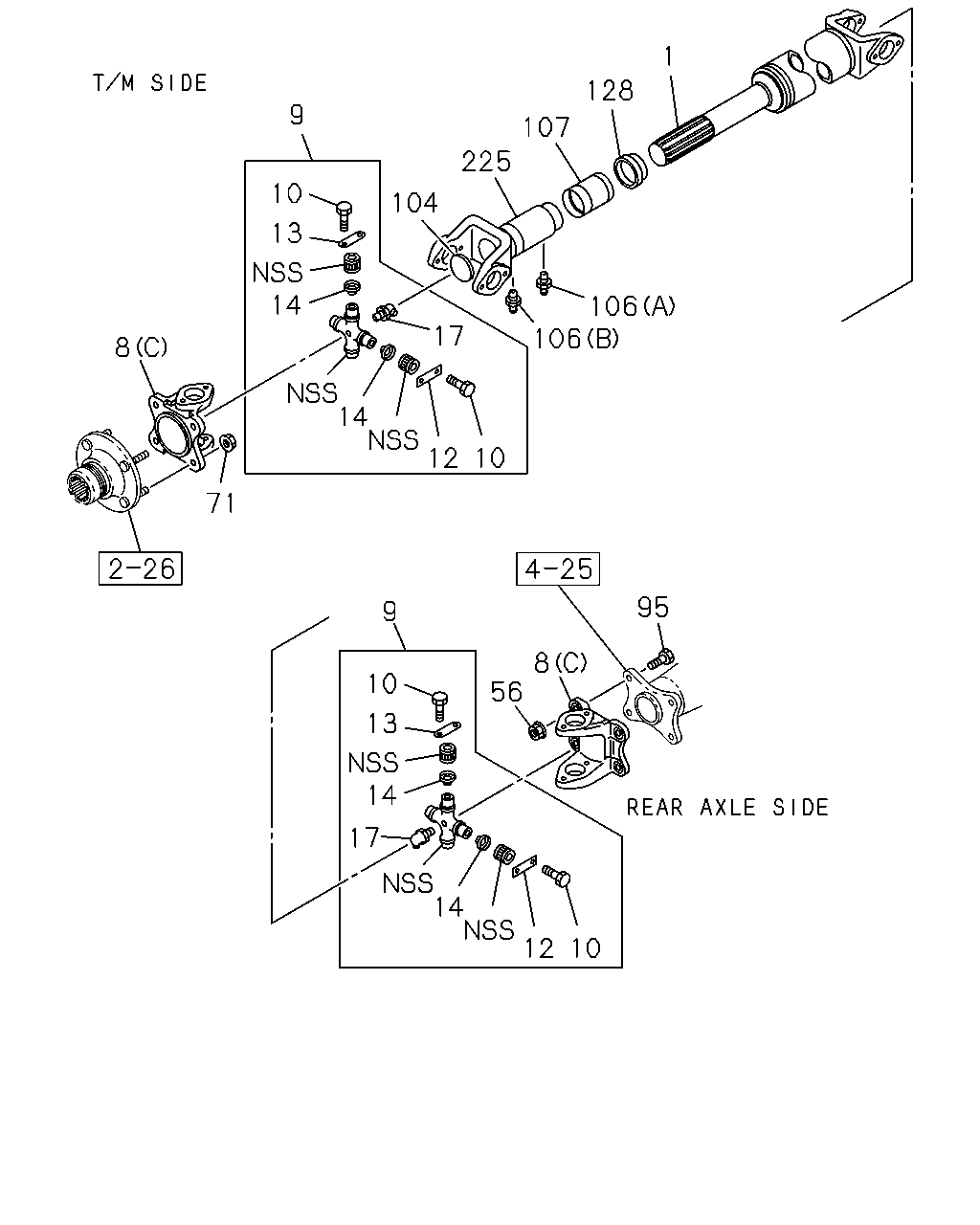

9 10 1 12 225 128 13 106 106 14 104 17 95 56 8 8 71 8 71 17 8 14 13 9 12 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP L TYPE ENG<90L> MJA7 M/T<X9Q> P115 PROP SHAFT<C5X> L=815	1-37124-143-0	01	1	9603-
1	SHAFT; PROP L TYPE ENG<90L> ZF M/T<X9E> P115 PROP SHAFT<C5X> L=830	1-37124-060-0	01	1	9603-9810
1	SHAFT; PROP L TYPE ENG<90L> ZF M/T<X9E> P115 PROP SHAFT<C5X> FINAL GEAR 18.5 INCH<C1C> L=830	1-37124-060-0	01	1	9811-9904
1	SHAFT; PROP L TYPE ENG<90L> ZF M/T<X9E> P115 PROP SHAFT<C5X> FINAL GEAR 19.5"<BDC> L=785	1-37123-834-0	01	1	9811-9904
1	SHAFT; PROP L TYPE ENG<90L> ZF M/T<X9E> P115 PROP SHAFT<C5X> L=830	1-37124-060-0	01	1	9905-
1	SHAFT; PROP P90 PROP SHAFT<C5T> L=1052	1-37124-138-0	01	1	9603-
1	SHAFT; PROP V TYPE ENG<91L> MJA6A M/T(X6V) P115 PROP SHAFT<C5X> L=1140	1-37124-142-0	01	1	9603-
1	SHAFT; PROP V TYPE ENG<91L> ZF M/T<X9E> P115 PROP SHAFT<C5X> L=1045	1-37124-144-0	01	1	9603-
8	YOKE; FLANGE,PROP SHAFT ISUZU M/T<X9A> P115 PROP SHAFT<C5X> (A)	1-37211-068-1	02	1	9603-
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T> (C)	1-37211-066-1	02	1	9603-
8	YOKE; FLANGE,PROP SHAFT ZF M/T<X9E> P115 PROP SHAFT<C5X> (A)	1-37211-068-1	01	1	9603-
8	YOKE; FLANGE,PROP SHAFT ZF M/T<X9E> P115 PROP SHAFT<C5X> (B)	1-37211-069-2	01	1	9603-9810
8	YOKE; FLANGE,PROP SHAFT ZF M/T<X9E> P115 PROP SHAFT<C5X> (B)	1-37211-069-2	02	1	9811-9904
8	YOKE; FLANGE,PROP SHAFT ZF M/T<X9E> P115 PROP SHAFT<C5X> (B)	1-37211-069-2	01	1	9905-
8	YOKE; FLANGE,PROP SHAFT ZF M/T<X9E> P115 PROP SHAFT<C5X> (B)	1-37211-069-2	01	1	9811-9904
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X>	1-37300-093-0	AR	1	9603-
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T>	1-37300-091-0	AR	1	9603-
10	BOLT; UJT M10X20	9-02061-020-0	AR	1	9603-
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37356-009-0	AR	1	9603-
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37356-008-0	AR	1	9603-
13	COVER; FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37355-021-0	AR	1	9603-
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-020-0	AR	1	9603-
14	COVER; DUST,SPIDER P115 PROP SHAFT<C5X>	1-37249-133-0	AR	1	9603-
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T>	1-37249-131-0	AR	1	9603-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	9603-
56	NUT; YOKE FINAL GEAR 19.5"<BDC> P115 PROP SHAFT<C5X> M14 FLANGE	1-09440-048-0	04	1	9811-9904
56	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	04	1	9905-
56	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	04	1	9603-9810
56	NUT; YOKE FINAL GEAR 18.5 INCH<C1C> P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	04	1	9811-9904
56	NUT; YOKE P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9603-
71	NUT; YOKE P115 PROP SHAFT<C5X> ISUZU M/T<X9A> M16 FLANGE	1-09449-065-0	04	1	9603-
71	NUT; YOKE P115 PROP SHAFT<C5X> ZF M/T<X9E> M14 FLANGE	1-09440-048-0	04	1	9603-
71	NUT; YOKE EXC. P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	04	1	9603-
95	BOLT; YOKE,FINAL P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	04	1	9603-
95	BOLT; YOKE,FINAL P90 PROP SHAFT<C5T> M16X48	1-09000-383-0	04	1	9603-
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X>	1-09600-049-0	01	1	9603-
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T>	1-09600-067-0	01	1	9603-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> (B) PT1/8 STRAIGHT	9-09031-010-0	02	1	9603-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT<C5T> (A) MT6 STRAIGHT	1-09380-006-0	01	1	9603-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT<C5T> (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9603-
128	SEAL; SLEEVE P115 PROP SHAFT<C5X>	1-37247-020-0	01	1	9603-
128	SEAL; SLEEVE P90 PROP SHAFT<C5T>	1-37247-019-0	01	1	9603-
225	YOKE; SLEEVE,PROP SHAFT ISUZU M/T<X9A> P115 PROP SHAFT<C5X> L=410	1-37241-105-1	01	1	9603-
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT<C5T> L=332	1-37241-103-1	01	1	9603-
225	YOKE; SLEEVE,PROP SHAFT ZF M/T<X9E> P115 PROP SHAFT<C5X> L=345	1-37241-107-1	01	1	9603-
