◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11195 - GVR CNG(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-82 - POWER TAKE OFF; TRANSMISSION REAR ▶
2-82 — POWER TAKE OFF; TRANSMISSION REAR (#56105) — 63 parça

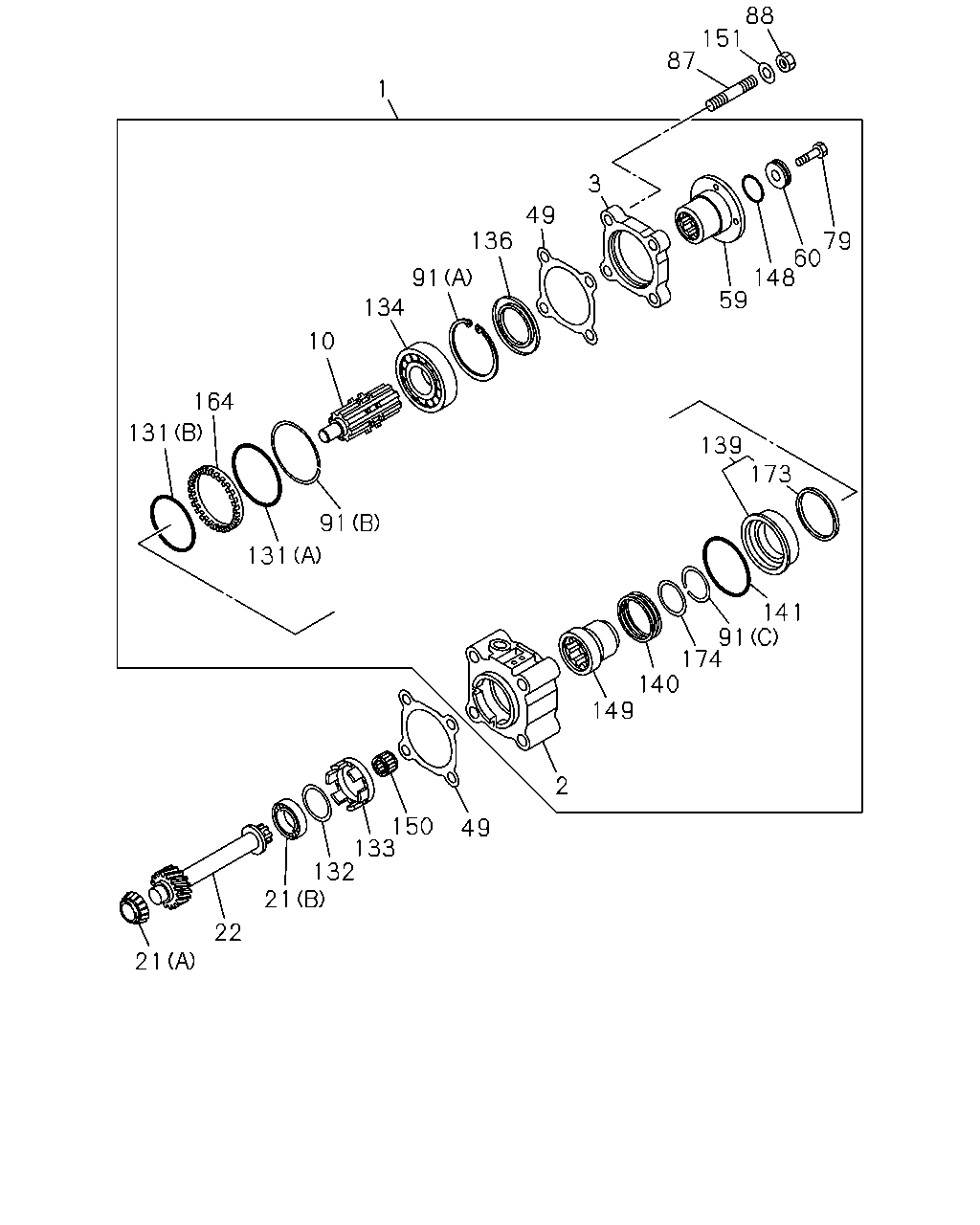

çizim 162967
88 151 87 1 3 49 136 79 60 148 59 91 134 10 164 131 139 173 91 131 141 91 174 140 149 2 150 133 132 21 49 22 21
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS RR
PTO ZF TRANS RR<BDM> THA 		1-38000-398-0 01 1 1006-
2 CASE; GEAR,TRANS RR PTO
PTO ZF TRANS RR<BDM> THA 		1-38111-120-0 01 1 1006-
3 COVER; GEAR CASE,TRANS RR PTO
PTO ZF TRANS RR<BDM> THA 		1-38159-009-0 01 1 1302-
3 COVER; GEAR CASE,TRANS RR PTO
PTO ZF TRANS RR<BDM> 		1-38159-008-0 01 1 1006-1305
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
PTO ZF TRANS RR<BDM> THA 		1-38221-064-0 01 1 1006-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR<BDM> (A) THA 		1-33389-090-0 01 1 1302-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR<BDM> (A) 		1-33389-054-0 01 1 1006-1305
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
PTO ZF TRANS RR<BDM> (B) THA 		1-33389-068-0 01 1 1006-
22 SHAFT; MAIN DRIVE,TRANS RR PTO
PTO ZF TRANS RR<BDM> THA 		1-33381-015-0 01 1 1006-
49 GASKET; PTO GEAR CASE TO TRANS
PTO ZF TRANS RR<BDM> THA 		1-33132-084-0 02 1 1006-1010
49 GASKET; PTO GEAR CASE TO TRANS
PTO ZF TRANS RR<BDM> THA 		1-33132-084-0 03 1 1011-1305
49 GASKET; PTO GEAR CASE TO TRANS
PTO ZF TRANS RR<BDM> THA 		1-33132-084-0 02 1 1306-
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
PTO ZF TRANS RR<BDM> THA 		1-38229-020-0 01 1 1006-
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
PTO ZF TRANS RR<BDM> THA 		1-38519-021-0 01 1 1006-
79 BOLT
PTO ZF TRANS RR<BDM> THA 		1-37249-216-0 01 1 1302-
79 BOLT
PTO ZF TRANS RR<BDM> 		1-37249-184-0 01 1 1006-1305
87 STUD; GEAR CASE
PTO ZF TRANS RR<BDM> M12X80 THA 		1-38119-103-0 04 1 1302-
87 STUD; GEAR CASE
PTO ZF TRANS RR<BDM> 		8-98080-560-0 04 1 1006-1010
87 STUD; GEAR CASE
PTO ZF TRANS RR<BDM> 		8-98080-560-0 06 1 1011-1301
87 STUD; GEAR CASE
PTO ZF TRANS RR<BDM> 		8-98080-560-0 04 1 1302-1305
88 NUT; COVER
PTO ZF TRANS RR<BDM> THA 		1-38119-104-0 04 1 1302-
88 NUT; COVER
PTO ZF TRANS RR<BDM> 		8-98080-562-0 04 1 1006-1010
88 NUT; COVER
PTO ZF TRANS RR<BDM> 		8-98080-562-0 06 1 1011-1301
88 NUT; COVER
PTO ZF TRANS RR<BDM> 		8-98080-562-0 04 1 1302-1305
91 RING; SNAP
PTO ZF TRANS RR<BDM> (A) 		1-38219-017-0 01 1 1006-1305
91 RING; SNAP
PTO ZF TRANS RR<BDM> (C) THA 		1-38219-037-0 01 1 1006-
91 RING; SNAP
PTO ZF TRANS RR<BDM> (B) THA 		1-38219-038-0 01 1 1006-
131 GASKET; OUTPUT SHAFT
PTO ZF TRANS RR<BDM> (A) THA 		1-38129-035-0 01 1 1006-
131 GASKET; OUTPUT SHAFT
PTO ZF TRANS RR<BDM> (B) THA 		1-38129-036-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.55 THA 		1-33389-048-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.45 THA 		1-33389-050-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.35 THA 		1-33389-052-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.30 THA 		1-33389-053-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.20 THA 		1-33389-056-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.15 THA 		1-33389-057-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.05 THA 		1-33389-059-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.00 THA 		1-33389-060-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=0.90 THA 		1-33389-062-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=0.85 THA 		1-33389-063-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=0.75 THA 		1-33389-065-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=0.70 THA 		1-33389-066-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=0.65 THA 		1-33389-067-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=0.80 THA 		8-98080-566-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=0.95 THA 		8-98080-567-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.10 THA 		8-98080-568-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.25 THA 		8-98080-569-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.40 THA 		8-98080-570-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.50 THA 		8-98080-571-0 01 1 1006-
132 SHIM; BRG
PTO ZF TRANS RR<BDM> T=1.60 THA 		8-98080-572-0 01 1 1006-
133 BUSHING; SHAFT
PTO ZF TRANS RR<BDM> THA 		1-33389-046-0 01 1 1006-
134 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR<BDM> THA 		1-38219-015-0 01 1 1006-
136 SEAL; SHAFT
PTO ZF TRANS RR<BDM> 		1-38519-010-0 01 1 1006-1305
139 PISTON; RR PTO
PTO ZF TRANS RR<BDM> THA 		1-38129-039-0 01 1 1006-
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR<BDM> THA 		1-38129-042-0 01 1 1302-
140 SPRING; PISTON,RR PTO
PTO ZF TRANS RR<BDM> 		1-38129-032-0 01 1 1006-1305
141 GASKET; PISTON,RR PTO
PTO ZF TRANS RR<BDM> THA 		1-38129-035-0 01 1 1006-
148 GASKET; YOKE
PTO ZF TRANS RR<BDM> THA 		1-38519-014-0 01 1 1006-
149 SLEEVE; SLIDING
PTO ZF TRANS RR<BDM> THA 		1-38229-060-0 01 1 1006-
150 BEARING; OUTPUT SHAFT
PTO ZF TRANS RR<BDM> THA 		8-98080-565-0 01 1 1006-
151 WASHER; PL,COVER
PTO ZF TRANS RR<BDM> THA 		8-98080-563-0 04 1 1006-
164 RING; CENTERING,PTO
PTO ZF TRANS RR<BDM> THA 		1-38129-038-0 01 1 1006-
173 RING; MAGNET
PTO ZF TRANS RR<BDM> THA 		1-38129-034-0 01 1 1006-
174 DISK; PRESSURE
PTO ZF TRANS RR<BDM> THA 		1-38129-040-0 01 1 1006-
