◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11195 - GVR CNG(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#56100) — 542 parça
çizim 162936
165 289 165 165 271 90 430 298 569 304 90 332 265 264 42 48
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
THA 		1-33549-589-0 01 1 1302-
42 CAP; QUAD BOX
EXC. PTO ZF TRANS RR<BDM> 		1-33549-111-0 01 1 1011-1011
42 CAP; QUAD BOX 1-33549-111-0 01 1 1006-1010
42 CAP; QUAD BOX
PTO ZF TRANS RR<BDM> 		1-33549-111-0 01 1 1011-1011
42 CAP; QUAD BOX 1-33549-111-0 01 1 1011-1305
48 LEVER; 4TH,SHIFT 8-98085-725-0 01 1 1006-
90 RING; SNAP,SHIFT ROD
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-494-0 02 1 1011-1011
90 RING; SNAP,SHIFT ROD
THA 		1-33549-494-0 02 1 1006-1010
90 RING; SNAP,SHIFT ROD
PTO ZF TRANS RR<BDM> THA 		1-33549-494-0 02 1 1011-1011
90 RING; SNAP,SHIFT ROD
THA 		1-33549-494-0 02 1 1011-
165 LEVER; SHIFT
(A) THA 		1-33549-603-0 01 1 1302-
165 LEVER; SHIFT
EXC. PTO ZF TRANS RR<BDM> (C) THA 		1-33549-488-0 01 1 1011-1011
165 LEVER; SHIFT
EXC. PTO ZF TRANS RR<BDM> (B) THA 		1-33549-489-0 01 1 1011-1011
165 LEVER; SHIFT
EXC. PTO ZF TRANS RR<BDM> (A) 		1-33549-490-0 01 1 1011-1011
165 LEVER; SHIFT
(C) THA 		1-33549-488-0 01 1 1006-1010
165 LEVER; SHIFT
PTO ZF TRANS RR<BDM> (C) THA 		1-33549-488-0 01 1 1011-1011
165 LEVER; SHIFT
(C) THA 		1-33549-488-0 01 1 1011-
165 LEVER; SHIFT
(B) THA 		1-33549-489-0 01 1 1006-1010
165 LEVER; SHIFT
PTO ZF TRANS RR<BDM> (B) THA 		1-33549-489-0 01 1 1011-1011
165 LEVER; SHIFT
(B) THA 		1-33549-489-0 01 1 1011-
165 LEVER; SHIFT
(A) 		1-33549-490-0 01 1 1006-1010
165 LEVER; SHIFT
PTO ZF TRANS RR<BDM> (A) 		1-33549-490-0 01 1 1011-1011
165 LEVER; SHIFT
(A) 		1-33549-490-0 01 1 1011-1305
264 SEAL; DUST,SHAFT
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-119-0 01 1 1011-1011
264 SEAL; DUST,SHAFT
THA 		1-33549-119-0 01 1 1006-1010
264 SEAL; DUST,SHAFT
PTO ZF TRANS RR<BDM> THA 		1-33549-119-0 01 1 1011-1011
264 SEAL; DUST,SHAFT
THA 		1-33549-119-0 01 1 1011-
265 SEAL; OIL,SHIFT
EXC. PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33549-118-0 01 1 1011-1011
265 SEAL; OIL,SHIFT
THA 		1-33549-118-0 01 1 1006-1010
265 SEAL; OIL,SHIFT
PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33549-118-0 01 1 1011-1011
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33549-118-0 01 1 1011-
271 BUSHING; QUAD BOX
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-124-0 01 1 1011-1011
271 BUSHING; QUAD BOX
THA 		1-33549-124-0 01 1 1006-1010
271 BUSHING; QUAD BOX
PTO ZF TRANS RR<BDM> THA 		1-33549-124-0 01 1 1011-1011
271 BUSHING; QUAD BOX
THA 		1-33549-124-0 01 1 1011-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
EXC. PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33549-491-0 01 1 1011-1011
289 SEAL; OIL,CONT SHAFT,QUAD BOX
THA 		1-33549-491-0 01 1 1006-1010
289 SEAL; OIL,CONT SHAFT,QUAD BOX
PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33549-491-0 01 1 1011-1011
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33549-491-0 01 1 1011-
298 SHAFT; SHIFT LEVER
EXC. PTO ZF TRANS RR<BDM> THA 		1-33522-205-0 01 1 1011-1011
298 SHAFT; SHIFT LEVER
THA 		1-33522-205-0 01 1 1006-1010
298 SHAFT; SHIFT LEVER
PTO ZF TRANS RR<BDM> THA 		1-33522-205-0 01 1 1011-1011
298 SHAFT; SHIFT LEVER
THA 		1-33522-205-0 01 1 1011-
304 BLOCK; SHIFT SHAFT
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-492-0 01 1 1011-1011
304 BLOCK; SHIFT SHAFT
THA 		1-33549-492-0 01 1 1006-1010
304 BLOCK; SHIFT SHAFT
PTO ZF TRANS RR<BDM> THA 		1-33549-492-0 01 1 1011-1011
304 BLOCK; SHIFT SHAFT
THA 		1-33549-492-0 01 1 1011-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE THA 		0-28650-840-0 01 1 1006-1006
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE THA 		0-28650-840-0 03 1 1007-
430 PIN; SPR,SHIFT ROD
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-493-0 01 1 1011-1011
430 PIN; SPR,SHIFT ROD
THA 		1-33549-493-0 01 1 1006-1010
430 PIN; SPR,SHIFT ROD
PTO ZF TRANS RR<BDM> THA 		1-33549-493-0 01 1 1011-1011
430 PIN; SPR,SHIFT ROD
THA 		1-33549-493-0 01 1 1011-
569 PIN; QUADRANT BOX
EXC. PTO ZF TRANS RR<BDM> THA 		1-33529-128-0 02 1 1011-1011
569 PIN; QUADRANT BOX
THA 		1-33529-128-0 02 1 1006-1010
569 PIN; QUADRANT BOX
PTO ZF TRANS RR<BDM> THA 		1-33529-128-0 02 1 1011-1011
569 PIN; QUADRANT BOX
THA 		1-33529-128-0 02 1 1011-

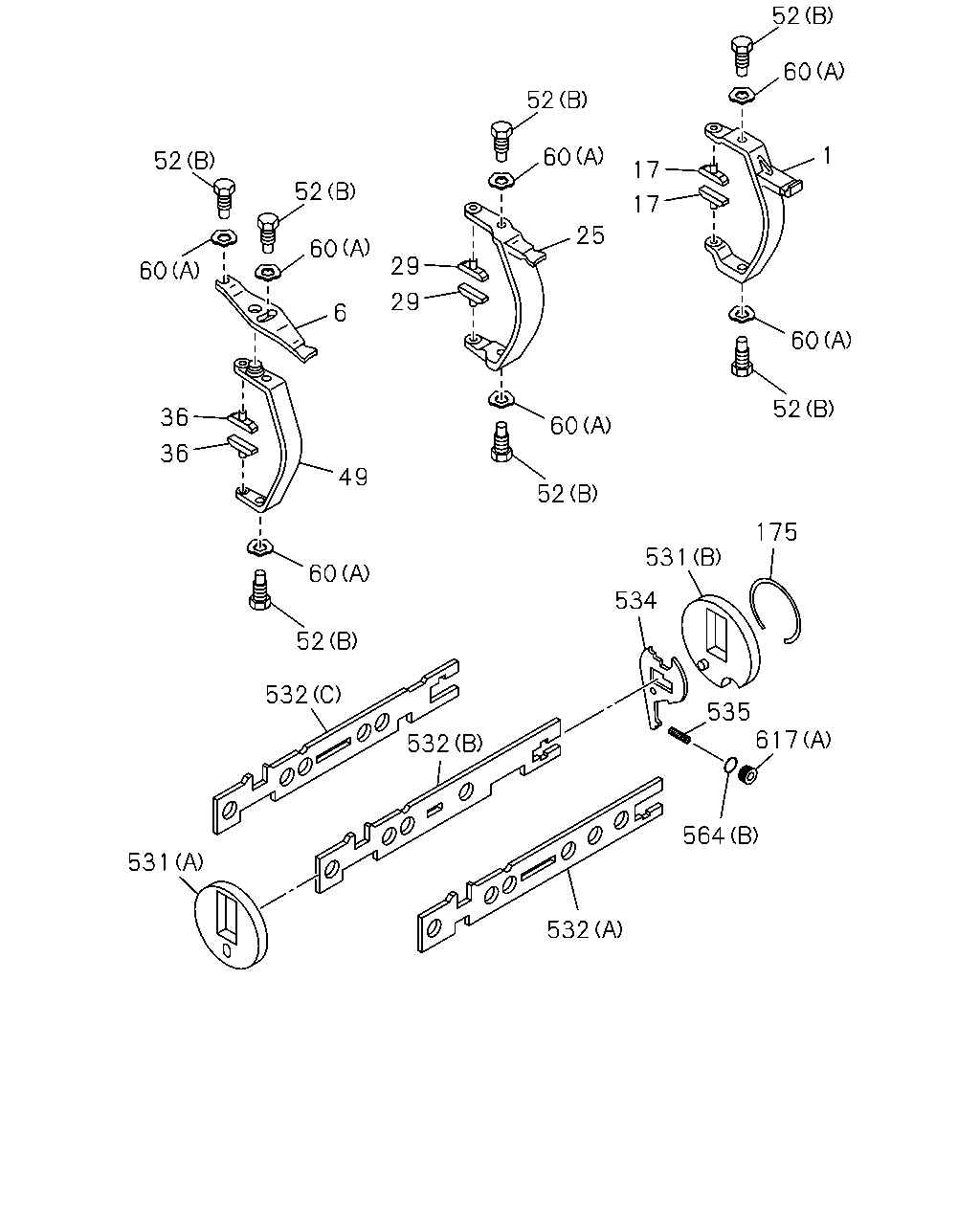

çizim 162937
52 52 1 52 17 52 17 25 29 60 29 6 60 52 36 60 36 49 52 175 531 60 534 52 532 535 617 532 564 531 532 60 60 60
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR<BDM> THA 		1-33511-657-0 01 1 1011-1011
1 ARM; SHIFT,1ST & REV
THA 		1-33511-657-0 01 1 1006-1010
1 ARM; SHIFT,1ST & REV
PTO ZF TRANS RR<BDM> THA 		1-33511-657-0 01 1 1011-1011
1 ARM; SHIFT,1ST & REV
THA 		1-33511-657-0 01 1 1011-
6 LEVER; RELAY
EXC. PTO ZF TRANS RR<BDM> THA 		1-33511-658-0 01 1 1011-1011
6 LEVER; RELAY
THA 		1-33511-658-0 01 1 1006-1010
6 LEVER; RELAY
PTO ZF TRANS RR<BDM> THA 		1-33511-658-0 01 1 1011-1011
6 LEVER; RELAY
THA 		1-33511-658-0 01 1 1011-
17 BLOCK; SHIFT,1ST & REV
EXC. PTO ZF TRANS RR<BDM> THA 		1-33519-172-0 02 1 1011-1011
17 BLOCK; SHIFT,1ST & REV
THA 		1-33519-172-0 02 1 1006-1010
17 BLOCK; SHIFT,1ST & REV
PTO ZF TRANS RR<BDM> THA 		1-33519-172-0 02 1 1011-1011
17 BLOCK; SHIFT,1ST & REV
THA 		1-33519-172-0 02 1 1011-
25 ARM; SHIFT,2ND & 3RD
EXC. PTO ZF TRANS RR<BDM> THA 		1-33511-642-0 01 1 1011-1011
25 ARM; SHIFT,2ND & 3RD
THA 		1-33511-642-0 01 1 1006-1010
25 ARM; SHIFT,2ND & 3RD
PTO ZF TRANS RR<BDM> THA 		1-33511-642-0 01 1 1011-1011
25 ARM; SHIFT,2ND & 3RD
THA 		1-33511-642-0 01 1 1011-
29 BLOCK; SHIFT,2ND & 3RD
EXC. PTO ZF TRANS RR<BDM> THA 		1-33519-081-0 02 1 1011-1011
29 BLOCK; SHIFT,2ND & 3RD
THA 		1-33519-081-0 02 1 1006-1010
29 BLOCK; SHIFT,2ND & 3RD
PTO ZF TRANS RR<BDM> THA 		1-33519-081-0 02 1 1011-1011
29 BLOCK; SHIFT,2ND & 3RD
THA 		1-33519-081-0 02 1 1011-
36 BLOCK; SHIFT,4TH & 5TH
EXC. PTO ZF TRANS RR<BDM> THA 		1-33519-170-0 02 1 1011-1011
36 BLOCK; SHIFT,4TH & 5TH
THA 		1-33519-170-0 02 1 1006-1010
36 BLOCK; SHIFT,4TH & 5TH
PTO ZF TRANS RR<BDM> THA 		1-33519-170-0 02 1 1011-1011
36 BLOCK; SHIFT,4TH & 5TH
THA 		1-33519-170-0 02 1 1011-
49 ARM; SHIFT,4TH & 5TH
EXC. PTO ZF TRANS RR<BDM> THA 		1-33511-640-0 01 1 1011-1011
49 ARM; SHIFT,4TH & 5TH
THA 		1-33511-640-0 01 1 1006-1010
49 ARM; SHIFT,4TH & 5TH
PTO ZF TRANS RR<BDM> THA 		1-33511-640-0 01 1 1011-1011
49 ARM; SHIFT,4TH & 5TH
THA 		1-33511-640-0 01 1 1011-
52 BOLT; SHIFT ARM
(B) THA 		1-33519-190-0 07 1 1302-
52 BOLT; SHIFT ARM
(A) THA 		1-33519-196-0 02 1 1302-
52 BOLT; SHIFT ARM
EXC. PTO ZF TRANS RR<BDM> (A) 		1-33519-058-0 02 1 1011-1011
52 BOLT; SHIFT ARM
EXC. PTO ZF TRANS RR<BDM> (B) 		1-33519-084-0 07 1 1011-1011
52 BOLT; SHIFT ARM
(A) 		1-33519-058-0 02 1 1006-1010
52 BOLT; SHIFT ARM
PTO ZF TRANS RR<BDM> (A) 		1-33519-058-0 02 1 1011-1011
52 BOLT; SHIFT ARM
(A) 		1-33519-058-0 02 1 1011-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-084-0 07 1 1006-1010
52 BOLT; SHIFT ARM
PTO ZF TRANS RR<BDM> (B) 		1-33519-084-0 07 1 1011-1011
52 BOLT; SHIFT ARM
(B) 		1-33519-084-0 07 1 1011-1305
60 WASHER; LK
EXC. PTO ZF TRANS RR<BDM> (B) 		1-33519-059-0 02 1 1011-1011
60 WASHER; LK
EXC. PTO ZF TRANS RR<BDM> (A) 		1-33519-085-0 07 1 1011-1011
60 WASHER; LK
(B) 		1-33519-059-0 02 1 1006-1010
60 WASHER; LK
PTO ZF TRANS RR<BDM> (B) 		1-33519-059-0 02 1 1011-1011
60 WASHER; LK
(B) 		1-33519-059-0 02 1 1011-1305
60 WASHER; LK
(A) 		1-33519-085-0 07 1 1006-1010
60 WASHER; LK
PTO ZF TRANS RR<BDM> (A) 		1-33519-085-0 07 1 1011-1011
60 WASHER; LK
(A) 		1-33519-085-0 07 1 1011-1305
175 RING; STOPPER,SHIFT LEVER
EXC. PTO ZF TRANS RR<BDM> THA 		1-33539-103-0 01 1 1011-1011
175 RING; STOPPER,SHIFT LEVER
THA 		1-33539-103-0 01 1 1006-1010
175 RING; STOPPER,SHIFT LEVER
PTO ZF TRANS RR<BDM> THA 		1-33539-103-0 01 1 1011-1011
175 RING; STOPPER,SHIFT LEVER
THA 		1-33539-103-0 01 1 1011-
531 PLATE; BEARING
EXC. PTO ZF TRANS RR<BDM> (A) THA 		1-33539-044-0 01 1 1011-1011
531 PLATE; BEARING
EXC. PTO ZF TRANS RR<BDM> (B) THA 		1-33539-047-0 01 1 1011-1011
531 PLATE; BEARING
(A) THA 		1-33539-044-0 01 1 1006-1010
531 PLATE; BEARING
PTO ZF TRANS RR<BDM> (A) THA 		1-33539-044-0 01 1 1011-1011
531 PLATE; BEARING
(A) THA 		1-33539-044-0 01 1 1011-
531 PLATE; BEARING
(B) THA 		1-33539-047-0 01 1 1006-1010
531 PLATE; BEARING
PTO ZF TRANS RR<BDM> (B) THA 		1-33539-047-0 01 1 1011-1011
531 PLATE; BEARING
(B) THA 		1-33539-047-0 01 1 1011-
532 PLATE; SHIFT FORK
EXC. PTO ZF TRANS RR<BDM> (A) THA 		1-33531-492-0 01 1 1011-1011
532 PLATE; SHIFT FORK
EXC. PTO ZF TRANS RR<BDM> (B) THA 		1-33531-493-0 01 1 1011-1011
532 PLATE; SHIFT FORK
EXC. PTO ZF TRANS RR<BDM> (C) THA 		1-33531-494-0 01 1 1011-1011
532 PLATE; SHIFT FORK
(A) THA 		1-33531-492-0 01 1 1006-1010
532 PLATE; SHIFT FORK
PTO ZF TRANS RR<BDM> (A) THA 		1-33531-492-0 01 1 1011-1011
532 PLATE; SHIFT FORK
(A) THA 		1-33531-492-0 01 1 1011-
532 PLATE; SHIFT FORK
(B) THA 		1-33531-493-0 01 1 1006-1010
532 PLATE; SHIFT FORK
PTO ZF TRANS RR<BDM> (B) THA 		1-33531-493-0 01 1 1011-1011
532 PLATE; SHIFT FORK
(B) THA 		1-33531-493-0 01 1 1011-
532 PLATE; SHIFT FORK
(C) THA 		1-33531-494-0 01 1 1006-1010
532 PLATE; SHIFT FORK
PTO ZF TRANS RR<BDM> (C) THA 		1-33531-494-0 01 1 1011-1011
532 PLATE; SHIFT FORK
(C) THA 		1-33531-494-0 01 1 1011-
534 LEVER; LOCK,SHIFT PLATE
EXC. PTO ZF TRANS RR<BDM> THA 		1-33539-087-0 01 1 1011-1011
534 LEVER; LOCK,SHIFT PLATE
THA 		1-33539-087-0 01 1 1006-1010
534 LEVER; LOCK,SHIFT PLATE
PTO ZF TRANS RR<BDM> THA 		1-33539-087-0 01 1 1011-1011
534 LEVER; LOCK,SHIFT PLATE
THA 		1-33539-087-0 01 1 1011-
535 SPRING; LEVER
EXC. PTO ZF TRANS RR<BDM> THA 		1-33539-049-0 01 1 1011-1011
535 SPRING; LEVER
THA 		1-33539-049-0 01 1 1006-1010
535 SPRING; LEVER
PTO ZF TRANS RR<BDM> THA 		1-33539-049-0 01 1 1011-1011
535 SPRING; LEVER
THA 		1-33539-049-0 01 1 1011-
564 SEAL; RING
(B) THA 		1-33549-578-0 01 1 1302-
564 SEAL; RING
EXC. PTO ZF TRANS RR<BDM> (A) THA 		1-33119-249-0 02 1 1011-1011
564 SEAL; RING
EXC. PTO ZF TRANS RR<BDM> (B) 		1-33549-444-0 01 1 1011-1011
564 SEAL; RING
(A) THA 		1-33119-249-0 02 1 1006-1010
564 SEAL; RING
PTO ZF TRANS RR<BDM> (A) THA 		1-33119-249-0 02 1 1011-1011
564 SEAL; RING
(A) THA 		1-33119-249-0 02 1 1011-
564 SEAL; RING
(B) 		1-33549-444-0 01 1 1006-1010
564 SEAL; RING
PTO ZF TRANS RR<BDM> (B) 		1-33549-444-0 01 1 1011-1011
564 SEAL; RING
(B) 		1-33549-444-0 01 1 1011-1305
617 PLUG
(B) THA 		1-33119-619-0 02 1 1302-
617 PLUG
(A) THA 		1-33539-109-0 01 1 1302-
617 PLUG
EXC. PTO ZF TRANS RR<BDM> (B) 		1-33119-171-0 02 1 1011-1011
617 PLUG
EXC. PTO ZF TRANS RR<BDM> (A) 		1-34129-061-0 01 1 1011-1011
617 PLUG
(B) 		1-33119-171-0 02 1 1006-1010
617 PLUG
PTO ZF TRANS RR<BDM> (B) 		1-33119-171-0 02 1 1011-1011
617 PLUG
(B) 		1-33119-171-0 02 1 1011-1305
617 PLUG
(A) 		1-34129-061-0 01 1 1006-1010
617 PLUG
PTO ZF TRANS RR<BDM> (A) 		1-34129-061-0 01 1 1011-1011
617 PLUG
(A) 		1-34129-061-0 01 1 1011-1305

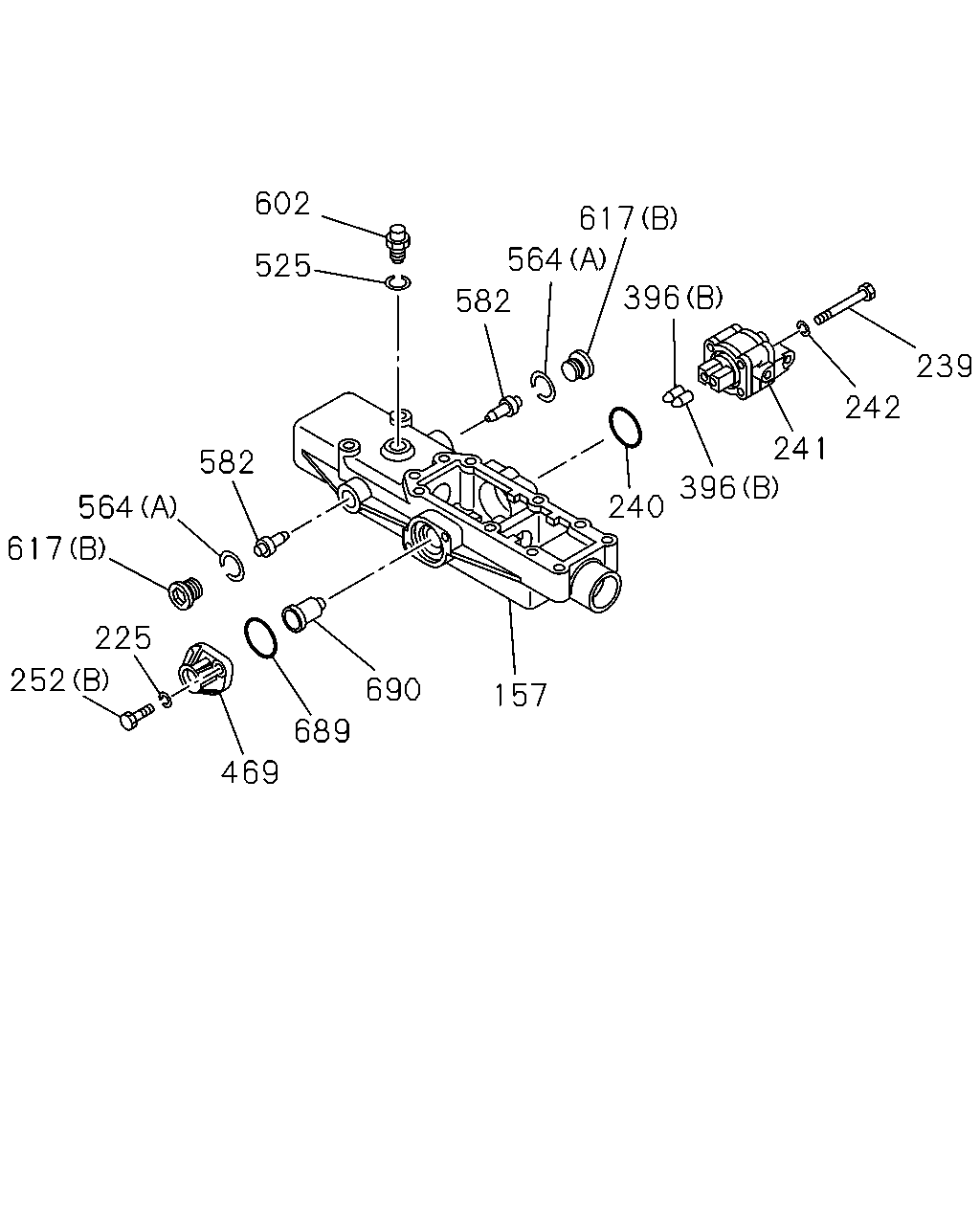

çizim 162942
602 617 564 525 396 582 239 242 241 396 582 240 564 617 225 252 690 157 689 469
BalonParca AdiParca NoAdetTipApplied Date
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-570-0 01 1 1011-1011
157 BOX; QUAD,TRANS
THA 		1-33549-570-0 01 1 1006-1010
157 BOX; QUAD,TRANS
PTO ZF TRANS RR<BDM> THA 		1-33549-570-0 01 1 1011-1011
157 BOX; QUAD,TRANS
THA 		1-33549-570-0 01 1 1011-
225 WASHER; LK,QUAD BOX
THA 		1-33549-583-0 14 1 1302-
225 WASHER; LK,QUAD BOX
EXC. PTO ZF TRANS RR<BDM> 		1-33549-159-0 14 1 1011-1011
225 WASHER; LK,QUAD BOX 1-33549-159-0 14 1 1006-1010
225 WASHER; LK,QUAD BOX
PTO ZF TRANS RR<BDM> 		1-33549-159-0 14 1 1011-1011
225 WASHER; LK,QUAD BOX 1-33549-159-0 14 1 1011-1305
239 BOLT; CUT OFF VALVE
THA 		1-33549-585-0 04 1 1302-
239 BOLT; CUT OFF VALVE
EXC. PTO ZF TRANS RR<BDM> 		1-33549-302-0 04 1 1011-1011
239 BOLT; CUT OFF VALVE 1-33549-302-0 04 1 1006-1010
239 BOLT; CUT OFF VALVE
PTO ZF TRANS RR<BDM> 		1-33549-302-0 04 1 1011-1011
239 BOLT; CUT OFF VALVE 1-33549-302-0 04 1 1011-1305
240 GASKET; CUT OFF VALVE
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-198-0 01 1 1011-1011
240 GASKET; CUT OFF VALVE
THA 		1-33549-198-0 01 1 1006-1010
240 GASKET; CUT OFF VALVE
PTO ZF TRANS RR<BDM> THA 		1-33549-198-0 01 1 1011-1011
240 GASKET; CUT OFF VALVE
THA 		1-33549-198-0 01 1 1011-
241 VALVE; CUT OFF
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-495-0 01 1 1011-1011
241 VALVE; CUT OFF
THA 		1-33549-495-0 01 1 1006-1010
241 VALVE; CUT OFF
PTO ZF TRANS RR<BDM> THA 		1-33549-495-0 01 1 1011-1011
241 VALVE; CUT OFF
THA 		1-33549-495-0 01 1 1011-
242 WASHER; CUT OFF VALVE
THA 		1-33549-583-0 04 1 1302-
242 WASHER; CUT OFF VALVE
EXC. PTO ZF TRANS RR<BDM> 		1-33549-159-0 04 1 1011-1011
242 WASHER; CUT OFF VALVE 1-33549-159-0 04 1 1006-1010
242 WASHER; CUT OFF VALVE
PTO ZF TRANS RR<BDM> 		1-33549-159-0 04 1 1011-1011
242 WASHER; CUT OFF VALVE 1-33549-159-0 04 1 1011-1305
252 BOLT; SIDE COVER
(B) M8X30 THA 		1-33549-581-0 02 1 1302-
252 BOLT; SIDE COVER
(A) M8X20 THA 		1-33549-591-0 04 1 1302-
252 BOLT; SIDE COVER
EXC. PTO ZF TRANS RR<BDM> (A) 		1-33119-296-0 04 1 1011-1011
252 BOLT; SIDE COVER
EXC. PTO ZF TRANS RR<BDM> (B) M8X30 		1-33549-172-0 02 1 1011-1011
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 1006-1010
252 BOLT; SIDE COVER
PTO ZF TRANS RR<BDM> (A) 		1-33119-296-0 04 1 1011-1011
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 1011-1305
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 02 1 1006-1010
252 BOLT; SIDE COVER
PTO ZF TRANS RR<BDM> (B) M8X30 		1-33549-172-0 02 1 1011-1011
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 02 1 1011-1305
396 PLUNGER; SHIFT ROD
(A) THA 		1-33519-189-0 01 1 1302-
396 PLUNGER; SHIFT ROD
EXC. PTO ZF TRANS RR<BDM> (A) 		1-33519-073-0 01 1 1011-1011
396 PLUNGER; SHIFT ROD
EXC. PTO ZF TRANS RR<BDM> (B) THA 		1-33529-085-0 02 1 1011-1011
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1006-1010
396 PLUNGER; SHIFT ROD
PTO ZF TRANS RR<BDM> (A) 		1-33519-073-0 01 1 1011-1011
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1011-1305
396 PLUNGER; SHIFT ROD
(B) THA 		1-33529-085-0 02 1 1006-1010
396 PLUNGER; SHIFT ROD
PTO ZF TRANS RR<BDM> (B) THA 		1-33529-085-0 02 1 1011-1011
396 PLUNGER; SHIFT ROD
(B) THA 		1-33529-085-0 02 1 1011-
469 COVER; SPRING,QUAD BOX
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-216-0 01 1 1011-1011
469 COVER; SPRING,QUAD BOX
THA 		1-33549-216-0 01 1 1006-1010
469 COVER; SPRING,QUAD BOX
PTO ZF TRANS RR<BDM> THA 		1-33549-216-0 01 1 1011-1011
469 COVER; SPRING,QUAD BOX
THA 		1-33549-216-0 01 1 1011-
525 RING; DETENT
EXC. PTO ZF TRANS RR<BDM> THA 		1-33119-286-0 01 1 1011-1011
525 RING; DETENT
THA 		1-33119-286-0 01 1 1006-1010
525 RING; DETENT
PTO ZF TRANS RR<BDM> THA 		1-33119-286-0 01 1 1011-1011
525 RING; DETENT
THA 		1-33119-286-0 01 1 1011-
564 SEAL; RING
(B) THA 		1-33549-578-0 01 1 1302-
564 SEAL; RING
EXC. PTO ZF TRANS RR<BDM> (A) THA 		1-33119-249-0 02 1 1011-1011
564 SEAL; RING
EXC. PTO ZF TRANS RR<BDM> (B) 		1-33549-444-0 01 1 1011-1011
564 SEAL; RING
(A) THA 		1-33119-249-0 02 1 1006-1010
564 SEAL; RING
PTO ZF TRANS RR<BDM> (A) THA 		1-33119-249-0 02 1 1011-1011
564 SEAL; RING
(A) THA 		1-33119-249-0 02 1 1011-
564 SEAL; RING
(B) 		1-33549-444-0 01 1 1006-1010
564 SEAL; RING
PTO ZF TRANS RR<BDM> (B) 		1-33549-444-0 01 1 1011-1011
564 SEAL; RING
(B) 		1-33549-444-0 01 1 1011-1305
582 BOLT; SPRING GUIDE
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-487-0 02 1 1011-1011
582 BOLT; SPRING GUIDE
THA 		1-33549-487-0 02 1 1006-1010
582 BOLT; SPRING GUIDE
PTO ZF TRANS RR<BDM> THA 		1-33549-487-0 02 1 1011-1011
582 BOLT; SPRING GUIDE
THA 		1-33549-487-0 02 1 1011-
602 PLUNGER; DETENT
THA 		1-33119-618-0 01 1 1302-
602 PLUNGER; DETENT
EXC. PTO ZF TRANS RR<BDM> 		1-33119-285-0 01 1 1011-1011
602 PLUNGER; DETENT 1-33119-285-0 01 1 1006-1010
602 PLUNGER; DETENT
PTO ZF TRANS RR<BDM> 		1-33119-285-0 01 1 1011-1011
602 PLUNGER; DETENT 1-33119-285-0 01 1 1011-1305
617 PLUG
(B) THA 		1-33119-619-0 02 1 1302-
617 PLUG
(A) THA 		1-33539-109-0 01 1 1302-
617 PLUG
EXC. PTO ZF TRANS RR<BDM> (B) 		1-33119-171-0 02 1 1011-1011
617 PLUG
EXC. PTO ZF TRANS RR<BDM> (A) 		1-34129-061-0 01 1 1011-1011
617 PLUG
(B) 		1-33119-171-0 02 1 1006-1010
617 PLUG
PTO ZF TRANS RR<BDM> (B) 		1-33119-171-0 02 1 1011-1011
617 PLUG
(B) 		1-33119-171-0 02 1 1011-1305
617 PLUG
(A) 		1-34129-061-0 01 1 1006-1010
617 PLUG
PTO ZF TRANS RR<BDM> (A) 		1-34129-061-0 01 1 1011-1011
617 PLUG
(A) 		1-34129-061-0 01 1 1011-1305
689 GASKET; COVER
EXC. PTO ZF TRANS RR<BDM> THA 		1-33542-063-0 01 1 1011-1011
689 GASKET; COVER
THA 		1-33542-063-0 01 1 1006-1010
689 GASKET; COVER
PTO ZF TRANS RR<BDM> THA 		1-33542-063-0 01 1 1011-1011
689 GASKET; COVER
THA 		1-33542-063-0 01 1 1011-
690 PIN; STOP
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-496-0 01 1 1011-1011
690 PIN; STOP
THA 		1-33549-496-0 01 1 1006-1010
690 PIN; STOP
PTO ZF TRANS RR<BDM> THA 		1-33549-496-0 01 1 1011-1011
690 PIN; STOP
THA 		1-33549-496-0 01 1 1011-

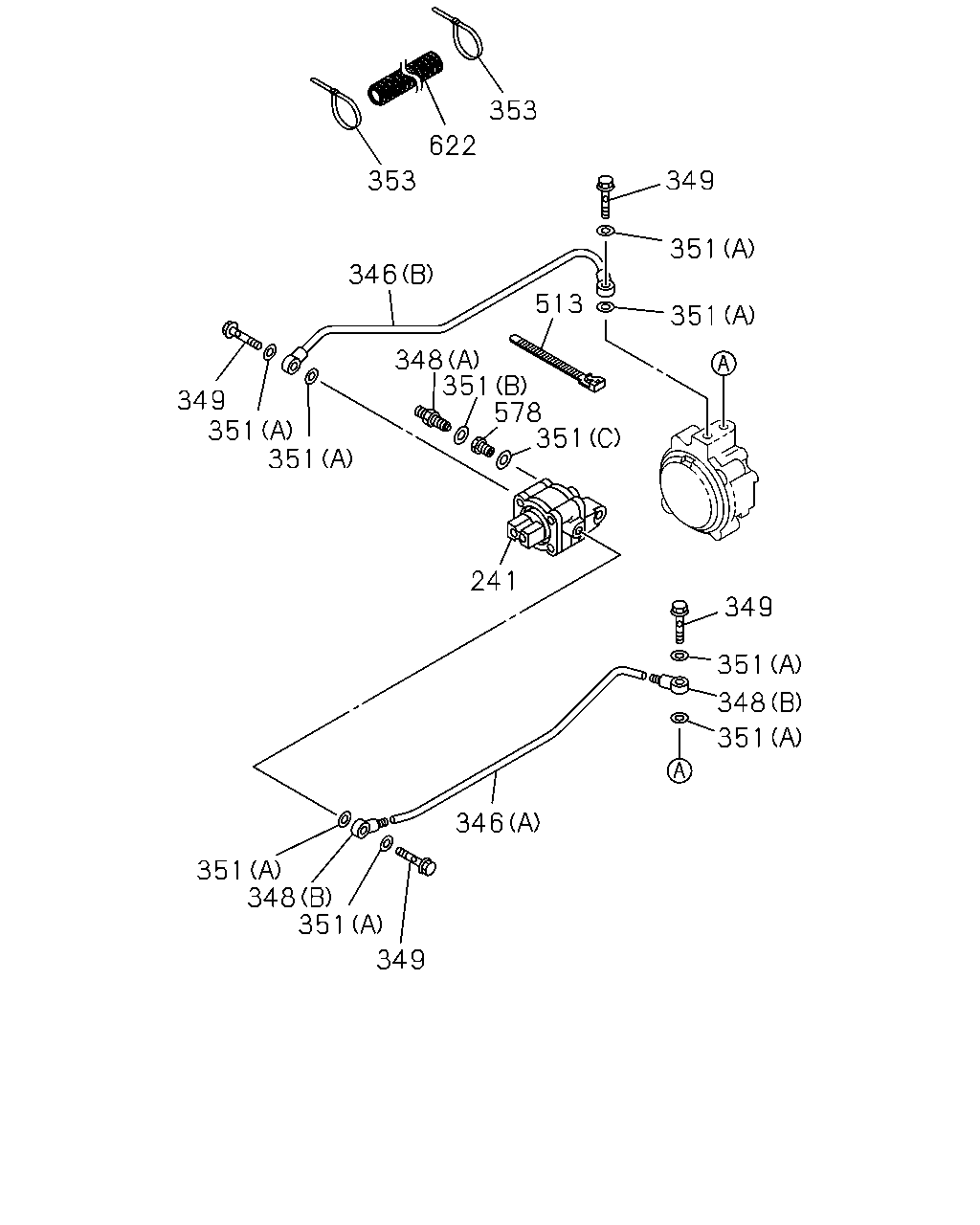

çizim 162953
353 622 349 353 351 346 513 351 348 351 578 351 349 351 351 241 349 351 348 351 346 351 348 351 349
BalonParca AdiParca NoAdetTipApplied Date
241 VALVE; CUT OFF
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-495-0 01 1 1011-1011
241 VALVE; CUT OFF
THA 		1-33549-495-0 01 1 1006-1010
241 VALVE; CUT OFF
PTO ZF TRANS RR<BDM> THA 		1-33549-495-0 01 1 1011-1011
241 VALVE; CUT OFF
THA 		1-33549-495-0 01 1 1011-
346 HOSE; AIR
(B) THA 		1-33549-598-0 01 1 1302-
346 HOSE; AIR
(A) THA 		1-33549-618-0 01 1 1302-
346 HOSE; AIR
EXC. PTO ZF TRANS RR<BDM> (A) 		1-33549-400-0 01 1 1011-1011
346 HOSE; AIR
EXC. PTO ZF TRANS RR<BDM> (B) 		1-33549-443-0 01 1 1011-1011
346 HOSE; AIR
(A) 		1-33549-400-0 01 1 1006-1010
346 HOSE; AIR
PTO ZF TRANS RR<BDM> (A) 		1-33549-400-0 01 1 1011-1011
346 HOSE; AIR
(A) 		1-33549-400-0 01 1 1011-1305
346 HOSE; AIR
(B) 		1-33549-443-0 01 1 1006-1010
346 HOSE; AIR
PTO ZF TRANS RR<BDM> (B) 		1-33549-443-0 01 1 1011-1011
346 HOSE; AIR
(B) 		1-33549-443-0 01 1 1011-1305
348 CONNECTOR; AIR HOSE
(B) THA 		1-33549-593-0 04 1 1302-
348 CONNECTOR; AIR HOSE
PTO ZF TRANS RR<BDM> (B) 		1-33549-139-0 02 1 1006-1305
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 1006-
348 CONNECTOR; AIR HOSE
EXC. PTO ZF TRANS RR<BDM> (B) 		1-33549-139-0 04 1 1006-1305
349 BOLT; EYE,AIR HOSE
M14 THA 		1-33549-592-0 04 1 1302-
349 BOLT; EYE,AIR HOSE
EXC. PTO ZF TRANS RR<BDM> 		1-33549-573-0 04 1 1011-1011
349 BOLT; EYE,AIR HOSE 1-33549-573-0 04 1 1006-1010
349 BOLT; EYE,AIR HOSE
PTO ZF TRANS RR<BDM> 		1-33549-573-0 04 1 1011-1011
349 BOLT; EYE,AIR HOSE 1-33549-573-0 04 1 1011-1305
351 GASKET; CONNECTOR
(A) THA 		1-33549-578-0 08 1 1302-
351 GASKET; CONNECTOR
EXC. PTO ZF TRANS RR<BDM> (A) 		1-33549-444-0 08 1 1011-1011
351 GASKET; CONNECTOR
EXC. PTO ZF TRANS RR<BDM> (C) THA 		1-33549-554-0 01 1 1011-1011
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1006-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 08 1 1006-1010
351 GASKET; CONNECTOR
PTO ZF TRANS RR<BDM> (A) 		1-33549-444-0 08 1 1011-1011
351 GASKET; CONNECTOR
(A) 		1-33549-444-0 08 1 1011-1305
351 GASKET; CONNECTOR
(C) THA 		1-33549-554-0 01 1 1006-1010
351 GASKET; CONNECTOR
PTO ZF TRANS RR<BDM> (C) THA 		1-33549-554-0 01 1 1011-1011
351 GASKET; CONNECTOR
(C) THA 		1-33549-554-0 01 1 1011-
353 CLIP; AIR HOSE
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-475-0 02 1 1011-1011
353 CLIP; AIR HOSE
THA 		1-33549-475-0 02 1 1006-1010
353 CLIP; AIR HOSE
PTO ZF TRANS RR<BDM> THA 		1-33549-475-0 02 1 1011-1011
353 CLIP; AIR HOSE
THA 		1-33549-475-0 02 1 1011-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 1006-
578 CONNECTOR
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-553-0 01 1 1011-1011
578 CONNECTOR
THA 		1-33549-553-0 01 1 1006-1010
578 CONNECTOR
PTO ZF TRANS RR<BDM> THA 		1-33549-553-0 01 1 1011-1011
578 CONNECTOR
THA 		1-33549-553-0 01 1 1011-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1006-

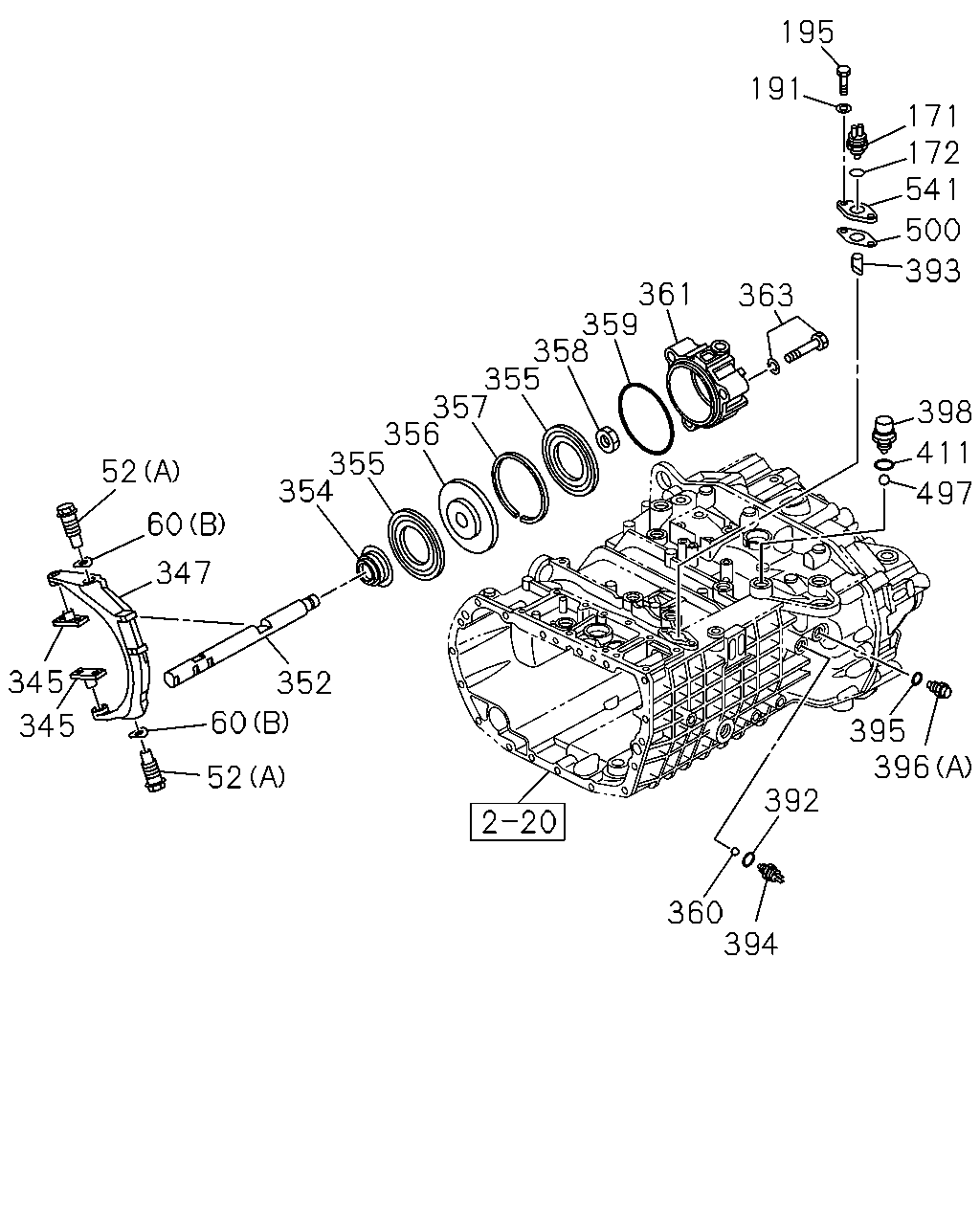

çizim 162956
195 191 171 172 541 500 393 361 359 358 355 357 356 355 354 363 398 411 52 497 60 347 345 352 60 345 395 396 52 392 360 394
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(B) THA 		1-33519-190-0 07 1 1302-
52 BOLT; SHIFT ARM
(A) THA 		1-33519-196-0 02 1 1302-
52 BOLT; SHIFT ARM
EXC. PTO ZF TRANS RR<BDM> (A) 		1-33519-058-0 02 1 1011-1011
52 BOLT; SHIFT ARM
EXC. PTO ZF TRANS RR<BDM> (B) 		1-33519-084-0 07 1 1011-1011
52 BOLT; SHIFT ARM
(A) 		1-33519-058-0 02 1 1006-1010
52 BOLT; SHIFT ARM
PTO ZF TRANS RR<BDM> (A) 		1-33519-058-0 02 1 1011-1011
52 BOLT; SHIFT ARM
(A) 		1-33519-058-0 02 1 1011-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-084-0 07 1 1006-1010
52 BOLT; SHIFT ARM
PTO ZF TRANS RR<BDM> (B) 		1-33519-084-0 07 1 1011-1011
52 BOLT; SHIFT ARM
(B) 		1-33519-084-0 07 1 1011-1305
60 WASHER; LK
EXC. PTO ZF TRANS RR<BDM> (B) 		1-33519-059-0 02 1 1011-1011
60 WASHER; LK
EXC. PTO ZF TRANS RR<BDM> (A) 		1-33519-085-0 07 1 1011-1011
60 WASHER; LK
(B) 		1-33519-059-0 02 1 1006-1010
60 WASHER; LK
PTO ZF TRANS RR<BDM> (B) 		1-33519-059-0 02 1 1011-1011
60 WASHER; LK
(B) 		1-33519-059-0 02 1 1011-1305
60 WASHER; LK
(A) 		1-33519-085-0 07 1 1006-1010
60 WASHER; LK
PTO ZF TRANS RR<BDM> (A) 		1-33519-085-0 07 1 1011-1011
60 WASHER; LK
(A) 		1-33519-085-0 07 1 1011-1305
171 SWITCH; NEUTRAL
THA 		1-33119-627-0 01 1 1302-
171 SWITCH; NEUTRAL
EXC. PTO ZF TRANS RR<BDM> 		1-33119-587-0 01 1 1011-1011
171 SWITCH; NEUTRAL 1-33119-587-0 01 1 1006-1010
171 SWITCH; NEUTRAL
PTO ZF TRANS RR<BDM> 		1-33119-587-0 01 1 1011-1011
171 SWITCH; NEUTRAL 1-33119-587-0 01 1 1011-1305
172 GASKET; NEUTRAL SW
EXC. PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33119-249-0 01 1 1011-1011
172 GASKET; NEUTRAL SW
THA 		1-33119-249-0 01 1 1006-1010
172 GASKET; NEUTRAL SW
PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33119-249-0 01 1 1011-1011
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33119-249-0 01 1 1011-
191 WASHER; LK
THA 		1-33549-583-0 02 1 1302-
191 WASHER; LK
EXC. PTO ZF TRANS RR<BDM> 		1-36129-007-0 02 1 1011-1011
191 WASHER; LK 1-36129-007-0 02 1 1006-1010
191 WASHER; LK
PTO ZF TRANS RR<BDM> 		1-36129-007-0 02 1 1011-1011
191 WASHER; LK 1-36129-007-0 02 1 1011-1305
195 BOLT
THA 		1-33119-593-0 02 1 1302-
195 BOLT
EXC. PTO ZF TRANS RR<BDM> 		1-33119-301-0 02 1 1011-1011
195 BOLT 1-33119-301-0 02 1 1006-1010
195 BOLT
PTO ZF TRANS RR<BDM> 		1-33119-301-0 02 1 1011-1011
195 BOLT 1-33119-301-0 02 1 1011-1305
345 BLOCK; SHIFT,RANGE CHANGE
EXC. PTO ZF TRANS RR<BDM> THA 		1-33519-095-0 02 1 1011-1011
345 BLOCK; SHIFT,RANGE CHANGE
THA 		1-33519-095-0 02 1 1006-1010
345 BLOCK; SHIFT,RANGE CHANGE
PTO ZF TRANS RR<BDM> THA 		1-33519-095-0 02 1 1011-1011
345 BLOCK; SHIFT,RANGE CHANGE
THA 		1-33519-095-0 02 1 1011-
347 ARM; SHIFT,RANGE CHANGE
EXC. PTO ZF TRANS RR<BDM> THA 		1-33511-529-0 01 1 1011-1011
347 ARM; SHIFT,RANGE CHANGE
THA 		1-33511-529-0 01 1 1006-1010
347 ARM; SHIFT,RANGE CHANGE
PTO ZF TRANS RR<BDM> THA 		1-33511-529-0 01 1 1011-1011
347 ARM; SHIFT,RANGE CHANGE
THA 		1-33511-529-0 01 1 1011-
352 ROD; SHIFT,RANGE CHANGE
EXC. PTO ZF TRANS RR<BDM> THA 		1-33531-495-0 01 1 1302-1305
352 ROD; SHIFT,RANGE CHANGE
EXC. PTO ZF TRANS RR<BDM> THA 		1-33531-047-0 01 1 1302-
352 ROD; SHIFT,RANGE CHANGE
EXC. PTO ZF TRANS RR<BDM> THA 		1-33531-495-0 01 1 1011-1011
352 ROD; SHIFT,RANGE CHANGE
THA 		1-33531-495-0 01 1 1006-1010
352 ROD; SHIFT,RANGE CHANGE
PTO ZF TRANS RR<BDM> THA 		1-33531-495-0 01 1 1011-1011
352 ROD; SHIFT,RANGE CHANGE
THA 		1-33531-495-0 01 1 1011-1301
352 ROD; SHIFT,RANGE CHANGE
PTO ZF TRANS RR<BDM> THA 		1-33531-495-0 03 1 1302-1305
352 ROD; SHIFT,RANGE CHANGE
PTO ZF TRANS RR<BDM> THA 		1-33531-495-0 01 1 1306-
354 SEAL; AIR CYL
EXC. PTO ZF TRANS RR<BDM> THA 		1-33519-045-0 01 1 1011-1011
354 SEAL; AIR CYL
THA 		1-33519-045-0 01 1 1006-1010
354 SEAL; AIR CYL
PTO ZF TRANS RR<BDM> THA 		1-33519-045-0 01 1 1011-1011
354 SEAL; AIR CYL
THA 		1-33519-045-0 01 1 1011-
355 CUP; PISTON,AIR CYL
EXC. PTO ZF TRANS RR<BDM> 		1-33519-088-0 02 1 1011-1011
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1006-1010
355 CUP; PISTON,AIR CYL
PTO ZF TRANS RR<BDM> 		1-33519-088-0 02 1 1011-1011
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1011-1305
356 PISTON; AIR CYL
THA 		1-33519-197-0 01 1 1302-
356 PISTON; AIR CYL
EXC. PTO ZF TRANS RR<BDM> 		1-33519-087-0 01 1 1011-1011
356 PISTON; AIR CYL 1-33519-087-0 01 1 1006-1010
356 PISTON; AIR CYL
PTO ZF TRANS RR<BDM> 		1-33519-087-0 01 1 1011-1011
356 PISTON; AIR CYL 1-33519-087-0 01 1 1011-1305
357 RING; GUIDE,AIR CYL
EXC. PTO ZF TRANS RR<BDM> 		1-33519-090-0 01 1 1011-1011
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1006-1010
357 RING; GUIDE,AIR CYL
PTO ZF TRANS RR<BDM> 		1-33519-090-0 01 1 1011-1011
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1011-1305
358 NUT; SHIFT ROD
THA 		1-33519-188-0 01 1 1302-
358 NUT; SHIFT ROD
EXC. PTO ZF TRANS RR<BDM> 		1-33519-049-0 01 1 1011-1011
358 NUT; SHIFT ROD 1-33519-049-0 01 1 1006-1010
358 NUT; SHIFT ROD
PTO ZF TRANS RR<BDM> 		1-33519-049-0 01 1 1011-1011
358 NUT; SHIFT ROD 1-33519-049-0 01 1 1011-1305
359 GASKET; AIR CYL
EXC. PTO ZF TRANS RR<BDM> THA 		1-33519-093-0 01 1 1011-1011
359 GASKET; AIR CYL
THA 		1-33519-093-0 01 1 1006-1010
359 GASKET; AIR CYL
PTO ZF TRANS RR<BDM> THA 		1-33519-093-0 01 1 1011-1011
359 GASKET; AIR CYL
THA 		1-33519-093-0 01 1 1011-
360 BALL; AIR CYL
EXC. PTO ZF TRANS RR<BDM> THA 		1-33119-252-0 01 1 1011-1011
360 BALL; AIR CYL
THA 		1-33119-252-0 01 1 1006-1010
360 BALL; AIR CYL
PTO ZF TRANS RR<BDM> THA 		1-33119-252-0 01 1 1011-1011
360 BALL; AIR CYL
THA 		1-33119-252-0 01 1 1011-
361 CYLINDER; AIR,SHIFT
EXC. PTO ZF TRANS RR<BDM> THA 		1-33519-092-0 01 1 1011-1011
361 CYLINDER; AIR,SHIFT
THA 		1-33519-092-0 01 1 1006-1010
361 CYLINDER; AIR,SHIFT
PTO ZF TRANS RR<BDM> THA 		1-33519-092-0 01 1 1011-1011
361 CYLINDER; AIR,SHIFT
THA 		1-33519-092-0 01 1 1011-
363 BOLT; AIR CYL
M10X70 THA 		1-33119-616-0 03 1 1302-
363 BOLT; AIR CYL
EXC. PTO ZF TRANS RR<BDM> M10X70 		1-33119-522-0 03 1 1011-1011
363 BOLT; AIR CYL
M10X70 		1-33119-522-0 03 1 1006-1010
363 BOLT; AIR CYL
PTO ZF TRANS RR<BDM> M10X70 		1-33119-522-0 03 1 1011-1011
363 BOLT; AIR CYL
M10X70 		1-33119-522-0 03 1 1011-1305
392 GASKET; PLUG & SW
EXC. PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33119-249-0 01 1 1011-1011
392 GASKET; PLUG & SW
THA 		1-33119-249-0 01 1 1006-1010
392 GASKET; PLUG & SW
PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33119-249-0 01 1 1011-1011
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33119-249-0 01 1 1011-
393 PIN; SW
EXC. PTO ZF TRANS RR<BDM> THA 		1-33119-298-0 01 1 1011-1011
393 PIN; SW
THA 		1-33119-298-0 01 1 1006-1010
393 PIN; SW
PTO ZF TRANS RR<BDM> THA 		1-33119-298-0 01 1 1011-1011
393 PIN; SW
THA 		1-33119-298-0 01 1 1011-
394 SWITCH; RANGE CHANGE
THA 		1-33119-627-0 01 1 1302-
394 SWITCH; RANGE CHANGE
EXC. PTO ZF TRANS RR<BDM> 		1-33119-587-0 01 1 1011-1011
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1006-1010
394 SWITCH; RANGE CHANGE
PTO ZF TRANS RR<BDM> 		1-33119-587-0 01 1 1011-1011
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1011-1305
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR<BDM> THA 		1-33519-171-0 01 1 1011-1011
395 GASKET; PLUNGER
THA 		1-33519-171-0 01 1 1006-1010
395 GASKET; PLUNGER
PTO ZF TRANS RR<BDM> THA 		1-33519-171-0 01 1 1011-1011
395 GASKET; PLUNGER
THA 		1-33519-171-0 01 1 1011-
396 PLUNGER; SHIFT ROD
(A) THA 		1-33519-189-0 01 1 1302-
396 PLUNGER; SHIFT ROD
EXC. PTO ZF TRANS RR<BDM> (A) 		1-33519-073-0 01 1 1011-1011
396 PLUNGER; SHIFT ROD
EXC. PTO ZF TRANS RR<BDM> (B) THA 		1-33529-085-0 02 1 1011-1011
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1006-1010
396 PLUNGER; SHIFT ROD
PTO ZF TRANS RR<BDM> (A) 		1-33519-073-0 01 1 1011-1011
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1011-1305
396 PLUNGER; SHIFT ROD
(B) THA 		1-33529-085-0 02 1 1006-1010
396 PLUNGER; SHIFT ROD
PTO ZF TRANS RR<BDM> (B) THA 		1-33529-085-0 02 1 1011-1011
396 PLUNGER; SHIFT ROD
(B) THA 		1-33529-085-0 02 1 1011-
398 SWITCH; REV LAMP
EXC. PTO ZF TRANS RR<BDM> THA 		1-38119-062-0 01 1 1011-1011
398 SWITCH; REV LAMP
THA 		1-38119-062-0 01 1 1006-1010
398 SWITCH; REV LAMP
PTO ZF TRANS RR<BDM> THA 		1-38119-062-0 01 1 1011-1011
398 SWITCH; REV LAMP
THA 		1-38119-062-0 01 1 1011-
411 GASKET; REV LAMP SW
EXC. PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33119-249-0 01 1 1011-1011
411 GASKET; REV LAMP SW
THA 		1-33119-249-0 01 1 1006-1010
411 GASKET; REV LAMP SW
PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33119-249-0 01 1 1011-1011
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33119-249-0 01 1 1011-
497 BALL; SWITCH
EXC. PTO ZF TRANS RR<BDM> THA 		1-33119-252-0 01 1 1011-1011
497 BALL; SWITCH
THA 		1-33119-252-0 01 1 1006-1010
497 BALL; SWITCH
PTO ZF TRANS RR<BDM> THA 		1-33119-252-0 01 1 1011-1011
497 BALL; SWITCH
THA 		1-33119-252-0 01 1 1011-
500 GASKET; SW
EXC. PTO ZF TRANS RR<BDM> THA 		1-33119-299-0 01 1 1011-1011
500 GASKET; SW
THA 		1-33119-299-0 01 1 1006-1010
500 GASKET; SW
PTO ZF TRANS RR<BDM> THA 		1-33119-299-0 01 1 1011-1011
500 GASKET; SW
THA 		1-33119-299-0 01 1 1011-
541 PLATE; SWITCH
EXC. PTO ZF TRANS RR<BDM> THA 		1-33119-300-0 01 1 1011-1011
541 PLATE; SWITCH
THA 		1-33119-300-0 01 1 1006-1010
541 PLATE; SWITCH
PTO ZF TRANS RR<BDM> THA 		1-33119-300-0 01 1 1011-1011
541 PLATE; SWITCH
THA 		1-33119-300-0 01 1 1011-

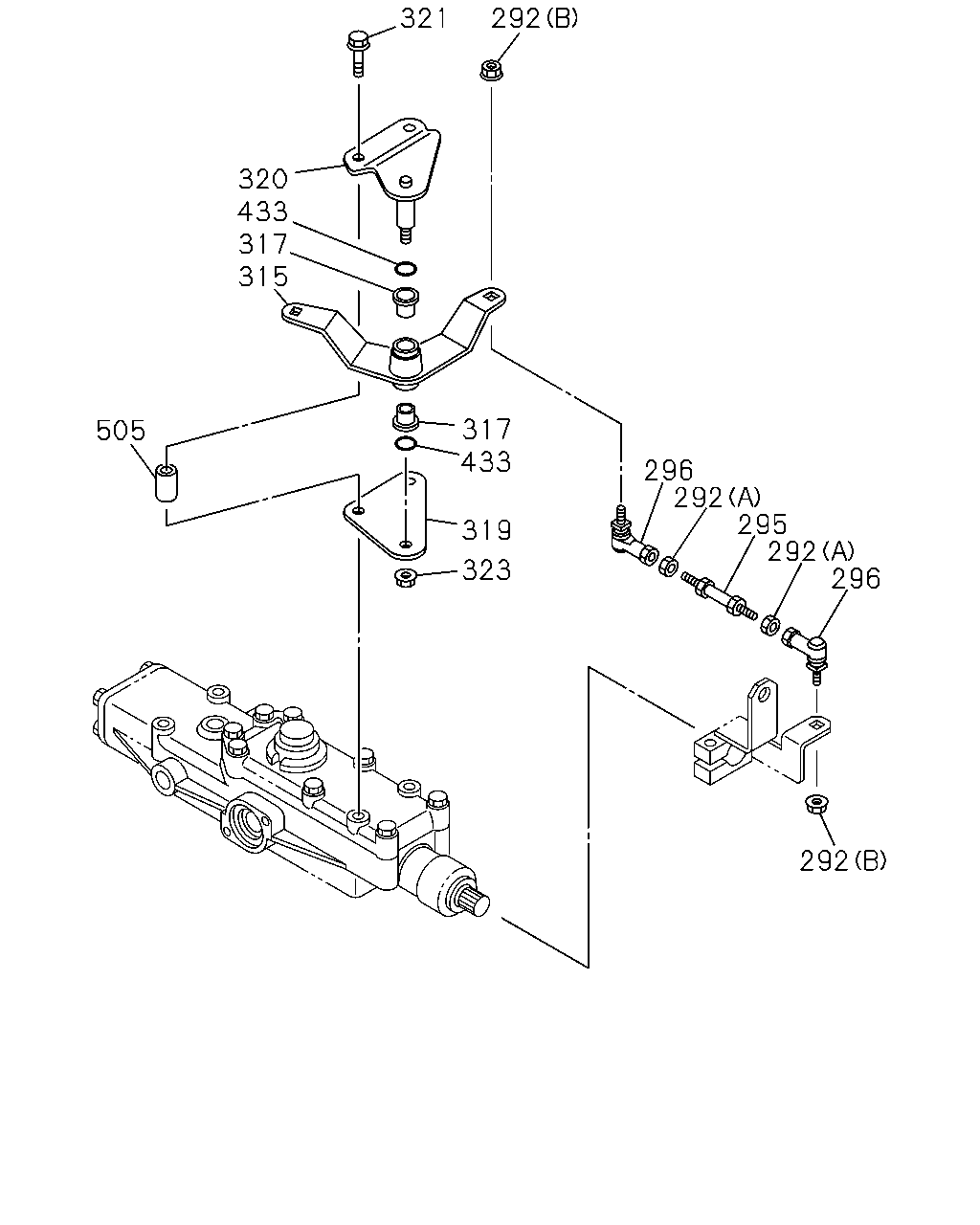

çizim 162958
321 292 320 433 317 315 317 433 505 296 292 295 292 296 319 323 292
BalonParca AdiParca NoAdetTipApplied Date
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1006-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1006-
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 1006-
296 ROD END 1-09760-108-0 02 1 1006-
315 LEVER; SELECT 8-98085-738-0 01 1 1006-
317 BUSHING; LEVER 1-09330-119-0 02 1 1006-
319 BRACKET; SELECT LEVER 8-98085-740-0 01 1 1006-
320 SHAFT; LEVER 8-98085-739-0 01 1 1006-
321 BOLT; BRKT,RELAY LEVER
M8X130 FLANGE 		0-28065-813-0 02 1 1006-
323 NUT; LK,SELECT LEVER
M10 FLANGE THA 		0-91180-110-0 01 1 1006-
433 GASKET; BUSHING 1-09623-594-0 02 1 1006-
505 SPACER; BRKT
L=24.5 		1-33659-186-1 02 1 1006-

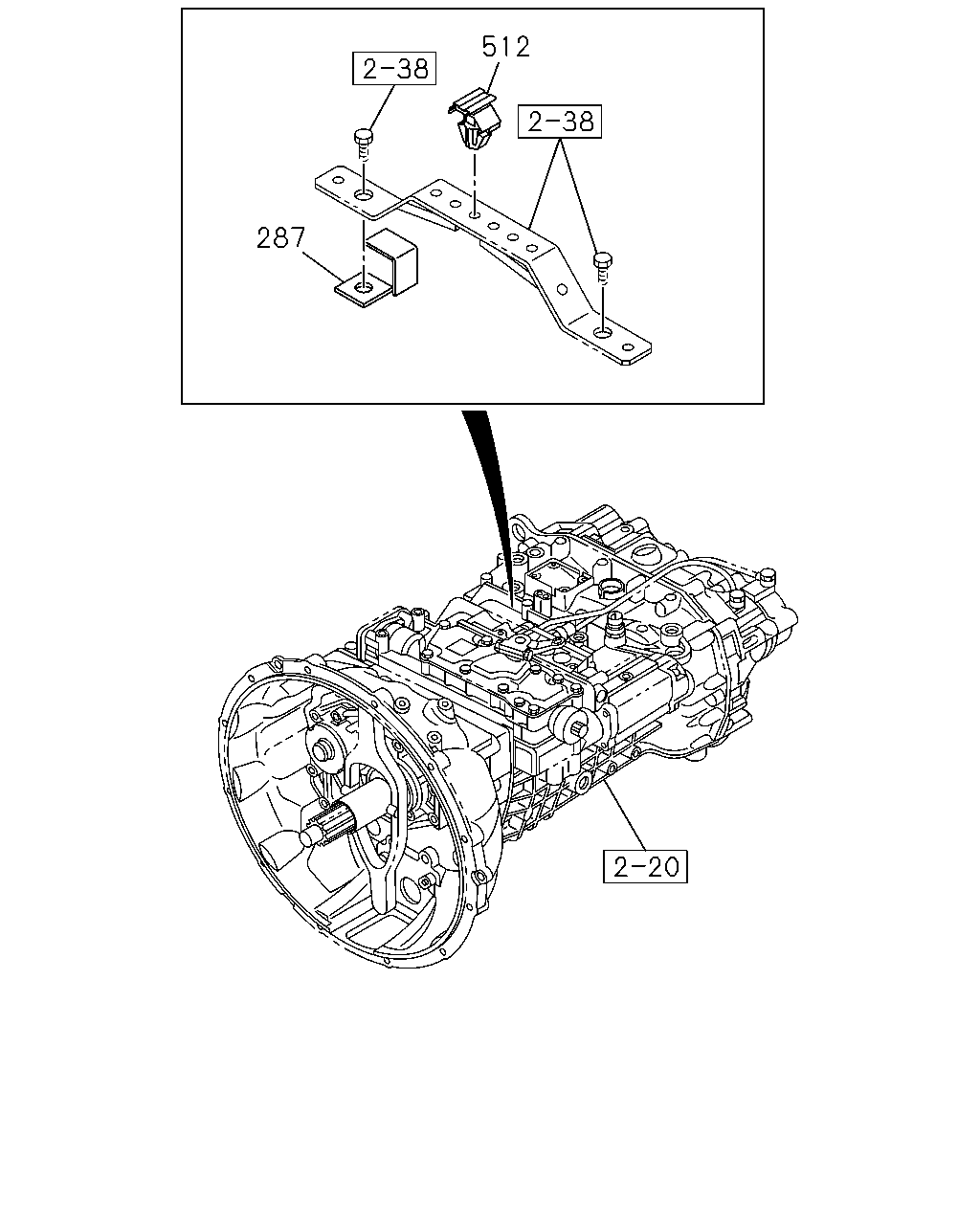

çizim 162993
512 287
BalonParca AdiParca NoAdetTipApplied Date
287 COVER; AIR BREATHER 1-34141-026-0 01 1 1006-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 04 1 1006-

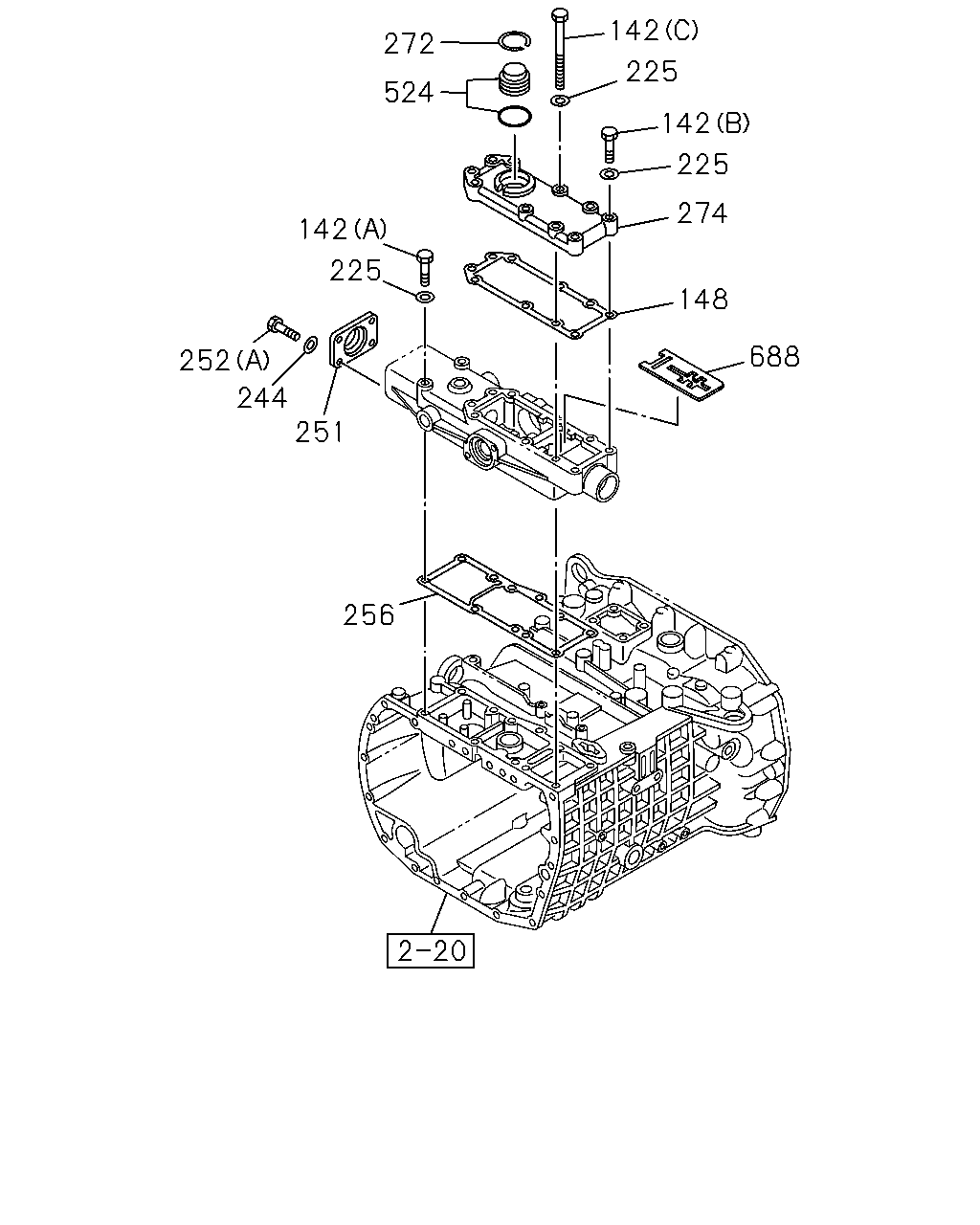

çizim 162996
142 272 225 524 142 225 274 142 225 148 688 252 244 251 256
BalonParca AdiParca NoAdetTipApplied Date
142 BOLT; QUAD BOX
(C) M8X100 THA 		1-33549-582-0 06 1 1302-
142 BOLT; QUAD BOX
(A) M8X75 THA 		1-33549-584-0 02 1 1302-
142 BOLT; QUAD BOX
(B) M8X40 THA 		1-33549-587-0 04 1 1302-
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR<BDM> (A) M8X75 		1-09089-015-0 02 1 1011-1011
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR<BDM> (C) 		1-33549-486-0 06 1 1011-1011
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR<BDM> (B) 		1-34129-116-0 04 1 1011-1011
142 BOLT; QUAD BOX
(A) M8X75 		1-09089-015-0 02 1 1006-1010
142 BOLT; QUAD BOX
PTO ZF TRANS RR<BDM> (A) M8X75 		1-09089-015-0 02 1 1011-1011
142 BOLT; QUAD BOX
(A) M8X75 		1-09089-015-0 02 1 1011-1305
142 BOLT; QUAD BOX
(C) 		1-33549-486-0 06 1 1006-1010
142 BOLT; QUAD BOX
PTO ZF TRANS RR<BDM> (C) 		1-33549-486-0 06 1 1011-1011
142 BOLT; QUAD BOX
(C) 		1-33549-486-0 06 1 1011-1305
142 BOLT; QUAD BOX
(B) 		1-34129-116-0 04 1 1006-1010
142 BOLT; QUAD BOX
PTO ZF TRANS RR<BDM> (B) 		1-34129-116-0 04 1 1011-1011
142 BOLT; QUAD BOX
(B) 		1-34129-116-0 04 1 1011-1305
148 GASKET; QUAD BOX
EXC. PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33542-064-0 01 1 1011-1011
148 GASKET; QUAD BOX
THA 		1-33542-064-0 01 1 1006-1010
148 GASKET; QUAD BOX
PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33542-064-0 01 1 1011-1011
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33542-064-0 01 1 1011-
225 WASHER; LK,QUAD BOX
THA 		1-33549-583-0 14 1 1302-
225 WASHER; LK,QUAD BOX
EXC. PTO ZF TRANS RR<BDM> 		1-33549-159-0 14 1 1011-1011
225 WASHER; LK,QUAD BOX 1-33549-159-0 14 1 1006-1010
225 WASHER; LK,QUAD BOX
PTO ZF TRANS RR<BDM> 		1-33549-159-0 14 1 1011-1011
225 WASHER; LK,QUAD BOX 1-33549-159-0 14 1 1011-1305
244 WASHER; LK,COVER
THA 		1-33549-583-0 04 1 1302-
244 WASHER; LK,COVER
EXC. PTO ZF TRANS RR<BDM> 		1-33549-159-0 04 1 1011-1011
244 WASHER; LK,COVER 1-33549-159-0 04 1 1006-1010
244 WASHER; LK,COVER
PTO ZF TRANS RR<BDM> 		1-33549-159-0 04 1 1011-1011
244 WASHER; LK,COVER 1-33549-159-0 04 1 1011-1305
251 COVER; SIDE
THA 		1-33549-590-0 01 1 1302-
251 COVER; SIDE
EXC. PTO ZF TRANS RR<BDM> 		1-33549-478-0 01 1 1011-1011
251 COVER; SIDE 1-33549-478-0 01 1 1006-1010
251 COVER; SIDE
PTO ZF TRANS RR<BDM> 		1-33549-478-0 01 1 1011-1011
251 COVER; SIDE 1-33549-478-0 01 1 1011-1305
252 BOLT; SIDE COVER
(B) M8X30 THA 		1-33549-581-0 02 1 1302-
252 BOLT; SIDE COVER
(A) M8X20 THA 		1-33549-591-0 04 1 1302-
252 BOLT; SIDE COVER
EXC. PTO ZF TRANS RR<BDM> (A) 		1-33119-296-0 04 1 1011-1011
252 BOLT; SIDE COVER
EXC. PTO ZF TRANS RR<BDM> (B) M8X30 		1-33549-172-0 02 1 1011-1011
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 1006-1010
252 BOLT; SIDE COVER
PTO ZF TRANS RR<BDM> (A) 		1-33119-296-0 04 1 1011-1011
252 BOLT; SIDE COVER
(A) 		1-33119-296-0 04 1 1011-1305
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 02 1 1006-1010
252 BOLT; SIDE COVER
PTO ZF TRANS RR<BDM> (B) M8X30 		1-33549-172-0 02 1 1011-1011
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 02 1 1011-1305
256 GASKET; QUAD BOX TO TRANS CASE
EXC. PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33542-065-0 01 1 1011-1011
256 GASKET; QUAD BOX TO TRANS CASE
THA 		1-33542-065-0 01 1 1006-1010
256 GASKET; QUAD BOX TO TRANS CASE
PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33542-065-0 01 1 1011-1011
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). THA 		1-33542-065-0 01 1 1011-
272 RING; SNAP,QUAD BOX
EXC. PTO ZF TRANS RR<BDM> THA 		1-44519-217-0 01 1 1011-1011
272 RING; SNAP,QUAD BOX
THA 		1-44519-217-0 01 1 1006-1010
272 RING; SNAP,QUAD BOX
PTO ZF TRANS RR<BDM> THA 		1-44519-217-0 01 1 1011-1011
272 RING; SNAP,QUAD BOX
THA 		1-44519-217-0 01 1 1011-
274 COVER; SHAFT,QUAD BOX
THA 		1-33549-579-0 01 1 1302-
274 COVER; SHAFT,QUAD BOX
EXC. PTO ZF TRANS RR<BDM> 		1-33549-571-0 01 1 1011-1011
274 COVER; SHAFT,QUAD BOX 1-33549-571-0 01 1 1006-1010
274 COVER; SHAFT,QUAD BOX
PTO ZF TRANS RR<BDM> 		1-33549-571-0 01 1 1011-1011
274 COVER; SHAFT,QUAD BOX 1-33549-571-0 01 1 1011-1305
524 DETENT; QUAD BOX
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-501-0 01 1 1011-1011
524 DETENT; QUAD BOX
THA 		1-33549-501-0 01 1 1006-1010
524 DETENT; QUAD BOX
PTO ZF TRANS RR<BDM> THA 		1-33549-501-0 01 1 1011-1011
524 DETENT; QUAD BOX
THA 		1-33549-501-0 01 1 1011-
688 SHIFT; INTERLOCK
EXC. PTO ZF TRANS RR<BDM> THA 		1-33549-572-0 01 1 1011-1011
688 SHIFT; INTERLOCK
THA 		1-33549-572-0 01 1 1006-1010
688 SHIFT; INTERLOCK
PTO ZF TRANS RR<BDM> THA 		1-33549-572-0 01 1 1011-1011
688 SHIFT; INTERLOCK
THA 		1-33549-572-0 01 1 1011-

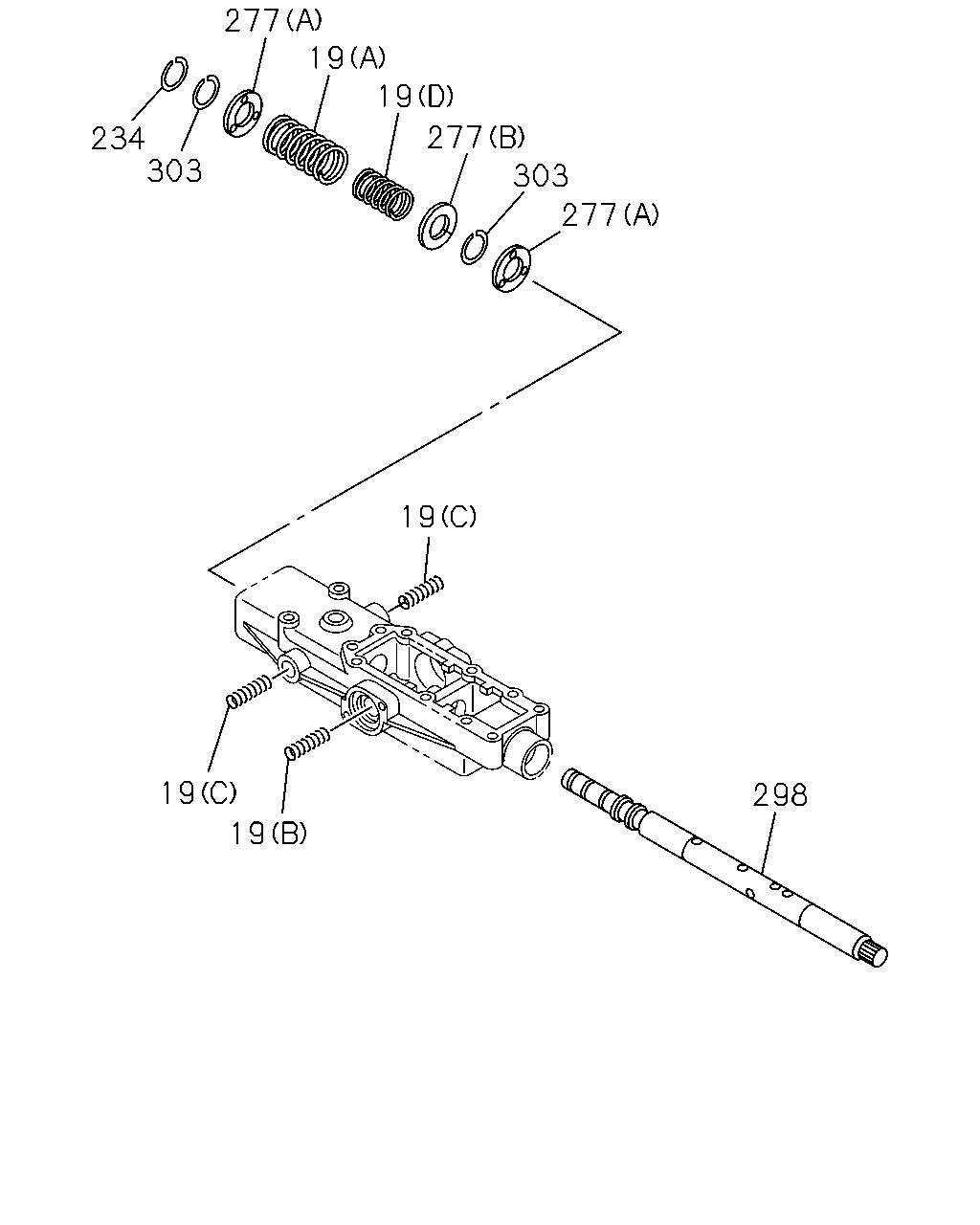

çizim 162997
277 19 19 277 234 303 303 277 19 19 298 19
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR<BDM> (A) THA 		1-33539-027-0 01 1 1011-1011
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR<BDM> (C) THA 		1-33539-030-0 02 1 1011-1011
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR<BDM> (D) THA 		1-33539-104-0 01 1 1011-1011
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR<BDM> (B) THA 		1-33549-221-0 01 1 1011-1011
19 SPRING; COIL COMP
(A) THA 		1-33539-027-0 01 1 1006-1010
19 SPRING; COIL COMP
PTO ZF TRANS RR<BDM> (A) THA 		1-33539-027-0 01 1 1011-1011
19 SPRING; COIL COMP
(A) THA 		1-33539-027-0 01 1 1011-
19 SPRING; COIL COMP
(C) THA 		1-33539-030-0 02 1 1006-1010
19 SPRING; COIL COMP
PTO ZF TRANS RR<BDM> (C) THA 		1-33539-030-0 02 1 1011-1011
19 SPRING; COIL COMP
(C) THA 		1-33539-030-0 02 1 1011-
19 SPRING; COIL COMP
(D) THA 		1-33539-104-0 01 1 1006-1010
19 SPRING; COIL COMP
PTO ZF TRANS RR<BDM> (D) THA 		1-33539-104-0 01 1 1011-1011
19 SPRING; COIL COMP
(D) THA 		1-33539-104-0 01 1 1011-
19 SPRING; COIL COMP
(B) THA 		1-33549-221-0 01 1 1006-1010
19 SPRING; COIL COMP
PTO ZF TRANS RR<BDM> (B) THA 		1-33549-221-0 01 1 1011-1011
19 SPRING; COIL COMP
(B) THA 		1-33549-221-0 01 1 1011-
234 RING; SNAP
EXC. PTO ZF TRANS RR<BDM> THA 		1-44519-224-0 01 1 1011-1011
234 RING; SNAP
THA 		1-44519-224-0 01 1 1006-1010
234 RING; SNAP
PTO ZF TRANS RR<BDM> THA 		1-44519-224-0 01 1 1011-1011
234 RING; SNAP
THA 		1-44519-224-0 01 1 1011-
277 PLATE; SPRING SEAT
(B) THA 		1-33539-107-0 02 1 1302-
277 PLATE; SPRING SEAT
EXC. PTO ZF TRANS RR<BDM> (A) 		1-33539-039-0 02 1 1011-1011
277 PLATE; SPRING SEAT
EXC. PTO ZF TRANS RR<BDM> (B) 		1-33539-042-0 01 1 1011-1011
277 PLATE; SPRING SEAT
(A) 		1-33539-039-0 02 1 1006-1010
277 PLATE; SPRING SEAT
PTO ZF TRANS RR<BDM> (A) 		1-33539-039-0 02 1 1011-1011
277 PLATE; SPRING SEAT
(A) 		1-33539-039-0 02 1 1011-1305
277 PLATE; SPRING SEAT
(B) 		1-33539-042-0 01 1 1006-1010
277 PLATE; SPRING SEAT
PTO ZF TRANS RR<BDM> (B) 		1-33539-042-0 01 1 1011-1011
277 PLATE; SPRING SEAT
(B) 		1-33539-042-0 01 1 1011-1305
298 SHAFT; SHIFT LEVER
EXC. PTO ZF TRANS RR<BDM> THA 		1-33522-205-0 01 1 1011-1011
298 SHAFT; SHIFT LEVER
THA 		1-33522-205-0 01 1 1006-1010
298 SHAFT; SHIFT LEVER
PTO ZF TRANS RR<BDM> THA 		1-33522-205-0 01 1 1011-1011
298 SHAFT; SHIFT LEVER
THA 		1-33522-205-0 01 1 1011-
303 RING; SNAP,SHAFT
EXC. PTO ZF TRANS RR<BDM> THA 		1-33539-040-0 02 1 1011-1011
303 RING; SNAP,SHAFT
THA 		1-33539-040-0 02 1 1006-1010
303 RING; SNAP,SHAFT
PTO ZF TRANS RR<BDM> THA 		1-33539-040-0 02 1 1011-1011
303 RING; SNAP,SHAFT
THA 		1-33539-040-0 02 1 1011-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
