2-20 — MANUAL TRANSMISSION ASM AND CASE (#56097) — 284 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

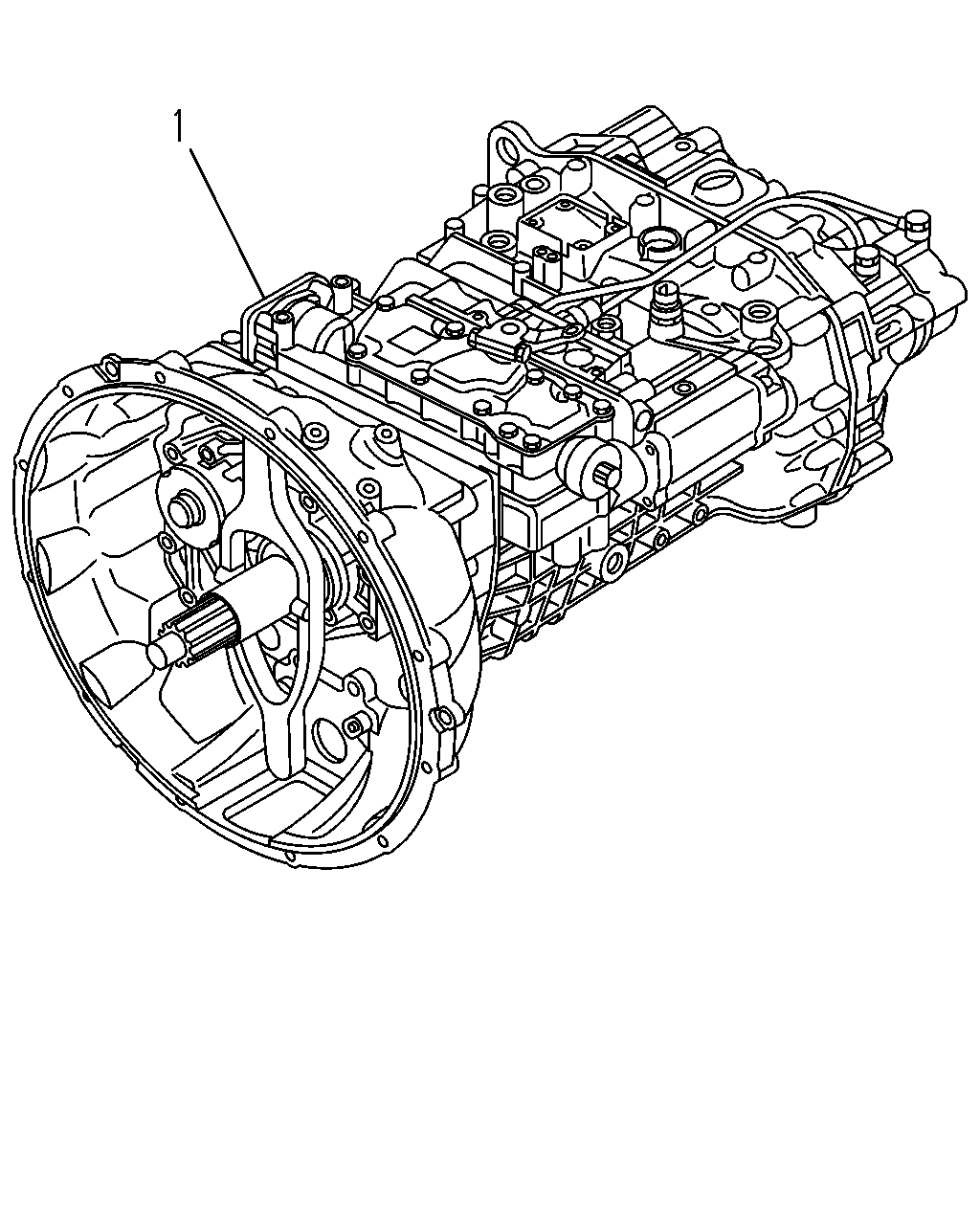

	1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR<BDM> THA	8-98083-335-2	01	1	1006-
	1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR<BDM> THA	8-98083-334-2	01	1	1006-

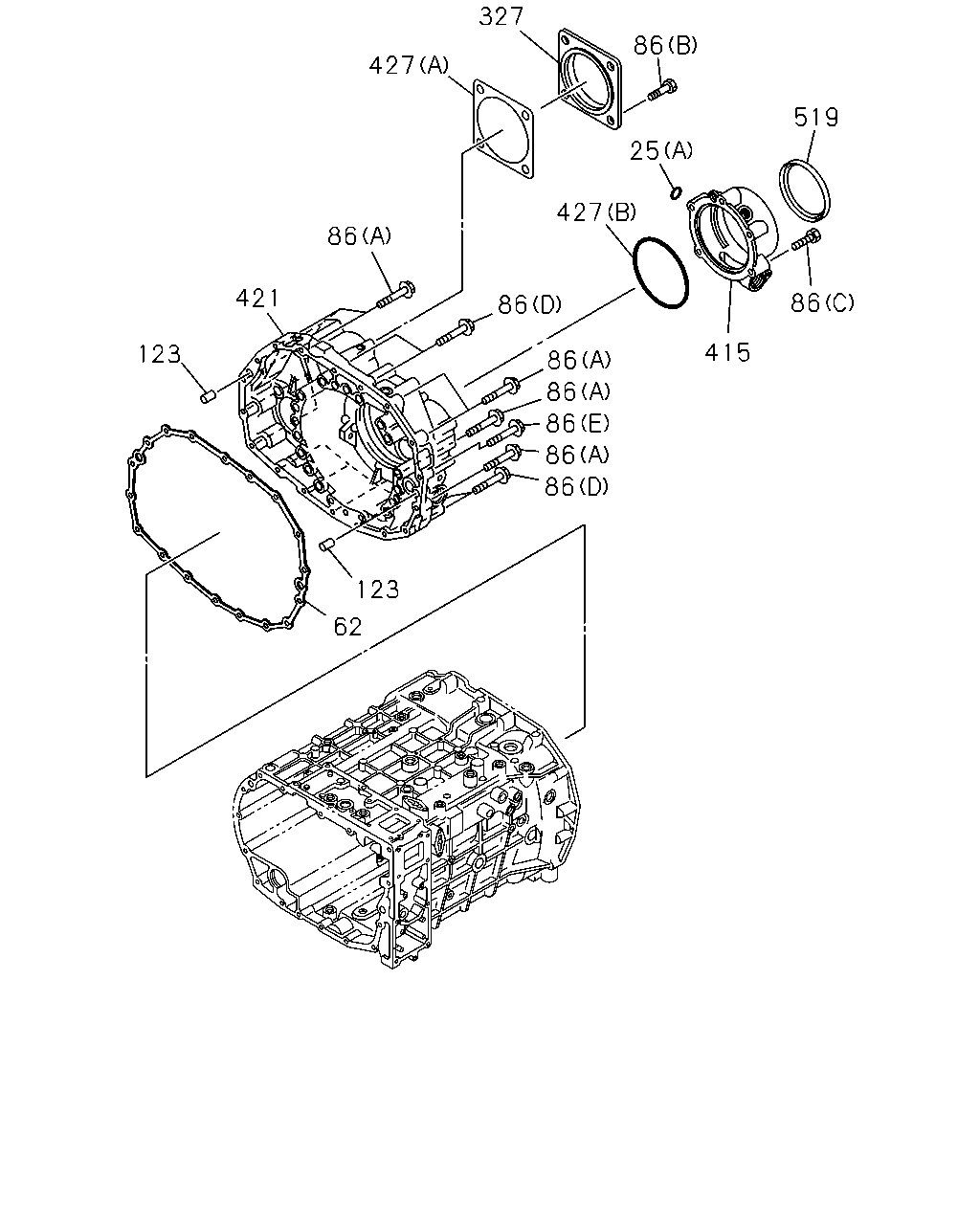

327 86 427 519 25 427 86 421 86 86 86 415 123 86 86 86 86 123 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER EXC. PTO ZF TRANS RR<BDM> (A) ALSO INCLUDED IN GASKET SET(M/T). THA	1-33139-060-0	01	1	1011-1011
25	GASKET; COVER (A) THA	1-33139-060-0	01	1	1006-1010
25	GASKET; COVER PTO ZF TRANS RR<BDM> (A) ALSO INCLUDED IN GASKET SET(M/T). THA	1-33139-060-0	01	1	1011-1011
25	GASKET; COVER (A) ALSO INCLUDED IN GASKET SET(M/T). THA	1-33139-060-0	01	1	1011-
25	GASKET; COVER (B)	8-98138-241-0	01	1	1006-
62	GASKET; RR COVER EXC. PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA	1-33132-087-0	01	1	1011-1011
62	GASKET; RR COVER THA	1-33132-087-0	01	1	1006-1010
62	GASKET; RR COVER PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA	1-33132-087-0	01	1	1011-1011
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). THA	1-33132-087-0	01	1	1011-
86	BOLT; RR COVER (A) M10X70 THA	1-33119-616-0	12	1	1302-
86	BOLT; RR COVER (D) M10X110 THA	1-33139-235-0	05	1	1302-
86	BOLT; RR COVER (E) M10X50 THA	1-33139-236-0	01	1	1302-
86	BOLT; RR COVER (C) M10X60 THA	1-33139-237-0	05	1	1302-
86	BOLT; RR COVER EXC. PTO ZF TRANS RR<BDM> (B) M12X25 THA	1-33119-594-0	04	1	1302-
86	BOLT; RR COVER EXC. PTO ZF TRANS RR<BDM> (A) M10X70	1-33119-522-0	12	1	1011-1011
86	BOLT; RR COVER EXC. PTO ZF TRANS RR<BDM> (D) M10X110	1-33139-057-0	05	1	1011-1011
86	BOLT; RR COVER EXC. PTO ZF TRANS RR<BDM> (E) M10X50	1-33139-058-0	01	1	1011-1011
86	BOLT; RR COVER EXC. PTO ZF TRANS RR<BDM> (C) M10X60	1-33139-118-0	05	1	1011-1011
86	BOLT; RR COVER (A) M10X70	1-33119-522-0	12	1	1006-1010
86	BOLT; RR COVER PTO ZF TRANS RR<BDM> (A) M10X70	1-33119-522-0	12	1	1011-1011
86	BOLT; RR COVER (A) M10X70	1-33119-522-0	12	1	1011-1305
86	BOLT; RR COVER (D) M10X110	1-33139-057-0	05	1	1006-1010
86	BOLT; RR COVER PTO ZF TRANS RR<BDM> (D) M10X110	1-33139-057-0	05	1	1011-1011
86	BOLT; RR COVER (D) M10X110	1-33139-057-0	05	1	1011-1305
86	BOLT; RR COVER (E) M10X50	1-33139-058-0	01	1	1006-1010
86	BOLT; RR COVER PTO ZF TRANS RR<BDM> (E) M10X50	1-33139-058-0	01	1	1011-1011
86	BOLT; RR COVER (E) M10X50	1-33139-058-0	01	1	1011-1305
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	05	1	1006-1010
86	BOLT; RR COVER PTO ZF TRANS RR<BDM> (C) M10X60	1-33139-118-0	05	1	1011-1011
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	05	1	1011-1305
86	BOLT; RR COVER EXC. PTO ZF TRANS RR<BDM> (B) M12X25	1-33119-400-0	04	1	1006-1305
123	DOWEL; TRANS CASE EXC. PTO ZF TRANS RR<BDM> THA	1-33119-292-0	04	1	1011-1011
123	DOWEL; TRANS CASE THA	1-33119-292-0	04	1	1006-1010
123	DOWEL; TRANS CASE PTO ZF TRANS RR<BDM> THA	1-33119-292-0	04	1	1011-1011
123	DOWEL; TRANS CASE THA	1-33119-292-0	04	1	1011-
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR<BDM> THA	1-33131-273-0	01	1	1302-
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR<BDM>	1-33131-165-0	01	1	1006-1305
415	COVER; BRG EXC. PTO ZF TRANS RR<BDM> THA	1-33131-269-0	01	1	1011-1011
415	COVER; BRG THA	1-33131-269-0	01	1	1006-1010
415	COVER; BRG PTO ZF TRANS RR<BDM> THA	1-33131-269-0	01	1	1011-1011
415	COVER; BRG THA	1-33131-269-0	01	1	1011-
421	COVER; RR,TRANS THA	1-33131-275-0	01	1	1302-
421	COVER; RR,TRANS EXC. PTO ZF TRANS RR<BDM>	1-33131-261-0	01	1	1011-1011
421	COVER; RR,TRANS	1-33131-261-0	01	1	1006-1010
421	COVER; RR,TRANS PTO ZF TRANS RR<BDM>	1-33131-261-0	01	1	1011-1011
421	COVER; RR,TRANS	1-33131-261-0	01	1	1011-1305
427	GASKET; RR COVER EXC. PTO ZF TRANS RR<BDM> (B)	1-33132-078-0	01	1	1011-1011
427	GASKET; RR COVER (B)	1-33132-078-0	01	1	1006-1010
427	GASKET; RR COVER PTO ZF TRANS RR<BDM> (B)	1-33132-078-0	01	1	1011-1011
427	GASKET; RR COVER (B)	1-33132-078-0	01	1	1011-1301
427	GASKET; RR COVER (B) THA	1-33132-088-0	01	1	1302-
427	GASKET; RR COVER EXC. PTO ZF TRANS RR<BDM> (A) THA	1-33132-054-0	01	1	1006-
519	GASKET; SHAFT EXC. PTO ZF TRANS RR<BDM> THA	1-33139-059-0	01	1	1011-1011
519	GASKET; SHAFT THA	1-33139-059-0	01	1	1006-1010
519	GASKET; SHAFT PTO ZF TRANS RR<BDM> THA	1-33139-059-0	01	1	1011-1011
519	GASKET; SHAFT THA	1-33139-059-0	01	1	1011-

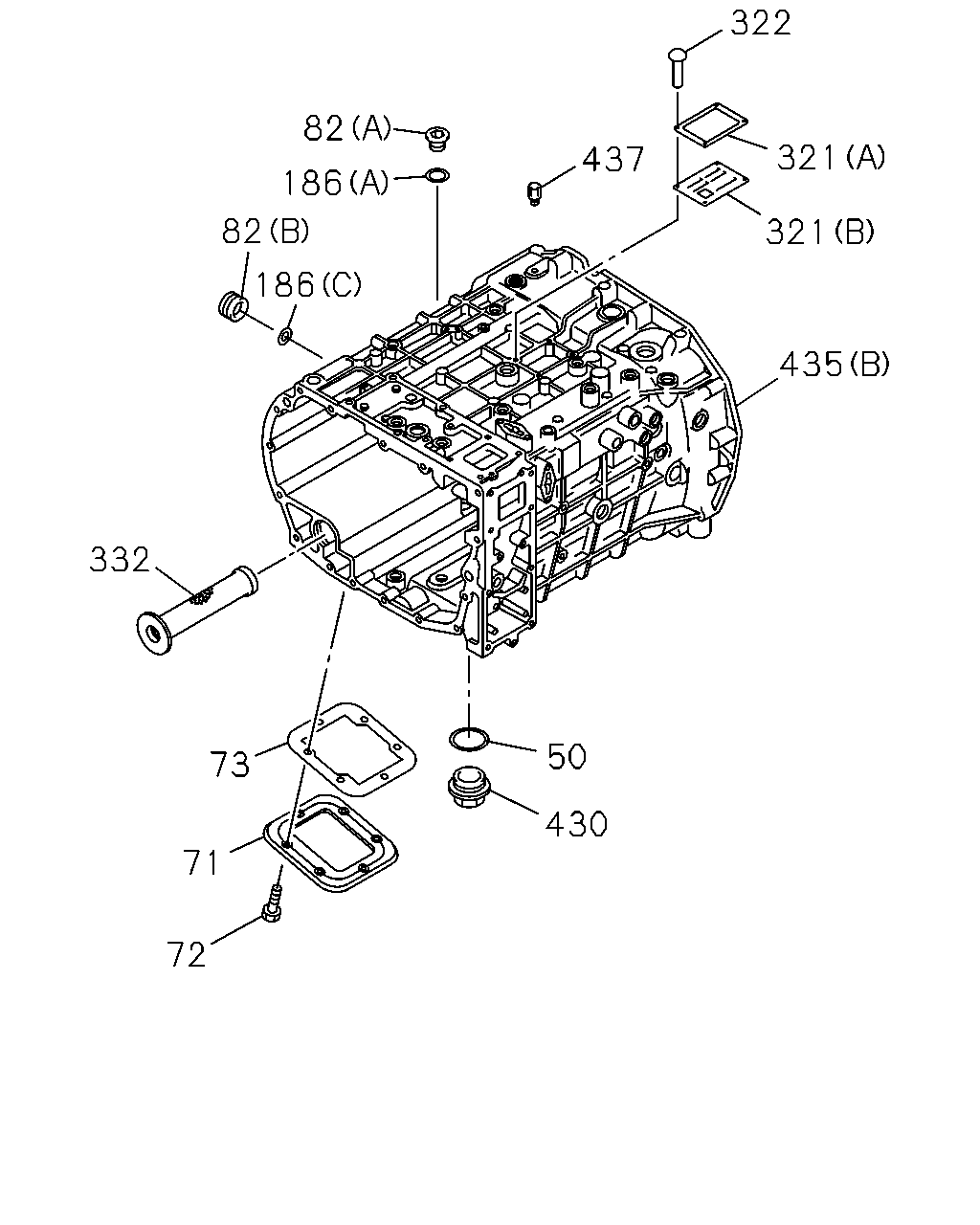

322 82 321 437 186 82 321 186 435 332 50 73 430 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG EXC. PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA	1-33119-293-0	01	1	1011-1011
50	GASKET; DRAIN PLUG THA	1-33119-293-0	01	1	1006-1010
50	GASKET; DRAIN PLUG PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA	1-33119-293-0	01	1	1011-1011
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). THA	1-33119-293-0	01	1	1011-
71	COVER; SIDE,TRANS CASE THA	1-33119-622-0	01	1	1302-
71	COVER; SIDE,TRANS CASE EXC. PTO ZF TRANS RR<BDM>	1-33119-407-0	01	1	1011-1011
71	COVER; SIDE,TRANS CASE	1-33119-407-0	01	1	1006-1010
71	COVER; SIDE,TRANS CASE PTO ZF TRANS RR<BDM>	1-33119-407-0	01	1	1011-1011
71	COVER; SIDE,TRANS CASE	1-33119-407-0	01	1	1011-1305
72	BOLT; SIDE COVER M10X22 THA	1-33119-592-0	06	1	1302-
72	BOLT; SIDE COVER EXC. PTO ZF TRANS RR<BDM> M10X22	1-36129-014-1	06	1	1011-1011
72	BOLT; SIDE COVER M10X22	1-36129-014-1	06	1	1006-1010
72	BOLT; SIDE COVER PTO ZF TRANS RR<BDM> M10X22	1-36129-014-1	06	1	1011-1011
72	BOLT; SIDE COVER M10X22	1-36129-014-1	06	1	1011-1305
73	GASKET; SIDE COVER TO TRANS CASE EXC. PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA	1-33119-237-0	01	1	1011-1011
73	GASKET; SIDE COVER TO TRANS CASE THA	1-33119-237-0	01	1	1006-1010
73	GASKET; SIDE COVER TO TRANS CASE PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA	1-33119-237-0	01	1	1011-1011
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). THA	1-33119-237-0	01	1	1011-
82	PLUG; SCREW,CASE (C) THA	1-33119-618-0	02	1	1302-
82	PLUG; SCREW,CASE (A) THA	1-33119-619-0	01	1	1302-
82	PLUG; SCREW,CASE (B) THA	1-33119-620-0	02	1	1302-
82	PLUG; SCREW,CASE EXC. PTO ZF TRANS RR<BDM> (A)	1-33119-171-0	01	1	1011-1011
82	PLUG; SCREW,CASE EXC. PTO ZF TRANS RR<BDM> (B)	1-33119-268-0	02	1	1011-1011
82	PLUG; SCREW,CASE EXC. PTO ZF TRANS RR<BDM> (C)	1-33119-285-0	02	1	1011-1011
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1006-1010
82	PLUG; SCREW,CASE PTO ZF TRANS RR<BDM> (A)	1-33119-171-0	01	1	1011-1011
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1011-1305
82	PLUG; SCREW,CASE (B)	1-33119-268-0	02	1	1006-1010
82	PLUG; SCREW,CASE PTO ZF TRANS RR<BDM> (B)	1-33119-268-0	02	1	1011-1011
82	PLUG; SCREW,CASE (B)	1-33119-268-0	02	1	1011-1305
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1006-1010
82	PLUG; SCREW,CASE PTO ZF TRANS RR<BDM> (C)	1-33119-285-0	02	1	1011-1011
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1011-1305
186	RING; SEAL EXC. PTO ZF TRANS RR<BDM> (A) THA	1-33119-249-0	01	1	1011-1011
186	RING; SEAL EXC. PTO ZF TRANS RR<BDM> (B) THA	1-33119-286-0	02	1	1011-1011
186	RING; SEAL EXC. PTO ZF TRANS RR<BDM> (C) THA	1-33119-435-0	02	1	1011-1011
186	RING; SEAL (A) THA	1-33119-249-0	01	1	1006-1010
186	RING; SEAL PTO ZF TRANS RR<BDM> (A) THA	1-33119-249-0	01	1	1011-1011
186	RING; SEAL (A) THA	1-33119-249-0	01	1	1011-
186	RING; SEAL (B) THA	1-33119-286-0	02	1	1006-1010
186	RING; SEAL PTO ZF TRANS RR<BDM> (B) THA	1-33119-286-0	02	1	1011-1011
186	RING; SEAL (B) THA	1-33119-286-0	02	1	1011-
186	RING; SEAL (C) THA	1-33119-435-0	02	1	1006-1010
186	RING; SEAL PTO ZF TRANS RR<BDM> (C) THA	1-33119-435-0	02	1	1011-1011
186	RING; SEAL (C) THA	1-33119-435-0	02	1	1011-
321	PLATE; NAME EXC. PTO ZF TRANS RR<BDM> (A) THA	1-33119-519-0	01	1	1011-1011
321	PLATE; NAME EXC. PTO ZF TRANS RR<BDM> (B) THA	1-33119-520-0	01	1	1011-1011
321	PLATE; NAME (A) THA	1-33119-519-0	01	1	1006-1010
321	PLATE; NAME PTO ZF TRANS RR<BDM> (A) THA	1-33119-519-0	01	1	1011-1011
321	PLATE; NAME (A) THA	1-33119-519-0	01	1	1011-
321	PLATE; NAME (B) THA	1-33119-520-0	01	1	1006-1010
321	PLATE; NAME PTO ZF TRANS RR<BDM> (B) THA	1-33119-520-0	01	1	1011-1011
321	PLATE; NAME (B) THA	1-33119-520-0	01	1	1011-
322	RIVET; NAME PLATE THA	1-33119-617-0	04	1	1302-
322	RIVET; NAME PLATE EXC. PTO ZF TRANS RR<BDM>	1-33119-556-0	04	1	1011-1011
322	RIVET; NAME PLATE	1-33119-556-0	04	1	1006-1010
322	RIVET; NAME PLATE PTO ZF TRANS RR<BDM>	1-33119-556-0	04	1	1011-1011
322	RIVET; NAME PLATE	1-33119-556-0	04	1	1011-1305
332	FILTER; OIL EXC. PTO ZF TRANS RR<BDM> THA	1-33119-437-0	01	1	1011-1011
332	FILTER; OIL THA	1-33119-437-0	01	1	1006-1010
332	FILTER; OIL PTO ZF TRANS RR<BDM> THA	1-33119-437-0	01	1	1011-1011
332	FILTER; OIL THA	1-33119-437-0	01	1	1011-
430	PLUG; OIL DRAIN THA	1-33119-621-0	01	1	1302-
430	PLUG; OIL DRAIN EXC. PTO ZF TRANS RR<BDM>	1-33119-156-0	01	1	1011-1011
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	1006-1010
430	PLUG; OIL DRAIN PTO ZF TRANS RR<BDM>	1-33119-156-0	01	1	1011-1011
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	1011-1305
435	CASE; TRANS EXC. PTO ZF TRANS RR<BDM> (B) THA	1-33111-372-0	01	1	1011-1011
435	CASE; TRANS (B) THA	1-33111-372-0	01	1	1006-1010
435	CASE; TRANS PTO ZF TRANS RR<BDM> (B) THA	1-33111-372-0	01	1	1011-1011
435	CASE; TRANS (B) THA	1-33111-372-0	01	1	1011-
435	CASE; TRANS EXC. PTO ZF TRANS RR<BDM> (A)	1-33111-373-0	01	1	1011-1011
435	CASE; TRANS (A)	1-33111-373-0	01	1	1006-1010
435	CASE; TRANS PTO ZF TRANS RR<BDM> (A)	1-33111-373-0	01	1	1011-1011
435	CASE; TRANS (A)	1-33111-373-0	01	1	1011-1301
435	CASE; TRANS (A) THA	1-33111-380-0	01	1	1302-
437	BREATHER; TRANS THA	1-36122-006-0	01	1	1302-
437	BREATHER; TRANS EXC. PTO ZF TRANS RR<BDM>	1-36122-004-0	01	1	1011-1011
437	BREATHER; TRANS	1-36122-004-0	01	1	1006-1010
437	BREATHER; TRANS PTO ZF TRANS RR<BDM>	1-36122-004-0	01	1	1011-1011
437	BREATHER; TRANS	1-36122-004-0	01	1	1011-1305

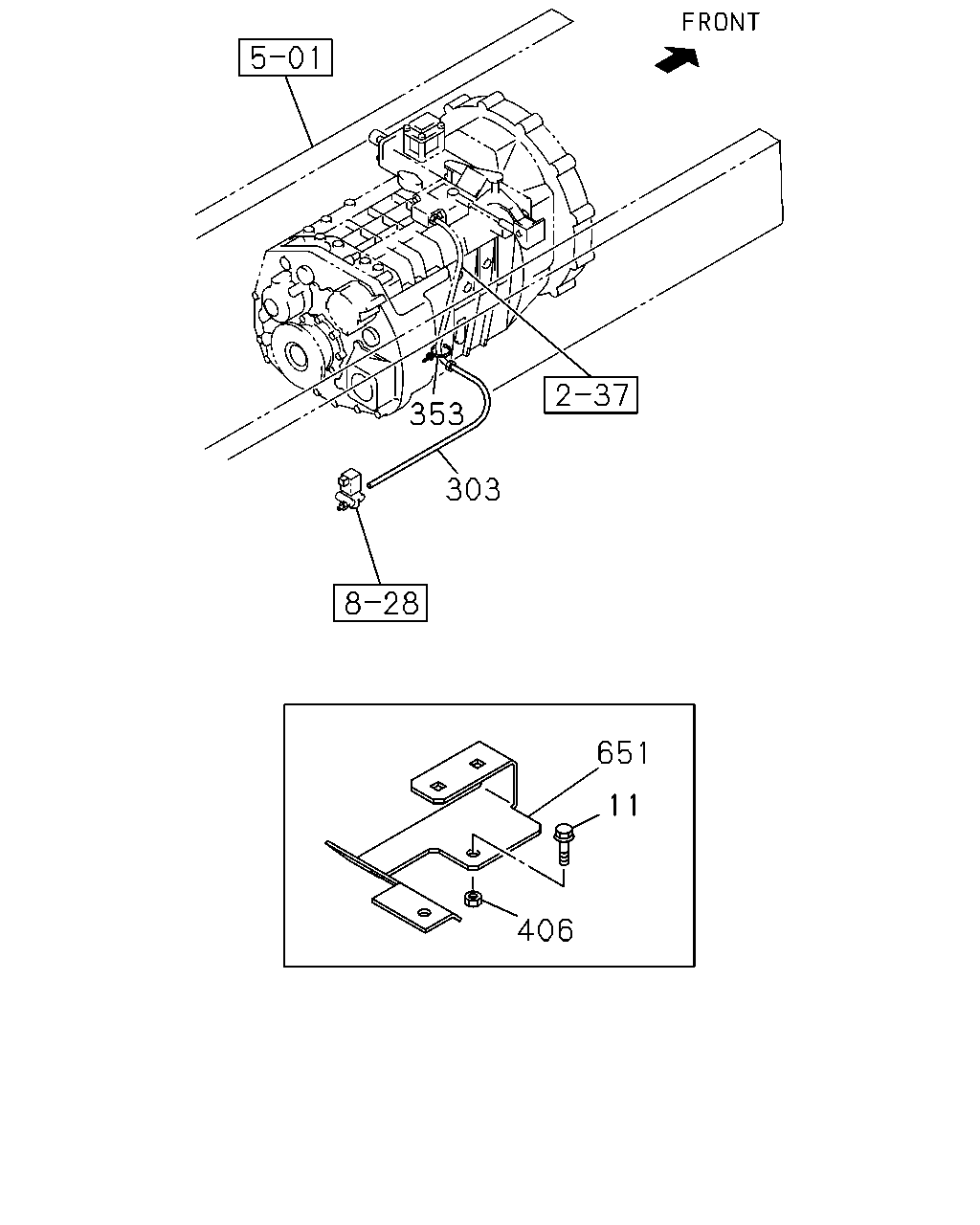

353 303 651 11 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	1006-
303	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	01	1	1006-
353	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1006-
406	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1006-
651	BRACKET; T/M HARNESS THA	8-98141-227-1	01	1	1006-

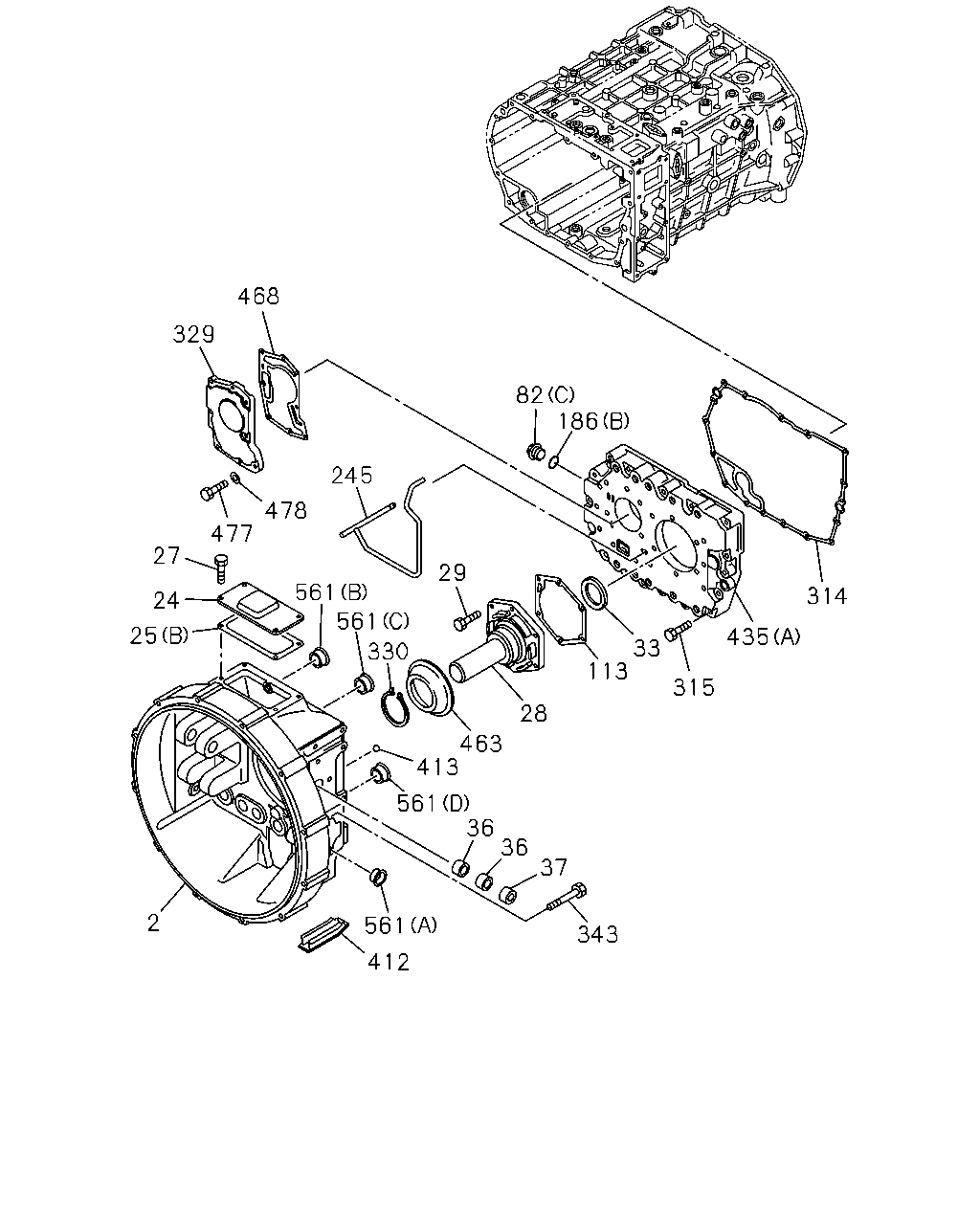

468 329 82 186 245 478 477 27 29 561 314 24 561 25 435 33 113 330 315 28 463 413 561 36 36 37 2 561 343 412

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU EXC. PTO ZF TRANS RR<BDM> THA	1-31111-183-0	01	1	1011-1011
2	HOUSING; CLU THA	1-31111-183-0	01	1	1006-1010
2	HOUSING; CLU PTO ZF TRANS RR<BDM> THA	1-31111-183-0	01	1	1011-1011
2	HOUSING; CLU THA	1-31111-183-0	01	1	1011-
24	COVER; CHECK HOLE,DUST THA	1-31119-059-0	01	1	1302-
24	COVER; CHECK HOLE,DUST EXC. PTO ZF TRANS RR<BDM>	1-31119-024-0	01	1	1011-1011
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	1006-1010
24	COVER; CHECK HOLE,DUST PTO ZF TRANS RR<BDM>	1-31119-024-0	01	1	1011-1011
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	1011-1305
25	GASKET; COVER EXC. PTO ZF TRANS RR<BDM> (A) ALSO INCLUDED IN GASKET SET(M/T). THA	1-33139-060-0	01	1	1011-1011
25	GASKET; COVER (A) THA	1-33139-060-0	01	1	1006-1010
25	GASKET; COVER PTO ZF TRANS RR<BDM> (A) ALSO INCLUDED IN GASKET SET(M/T). THA	1-33139-060-0	01	1	1011-1011
25	GASKET; COVER (A) ALSO INCLUDED IN GASKET SET(M/T). THA	1-33139-060-0	01	1	1011-
25	GASKET; COVER (B)	8-98138-241-0	01	1	1006-
27	BOLT; COVER TO CLU HSG THA	1-31119-058-0	04	1	1302-
27	BOLT; COVER TO CLU HSG EXC. PTO ZF TRANS RR<BDM>	1-31119-025-0	04	1	1011-1011
27	BOLT; COVER TO CLU HSG	1-31119-025-0	04	1	1006-1010
27	BOLT; COVER TO CLU HSG PTO ZF TRANS RR<BDM>	1-31119-025-0	04	1	1011-1011
27	BOLT; COVER TO CLU HSG	1-31119-025-0	04	1	1011-1305
28	COVER; FRT,TRANS CASE EXC. PTO ZF TRANS RR<BDM> THA	1-33121-166-0	01	1	1011-1011
28	COVER; FRT,TRANS CASE THA	1-33121-166-0	01	1	1006-1010
28	COVER; FRT,TRANS CASE PTO ZF TRANS RR<BDM> THA	1-33121-166-0	01	1	1011-1011
28	COVER; FRT,TRANS CASE THA	1-33121-166-0	01	1	1011-
29	BOLT; FRT COVER M8X30 THA	1-33549-581-0	06	1	1302-
29	BOLT; FRT COVER EXC. PTO ZF TRANS RR<BDM> M8X30	1-33549-172-0	06	1	1011-1011
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	1006-1010
29	BOLT; FRT COVER PTO ZF TRANS RR<BDM> M8X30	1-33549-172-0	06	1	1011-1011
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	1011-1305
33	SEAL; OIL,FRT COVER,T/M EXC. PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA	1-33219-321-0	01	1	1011-1011
33	SEAL; OIL,FRT COVER,T/M THA	1-33219-321-0	01	1	1006-1010
33	SEAL; OIL,FRT COVER,T/M PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA	1-33219-321-0	01	1	1011-1011
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). THA	1-33219-321-0	01	1	1011-
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	1006-
37	SEAL; DUST,CLU HSG	1-09625-002-0	02	1	1006-
82	PLUG; SCREW,CASE (C) THA	1-33119-618-0	02	1	1302-
82	PLUG; SCREW,CASE (A) THA	1-33119-619-0	01	1	1302-
82	PLUG; SCREW,CASE (B) THA	1-33119-620-0	02	1	1302-
82	PLUG; SCREW,CASE EXC. PTO ZF TRANS RR<BDM> (A)	1-33119-171-0	01	1	1011-1011
82	PLUG; SCREW,CASE EXC. PTO ZF TRANS RR<BDM> (B)	1-33119-268-0	02	1	1011-1011
82	PLUG; SCREW,CASE EXC. PTO ZF TRANS RR<BDM> (C)	1-33119-285-0	02	1	1011-1011
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1006-1010
82	PLUG; SCREW,CASE PTO ZF TRANS RR<BDM> (A)	1-33119-171-0	01	1	1011-1011
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1011-1305
82	PLUG; SCREW,CASE (B)	1-33119-268-0	02	1	1006-1010
82	PLUG; SCREW,CASE PTO ZF TRANS RR<BDM> (B)	1-33119-268-0	02	1	1011-1011
82	PLUG; SCREW,CASE (B)	1-33119-268-0	02	1	1011-1305
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1006-1010
82	PLUG; SCREW,CASE PTO ZF TRANS RR<BDM> (C)	1-33119-285-0	02	1	1011-1011
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1011-1305
113	GASKET; FRT COVER TO TRANS CASE EXC. PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA	1-33122-024-0	01	1	1011-1011
113	GASKET; FRT COVER TO TRANS CASE THA	1-33122-024-0	01	1	1006-1010
113	GASKET; FRT COVER TO TRANS CASE PTO ZF TRANS RR<BDM> ALSO INCLUDED IN GASKET SET(M/T). THA	1-33122-024-0	01	1	1011-1011
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). THA	1-33122-024-0	01	1	1011-
186	RING; SEAL EXC. PTO ZF TRANS RR<BDM> (A) THA	1-33119-249-0	01	1	1011-1011
186	RING; SEAL EXC. PTO ZF TRANS RR<BDM> (B) THA	1-33119-286-0	02	1	1011-1011
186	RING; SEAL EXC. PTO ZF TRANS RR<BDM> (C) THA	1-33119-435-0	02	1	1011-1011
186	RING; SEAL (A) THA	1-33119-249-0	01	1	1006-1010
186	RING; SEAL PTO ZF TRANS RR<BDM> (A) THA	1-33119-249-0	01	1	1011-1011
186	RING; SEAL (A) THA	1-33119-249-0	01	1	1011-
186	RING; SEAL (B) THA	1-33119-286-0	02	1	1006-1010
186	RING; SEAL PTO ZF TRANS RR<BDM> (B) THA	1-33119-286-0	02	1	1011-1011
186	RING; SEAL (B) THA	1-33119-286-0	02	1	1011-
186	RING; SEAL (C) THA	1-33119-435-0	02	1	1006-1010
186	RING; SEAL PTO ZF TRANS RR<BDM> (C) THA	1-33119-435-0	02	1	1011-1011
186	RING; SEAL (C) THA	1-33119-435-0	02	1	1011-
245	PIPE; OIL EXC. PTO ZF TRANS RR<BDM> THA	1-33119-517-0	01	1	1011-1011
245	PIPE; OIL THA	1-33119-517-0	01	1	1006-1010
245	PIPE; OIL PTO ZF TRANS RR<BDM> THA	1-33119-517-0	01	1	1011-1011
245	PIPE; OIL THA	1-33119-517-0	01	1	1011-
314	GASKET; CASE EXC. PTO ZF TRANS RR<BDM> THA	1-33112-052-0	01	1	1011-1011
314	GASKET; CASE THA	1-33112-052-0	01	1	1006-1010
314	GASKET; CASE PTO ZF TRANS RR<BDM> THA	1-33112-052-0	01	1	1011-1011
314	GASKET; CASE THA	1-33112-052-0	01	1	1011-
315	BOLT; CASE M10X70 THA	1-33119-616-0	17	1	1302-
315	BOLT; CASE EXC. PTO ZF TRANS RR<BDM> M10X70	1-33119-522-0	17	1	1011-1011
315	BOLT; CASE M10X70	1-33119-522-0	17	1	1006-1010
315	BOLT; CASE PTO ZF TRANS RR<BDM> M10X70	1-33119-522-0	17	1	1011-1011
315	BOLT; CASE M10X70	1-33119-522-0	17	1	1011-1305
329	PUMP ASM; OIL THA	1-34150-123-0	01	1	1302-
329	PUMP ASM; OIL EXC. PTO ZF TRANS RR<BDM>	1-34150-121-0	01	1	1011-1011
329	PUMP ASM; OIL	1-34150-121-0	01	1	1006-1010
329	PUMP ASM; OIL PTO ZF TRANS RR<BDM>	1-34150-121-0	01	1	1011-1011
329	PUMP ASM; OIL	1-34150-121-0	01	1	1011-1305
330	RING; RET EXC. PTO ZF TRANS RR<BDM> THA	1-33129-005-0	01	1	1011-1011
330	RING; RET THA	1-33129-005-0	01	1	1006-1010
330	RING; RET PTO ZF TRANS RR<BDM> THA	1-33129-005-0	01	1	1011-1011
330	RING; RET THA	1-33129-005-0	01	1	1011-
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	1006-
412	CAP; CLU HSG EXC. PTO ZF TRANS RR<BDM> THA	1-31119-026-0	01	1	1011-1011
412	CAP; CLU HSG THA	1-31119-026-0	01	1	1006-1010
412	CAP; CLU HSG PTO ZF TRANS RR<BDM> THA	1-31119-026-0	01	1	1011-1011
412	CAP; CLU HSG THA	1-31119-026-0	01	1	1011-
413	BALL; CLU HSG EXC. PTO ZF TRANS RR<BDM> THA	1-31119-014-0	04	1	1011-1011
413	BALL; CLU HSG THA	1-31119-014-0	04	1	1006-1010
413	BALL; CLU HSG PTO ZF TRANS RR<BDM> THA	1-31119-014-0	04	1	1011-1011
413	BALL; CLU HSG THA	1-31119-014-0	04	1	1011-
435	CASE; TRANS EXC. PTO ZF TRANS RR<BDM> (B) THA	1-33111-372-0	01	1	1011-1011
435	CASE; TRANS (B) THA	1-33111-372-0	01	1	1006-1010
435	CASE; TRANS PTO ZF TRANS RR<BDM> (B) THA	1-33111-372-0	01	1	1011-1011
435	CASE; TRANS (B) THA	1-33111-372-0	01	1	1011-
435	CASE; TRANS EXC. PTO ZF TRANS RR<BDM> (A)	1-33111-373-0	01	1	1011-1011
435	CASE; TRANS (A)	1-33111-373-0	01	1	1006-1010
435	CASE; TRANS PTO ZF TRANS RR<BDM> (A)	1-33111-373-0	01	1	1011-1011
435	CASE; TRANS (A)	1-33111-373-0	01	1	1011-1301
435	CASE; TRANS (A) THA	1-33111-380-0	01	1	1302-
463	COVER; DUST,FRT COVER THA	1-33129-018-0	01	1	1302-
463	COVER; DUST,FRT COVER EXC. PTO ZF TRANS RR<BDM>	1-33129-004-0	01	1	1011-1011
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	1006-1010
463	COVER; DUST,FRT COVER PTO ZF TRANS RR<BDM>	1-33129-004-0	01	1	1011-1011
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	1011-1305
468	GASKET; OIL PUMP EXC. PTO ZF TRANS RR<BDM> THA	1-34159-122-0	01	1	1011-1011
468	GASKET; OIL PUMP THA	1-34159-122-0	01	1	1006-1010
468	GASKET; OIL PUMP PTO ZF TRANS RR<BDM> THA	1-34159-122-0	01	1	1011-1011
468	GASKET; OIL PUMP THA	1-34159-122-0	01	1	1011-
477	BOLT; OIL PUMP M8X30 THA	1-33549-581-0	08	1	1302-
477	BOLT; OIL PUMP EXC. PTO ZF TRANS RR<BDM> M8X30	1-33549-172-0	08	1	1011-1011
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	1006-1010
477	BOLT; OIL PUMP PTO ZF TRANS RR<BDM> M8X30	1-33549-172-0	08	1	1011-1011
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	1011-1305
478	WASHER; LK,OIL PUMP THA	1-33549-583-0	08	1	1302-
478	WASHER; LK,OIL PUMP EXC. PTO ZF TRANS RR<BDM>	1-36129-007-0	08	1	1011-1011
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	1006-1010
478	WASHER; LK,OIL PUMP PTO ZF TRANS RR<BDM>	1-36129-007-0	08	1	1011-1011
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	1011-1305
561	PLUG EXC. PTO ZF TRANS RR<BDM> (A) THA	1-31119-044-0	02	1	1011-1011
561	PLUG EXC. PTO ZF TRANS RR<BDM> (B) THA	1-31119-045-0	03	1	1011-1011
561	PLUG EXC. PTO ZF TRANS RR<BDM> (C) THA	1-31119-046-0	02	1	1011-1011
561	PLUG EXC. PTO ZF TRANS RR<BDM> (D) THA	1-31119-047-0	01	1	1011-1011
561	PLUG (A) THA	1-31119-044-0	02	1	1006-1010
561	PLUG PTO ZF TRANS RR<BDM> (A) THA	1-31119-044-0	02	1	1011-1011
561	PLUG (A) THA	1-31119-044-0	02	1	1011-
561	PLUG (B) THA	1-31119-045-0	03	1	1006-1010
561	PLUG PTO ZF TRANS RR<BDM> (B) THA	1-31119-045-0	03	1	1011-1011
561	PLUG (B) THA	1-31119-045-0	03	1	1011-
561	PLUG (C) THA	1-31119-046-0	02	1	1006-1010
561	PLUG PTO ZF TRANS RR<BDM> (C) THA	1-31119-046-0	02	1	1011-1011
561	PLUG (C) THA	1-31119-046-0	02	1	1011-
561	PLUG (D) THA	1-31119-047-0	01	1	1006-1010
561	PLUG PTO ZF TRANS RR<BDM> (D) THA	1-31119-047-0	01	1	1011-1011
561	PLUG (D) THA	1-31119-047-0	01	1	1011-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
