2-05 — CLUTCH PIPING (#56094) — 39 parça

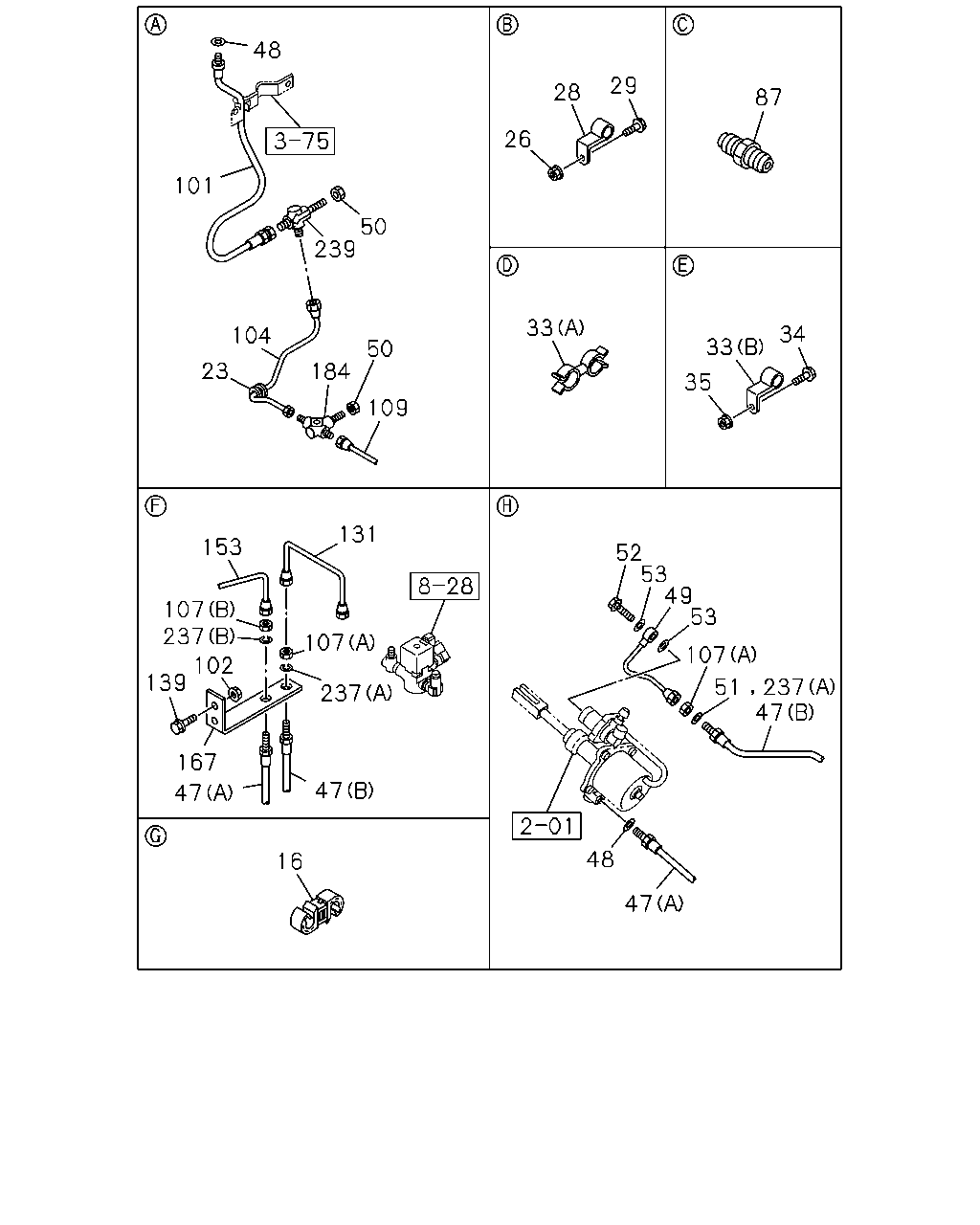

çizim 162914
48 29 28 87 26 101 50 239 33 34 104 33 50 23 184 35 109 131 153 52 53 49 53 107 237 107 107 102 139 51 237 47 237 167 47 47 48 16 47
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1006-
23 GROMMET; CLU PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1006-
26 NUT; CLIP,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 03 1 1006-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 1006-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE THA 		0-28650-825-0 03 1 1006-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 04 1 1006-
33 CLIP; OIL PIPE
(A) ID=8.3 & 10 		8-94176-792-0 01 1 1006-
34 BOLT; PIPE CLIP
M8X30 FLANGE THA 		0-28650-830-0 04 1 1006-
35 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1006-
47 HOSE; FLEX,CLU CONT
(B) L=560 		1-09363-689-0 01 1 1006-
47 HOSE; FLEX,CLU CONT
(A) L=520 		1-09364-583-0 01 1 1006-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1006-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=232 		1-49124-795-0 01 1 1006-
50 NUT; UNION
M12 		0-91111-512-0 01 1 1006-
50 NUT; UNION
M12 		0-91111-512-0 01 1 1006-
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1012-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 1006-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1006-1312
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
87 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 1006-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1006-
102 NUT; FLEX HOSE,CLU CONT
M8 FLANGE THA 		0-91180-108-0 02 1 1006-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=542 SERVICED BY L=550 		1-47428-753-0 01 1 1006-
107 NUT; UNION,OIL PIPE
(B) M14 		0-91111-514-0 01 1 1006-
107 NUT; UNION,OIL PIPE
(A) M12 		9-09840-280-0 02 1 1006-
109 PIPE; AIR,UNION TO UNION
L=1407 SERVICED BY L=1550 		1-47428-766-0 01 1 1006-
131 PIPE; AIR,UNION TO FLEX HOSE
L=275 THA 		8-97924-020-1 01 1 1006-
139 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 02 1 1006-
153 PIPE ASM; CLU,UNION TO FLEX
L=2344 SERVICED BY L=2400 		1-47428-771-0 01 1 1006-
167 BRACKET; UNION 8-98077-571-0 01 1 1006-
184 UNION; FLEX HOSE
M14 2WAY 		1-09654-176-2 01 1 1006-
237 WASHER; BRKT
(A) ID=12.2 		0-91510-512-0 02 1 1006-1011
237 WASHER; BRKT
(B) ID=14.2 		0-91510-514-0 01 1 1006-1011
239 UNION; CLU HOSE 8-98107-850-0 01 1 1006-

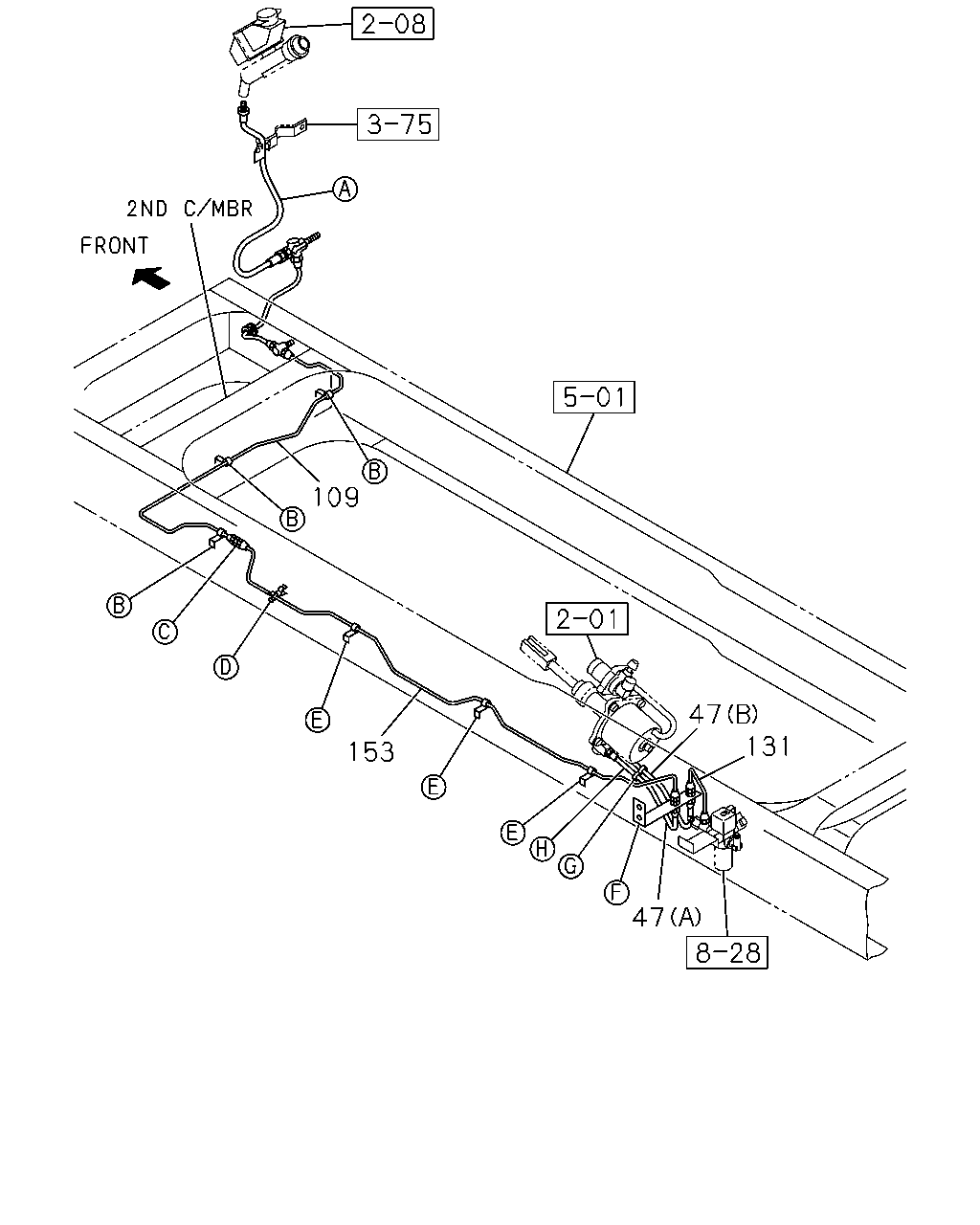

çizim 162919
109 47 131 153 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(B) L=560 		1-09363-689-0 01 1 1006-
47 HOSE; FLEX,CLU CONT
(A) L=520 		1-09364-583-0 01 1 1006-
109 PIPE; AIR,UNION TO UNION
L=1407 SERVICED BY L=1550 		1-47428-766-0 01 1 1006-
131 PIPE; AIR,UNION TO FLEX HOSE
L=275 THA 		8-97924-020-1 01 1 1006-
153 PIPE ASM; CLU,UNION TO FLEX
L=2344 SERVICED BY L=2400 		1-47428-771-0 01 1 1006-
