◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11195 - GVR CNG(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#56089) — 260 parça
çizim 162906
223 359 17 84 197 84 228 36 212 128 212 228 36
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1006-
17 BOLT; EXH PIPE
(B) M10X50 FLANGE THA 		0-28051-050-0 04 1 1006-
17 BOLT; EXH PIPE
(C) M12X40 FLANGE THA 		0-28051-240-0 03 1 1006-
17 BOLT; EXH PIPE
(D) M10X35 FLANGE THA 		0-28651-035-0 02 1 1006-
17 BOLT; EXH PIPE
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1006-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1006-
36 NUT; EXH PIPE
(B) M8 FLANGE THA 		0-91180-108-0 04 1 1006-
36 NUT; EXH PIPE
(C) M10 FLANGE THA 		0-91180-210-0 02 1 1006-
36 NUT; EXH PIPE
(C) M10 FLANGE THA 		0-91180-210-0 04 1 1006-
36 NUT; EXH PIPE
(D) M12 FLANGE THA 		0-91180-212-0 08 1 1006-
36 NUT; EXH PIPE
(D) M12 FLANGE THA 		0-91180-212-0 11 1 1006-
84 GASKET; EXH PIPE
(A) 		1-22116-034-0 02 1 1006-
84 GASKET; EXH PIPE
(B) 		1-22116-040-0 03 1 1006-
128 PIPE; EXH,RR
(A) THA 		8-97632-975-1 01 1 1006-
128 PIPE; EXH,RR
(B) THA 		8-97632-976-1 01 1 1006-
197 BRACKET; EXH PIPE,VERTICAL
(A) THA 		8-97924-650-2 01 1 1006-
197 BRACKET; EXH PIPE,VERTICAL
(B) THA 		8-97925-097-0 02 1 1006-
212 BOLT; BRKT
(A) M10X60 FLANGE THA 		0-28051-060-0 04 1 1006-
212 BOLT; BRKT
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 1006-
212 BOLT; BRKT
(C) M10X35 FLANGE THA 		0-28051-035-0 02 1 1006-
212 BOLT; BRKT
(D) M10X50 FLANGE THA 		0-28051-050-0 02 1 1006-
212 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28051-235-0 06 1 1006-
212 BOLT; BRKT
(F) M8X30 FLANGE THA 		0-28650-830-0 02 1 1006-
212 BOLT; BRKT
(G) M10X25 FLANGE THA 		0-28651-025-0 02 1 1006-
223 BRACKET; EXH PIPE
(A) THA 		8-97924-668-0 01 1 1006-
223 BRACKET; EXH PIPE
(B) THA 		8-97925-106-0 01 1 1006-
228 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 06 1 1006-
228 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 08 1 1006-
359 PIPE; EXH,VERTICAL
THA 		8-97632-977-1 01 1 1006-

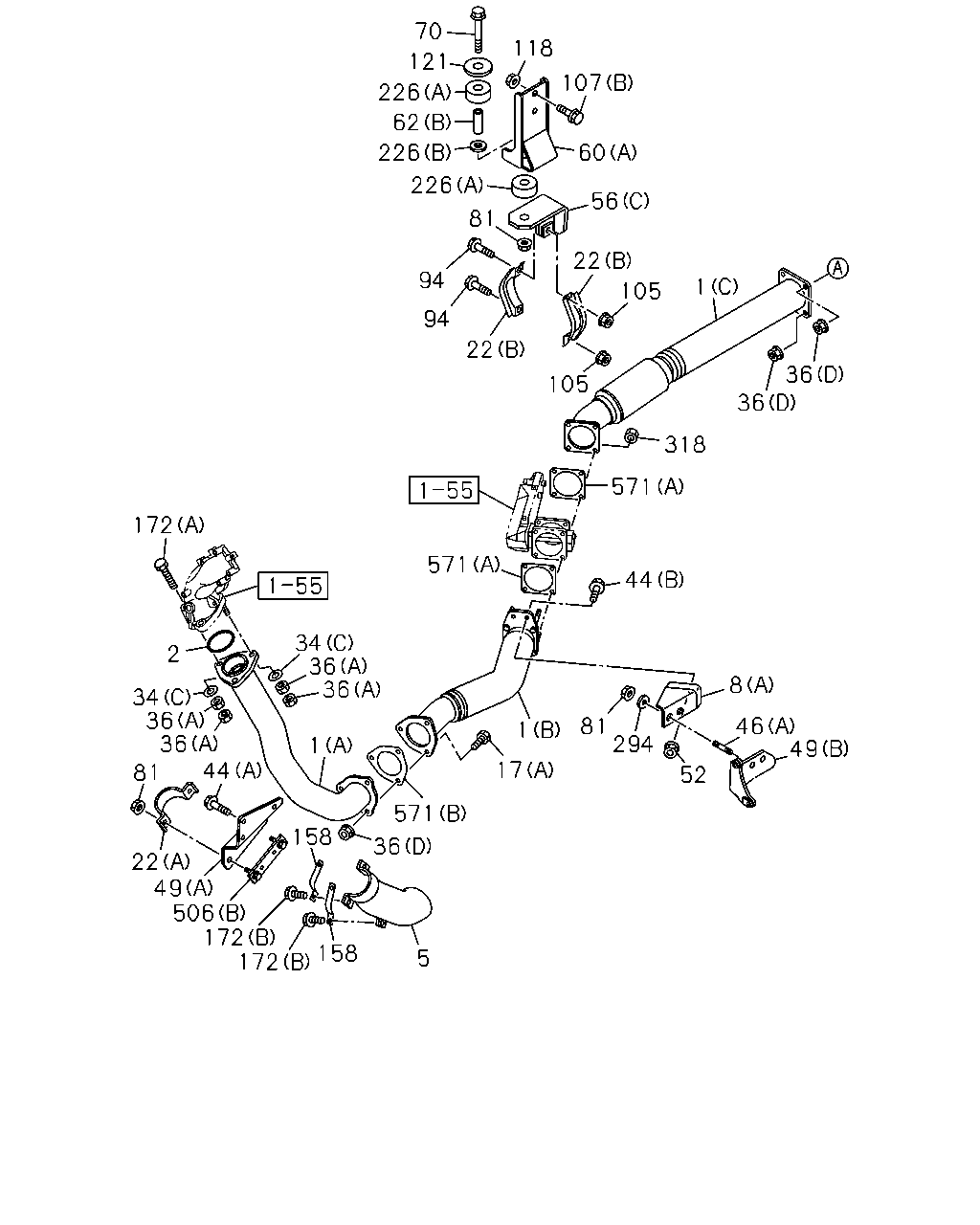

çizim 162912
70 118 121 107 226 62 226 60 226 56 81 22 94 1 105 94 22 36 36 105 318 571 172 571 44 34 36 36 2 8 52 34 36 36 44 46 81 294 49 1 1 17 81 571 158 36 22 49 506 172 158 172 5
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) 		8-98047-778-0 01 1 1006-1209
1 PIPE; EXH
(C) 		8-98221-117-0 01 1 1210-
1 PIPE; EXH
(B) THA 		8-97629-976-2 01 1 1006-
1 PIPE; EXH
(A) THA 		8-98126-486-5 01 1 1006-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-22116-029-0 01 1 1006-
5 PROTECTOR; HEAT
THA 		8-97630-122-2 01 1 1006-
8 BRACKET; EXH PIPE
(A) 		8-98120-522-0 01 1 1006-
8 BRACKET; EXH PIPE
(B) THA 		8-97634-236-1 01 1 1006-
8 BRACKET; EXH PIPE
(C) THA 		8-98143-056-0 01 1 1006-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1006-
17 BOLT; EXH PIPE
(B) M10X50 FLANGE THA 		0-28051-050-0 04 1 1006-
17 BOLT; EXH PIPE
(C) M12X40 FLANGE THA 		0-28051-240-0 03 1 1006-
17 BOLT; EXH PIPE
(D) M10X35 FLANGE THA 		0-28651-035-0 02 1 1006-
17 BOLT; EXH PIPE
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1006-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1006-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 04 1 1006-1006
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1007-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1007-
34 WASHER; EXH PIPE
(A) ID=8.2 		0-91510-508-0 04 1 1006-
34 WASHER; EXH PIPE
(B) ID=8.4 OD=22 		0-91610-708-0 04 1 1006-
34 WASHER; EXH PIPE
(C) ID=13 OD=24 DISH 		1-09500-030-0 03 1 1006-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1006-
36 NUT; EXH PIPE
(B) M8 FLANGE THA 		0-91180-108-0 04 1 1006-
36 NUT; EXH PIPE
(C) M10 FLANGE THA 		0-91180-210-0 02 1 1006-
36 NUT; EXH PIPE
(C) M10 FLANGE THA 		0-91180-210-0 04 1 1006-
36 NUT; EXH PIPE
(D) M12 FLANGE THA 		0-91180-212-0 08 1 1006-
36 NUT; EXH PIPE
(D) M12 FLANGE THA 		0-91180-212-0 11 1 1006-
44 BOLT; BRKT
(A) M10X20 FLANGE THA 		0-28751-020-0 03 1 1006-
44 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28651-030-0 02 1 1006-
46 BOLT; BRKT,EXH PIPE
(A) M10X25 L=40 THA 		0-44011-025-0 02 1 1006-
46 BOLT; BRKT,EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1006-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-97629-970-0 01 1 1006-
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-98120-497-0 01 1 1006-
52 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1006-
52 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1006-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1006-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1006-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1006-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-98099-100-0 01 1 1006-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1006-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1006-
60 BRACKET; FRAME TO BRKT
(B) 		8-98071-228-0 01 1 1006-
62 TUBE; DIST,BRKT
(A) 		8-94457-277-1 01 1 1006-
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 01 1 1006-1307
62 TUBE; DIST,BRKT
(B) THA 		8-97948-228-0 01 1 1308-
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 02 1 1006-1307
62 TUBE; DIST,BRKT
(B) THA 		8-97948-228-0 02 1 1308-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 02 1 1007-
70 BOLT; BRKT
WHEEL BASE 3700MM<37W> M10X70 FLANGE THA 		0-28051-070-0 01 1 1006-1007
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1008-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1008-
70 BOLT; BRKT
WHEEL BASE 3700MM<37W> M10X70 FLANGE THA 		0-28051-070-0 01 1 1008-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 02 1 1006-1006
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 02 1 1006-1006
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1007-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1007-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1007-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1007-
81 NUT; BRKT
WHEEL BASE 3700MM<37W> M10 FLANGE THA 		0-91180-210-0 01 1 1006-1007
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1008-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1008-
81 NUT; BRKT
WHEEL BASE 3700MM<37W> M10 FLANGE THA 		0-91180-210-0 01 1 1008-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1006-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1006-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1006-1006
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1006-1006
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1006-1006
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1007-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1007-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 04 1 1006-1006
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1007-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1007-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 04 1 1006-1006
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1007-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1007-
107 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28051-035-0 02 1 1006-
107 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 06 1 1006-
118 NUT; SILENCER MTG BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1006-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 1007-
121 WASHER; PL,BRKT
WHEEL BASE 3700MM<37W> ID=8.4 OD=22 		1-09503-154-2 01 1 1006-1007
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 1008-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 1008-
121 WASHER; PL,BRKT
WHEEL BASE 3700MM<37W> ID=8.4 OD=22 		1-09503-154-2 01 1 1008-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 1006-1006
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 1006-1006
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 1007-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 1007-
158 BRACKET; HEAT PROTECTOR 8-97630-104-0 02 1 1006-
172 BOLT
(A) M12X65 		1-09000-386-0 02 1 1006-
172 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1006-
226 RUBBER; CUSHION
(C) 		8-94457-278-1 01 1 1006-
226 RUBBER; CUSHION
(A) 		8-97379-882-0 02 1 1006-
226 RUBBER; CUSHION
(D) 		8-98060-852-0 01 1 1006-
226 RUBBER; CUSHION
(B) 		8-98090-400-0 01 1 1006-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1006-
318 NUT; EXH PIPE,FRT
M10 FLANGE THA 		0-91180-210-0 04 1 1006-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1006-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1006-
571 GASKET
(A) 		1-22116-043-0 02 1 1006-
571 GASKET
(B) 		8-98043-481-0 01 1 1006-

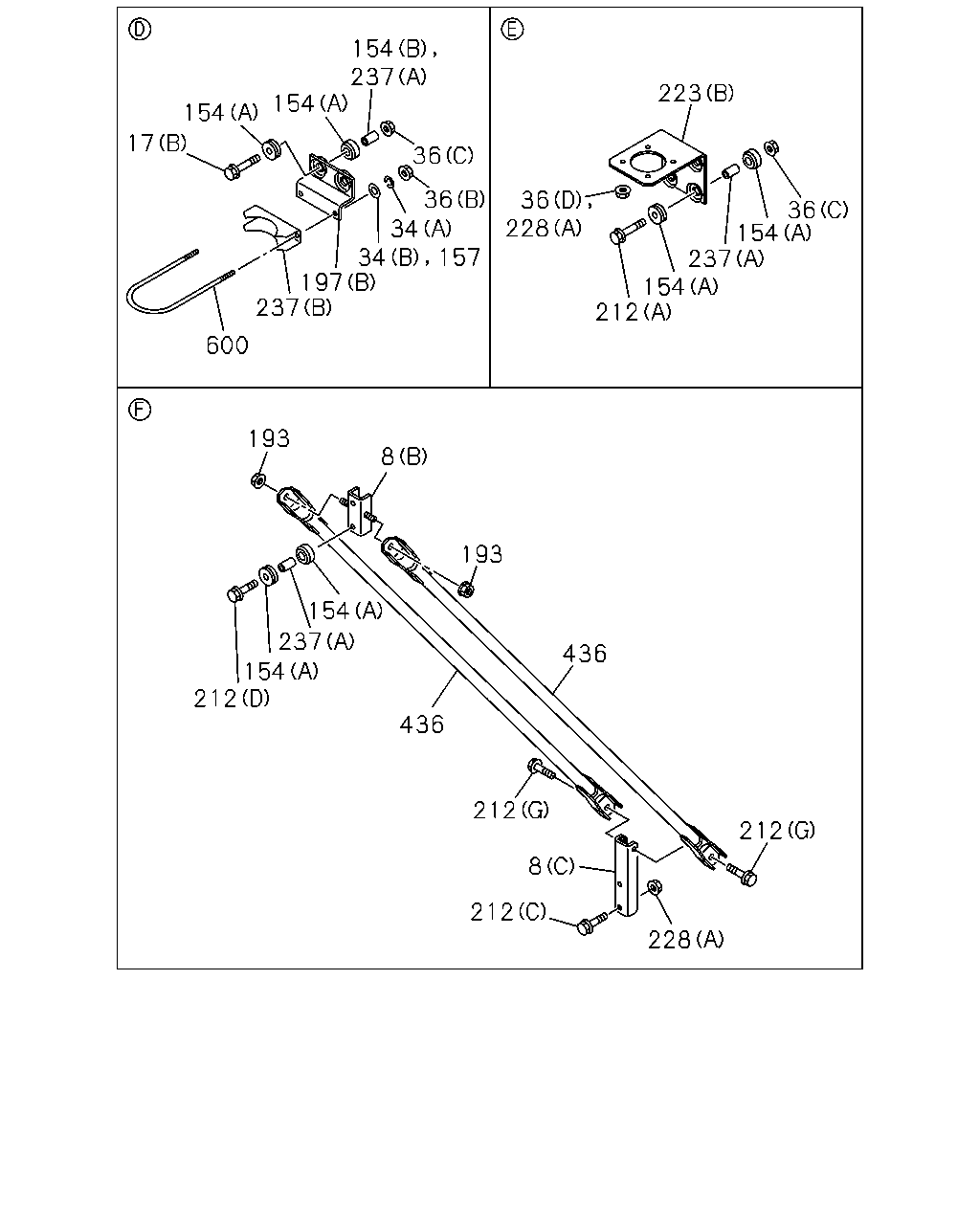

çizim 162922
154 237 223 154 154 17 36 36 34 34 157 197 237 36 228 36 154 237 154 212 600 193 8 193 154 237 436 154 212 436 212 212 8 212 228
BalonParca AdiParca NoAdetTipApplied Date
8 BRACKET; EXH PIPE
(A) 		8-98120-522-0 01 1 1006-
8 BRACKET; EXH PIPE
(B) THA 		8-97634-236-1 01 1 1006-
8 BRACKET; EXH PIPE
(C) THA 		8-98143-056-0 01 1 1006-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1006-
17 BOLT; EXH PIPE
(B) M10X50 FLANGE THA 		0-28051-050-0 04 1 1006-
17 BOLT; EXH PIPE
(C) M12X40 FLANGE THA 		0-28051-240-0 03 1 1006-
17 BOLT; EXH PIPE
(D) M10X35 FLANGE THA 		0-28651-035-0 02 1 1006-
17 BOLT; EXH PIPE
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1006-
34 WASHER; EXH PIPE
(A) ID=8.2 		0-91510-508-0 04 1 1006-
34 WASHER; EXH PIPE
(B) ID=8.4 OD=22 		0-91610-708-0 04 1 1006-
34 WASHER; EXH PIPE
(C) ID=13 OD=24 DISH 		1-09500-030-0 03 1 1006-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1006-
36 NUT; EXH PIPE
(B) M8 FLANGE THA 		0-91180-108-0 04 1 1006-
36 NUT; EXH PIPE
(C) M10 FLANGE THA 		0-91180-210-0 02 1 1006-
36 NUT; EXH PIPE
(C) M10 FLANGE THA 		0-91180-210-0 04 1 1006-
36 NUT; EXH PIPE
(D) M12 FLANGE THA 		0-91180-212-0 08 1 1006-
36 NUT; EXH PIPE
(D) M12 FLANGE THA 		0-91180-212-0 11 1 1006-
154 CUSHION; HEAT PROTECTOR
(B) L=22 		9-22159-024-0 02 1 1006-
154 CUSHION; HEAT PROTECTOR
(A) OD=40 THA 		1-22159-094-0 20 1 1006-
157 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1006-
193 NUT; BRKT,VERTICAL PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 1006-
197 BRACKET; EXH PIPE,VERTICAL
(A) THA 		8-97924-650-2 01 1 1006-
197 BRACKET; EXH PIPE,VERTICAL
(B) THA 		8-97925-097-0 02 1 1006-
212 BOLT; BRKT
(A) M10X60 FLANGE THA 		0-28051-060-0 04 1 1006-
212 BOLT; BRKT
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 1006-
212 BOLT; BRKT
(C) M10X35 FLANGE THA 		0-28051-035-0 02 1 1006-
212 BOLT; BRKT
(D) M10X50 FLANGE THA 		0-28051-050-0 02 1 1006-
212 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28051-235-0 06 1 1006-
212 BOLT; BRKT
(F) M8X30 FLANGE THA 		0-28650-830-0 02 1 1006-
212 BOLT; BRKT
(G) M10X25 FLANGE THA 		0-28651-025-0 02 1 1006-
223 BRACKET; EXH PIPE
(A) THA 		8-97924-668-0 01 1 1006-
223 BRACKET; EXH PIPE
(B) THA 		8-97925-106-0 01 1 1006-
228 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 06 1 1006-
228 NUT; BRKT
(B) M12 FLANGE THA 		0-91180-212-0 08 1 1006-
237 SPACER; EXH PIPE
(A) L=25 		1-14234-083-0 10 1 1006-
237 SPACER; EXH PIPE
(B) THA 		8-97632-994-0 02 1 1006-
436 STAY; SUPPORT,EXH
THA 		8-97634-235-0 02 1 1006-
600 U-BOLT
L=140 		1-22113-030-1 02 1 1006-

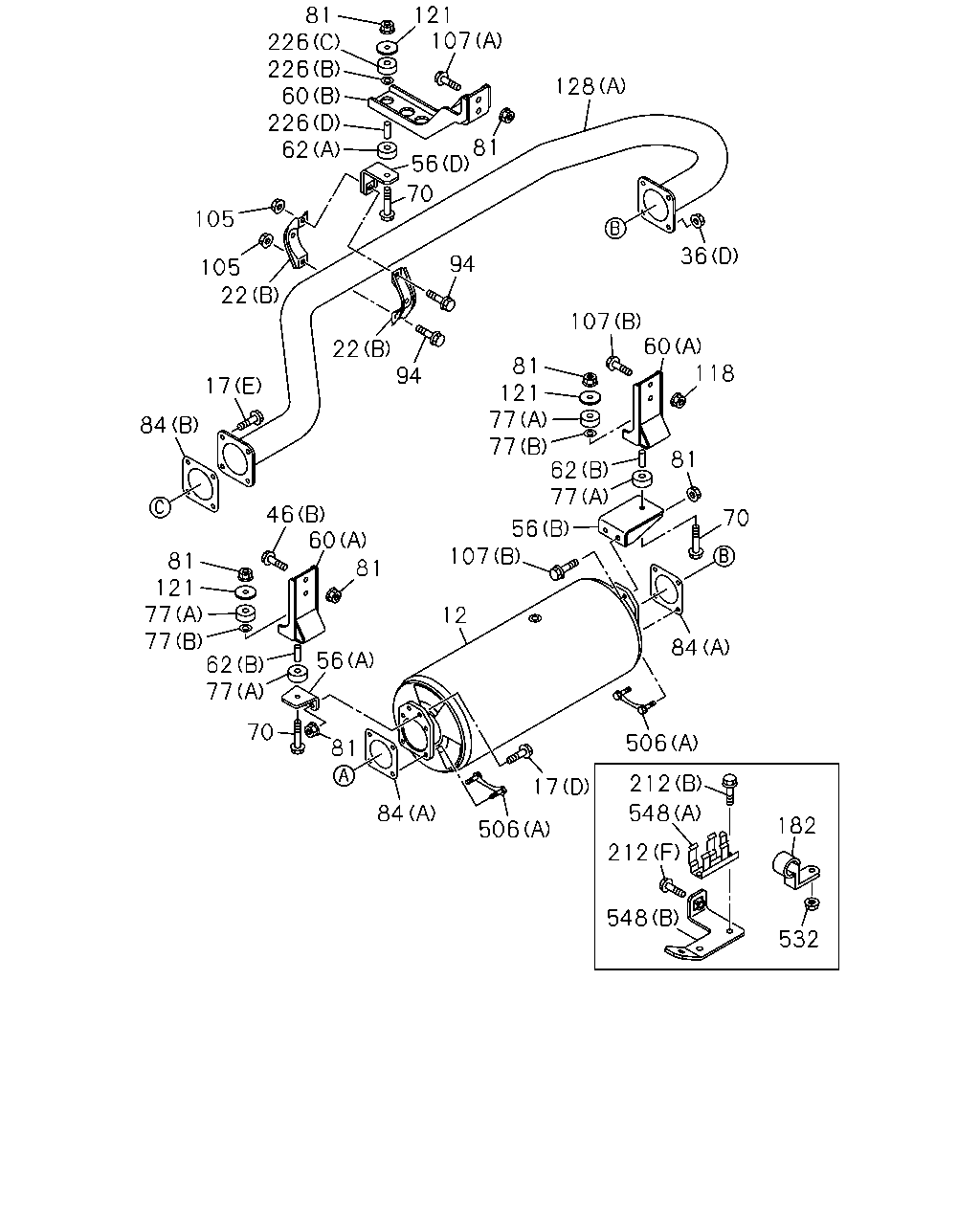

çizim 162932
121 107 81 226 226 60 226 62 128 81 56 70 105 36 94 105 22 107 60 118 22 94 81 121 77 77 62 77 17 84 81 46 60 81 70 56 107 81 121 77 77 62 77 12 84 56 70 506 81 212 17 548 84 182 506 212 548 532
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-97630-814-1 01 1 1006-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1006-
17 BOLT; EXH PIPE
(B) M10X50 FLANGE THA 		0-28051-050-0 04 1 1006-
17 BOLT; EXH PIPE
(C) M12X40 FLANGE THA 		0-28051-240-0 03 1 1006-
17 BOLT; EXH PIPE
(D) M10X35 FLANGE THA 		0-28651-035-0 02 1 1006-
17 BOLT; EXH PIPE
(E) M12X35 FLANGE THA 		0-28651-235-0 04 1 1006-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1006-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 04 1 1006-1006
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1007-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1007-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1006-
36 NUT; EXH PIPE
(B) M8 FLANGE THA 		0-91180-108-0 04 1 1006-
36 NUT; EXH PIPE
(C) M10 FLANGE THA 		0-91180-210-0 02 1 1006-
36 NUT; EXH PIPE
(C) M10 FLANGE THA 		0-91180-210-0 04 1 1006-
36 NUT; EXH PIPE
(D) M12 FLANGE THA 		0-91180-212-0 08 1 1006-
36 NUT; EXH PIPE
(D) M12 FLANGE THA 		0-91180-212-0 11 1 1006-
46 BOLT; BRKT,EXH PIPE
(A) M10X25 L=40 THA 		0-44011-025-0 02 1 1006-
46 BOLT; BRKT,EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1006-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1006-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1006-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1006-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-98099-100-0 01 1 1006-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1006-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1006-
60 BRACKET; FRAME TO BRKT
(B) 		8-98071-228-0 01 1 1006-
62 TUBE; DIST,BRKT
(A) 		8-94457-277-1 01 1 1006-
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 01 1 1006-1307
62 TUBE; DIST,BRKT
(B) THA 		8-97948-228-0 01 1 1308-
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 02 1 1006-1307
62 TUBE; DIST,BRKT
(B) THA 		8-97948-228-0 02 1 1308-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 02 1 1007-
70 BOLT; BRKT
WHEEL BASE 3700MM<37W> M10X70 FLANGE THA 		0-28051-070-0 01 1 1006-1007
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1008-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1008-
70 BOLT; BRKT
WHEEL BASE 3700MM<37W> M10X70 FLANGE THA 		0-28051-070-0 01 1 1008-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 02 1 1006-1006
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 02 1 1006-1006
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1007-
70 BOLT; BRKT
M10X70 FLANGE THA 		0-28051-070-0 01 1 1007-
77 RUBBER; CUSHION,BRKT
(A) 		8-97379-882-0 04 1 1006-
77 RUBBER; CUSHION,BRKT
(B) 		8-98090-400-0 02 1 1006-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1007-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1007-
81 NUT; BRKT
WHEEL BASE 3700MM<37W> M10 FLANGE THA 		0-91180-210-0 01 1 1006-1007
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1008-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1008-
81 NUT; BRKT
WHEEL BASE 3700MM<37W> M10 FLANGE THA 		0-91180-210-0 01 1 1008-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1006-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1006-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1006-1006
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1006-1006
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1006-1006
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1007-
81 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1007-
84 GASKET; EXH PIPE
(A) 		1-22116-034-0 02 1 1006-
84 GASKET; EXH PIPE
(B) 		1-22116-040-0 03 1 1006-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 04 1 1006-1006
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1007-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1007-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 04 1 1006-1006
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1007-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1007-
107 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28051-035-0 02 1 1006-
107 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 06 1 1006-
118 NUT; SILENCER MTG BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1006-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 1007-
121 WASHER; PL,BRKT
WHEEL BASE 3700MM<37W> ID=8.4 OD=22 		1-09503-154-2 01 1 1006-1007
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 1008-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 1008-
121 WASHER; PL,BRKT
WHEEL BASE 3700MM<37W> ID=8.4 OD=22 		1-09503-154-2 01 1 1008-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 1006-1006
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 1006-1006
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 1007-
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 1007-
128 PIPE; EXH,RR
(A) THA 		8-97632-975-1 01 1 1006-
128 PIPE; EXH,RR
(B) THA 		8-97632-976-1 01 1 1006-
182 CLIP; HARNESS
ID=7 L=38 H=21 THA 		1-09700-916-0 01 1 1006-
212 BOLT; BRKT
(A) M10X60 FLANGE THA 		0-28051-060-0 04 1 1006-
212 BOLT; BRKT
(B) M6X12 FLANGE THA 		0-28050-612-0 02 1 1006-
212 BOLT; BRKT
(C) M10X35 FLANGE THA 		0-28051-035-0 02 1 1006-
212 BOLT; BRKT
(D) M10X50 FLANGE THA 		0-28051-050-0 02 1 1006-
212 BOLT; BRKT
(E) M12X35 FLANGE THA 		0-28051-235-0 06 1 1006-
212 BOLT; BRKT
(F) M8X30 FLANGE THA 		0-28650-830-0 02 1 1006-
212 BOLT; BRKT
(G) M10X25 FLANGE THA 		0-28651-025-0 02 1 1006-
226 RUBBER; CUSHION
(C) 		8-94457-278-1 01 1 1006-
226 RUBBER; CUSHION
(A) 		8-97379-882-0 02 1 1006-
226 RUBBER; CUSHION
(D) 		8-98060-852-0 01 1 1006-
226 RUBBER; CUSHION
(B) 		8-98090-400-0 01 1 1006-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1006-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1006-
532 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1006-
548 BRACKET; O2 SENSOR
(A) 		8-97262-725-0 01 1 1006-
548 BRACKET; O2 SENSOR
(B) THA 		8-98152-132-0 01 1 1006-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
