◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11195 - GVR CNG(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#56088) — 269 parça

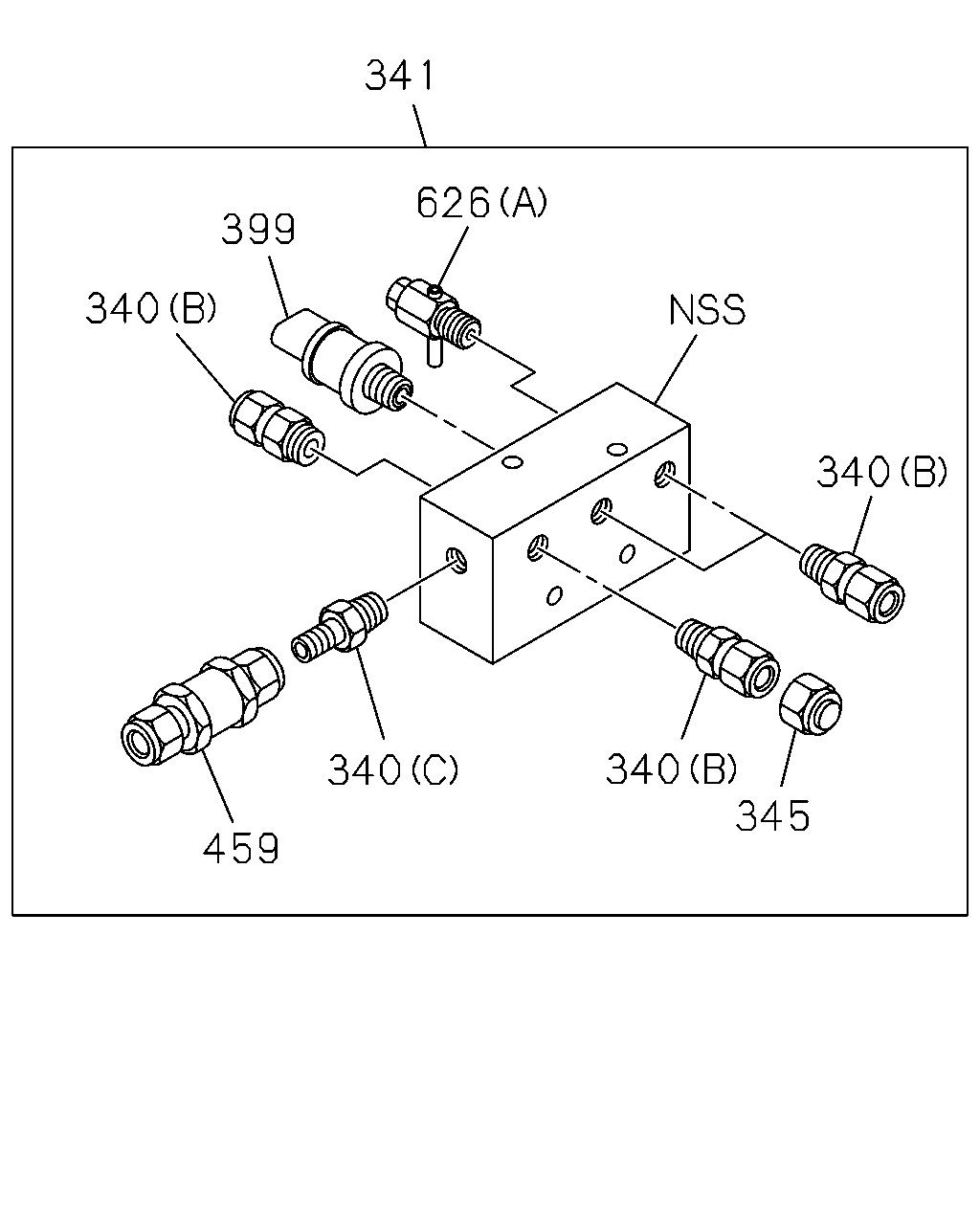

çizim 162893
341 626 399 340 340 340 345 340 459
BalonParca AdiParca NoAdetTipApplied Date
340 CONNECTOR; CNG
(F) 		8-98050-034-0 01 1 1006-
340 CONNECTOR; CNG
(E) 		8-98157-111-0 01 1 1006-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1006-1202
340 CONNECTOR; CNG
(A) 		8-97630-779-0 01 1 1203-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1006-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1006-
340 CONNECTOR; CNG
(D) 		8-98144-428-0 01 1 1006-
341 MANIFOLD; CNG 8-97630-820-1 01 1 1006-
345 PLUG 8-98050-045-0 01 1 1006-
399 SENSOR; VENT PRESS 8-98108-286-0 01 1 1006-
459 VALVE; CHECK 8-98120-763-0 01 1 1006-
626 VALVE; FUEL RECIRCULATION
(A) 		8-97630-824-0 01 1 1006-
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-825-0 01 1 1006-

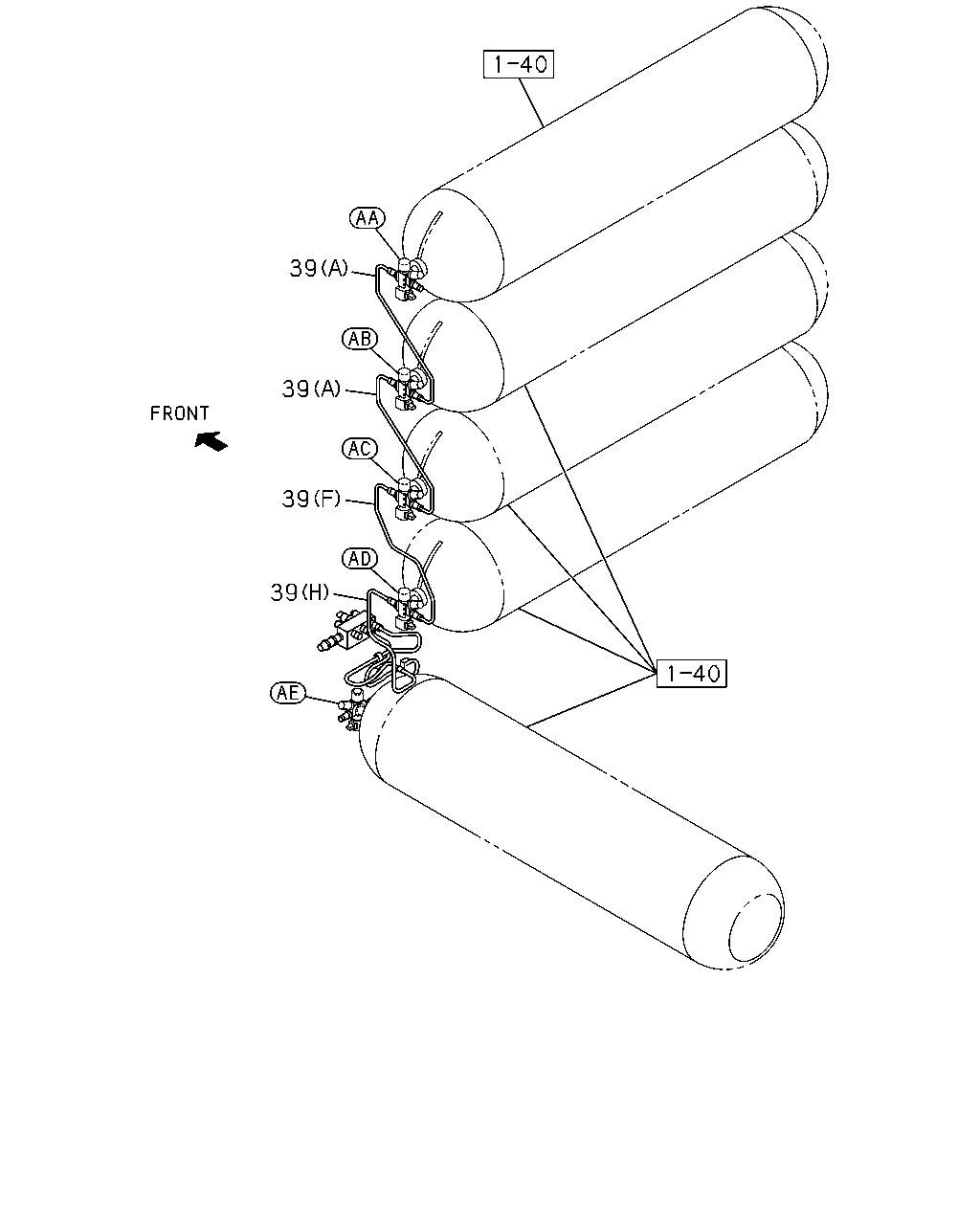

çizim 162898
39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(P) 		8-97630-832-1 01 1 1006-
39 PIPE; FUEL
(Q) 		8-97630-833-1 01 1 1006-
39 PIPE; FUEL
(B) 		8-97635-470-0 01 1 1006-
39 PIPE; FUEL
(C) 		8-97635-471-0 01 1 1006-
39 PIPE; FUEL
(A) 		8-97630-771-1 02 1 1006-
39 PIPE; FUEL
(D) 		8-97637-007-0 01 1 1006-1203
39 PIPE; FUEL
(D) 		8-98200-243-0 01 1 1204-
39 PIPE; FUEL
(E) 		8-98149-129-1 01 1 1006-
39 PIPE; FUEL
(F) 		8-98150-074-0 01 1 1006-
39 PIPE; FUEL
(G) 		8-98157-804-0 02 1 1006-
39 PIPE; FUEL
(H) 		8-98163-030-0 01 1 1006-
39 PIPE; FUEL
(I) 		8-98163-150-0 01 1 1006-
39 PIPE; FUEL
(J) 		8-98163-151-0 01 1 1006-
39 PIPE; FUEL
(K) 		8-98163-152-0 01 1 1006-
39 PIPE; FUEL
(L) 		8-98163-153-0 01 1 1006-
39 PIPE; FUEL
(M) 		8-98163-154-0 01 1 1006-
39 PIPE; FUEL
(N) THA 		8-97631-261-0 01 1 1006-
39 PIPE; FUEL
(O) THA 		8-97631-262-0 01 1 1006-

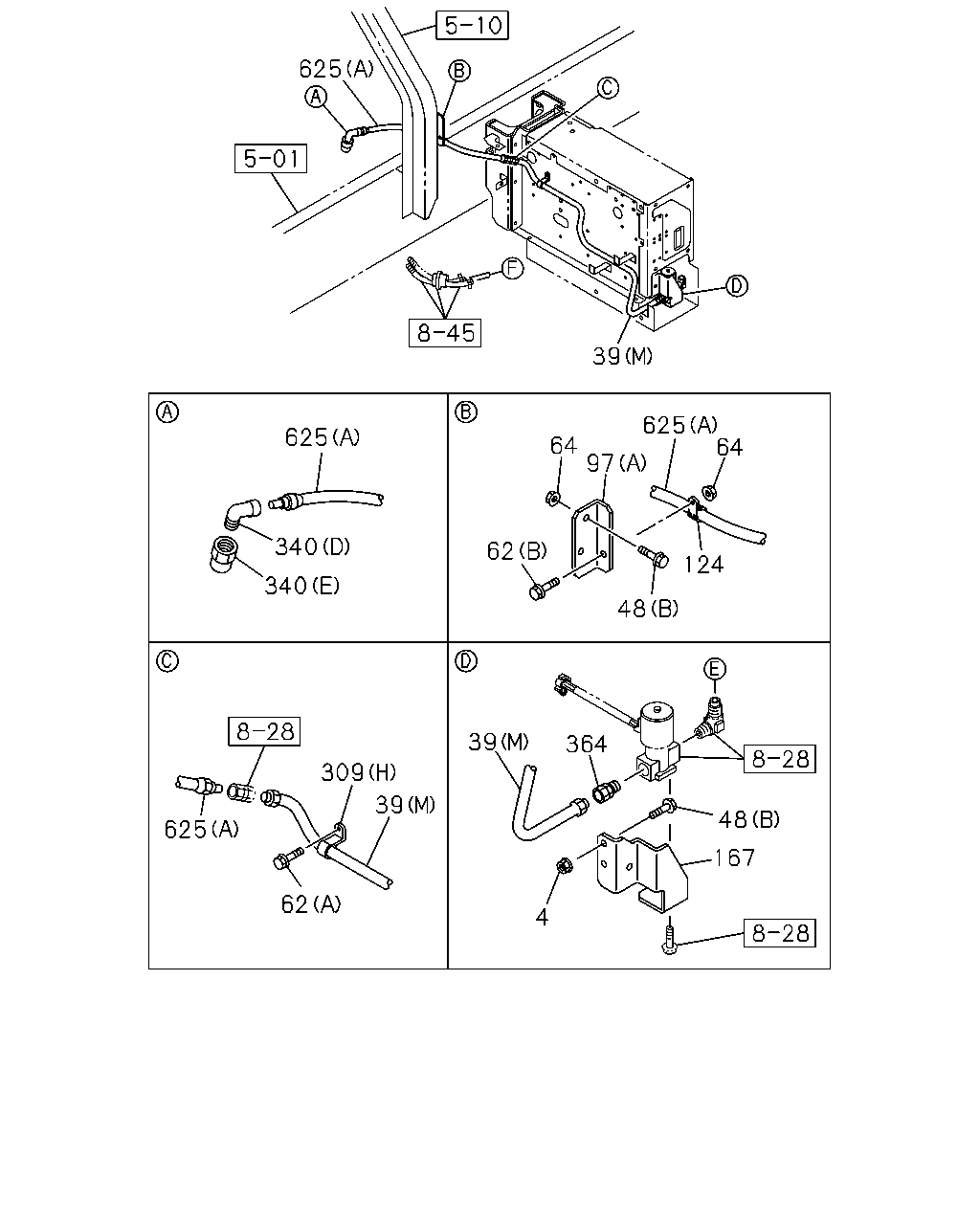

çizim 162913
625 39 625 625 64 340 340 62 48 97 64 124 309 39 625 62 39 364 48 167 4
BalonParca AdiParca NoAdetTipApplied Date
4 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1006-
39 PIPE; FUEL
(P) 		8-97630-832-1 01 1 1006-
39 PIPE; FUEL
(Q) 		8-97630-833-1 01 1 1006-
39 PIPE; FUEL
(B) 		8-97635-470-0 01 1 1006-
39 PIPE; FUEL
(C) 		8-97635-471-0 01 1 1006-
39 PIPE; FUEL
(A) 		8-97630-771-1 02 1 1006-
39 PIPE; FUEL
(D) 		8-97637-007-0 01 1 1006-1203
39 PIPE; FUEL
(D) 		8-98200-243-0 01 1 1204-
39 PIPE; FUEL
(E) 		8-98149-129-1 01 1 1006-
39 PIPE; FUEL
(F) 		8-98150-074-0 01 1 1006-
39 PIPE; FUEL
(G) 		8-98157-804-0 02 1 1006-
39 PIPE; FUEL
(H) 		8-98163-030-0 01 1 1006-
39 PIPE; FUEL
(I) 		8-98163-150-0 01 1 1006-
39 PIPE; FUEL
(J) 		8-98163-151-0 01 1 1006-
39 PIPE; FUEL
(K) 		8-98163-152-0 01 1 1006-
39 PIPE; FUEL
(L) 		8-98163-153-0 01 1 1006-
39 PIPE; FUEL
(M) 		8-98163-154-0 01 1 1006-
39 PIPE; FUEL
(N) THA 		8-97631-261-0 01 1 1006-
39 PIPE; FUEL
(O) THA 		8-97631-262-0 01 1 1006-
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 1006-
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1006-1006
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1006-1006
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 04 1 1007-
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1006-1006
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 03 1 1007-1008
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 03 1 1007-1008
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 06 1 1009-
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 05 1 1006-1006
62 BOLT; CLIP FIX
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1006-
62 BOLT; CLIP FIX
(C) M8X30 FLANGE THA 		0-28650-830-0 02 1 1006-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1006-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1006-1008
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1009-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 05 1 1006-1008
97 BRACKET; CLIP
(A) 		8-98163-161-0 01 1 1006-
97 BRACKET; CLIP
(B) THA 		1-34656-009-0 01 1 1006-
97 BRACKET; CLIP
(C) THA 		8-97637-008-0 01 1 1006-
124 CLIP; HOSE
ID=18 L=28 		1-09701-067-0 01 1 1006-
167 BRACKET
THA 		8-98163-159-0 01 1 1006-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1006-
309 CLIP; PIPE
(H) ID=17 		1-09700-840-0 01 1 1006-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1006-
309 CLIP; PIPE
(C) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1006-
309 CLIP; PIPE
(D) ID=17 L=28 		8-94427-862-0 02 1 1006-
309 CLIP; PIPE
(E) ID=13.2 & 14.5 		8-94475-649-0 02 1 1006-
309 CLIP; PIPE
(F) ID=11 H=20 L=20 		8-98033-780-0 01 1 1006-
309 CLIP; PIPE
(G) ID=10 & 10 		1-09709-277-1 01 1 1006-
309 CLIP; PIPE
(G) ID=10 & 10 		1-09709-277-1 01 1 1006-
340 CONNECTOR; CNG
(F) 		8-98050-034-0 01 1 1006-
340 CONNECTOR; CNG
(E) 		8-98157-111-0 01 1 1006-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1006-1202
340 CONNECTOR; CNG
(A) 		8-97630-779-0 01 1 1203-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1006-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1006-
340 CONNECTOR; CNG
(D) 		8-98144-428-0 01 1 1006-
364 CONNECTOR; MANIFOLD TO FILTER 8-98152-137-0 01 1 1006-
625 HOSE; FUEL,CNG
(B) L=290 SERVICED BY L=3000 		0-03559-300-0 02 1 1309-
625 HOSE; FUEL,CNG
(A) 		8-98163-155-0 01 1 1006-

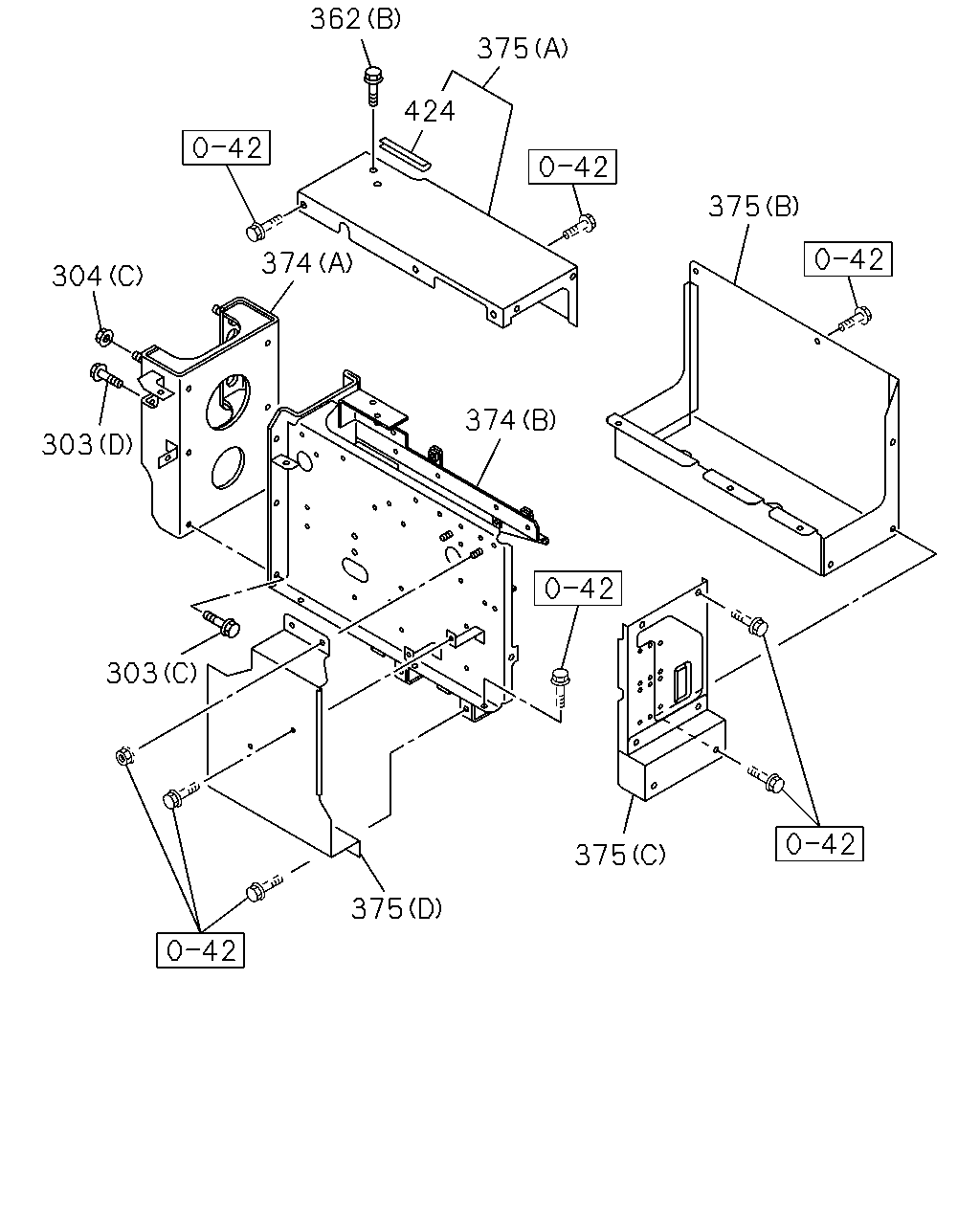

çizim 162921
362 375 424 375 374 304 374 303 303 375 375
BalonParca AdiParca NoAdetTipApplied Date
303 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28660-825-0 03 1 1006-
303 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1006-
303 BOLT; BRKT
(C) M10X30 FLANGE THA 		0-28661-030-0 06 1 1006-
303 BOLT; BRKT
(D) M12X35 FLANGE THA 		0-28661-235-0 04 1 1006-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1006-
304 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-208-0 03 1 1006-
304 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-212-0 02 1 1006-
362 BOLT; MANIFOLD
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 1006-
362 BOLT; MANIFOLD
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 1006-
374 BRACKET; REGULATOR
(A) 		8-98127-788-0 01 1 1006-
374 BRACKET; REGULATOR
(C) 		8-98163-156-0 01 1 1006-1203
374 BRACKET; REGULATOR
(C) 		8-98200-241-0 01 1 1204-
374 BRACKET; REGULATOR
(B) 		8-98163-405-0 01 1 1006-
375 COVER; REGULATOR
(A) THA 		8-98127-791-1 01 1 1006-
375 COVER; REGULATOR
(B) THA 		8-98163-406-0 01 1 1006-
375 COVER; REGULATOR
(C) THA 		8-98163-407-1 01 1 1006-
375 COVER; REGULATOR
(D) THA 		8-98163-408-0 01 1 1006-
424 FINISHER
L=120 THA 		1-73948-004-0 02 1 1006-

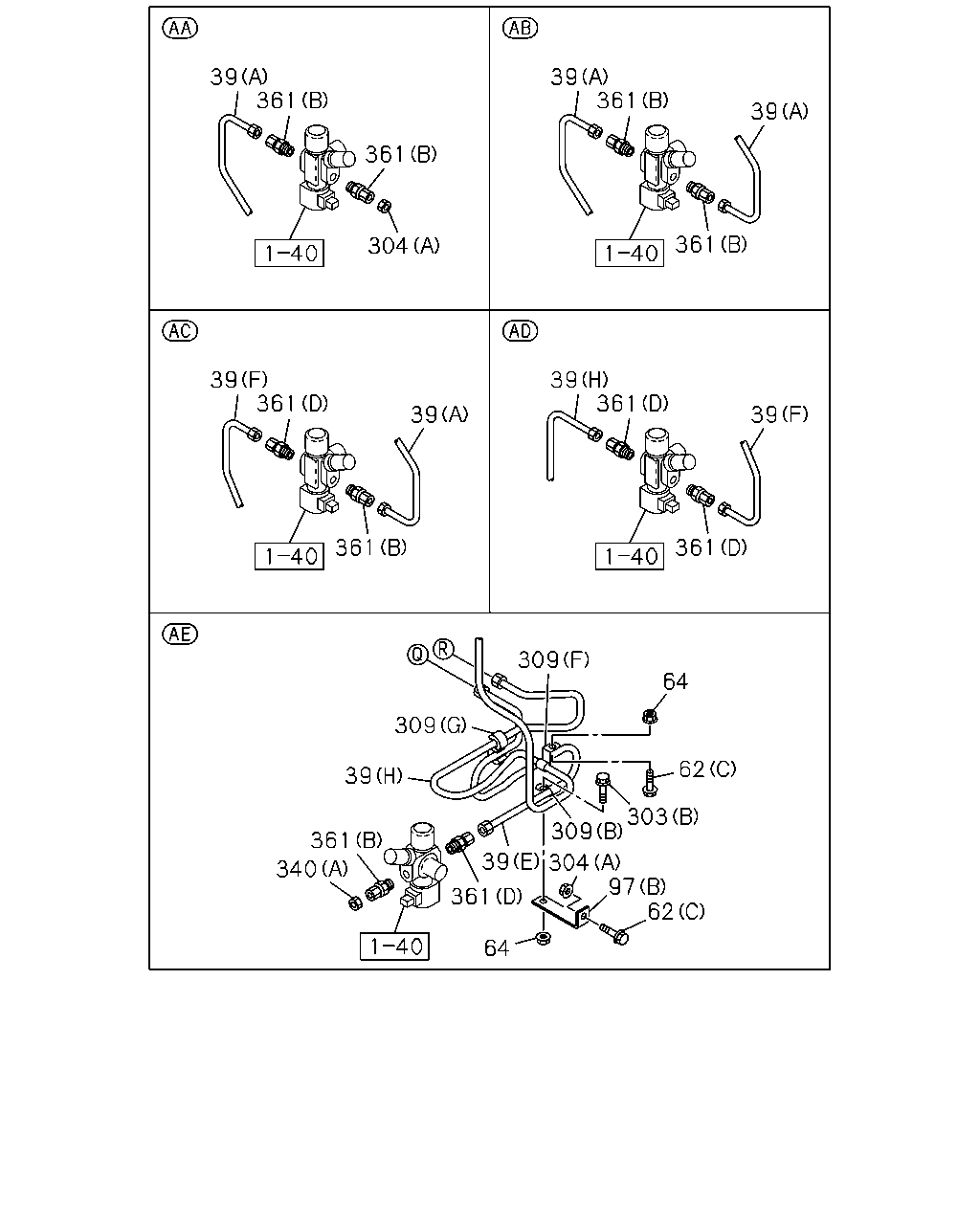

çizim 162925
39 361 39 361 39 361 361 304 39 361 39 361 39 39 361 361 309 64 309 62 39 303 309 361 97 62 340 361 64 39 304
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(P) 		8-97630-832-1 01 1 1006-
39 PIPE; FUEL
(Q) 		8-97630-833-1 01 1 1006-
39 PIPE; FUEL
(B) 		8-97635-470-0 01 1 1006-
39 PIPE; FUEL
(C) 		8-97635-471-0 01 1 1006-
39 PIPE; FUEL
(A) 		8-97630-771-1 02 1 1006-
39 PIPE; FUEL
(D) 		8-97637-007-0 01 1 1006-1203
39 PIPE; FUEL
(D) 		8-98200-243-0 01 1 1204-
39 PIPE; FUEL
(E) 		8-98149-129-1 01 1 1006-
39 PIPE; FUEL
(F) 		8-98150-074-0 01 1 1006-
39 PIPE; FUEL
(G) 		8-98157-804-0 02 1 1006-
39 PIPE; FUEL
(H) 		8-98163-030-0 01 1 1006-
39 PIPE; FUEL
(I) 		8-98163-150-0 01 1 1006-
39 PIPE; FUEL
(J) 		8-98163-151-0 01 1 1006-
39 PIPE; FUEL
(K) 		8-98163-152-0 01 1 1006-
39 PIPE; FUEL
(L) 		8-98163-153-0 01 1 1006-
39 PIPE; FUEL
(M) 		8-98163-154-0 01 1 1006-
39 PIPE; FUEL
(N) THA 		8-97631-261-0 01 1 1006-
39 PIPE; FUEL
(O) THA 		8-97631-262-0 01 1 1006-
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1006-1006
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 03 1 1007-1008
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 03 1 1007-1008
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 06 1 1009-
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 05 1 1006-1006
62 BOLT; CLIP FIX
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1006-
62 BOLT; CLIP FIX
(C) M8X30 FLANGE THA 		0-28650-830-0 02 1 1006-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1006-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1006-1008
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1009-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 05 1 1006-1008
97 BRACKET; CLIP
(A) 		8-98163-161-0 01 1 1006-
97 BRACKET; CLIP
(B) THA 		1-34656-009-0 01 1 1006-
97 BRACKET; CLIP
(C) THA 		8-97637-008-0 01 1 1006-
303 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28660-825-0 03 1 1006-
303 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1006-
303 BOLT; BRKT
(C) M10X30 FLANGE THA 		0-28661-030-0 06 1 1006-
303 BOLT; BRKT
(D) M12X35 FLANGE THA 		0-28661-235-0 04 1 1006-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1006-
304 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-208-0 03 1 1006-
304 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-212-0 02 1 1006-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1006-
309 CLIP; PIPE
(H) ID=17 		1-09700-840-0 01 1 1006-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1006-
309 CLIP; PIPE
(C) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1006-
309 CLIP; PIPE
(D) ID=17 L=28 		8-94427-862-0 02 1 1006-
309 CLIP; PIPE
(E) ID=13.2 & 14.5 		8-94475-649-0 02 1 1006-
309 CLIP; PIPE
(F) ID=11 H=20 L=20 		8-98033-780-0 01 1 1006-
309 CLIP; PIPE
(G) ID=10 & 10 		1-09709-277-1 01 1 1006-
309 CLIP; PIPE
(G) ID=10 & 10 		1-09709-277-1 01 1 1006-
340 CONNECTOR; CNG
(F) 		8-98050-034-0 01 1 1006-
340 CONNECTOR; CNG
(E) 		8-98157-111-0 01 1 1006-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1006-1202
340 CONNECTOR; CNG
(A) 		8-97630-779-0 01 1 1203-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1006-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1006-
340 CONNECTOR; CNG
(D) 		8-98144-428-0 01 1 1006-
361 CONNECTOR; FUEL TANK
(A) 		8-97357-261-0 02 1 1006-
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 06 1 1006-1202
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 05 1 1203-
361 CONNECTOR; FUEL TANK
(C) 		8-97630-845-0 02 1 1006-
361 CONNECTOR; FUEL TANK
(D) 		8-98050-041-0 04 1 1006-
çizim 162944
309 309 309 64 64 171 62 309 361 309 62 64
BalonParca AdiParca NoAdetTipApplied Date
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1006-1006
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 03 1 1007-1008
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 03 1 1007-1008
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 06 1 1009-
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 05 1 1006-1006
62 BOLT; CLIP FIX
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1006-
62 BOLT; CLIP FIX
(C) M8X30 FLANGE THA 		0-28650-830-0 02 1 1006-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1006-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1006-1008
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1009-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 05 1 1006-1008
171 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1006-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1006-
309 CLIP; PIPE
(H) ID=17 		1-09700-840-0 01 1 1006-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1006-
309 CLIP; PIPE
(C) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1006-
309 CLIP; PIPE
(D) ID=17 L=28 		8-94427-862-0 02 1 1006-
309 CLIP; PIPE
(E) ID=13.2 & 14.5 		8-94475-649-0 02 1 1006-
309 CLIP; PIPE
(F) ID=11 H=20 L=20 		8-98033-780-0 01 1 1006-
309 CLIP; PIPE
(G) ID=10 & 10 		1-09709-277-1 01 1 1006-
309 CLIP; PIPE
(G) ID=10 & 10 		1-09709-277-1 01 1 1006-
361 CONNECTOR; FUEL TANK
(A) 		8-97357-261-0 02 1 1006-
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 06 1 1006-1202
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 05 1 1203-
361 CONNECTOR; FUEL TANK
(C) 		8-97630-845-0 02 1 1006-
361 CONNECTOR; FUEL TANK
(D) 		8-98050-041-0 04 1 1006-

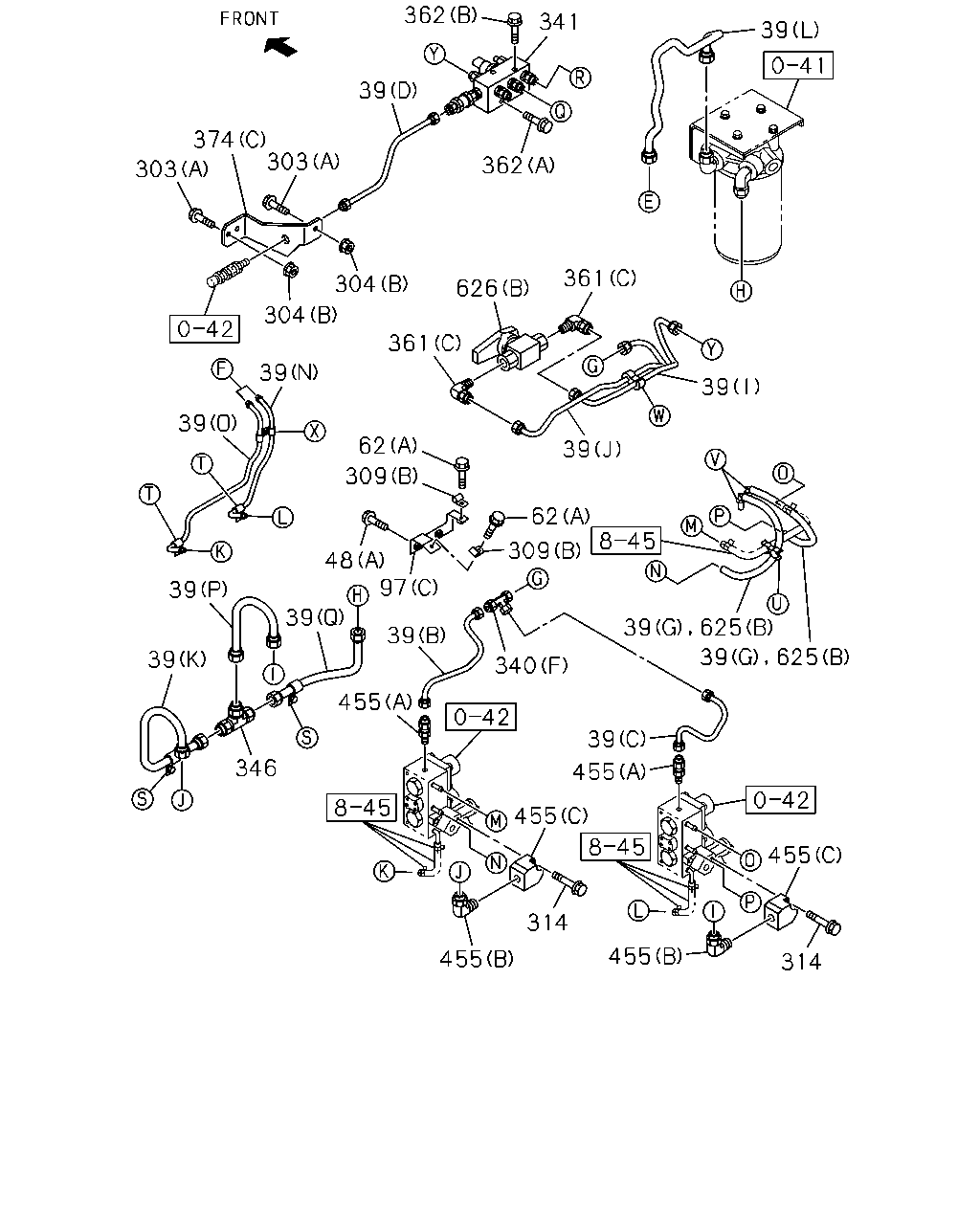

çizim 162979
39 341 362 39 362 303 374 303 304 304 626 361 361 39 39 39 39 62 309 48 97 39 62 309 39 39 39 39 346 455 455 455 455 455 455 340 314 314 39 39 625 625
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(P) 		8-97630-832-1 01 1 1006-
39 PIPE; FUEL
(Q) 		8-97630-833-1 01 1 1006-
39 PIPE; FUEL
(B) 		8-97635-470-0 01 1 1006-
39 PIPE; FUEL
(C) 		8-97635-471-0 01 1 1006-
39 PIPE; FUEL
(A) 		8-97630-771-1 02 1 1006-
39 PIPE; FUEL
(D) 		8-97637-007-0 01 1 1006-1203
39 PIPE; FUEL
(D) 		8-98200-243-0 01 1 1204-
39 PIPE; FUEL
(E) 		8-98149-129-1 01 1 1006-
39 PIPE; FUEL
(F) 		8-98150-074-0 01 1 1006-
39 PIPE; FUEL
(G) 		8-98157-804-0 02 1 1006-
39 PIPE; FUEL
(H) 		8-98163-030-0 01 1 1006-
39 PIPE; FUEL
(I) 		8-98163-150-0 01 1 1006-
39 PIPE; FUEL
(J) 		8-98163-151-0 01 1 1006-
39 PIPE; FUEL
(K) 		8-98163-152-0 01 1 1006-
39 PIPE; FUEL
(L) 		8-98163-153-0 01 1 1006-
39 PIPE; FUEL
(M) 		8-98163-154-0 01 1 1006-
39 PIPE; FUEL
(N) THA 		8-97631-261-0 01 1 1006-
39 PIPE; FUEL
(O) THA 		8-97631-262-0 01 1 1006-
48 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 1006-
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1006-1006
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1006-1006
48 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 04 1 1007-
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1006-1006
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 03 1 1007-1008
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 03 1 1007-1008
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 06 1 1009-
62 BOLT; CLIP FIX
(A) M8X20 FLANGE THA 		0-28650-820-0 05 1 1006-1006
62 BOLT; CLIP FIX
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1006-
62 BOLT; CLIP FIX
(C) M8X30 FLANGE THA 		0-28650-830-0 02 1 1006-
97 BRACKET; CLIP
(A) 		8-98163-161-0 01 1 1006-
97 BRACKET; CLIP
(B) THA 		1-34656-009-0 01 1 1006-
97 BRACKET; CLIP
(C) THA 		8-97637-008-0 01 1 1006-
303 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28660-825-0 03 1 1006-
303 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1006-
303 BOLT; BRKT
(C) M10X30 FLANGE THA 		0-28661-030-0 06 1 1006-
303 BOLT; BRKT
(D) M12X35 FLANGE THA 		0-28661-235-0 04 1 1006-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1006-
304 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-208-0 03 1 1006-
304 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-212-0 02 1 1006-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1006-
309 CLIP; PIPE
(H) ID=17 		1-09700-840-0 01 1 1006-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1006-
309 CLIP; PIPE
(C) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1006-
309 CLIP; PIPE
(D) ID=17 L=28 		8-94427-862-0 02 1 1006-
309 CLIP; PIPE
(E) ID=13.2 & 14.5 		8-94475-649-0 02 1 1006-
309 CLIP; PIPE
(F) ID=11 H=20 L=20 		8-98033-780-0 01 1 1006-
309 CLIP; PIPE
(G) ID=10 & 10 		1-09709-277-1 01 1 1006-
309 CLIP; PIPE
(G) ID=10 & 10 		1-09709-277-1 01 1 1006-
314 BOLT; FLANGE
M6X60 FLANGE 		0-28050-660-0 02 1 1006-
340 CONNECTOR; CNG
(F) 		8-98050-034-0 01 1 1006-
340 CONNECTOR; CNG
(E) 		8-98157-111-0 01 1 1006-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1006-1202
340 CONNECTOR; CNG
(A) 		8-97630-779-0 01 1 1203-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1006-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1006-
340 CONNECTOR; CNG
(D) 		8-98144-428-0 01 1 1006-
341 MANIFOLD; CNG 8-97630-820-1 01 1 1006-
346 CONNECTOR; 3WAY,CNG 8-97630-849-0 01 1 1006-
361 CONNECTOR; FUEL TANK
(A) 		8-97357-261-0 02 1 1006-
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 06 1 1006-1202
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 05 1 1203-
361 CONNECTOR; FUEL TANK
(C) 		8-97630-845-0 02 1 1006-
361 CONNECTOR; FUEL TANK
(D) 		8-98050-041-0 04 1 1006-
362 BOLT; MANIFOLD
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 1006-
362 BOLT; MANIFOLD
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 1006-
374 BRACKET; REGULATOR
(A) 		8-98127-788-0 01 1 1006-
374 BRACKET; REGULATOR
(C) 		8-98163-156-0 01 1 1006-1203
374 BRACKET; REGULATOR
(C) 		8-98200-241-0 01 1 1204-
374 BRACKET; REGULATOR
(B) 		8-98163-405-0 01 1 1006-
455 CONNECTOR; REGULATOR
(B) M16 ELBOW 		8-97630-844-0 02 1 1006-
455 CONNECTOR; REGULATOR
(A) 		8-97630-843-0 02 1 1006-
455 CONNECTOR; REGULATOR
(C) 		8-98127-020-1 02 1 1006-
625 HOSE; FUEL,CNG
(B) L=290 SERVICED BY L=3000 		0-03559-300-0 02 1 1309-
625 HOSE; FUEL,CNG
(A) 		8-98163-155-0 01 1 1006-
626 VALVE; FUEL RECIRCULATION
(A) 		8-97630-824-0 01 1 1006-
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-825-0 01 1 1006-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
