1-40 — FUEL TANK (#56087) — 202 parça

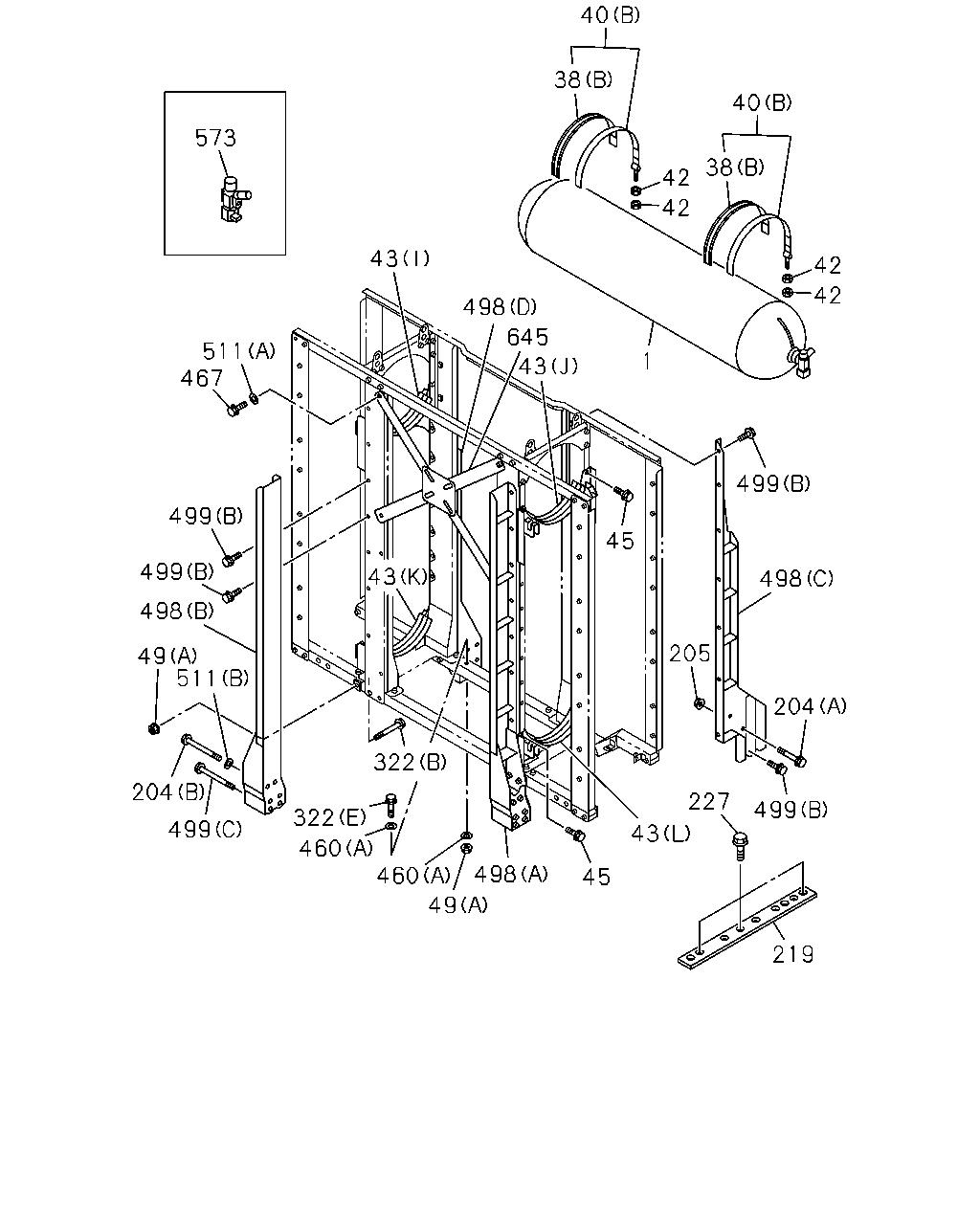

çizim 162911
40 38 40 573 38 42 42 43 42 42 498 645 511 467 1 43 499 499 45 43 499 498 498 205 49 511 204 322 204 227 499 322 499 43 460 460 498 45 49 219
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
OD=356 L=1660 140L THA 		8-98167-986-0 05 1 1006-1012
1 TANK; FUEL
OD=356 L=1660 140L THA 		8-98188-205-0 05 1 1101-
38 INSULATION; SUPPORT BELT
(B) L=650 THA 		1-22553-022-1 08 1 1006-
38 INSULATION; SUPPORT BELT
(A) L=540 THA 		1-22553-014-2 02 1 1006-
40 BELT; SUPPORT,FUEL TANK
(B) THA 		8-98127-865-3 08 1 1006-
40 BELT; SUPPORT,FUEL TANK
(A) THA 		8-98149-118-0 02 1 1006-
42 NUT; SUPPORT BELT
M10 THA 		0-91110-510-0 20 1 1006-
43 BRACKET; FUEL TANK
(A) THA 		8-98127-371-2 02 1 1006-
43 BRACKET; FUEL TANK
(B) THA 		8-98149-110-0 01 1 1006-
43 BRACKET; FUEL TANK
(C) THA 		8-98149-111-0 01 1 1006-
43 BRACKET; FUEL TANK
(D) THA 		8-98149-112-0 01 1 1006-
43 BRACKET; FUEL TANK
(E) THA 		8-98150-188-2 01 1 1006-
43 BRACKET; FUEL TANK
(F) THA 		8-98150-189-2 01 1 1006-
43 BRACKET; FUEL TANK
(G) THA 		8-98150-190-1 01 1 1006-
43 BRACKET; FUEL TANK
(H) THA 		8-98150-191-1 01 1 1006-
43 BRACKET; FUEL TANK
(I) THA 		8-98150-197-2 03 1 1006-
43 BRACKET; FUEL TANK
(J) THA 		8-98150-198-2 03 1 1006-
43 BRACKET; FUEL TANK
(K) THA 		8-98150-199-2 01 1 1006-
43 BRACKET; FUEL TANK
(L) THA 		8-98150-200-2 01 1 1006-
43 BRACKET; FUEL TANK
(M) THA 		8-98151-864-0 01 1 1006-
43 BRACKET; FUEL TANK
(N) THA 		8-98151-865-0 01 1 1006-
43 BRACKET; FUEL TANK
(O) THA 		8-98163-025-0 02 1 1006-
43 BRACKET; FUEL TANK
(P) THA 		8-98163-087-0 02 1 1006-
43 BRACKET; FUEL TANK
(Q) THA 		8-98167-057-0 01 1 1006-
43 BRACKET; FUEL TANK
(R) THA 		8-98167-058-0 02 1 1006-
43 BRACKET; FUEL TANK
(S) THA 		8-98167-059-0 01 1 1006-
45 BOLT; BRKT,FUEL TANK
M10X25 FLANGE THA 		0-28661-025-0 60 1 1006-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 36 1 1006-
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 16 1 1006-
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 08 1 1006-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1006-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 28 1 1006-
204 BOLT; MEMBER
(A) M12X100 FLANGE 		0-28061-200-0 04 1 1006-
204 BOLT; MEMBER
(B) 		8-97636-031-0 04 1 1006-
205 NUT; MEMBER
M12 FLANGE THA 		0-91180-212-0 04 1 1006-
219 SPACER; FRAME TO BRKT 8-97639-126-0 01 1 1008-
219 SPACER; FRAME TO BRKT 8-97639-127-0 01 1 1008-
227 BOLT; SPACER,FUEL TANK
M6X12 FLANGE 		8-97329-610-0 06 1 1008-
322 BOLT; BRKT FIX
(A) M8X80 FLANGE 		0-28060-880-0 08 1 1006-
322 BOLT; BRKT FIX
(B) M12X100 FLANGE 		0-28061-200-0 10 1 1006-
322 BOLT; BRKT FIX
(C) M12X35 FLANGE 		0-28061-235-0 06 1 1006-
322 BOLT; BRKT FIX
(D) M12X40 FLANGE THA 		0-28061-240-0 10 1 1006-
322 BOLT; BRKT FIX
(E) M12X90 FLANGE 		0-28061-290-0 18 1 1006-
322 BOLT; BRKT FIX
(F) M8X25 FLANGE THA 		0-28650-825-0 08 1 1006-
460 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		0-91610-612-0 12 1 1006-
460 WASHER; PL,BRKT
(B) ID=12.5 OD=32 		0-91614-712-0 10 1 1006-
467 BOLT 8-98171-904-0 16 1 1006-
498 STAY; BRKT
(A) THA 		8-98163-026-0 01 1 1006-
498 STAY; BRKT
(B) THA 		8-98163-027-0 01 1 1006-
498 STAY; BRKT
(C) THA 		8-98163-028-0 01 1 1006-
498 STAY; BRKT
(D) THA 		8-98163-029-0 01 1 1006-
499 BOLT; STAY
(A) M10X20 FLANGE THA 		0-28051-020-0 04 1 1006-
499 BOLT; STAY
(B) M12X30 FLANGE 		0-28061-230-0 08 1 1006-
499 BOLT; STAY
(B) M12X30 FLANGE THA 		0-28661-230-0 26 1 1006-
499 BOLT; STAY
(C) 		0-28866-414-0 08 1 1006-
499 BOLT; STAY
(D) M10X25 FLANGE THA 		0-28051-025-0 04 1 1006-
511 WASHER
(A) ID=12.5 		1-09503-186-0 16 1 1006-
511 WASHER
(B) ID=15 		8-98010-627-1 04 1 1006-
573 VALVE; FUEL CUT 8-98178-488-0 01 1 1008-1101
645 BRACE
THA 		8-98150-371-0 04 1 1006-

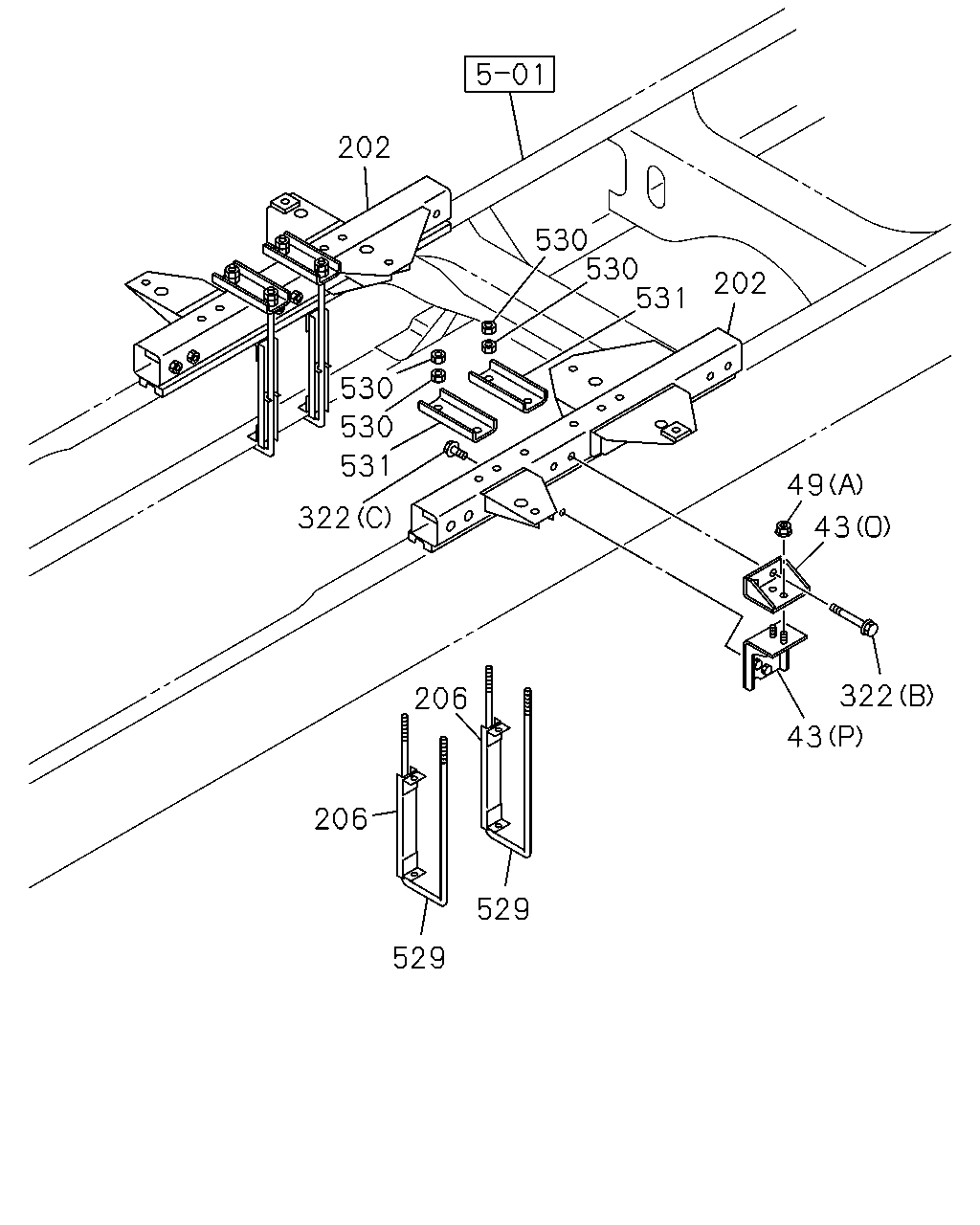

çizim 162960
202 530 530 531 202 530 530 531 49 322 43 322 206 43 206 529 529
BalonParca AdiParca NoAdetTipApplied Date
43 BRACKET; FUEL TANK
(A) THA 		8-98127-371-2 02 1 1006-
43 BRACKET; FUEL TANK
(B) THA 		8-98149-110-0 01 1 1006-
43 BRACKET; FUEL TANK
(C) THA 		8-98149-111-0 01 1 1006-
43 BRACKET; FUEL TANK
(D) THA 		8-98149-112-0 01 1 1006-
43 BRACKET; FUEL TANK
(E) THA 		8-98150-188-2 01 1 1006-
43 BRACKET; FUEL TANK
(F) THA 		8-98150-189-2 01 1 1006-
43 BRACKET; FUEL TANK
(G) THA 		8-98150-190-1 01 1 1006-
43 BRACKET; FUEL TANK
(H) THA 		8-98150-191-1 01 1 1006-
43 BRACKET; FUEL TANK
(I) THA 		8-98150-197-2 03 1 1006-
43 BRACKET; FUEL TANK
(J) THA 		8-98150-198-2 03 1 1006-
43 BRACKET; FUEL TANK
(K) THA 		8-98150-199-2 01 1 1006-
43 BRACKET; FUEL TANK
(L) THA 		8-98150-200-2 01 1 1006-
43 BRACKET; FUEL TANK
(M) THA 		8-98151-864-0 01 1 1006-
43 BRACKET; FUEL TANK
(N) THA 		8-98151-865-0 01 1 1006-
43 BRACKET; FUEL TANK
(O) THA 		8-98163-025-0 02 1 1006-
43 BRACKET; FUEL TANK
(P) THA 		8-98163-087-0 02 1 1006-
43 BRACKET; FUEL TANK
(Q) THA 		8-98167-057-0 01 1 1006-
43 BRACKET; FUEL TANK
(R) THA 		8-98167-058-0 02 1 1006-
43 BRACKET; FUEL TANK
(S) THA 		8-98167-059-0 01 1 1006-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 36 1 1006-
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 16 1 1006-
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 08 1 1006-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1006-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 28 1 1006-
202 MEMBER; FUEL TANK
THA 		8-98163-023-2 01 1 1006-1006
202 MEMBER; FUEL TANK
THA 		8-97639-060-0 01 1 1006-1006
202 MEMBER; FUEL TANK
THA 		8-97639-128-0 01 1 1007-
202 MEMBER; FUEL TANK
THA 		8-98163-024-2 01 1 1006-1006
202 MEMBER; FUEL TANK
THA 		8-97639-061-0 01 1 1006-1006
202 MEMBER; FUEL TANK
THA 		8-97639-129-0 01 1 1007-
206 SLEEPER; FUEL TANK
THA 		8-98127-414-2 04 1 1006-
322 BOLT; BRKT FIX
(A) M8X80 FLANGE 		0-28060-880-0 08 1 1006-
322 BOLT; BRKT FIX
(B) M12X100 FLANGE 		0-28061-200-0 10 1 1006-
322 BOLT; BRKT FIX
(C) M12X35 FLANGE 		0-28061-235-0 06 1 1006-
322 BOLT; BRKT FIX
(D) M12X40 FLANGE THA 		0-28061-240-0 10 1 1006-
322 BOLT; BRKT FIX
(E) M12X90 FLANGE 		0-28061-290-0 18 1 1006-
322 BOLT; BRKT FIX
(F) M8X25 FLANGE THA 		0-28650-825-0 08 1 1006-
529 U-BOLT
THA 		8-98127-768-2 04 1 1006-
530 NUT; U-BOLT
M14 THA 		0-91110-514-0 16 1 1006-
531 PLATE; U-BOLT
THA 		8-98131-512-1 04 1 1006-
çizim 162968
535 49 536 535 536 43 49 45 537 43 43 322 49 43 537 45 229 43 322 508 45 49 533 43 534 508 43 43 49 322 322 43 43 43 49 322
BalonParca AdiParca NoAdetTipApplied Date
43 BRACKET; FUEL TANK
(A) THA 		8-98127-371-2 02 1 1006-
43 BRACKET; FUEL TANK
(B) THA 		8-98149-110-0 01 1 1006-
43 BRACKET; FUEL TANK
(C) THA 		8-98149-111-0 01 1 1006-
43 BRACKET; FUEL TANK
(D) THA 		8-98149-112-0 01 1 1006-
43 BRACKET; FUEL TANK
(E) THA 		8-98150-188-2 01 1 1006-
43 BRACKET; FUEL TANK
(F) THA 		8-98150-189-2 01 1 1006-
43 BRACKET; FUEL TANK
(G) THA 		8-98150-190-1 01 1 1006-
43 BRACKET; FUEL TANK
(H) THA 		8-98150-191-1 01 1 1006-
43 BRACKET; FUEL TANK
(I) THA 		8-98150-197-2 03 1 1006-
43 BRACKET; FUEL TANK
(J) THA 		8-98150-198-2 03 1 1006-
43 BRACKET; FUEL TANK
(K) THA 		8-98150-199-2 01 1 1006-
43 BRACKET; FUEL TANK
(L) THA 		8-98150-200-2 01 1 1006-
43 BRACKET; FUEL TANK
(M) THA 		8-98151-864-0 01 1 1006-
43 BRACKET; FUEL TANK
(N) THA 		8-98151-865-0 01 1 1006-
43 BRACKET; FUEL TANK
(O) THA 		8-98163-025-0 02 1 1006-
43 BRACKET; FUEL TANK
(P) THA 		8-98163-087-0 02 1 1006-
43 BRACKET; FUEL TANK
(Q) THA 		8-98167-057-0 01 1 1006-
43 BRACKET; FUEL TANK
(R) THA 		8-98167-058-0 02 1 1006-
43 BRACKET; FUEL TANK
(S) THA 		8-98167-059-0 01 1 1006-
45 BOLT; BRKT,FUEL TANK
M10X25 FLANGE THA 		0-28661-025-0 60 1 1006-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 36 1 1006-
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 16 1 1006-
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 08 1 1006-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1006-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 28 1 1006-
229 NUT; BRKT,FUEL TANK
M10 FLANGE THA 		0-91180-210-0 08 1 1006-
322 BOLT; BRKT FIX
(A) M8X80 FLANGE 		0-28060-880-0 08 1 1006-
322 BOLT; BRKT FIX
(B) M12X100 FLANGE 		0-28061-200-0 10 1 1006-
322 BOLT; BRKT FIX
(C) M12X35 FLANGE 		0-28061-235-0 06 1 1006-
322 BOLT; BRKT FIX
(D) M12X40 FLANGE THA 		0-28061-240-0 10 1 1006-
322 BOLT; BRKT FIX
(E) M12X90 FLANGE 		0-28061-290-0 18 1 1006-
322 BOLT; BRKT FIX
(F) M8X25 FLANGE THA 		0-28650-825-0 08 1 1006-
508 STOPPER
(A) THA 		8-97925-339-0 02 1 1006-
508 STOPPER
(B) THA 		8-98127-457-0 04 1 1006-
508 STOPPER
(C) THA 		8-98141-160-0 04 1 1006-
533 BOLT; STOPPER
M8X16 FLANGE THA 		0-28050-816-0 32 1 1006-
534 NUT; STOPPER
(A) M10 THA 		0-91110-510-0 06 1 1006-
534 NUT; STOPPER
(B) M8 FLANGE THA 		0-91180-108-0 32 1 1006-
534 NUT; STOPPER
(C) M10 FLANGE THA 		0-91180-110-0 03 1 1006-
535 HANGER 8-94399-403-1 04 1 1006-
536 BOLT; HANGER
M10X25 FLANGE THA 		0-28661-025-0 08 1 1006-
537 NUT; HANGER
M10 FLANGE THA 		0-91180-210-0 08 1 1006-

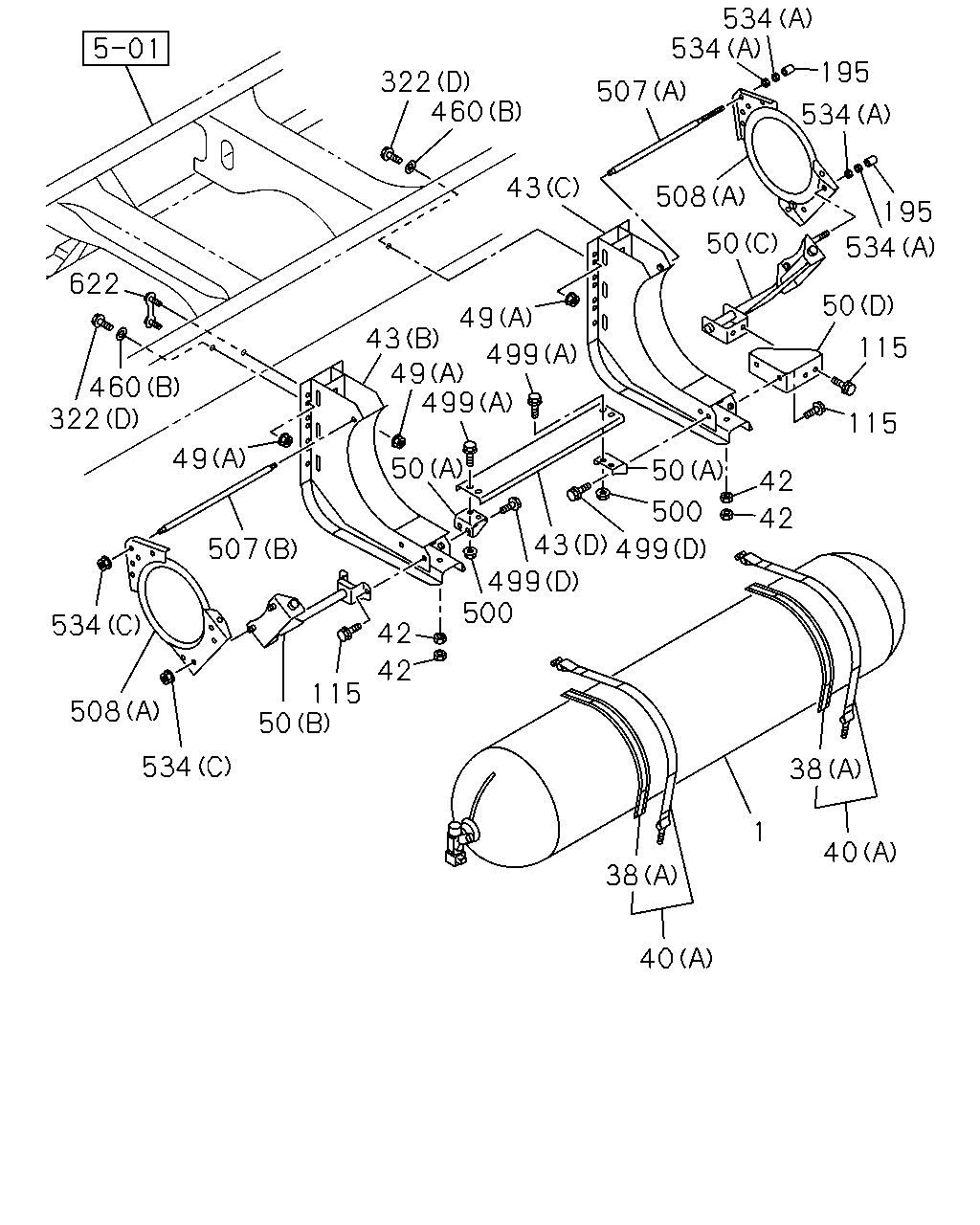

çizim 162986
534 534 195 322 460 507 534 43 508 195 50 534 622 50 49 43 49 499 115 499 460 322 115 50 50 49 42 500 42 43 499 507 499 500 534 42 42 115 50 508 534 38 1 40 38 40
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
OD=356 L=1660 140L THA 		8-98167-986-0 05 1 1006-1012
1 TANK; FUEL
OD=356 L=1660 140L THA 		8-98188-205-0 05 1 1101-
38 INSULATION; SUPPORT BELT
(B) L=650 THA 		1-22553-022-1 08 1 1006-
38 INSULATION; SUPPORT BELT
(A) L=540 THA 		1-22553-014-2 02 1 1006-
40 BELT; SUPPORT,FUEL TANK
(B) THA 		8-98127-865-3 08 1 1006-
40 BELT; SUPPORT,FUEL TANK
(A) THA 		8-98149-118-0 02 1 1006-
42 NUT; SUPPORT BELT
M10 THA 		0-91110-510-0 20 1 1006-
43 BRACKET; FUEL TANK
(A) THA 		8-98127-371-2 02 1 1006-
43 BRACKET; FUEL TANK
(B) THA 		8-98149-110-0 01 1 1006-
43 BRACKET; FUEL TANK
(C) THA 		8-98149-111-0 01 1 1006-
43 BRACKET; FUEL TANK
(D) THA 		8-98149-112-0 01 1 1006-
43 BRACKET; FUEL TANK
(E) THA 		8-98150-188-2 01 1 1006-
43 BRACKET; FUEL TANK
(F) THA 		8-98150-189-2 01 1 1006-
43 BRACKET; FUEL TANK
(G) THA 		8-98150-190-1 01 1 1006-
43 BRACKET; FUEL TANK
(H) THA 		8-98150-191-1 01 1 1006-
43 BRACKET; FUEL TANK
(I) THA 		8-98150-197-2 03 1 1006-
43 BRACKET; FUEL TANK
(J) THA 		8-98150-198-2 03 1 1006-
43 BRACKET; FUEL TANK
(K) THA 		8-98150-199-2 01 1 1006-
43 BRACKET; FUEL TANK
(L) THA 		8-98150-200-2 01 1 1006-
43 BRACKET; FUEL TANK
(M) THA 		8-98151-864-0 01 1 1006-
43 BRACKET; FUEL TANK
(N) THA 		8-98151-865-0 01 1 1006-
43 BRACKET; FUEL TANK
(O) THA 		8-98163-025-0 02 1 1006-
43 BRACKET; FUEL TANK
(P) THA 		8-98163-087-0 02 1 1006-
43 BRACKET; FUEL TANK
(Q) THA 		8-98167-057-0 01 1 1006-
43 BRACKET; FUEL TANK
(R) THA 		8-98167-058-0 02 1 1006-
43 BRACKET; FUEL TANK
(S) THA 		8-98167-059-0 01 1 1006-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 36 1 1006-
49 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 16 1 1006-
49 NUT; BRKT
(C) M10 FLANGE THA 		0-91180-210-0 08 1 1006-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 08 1 1006-
49 NUT; BRKT
(A) M12 FLANGE THA 		0-91180-212-0 28 1 1006-
50 BRACKET; SUPPORT,FUEL BRKT
(A) THA 		8-98149-113-0 02 1 1006-
50 BRACKET; SUPPORT,FUEL BRKT
(B) THA 		8-98149-114-0 01 1 1006-
50 BRACKET; SUPPORT,FUEL BRKT
(C) THA 		8-98149-115-0 01 1 1006-
50 BRACKET; SUPPORT,FUEL BRKT
(D) THA 		8-98149-459-0 01 1 1006-
115 BOLT; BRKT
M10X25 FLANGE THA 		0-28051-025-0 06 1 1006-
195 RUBBER; CUSHION,TANK CARRIER
ID=9.0 		8-94207-303-0 03 1 1006-
322 BOLT; BRKT FIX
(A) M8X80 FLANGE 		0-28060-880-0 08 1 1006-
322 BOLT; BRKT FIX
(B) M12X100 FLANGE 		0-28061-200-0 10 1 1006-
322 BOLT; BRKT FIX
(C) M12X35 FLANGE 		0-28061-235-0 06 1 1006-
322 BOLT; BRKT FIX
(D) M12X40 FLANGE THA 		0-28061-240-0 10 1 1006-
322 BOLT; BRKT FIX
(E) M12X90 FLANGE 		0-28061-290-0 18 1 1006-
322 BOLT; BRKT FIX
(F) M8X25 FLANGE THA 		0-28650-825-0 08 1 1006-
460 WASHER; PL,BRKT
(A) ID=12.5 OD=26 		0-91610-612-0 12 1 1006-
460 WASHER; PL,BRKT
(B) ID=12.5 OD=32 		0-91614-712-0 10 1 1006-
499 BOLT; STAY
(A) M10X20 FLANGE THA 		0-28051-020-0 04 1 1006-
499 BOLT; STAY
(B) M12X30 FLANGE 		0-28061-230-0 08 1 1006-
499 BOLT; STAY
(B) M12X30 FLANGE THA 		0-28661-230-0 26 1 1006-
499 BOLT; STAY
(C) 		0-28866-414-0 08 1 1006-
499 BOLT; STAY
(D) M10X25 FLANGE THA 		0-28051-025-0 04 1 1006-
500 NUT; STAY
M10 FLANGE THA 		0-91180-110-0 04 1 1006-
507 ROD
(A) THA 		8-97633-886-0 01 1 1006-
507 ROD
(B) THA 		8-98126-511-0 01 1 1006-
508 STOPPER
(A) THA 		8-97925-339-0 02 1 1006-
508 STOPPER
(B) THA 		8-98127-457-0 04 1 1006-
508 STOPPER
(C) THA 		8-98141-160-0 04 1 1006-
534 NUT; STOPPER
(A) M10 THA 		0-91110-510-0 06 1 1006-
534 NUT; STOPPER
(B) M8 FLANGE THA 		0-91180-108-0 32 1 1006-
534 NUT; STOPPER
(C) M10 FLANGE THA 		0-91180-110-0 03 1 1006-
622 STUD; BRACKET
THA 		8-97633-027-0 01 1 1006-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
