Isuzu WW
▶
TRUCKS
▶
GVR
▶
11195 - GVR CNG(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#56082) — 54 parça
◀

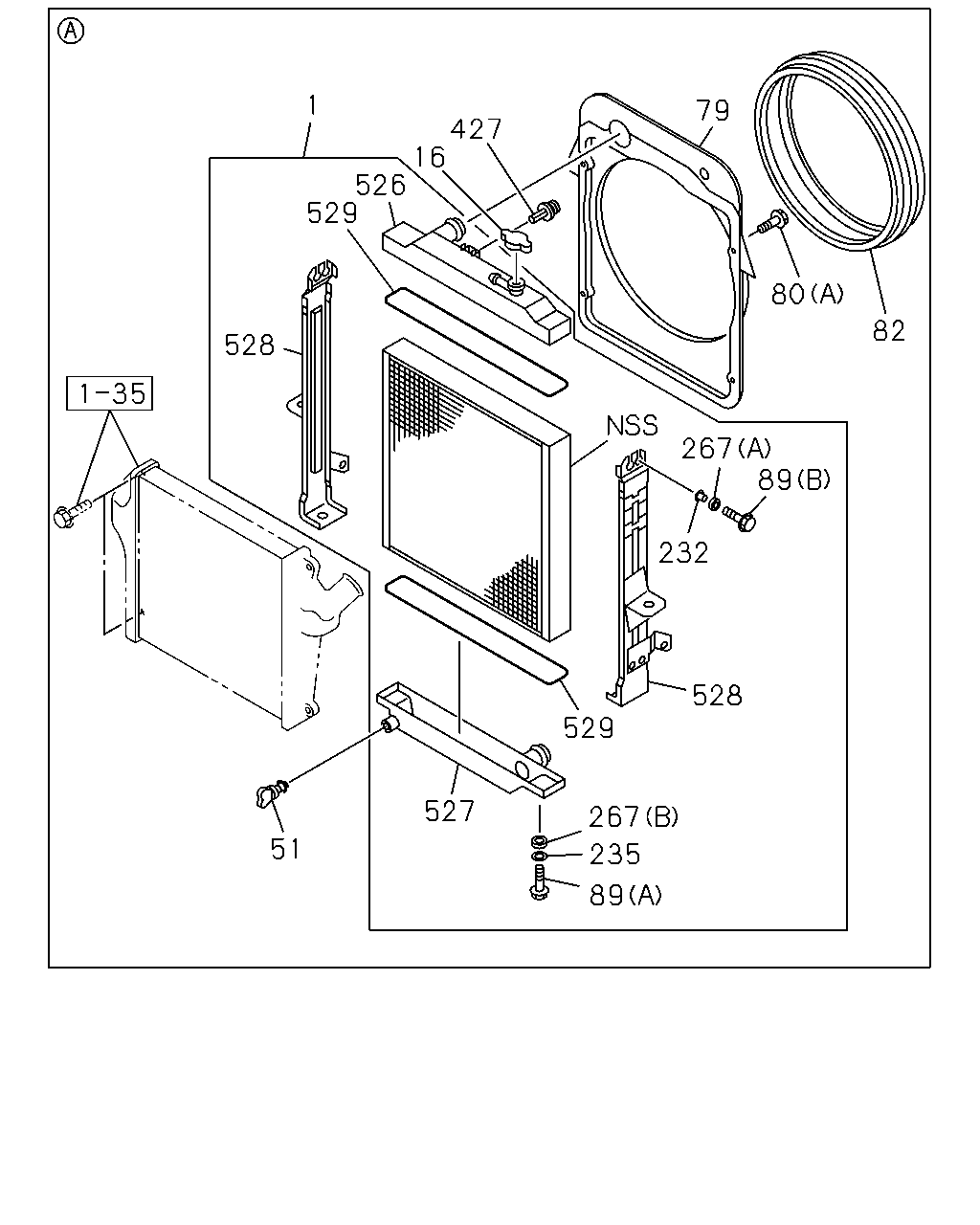

[110A] NO.3 (19 parça)

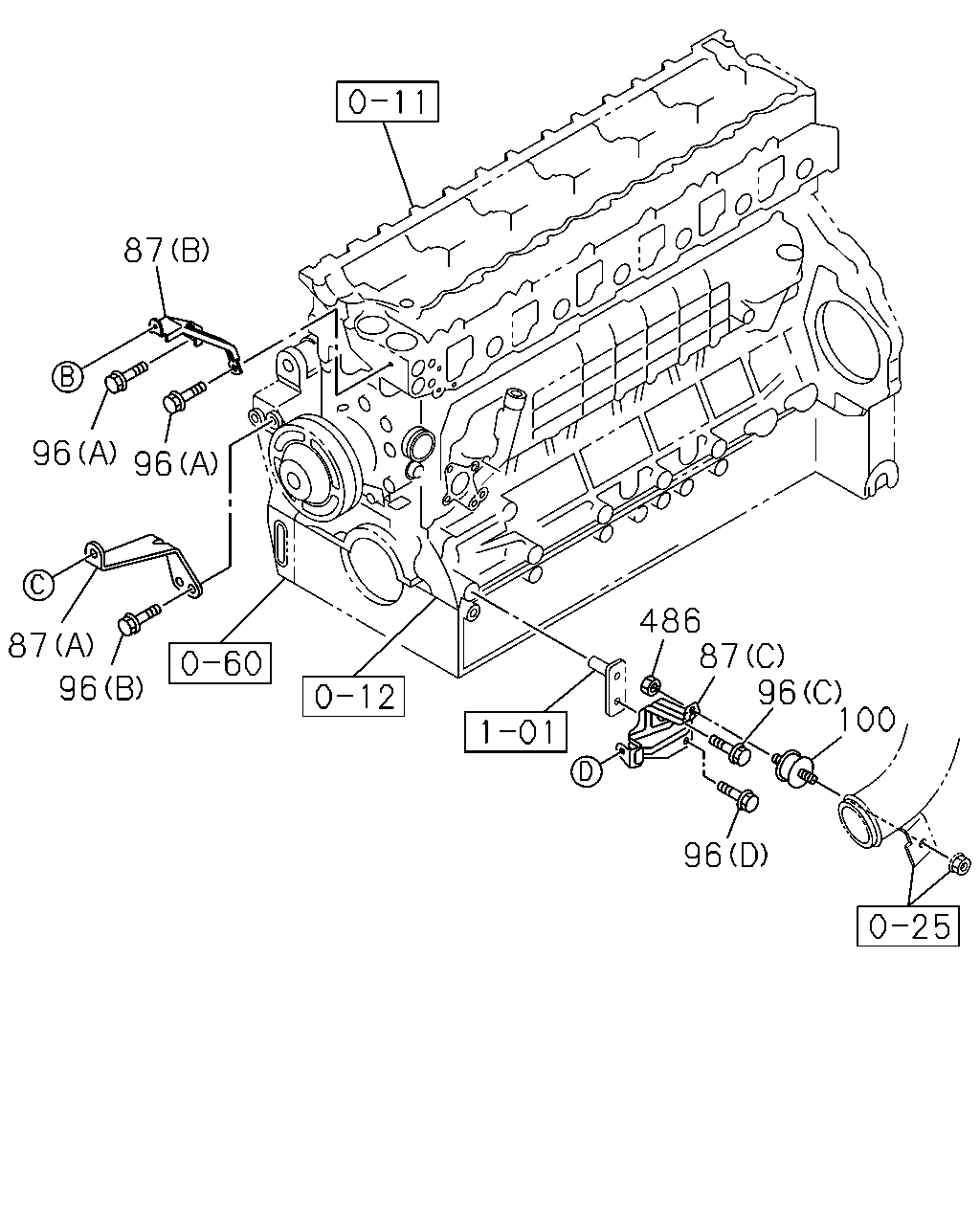

[110A] NO.2 (9 parça)

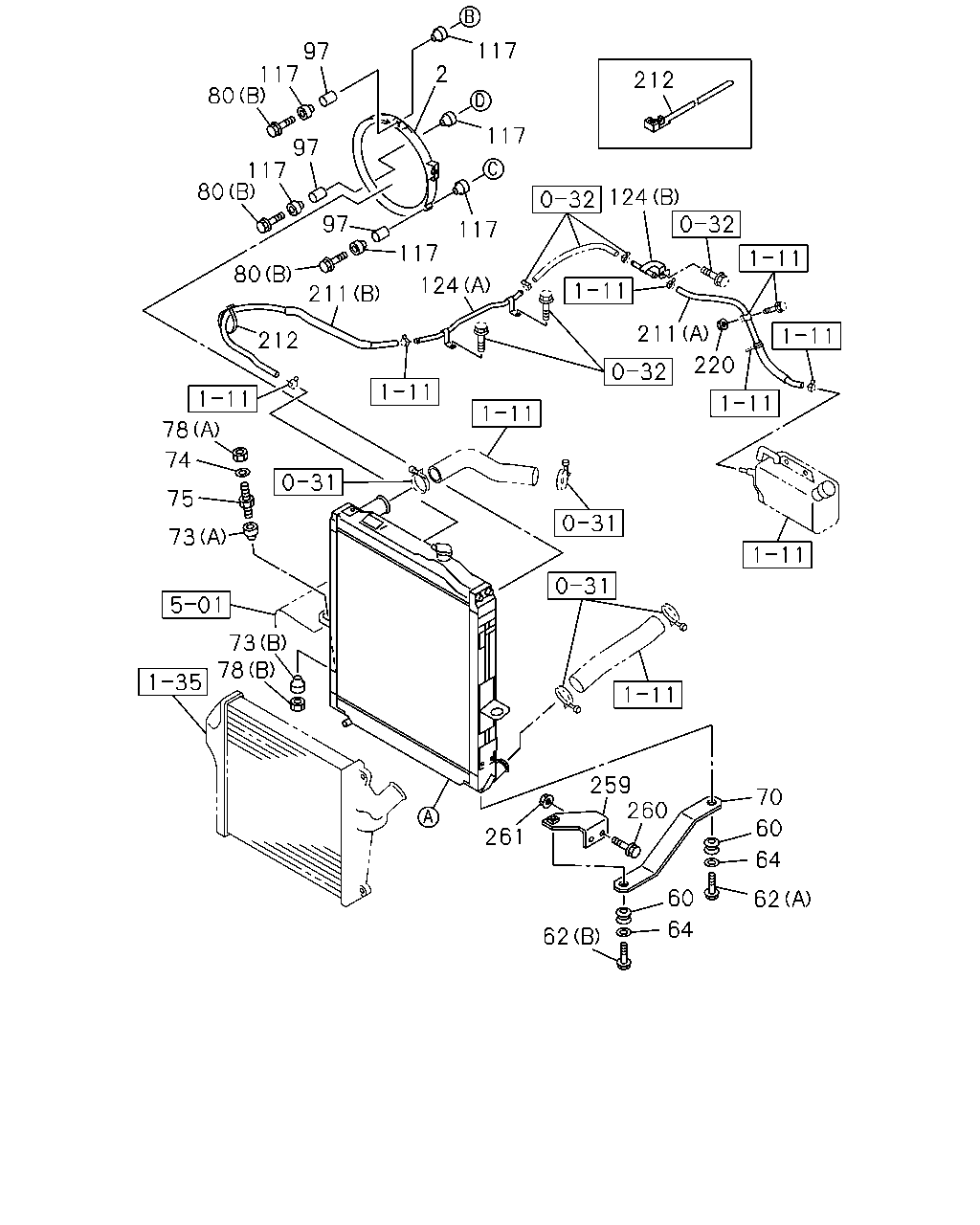

[110A] NO.1 (26 parça)
▶
1
79
427
16
526
529
80
82
528
267
89
232
528
529
527
267
51
235
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
THA
8-98010-360-4
01
1
1006-
16
CAP; RAD
THA
8-97239-187-0
01
1
1006-
51
PLUG; DRAIN
W/GASKET THA
8-97171-437-0
01
1
1006-
79
GUIDE; FAN,RAD
8-98010-384-0
01
1
1006-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1006-
80
BOLT; FAN GUIDE
(A) M8X14 THA
8-98046-222-0
04
1
1006-
82
COVER; FAN,RAD
8-98004-211-0
01
1
1006-
89
BOLT
(A) M6X12 FLANGE THA
0-28050-612-0
02
1
1006-
89
BOLT
(B) M8X25 THA
1-21469-153-0
04
1
1006-
232
COLLAR; DIST,CUSHION RUBBER
THA
8-98141-232-0
04
1
1006-
235
WASHER; CUSHION RUBBER
THA
1-21469-133-0
02
1
1006-
267
RUBBER; CUSHION
(A) THA
1-21469-130-0
04
1
1006-
267
RUBBER; CUSHION
(B) THA
1-21469-131-0
02
1
1006-
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1006-
526
TANK; UPR,RADIATOR CORE
THA
8-98004-202-2
01
1
1006-
527
TANK; LWR,RADIATOR CORE
THA
8-98004-203-0
01
1
1006-
528
PLATE; SIDE,RADIATOR CORE
THA
8-98010-371-3
01
1
1006-
528
PLATE; SIDE,RADIATOR CORE
THA
8-98010-372-4
01
1
1006-
529
GASKET; CORE,RADIATOR
THA
8-98004-206-0
02
1
1006-
87
96
96
486
87
96
100
87
96
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
1006-
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
1006-
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
1006-
96
BOLT; STAY FIX
(B) M8X16 FLANGE THA
0-28050-816-0
02
1
1006-
96
BOLT; STAY FIX
(A) M10X16 FLANGE THA
0-28151-016-0
01
1
1006-
96
BOLT; STAY FIX
(C) M10X60 FLANGE
0-28151-060-0
01
1
1006-
96
BOLT; STAY FIX
(D) M10X25 FLANGE THA
0-28751-025-0
01
1
1006-
100
RUBBER; MTG
8-98148-109-0
01
1
1006-
486
NUT; MTG RUBBER
M8 FLANGE THA
0-91180-108-0
01
1
1006-
117
97
117
80
2
212
117
97
117
80
124
97
117
117
80
124
211
211
212
220
78
74
75
73
73
78
259
260
70
60
261
64
60
62
64
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-94393-779-1
01
1
1006-
60
GROMMET
1-09332-117-0
04
1
1006-
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
1006-
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
1006-
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
1006-
70
STAY; RAD
8-98004-132-2
02
1
1006-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1006-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1006-
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-2
02
1
1006-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1006-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE THA
0-91180-110-0
02
1
1006-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE THA
0-91180-212-0
02
1
1006-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1006-
80
BOLT; FAN GUIDE
(A) M8X14 THA
8-98046-222-0
04
1
1006-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
1006-
117
RUBBER; MTG,FAN GUIDE
8-94395-766-0
06
1
1006-
124
PIPE; WATER,TANK TO RAD
(A)
8-98069-098-0
01
1
1006-
124
PIPE; WATER,TANK TO RAD
(B)
8-98146-147-1
01
1
1006-
211
HOSE; RAD TO PIPE
(B) L=800 SERVICED BY L=3000
0-03557-300-0
01
1
1006-
211
HOSE; RAD TO PIPE
(A)
8-98147-243-0
01
1
1006-
212
CLIP; HOSE
L=250
5-09707-030-1
02
1
1006-
220
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1006-
259
BRACKET; RAD STAY
8-98071-821-0
01
1
1006-
259
BRACKET; RAD STAY
8-98071-822-0
01
1
1006-
260
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
04
1
1006-
261
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
04
1
1006-
