Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#5608) — 280 parça

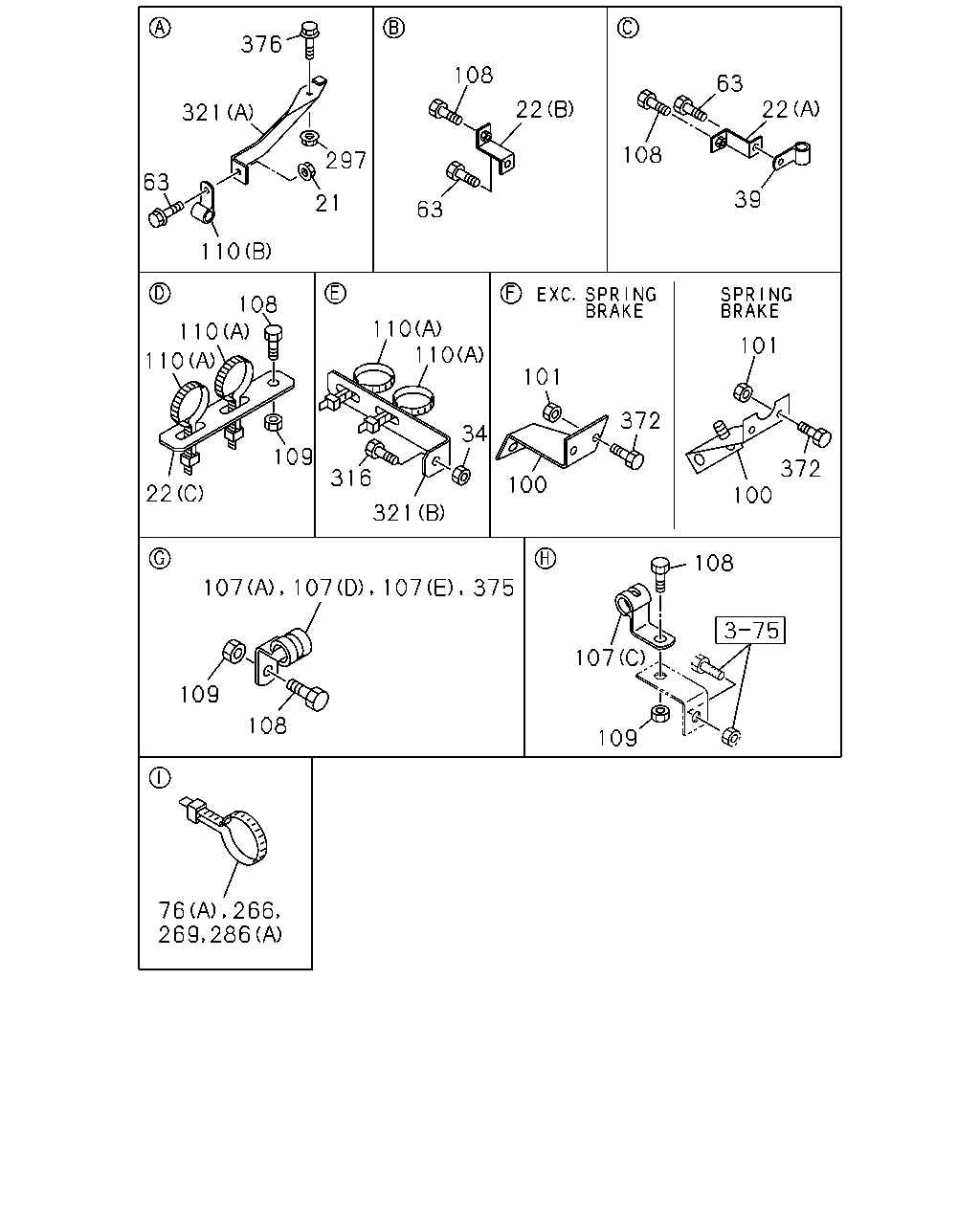

376 108 63 22 22 321 108 297 63 39 21 63 110 108 110 110 110 101 110 101 372 34 109 372 100 316 100 22 321 108 107 107 107 109 108 109 107 375 76 269 286 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP M8	9-09110-408-0	01	1	9603-9606
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-
22	BRACKET; CLIP (C)	1-47477-514-3	02	1	9603-
22	BRACKET; CLIP ISUZU M/T<X9A> (A)	1-47475-689-0	01	1	9603-
22	BRACKET; CLIP ZF M/T<X9E> (B)	1-47477-088-1	01	1	9603-
22	BRACKET; CLIP ZF M/T<X9E> (A) L=100 H=30	1-47477-645-2	01	1	9603-
34	NUT; BRKT M8	9-09110-408-0	01	1	9603-9606
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-
39	CLIP; AIR PIPE L=250	1-09707-126-0	02	1	9603-
63	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
63	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9708
63	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9603-
76	CLIP; NYLON TUBE (A) L=350	8-94152-256-1	01	1	9603-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9603-
76	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	9603-9912
76	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	0001-
76	CLIP; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ> (A) L=250	1-09707-126-0	01	1	0001-
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (B) ID=8.3 & 8.3	8-94426-175-0	01	1	9605-
100	BRACKET; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-452-0	01	1	9603-
100	BRACKET; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-481-0	01	1	9603-
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-369-1	01	1	9603-9604
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-770-0	01	1	9605-
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-365-0	01	1	9603-
101	NUT; CLIP BRKT M8	9-09110-508-0	04	1	9603-9606
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	9607-
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	03	1	9603-
107	CLIP; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9603-9904
107	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9905-
107	CLIP; NYLON TUBE EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (D) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9603-9904
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-0005
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0006-
107	CLIP; NYLON TUBE FULL FLOATING CAB<W16> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	9603-
107	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (E) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9603-9606
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9607-0103
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0104-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9603-9606
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9603-9606
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9607-0103
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9607-0103
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	0104-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	03	1	0104-
108	BOLT; TUBE CLIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606
108	BOLT; TUBE CLIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28680-830-0	01	1	9607-9612
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-9612
108	BOLT; TUBE CLIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28680-830-0	01	1	9701-9912
108	BOLT; TUBE CLIP EXC. ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9701-9912
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9701-9912
108	BOLT; TUBE CLIP EXC. ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0001-
108	BOLT; TUBE CLIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28680-830-0	01	1	0001-
108	BOLT; TUBE CLIP BRAKE REGULATION HONG KONG<TCZ> M8X30 FLANGE	0-28680-830-0	01	1	0001-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0001-
109	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9603-9606
109	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9603-9606
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-
109	NUT; TUBE CLIP M8	9-09110-408-0	03	1	9603-9606
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-
109	NUT; TUBE CLIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8	9-09110-408-0	01	1	9603-9606
109	NUT; TUBE CLIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	01	1	9607-9612
109	NUT; TUBE CLIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	01	1	9701-9912
109	NUT; TUBE CLIP EXC. ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9701-9912
109	NUT; TUBE CLIP EXC. ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0001-
109	NUT; TUBE CLIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	01	1	0001-
109	NUT; TUBE CLIP BRAKE REGULATION HONG KONG<TCZ> M8 FLANGE	0-91150-108-0	01	1	0001-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	17	1	9603-9904
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	07	1	9905-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	9603-9603
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) L=250	1-09707-126-0	01	1	9604-9608
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	9604-9608
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	01	1	9609-
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) L=250	1-09707-126-0	01	1	9609-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	9609-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	05	1	9603-9610
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	07	1	9611-9904
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	17	1	9905-
110	CLIP; BAND,NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	02	1	9603-9912
110	CLIP; BAND,NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	02	1	0001-
110	CLIP; BAND,NYLON TUBE BRAKE REGULATION HONG KONG<TCZ> (A) L=250	1-09707-126-0	02	1	0001-
110	CLIP; BAND,NYLON TUBE FULL FLOATING CAB<W16> (A) L=250	1-09707-126-0	09	1	9603-
110	CLIP; BAND,NYLON TUBE EXC. FULL FLOATING CAB<W16> (A) L=250	1-09707-126-0	10	1	9603-
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 L=33	1-09700-945-0	01	1	9603-
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=40	1-09700-995-1	01	1	9603-9904
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=40	1-09701-261-0	01	1	9905-
266	CLIP; NYLON TUBE SUB AIR TANK<SJD> L=250	1-09707-126-0	01	1	9603-9904
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	09	1	9603-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	5-09707-030-1	01	1	9603-
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	9603-
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9701-9908
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9909-
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-
316	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
316	BOLT; CLIP M8X35 FLANGE	0-28080-835-0	01	1	9603-9606
316	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	01	1	9607-
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	9603-
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	9603-
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (D) L=100 H=30	1-47477-645-2	01	1	9701-9908
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (D) L=100 H=30	1-47477-645-2	01	1	9909-
321	BRACKET; CLIP L TYPE ENG<90L> (C)	1-47477-386-2	01	1	9603-
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	04	1	9603-9606
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	9607-
375	CLIP; AIR PIPE 6WA1 TC-C(55L) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9603-
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9701-9908
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9909-
376	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9603-
376	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-

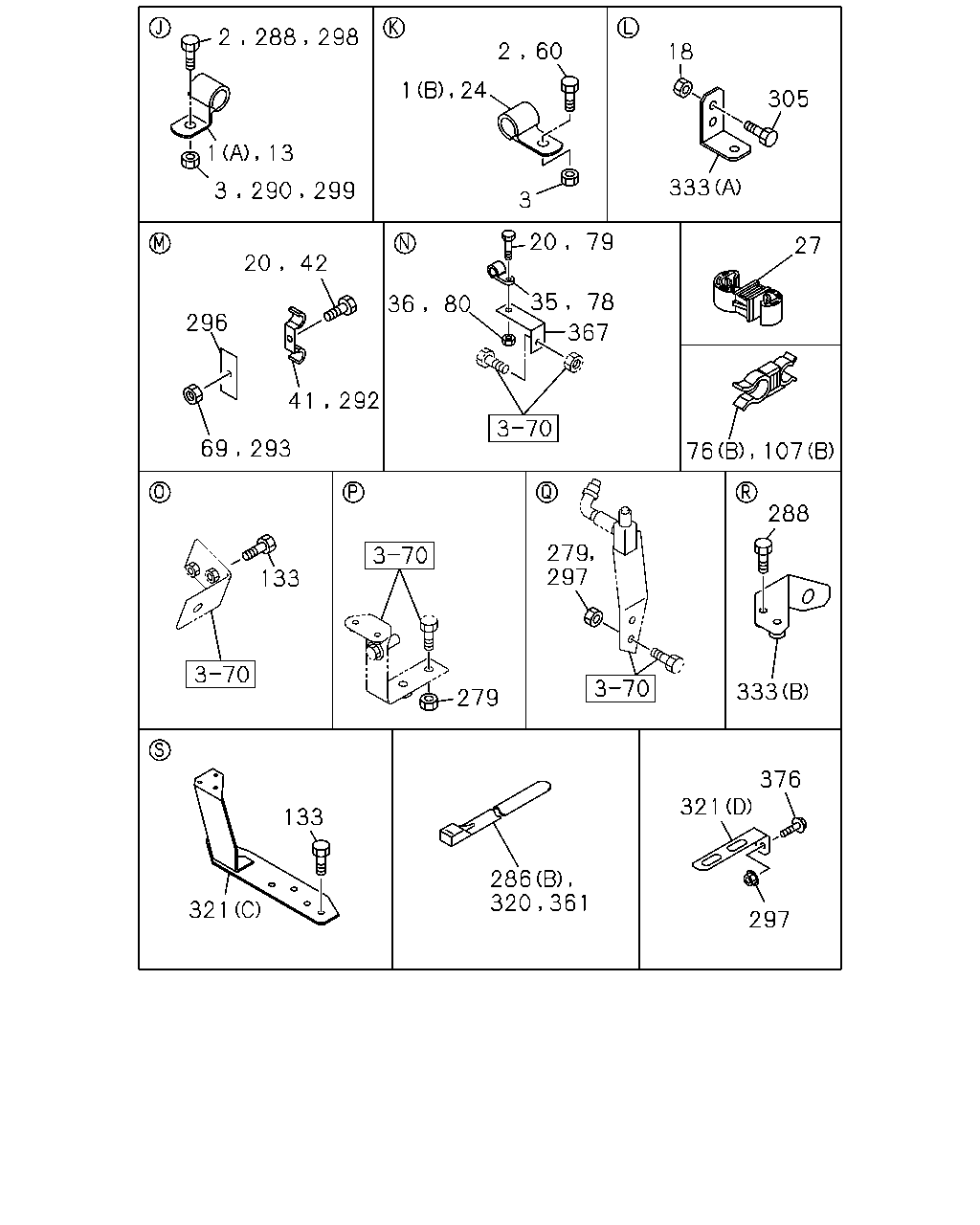

2 2 60 18 305 13 1 333 3 3 20 79 27 20 42 35 78 36 80 296 367 292 41 76 107 288 279 297 133 333 279 376 321 133 286 321 297 288 298 290 299 320 361 69 293 1 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9609
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9610-9904
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9905-
1	CLIP; AIR PIPE L TYPE ENG<90L> (B) ID=7 L=20	9-09524-635-0	01	1	9603-9609
1	CLIP; AIR PIPE L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (B) ID=7 L=20	9-09524-635-0	01	1	9610-9904
1	CLIP; AIR PIPE V TYPE ENG<91L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	02	1	9607-9609
2	BOLT; CLIP FIX L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	9610-9904
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9905-
2	BOLT; CLIP FIX V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9905-
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8	9-09110-508-0	02	1	9603-9606
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-9609
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9610-9904
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9905-
3	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-
13	CLIP; AIR PIPE V TYPE ENG<91L> ID=6 H=20 L=20	1-09700-603-0	01	1	9603-0001
13	CLIP; AIR PIPE V TYPE ENG<91L> ID=6 H=20 L=20	1-09700-603-0	02	1	0002-
18	NUT; CLIP V TYPE ENG<91L> M8	9-09110-508-0	02	1	9603-9606
18	NUT; CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9607-
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9603-9606
20	BOLT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9603-9606
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-
20	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-
24	CLIP; PIPE ISUZU M/T<X9A> ID=16 L=20	9-09525-535-0	02	1	9603-
24	CLIP; PIPE ZF M/T<X9E> ID=16 L=40	9-09525-576-0	01	1	9603-9608
24	CLIP; PIPE ZF M/T<X9E> ID=16 L=20	9-09525-535-0	01	1	9609-9612
24	CLIP; PIPE ZF M/T<X9E> ID=16 L=28	9-09525-556-0	01	1	9701-
27	CLIP; FLEX HOSE 6WA1 TC-C(55L) ID=10 & 10	1-09709-277-1	01	1	0105-
35	CLIP; AIR PIPE L TYPE ENG<90L> EXC. AIR DRYER<PS7> ID=16 L=28	9-09525-556-0	01	1	9603-9606
36	NUT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8	9-09110-408-0	03	1	9603-9606
36	NUT; CLIP L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	03	1	9607-9607
41	CLIP; AIR PIPE L TYPE ENG<90L> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-9904
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	9905-
60	BOLT; CLIP FIX ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
60	BOLT; CLIP FIX ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	02	1	9607-
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
60	BOLT; CLIP FIX M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
60	BOLT; CLIP FIX ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	9607-9904
60	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	01	1	9607-9904
60	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	01	1	9905-
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	9905-
69	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9603-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9603-
76	CLIP; NYLON TUBE (A) L=350	8-94152-256-1	01	1	9603-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9603-
76	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	9603-9912
76	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	0001-
76	CLIP; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ> (A) L=250	1-09707-126-0	01	1	0001-
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (B) ID=8.3 & 8.3	8-94426-175-0	01	1	9605-
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=16 L=28	9-09525-556-0	01	1	9603-
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9607-
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8	9-09110-508-0	01	1	9603-9606
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	03	1	9603-
107	CLIP; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9603-9904
107	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9905-
107	CLIP; NYLON TUBE EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (D) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9603-9904
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-0005
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0006-
107	CLIP; NYLON TUBE FULL FLOATING CAB<W16> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	9603-
107	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (E) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-
133	BOLT; BRKT ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
133	BOLT; BRKT L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
133	BOLT; BRKT ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9607-
133	BOLT; BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	02	1	9607-
279	NUT; BRKT M8	9-09110-508-0	02	1	9603-9606
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	5-09707-030-1	01	1	9603-
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	9603-
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	01	1	9607-0001
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	04	1	0002-
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	03	1	9603-9606
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	03	1	9607-0001
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8	9-09110-508-0	01	1	9603-9606
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-0001
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	0002-
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8	9-09110-508-0	03	1	9603-9606
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	03	1	9607-9904
292	CLIP; AIR PIPE L=30 ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9603-9904
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9904
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-
293	NUT; CLIP M8	9-09110-508-0	05	1	9603-9603
293	NUT; CLIP M8	9-09110-508-0	01	1	9604-9606
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	9603-9603
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	9604-
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	9604-
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9701-9908
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9909-
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-
298	BOLT; CLIP 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	01	1	9905-
299	NUT; CLIP 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	9905-
305	BOLT; CLIP BRKT V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
305	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	02	1	9607-
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	9603-0103
320	CLIP; BAND,FLEX FIX L=140	5-09707-031-1	01	1	0104-0104
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	9603-
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	9603-
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (D) L=100 H=30	1-47477-645-2	01	1	9701-9908
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (D) L=100 H=30	1-47477-645-2	01	1	9909-
321	BRACKET; CLIP L TYPE ENG<90L> (C)	1-47477-386-2	01	1	9603-
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-254-0	01	1	9603-9702
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-818-0	01	1	9703-
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (A)	1-47477-337-1	01	1	9603-
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=250	5-09707-030-1	01	1	9603-
367	BRACKET ASM L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=55	1-47475-304-0	01	1	9603-9606
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9603-
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9701-9908
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9909-
376	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9603-
376	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-

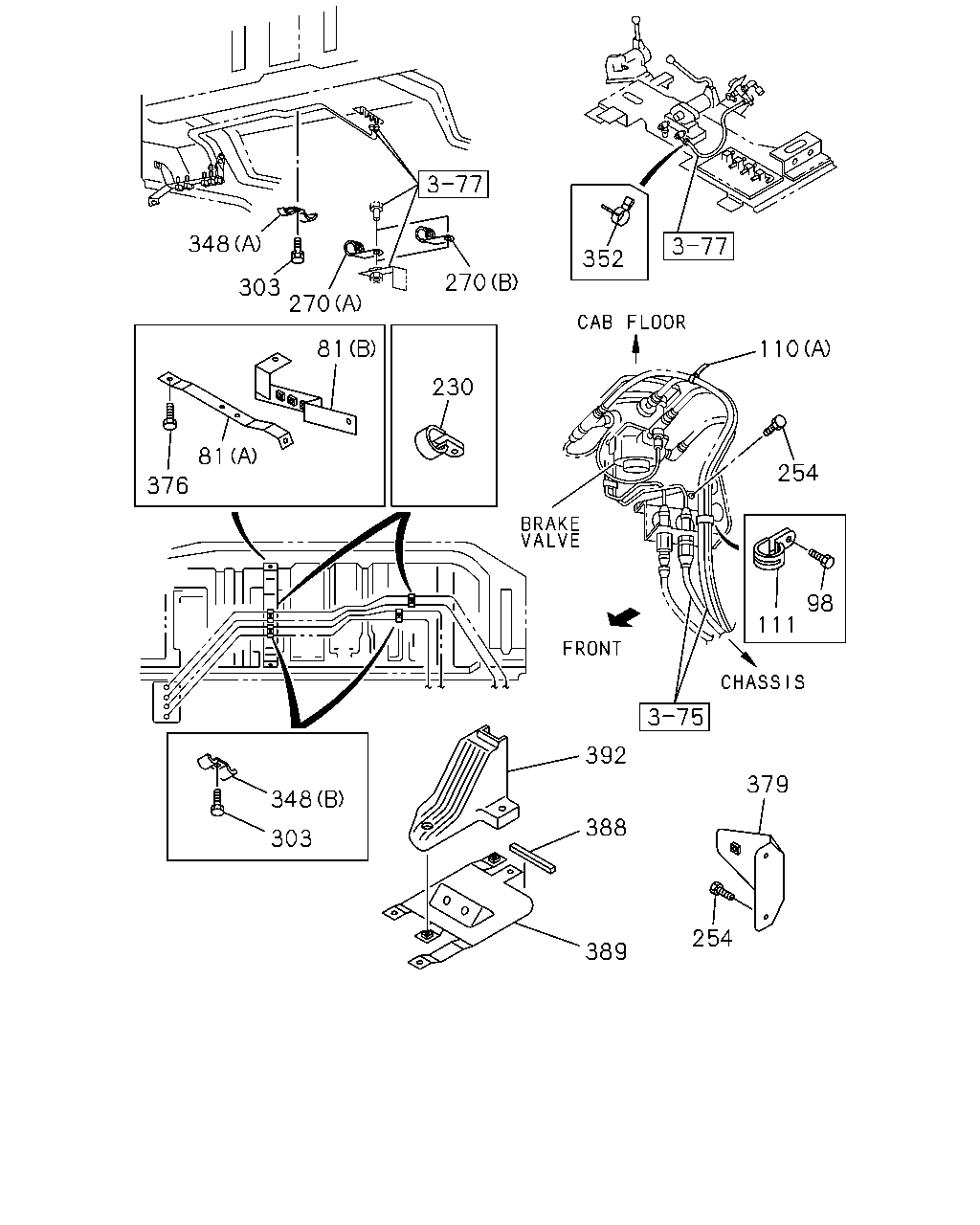

348 352 270 303 270 81 110 230 81 254 376 98 111 392 379 348 388 303 254 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	9603-
81	BRACKET; CLIP BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (A)	1-79996-127-2	01	1	9603-
98	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9603-9606
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	17	1	9603-9904
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	07	1	9905-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	9603-9603
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) L=250	1-09707-126-0	01	1	9604-9608
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	9604-9608
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	01	1	9609-
110	CLIP; BAND,NYLON TUBE L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) L=250	1-09707-126-0	01	1	9609-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	9609-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	05	1	9603-9610
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	07	1	9611-9904
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	17	1	9905-
110	CLIP; BAND,NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	02	1	9603-9912
110	CLIP; BAND,NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	02	1	0001-
110	CLIP; BAND,NYLON TUBE BRAKE REGULATION HONG KONG<TCZ> (A) L=250	1-09707-126-0	02	1	0001-
110	CLIP; BAND,NYLON TUBE FULL FLOATING CAB<W16> (A) L=250	1-09707-126-0	09	1	9603-
110	CLIP; BAND,NYLON TUBE EXC. FULL FLOATING CAB<W16> (A) L=250	1-09707-126-0	10	1	9603-
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 L=33	1-09700-945-0	01	1	9603-
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=40	1-09700-995-1	01	1	9603-9904
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=40	1-09701-261-0	01	1	9905-
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	9603-
230	CLIP; PIPE,AIR PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16	9-09524-822-0	03	1	9603-
254	BOLT; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	04	1	9603-9605
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	03	1	9606-
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=26 L=26	1-09701-236-0	01	1	9606-
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=32	1-09701-107-1	04	1	9603-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9603-
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	9-09535-225-0	03	1	9603-9904
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13 L=28	9-09525-252-0	03	1	9905-
348	CLIP; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	9603-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9603-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9603-
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9701-9908
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9909-
376	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9603-
376	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-
376	BOLT; BRKT DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-
379	BRACKET; NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9)	1-79996-110-2	01	1	9603-
388	SEAL L=215	1-79738-794-1	01	1	9603-
389	BRACKET; UNION DUAL AIR GAUGE<UG2>	1-79738-790-1	01	1	9603-
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2>	1-79738-795-1	01	1	9603-
392	COVER; BRKT DUAL AIR GAUGE<UG2>	1-73996-264-1	01	1	9603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
