Isuzu WW
▶
TRUCKS
▶
GVR
▶
11195 - GVR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

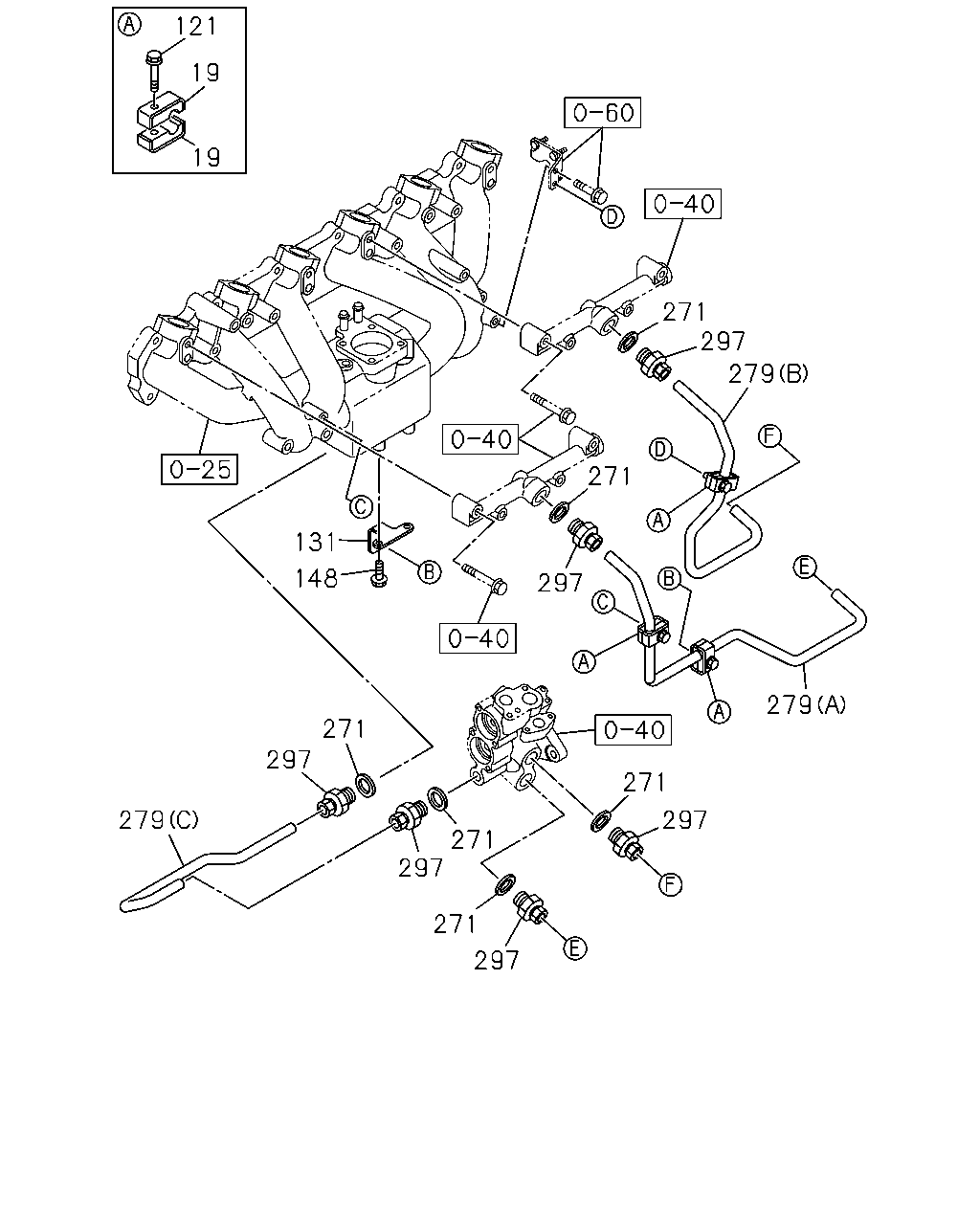

0-42 — FUEL PUMP AND PIPE
(#56072) — 37 parça
◀
[042A] NO.2 (13 parça)
[042A] NO.1 (11 parça)
[042A] NO.3 (13 parça)
▶
229
229
229
335
229
229
229
229
144
229
224
302
239
278
239
228
302
285
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
144
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
05
1
1006-
224
COUPLER; FUEL CHARGE
8-98122-626-0
01
1
1006-1203
224
COUPLER; FUEL CHARGE
8-98174-958-0
01
1
1204-
228
REGULATOR ASM; CNG
8-98127-565-2
02
1
1006-
229
BOLT; REGULATOR
M6X12 FLANGE THA
0-28050-612-0
06
1
1006-
229
BOLT; REGULATOR
M8X20 FLANGE THA
0-28650-820-0
22
1
1006-
239
GASKET
(A)
8-97638-671-0
01
1
1006-1203
239
GASKET
(B)
8-97638-672-0
01
1
1006-1203
278
RECEPTACLE; CNG
8-97638-677-0
01
1
1006-1203
285
SEAL; COUPLER
THA
8-98177-921-0
01
1
1204-
302
CAP; COUPLER
(A) THA
8-98207-581-0
01
1
1204-
302
CAP; COUPLER
(B)
8-98207-965-0
01
1
1204-
335
SEAL; PROTECT
8-98090-873-1
01
1
1006-
121
19
19
271
297
279
271
131
148
297
279
271
297
271
279
297
271
297
271
297
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
CLIP; FUEL PIPE
1-09701-282-0
06
1
1006-
121
BOLT; CLIP
M6X40 FLANGE
0-28650-640-0
03
1
1006-
131
BRACKET; FUEL PIPE CLIP
8-98121-158-0
01
1
1006-
148
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1201-
271
GASKET; CONNECTOR
8-98121-157-0
06
1
1006-
279
PIPE; FUEL,CNG
(D)
8-98201-391-0
01
1
1203-
279
PIPE; FUEL,CNG
(A)
8-98121-153-1
01
1
1006-
279
PIPE; FUEL,CNG
(B)
8-98121-154-1
01
1
1006-
279
PIPE; FUEL,CNG
(C)
8-98121-155-1
01
1
1006-
297
CONNECTOR
8-98121-156-0
06
1
1006-1404
297
CONNECTOR
8-98241-128-0
06
1
1405-
291
226
148
148
266
152
266
199
199
279
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
148
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1201-
152
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1201-
199
CONNECTOR; PIPE
(A)
8-98201-461-0
01
1
1203-
199
CONNECTOR; PIPE
(B)
8-98201-462-0
01
1
1203-
226
METER; FUEL PRESSURE
8-98201-397-0
01
1
1203-
266
BRACKET; VLV
(A) THA
8-98210-353-0
01
1
1201-1201
266
BRACKET; VLV
(B) THA
8-98202-893-0
01
1
1201-1201
266
BRACKET; VLV
(B) THA
8-98216-167-0
01
1
1202-
279
PIPE; FUEL,CNG
(D)
8-98201-391-0
01
1
1203-
279
PIPE; FUEL,CNG
(A)
8-98121-153-1
01
1
1006-
279
PIPE; FUEL,CNG
(B)
8-98121-154-1
01
1
1006-
279
PIPE; FUEL,CNG
(C)
8-98121-155-1
01
1
1006-
291
COVER; REG
8-98201-445-0
01
1
1203-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
