Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#5607) — 197 parça

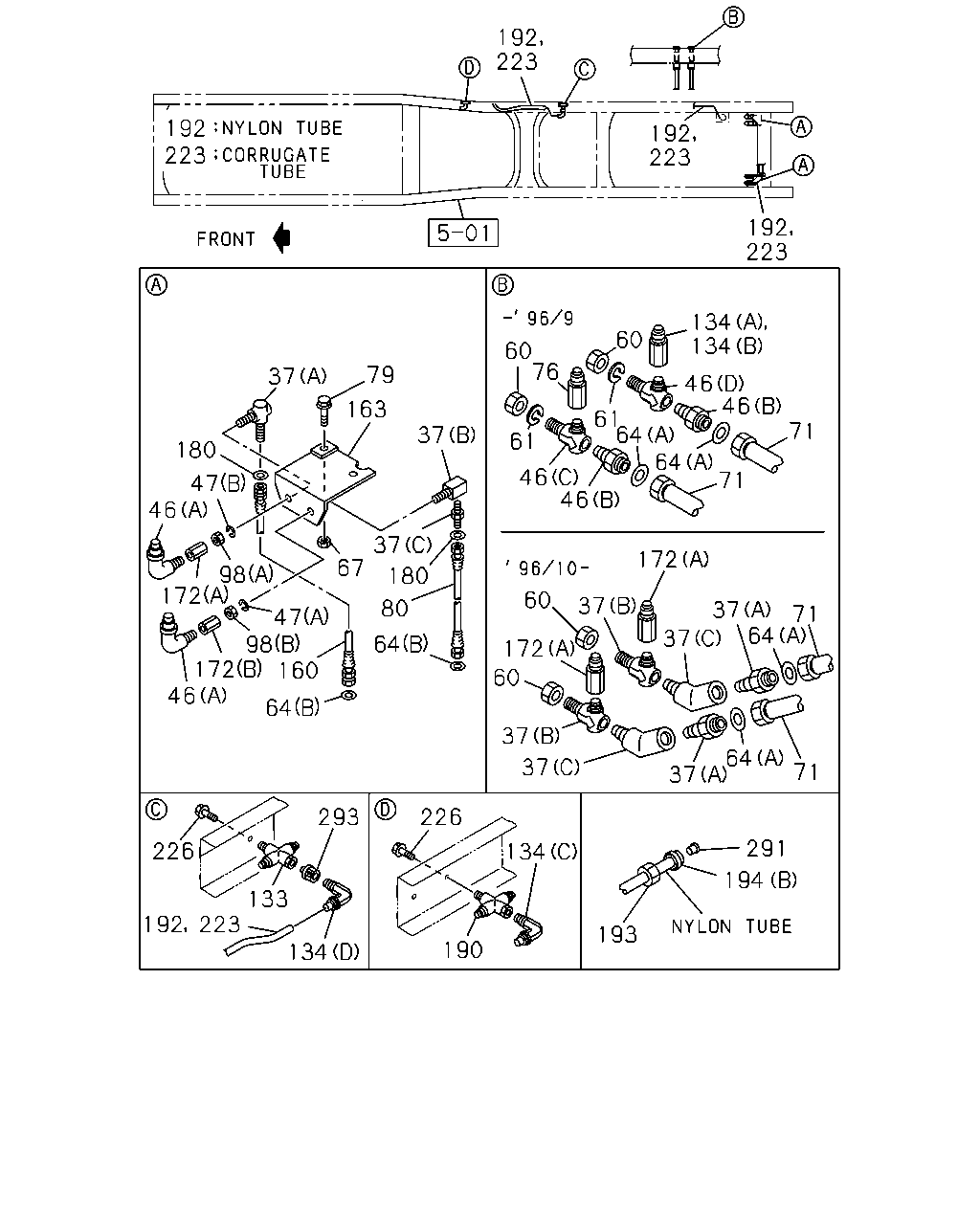

192 223 192 223 192 223 192 223 134 134 60 60 76 79 37 46 46 71 163 61 64 64 37 61 180 71 46 46 47 46 37 67 172 98 180 172 60 37 80 37 71 64 47 98 46 37 64 172 60 64 37 64 71 37 37 293 226 291 226 134 133 223 194 192 193 190 134 160 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9610-9912
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0001-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	0001-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (B)	1-09650-251-1	02	1	9610-9708
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (B)	1-09650-251-1	01	1	9709-9912
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> DUAL LICENCE CHINA & HONG KONG<TEZ> (B)	1-09650-251-1	01	1	9709-9912
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> DUAL LICENCE CHINA & HONG KONG<TEZ> (B)	1-09650-251-1	01	1	0001-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (C)	1-09664-209-0	02	1	9610-9912
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (C)	1-09664-209-0	01	1	0001-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (C)	1-09664-209-0	01	1	0001-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M14X35	1-09650-272-2	01	1	9610-9612
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M14X35	1-09650-272-2	01	1	9701-9912
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M14X35	1-09650-272-2	01	1	0001-
37	UNION; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B)	1-09650-003-1	02	1	9603-
37	UNION; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (C)	1-09656-088-0	02	1	9603-
37	UNION; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A)	9-09903-782-1	02	1	9603-
46	NIPPLE; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (B) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9603-9609
46	NIPPLE; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (C)	1-09650-251-1	01	1	9603-9609
46	NIPPLE; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> DUAL LICENCE CHINA & HONG KONG<TEZ> (C)	1-09650-251-1	01	1	9603-9609
46	NIPPLE; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (D) M14X35	1-09650-272-2	01	1	9603-9609
46	NIPPLE; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (D) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9603-9907
46	NIPPLE; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9908-
46	NIPPLE; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9603-9907
46	NIPPLE; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9908-
47	WASHER; LK,HOSE BRKT EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) ID=16.2	9-09150-516-0	02	1	9603-
47	WASHER; LK,HOSE BRKT EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) ID=20.2	9-09150-520-0	02	1	9603-
60	NUT; NIPPLE,AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> M20	9-99111-420-0	02	1	9603-9904
60	NUT; NIPPLE,AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> M20	9-99111-420-0	01	1	9905-
61	WASHER; LK,NIPPLE BRAKE POWER CHAMBER FORWARD<BCQ> ID=20.2	9-09150-520-0	02	1	9603-9606
64	GASKET; FLEX HOSE (A) ID=17.5	9-09572-515-0	02	1	9603-
64	GASKET; FLEX HOSE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) ID=11 OD=18	9-09572-510-0	02	1	9603-
67	NUT; HOSE BRKT EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8	9-09110-408-0	04	1	9603-9606
67	NUT; HOSE BRKT EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8 FLANGE	0-91150-108-0	04	1	9607-
71	HOSE; FLEX,RWD RR BRAKE POWER CHAMBER FORWARD<BCQ> L=550	0-07909-550-0	02	1	9603-
76	ADAPTER; NYLON TUBE BRAKE POWER CHAMBER FORWARD<BCQ> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9609
79	BOLT; HOSE BRKT EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8X30 FLANGE	0-28080-830-0	03	1	9603-9606
79	BOLT; HOSE BRKT EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8X35 FLANGE	0-28680-835-0	03	1	9607-
80	HOSE; FLEX,POWER CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> L=480	0-07909-480-0	02	1	9603-
98	NUT; PIPE UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) M16	9-99111-416-0	02	1	9603-
98	NUT; PIPE UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) M20	9-99111-420-0	02	1	9603-
133	UNION; NIPPLE PARKING BRAKE VALVE LEVER TYPE<W48> DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9603-9904
133	UNION; NIPPLE PARKING BRAKE VALVE LEVER TYPE<W48> DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9905-
134	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9609
134	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9609
134	CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9904
134	CONNECTOR (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9904
134	CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
134	CONNECTOR (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
134	CONNECTOR PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9904
134	CONNECTOR PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
160	HOSE; FLEX,SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> L=470	0-07847-470-1	02	1	9603-
163	BRACKET; FLEX HOSE EXC. BRAKE POWER CHAMBER FORWARD<BCQ>	1-47477-060-0	01	1	9603-
163	BRACKET; FLEX HOSE EXC. BRAKE POWER CHAMBER FORWARD<BCQ>	1-47477-059-0	01	1	9603-
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9610-9612
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9610-9612
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9701-9904
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9701-9904
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-9912
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-9912
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0001-0007
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9610-9612
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9701-9904
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9905-9912
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	0001-0007
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-
172	ADAPTER; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	9603-
172	ADAPTER; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	02	1	9603-
180	GASKET; FLEX HOSE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> ID=11 OD=18	9-09572-510-0	02	1	9603-
190	UNION; 3 WAY EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> DIN8 RC1/4 & M8	1-09660-735-1	01	1	9603-9904
190	UNION; 3 WAY DIN8 RC1/4 & M8	1-09660-735-1	01	1	9603-9904
190	UNION; 3 WAY EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9905-
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9905-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	9603-
194	SLEEVE; TUBE BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> (A) ID=23 OD=27 L=40	1-09337-015-0	03	1	9905-9907
194	SLEEVE; TUBE ZF M/T<X9E> (B) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9603-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9607-
226	BOLT; UNION PARKING BRAKE VALVE LEVER TYPE<W48> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
226	BOLT; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
226	BOLT; UNION PARKING BRAKE VALVE LEVER TYPE<W48> M8X20 FLANGE	0-28680-820-0	01	1	9607-9607
226	BOLT; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28680-820-0	01	1	9607-9607
226	BOLT; UNION M8X20 FLANGE	0-28680-820-0	01	1	9607-9607
226	BOLT; UNION PARKING BRAKE VALVE LEVER TYPE<W48> M8X20 FLANGE	0-28680-820-0	01	1	9608-
226	BOLT; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28680-820-0	01	1	9608-
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	9603-
293	VALVE; CHECK PARKING BRAKE VALVE LEVER TYPE<W48>	1-48320-013-2	01	1	9603-

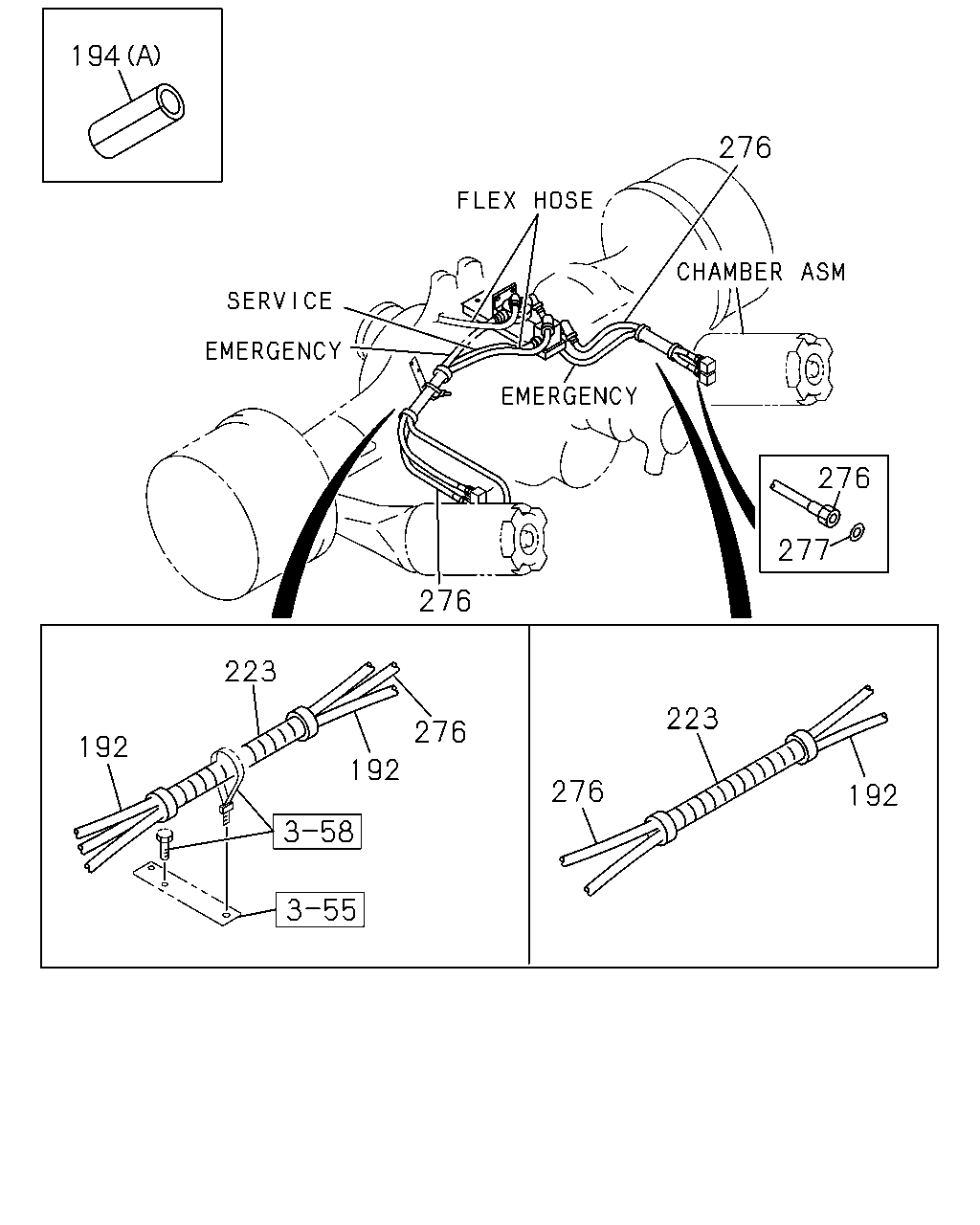

194 276 276 277 276 223 223 276 192 192 276 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-
194	SLEEVE; TUBE BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> (A) ID=23 OD=27 L=40	1-09337-015-0	03	1	9905-9907
194	SLEEVE; TUBE ZF M/T<X9E> (B) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9603-
276	HOSE; SERVO BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> L=490	0-07846-490-1	01	1	9905-9907
276	HOSE; SERVO BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> L=770	0-07846-770-1	01	1	9905-9907
277	GASKET; HOSE SERVO BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> ID=11 OD=18	9-09572-510-0	04	1	9905-9907

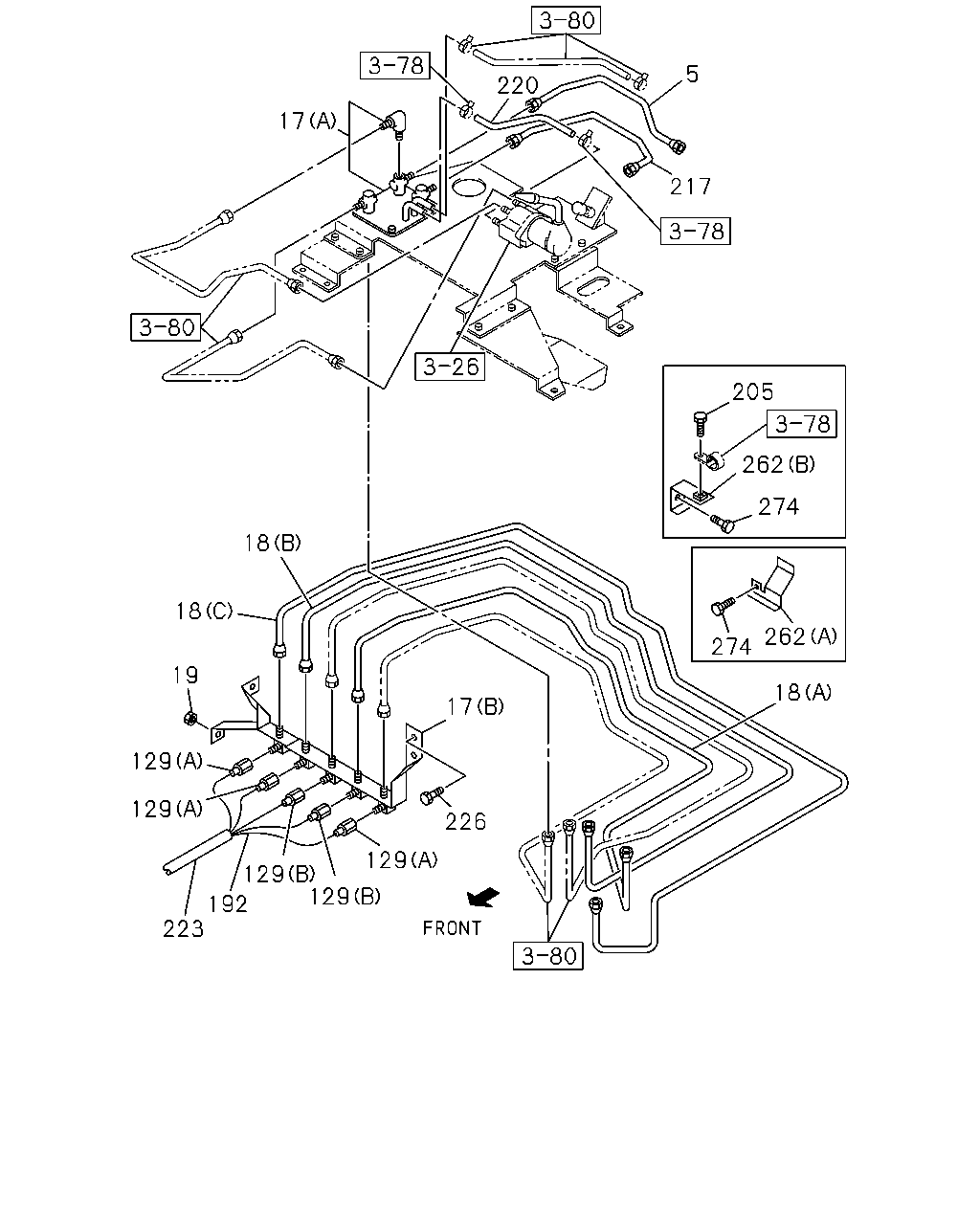

5 220 17 217 205 262 274 18 18 262 274 19 18 17 129 129 226 129 129 129 192 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9)	1-49114-638-1	01	1	9603-
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-490-2	01	1	9603-
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-493-1	01	1	9603-
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-443-2	01	1	9603-
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-469-3	01	1	9603-
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (A) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9603-
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (B) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9603-
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=2332 SERVICED BY L=2400	1-47426-395-0	01	1	9603-
19	NUT; PIPE UNION M8 FLANGE	0-91150-108-0	02	1	9603-
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	9603-
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9603-9904
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9905-9911
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9905-9911
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9912-0007
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9912-0007
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9904
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9904
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9905-0007
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-0009
129	CONNECTOR; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-0009
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0010-
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0010-
129	CONNECTOR; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0010-
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9911
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9911
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-9912
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-9912
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0009
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0009
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0010-
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0010-
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0010-
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9912-0007
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0008-0009
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-9912
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0010-
129	CONNECTOR; NYLON TUBE DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0010-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9603-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9603-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9603-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9603-
205	BOLT; TUBE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9603-
205	BOLT; TUBE CLIP M8X16 W/LK WASHER	0-50040-816-0	03	1	9603-9702
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9703-
217	PIPE; AIR,PARKING BRK VLV TO UNION BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9)	1-49114-639-0	01	1	9603-
220	HOSE; VINYL,EXH,PARKING BRK VLV L=850 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9603
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=850 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9606
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9606
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9607-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9603-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9603-
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9607-
226	BOLT; UNION PARKING BRAKE VALVE LEVER TYPE<W48> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
226	BOLT; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
226	BOLT; UNION PARKING BRAKE VALVE LEVER TYPE<W48> M8X20 FLANGE	0-28680-820-0	01	1	9607-9607
226	BOLT; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28680-820-0	01	1	9607-9607
226	BOLT; UNION M8X20 FLANGE	0-28680-820-0	01	1	9607-9607
226	BOLT; UNION PARKING BRAKE VALVE LEVER TYPE<W48> M8X20 FLANGE	0-28680-820-0	01	1	9608-
226	BOLT; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28680-820-0	01	1	9608-
262	BRACKET BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (B)	1-79996-143-0	01	1	9603-
262	BRACKET BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (A)	1-79996-258-1	01	1	9603-
274	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M6X16 W/LK WASHER	0-50040-616-0	01	1	9603-0102
274	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0103-
274	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8X16 W/LK WASHER	0-50040-816-0	01	1	9603-9702
274	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8X16 FLANGE	0-28080-816-0	01	1	9703-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
