Sayfa 3-70 - Isuzu EPC

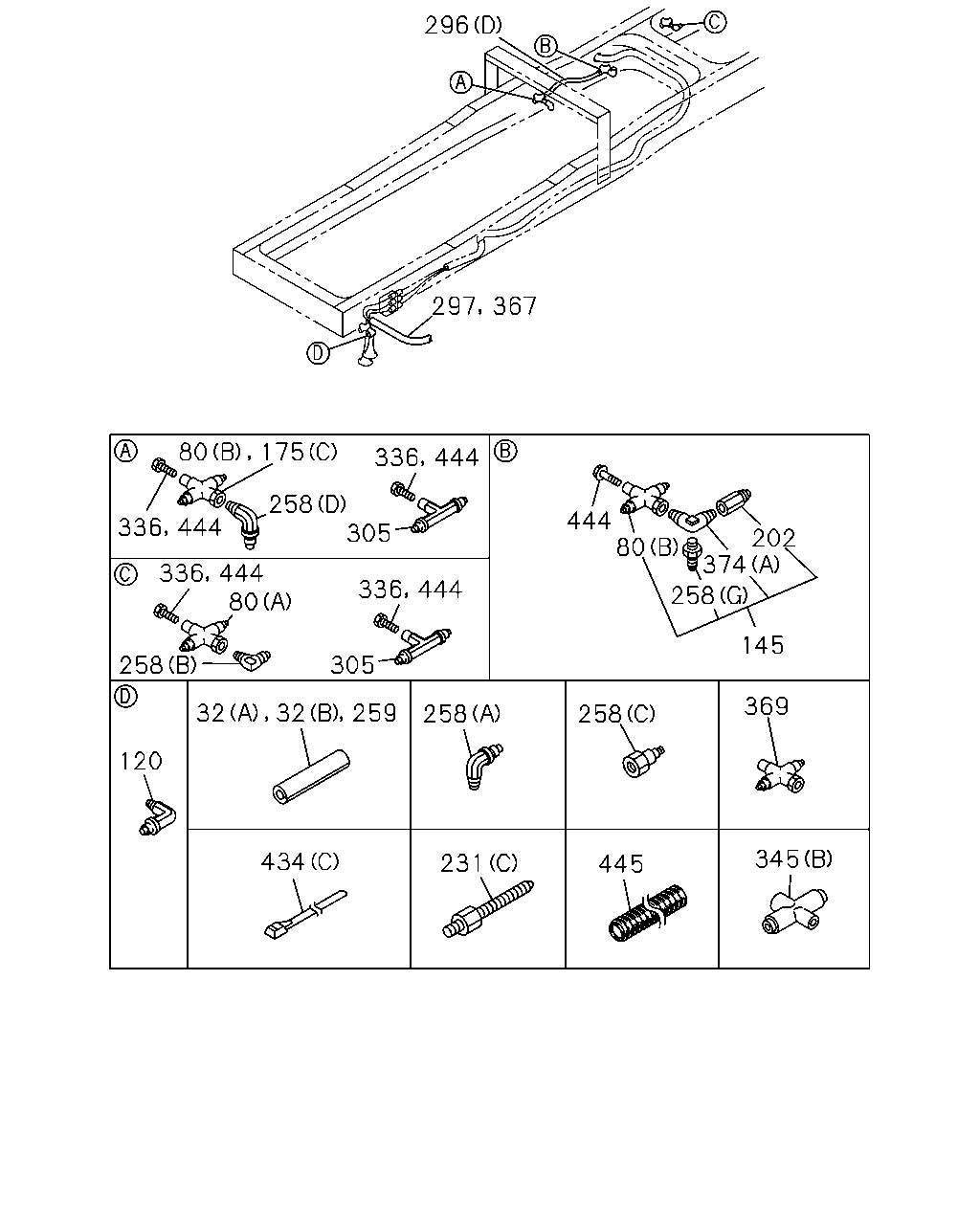

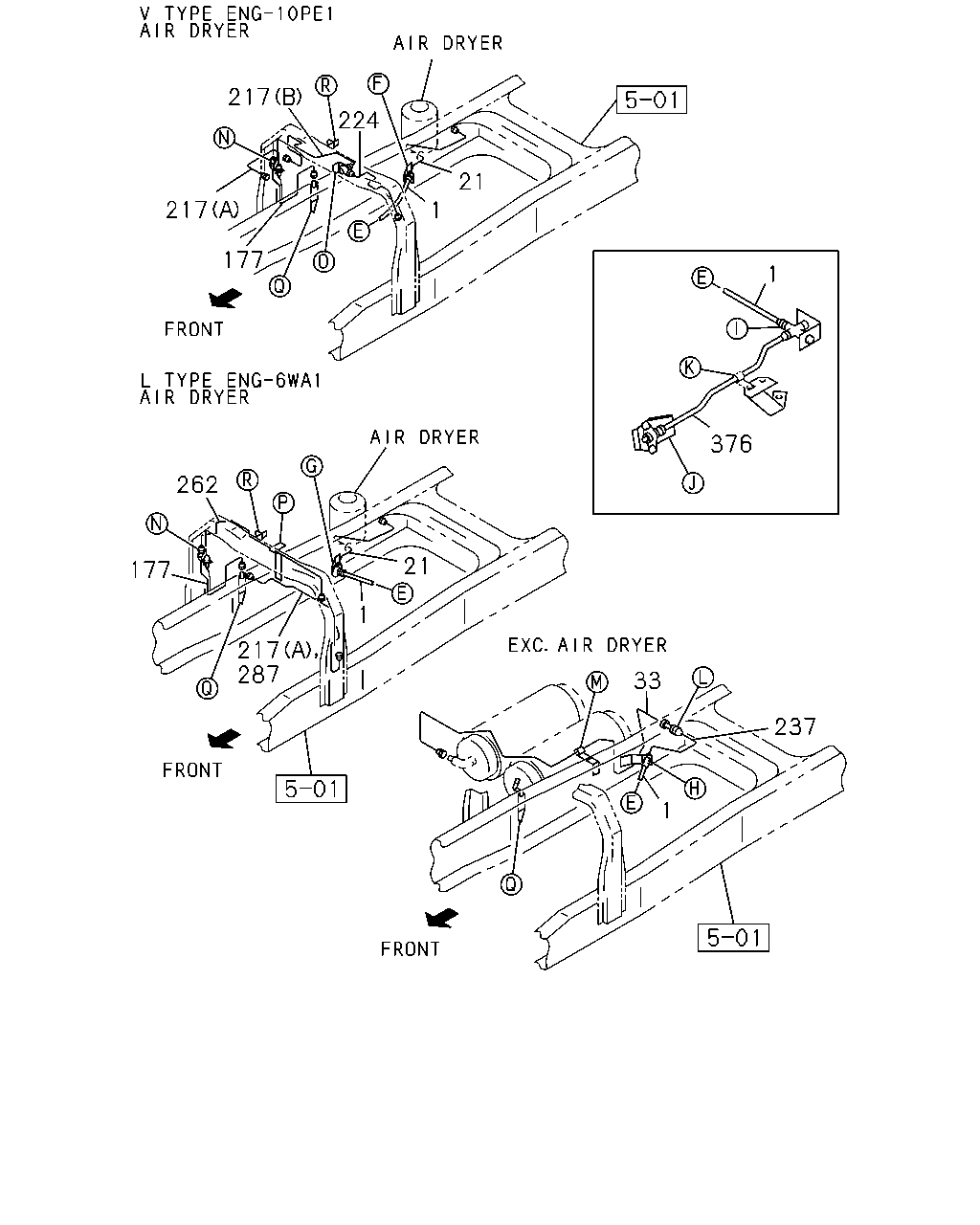

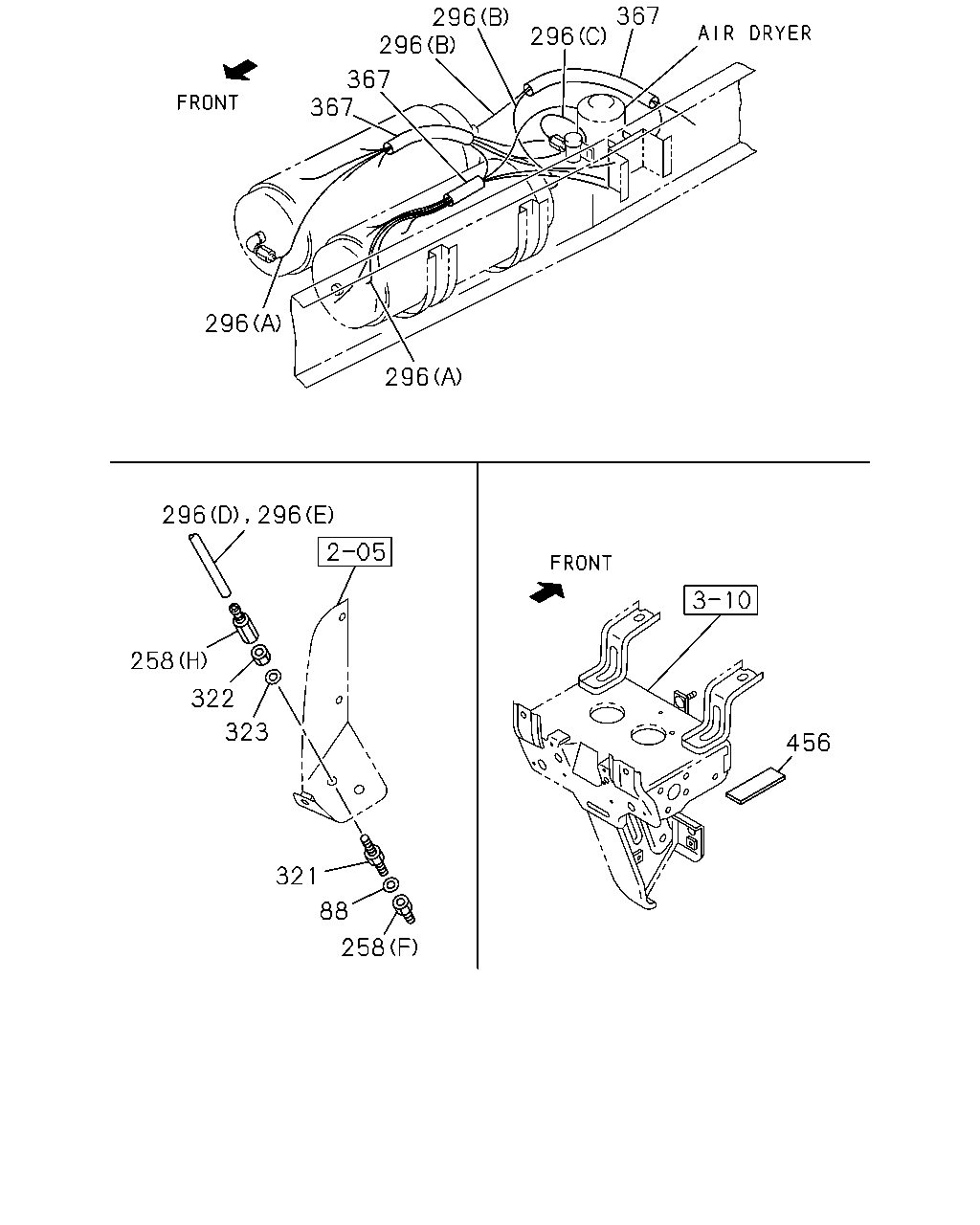

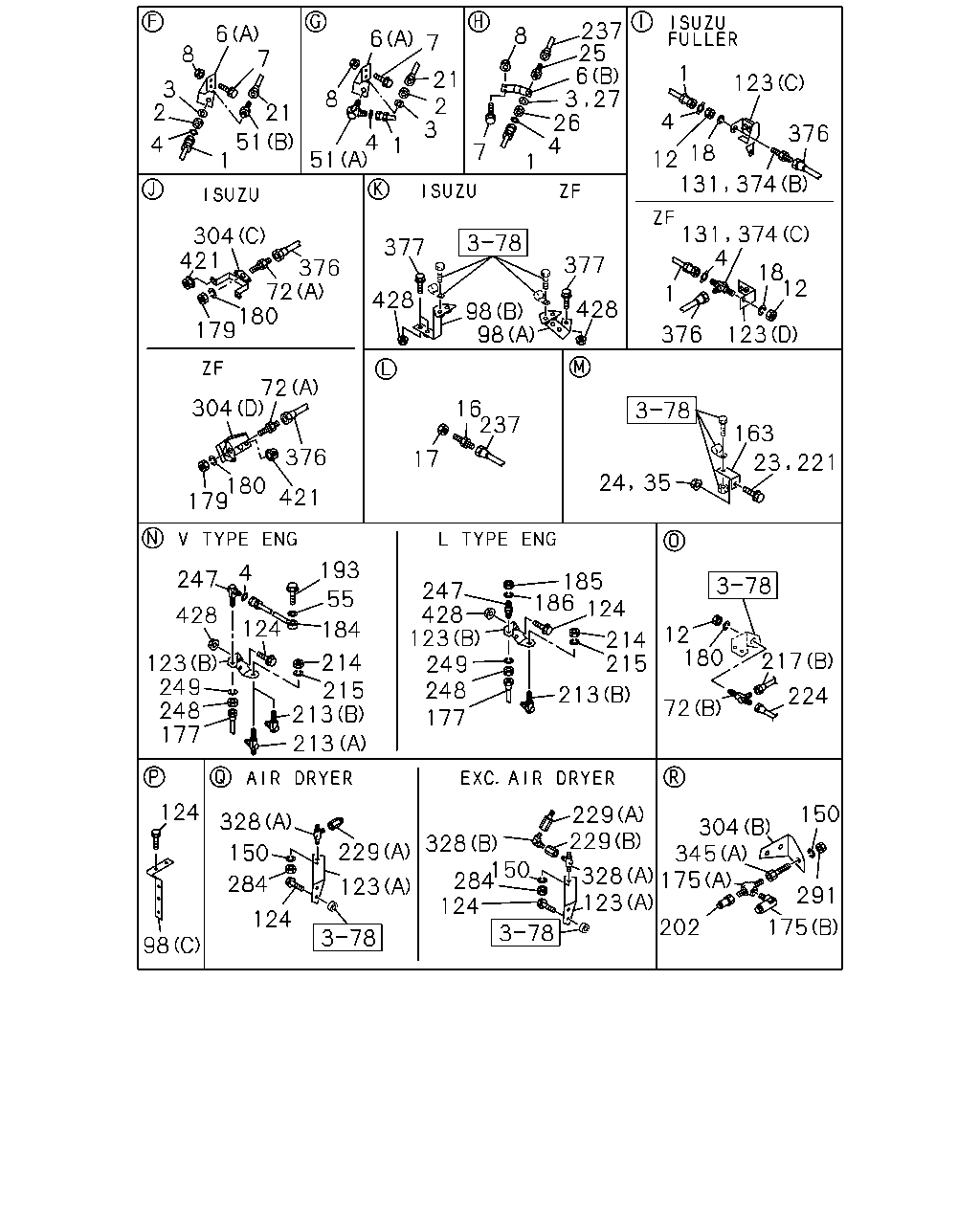

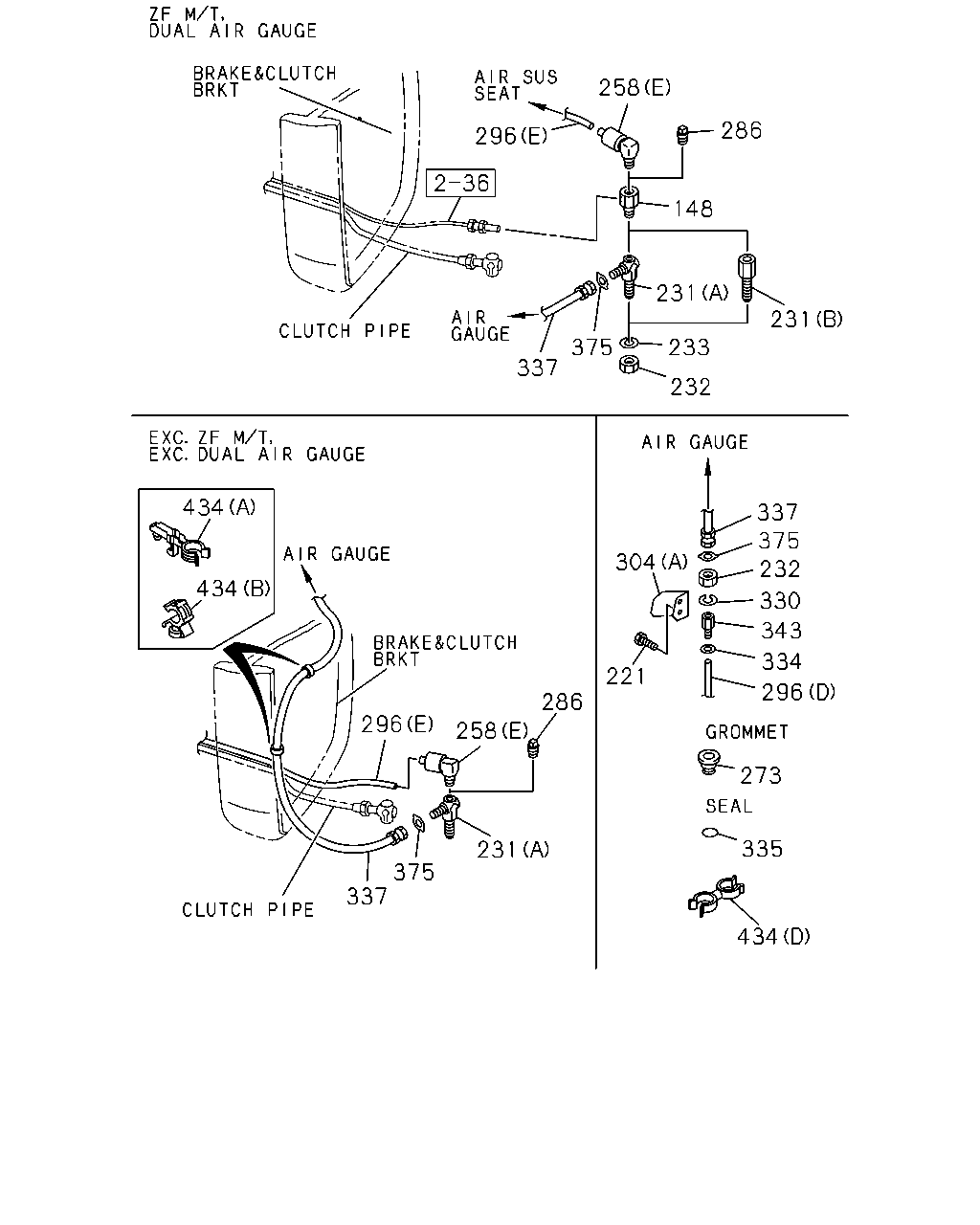

3-70 — BRAKE PIPING; AIR,AIR MASTER (#5605) — 645 parça

237 25 6 26 4 6 7 8 6 7 8 1 21 2 3 123 3 2 8 21 4 376 51 4 4 1 7 18 12 51 1 1 4 304 421 377 377 376 72 180 179 18 12 98 428 98 1 428 123 376 72 304 16 237 163 376 17 24 35 180 179 421 193 4 247 185 186 124 247 428 123 249 248 177 55 428 124 12 180 217 184 214 215 123 249 248 177 214 215 213 213 224 72 213 124 150 229 229 328 304 345 175 202 328 150 284 124 229 150 328 123 284 123 291 124 175 98 3 27 131 374 23 221 131 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> ISUZU M/T<X9A> L TYPE ENG<90L>	0-07847-360-1	01	1	9609-9609
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> ISUZU M/T<X9A> L TYPE ENG<90L>	0-07846-360-1	01	1	9610-
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> ZF M/T<X9E> L TYPE ENG<90L> L=400	0-07846-400-1	01	1	9603-
1	HOSE; FLEX,AIR TANK L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9603-
1	HOSE; FLEX,AIR TANK V TYPE ENG<91L> L=530	0-07846-530-1	01	1	9603-9609
1	HOSE; FLEX,AIR TANK V TYPE ENG<91L> EXC. ZF M/T<X9E> L=530	0-07846-530-1	01	1	9610-9906
1	HOSE; FLEX,AIR TANK V TYPE ENG<91L> L=530	0-07846-530-1	01	1	9907-
1	HOSE; FLEX,AIR TANK ZF M/T<X9E> V TYPE ENG<91L> EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	9610-9709
1	HOSE; FLEX,AIR TANK ZF M/T<X9E> V TYPE ENG<91L> L=630	0-07846-630-1	01	1	9710-9906
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> L TYPE ENG<90L> M22	9-09111-422-0	01	1	9603-9609
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> L TYPE ENG<90L> M22	9-09111-422-0	01	1	9610-9709
2	NUT; FLEX HOSE,AIR TANK ZF M/T<X9E> V TYPE ENG<91L> EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9610-9709
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> L TYPE ENG<90L> M22	9-09111-422-0	01	1	9710-9906
2	NUT; FLEX HOSE,AIR TANK ZF M/T<X9E> V TYPE ENG<91L> M22	9-09111-422-0	01	1	9710-9906
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> L TYPE ENG<90L> M22	9-09111-422-0	01	1	9907-
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> V TYPE ENG<91L> M20	9-99111-420-0	01	1	9603-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	9603-9609
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	9610-9709
3	WASHER; LK,FLEX HOSE,AIR TANK ZF M/T<X9E> V TYPE ENG<91L> EXC. AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	9610-9709
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	9710-9906
3	WASHER; LK,FLEX HOSE,AIR TANK ZF M/T<X9E> V TYPE ENG<91L> ID=22.5	9-09150-522-0	01	1	9710-9906
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> L TYPE ENG<90L> ID=22.5	9-09150-522-0	01	1	9907-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> V TYPE ENG<91L> ID=20.2	9-09150-520-0	01	1	9603-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9603-9606
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9607-9706
4	GASKET; FLEX HOSE V TYPE ENG<91L> ID=11 OD=18	9-09572-510-0	01	1	9607-9706
4	GASKET; FLEX HOSE V TYPE ENG<91L> ID=11 OD=18	9-09572-510-0	01	1	9707-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9707-
6	BRACKET; FLEX HOSE,AIR TANK AIR DRYER<PS7> L TYPE ENG<90L> (A)	1-47477-432-0	01	1	9603-
6	BRACKET; FLEX HOSE,AIR TANK AIR DRYER<PS7> ZF M/T<X9E> V TYPE ENG<91L> (A)	1-47478-053-0	01	1	9710-9906
6	BRACKET; FLEX HOSE,AIR TANK L TYPE ENG<90L> EXC. AIR DRYER<PS7> (B)	1-47477-606-0	01	1	9603-
6	BRACKET; FLEX HOSE,AIR TANK V TYPE ENG<91L> (A)	1-47477-232-0	01	1	9603-9609
6	BRACKET; FLEX HOSE,AIR TANK V TYPE ENG<91L> EXC. ZF M/T<X9E> (A)	1-47477-232-0	01	1	9610-9906
6	BRACKET; FLEX HOSE,AIR TANK V TYPE ENG<91L> (A)	1-47477-232-0	01	1	9907-
6	BRACKET; FLEX HOSE,AIR TANK ZF M/T<X9E> V TYPE ENG<91L> EXC. AIR DRYER<PS7> (B)	1-47477-888-0	01	1	9610-9906
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9603-9606
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	9607-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-508-0	02	1	9603-9606
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	9607-
12	NUT; UNION V TYPE ENG<91L> M20	9-99111-420-0	01	1	9603-9702
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	9603-9702
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	9703-
12	NUT; UNION V TYPE ENG<91L> M12	9-09840-280-0	01	1	9703-
12	NUT; UNION ZF M/T<X9E> M14	9-99111-414-0	01	1	9603-
16	UNION; AIR PIPE EXC. AIR DRYER<PS7> M22	9-09233-315-1	01	1	9603-
17	NUT; UNION EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	9603-
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	9603-
18	WASHER; LK,UNION ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	9603-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49116-141-0	01	1	9603-9709
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> L TYPE ENG<90L>	1-49116-141-0	01	1	9710-9906
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> V TYPE ENG<91L> EXC. ZF M/T<X9E>	1-49116-141-0	01	1	9710-9906
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49116-141-0	01	1	9907-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> ZF M/T<X9E> V TYPE ENG<91L>	1-49118-840-0	01	1	9710-9906
23	BOLT; BRKT,AIR PIPE L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28080-830-0	01	1	9603-9606
23	BOLT; BRKT,AIR PIPE L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8X35 FLANGE	0-28680-835-0	01	1	9607-9607
24	NUT; BRKT,AIR PIPE L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9603-9606
24	NUT; BRKT,AIR PIPE L TYPE ENG<90L> EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-9607
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-2	01	1	9603-
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9603-
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9603-
35	NUT; BRKT EXC. AIR DRYER<PS7> M8	9-09110-508-0	01	1	9603-9606
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-
51	UNION AIR DRYER<PS7> L TYPE ENG<90L> (A)	1-09654-202-1	01	1	9603-9609
51	UNION AIR DRYER<PS7> L TYPE ENG<90L> (A)	1-09654-202-1	01	1	9610-9709
51	UNION ZF M/T<X9E> V TYPE ENG<91L> EXC. AIR DRYER<PS7> (A)	1-09654-202-1	01	1	9610-9709
51	UNION AIR DRYER<PS7> L TYPE ENG<90L> (A)	1-09654-202-1	01	1	9710-9904
51	UNION ZF M/T<X9E> V TYPE ENG<91L> (A)	1-09654-202-1	01	1	9710-9904
51	UNION AIR DRYER<PS7> L TYPE ENG<90L> (A)	1-09654-202-1	01	1	9907-
51	UNION AIR DRYER<PS7> V TYPE ENG<91L> (B) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9603-
55	GASKET; AIR PIPE V TYPE ENG<91L> ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-
72	UNION; AIR PIPE L TYPE ENG<90L> (A)	1-09654-318-1	01	1	9603-
72	UNION; AIR PIPE V TYPE ENG<91L> (A)	1-09654-097-1	01	1	9603-
72	UNION; AIR PIPE V TYPE ENG<91L> (B)	1-09656-292-1	01	1	9603-9702
72	UNION; AIR PIPE V TYPE ENG<91L> (B) M12 3WAY	9-09228-906-1	01	1	9703-
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (B)	1-47477-190-2	02	1	9603-9612
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (B)	1-47477-840-0	02	1	9701-
98	BRACKET; AIR PIPE L TYPE ENG<90L> (C)	1-47477-385-0	01	1	9603-9904
98	BRACKET; AIR PIPE L TYPE ENG<90L> (C)	1-47477-471-0	01	1	9905-
98	BRACKET; AIR PIPE ZF M/T<X9E> (A)	1-47477-693-0	01	1	9603-9612
98	BRACKET; AIR PIPE ZF M/T<X9E> (A)	1-47477-902-0	01	1	9701-
123	BRACKET; UNION (B)	1-47477-045-0	01	1	9603-
123	BRACKET; UNION (A)	1-47477-654-1	01	1	9603-
123	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-187-0	01	1	9603-
123	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-588-0	01	1	9603-
124	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-
124	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9603-9606
124	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-
124	BOLT; BRKT L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
124	BOLT; BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-
131	UNION; AIR PIPE ISUZU M/T<X9A> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9612-0006
131	UNION; AIR PIPE ZF M/T<X9E>	1-09654-203-1	01	1	9612-0006
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9603-
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=55	1-47475-304-0	01	1	9603-
175	CONNECTOR; AIR PIPE (A)	1-09650-070-3	01	1	9603-
175	CONNECTOR; AIR PIPE (B) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	9603-9904
175	CONNECTOR; AIR PIPE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9905-
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A> (C) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9904
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
177	PIPE; AIR,UNION TO UNION L=568 SERVICED BY L=600	1-47428-809-0	01	1	9603-9908
177	PIPE; AIR,UNION TO UNION L=548	1-49122-243-0	01	1	9909-
179	NUT; UNION M22	9-09111-422-0	01	1	9603-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9603-
180	WASHER; LK,UNION V TYPE ENG<91L> ID=20.2	9-09150-520-0	01	1	9603-9702
180	WASHER; LK,UNION V TYPE ENG<91L> ID=12.2	9-09150-512-0	01	1	9703-
184	HOSE; FLEX,AIR GOV V TYPE ENG<91L> L=370	0-07532-370-1	01	1	9603-
185	NUT; FLEX HOSE,AIR GOV L TYPE ENG<90L> M12	9-09840-280-0	01	1	9603-
186	WASHER; LK,FLEX HOSE,AIR GOV L TYPE ENG<90L> ID=12.2	9-09150-512-0	01	1	9603-
193	BOLT; EYE,FLEX HOSE,GOV LINE V TYPE ENG<91L> M14X27 FLANGE	1-09675-086-0	01	1	9603-
202	ADAPTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9702
202	ADAPTER ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9702
202	ADAPTER DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9702
202	ADAPTER ZF M/T<X9E> DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9703-9904
202	ADAPTER DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9703-9904
202	ADAPTER ZF M/T<X9E> DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-0007
202	ADAPTER DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-0007
202	ADAPTER ZF M/T<X9E> DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
202	ADAPTER DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
213	UNION; AIR PIPE FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) M12 ELBOW	9-09225-206-1	01	1	9603-
213	UNION; AIR PIPE EXC. FULL FLOATING CAB<W16> (B) M12 ELBOW	9-09225-206-1	01	1	9603-
213	UNION; AIR PIPE FULL FLOATING CAB<W16> V TYPE ENG<91L> (A) M12 3WAY	9-09228-906-1	01	1	9603-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	9603-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9603-
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> (A) L=1670 SERVICED BY L=1700	1-47426-357-0	01	1	9603-9609
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (A) L=1670 SERVICED BY L=1700	1-47426-357-0	01	1	9610-9701
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (A) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9702-9904
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-N(54L),6WA1 TC-R(93L) (A) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9905-9909
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-N(54L),6WA1 TC-R(93L) (A) L=666	1-49121-249-0	01	1	9910-9910
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-N(54L),6WA1 TC-R(93L) (A) L=1643	1-49122-249-0	01	1	9911-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=748 SERVICED BY L=800	1-47428-812-0	01	1	9603-9702
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=752 SERVICED BY L=800	1-47428-812-0	01	1	9703-9904
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=620	1-49121-778-0	01	1	9905-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=336	1-47499-145-0	01	1	9603-9904
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=572 SERVICED BY L=600	1-47428-809-0	01	1	9905-9905
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=552	1-49121-876-0	01	1	9905-
221	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28080-830-0	01	1	9603-9606
221	BOLT; BRKT EXC. AIR DRYER<PS7> M8X35 FLANGE	0-28680-835-0	01	1	9607-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9904
221	BOLT; BRKT DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9904
221	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9904
221	BOLT; BRKT ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-9912
221	BOLT; BRKT DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-9912
221	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-9912
221	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0001-
221	BOLT; BRKT ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0001-
221	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0001-
224	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=480 SERVICED BY L=500	1-47428-807-0	01	1	9603-9702
224	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=494 SERVICED BY L=500	1-47428-807-0	01	1	9703-
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9603-9904
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	9905-0005
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-
229	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9603-
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373	1-49116-157-1	01	1	9603-9609
237	PIPE; AIR,FLEX HOSE TO UNION ZF M/T<X9E> V TYPE ENG<91L> EXC. AIR DRYER<PS7> L=373	1-49116-157-1	01	1	9610-9906
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373	1-49116-157-1	01	1	9610-9906
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373	1-49116-157-1	01	1	9907-
237	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. AIR DRYER<PS7> L=495	1-49117-170-0	01	1	9603-9609
237	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. AIR DRYER<PS7>,ZF M/T<X9E> L=495	1-49117-170-0	01	1	9610-9906
237	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. AIR DRYER<PS7> L=495	1-49117-170-0	01	1	9907-
247	UNION; AIR PIPE L TYPE ENG<90L> M12 L=66.5	9-09223-306-1	01	1	9603-
247	UNION; AIR PIPE V TYPE ENG<91L> M12	1-09654-087-1	01	1	9603-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	9603-
249	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9603-
284	NUT; UNION M12	9-99111-412-0	01	1	9603-
291	NUT; UNION M12	9-09840-280-0	01	1	9603-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	9603-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	9603-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9603-9904
304	BRACKET; UNION DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	9603-9904
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9603-9904
304	BRACKET; UNION ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9905-9912
304	BRACKET; UNION DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	9905-9912
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9905-9912
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0001-
304	BRACKET; UNION ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	0001-
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	0001-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-436-0	01	1	9603-9704
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	9705-
328	UNION; AIR PIPE (A) M12 2WAY	1-09654-059-2	01	1	9603-
328	UNION; AIR PIPE EXC. AIR DRYER<PS7> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-
345	UNION; AIR PIPE (A)	1-09654-280-1	01	1	9603-
345	UNION; AIR PIPE BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9905-9907
374	CONNECTOR BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9907
374	CONNECTOR ISUZU M/T<X9A> (B) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9603-9611
374	CONNECTOR ISUZU M/T<X9A> (B) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0007-
374	CONNECTOR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9603-9702
374	CONNECTOR ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9603-9702
374	CONNECTOR ZF M/T<X9E> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9703-9904
374	CONNECTOR ZF M/T<X9E> (A) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9905-
374	CONNECTOR ZF M/T<X9E> (C)	1-09654-203-1	01	1	9603-9611
374	CONNECTOR ZF M/T<X9E> (C)	1-09654-203-1	01	1	0007-
376	PIPE; AIR,FLEX HOSE ISUZU M/T<X9A> L=639	1-49112-566-0	01	1	9603-
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E>	1-49116-862-0	01	1	9603-9608
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E> L=552	1-49117-764-0	01	1	9609-
377	BOLT; BRKT FIX M8X30 FLANGE	0-28080-830-0	02	1	9603-9606
377	BOLT; BRKT FIX M8X35 FLANGE	0-28680-835-0	02	1	9607-
377	BOLT; BRKT FIX ZF M/T<X9E> M12X16	0-28181-216-0	01	1	9603-
421	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9603-9606
421	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-9704
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9705-
421	NUT; BRKT ZF M/T<X9E> M16X35 FLANGE	0-28881-635-0	02	1	9603-9704
428	NUT; BRKT M8	9-09110-508-0	02	1	9603-9605
428	NUT; BRKT M8	9-09110-508-0	02	1	9603-9605
428	NUT; BRKT M8	9-09110-508-0	02	1	9606-9606
428	NUT; BRKT V TYPE ENG<91L> M8	9-09110-508-0	02	1	9606-9606
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-
428	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9607-

296 80 175 258 305 444 80 202 374 80 258 145 305 258 369 32 258 258 120 345 434 231 445 297 367 336 444 32 259 336 444 336 444 336 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	SLEEVE; RUBBER,AIR PIPE (A) ID=12.5 OD=15.5 L=30	9-09714-002-0	02	1	9603-0104
32	SLEEVE; RUBBER,AIR PIPE L TYPE ENG<90L> (B) ID=6 L=30	5-09360-352-0	01	1	9603-9609
32	SLEEVE; RUBBER,AIR PIPE V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (B) ID=6 L=30	5-09360-352-0	01	1	9603-9609
32	SLEEVE; RUBBER,AIR PIPE V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (B) ID=6 L=30	5-09360-352-0	01	1	9610-9910
32	SLEEVE; RUBBER,AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 L=30	5-09360-352-0	01	1	9610-9910
32	SLEEVE; RUBBER,AIR PIPE V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (B) ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-0001
32	SLEEVE; RUBBER,AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 OD=10 L=70	1-09376-512-0	01	1	9911-0001
32	SLEEVE; RUBBER,AIR PIPE V TYPE ENG<91L> (B) ID=6 OD=10 L=70	1-09376-512-0	01	1	0002-
32	SLEEVE; RUBBER,AIR PIPE L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 OD=10 L=70	1-09376-512-0	01	1	0002-
80	UNION; 3 WAY PTO ZF TRANS RR(BDM) (B)	1-09660-757-0	01	1	9603-9904
80	UNION; 3 WAY (B)	1-09660-757-0	01	1	9603-9904
80	UNION; 3 WAY PTO ZF TRANS RR(BDM) (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	9905-
80	UNION; 3 WAY (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	9905-
80	UNION; 3 WAY ZF M/T<X9E> (A) DIN8 RC1/4 & M8	1-09660-735-1	01	1	9603-9904
80	UNION; 3 WAY ZF M/T<X9E> (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9905-
120	CONNECTOR; AIR PIPE EXC. FULL FLOATING CAB<W16> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9904
120	CONNECTOR; AIR PIPE EXC. FULL FLOATING CAB<W16> DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-
145	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E>	1-09660-933-0	01	1	9603-9608
145	UNION; NYLON TUBE ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2>	1-09660-933-0	01	1	9603-9608
175	CONNECTOR; AIR PIPE (A)	1-09650-070-3	01	1	9603-
175	CONNECTOR; AIR PIPE (B) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	9603-9904
175	CONNECTOR; AIR PIPE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9905-
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A> (C) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9904
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
202	ADAPTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9702
202	ADAPTER ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9702
202	ADAPTER DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-9702
202	ADAPTER ZF M/T<X9E> DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9703-9904
202	ADAPTER DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9703-9904
202	ADAPTER ZF M/T<X9E> DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-0007
202	ADAPTER DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-0007
202	ADAPTER ZF M/T<X9E> DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
202	ADAPTER DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (A) M10 ELBOW	1-09654-186-2	01	1	9603-
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (C) M10 STRAIGHT	1-09654-361-0	01	1	9603-
231	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-347-0	01	1	9603-
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B)	1-09656-713-2	01	1	9603-9904
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09656-713-2	01	1	9603-9904
231	UNION; AIR PIPE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B)	1-09656-713-2	01	1	9905-9912
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09656-713-2	01	1	9905-9912
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09656-713-2	01	1	0001-
231	UNION; AIR PIPE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B)	1-09656-713-2	01	1	0001-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9904
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9702
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9702
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9703-9904
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9603-9904
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9905-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9608
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9608
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H)	1-09660-796-0	01	1	9603-9904
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H)	1-09660-796-0	01	1	9603-9904
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H)	1-09660-796-0	01	1	9603-9904
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H)	1-09660-796-0	01	1	9905-9912
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H)	1-09660-796-0	01	1	9905-9912
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H)	1-09660-796-0	01	1	9905-9912
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H)	1-09660-796-1	01	1	0001-
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H)	1-09660-796-1	01	1	0001-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H)	1-09660-796-1	01	1	0001-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. ZF M/T<X9E> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. ZF M/T<X9E> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2>,ZF M/T<X9E> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904
258	CONNECTOR; NYLON TUBE (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
258	CONNECTOR; NYLON TUBE (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9608
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9609-9702
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9609-9702
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9609-9702
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9609-9702
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9703-9904
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9703-9904
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (F) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9603-9811
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (F) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9912
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> ID=23 OD=27 L=40	1-09337-015-0	02	1	9603-
296	TUBE; NYLON AIR DRYER<PS7> (A) SERVICED BY L=2000 OD=12	1-87410-069-0	05	1	9603-
296	TUBE; NYLON AIR DRYER<PS7> (C) L=260 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9603-9904
296	TUBE; NYLON AIR DRYER<PS7> (C) L=260 SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9905-
296	TUBE; NYLON EXC. AIR DRYER<PS7> (A) SERVICED BY L=2000 OD=12	1-87410-069-0	04	1	9603-
296	TUBE; NYLON CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	9603-9912
296	TUBE; NYLON CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0001-
296	TUBE; NYLON BRAKE REGULATION HONG KONG<TCZ> (B) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0001-
296	TUBE; NYLON PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9603-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9603-9904
296	TUBE; NYLON ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9905-0001
296	TUBE; NYLON ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) L=1200 OD=6	1-09366-256-1	01	1	0002-
296	TUBE; NYLON TRANSMISSION-ZF 8S151 OD(Y3N) (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-
296	TUBE; NYLON ZF M/T<X9E> (D) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9603-9910
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9603-9910
296	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (D) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9911-
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9911-
296	TUBE; NYLON ZF M/T<X9E> (D) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	9603-9912
296	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0001-
296	TUBE; NYLON ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0001-
296	TUBE; NYLON EXC. DUAL AIR GAUGE<UG2> (D) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0001-
297	TUBE; NYLON DUAL AIR GAUGE<UG2> SERVICED BY L=2000 OD=6	1-87410-081-0	02	1	9603-
297	TUBE; NYLON FULL FLOATING CAB<W16> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9603-
305	UNION ASM; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM)	1-09660-771-1	01	1	9603-9904
305	UNION ASM; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2>	1-09661-128-0	01	1	9905-9907
305	UNION ASM; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM)	1-09661-128-0	01	1	9908-
336	BOLT; PIPE UNION M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
336	BOLT; PIPE UNION M8X20 FLANGE	0-28680-820-0	01	1	9607-
345	UNION; AIR PIPE (A)	1-09654-280-1	01	1	9603-
345	UNION; AIR PIPE BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (B) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9905-9907
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9603-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9603-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9603-
369	UNION; AIR PIPE ISUZU M/T<X9A> DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9603-9904
369	UNION; AIR PIPE ISUZU M/T<X9A> DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9905-
374	CONNECTOR BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9907
374	CONNECTOR ISUZU M/T<X9A> (B) M20 & M22 STRAIGHT	1-09654-166-1	01	1	9603-9611
374	CONNECTOR ISUZU M/T<X9A> (B) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0007-
374	CONNECTOR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9603-9702
374	CONNECTOR ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9603-9702
374	CONNECTOR ZF M/T<X9E> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9703-9904
374	CONNECTOR ZF M/T<X9E> (A) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	9905-
374	CONNECTOR ZF M/T<X9E> (C)	1-09654-203-1	01	1	9603-9611
374	CONNECTOR ZF M/T<X9E> (C)	1-09654-203-1	01	1	0007-
434	CLIP DUAL AIR GAUGE<UG2> (D) ID=10 & 10	1-09709-221-0	01	1	9812-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	9603-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	01	1	9603-
434	CLIP L TYPE ENG<90L> (C) L=300	1-09707-001-0	01	1	9603-9609
434	CLIP V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (C) L=300	1-09707-001-0	01	1	9603-9609
434	CLIP V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (C) L=300	1-09707-001-1	01	1	9610-0001
434	CLIP L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=300	1-09707-001-1	01	1	9610-0001
434	CLIP V TYPE ENG<91L> (C) L=300	1-09707-001-1	01	1	0002-
434	CLIP L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=300	1-09707-001-1	01	1	0002-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9603-9904
434	CLIP DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9603-9904
434	CLIP EXC. DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9603-9904
434	CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9905-9912
434	CLIP DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9905-9912
434	CLIP EXC. DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9905-9912
434	CLIP TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-
434	CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-
444	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	9603-9606
444	BOLT; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> M8X25 FLANGE	0-28080-825-0	01	1	9603-9606
444	BOLT; UNION ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28080-825-0	01	1	9603-9606
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	9607-0005
444	BOLT; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	9607-0005
444	BOLT; UNION ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28680-825-0	01	1	9607-0005
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	0006-
444	BOLT; UNION ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	0006-
444	BOLT; UNION ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> M8X25 FLANGE	0-28680-825-0	01	1	0006-
445	GUARD SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=800	1-83129-031-1	01	1	9603-9904
445	GUARD ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=800	1-83129-031-1	01	1	9905-

217 224 21 217 1 177 1 376 262 21 177 1 217 287 33 237 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> ISUZU M/T<X9A> L TYPE ENG<90L>	0-07847-360-1	01	1	9609-9609
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> ISUZU M/T<X9A> L TYPE ENG<90L>	0-07846-360-1	01	1	9610-
1	HOSE; FLEX,AIR TANK AIR DRYER<PS7> ZF M/T<X9E> L TYPE ENG<90L> L=400	0-07846-400-1	01	1	9603-
1	HOSE; FLEX,AIR TANK L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=490	0-07846-490-1	01	1	9603-
1	HOSE; FLEX,AIR TANK V TYPE ENG<91L> L=530	0-07846-530-1	01	1	9603-9609
1	HOSE; FLEX,AIR TANK V TYPE ENG<91L> EXC. ZF M/T<X9E> L=530	0-07846-530-1	01	1	9610-9906
1	HOSE; FLEX,AIR TANK V TYPE ENG<91L> L=530	0-07846-530-1	01	1	9907-
1	HOSE; FLEX,AIR TANK ZF M/T<X9E> V TYPE ENG<91L> EXC. AIR DRYER<PS7> L=630	0-07846-630-1	01	1	9610-9709
1	HOSE; FLEX,AIR TANK ZF M/T<X9E> V TYPE ENG<91L> L=630	0-07846-630-1	01	1	9710-9906
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49116-141-0	01	1	9603-9709
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> L TYPE ENG<90L>	1-49116-141-0	01	1	9710-9906
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> V TYPE ENG<91L> EXC. ZF M/T<X9E>	1-49116-141-0	01	1	9710-9906
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49116-141-0	01	1	9907-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> ZF M/T<X9E> V TYPE ENG<91L>	1-49118-840-0	01	1	9710-9906
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49116-788-0	01	1	9603-9606
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49117-526-0	01	1	9607-9912
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49122-443-0	01	1	0001-
177	PIPE; AIR,UNION TO UNION L=568 SERVICED BY L=600	1-47428-809-0	01	1	9603-9908
177	PIPE; AIR,UNION TO UNION L=548	1-49122-243-0	01	1	9909-
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> (A) L=1670 SERVICED BY L=1700	1-47426-357-0	01	1	9603-9609
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (A) L=1670 SERVICED BY L=1700	1-47426-357-0	01	1	9610-9701
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. EURO2 SPECIFICATION<THN> (A) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9702-9904
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-N(54L),6WA1 TC-R(93L) (A) L=1663 SERVICED BY L=1700	1-47428-821-0	01	1	9905-9909
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-N(54L),6WA1 TC-R(93L) (A) L=666	1-49121-249-0	01	1	9910-9910
217	PIPE; VAC,UNION TO MAG VLV 6WA1 TC-N(54L),6WA1 TC-R(93L) (A) L=1643	1-49122-249-0	01	1	9911-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=748 SERVICED BY L=800	1-47428-812-0	01	1	9603-9702
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=752 SERVICED BY L=800	1-47428-812-0	01	1	9703-9904
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (B) L=620	1-49121-778-0	01	1	9905-
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=336	1-47499-145-0	01	1	9603-9904
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=572 SERVICED BY L=600	1-47428-809-0	01	1	9905-9905
217	PIPE; VAC,UNION TO MAG VLV V TYPE ENG<91L> (A) L=552	1-49121-876-0	01	1	9905-
224	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=480 SERVICED BY L=500	1-47428-807-0	01	1	9603-9702
224	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=494 SERVICED BY L=500	1-47428-807-0	01	1	9703-
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373	1-49116-157-1	01	1	9603-9609
237	PIPE; AIR,FLEX HOSE TO UNION ZF M/T<X9E> V TYPE ENG<91L> EXC. AIR DRYER<PS7> L=373	1-49116-157-1	01	1	9610-9906
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373	1-49116-157-1	01	1	9610-9906
237	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=373	1-49116-157-1	01	1	9907-
237	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. AIR DRYER<PS7> L=495	1-49117-170-0	01	1	9603-9609
237	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. AIR DRYER<PS7>,ZF M/T<X9E> L=495	1-49117-170-0	01	1	9610-9906
237	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. AIR DRYER<PS7> L=495	1-49117-170-0	01	1	9907-
262	PIPE; AIR,UNION TO FLEX 6WA1 TC-S(56L) L=871	1-49114-257-0	01	1	9603-9810
262	PIPE; AIR,UNION TO FLEX 6WA1 TC-C(55L),6WA1 TC-S(56L) L=871	1-49114-257-0	01	1	9811-9904
262	PIPE; AIR,UNION TO FLEX L TYPE ENG<90L> L=896	1-49121-787-0	01	1	9905-
287	PIPE; AIR,MAG VLV 6WA1 TC-C(55L) L=1220	1-49121-788-0	01	1	9905-
376	PIPE; AIR,FLEX HOSE ISUZU M/T<X9A> L=639	1-49112-566-0	01	1	9603-
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E>	1-49116-862-0	01	1	9603-9608
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E> L=552	1-49117-764-0	01	1	9609-

258 286 296 148 231 231 375 233 337 232 434 337 375 304 232 434 330 343 334 221 296 286 296 258 273 335 231 375 337 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
148	CONNECTOR; UNION ZF M/T<X9E>	8-94338-417-0	01	1	9603-9912
148	CONNECTOR; UNION TRANSMISSION-ZF 16S151 OD(Y2N)	8-94338-417-0	01	1	0001-
221	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28080-830-0	01	1	9603-9606
221	BOLT; BRKT EXC. AIR DRYER<PS7> M8X35 FLANGE	0-28680-835-0	01	1	9607-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9904
221	BOLT; BRKT DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9904
221	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-9904
221	BOLT; BRKT ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-9912
221	BOLT; BRKT DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-9912
221	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-9912
221	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0001-
221	BOLT; BRKT ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0001-
221	BOLT; BRKT EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0001-
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (A) M10 ELBOW	1-09654-186-2	01	1	9603-
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (C) M10 STRAIGHT	1-09654-361-0	01	1	9603-
231	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> (A)	1-09654-347-0	01	1	9603-
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B)	1-09656-713-2	01	1	9603-9904
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09656-713-2	01	1	9603-9904
231	UNION; AIR PIPE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B)	1-09656-713-2	01	1	9905-9912
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09656-713-2	01	1	9905-9912
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09656-713-2	01	1	0001-
231	UNION; AIR PIPE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (B)	1-09656-713-2	01	1	0001-
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	9603-
232	NUT; UNION,AIR PIPE ZF M/T<X9E> M10 H=8	1-09400-029-0	01	1	9603-9912
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0001-
232	NUT; UNION,AIR PIPE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0001-
232	NUT; UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0001-
233	WASHER; LK,UNION,AIR PIPE ZF M/T<X9E> ID=10.2	9-09150-510-0	01	1	9603-9912
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0001-
233	WASHER; LK,UNION,AIR PIPE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0001-
233	WASHER; LK,UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0001-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9904
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9702
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9702
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9703-9904
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9603-9904
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9905-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9608
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9608
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H)	1-09660-796-0	01	1	9603-9904
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H)	1-09660-796-0	01	1	9603-9904
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H)	1-09660-796-0	01	1	9603-9904
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H)	1-09660-796-0	01	1	9905-9912
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H)	1-09660-796-0	01	1	9905-9912
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H)	1-09660-796-0	01	1	9905-9912
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H)	1-09660-796-1	01	1	0001-
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H)	1-09660-796-1	01	1	0001-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H)	1-09660-796-1	01	1	0001-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. ZF M/T<X9E> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. ZF M/T<X9E> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2>,ZF M/T<X9E> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904
258	CONNECTOR; NYLON TUBE (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
258	CONNECTOR; NYLON TUBE (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9608
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9609-9702
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9609-9702
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9609-9702
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9609-9702
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9703-9904
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9703-9904
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (F) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9603-9811
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (F) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9912
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09332-102-0	01	1	9603-9904
273	GROMMET DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09332-102-0	01	1	9603-9904
273	GROMMET EXC. DUAL AIR GAUGE<UG2>	1-09332-102-0	01	1	9603-9904
273	GROMMET ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09332-102-0	01	1	9905-9912
273	GROMMET DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09332-102-0	01	1	9905-9912
273	GROMMET EXC. DUAL AIR GAUGE<UG2>	1-09332-102-0	01	1	9905-9912
273	GROMMET TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09332-102-0	01	1	0001-
273	GROMMET ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09332-102-0	01	1	0001-
273	GROMMET EXC. DUAL AIR GAUGE<UG2>	1-09332-102-0	01	1	0001-
286	PLUG; AIR PIPE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	9603-9904
286	PLUG; AIR PIPE EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	9905-
296	TUBE; NYLON AIR DRYER<PS7> (A) SERVICED BY L=2000 OD=12	1-87410-069-0	05	1	9603-
296	TUBE; NYLON AIR DRYER<PS7> (C) L=260 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9603-9904
296	TUBE; NYLON AIR DRYER<PS7> (C) L=260 SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9905-
296	TUBE; NYLON EXC. AIR DRYER<PS7> (A) SERVICED BY L=2000 OD=12	1-87410-069-0	04	1	9603-
296	TUBE; NYLON CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	9603-9912
296	TUBE; NYLON CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0001-
296	TUBE; NYLON BRAKE REGULATION HONG KONG<TCZ> (B) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0001-
296	TUBE; NYLON PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9603-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9603-9904
296	TUBE; NYLON ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9905-0001
296	TUBE; NYLON ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) L=1200 OD=6	1-09366-256-1	01	1	0002-
296	TUBE; NYLON TRANSMISSION-ZF 8S151 OD(Y3N) (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-
296	TUBE; NYLON ZF M/T<X9E> (D) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9603-9910
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9603-9910
296	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (D) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9911-
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9911-
296	TUBE; NYLON ZF M/T<X9E> (D) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	9603-9912
296	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0001-
296	TUBE; NYLON ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0001-
296	TUBE; NYLON EXC. DUAL AIR GAUGE<UG2> (D) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0001-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	9603-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	9603-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9603-9904
304	BRACKET; UNION DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	9603-9904
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9603-9904
304	BRACKET; UNION ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9905-9912
304	BRACKET; UNION DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	9905-9912
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	9905-9912
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0001-
304	BRACKET; UNION ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	0001-
304	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (A)	1-71117-210-0	01	1	0001-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-436-0	01	1	9603-9704
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	9705-
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	9905-
334	SPACER; PIPE UNION DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9605-
335	SEAL; UNION DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	9603-9904
335	SEAL; UNION DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	9905-9912
335	SEAL; UNION TRANSMISSION-ZF 8S151 OD(Y3N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0001-
335	SEAL; UNION DUAL AIR GAUGE<UG2> ISUZU M/T<X9A> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0001-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9603-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	01	1	9603-
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2>	1-09660-796-1	02	1	9603-
343	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09660-796-0	01	1	9603-9904
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-0	01	1	9603-9904
343	UNION; NYLON TUBE EXC. DUAL AIR GAUGE<UG2>	1-09660-796-0	01	1	9603-9904
343	UNION; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09660-796-0	01	1	9905-9912
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-0	01	1	9905-9912
343	UNION; NYLON TUBE EXC. DUAL AIR GAUGE<UG2>	1-09660-796-0	01	1	9905-9912
343	UNION; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-1	01	1	0001-
343	UNION; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09660-796-1	01	1	0001-
343	UNION; NYLON TUBE EXC. DUAL AIR GAUGE<UG2>	1-09660-796-1	01	1	0001-
375	GASKET ZF M/T<X9E> ID=11 OD=18	9-09572-510-0	01	1	9603-9811
434	CLIP DUAL AIR GAUGE<UG2> (D) ID=10 & 10	1-09709-221-0	01	1	9812-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=17	1-09987-105-1	01	1	9603-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B)	8-94297-486-0	01	1	9603-
434	CLIP L TYPE ENG<90L> (C) L=300	1-09707-001-0	01	1	9603-9609
434	CLIP V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (C) L=300	1-09707-001-0	01	1	9603-9609
434	CLIP V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) (C) L=300	1-09707-001-1	01	1	9610-0001
434	CLIP L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=300	1-09707-001-1	01	1	9610-0001
434	CLIP V TYPE ENG<91L> (C) L=300	1-09707-001-1	01	1	0002-
434	CLIP L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (C) L=300	1-09707-001-1	01	1	0002-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9603-9904
434	CLIP DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9603-9904
434	CLIP EXC. DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9603-9904
434	CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9905-9912
434	CLIP DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9905-9912
434	CLIP EXC. DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	9905-9912
434	CLIP TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-
434	CLIP ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (D) ID=8.3 & 8.3	8-94426-175-0	03	1	0001-

367 296 296 296 367 367 296 296 258 322 323 456 321 88 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	GASKET; NYLON TUBE ASSISTER SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	01	1	9603-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9603-9904
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-0007
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9702
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9603-9702
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9703-9904
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9603-9904
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	9905-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9608
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (G) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9608
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H)	1-09660-796-0	01	1	9603-9904
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H)	1-09660-796-0	01	1	9603-9904
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H)	1-09660-796-0	01	1	9603-9904
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H)	1-09660-796-0	01	1	9905-9912
258	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2> ZF M/T<X9E> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H)	1-09660-796-0	01	1	9905-9912
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H)	1-09660-796-0	01	1	9905-9912
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H)	1-09660-796-1	01	1	0001-
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H)	1-09660-796-1	01	1	0001-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H)	1-09660-796-1	01	1	0001-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. ZF M/T<X9E> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> EXC. ZF M/T<X9E> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2>,ZF M/T<X9E> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9603-9904
258	CONNECTOR; NYLON TUBE (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
258	CONNECTOR; NYLON TUBE (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9608
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9609-9702
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9609-9702
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9609-9702
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. DUAL AIR GAUGE<UG2> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9609-9702
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9703-9904
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9703-9904
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (F) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9603-9811
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> (F) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-9912
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (H) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
258	CONNECTOR; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
258	CONNECTOR; NYLON TUBE EXC. DUAL AIR GAUGE<UG2> (H) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
296	TUBE; NYLON AIR DRYER<PS7> (A) SERVICED BY L=2000 OD=12	1-87410-069-0	05	1	9603-
296	TUBE; NYLON AIR DRYER<PS7> (C) L=260 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9603-9904
296	TUBE; NYLON AIR DRYER<PS7> (C) L=260 SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	9905-
296	TUBE; NYLON EXC. AIR DRYER<PS7> (A) SERVICED BY L=2000 OD=12	1-87410-069-0	04	1	9603-
296	TUBE; NYLON CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	9603-9912
296	TUBE; NYLON CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0001-
296	TUBE; NYLON BRAKE REGULATION HONG KONG<TCZ> (B) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0001-
296	TUBE; NYLON PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9603-
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9603-9904
296	TUBE; NYLON ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9905-0001
296	TUBE; NYLON ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) L=1200 OD=6	1-09366-256-1	01	1	0002-
296	TUBE; NYLON TRANSMISSION-ZF 8S151 OD(Y3N) (C) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9911-
296	TUBE; NYLON ZF M/T<X9E> (D) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9603-9910
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9603-9910
296	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) (D) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9911-
296	TUBE; NYLON (D) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9911-
296	TUBE; NYLON ZF M/T<X9E> (D) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	9603-9912
296	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0001-
296	TUBE; NYLON ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (D) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0001-
296	TUBE; NYLON EXC. DUAL AIR GAUGE<UG2> (D) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0001-
321	JOINT; FLEX HOSE ZF M/T<X9E>	1-09654-362-1	01	1	9603-9811
321	JOINT; FLEX HOSE ZF M/T<X9E>	1-09656-738-0	01	1	9812-9912
321	JOINT; FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-738-0	01	1	0001-
321	JOINT; FLEX HOSE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0001-
321	JOINT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>	1-09656-738-0	01	1	0001-
322	NUT; JOINT,FLEX HOSE ZF M/T<X9E> M10 H=8	1-09400-029-0	01	1	9603-9912
322	NUT; JOINT,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0001-
322	NUT; JOINT,FLEX HOSE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0001-
322	NUT; JOINT,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	0001-
323	WASHER; LK,JOINT ZF M/T<X9E> ID=10.2	9-09150-510-0	01	1	9603-9912
323	WASHER; LK,JOINT TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0001-
323	WASHER; LK,JOINT ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0001-
323	WASHER; LK,JOINT EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	0001-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	9603-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9603-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9603-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9603-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9603-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9603-
456	SEAL; NYLON TUBE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40	1-72498-022-0	01	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
