8-71 — COMPRESSOR; AIR CONDITIONING (#56042) — 67 parça

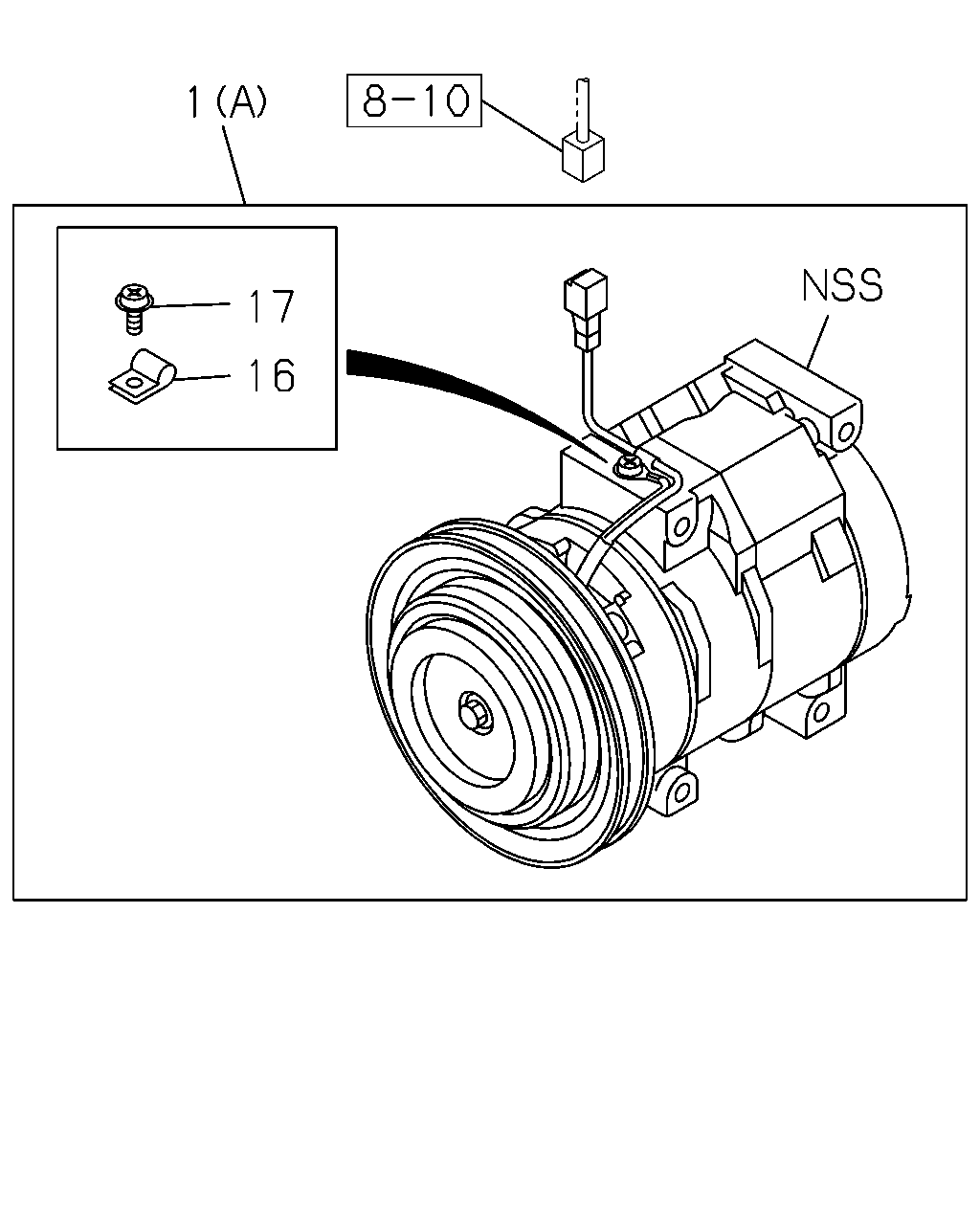

1 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; A/C 4HK1-TCS ENG(RJS) (B)	1-83532-326-1	01	1	1012-1306	●
1	COMPRESSOR ASM; A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83532-326-1	01	1	1307-	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83532-328-0	01	1	1001-1011	●	●
1	COMPRESSOR ASM; A/C 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83532-328-0	01	1	1012-1105	●
1	COMPRESSOR ASM; A/C (A)	1-83532-328-0	01	1	1012-1105		●
1	COMPRESSOR ASM; A/C 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83532-328-0	01	1	1106-1108	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-83532-328-0	01	1	1106-1108		●
1	COMPRESSOR ASM; A/C 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83532-328-0	01	1	1109-1201	●
1	COMPRESSOR ASM; A/C (A)	1-83532-328-0	01	1	1109-1201		●
1	COMPRESSOR ASM; A/C 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83532-328-0	01	1	1202-	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83532-328-0	01	1	1202-		●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1001-1011	●	●
16	CLIP; WIRE,MAGNET CLU 4HK1-TCS ENG(RJS)	1-83579-893-0	01	1	1012-1105	●
16	CLIP; WIRE,MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1012-1105	●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1012-1105		●
16	CLIP; WIRE,MAGNET CLU 4HK1-TCS ENG(RJS)	1-83579-893-0	01	1	1106-1108	●
16	CLIP; WIRE,MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1106-1108	●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-83579-893-0	01	1	1106-1108		●
16	CLIP; WIRE,MAGNET CLU 4HK1-TCS ENG(RJS)	1-83579-893-0	01	1	1109-1311	●
16	CLIP; WIRE,MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1109-1311	●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1109-1311		●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1312-	●	●
17	SCREW; WIRE CLIP MAGNET CLU 4HK1-TCS ENG(RJS)	5-81129-130-0	02	1	1012-1306	●
17	SCREW; WIRE CLIP MAGNET CLU 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	02	1	1307-	●
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	1001-1011	●	●
17	SCREW; WIRE CLIP MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	1012-1105	●
17	SCREW; WIRE CLIP MAGNET CLU	5-81129-130-0	01	1	1012-1105		●
17	SCREW; WIRE CLIP MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	1106-1108	●
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	5-81129-130-0	01	1	1106-1108		●
17	SCREW; WIRE CLIP MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	1109-1201	●
17	SCREW; WIRE CLIP MAGNET CLU	5-81129-130-0	01	1	1109-1201		●
17	SCREW; WIRE CLIP MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	1202-	●
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	1202-		●

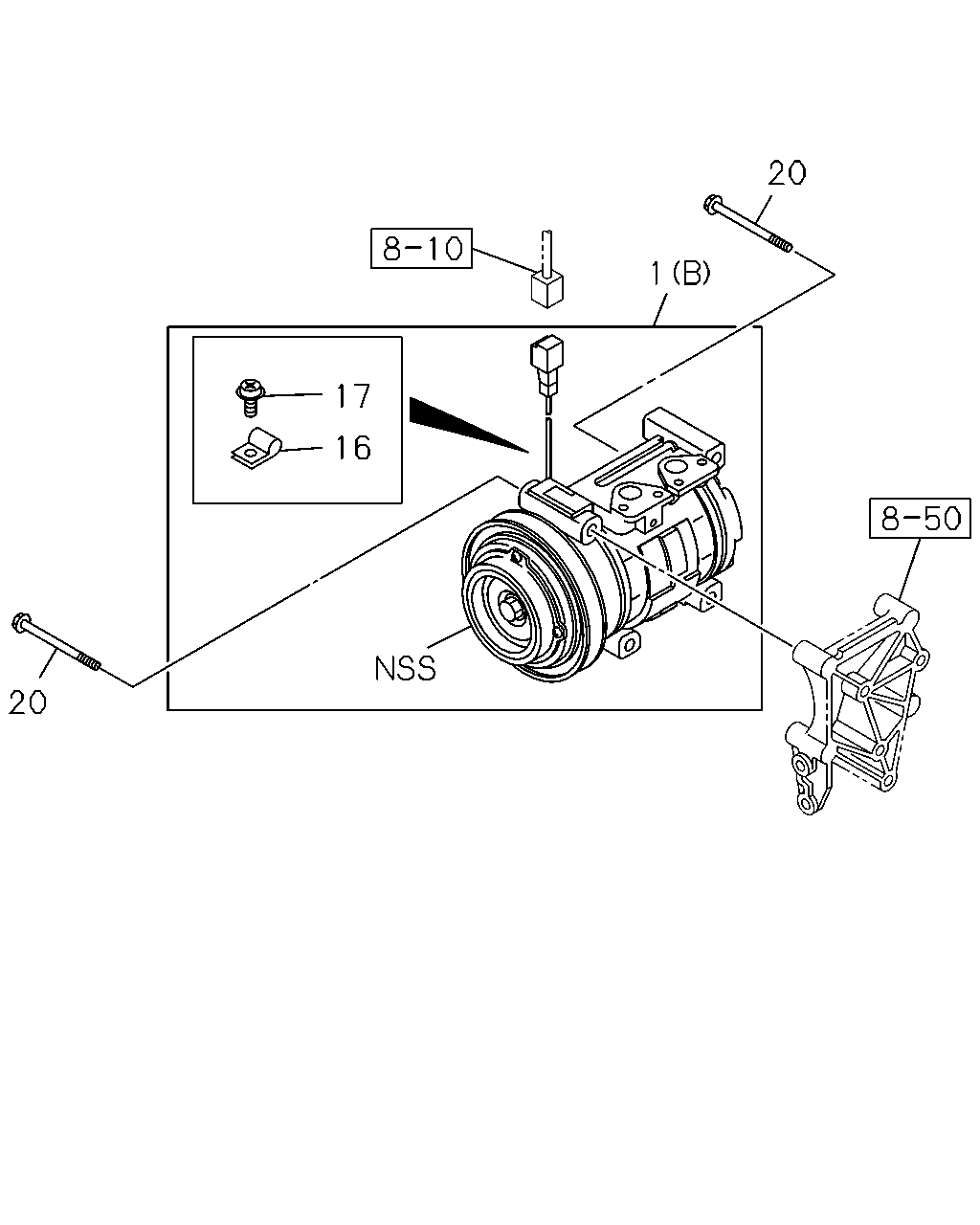

20 1 17 16 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; A/C 4HK1-TCS ENG(RJS) (B)	1-83532-326-1	01	1	1012-1306	●
1	COMPRESSOR ASM; A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83532-326-1	01	1	1307-	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83532-328-0	01	1	1001-1011	●	●
1	COMPRESSOR ASM; A/C 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83532-328-0	01	1	1012-1105	●
1	COMPRESSOR ASM; A/C (A)	1-83532-328-0	01	1	1012-1105		●
1	COMPRESSOR ASM; A/C 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83532-328-0	01	1	1106-1108	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-83532-328-0	01	1	1106-1108		●
1	COMPRESSOR ASM; A/C 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83532-328-0	01	1	1109-1201	●
1	COMPRESSOR ASM; A/C (A)	1-83532-328-0	01	1	1109-1201		●
1	COMPRESSOR ASM; A/C 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83532-328-0	01	1	1202-	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83532-328-0	01	1	1202-		●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1001-1011	●	●
16	CLIP; WIRE,MAGNET CLU 4HK1-TCS ENG(RJS)	1-83579-893-0	01	1	1012-1105	●
16	CLIP; WIRE,MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1012-1105	●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1012-1105		●
16	CLIP; WIRE,MAGNET CLU 4HK1-TCS ENG(RJS)	1-83579-893-0	01	1	1106-1108	●
16	CLIP; WIRE,MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1106-1108	●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-83579-893-0	01	1	1106-1108		●
16	CLIP; WIRE,MAGNET CLU 4HK1-TCS ENG(RJS)	1-83579-893-0	01	1	1109-1311	●
16	CLIP; WIRE,MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1109-1311	●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1109-1311		●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-893-0	01	1	1312-	●	●
17	SCREW; WIRE CLIP MAGNET CLU 4HK1-TCS ENG(RJS)	5-81129-130-0	02	1	1012-1306	●
17	SCREW; WIRE CLIP MAGNET CLU 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	02	1	1307-	●
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	1001-1011	●	●
17	SCREW; WIRE CLIP MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	1012-1105	●
17	SCREW; WIRE CLIP MAGNET CLU	5-81129-130-0	01	1	1012-1105		●
17	SCREW; WIRE CLIP MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	1106-1108	●
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	5-81129-130-0	01	1	1106-1108		●
17	SCREW; WIRE CLIP MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	1109-1201	●
17	SCREW; WIRE CLIP MAGNET CLU	5-81129-130-0	01	1	1109-1201		●
17	SCREW; WIRE CLIP MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	1202-	●
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60)	5-81129-130-0	01	1	1202-		●
20	BOLT; CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) M8X75 FLANGE	1-09044-073-0	04	1	1012-	●
