Isuzu WW
▶
TRUCKS
▶
FSR
▶
11161 - FSR(SOUTH AFRICA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#56035) — 65 parça
Tümü
A - FCR5WS
B - FCR5MS
◀
[828A08] (6 parça)

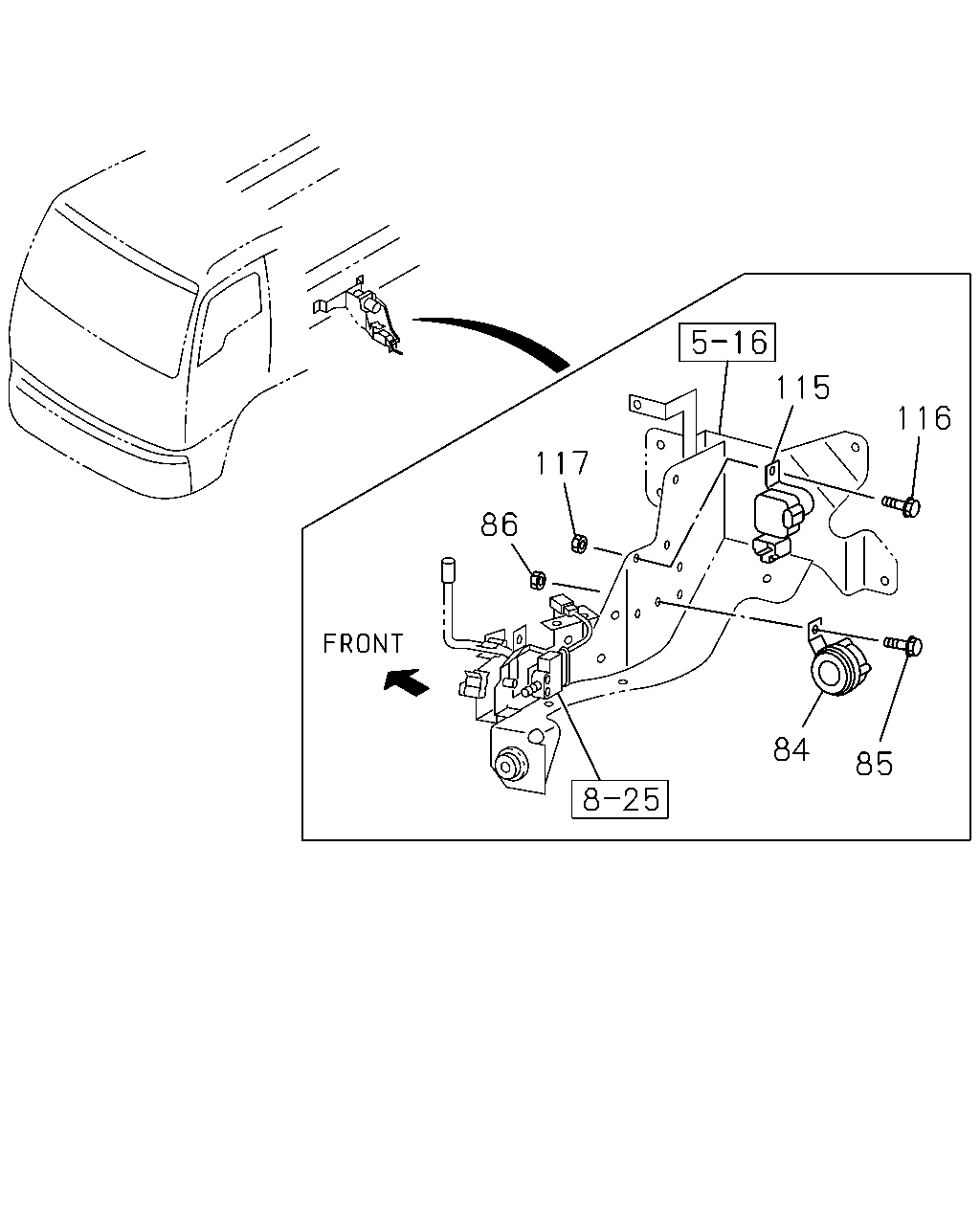

[828A] FRONT SIDE NO.3 (12 parça)

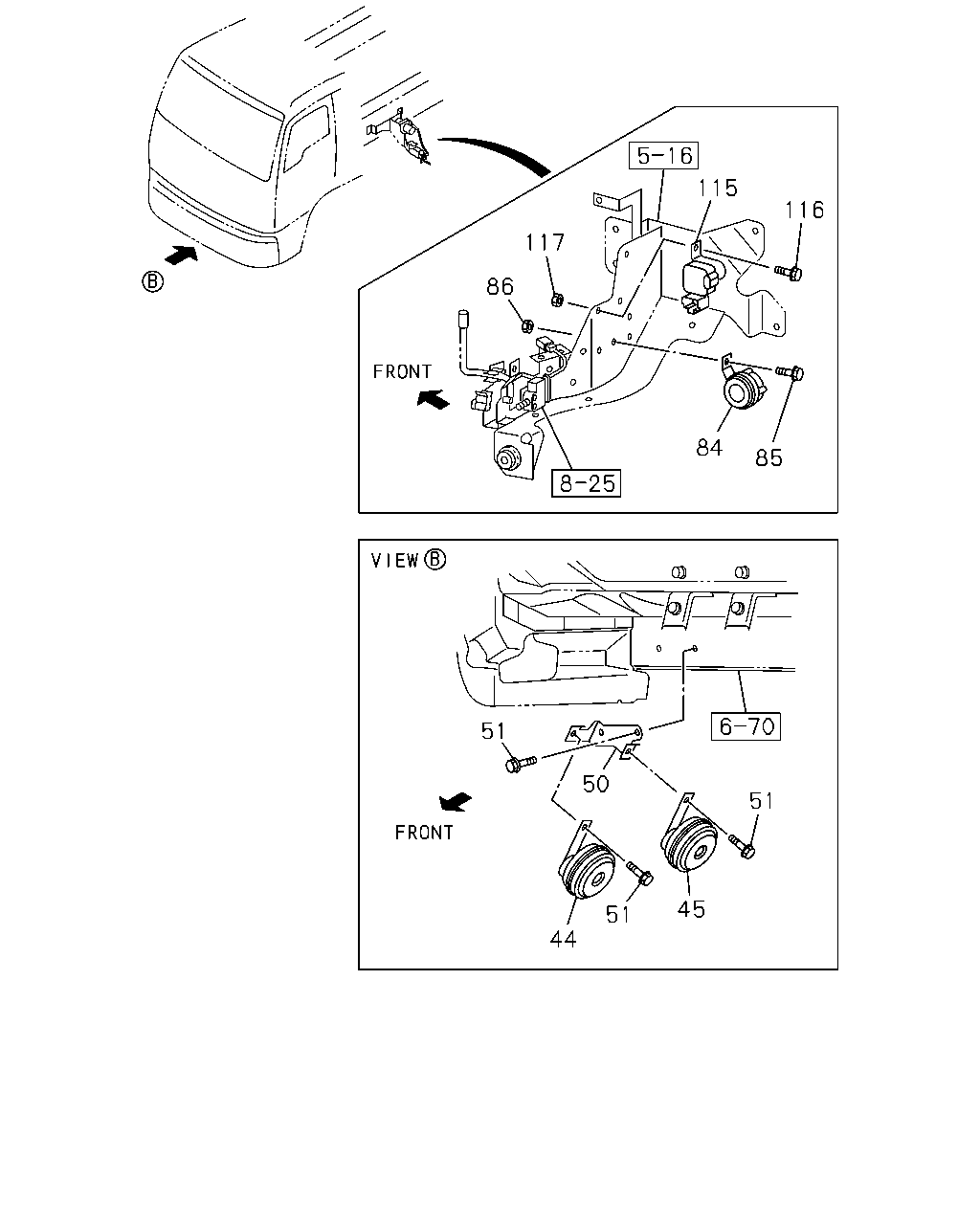

[828A] FRONT SIDE NO.1 (14 parça)
[828A] FRONT SIDE NO.2 (9 parça)
[828A] RELAY:FRAME HARNESS (2 parça)

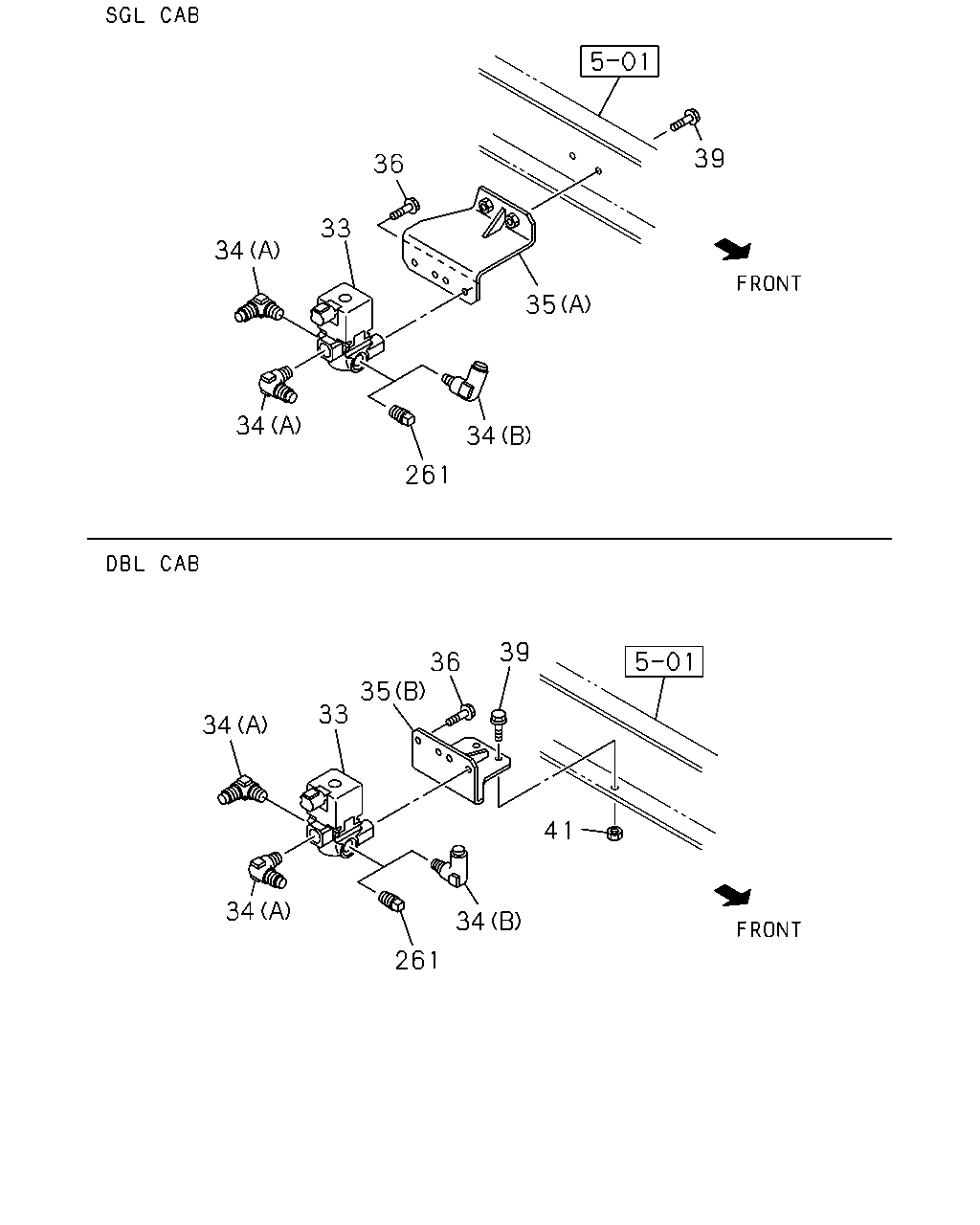

[828A] VALVE;PTO (12 parça)
[828A] VALVE;ASR (9 parça)
[828A] RELAY;CAB HARNESS (1 parça)
▶
115
116
117
86
84
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
84
BUZZER; POWER CAB TILT
METRO DENSO
8-98069-860-0
01
1
1001-
●
85
BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE
0-28650-820-0
01
1
1001-
●
86
NUT; BUZZER
M8 FLANGE SOU
0-91180-108-0
01
1
1001-
●
115
RELAY; POWER CAB TILT UNIT
24V NIKKO
8-98005-631-1
01
1
1001-
●
116
BOLT; RELAY FIX
M8X20 FLANGE
0-28650-820-0
02
1
1001-
●
117
NUT; RELAY FIX
M8 FLANGE SOU
0-91180-108-0
02
1
1001-
●
115
116
117
86
84
85
51
50
51
45
51
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
44
HORN; HIGH NOTE
8-98022-022-0
01
1
1001-
●
●
45
HORN; LOW NOTE
8-98022-023-0
01
1
1001-
●
●
50
BRACKET; HORN
8-97613-300-2
01
1
1001-
●
●
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER SOU
8-97086-825-0
04
1
1001-1001
●
●
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER SOU
8-97086-825-0
02
1
1002-
●
●
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER SOU
8-97086-825-0
02
1
1002-
●
●
84
BUZZER; POWER CAB TILT
METRO DENSO
8-98069-860-0
01
1
1001-
●
85
BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE
0-28650-820-0
01
1
1001-
●
86
NUT; BUZZER
M8 FLANGE SOU
0-91180-108-0
01
1
1001-
●
115
RELAY; POWER CAB TILT UNIT
24V NIKKO
8-98005-631-1
01
1
1001-
●
116
BOLT; RELAY FIX
M8X20 FLANGE
0-28650-820-0
02
1
1001-
●
117
NUT; RELAY FIX
M8 FLANGE SOU
0-91180-108-0
02
1
1001-
●

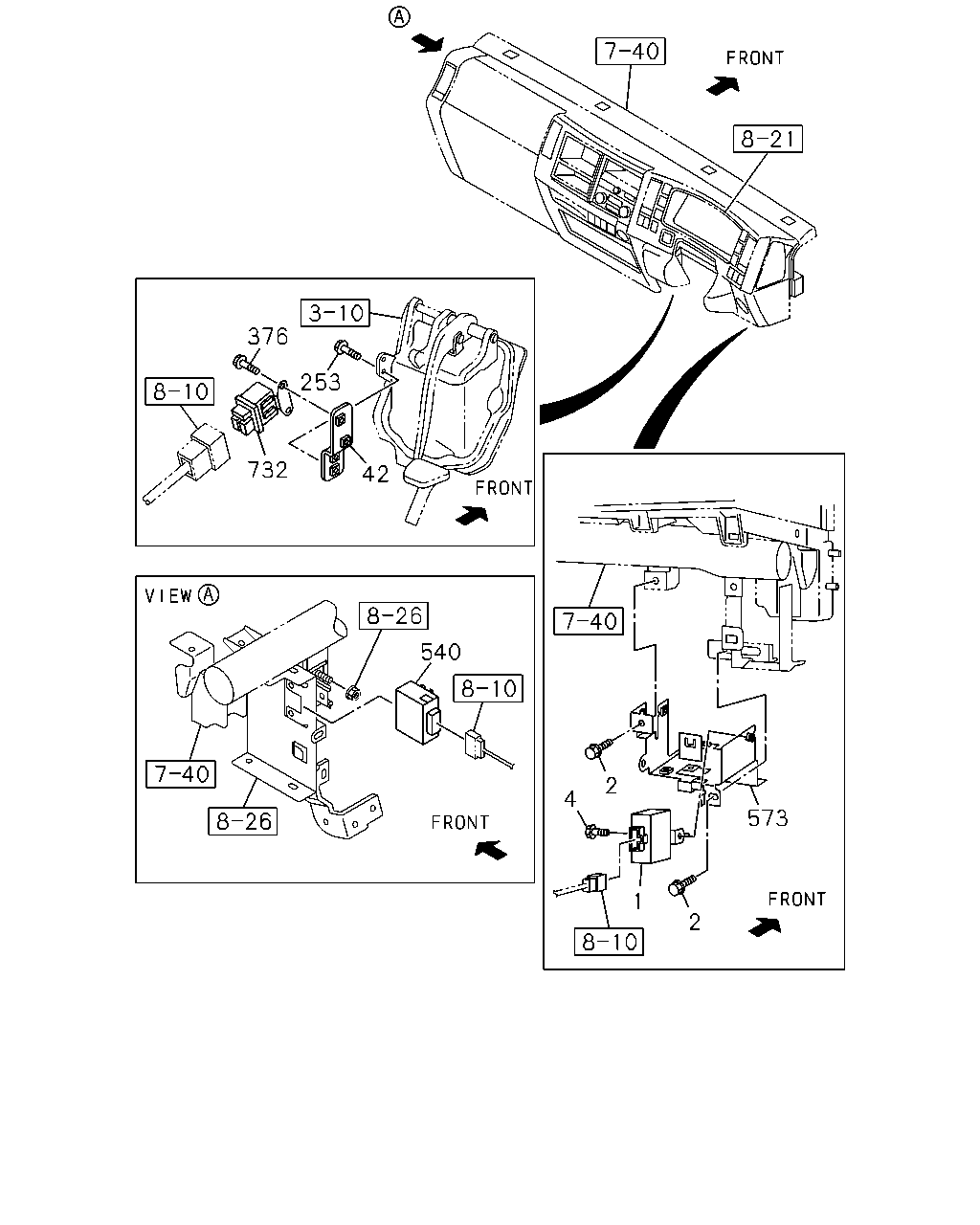

376
253
732
42
540
2
4
573
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
UNIT; FLASHER
8-98025-533-1
01
1
1001-
●
●
2
BOLT; FLASHER UNIT
M6X16 FLANGE SOU
0-28650-616-0
02
1
1001-
●
●
4
SCREW; FLASHER UNIT
BOLT M6X16 FLANGE SOU
0-28650-616-0
01
1
1001-
●
●
42
BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98048-051-2
01
1
1106-1109
●
42
BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98048-051-2
01
1
1110-
●
●
253
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE SOU
0-28050-816-0
02
1
1106-1109
●
253
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE SOU
0-28050-816-0
02
1
1110-
●
●
376
BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER
8-97360-226-0
02
1
1106-1109
●
376
BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER
8-97360-226-0
02
1
1110-
●
●
540
RELAY; WIPER INTERVAL
8-98060-388-0
01
1
1001-1308
●
●
540
RELAY; WIPER INTERVAL
8-98233-976-0
01
1
1309-
●
●
573
BRACKET; FLASHER UNIT
8-97609-984-5
01
1
1001-
●
●
732
RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF)
1-82550-337-1
01
1
1106-1109
●
732
RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF)
1-82550-337-1
01
1
1110-
●
●

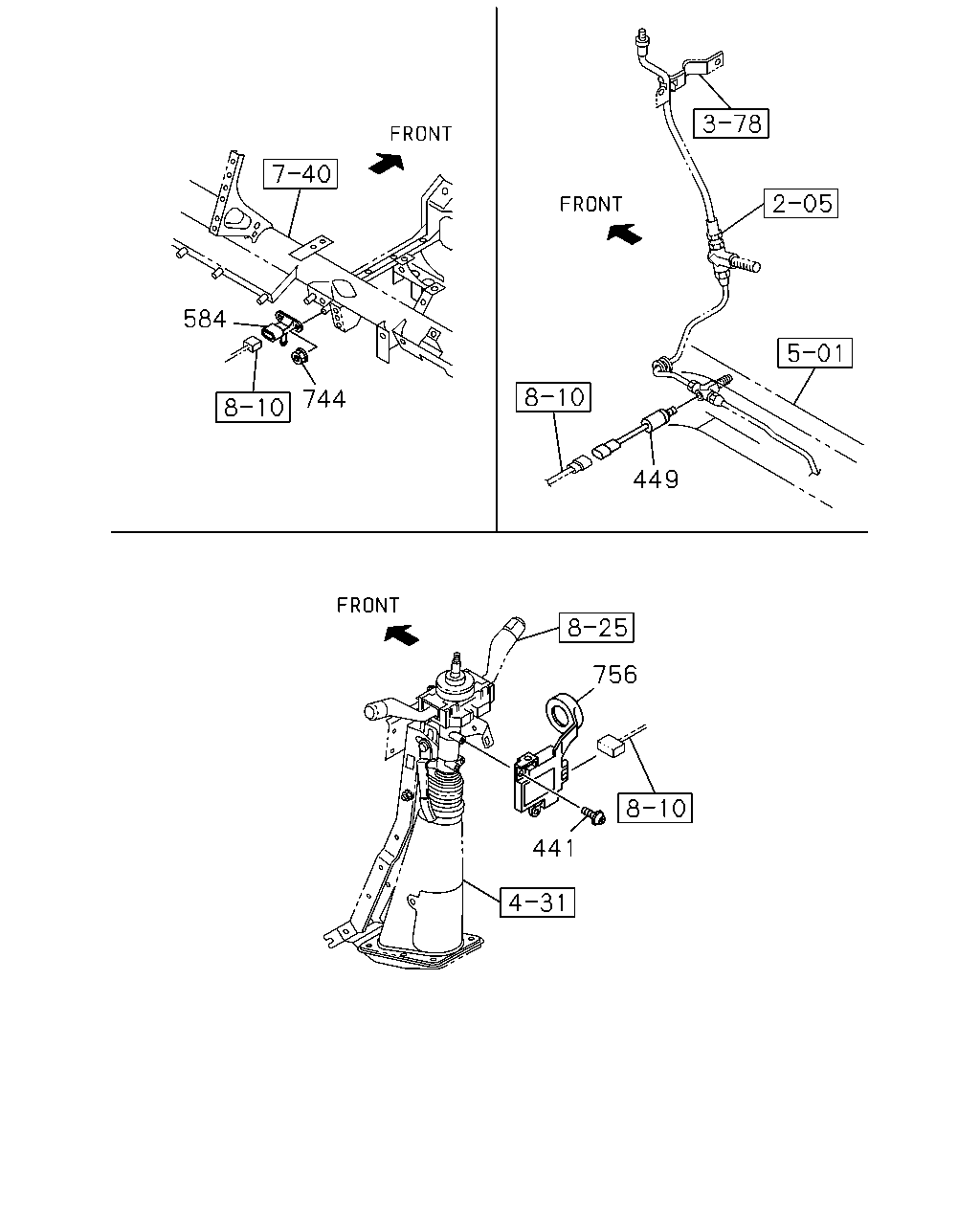

584
744
449
756
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
441
SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET
8-98063-767-0
02
1
1001-
●
●
449
SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP>
1-82410-143-1
01
1
1001-1105
●
●
449
SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP>
1-82410-143-1
01
1
1106-1109
●
449
SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
1-82410-143-1
01
1
1106-1109
●
449
SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
1-82410-143-1
01
1
1110-
●
●
584
SENSOR; PRESSURE
8-98020-514-0
01
1
1001-
●
●
744
NUT; SENSOR
M6 FLANGE SOU
0-91180-106-0
02
1
1001-
●
●
756
CONTROL UNIT; IMMOBILIZER
8-98097-554-0
01
1
1001-1005
●
●
756
CONTROL UNIT; IMMOBILIZER
8-98158-127-0
01
1
1006-
●
●
531
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
531
RELAY; MAIN
24V 30A MITSUBA
8-97238-540-0
01
1
1001-1402
●
●
531
RELAY; MAIN
24V 30A MITSUBA
8-98259-779-0
01
1
1403-
●
●
39
36
33
34
35
34
34
261
39
36
35
33
34
41
34
34
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
VALVE; MAG,PTO CONT
PTO CONTROL<SV6> SOU
1-82563-871-2
01
1
1001-
●
●
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 ELBOW SOU
1-09661-067-0
01
1
1001-
●
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW SOU
1-09661-067-0
01
1
1001-
●
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW SOU
1-09650-430-0
02
1
1001-
●
●
35
BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> (A) SOU
8-98034-702-0
01
1
1001-
●
35
BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> (B)
8-98103-026-1
01
1
1001-
●
36
BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE
0-28650-820-0
02
1
1001-
●
●
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M10X25 FLANGE SOU
0-28651-025-0
02
1
1001-1011
●
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M10X30 FLANGE SOU
0-28651-030-0
02
1
1012-
●
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE
0-28650-830-0
02
1
1001-
●
41
NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE SOU
0-91180-108-0
02
1
1001-
●
261
PLUG; MAG VLV
PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4
9-99204-513-0
01
1
1001-
●

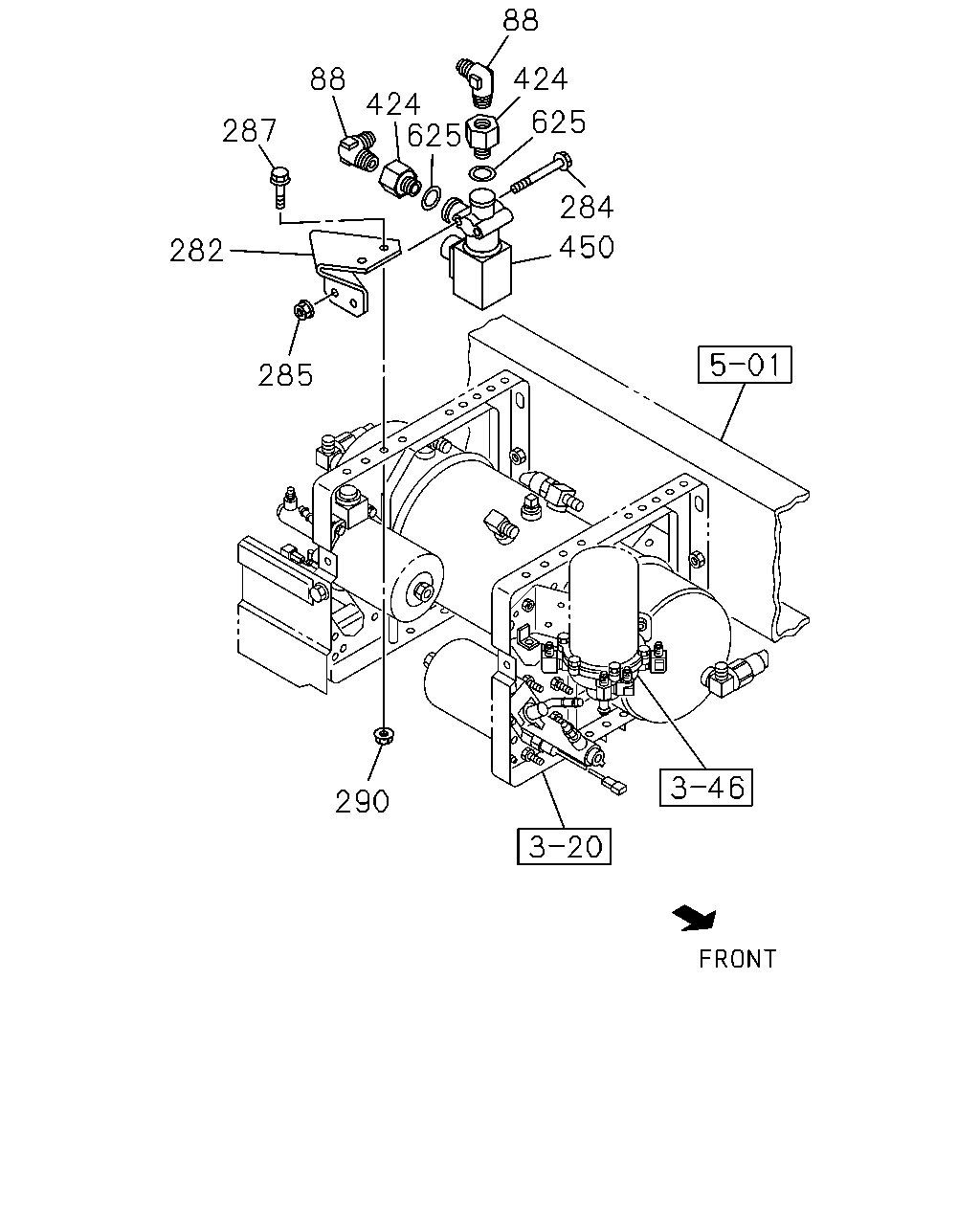

88
424
88
424
625
625
287
284
450
282
285
290
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
88
CONNECTOR; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 ELBOW SOU
1-09650-438-0
02
1
1001-
●
282
BRACKET; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) SOU
8-98049-845-1
01
1
1001-
●
284
BOLT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) M8X60 FLANGE SOU
0-28050-860-0
02
1
1001-
●
285
NUT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE SOU
0-91180-108-0
02
1
1001-
●
287
BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE SOU
0-28650-825-0
02
1
1001-
●
290
NUT
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE SOU
0-91180-108-0
02
1
1001-
●
424
ADAPTER
THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 STRAIGHT SOU
1-09661-044-0
02
1
1001-
●
450
VALVE; MAG
THROTTLE CONTROL SYSTEM(6XH) SOU
1-82564-278-0
01
1
1001-
●
625
GASKET; CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) ID=16.2 OD=24
9-09571-416-0
02
1
1001-
●

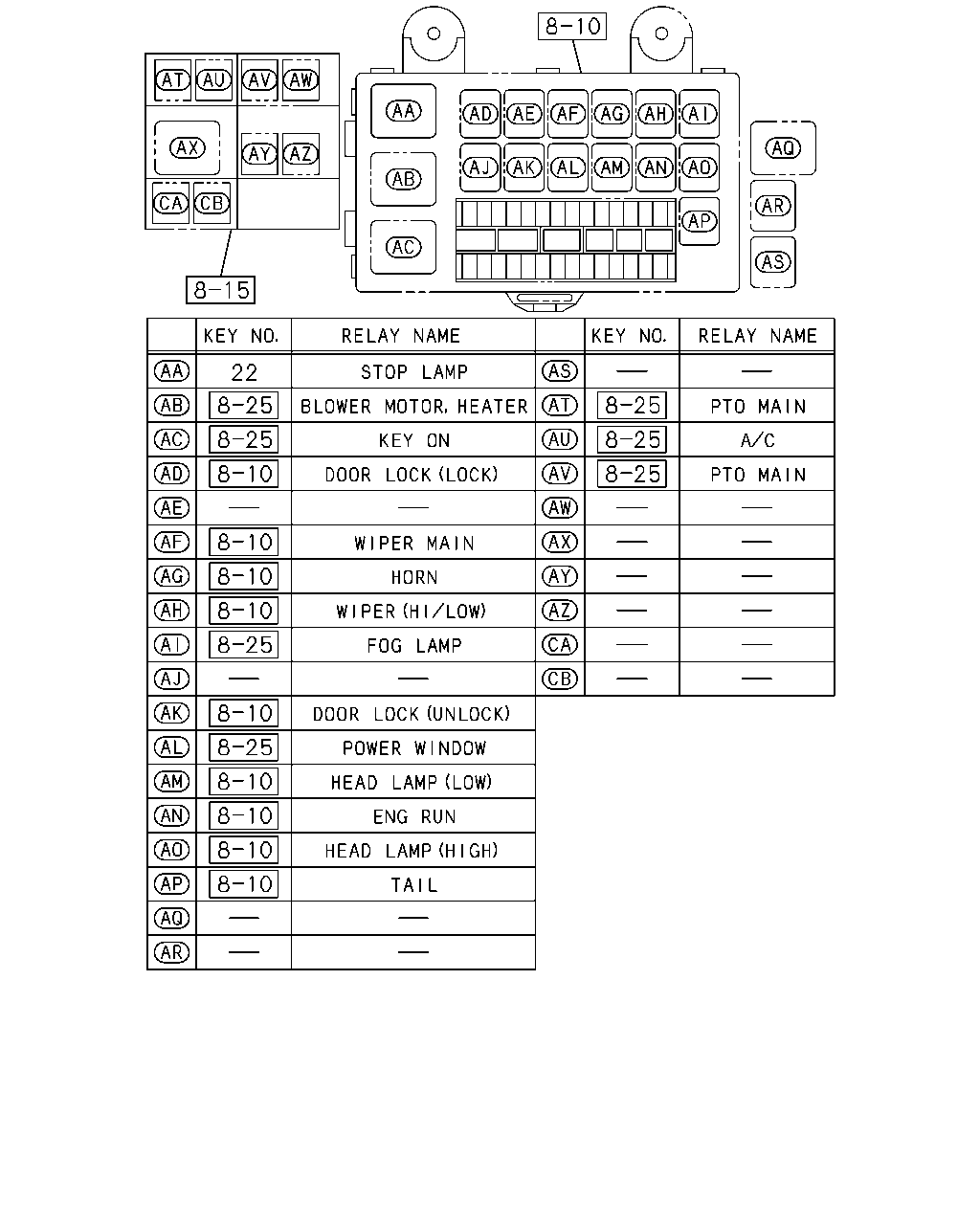

22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
RELAY; STOP LAMP
24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1001-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
