◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#56033) — 119 parça

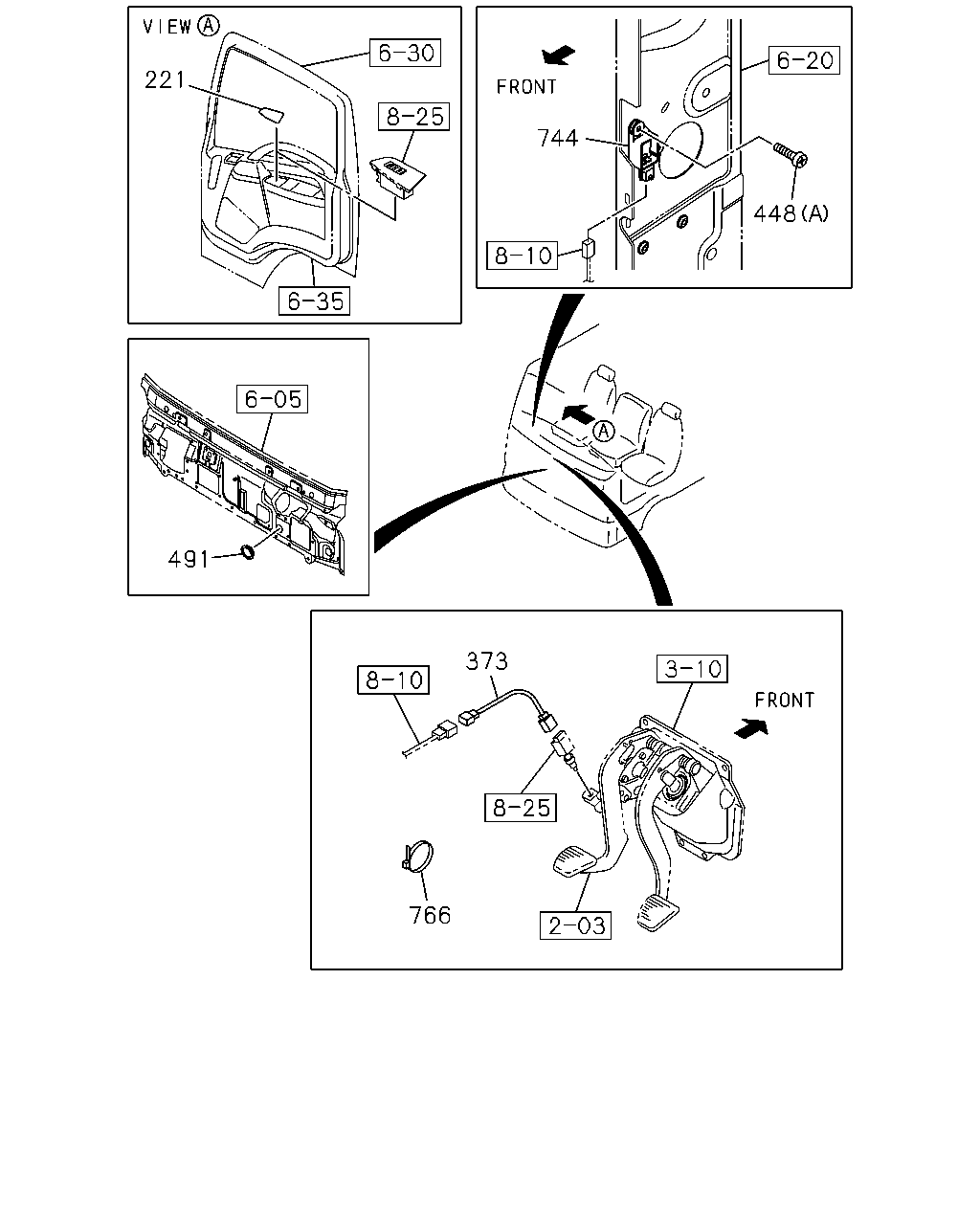

çizim 162519
221 744 448 491 373 766
BalonParca AdiParca NoAdetTipApplied Date A B
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1001- ●
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1001- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1001- ●
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1001- ●
373 HARNESS; CLU SWITCH 8-98059-419-2 01 1 1001-1105 ● ●
373 HARNESS; CLU SWITCH 8-98059-419-2 01 1 1106-1109 ●
373 HARNESS; CLU SWITCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-419-2 01 1 1106-1109 ●
373 HARNESS; CLU SWITCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98059-419-2 01 1 1110- ● ●
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) (B) M6X16 FLANGE SOU 		0-28050-616-0 01 1 1012- ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1001- ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1001- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3) 		8-97386-841-2 01 1 1001- ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 SOU 		5-09707-031-1 01 1 1001- ● ●

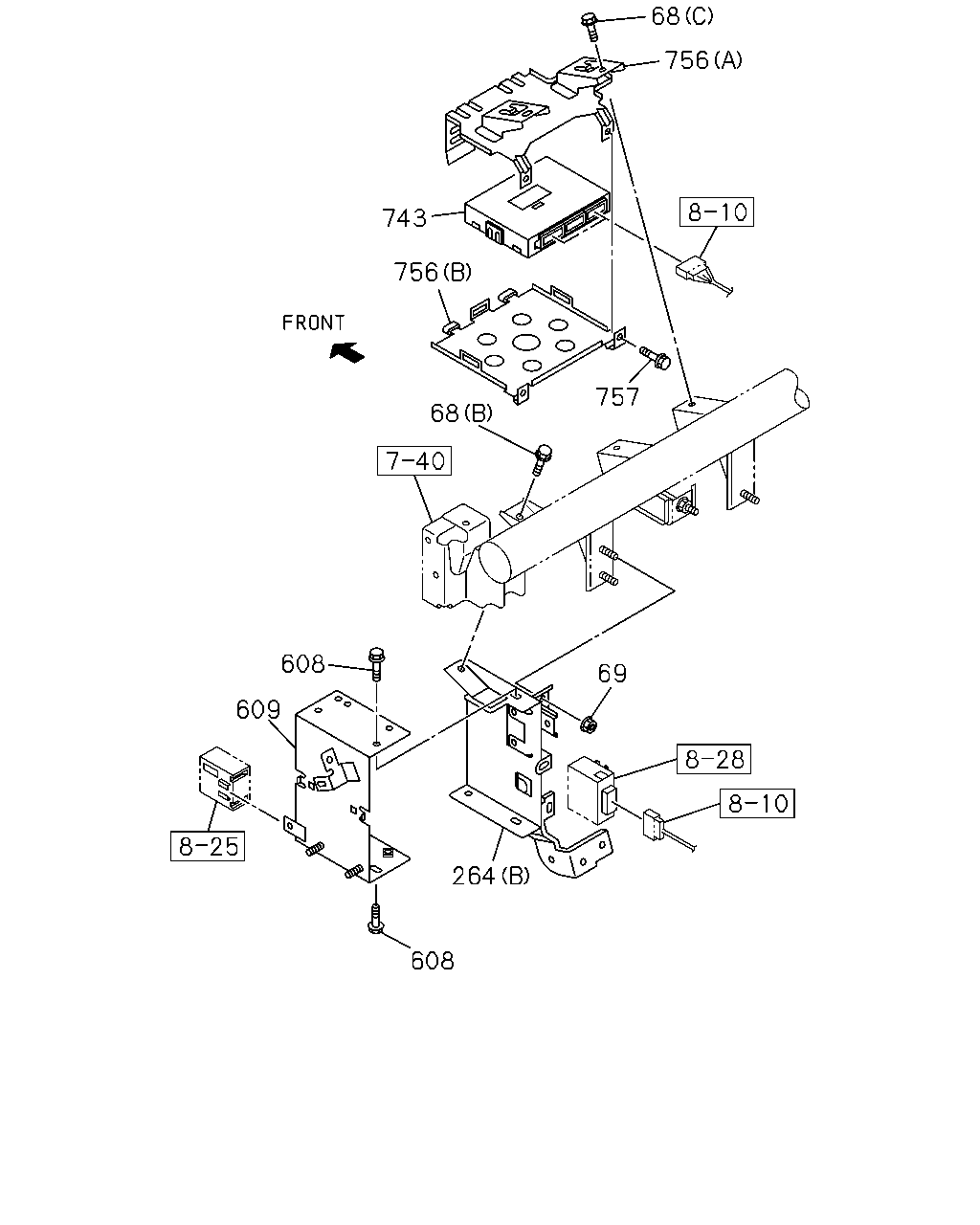

çizim 162521
68 756 743 756 757 68 608 69 609 264 608
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (C) M6X16 W/LK&PL WASHER SOU 		1-09980-492-0 02 1 1106-1109 ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (C) M6X16 W/LK&PL WASHER SOU 		1-09980-492-0 02 1 1110- ● ●
68 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1001- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 03 1 1001- ● ●
69 NUT; BRKT
M6 FLANGE SOU 		0-91180-106-0 01 1 1001- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1001- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 1001-1105 ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 1106-1109 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1106-1109 ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1106-1109 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1110- ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1110- ● ●
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE SOU 		0-28650-616-0 05 1 1001- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98095-337-0 01 1 1001-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> 		8-98169-737-1 01 1 1309- ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1106-1109 ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1110- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1106-1109 ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1110- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1106-1109 ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1110- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE SOU 		0-28650-616-0 02 1 1110- ● ●

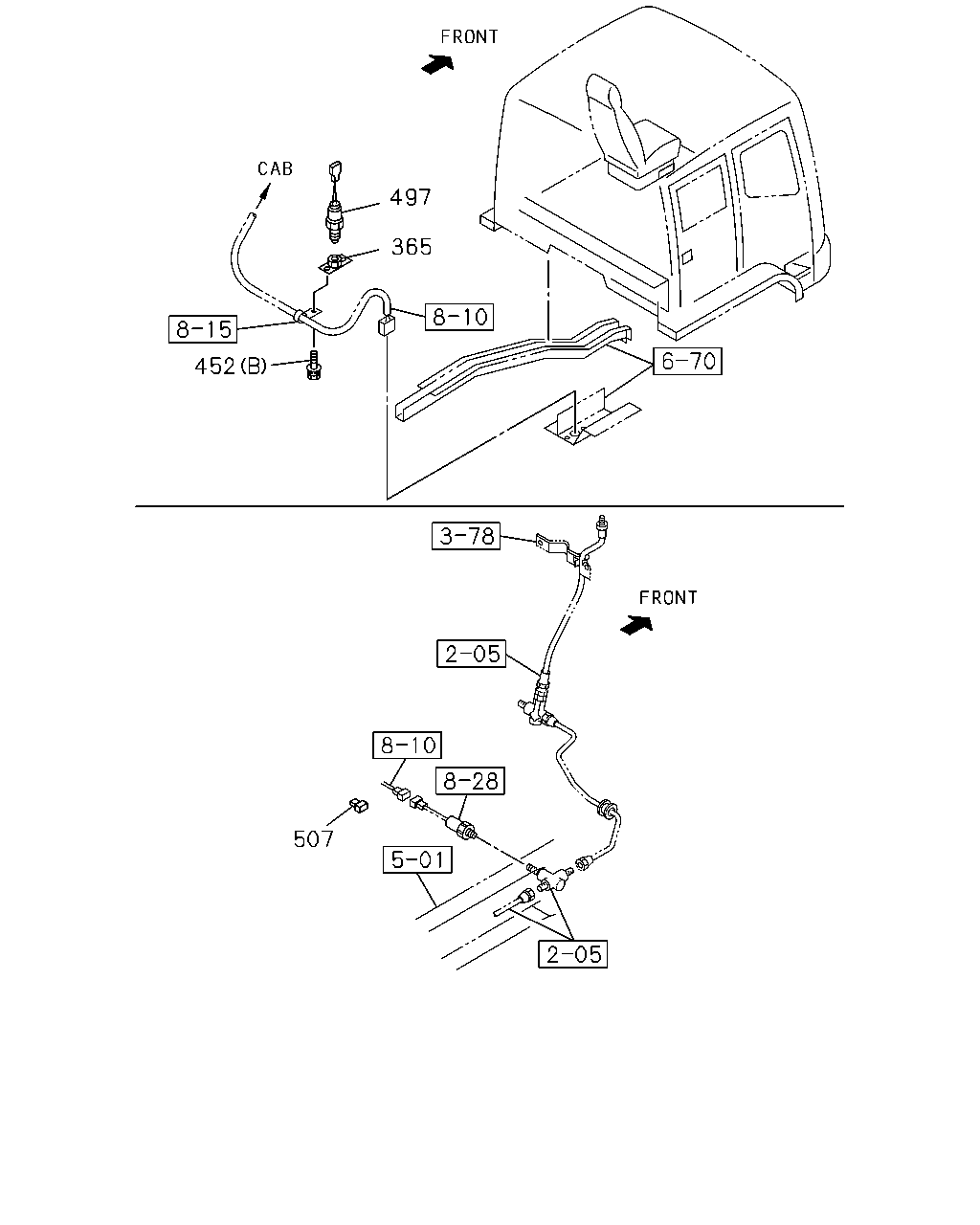

çizim 162528
497 365 452 507
BalonParca AdiParca NoAdetTipApplied Date A B
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 1001- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> (A) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1001-1105 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> (A) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1110- ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1110- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 02 1 1001- ●
497 SWITCH; CAB TILT
STAMP NC 		1-82380-125-1 01 1 1001- ●
507 CONNECTOR
EXC. H.S.A SYSTEM<6EP> SOU 		1-82690-666-0 01 1 1011-1105 ● ●
507 CONNECTOR
EXC. H.S.A SYSTEM<6EP> SOU 		1-82690-666-0 01 1 1106-1109 ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> SOU 		1-82690-666-0 01 1 1106-1109 ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> SOU 		1-82690-666-0 01 1 1110- ● ●

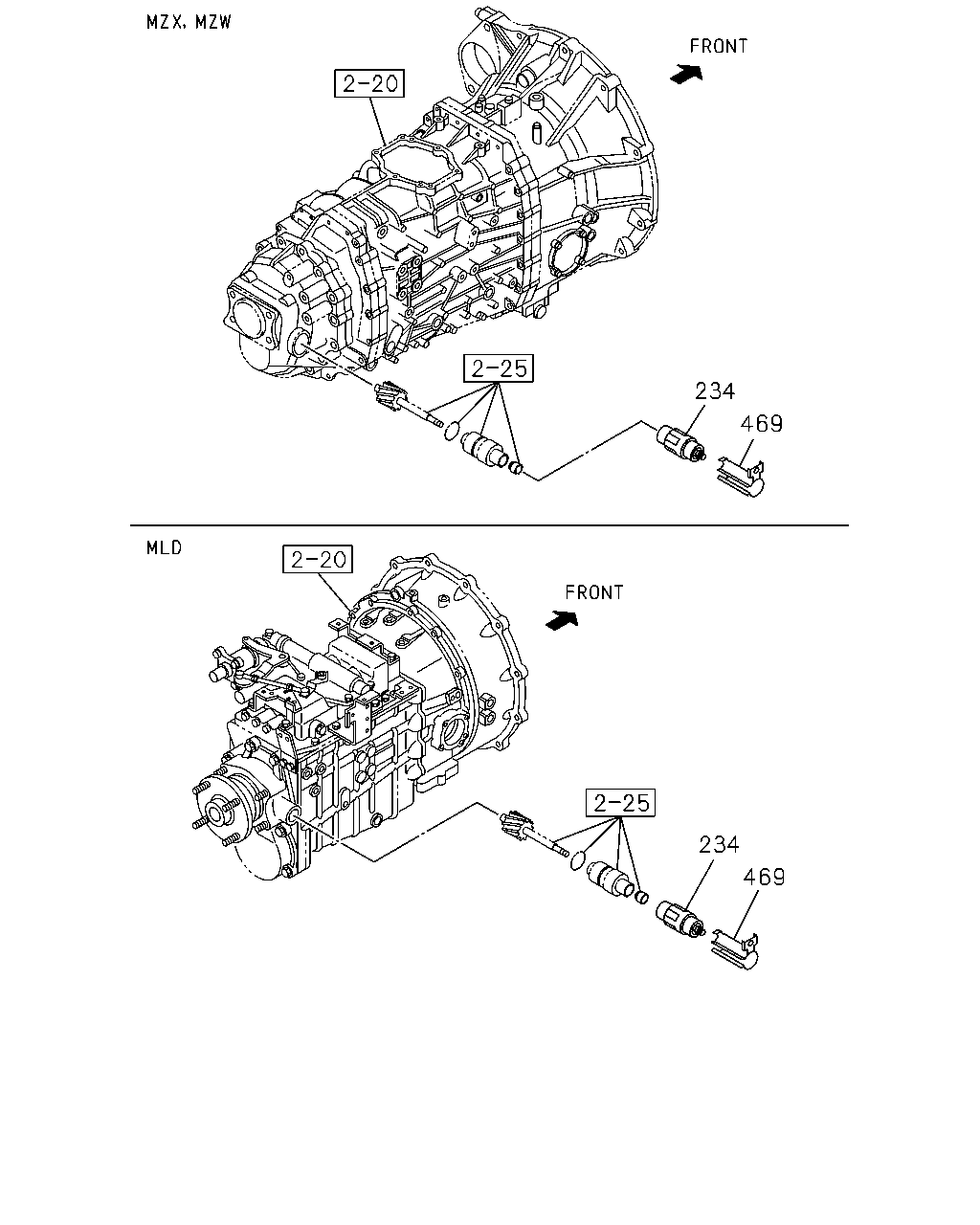

çizim 162534
234 469 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1001- ● ●
469 PROTECTOR; SPEED SENSOR
SOU 		8-98119-901-0 01 1 1001- ● ●

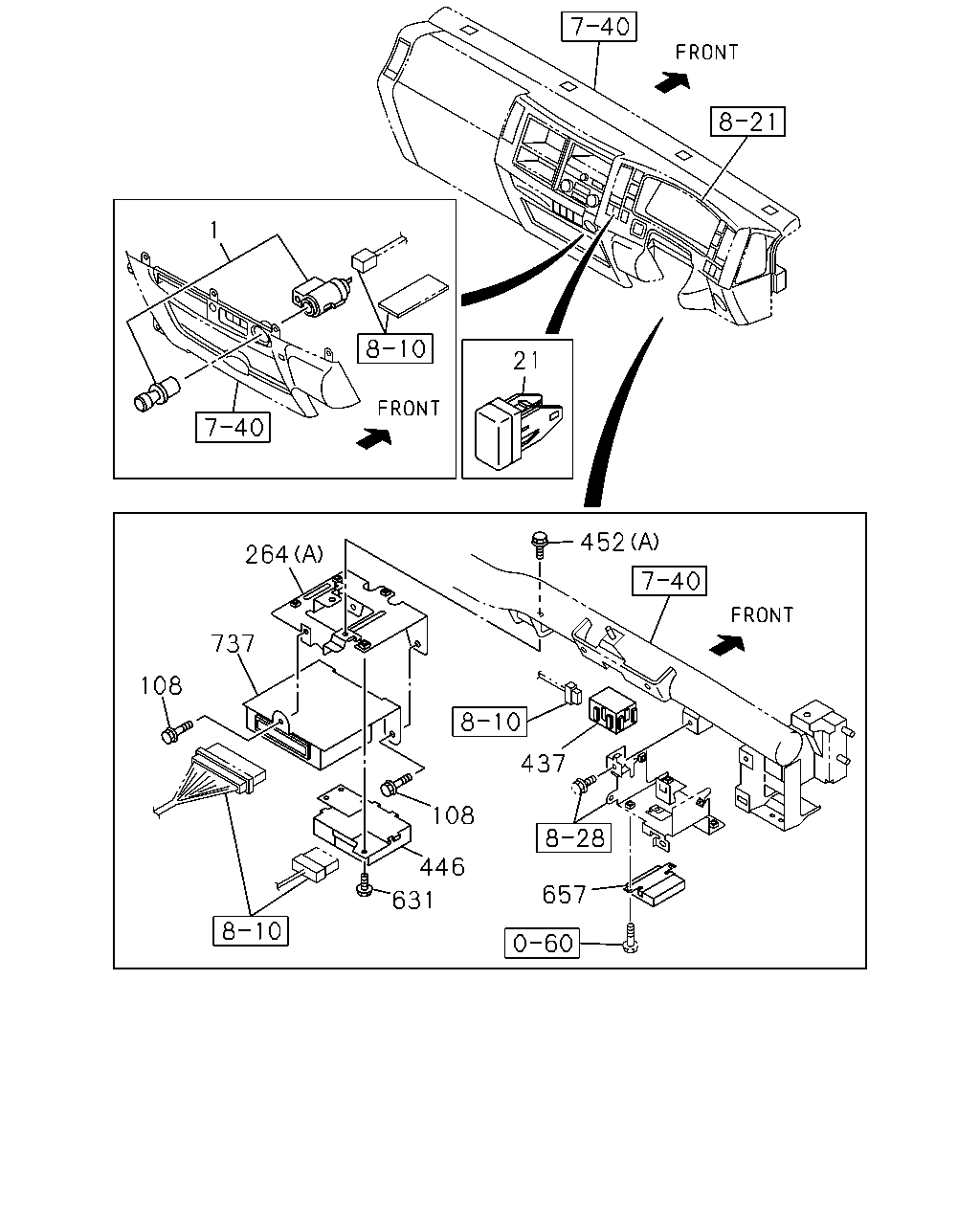

çizim 162535
1 21 264 737 108 452 437 108 446 631 657
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1001- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1001- ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE SOU 		0-28650-616-0 03 1 1106-1109 ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE SOU 		0-28650-616-0 03 1 1110- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1001- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 1001-1105 ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 1106-1109 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1106-1109 ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1106-1109 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1110- ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 1110- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1001- ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98136-318-1 01 1 1001-1105 ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98136-318-1 01 1 1106-1109 ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-318-1 01 1 1106-1109 ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-318-1 01 1 1110- ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> (A) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1001-1105 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> (A) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1110- ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1110- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 02 1 1001- ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE SOU 		0-28650-616-0 02 1 1001-1105 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1106-1109 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1110- ● ●
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1001-1105 ● ●
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1106-1109 ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 1106-1109 ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 1110-1401 ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-1 01 1 1402- ● ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-518-0 01 1 1110-1212 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-116-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-475-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-016-0 01 1 1412- ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-520-0 01 1 1106-1106 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98193-430-0 01 1 1107-1109 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98193-430-0 01 1 1110-1209 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98193-430-0 01 1 1110-1209 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98229-356-0 01 1 1210-1212 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98229-356-0 01 1 1210-1212 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-003-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-003-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-473-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-473-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-022-0 01 1 1412- ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-022-0 01 1 1412- ●

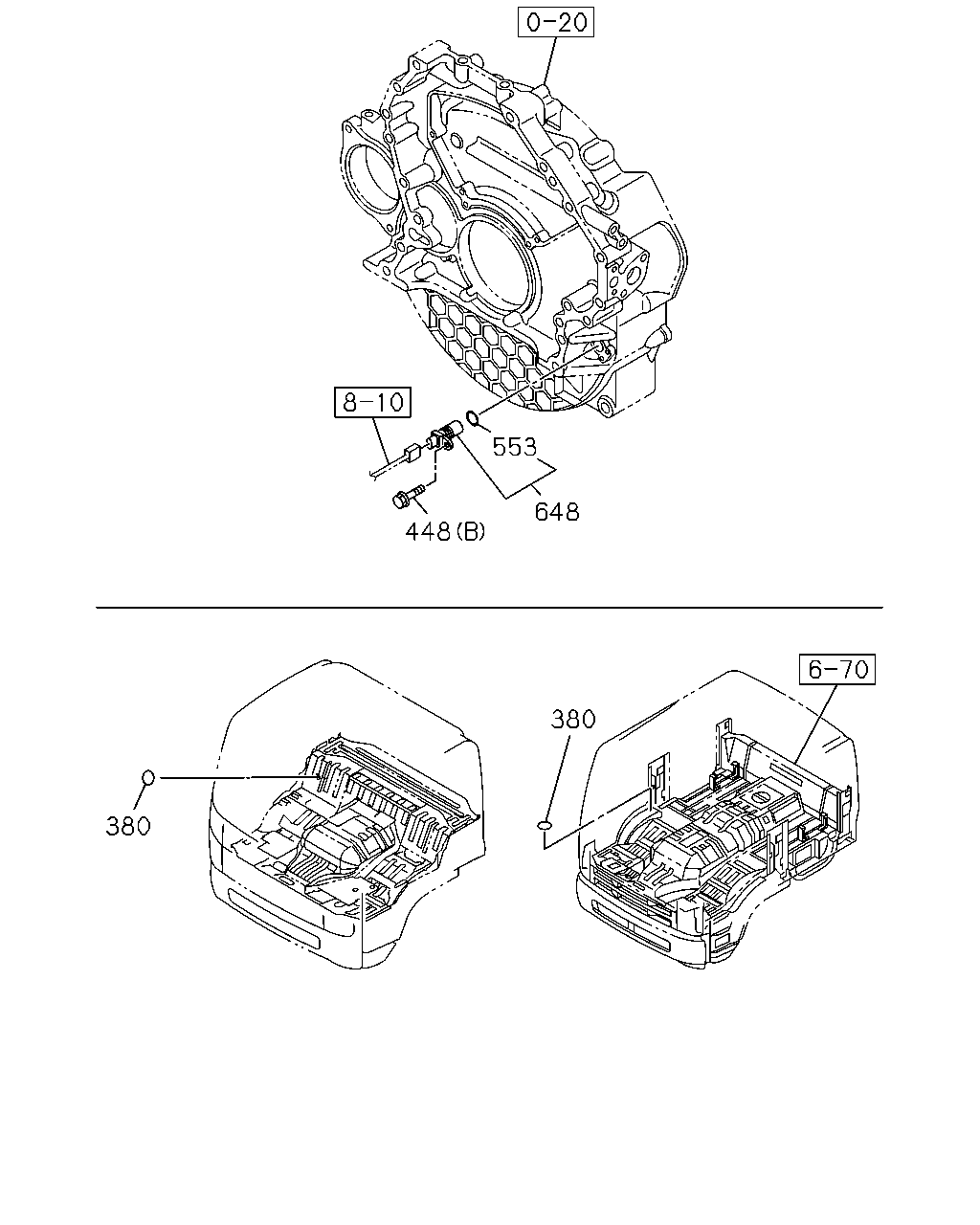

çizim 162538
553 648 448 380 380
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
OD=25 BLACK SOU 		1-76798-019-0 01 1 1001- ● ●
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1001- ●
380 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1001- ●
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) (B) M6X16 FLANGE SOU 		0-28050-616-0 01 1 1012- ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1001- ●
553 GASKET
4HK1-TCS ENG(RJS) ID=14.2 OD=18.8 		8-97369-404-0 01 1 1012- ●
648 SENSOR; CRANK ANGLE
4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 1012- ●

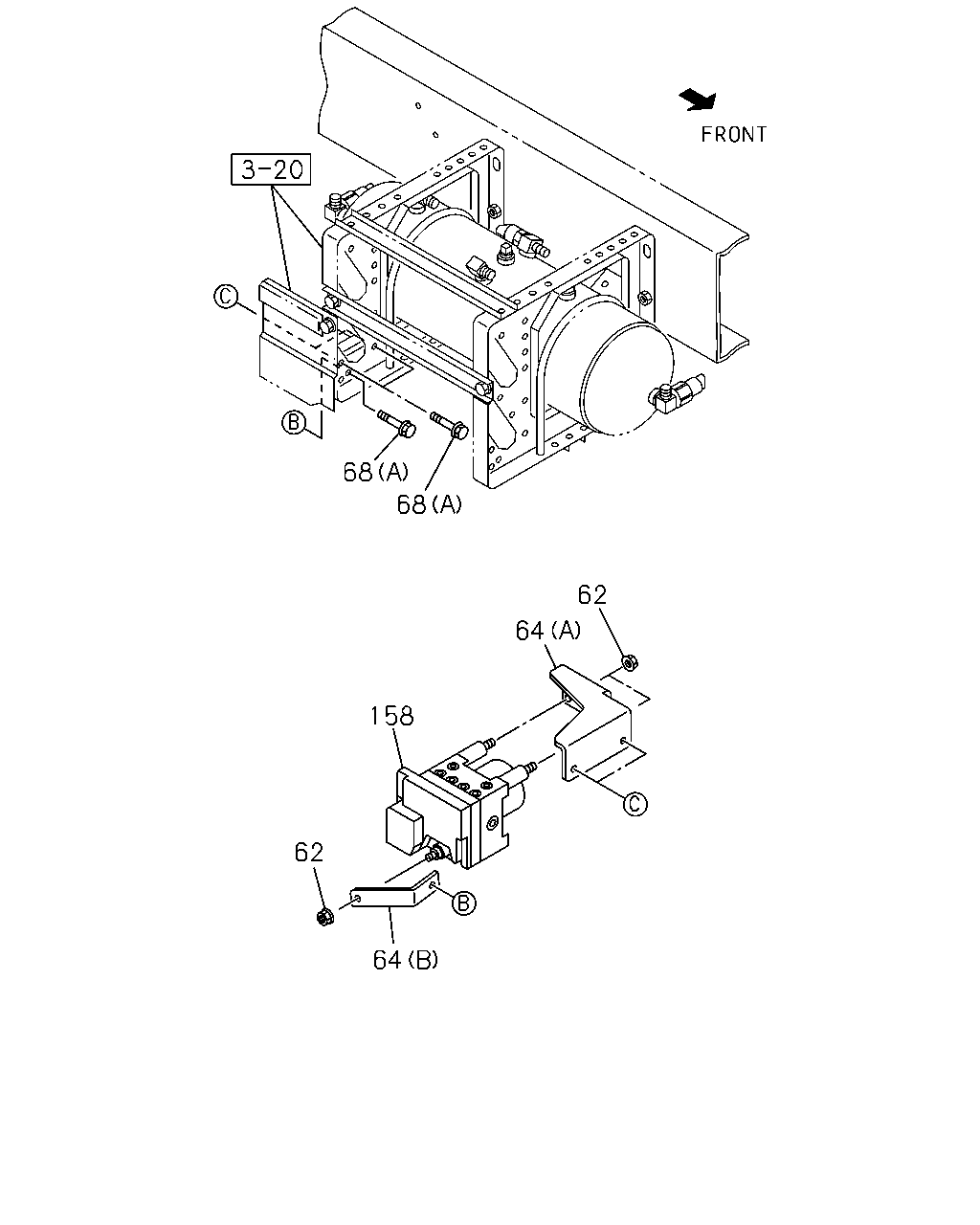

çizim 162801
68 68 62 64 158 62 64
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 03 1 1001- ● ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 1001- ● ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 1001- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (C) M6X16 W/LK&PL WASHER SOU 		1-09980-492-0 02 1 1106-1109 ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (C) M6X16 W/LK&PL WASHER SOU 		1-09980-492-0 02 1 1110- ● ●
68 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1001- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 03 1 1001- ● ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98048-312-2 01 1 1001-1006 ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98158-000-1 01 1 1007- ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-308-2 01 1 1001-1006 ●
158 CONTROLLER; ABS 8-98048-308-2 01 1 1001-1006 ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-994-1 01 1 1007- ●
158 CONTROLLER; ABS 8-98157-994-1 01 1 1007- ●
