Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#56029) — 734 parça

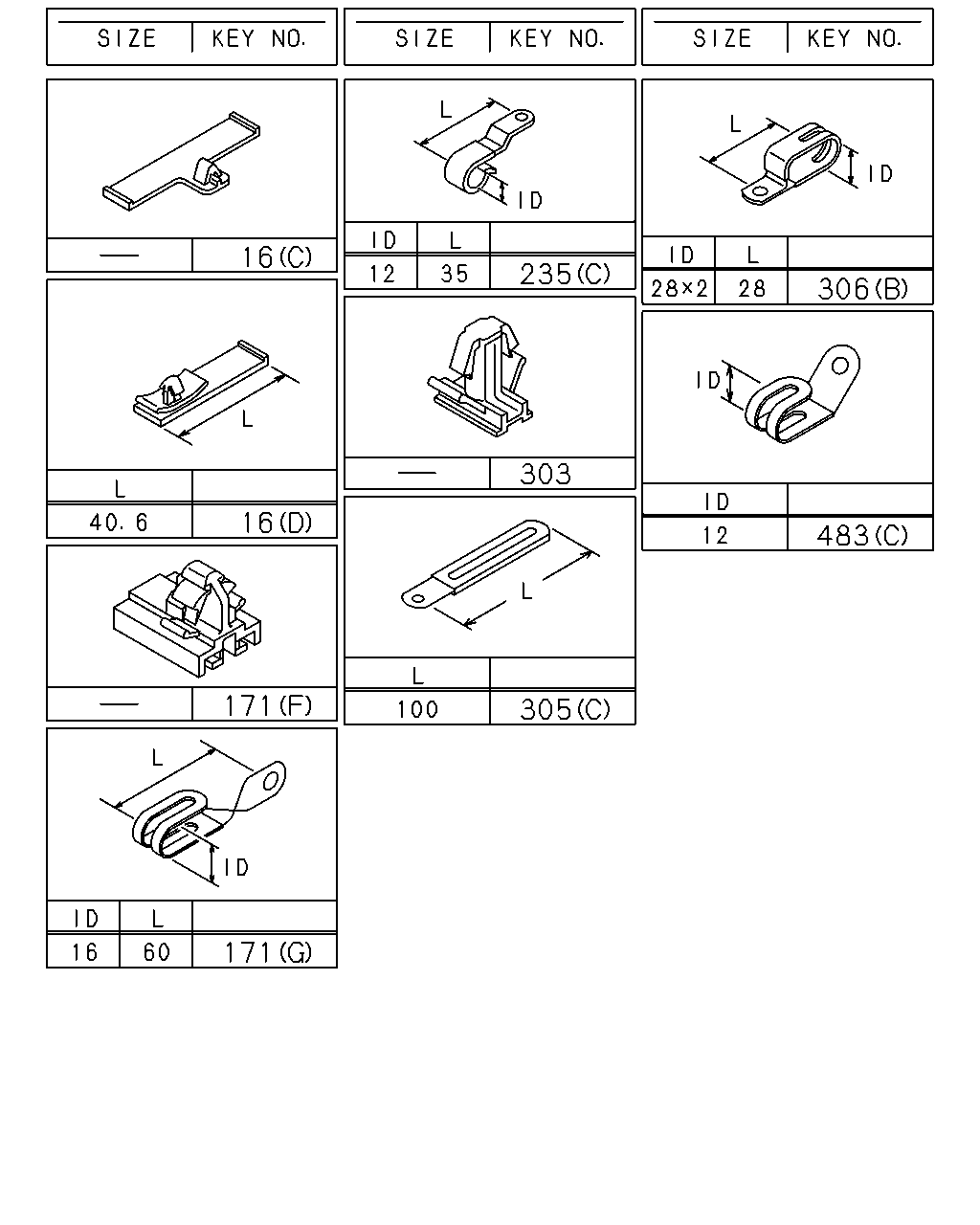

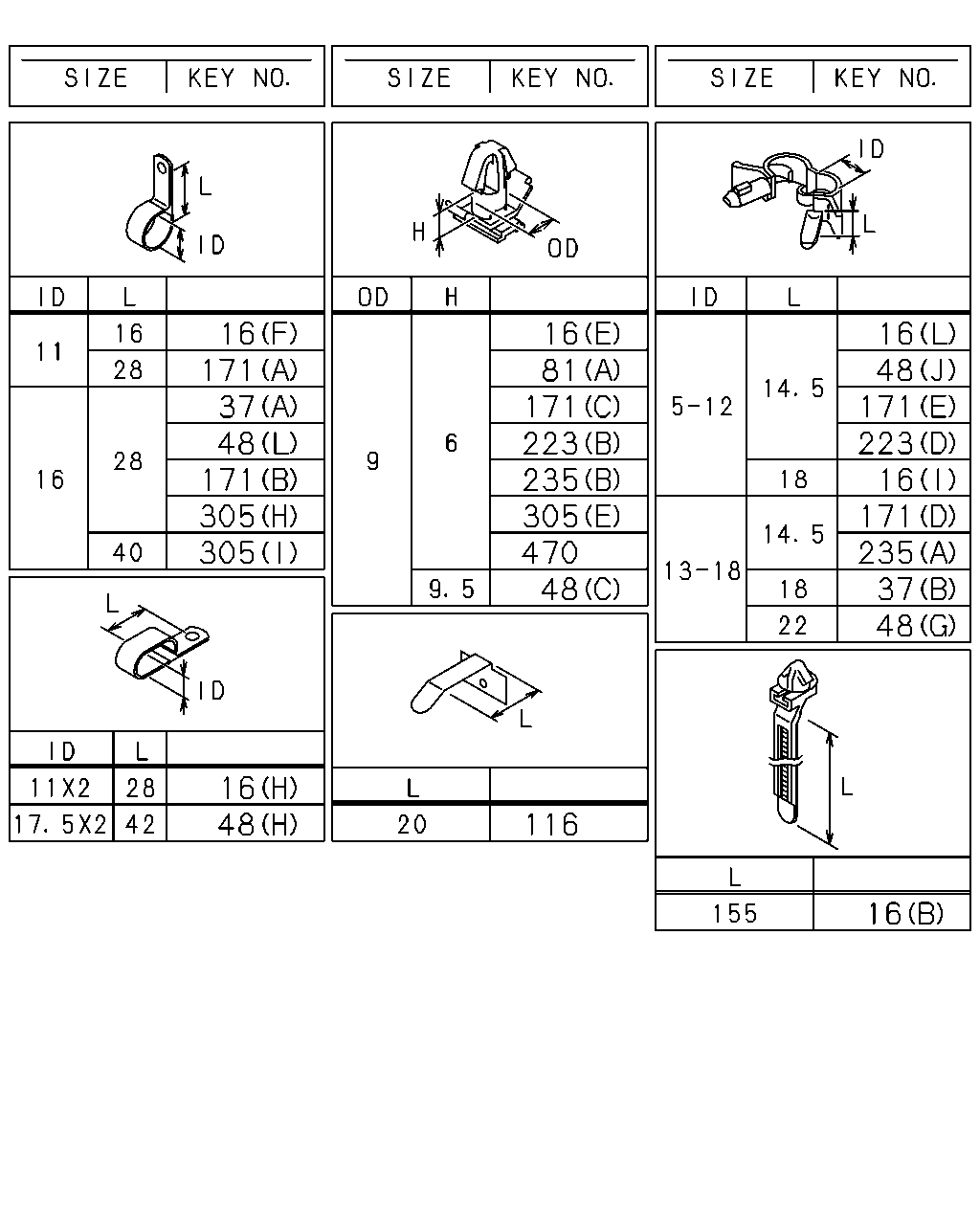

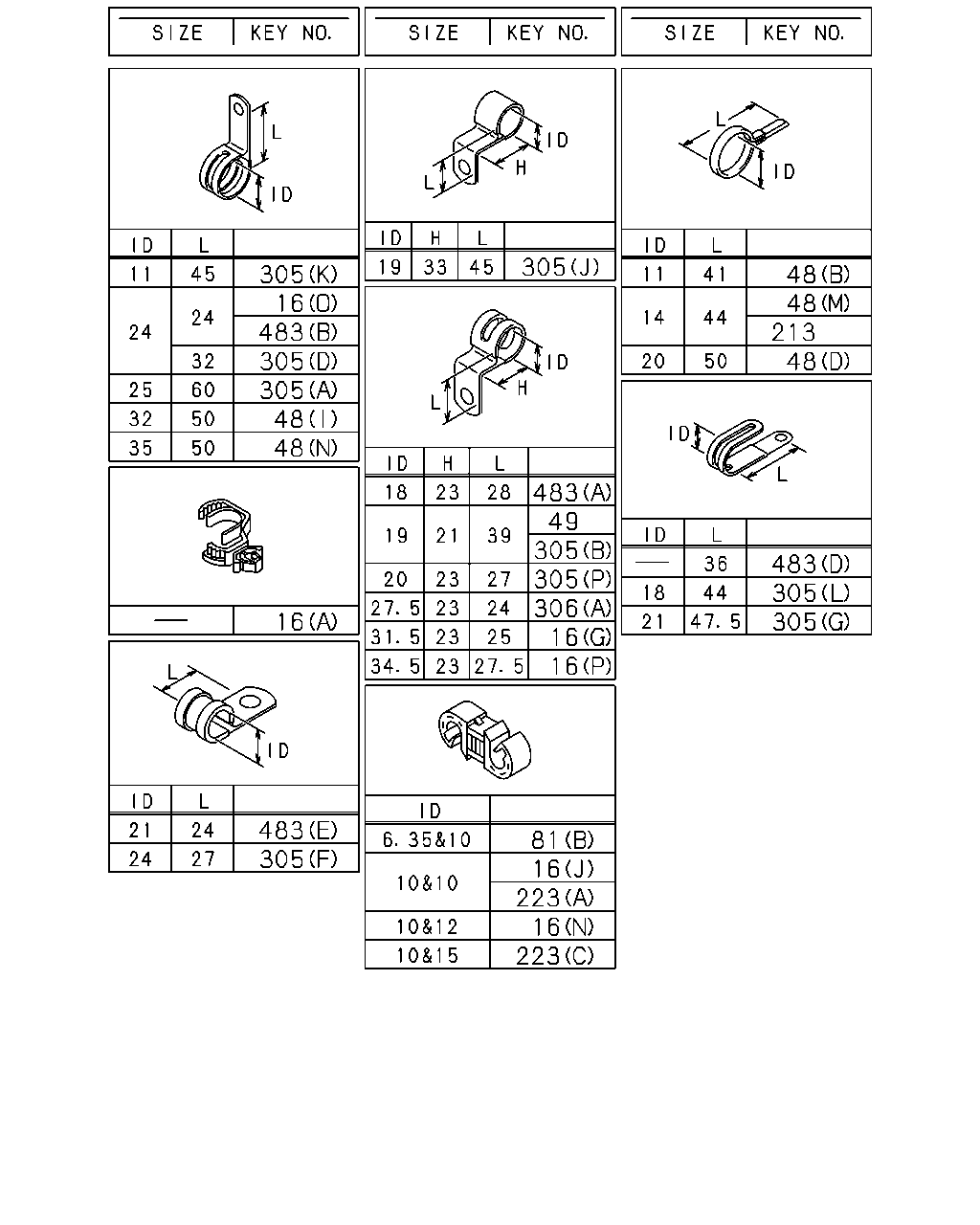

16 171 37 48 171 305 305 16 81 171 223 235 305 470 48 16 48 171 223 16 171 235 37 48 16 48 116 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1106-1109	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1110-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=24 L=24	1-09701-001-1	02	1	1102-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (M) L=250	1-09707-126-0	02	1	1012-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=10 & 12	1-09709-278-1	01	1	1012-		●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1012-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (I) ID=5-12 L=18	1-09709-287-0	01	1	1012-		●
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	1001-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-		●
16	CLIP; HARNESS (B) L=155 SOU	8-97173-307-0	18	1	1001-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-		●
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1001-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	04	1	1001-1011	●	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (F) ID=11 L=16	0-95235-025-0	04	1	1012-		●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	04	1	1012-	●
16	CLIP; HARNESS (H) ID=11X2 L=16	1-09700-734-0	01	1	1001-	●	●
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1001-1105	●	●
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1106-1109		●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1106-1109	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1110-	●	●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1001-1011	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (F) ID=11 L=16	0-95235-025-0	02	1	1012-		●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-	●	●
16	CLIP; HARNESS (K) L=140 SOU	5-09707-031-1	01	1	1001-	●	●
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1001-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=24 L=24	1-09701-001-1	02	1	1012-		●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=28	0-95235-556-0	01	1	1001-	●
37	CLIP; HARNESS,POWER TILT (B) ID=13-18 L=18	1-09709-291-0	02	1	1001-	●
37	CLIP; HARNESS,POWER TILT (C) L=250 SOU	5-09707-030-1	01	1	1001-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (G) ID=13-18 L=22	1-09709-292-0	01	1	1001-		●
48	CLIP; FRAME HARNESS (G) ID=13-18 L=22	1-09709-292-0	01	1	1001-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1001-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (M) ID=14 L=44	9-09917-427-0	02	1	1202-		●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=35 L=50	1-09701-214-0	01	1	1106-1109	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=35 L=50	1-09701-214-0	01	1	1110-	●	●
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1001-		●
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1001-		●
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	04	1	1001-		●
48	CLIP; FRAME HARNESS (F) L=140 SOU	5-09707-031-1	02	1	1001-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50 SOU	9-09917-430-0	10	1	1001-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	10	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50 SOU	9-09917-430-0	01	1	1001-1201		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	01	1	1202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50 SOU	9-09917-430-0	16	1	1001-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (M) ID=14 L=44	9-09917-427-0	16	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50 SOU	9-09917-430-0	02	1	1001-1201		●
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	02	1	1001-1201	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	01	1	1202-	●
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	1001-1105	●	●
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	1106-1109		●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	1106-1109	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	1110-	●	●
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1001-	●	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1001-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1001-	●	●
48	CLIP; FRAME HARNESS (L) ID=16 L=28	0-95235-556-0	01	1	1001-	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	19	1	1001-1007	●
48	CLIP; FRAME HARNESS (M) ID=14 L=44	9-09917-427-0	19	1	1008-	●
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1001-1105	●	●
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1106-1109		●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1106-1109	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1110-	●	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) OD=9 H=6	1-09709-178-0	01	1	1001-1010	●	●
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1011-1105	●	●
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1106-1109		●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1106-1109	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1110-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE SOU	1-09987-246-2	02	1	1202-	●
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU	1-09987-246-2	04	1	1001-	●	●
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU	1-09987-246-2	03	1	1001-	●	●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (G)	8-97101-436-0	01	1	1102-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (F) OD=8 H=3.8	1-09709-309-0	01	1	1012-		●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	1001-		●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	1001-		●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	1001-		●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1001-		●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (G)	8-97101-436-0	01	1	1012-		●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	1001-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=10 & 10	1-09709-277-1	03	1	1001-	●
223	CLIP; AIR TANK HARNESS (C) ID=10 & 15	1-09709-279-1	01	1	1001-	●
223	CLIP; AIR TANK HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-	●
223	CLIP; AIR TANK HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS 4HK1-TCS ENG(RJS) (B) OD=9 H=6	1-09709-178-0	02	1	1012-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (C) ID=12 L=35	5-09700-206-0	01	1	1001-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) (B) OD=9 H=6	1-09709-178-0	01	1	1001-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1001-	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (C) L=100	8-94443-021-1	01	1	1311-		●
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (P) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-1201	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=300	1-09707-001-1	01	1	1102-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140 SOU	5-09707-031-1	02	1	1102-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (F) ID=24 L=27	1-09700-809-0	03	1	1001-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-		●
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1001-1011		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1001-1011	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-1105		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-1105	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1106-1201		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=21 L=47.5	8-94178-108-0	01	1	1106-1201	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1202-1311		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1202-1311		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1202-1311	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (G) ID=21 L=47.5	8-94178-108-0	01	1	1312-	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1312-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1001-1011	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1012-1105		●
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1012-1105	●
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1106-1108		●
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) ID=16 L=28	0-95235-556-0	02	1	1106-1108	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1109-		●
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1109-	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1012-		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1012-	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1012-		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1012-	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1012-		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1012-	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1012-		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1012-	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1012-1105		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1012-1105	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1106-1108		●
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=100	8-94443-021-1	01	1	1106-1108	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1109-1310		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1109-1310	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (J) ID=19 H=33 L=45	1-09701-045-0	01	1	1001-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (K) ID=11 L=45	8-94296-897-1	01	1	1001-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (L) ID=18 L=44	8-97367-985-1	01	1	1001-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=300	1-09707-001-1	01	1	1012-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140 SOU	5-09707-031-1	02	1	1012-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (O) L=51	1-11369-157-0	01	1	1012-		●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1001-	●	●

16 235 306 303 16 483 171 305 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1106-1109	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1110-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=24 L=24	1-09701-001-1	02	1	1102-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (M) L=250	1-09707-126-0	02	1	1012-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=10 & 12	1-09709-278-1	01	1	1012-		●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1012-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (I) ID=5-12 L=18	1-09709-287-0	01	1	1012-		●
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	1001-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-		●
16	CLIP; HARNESS (B) L=155 SOU	8-97173-307-0	18	1	1001-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-		●
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1001-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	04	1	1001-1011	●	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (F) ID=11 L=16	0-95235-025-0	04	1	1012-		●

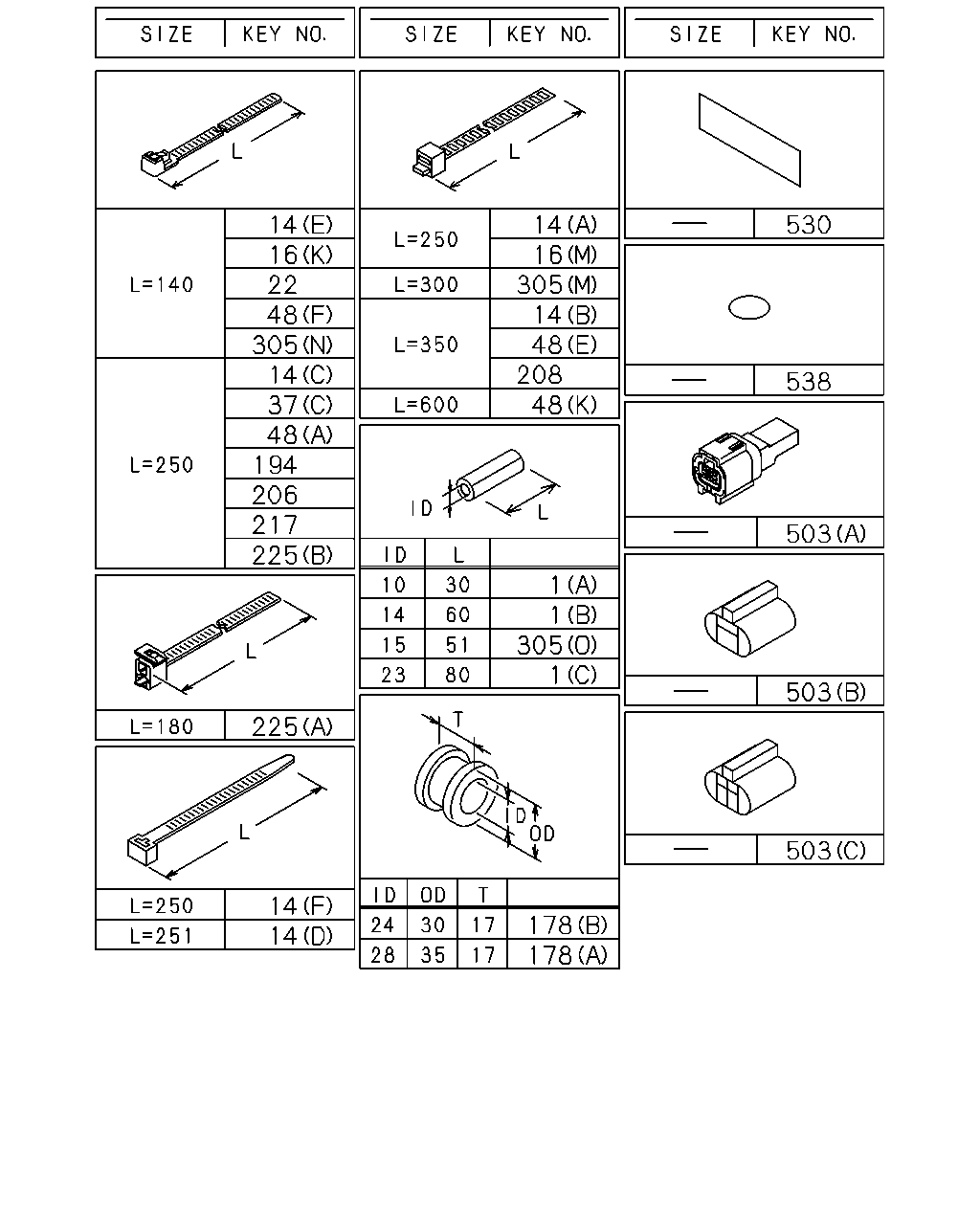

16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	04	1	1012-	●
16	CLIP; HARNESS (H) ID=11X2 L=16	1-09700-734-0	01	1	1001-	●	●
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1001-1105	●	●
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1106-1109		●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1106-1109	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1110-	●	●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1001-1011	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (F) ID=11 L=16	0-95235-025-0	02	1	1012-		●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-	●	●
16	CLIP; HARNESS (K) L=140 SOU	5-09707-031-1	01	1	1001-	●	●
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1001-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=24 L=24	1-09701-001-1	02	1	1012-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (G)	8-97101-436-0	01	1	1102-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (F) OD=8 H=3.8	1-09709-309-0	01	1	1012-		●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	1001-		●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	1001-		●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	1001-		●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1001-		●
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-		●
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (G)	8-97101-436-0	01	1	1012-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS 4HK1-TCS ENG(RJS) (B) OD=9 H=6	1-09709-178-0	02	1	1012-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (C) ID=12 L=35	5-09700-206-0	01	1	1001-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) (B) OD=9 H=6	1-09709-178-0	01	1	1001-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1001-	●	●
303	CLIP; HARNESS POWER TILT RELAY OD=8.95 H=6.25	8-97375-754-0	01	1	1001-	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (C) L=100	8-94443-021-1	01	1	1311-		●
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (P) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-1201	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=300	1-09707-001-1	01	1	1102-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140 SOU	5-09707-031-1	02	1	1102-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (F) ID=24 L=27	1-09700-809-0	03	1	1001-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-		●
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1001-1011		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1001-1011	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-1105		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-1105	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1106-1201		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=21 L=47.5	8-94178-108-0	01	1	1106-1201	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1202-1311		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1202-1311		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1202-1311	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (G) ID=21 L=47.5	8-94178-108-0	01	1	1312-	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1312-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1001-1011	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1012-1105		●
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1012-1105	●
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1106-1108		●
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) ID=16 L=28	0-95235-556-0	02	1	1106-1108	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1109-		●
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1109-	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1012-		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1012-	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1012-		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1012-	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1012-		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1012-	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1012-		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1012-	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1012-1105		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1012-1105	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1106-1108		●
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=100	8-94443-021-1	01	1	1106-1108	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1109-1310		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1109-1310	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (J) ID=19 H=33 L=45	1-09701-045-0	01	1	1001-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (K) ID=11 L=45	8-94296-897-1	01	1	1001-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (L) ID=18 L=44	8-97367-985-1	01	1	1001-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=300	1-09707-001-1	01	1	1012-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140 SOU	5-09707-031-1	02	1	1012-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (O) L=51	1-11369-157-0	01	1	1012-		●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1001-1011	●	●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1012-		●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1012-	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1001-1011	●	●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1012-		●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1012-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=21 L=24	8-98019-191-0	01	1	1211-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1012-1112		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	02	1	1201-1210		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1211-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=24 L=24	1-09701-001-1	01	1	1012-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1012-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) L=36	8-94224-891-1	03	1	1012-		●

304 304 150 139 304 150 38 304 150 516 38 139 139 304 38 386 38 139 93 38 139 139 150 38 313 139 38 139 313 184 139 516 377 358 38 386 524 219 294 515 525 294 524 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

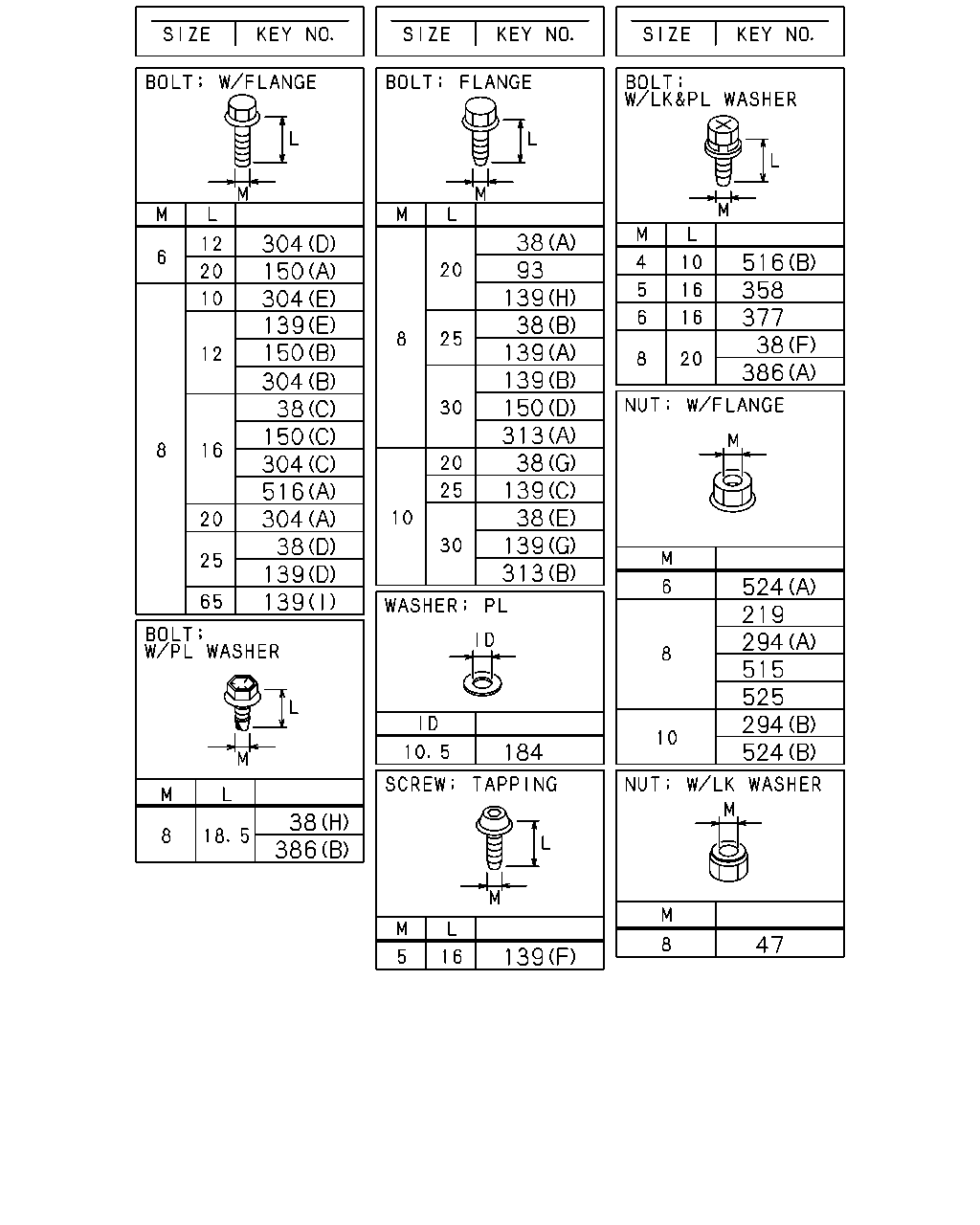

38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (G) M10X20 FLANGE	0-28751-020-0	01	1	1001-		●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE SOU	0-28050-816-0	03	1	1001-	●	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE SOU	0-28050-825-0	02	1	1001-1011	●	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (D) M8X25 FLANGE SOU	0-28050-825-0	02	1	1012-		●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE SOU	0-28050-825-0	02	1	1012-	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-	●	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE SOU	0-28650-825-0	03	1	1001-1011	●	●
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (B) M8X25 FLANGE SOU	0-28650-825-0	03	1	1012-		●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE SOU	0-28650-825-0	03	1	1012-	●
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-	●	●
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	03	1	1001-1201	●	●
38	BOLT; CLIP,HARNESS (H) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-	●
47	NUT; GEN TERMINAL M8 W/LK WASHER SOU	8-94279-050-0	01	1	1409-	●	●
93	BOLT; ECM HARNESS CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1102-		●
93	BOLT; ECM HARNESS CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●

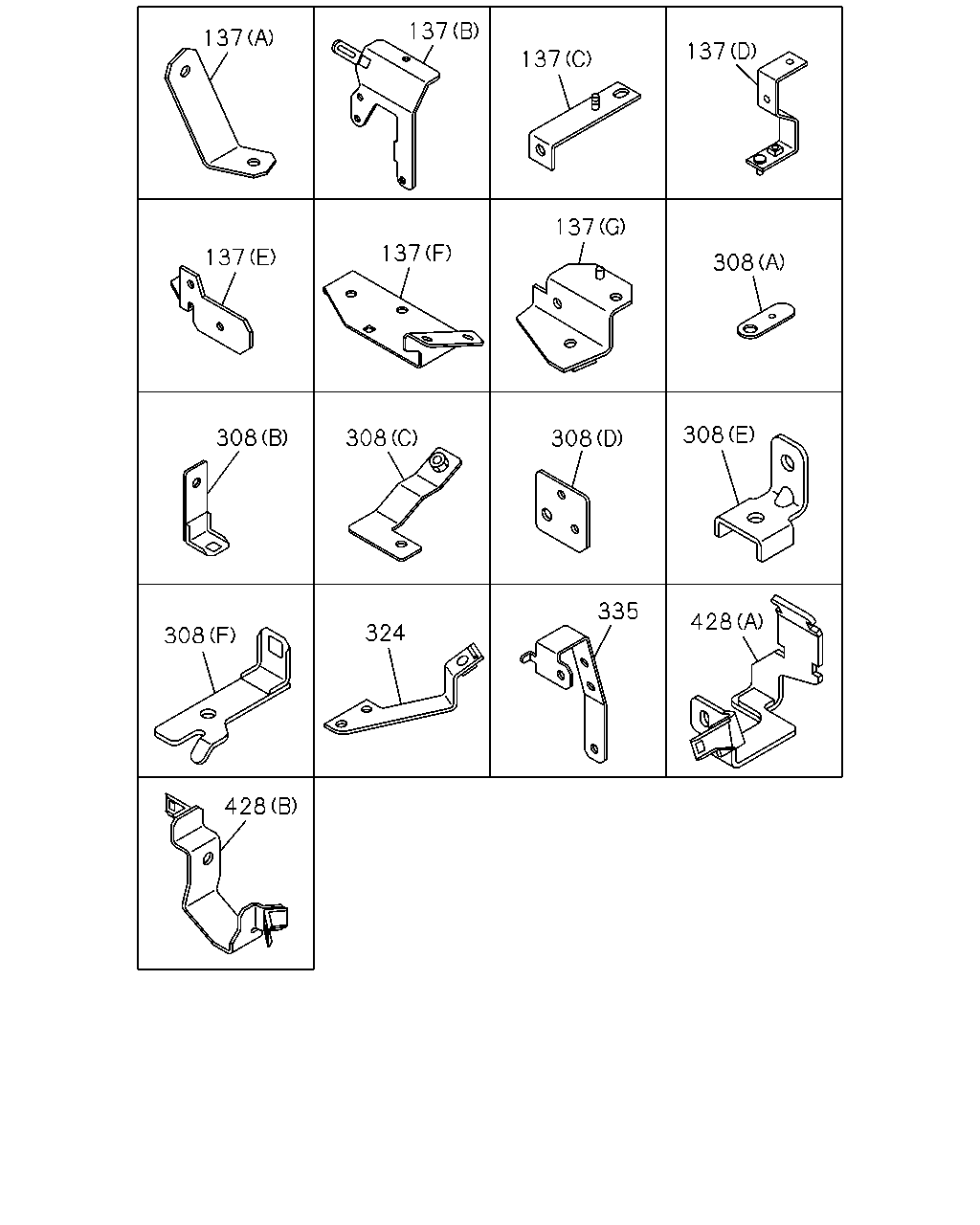

139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (I) M8X65 FLANGE	1-09044-072-1	01	1	1102-		●
139	BOLT; BRKT 4HK1-TCS ENG(RJS) (H) M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1001-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-1105	●	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-1105	●	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1106-1109	●	●
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1106-1109		●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1106-1109	●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1110-	●	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1110-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1001-	●	●
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	02	1	1001-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1001-	●	●
139	BOLT; BRKT (C) M10X25 FLANGE SOU	0-28651-025-0	02	1	1001-	●	●
139	BOLT; BRKT (G) M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-	●	●
139	BOLT; BRKT (D) M8X25 FLANGE SOU	0-28050-825-0	02	1	1001-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1001-	●	●
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (I) M8X65 FLANGE	1-09044-072-1	01	1	1012-		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M6X20 FLANGE	0-28050-620-0	01	1	1012-		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X12 FLANGE	0-28050-812-0	01	1	1012-		●
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X16 FLANGE SOU	0-28050-816-0	02	1	1012-		●
150	BOLT; CLIP (D) M8X30 FLANGE	0-28650-830-0	01	1	1001-	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0 SOU	1-09503-265-0	01	1	1001-	●	●
219	NUT M8 FLANGE SOU	0-91180-108-0	01	1	1001-	●	●
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●	●
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●	●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1012-	●
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●	●
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●	●
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-1011	●
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE SOU	0-91180-108-0	04	1	1012-		●
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●	●
294	NUT 6HK1-TCN ENG(82L) (A) M8 FLANGE SOU	0-91180-108-0	06	1	1001-1107	●	●
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	05	1	1108-	●	●
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	01	1	1001-1109	●	●
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	01	1	1001-1109	●	●
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	01	1	1001-1109	●	●
294	NUT 6HK1-TCN ENG(82L) (B) M10 FLANGE SOU	0-91180-210-0	01	1	1110-	●	●
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	01	1	1110-	●	●
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	01	1	1110-	●	●
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	02	1	1001-	●	●
304	BOLT; ENG HARNESS CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X16 FLANGE SOU	0-28050-816-0	03	1	1109-1201	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	1001-		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE SOU	0-28050-816-0	04	1	1001-		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	1001-		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (D) M6X12 FLANGE SOU	0-28050-612-0	01	1	1001-		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (E) M8X10 FLANGE	0-28050-810-0	01	1	1001-1010		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	03	1	1001-		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (C) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1105		●
304	BOLT; ENG HARNESS CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X16 FLANGE SOU	0-28050-816-0	02	1	1106-1109	●
304	BOLT; ENG HARNESS CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X16 FLANGE SOU	0-28050-816-0	02	1	1110-1201		●
304	BOLT; ENG HARNESS CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X16 FLANGE SOU	0-28050-816-0	02	1	1110-1201	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (C) M8X16 FLANGE SOU	0-28050-816-0	02	1	1202-		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	01	1	1001-		●
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1001-1011	●	●
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●	●
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-		●
313	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-1109	●	●
313	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-1109	●	●
313	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1110-	●	●
313	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1110-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1001-	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1001-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	02	1	1001-1202	●	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-	●	●
515	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	01	1	1102-		●
515	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE SOU	0-91180-108-0	01	1	1012-		●
516	BOLT; HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-		●
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1001-1011		●
516	BOLT; HARNESS 6HK1-TCN ENG(82L) (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1012-		●
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1012-	●
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1102-		●
524	NUT; HARNESS (A) M6 FLANGE SOU	0-91180-106-0	04	1	1001-	●	●
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (B) M10 FLANGE SOU	0-91180-110-0	01	1	1012-		●
525	NUT; CLIP T=8.0 M8 FLANGE SOU	0-91180-108-0	02	1	1001-1011	●	●
525	NUT; CLIP 6HK1-TCN ENG(82L) T=8.0 M8 FLANGE SOU	0-91180-108-0	02	1	1012-		●
525	NUT; CLIP T=8.0 M8 FLANGE SOU	0-91180-108-0	02	1	1012-	●
525	NUT; CLIP T=8.0 M8 FLANGE SOU	0-91180-108-0	01	1	1001-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE SOU	0-91180-108-0	01	1	1001-	●
525	NUT; CLIP 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1001-		●

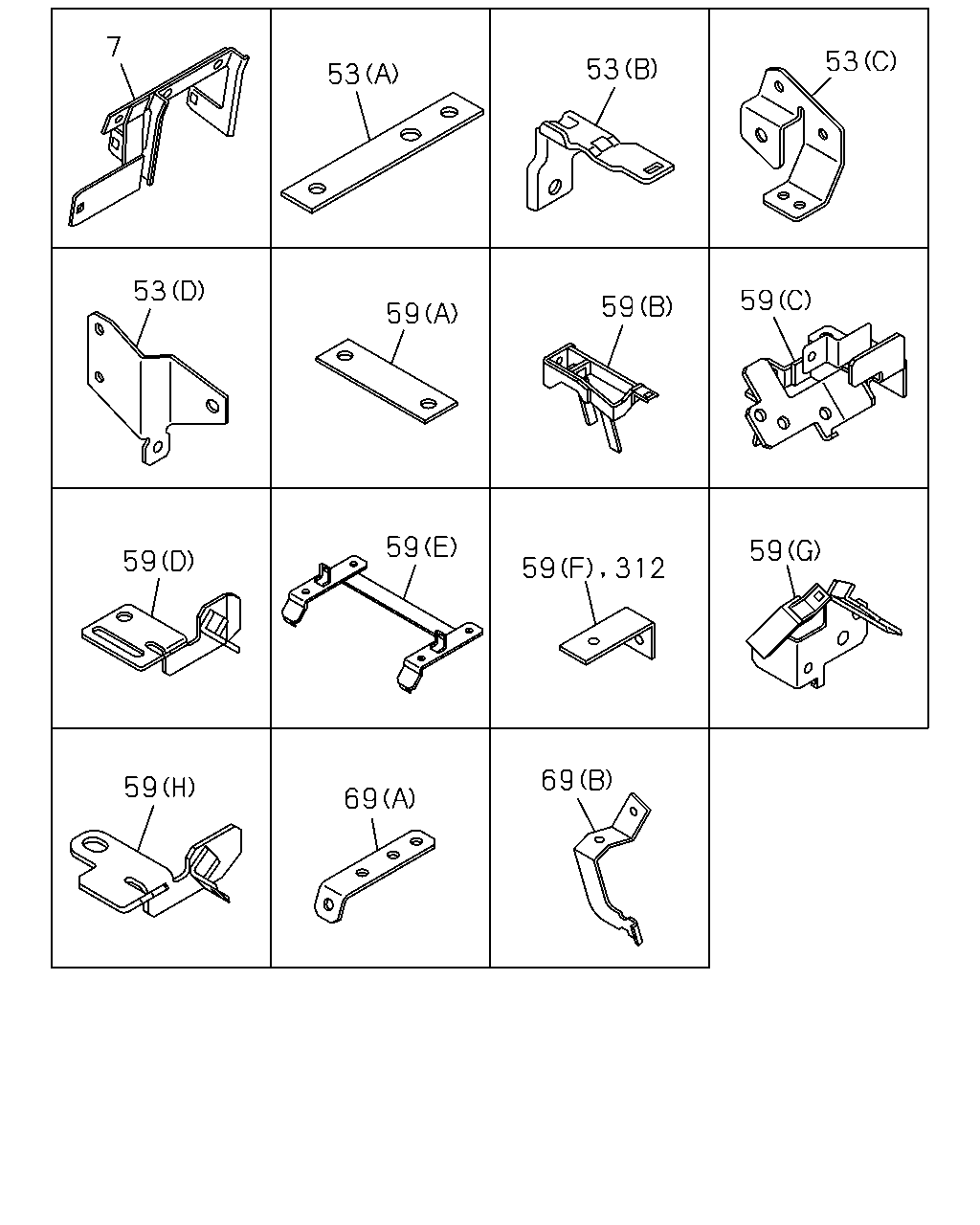

7 53 53 53 59 59 59 53 59 59 59 312 59 69 69 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1001-	●	●
53	BRACKET; HARNESS (A) L=170	1-47479-380-0	01	1	1001-	●	●
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1001-	●	●
53	BRACKET; HARNESS (D)	8-98047-891-0	01	1	1001-	●	●
53	BRACKET; HARNESS (D)	8-98047-890-0	01	1	1001-	●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98084-590-0	01	1	1001-	●	●
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (C)	8-97619-535-0	01	1	1012-1401		●
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (G)	8-97622-828-0	01	1	1402-		●
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (B)	8-98099-963-0	01	1	1012-		●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (A) L=85	8-98044-743-0	01	1	1001-		●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B)	8-97627-325-0	01	1	1001-		●
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-97609-264-2	01	1	1001-1011		●
59	BRACKET; FRAME HARNESS (B)	8-97609-264-2	01	1	1001-1011	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-97609-264-2	01	1	1012-		●
59	BRACKET; FRAME HARNESS (B)	8-97609-264-2	01	1	1012-	●
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	1001-	●	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1001-1502	●	●
59	BRACKET; FRAME HARNESS (H)	8-98254-592-0	01	1	1503-	●	●
59	BRACKET; FRAME HARNESS (C)	8-97619-534-0	01	1	1001-1011	●	●
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (C)	8-97619-534-0	01	1	1012-		●
59	BRACKET; FRAME HARNESS (C)	8-97619-534-0	01	1	1012-	●
59	BRACKET; FRAME HARNESS (F) L=75	1-47478-323-0	01	1	1001-	●
69	BRACKET; CLIP (A)	1-82698-167-0	01	1	1001-1105	●	●
69	BRACKET; CLIP (A)	1-82698-167-0	01	1	1106-1109		●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-82698-167-0	01	1	1106-1109	●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-82698-167-0	01	1	1110-	●	●
69	BRACKET; CLIP (B)	8-97616-357-3	01	1	1001-1011	●	●
69	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-97616-357-3	01	1	1012-		●
69	BRACKET; CLIP (B)	8-97616-357-3	01	1	1012-	●
312	BRACKET; CLIP HARNESS L=55	1-47475-304-0	01	1	1001-	●	●

14 16 22 48 305 14 37 48 194 206 217 225 530 14 16 305 14 48 208 48 538 503 1 1 305 1 503 225 503 14 14 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1001-		●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1001-1011	●	●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1012-1105		●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1012-1105	●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1106-1108		●
1	SLEEVE; RUBBER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1106-1108	●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1109-		●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1109-	●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1001-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (E) L=140 SOU	5-09707-031-1	02	1	1102-1107		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (E) L=140 SOU	5-09707-031-1	02	1	1108-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (C) L=250 SOU	5-09707-030-1	02	1	1012-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (E) L=140 SOU	5-09707-031-1	04	1	1012-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (F) L=150	8-97355-273-0	01	1	1012-		●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) L=250 SOU	5-09707-030-1	08	1	1001-1205		●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) L=250	8-98216-430-0	08	1	1206-		●
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1001-	●	●
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1001-1011	●	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (B) L=350	1-09707-183-0	01	1	1012-		●
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1012-	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (C) L=250 SOU	5-09707-030-1	13	1	1001-1109		●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=250 SOU	5-09707-030-1	13	1	1110-1205		●
14	CLIP; BAND,HARNESS (C) L=250 SOU	5-09707-030-1	13	1	1110-1205	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (C) L=250	8-98216-430-0	13	1	1206-		●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (D) L=251	8-97619-917-0	01	1	1001-1101		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=251	8-97619-917-0	01	1	1102-1105		●
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	1102-1105	●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=251	8-97619-917-0	01	1	1106-1109		●
14	CLIP; BAND,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) L=251	8-97619-917-0	01	1	1106-1109	●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=251	8-97619-917-0	01	1	1110-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=251	8-97619-917-0	01	1	1110-		●
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	1110-	●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (E) L=140 SOU	5-09707-031-1	02	1	1012-		●
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=251	8-97619-917-0	01	1	1012-		●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1106-1109	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1110-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=24 L=24	1-09701-001-1	02	1	1102-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (M) L=250	1-09707-126-0	02	1	1012-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=10 & 12	1-09709-278-1	01	1	1012-		●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1012-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (I) ID=5-12 L=18	1-09709-287-0	01	1	1012-		●
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	1001-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-		●
16	CLIP; HARNESS (B) L=155 SOU	8-97173-307-0	18	1	1001-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-		●
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1001-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	04	1	1001-1011	●	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (F) ID=11 L=16	0-95235-025-0	04	1	1012-		●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	04	1	1012-	●
16	CLIP; HARNESS (H) ID=11X2 L=16	1-09700-734-0	01	1	1001-	●	●
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1001-1105	●	●
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1106-1109		●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1106-1109	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1110-	●	●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1001-1011	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (F) ID=11 L=16	0-95235-025-0	02	1	1012-		●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-	●	●
16	CLIP; HARNESS (K) L=140 SOU	5-09707-031-1	01	1	1001-	●	●
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1001-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=24 L=24	1-09701-001-1	02	1	1012-		●
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140 SOU	5-09707-031-1	02	1	1012-		●
37	CLIP; HARNESS,POWER TILT (A) ID=16 L=28	0-95235-556-0	01	1	1001-	●
37	CLIP; HARNESS,POWER TILT (B) ID=13-18 L=18	1-09709-291-0	02	1	1001-	●
37	CLIP; HARNESS,POWER TILT (C) L=250 SOU	5-09707-030-1	01	1	1001-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (G) ID=13-18 L=22	1-09709-292-0	01	1	1001-		●
48	CLIP; FRAME HARNESS (G) ID=13-18 L=22	1-09709-292-0	01	1	1001-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1001-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (M) ID=14 L=44	9-09917-427-0	02	1	1202-		●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=35 L=50	1-09701-214-0	01	1	1106-1109	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=35 L=50	1-09701-214-0	01	1	1110-	●	●
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1001-		●
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1001-		●
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	04	1	1001-		●
48	CLIP; FRAME HARNESS (F) L=140 SOU	5-09707-031-1	02	1	1001-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50 SOU	9-09917-430-0	10	1	1001-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	10	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50 SOU	9-09917-430-0	01	1	1001-1201		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	01	1	1202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50 SOU	9-09917-430-0	16	1	1001-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (M) ID=14 L=44	9-09917-427-0	16	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50 SOU	9-09917-430-0	02	1	1001-1201		●
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	02	1	1001-1201	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	01	1	1202-	●
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	1001-1105	●	●
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	1106-1109		●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	1106-1109	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	1110-	●	●
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1001-	●	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1001-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1001-	●	●
48	CLIP; FRAME HARNESS (L) ID=16 L=28	0-95235-556-0	01	1	1001-	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	19	1	1001-1007	●
48	CLIP; FRAME HARNESS (M) ID=14 L=44	9-09917-427-0	19	1	1008-	●
178	GROMMET; HARNESS 4HK1-TCS ENG(RJS) (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	1012-		●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1001-	●	●
178	GROMMET; HARNESS 6HK1-TCN ENG(82L) (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1001-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1001-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1001-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1001-	●	●
194	CLIP; BAND L=250 SOU	5-09707-030-1	01	1	1001-1011	●	●
194	CLIP; BAND 6HK1-TCN ENG(82L) L=250 SOU	5-09707-030-1	01	1	1012-		●
194	CLIP; BAND L=250 SOU	5-09707-030-1	01	1	1012-	●
206	CLIP; FUEL TANK HARNESS L=250 SOU	5-09707-030-1	03	1	1001-	●	●
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1001-	●	●
217	CLIP; RR BODY HARNESS L=250 SOU	5-09707-030-1	02	1	1001-	●	●
225	CLIP; AIR TANK HARNESS (B) L=250 SOU	5-09707-030-1	01	1	1001-1011		●
225	CLIP; AIR TANK HARNESS (A) L=180 SOU	1-09707-162-1	01	1	1001-	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (C) L=100	8-94443-021-1	01	1	1311-		●
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (P) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-1201	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=300	1-09707-001-1	01	1	1102-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140 SOU	5-09707-031-1	02	1	1102-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (F) ID=24 L=27	1-09700-809-0	03	1	1001-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-		●
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1001-1011		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1001-1011	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-1105		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-1105	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1106-1201		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=21 L=47.5	8-94178-108-0	01	1	1106-1201	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1202-1311		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1202-1311		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1202-1311	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (G) ID=21 L=47.5	8-94178-108-0	01	1	1312-	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1312-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1001-1011	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1012-1105		●
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1012-1105	●
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1106-1108		●
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) ID=16 L=28	0-95235-556-0	02	1	1106-1108	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1109-		●
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1109-	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1012-		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1012-	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1012-		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1012-	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1012-		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1012-	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1012-		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1012-	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1012-1105		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1012-1105	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1106-1108		●
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=100	8-94443-021-1	01	1	1106-1108	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1109-1310		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1109-1310	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (J) ID=19 H=33 L=45	1-09701-045-0	01	1	1001-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (K) ID=11 L=45	8-94296-897-1	01	1	1001-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (L) ID=18 L=44	8-97367-985-1	01	1	1001-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=300	1-09707-001-1	01	1	1012-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140 SOU	5-09707-031-1	02	1	1012-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (O) L=51	1-11369-157-0	01	1	1012-		●
503	CONNECTOR EXC. AIR DRYER<PS7> (C) SOU	1-82690-666-0	01	1	1001-		●
503	CONNECTOR 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) SOU	1-82690-668-0	01	1	1001-		●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) SOU	1-82690-668-0	01	1	1001-	●
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	1001-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1306-	●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1001-1305	●	●
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-	●	●
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-		●
530	SEAL; HARNESS 100X40 SOU	1-72498-022-1	06	1	1001-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-		●
538	SEAL; HOLE OD=25 BLACK SOU	1-76798-019-0	01	1	1001-	●	●

305 48 48 305 305 483 16 16 483 305 305 483 305 305 49 306 16 16 223 81 16 223 16 483 305 305 48 213 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1106-1109	●
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1110-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=24 L=24	1-09701-001-1	02	1	1102-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (M) L=250	1-09707-126-0	02	1	1012-		●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=10 & 12	1-09709-278-1	01	1	1012-		●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1012-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (I) ID=5-12 L=18	1-09709-287-0	01	1	1012-		●
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	1001-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-		●
16	CLIP; HARNESS (B) L=155 SOU	8-97173-307-0	18	1	1001-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-		●
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	1001-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	04	1	1001-1011	●	●
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (F) ID=11 L=16	0-95235-025-0	04	1	1012-		●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	04	1	1012-	●
16	CLIP; HARNESS (H) ID=11X2 L=16	1-09700-734-0	01	1	1001-	●	●
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1001-1105	●	●
16	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1106-1109		●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1106-1109	●
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1110-	●	●
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1001-1011	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (F) ID=11 L=16	0-95235-025-0	02	1	1012-		●
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-	●	●
16	CLIP; HARNESS (K) L=140 SOU	5-09707-031-1	01	1	1001-	●	●
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-	●	●
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1001-	●	●
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=24 L=24	1-09701-001-1	02	1	1012-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (G) ID=13-18 L=22	1-09709-292-0	01	1	1001-		●
48	CLIP; FRAME HARNESS (G) ID=13-18 L=22	1-09709-292-0	01	1	1001-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1001-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (M) ID=14 L=44	9-09917-427-0	02	1	1202-		●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=35 L=50	1-09701-214-0	01	1	1106-1109	●
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (N) ID=35 L=50	1-09701-214-0	01	1	1110-	●	●
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1001-		●
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1001-		●
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	04	1	1001-		●
48	CLIP; FRAME HARNESS (F) L=140 SOU	5-09707-031-1	02	1	1001-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50 SOU	9-09917-430-0	10	1	1001-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	10	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50 SOU	9-09917-430-0	01	1	1001-1201		●
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	01	1	1202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50 SOU	9-09917-430-0	16	1	1001-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (M) ID=14 L=44	9-09917-427-0	16	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5100MM(51W) (D) ID=20 L=50 SOU	9-09917-430-0	02	1	1001-1201		●
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	02	1	1001-1201	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	01	1	1202-	●
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	1001-1105	●	●
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	1106-1109		●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	1106-1109	●
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50	1-09701-055-1	01	1	1110-	●	●
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1001-	●	●
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1001-	●	●
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1001-	●	●
48	CLIP; FRAME HARNESS (L) ID=16 L=28	0-95235-556-0	01	1	1001-	●
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	19	1	1001-1007	●
48	CLIP; FRAME HARNESS (M) ID=14 L=44	9-09917-427-0	19	1	1008-	●
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-		●
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) ID=19 L=39 H=21	1-09700-972-1	01	1	1012-		●
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1001-1105	●	●
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1106-1109		●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1106-1109	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1110-	●	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) OD=9 H=6	1-09709-178-0	01	1	1001-1010	●	●
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1011-1105	●	●
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1106-1109		●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1106-1109	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1110-	●	●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1001-	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	1001-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=10 & 10	1-09709-277-1	03	1	1001-	●
223	CLIP; AIR TANK HARNESS (C) ID=10 & 15	1-09709-279-1	01	1	1001-	●
223	CLIP; AIR TANK HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-	●
223	CLIP; AIR TANK HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (C) L=100	8-94443-021-1	01	1	1311-		●
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (P) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-1201	●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=300	1-09707-001-1	01	1	1102-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140 SOU	5-09707-031-1	02	1	1102-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (F) ID=24 L=27	1-09700-809-0	03	1	1001-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-		●
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1001-1011		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1001-1011	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-1105		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-1105	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1106-1201		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=21 L=47.5	8-94178-108-0	01	1	1106-1201	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1202-1311		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1202-1311		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1202-1311	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) EURO3 SPECIFICATION<NT3> (G) ID=21 L=47.5	8-94178-108-0	01	1	1312-	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1312-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1001-1011	●	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1012-1105		●
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1012-1105	●
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1106-1108		●
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) ID=16 L=28	0-95235-556-0	02	1	1106-1108	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1109-		●
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1109-	●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1012-		●
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1012-	●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1012-		●
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1012-	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1012-		●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1012-	●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1012-		●
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1012-	●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1001-1011		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1012-1105		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1012-1105	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1106-1108		●
305	CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=100	8-94443-021-1	01	1	1106-1108	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1109-1310		●
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1109-1310	●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (J) ID=19 H=33 L=45	1-09701-045-0	01	1	1001-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (K) ID=11 L=45	8-94296-897-1	01	1	1001-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (L) ID=18 L=44	8-97367-985-1	01	1	1001-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (M) L=300	1-09707-001-1	01	1	1012-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (N) L=140 SOU	5-09707-031-1	02	1	1012-		●
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (O) L=51	1-11369-157-0	01	1	1012-		●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1001-1011	●	●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1012-		●
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1012-	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1001-1011	●	●
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1012-		●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1012-	●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=21 L=24	8-98019-191-0	01	1	1211-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1012-1112		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	02	1	1201-1210		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1211-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=24 L=24	1-09701-001-1	01	1	1012-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1012-		●
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) L=36	8-94224-891-1	03	1	1012-		●

137 137 137 137 137 137 137 308 308 308 308 308 335 428 324 308 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (G)	8-98058-354-1	01	1	1012-		●
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) (F)	8-97616-565-1	01	1	1012-		●
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1001-1011	●	●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (A)	8-97614-728-1	01	1	1012-		●
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1012-	●
137	BRACKET; HARNESS CLAMP (B)	8-97618-098-2	01	1	1001-	●	●
137	BRACKET; HARNESS CLAMP (C)	8-97624-013-0	01	1	1001-1011	●	●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (C)	8-97624-013-0	01	1	1012-		●
137	BRACKET; HARNESS CLAMP (C)	8-97624-013-0	01	1	1012-	●
137	BRACKET; HARNESS CLAMP (D)	8-98065-904-0	01	1	1001-	●	●
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (E)	8-98059-231-1	01	1	1001-	●	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A)	8-97601-310-0	02	1	1001-1010		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1011-1105	●	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1106-1108		●
308	BRACKET; CLIP,ENG HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97601-310-0	02	1	1106-1108	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1109-		●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1109-	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (C)	8-98032-178-0	01	1	1001-		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B)	8-98075-824-0	01	1	1001-		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98021-692-1	01	1	1001-1011	●	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98021-692-1	01	1	1012-1105		●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1012-1105	●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1106-1108		●
308	BRACKET; CLIP,ENG HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98021-692-1	01	1	1106-1108	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98021-692-1	01	1	1109-		●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1109-	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (A)	8-97601-310-0	03	1	1001-1010		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (E)	8-97614-078-0	01	1	1001-		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> (F)	8-98021-291-2	01	1	1001-		●
324	BRACKET; CLIP	8-98051-649-1	01	1	1001-	●	●
324	BRACKET; CLIP	8-98051-648-1	01	1	1001-	●	●
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1001-	●	●
428	BRACKET 4HK1-TCS ENG(RJS) (A)	8-98151-455-3	01	1	1012-		●
428	BRACKET (B)	8-98090-952-0	01	1	1001-1011	●	●
428	BRACKET 6HK1-TCN ENG(82L) (B)	8-98090-952-0	01	1	1012-		●
428	BRACKET (B)	8-98090-952-0	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
