Sayfa 8-10 - Isuzu EPC

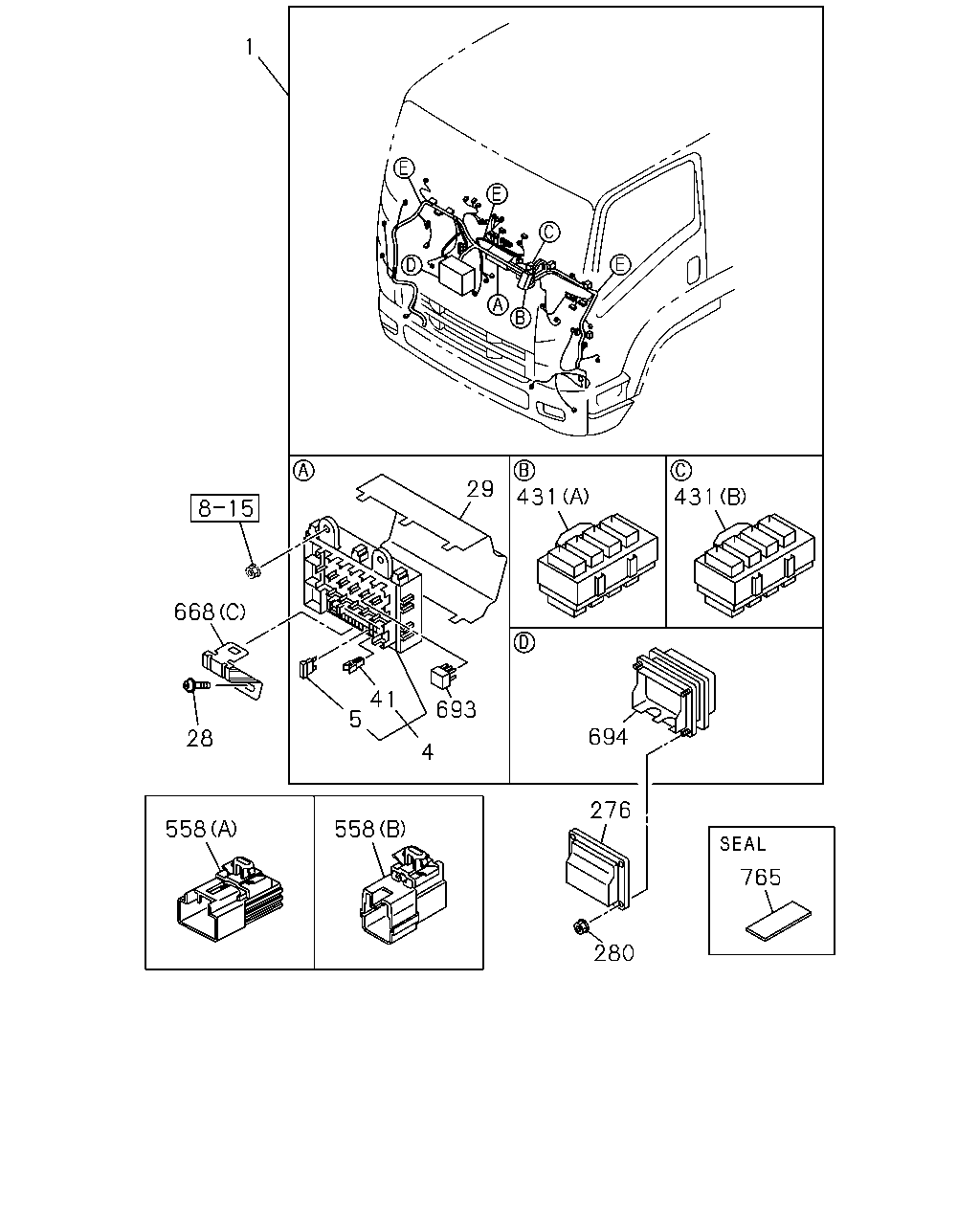

8-10 — WIRING HARNESS AND FUSE (#56028) — 628 parça

1 668 28 558 558 276 280 765 694 431 431 29 693 4 41 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1110-1209	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1210-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1110-1209	●
1	HARNESS; CAB MZW6P M/T(RSZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98198-680-0	01	1	1110-1209		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1210-	●
1	HARNESS; CAB MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98198-680-0	01	1	1210-		●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1110-1209	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1210-	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-902-0	01	1	1110-1209		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-902-0	01	1	1210-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1110-1209	●
1	HARNESS; CAB MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1110-1209		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98083-931-2	01	1	1001-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98083-931-2	01	1	1110-1110	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1110-1209	●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1001-1109	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1110-1110	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1110-1209	●
1	HARNESS; CAB	8-98154-796-0	01	1	1001-1105		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98154-796-0	01	1	1106-1109		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98154-796-0	01	1	1110-1209		●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1001-1105	●	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1106-1109	●
4	BOX ASM; FUSE,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98065-666-0	01	1	1106-1109		●
4	BOX ASM; FUSE,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98065-666-0	01	1	1110-1110	●	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1110-	●	●
5	FUSE; FACIA HARNESS 10A RED SOU	8-98054-257-0	AR	1	1001-1105	●	●
5	FUSE; FACIA HARNESS 10A RED SOU	8-98054-257-0	AR	1	1106-1109	●
5	FUSE; FACIA HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 10A RED SOU	8-98054-257-0	AR	1	1106-1109		●
5	FUSE; FACIA HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 10A RED SOU	8-98054-257-0	AR	1	1110-1110	●	●
5	FUSE; FACIA HARNESS 10A RED SOU	8-98054-257-0	AR	1	1110-	●	●
5	FUSE; FACIA HARNESS 15A BLUE SOU	8-98054-258-0	AR	1	1001-1105	●	●
5	FUSE; FACIA HARNESS 15A BLUE SOU	8-98054-258-0	AR	1	1106-1109	●
5	FUSE; FACIA HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15A BLUE SOU	8-98054-258-0	AR	1	1106-1109		●
5	FUSE; FACIA HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15A BLUE SOU	8-98054-258-0	AR	1	1110-1110	●	●
5	FUSE; FACIA HARNESS 15A BLUE SOU	8-98054-258-0	AR	1	1110-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW SOU	8-98054-259-0	AR	1	1001-1105	●	●
5	FUSE; FACIA HARNESS 20A YELLOW SOU	8-98054-259-0	AR	1	1106-1109	●
5	FUSE; FACIA HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 20A YELLOW SOU	8-98054-259-0	AR	1	1106-1109		●
5	FUSE; FACIA HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 20A YELLOW SOU	8-98054-259-0	AR	1	1110-1110	●	●
5	FUSE; FACIA HARNESS 20A YELLOW SOU	8-98054-259-0	AR	1	1110-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	01	1	1001-1105	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	01	1	1106-1109	●
5	FUSE; FACIA HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 25A WHITE	8-98062-982-0	01	1	1106-1109		●
5	FUSE; FACIA HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 25A WHITE	8-98062-982-0	01	1	1110-1110	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	01	1	1110-	●	●
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1001-	●	●
28	SCREW; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE SOU	0-28650-616-0	01	1	1001-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1001-1105	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1106-1109	●
29	COVER; FUSE BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98056-968-0	01	1	1106-1109		●
29	COVER; FUSE BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98056-968-0	01	1	1110-1110	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1110-	●	●
41	PULLER; FUSE SOU	8-98054-260-0	01	1	1001-1105	●	●
41	PULLER; FUSE SOU	8-98054-260-0	01	1	1106-1109	●
41	PULLER; FUSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-98054-260-0	01	1	1106-1109		●
41	PULLER; FUSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SOU	8-98054-260-0	01	1	1110-1110	●	●
41	PULLER; FUSE SOU	8-98054-260-0	01	1	1110-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1001-	●	●
280	NUT; BOX ASM FIX M6 FLANGE SOU	0-91180-106-0	04	1	1001-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1001-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1001-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1001-1105	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 10P BLUE	1-82699-598-0	01	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 10P BLUE	1-82699-598-0	01	1	1110-1110	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1110-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1001-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1001-1105	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 10P GREEN	1-82699-599-0	01	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 10P GREEN	1-82699-599-0	01	1	1110-1110	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1110-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1001-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1001-1105	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 10P BROWN SOU	1-82699-601-0	09	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 10P BROWN SOU	1-82699-601-0	09	1	1110-1110	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1110-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1001-1105	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 10P	8-97077-943-0	02	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 10P	8-97077-943-0	02	1	1110-1110	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1110-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1001-1011	●	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) (H) 6P BLACK	8-97616-194-0	02	1	1012-1106	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1012-1106		●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1107-1109	●	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) (H) 6P BLACK	8-97616-194-0	02	1	1110-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (H) 6P BLACK	8-97616-194-0	01	1	1012-	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1001-1105	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) WHITE	8-98056-374-0	01	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) WHITE	8-98056-374-0	01	1	1110-1110	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1110-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1001-1105	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) WHITE	8-98056-375-0	01	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) WHITE	8-98056-375-0	01	1	1110-1110	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1110-	●	●
558	CONNECTOR; HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) SOU	1-82690-668-0	01	1	1102-	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1001-	●	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1001-	●	●
558	CONNECTOR; HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) SOU	1-82690-668-0	01	1	1012-	●
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (D)	8-98001-095-0	01	1	1012-1408	●
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98009-245-0	01	1	1012-1408	●
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98273-295-0	01	1	1409-	●
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (F)	8-98011-484-0	01	1	1012-	●
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (B)	8-98022-106-2	01	1	1012-	●
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (A)	8-98024-765-0	01	1	1012-	●
668	BRACKET; HARNESS (C)	8-98095-653-2	01	1	1001-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1001-1105	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1106-1109	●
693	RELAY; FUSE BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC	8-97173-035-1	AR	1	1106-1109		●
693	RELAY; FUSE BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC	8-97173-035-1	AR	1	1110-1110	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1110-	●	●
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	1001-1105	●	●
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	1106-1109	●
694	BOX ASM; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98063-269-1	01	1	1106-1109		●
694	BOX ASM; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98063-269-1	01	1	1110-1110	●	●
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	1110-	●	●
765	TAPE 100X40 SOU	1-72498-022-1	01	1	1409-	●	●

1 2 2 314 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1110-1209	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1210-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1110-1209	●
1	HARNESS; CAB MZW6P M/T(RSZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98198-680-0	01	1	1110-1209		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1210-	●
1	HARNESS; CAB MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98198-680-0	01	1	1210-		●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1110-1209	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1210-	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-902-0	01	1	1110-1209		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-902-0	01	1	1210-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1110-1209	●
1	HARNESS; CAB MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1110-1209		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98083-931-2	01	1	1001-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98083-931-2	01	1	1110-1110	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1110-1209	●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1001-1109	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1110-1110	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1110-1209	●
1	HARNESS; CAB	8-98154-796-0	01	1	1001-1105		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98154-796-0	01	1	1106-1109		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98154-796-0	01	1	1110-1209		●
2	DIODE; CABLE HARNESS (A) BLACK 10P SOU	1-82699-703-0	01	1	1001-1105	●	●
2	DIODE; CABLE HARNESS (A) BLACK 10P SOU	1-82699-703-0	01	1	1106-1109	●
2	DIODE; CABLE HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK 10P SOU	1-82699-703-0	01	1	1106-1109		●
2	DIODE; CABLE HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK 10P SOU	1-82699-703-0	01	1	1110-1110	●	●
2	DIODE; CABLE HARNESS (A) BLACK 10P SOU	1-82699-703-0	01	1	1110-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A SOU	8-94422-639-1	02	1	1001-1105	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A SOU	8-94422-639-1	02	1	1106-1109	●
2	DIODE; CABLE HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) BLACK 2P-1.5A SOU	8-94422-639-1	02	1	1106-1109		●
2	DIODE; CABLE HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) BLACK 2P-1.5A SOU	8-94422-639-1	02	1	1110-1110	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A SOU	8-94422-639-1	02	1	1110-	●	●
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	1001-1105	●	●
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	1106-1109	●
314	RESISTOR; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLUE	1-82691-204-0	01	1	1106-1109		●
314	RESISTOR; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BLUE	1-82691-204-0	01	1	1110-1110	●	●
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	1110-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1001-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1001-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1001-1105	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 10P BLUE	1-82699-598-0	01	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 10P BLUE	1-82699-598-0	01	1	1110-1110	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1110-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1001-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1001-1105	●	●

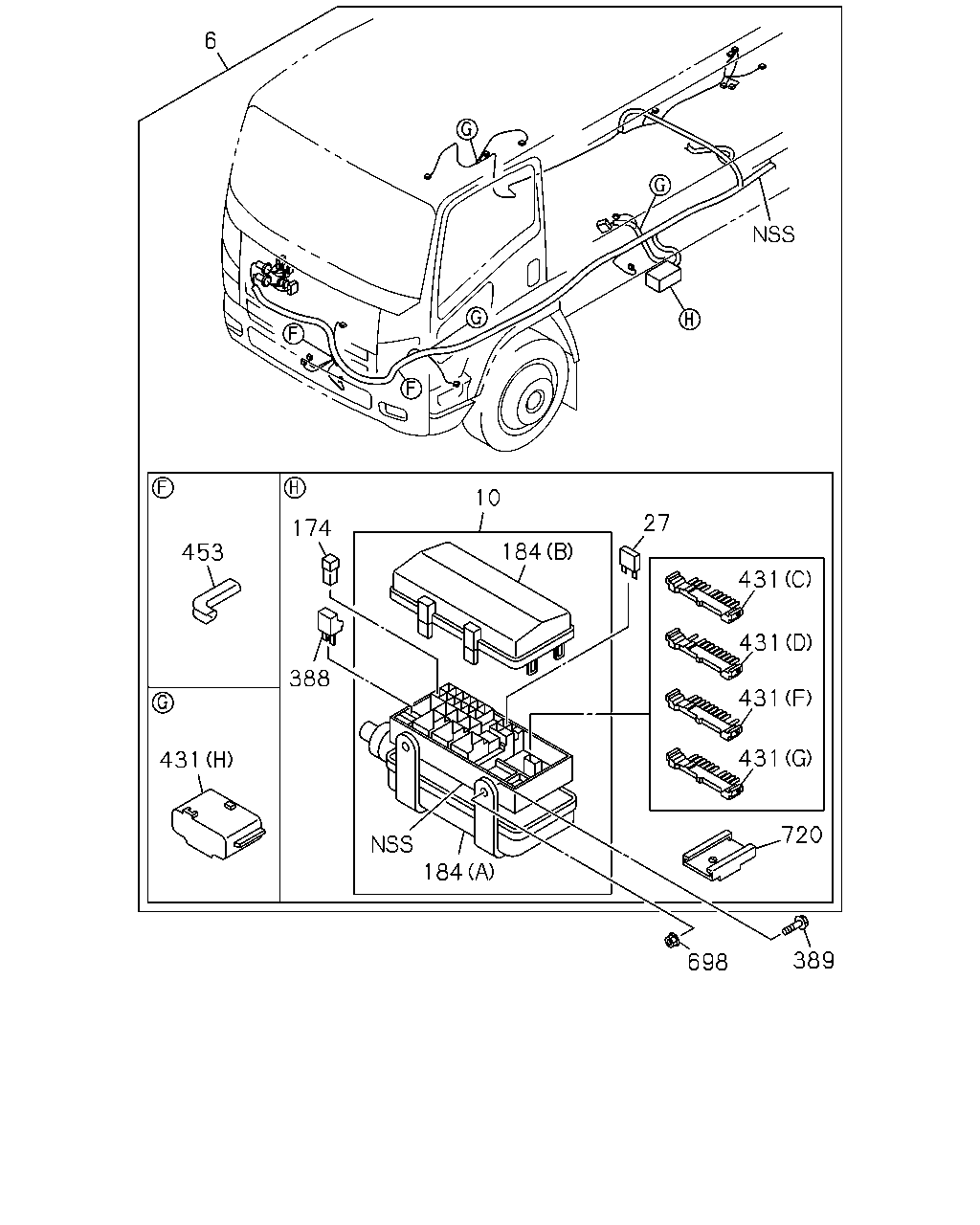

431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 10P GREEN	1-82699-599-0	01	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 10P GREEN	1-82699-599-0	01	1	1110-1110	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1110-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1001-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1001-1105	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 10P BROWN SOU	1-82699-601-0	09	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 10P BROWN SOU	1-82699-601-0	09	1	1110-1110	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1110-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1001-1105	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 10P	8-97077-943-0	02	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 10P	8-97077-943-0	02	1	1110-1110	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1110-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1001-1011	●	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) (H) 6P BLACK	8-97616-194-0	02	1	1012-1106	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1012-1106		●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1107-1109	●	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) (H) 6P BLACK	8-97616-194-0	02	1	1110-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (H) 6P BLACK	8-97616-194-0	01	1	1012-	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1001-1105	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) WHITE	8-98056-374-0	01	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) WHITE	8-98056-374-0	01	1	1110-1110	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1110-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1001-1105	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) WHITE	8-98056-375-0	01	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) WHITE	8-98056-375-0	01	1	1110-1110	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1110-	●	●

339 6 6 595 6 486 186 1 663

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

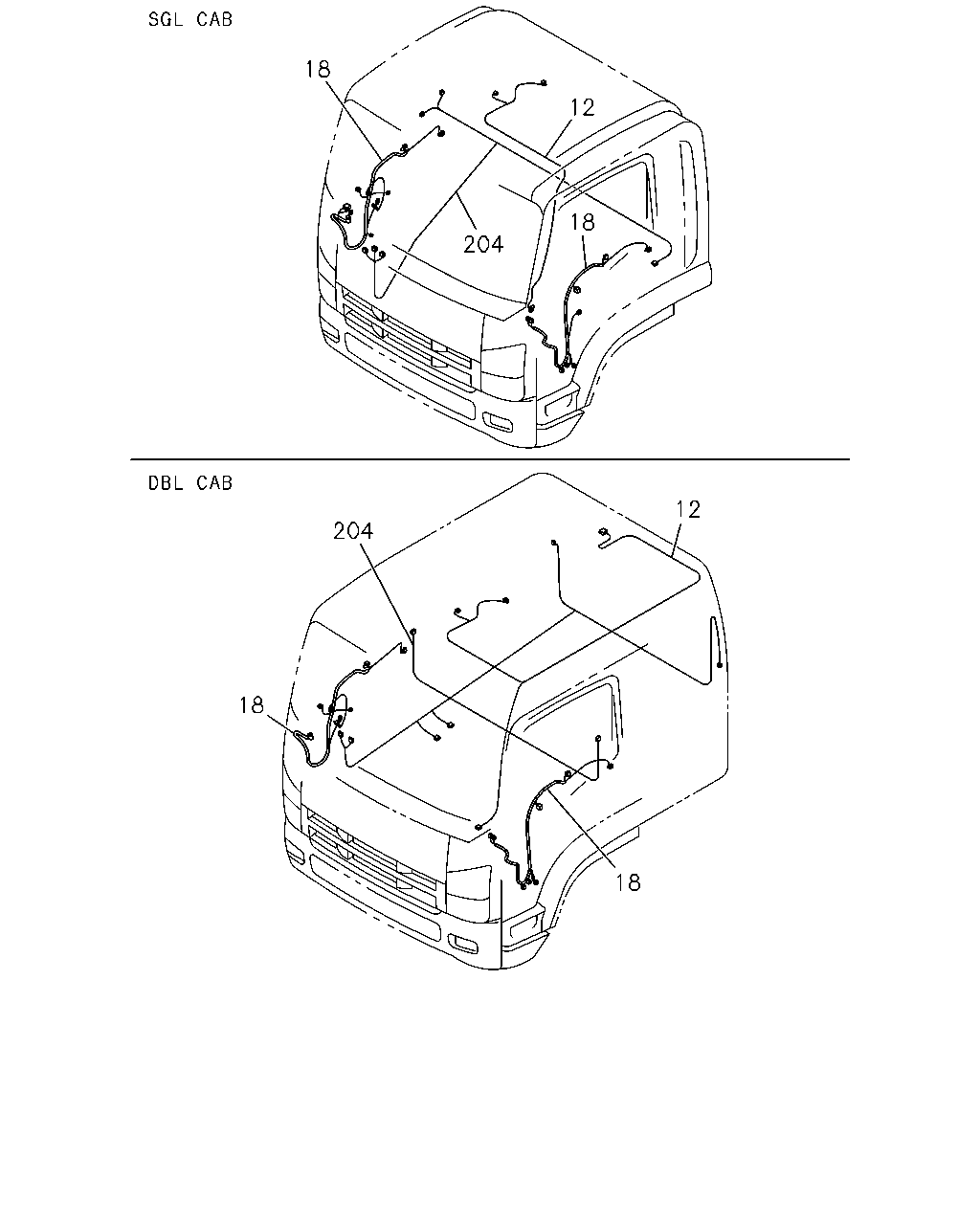

1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1110-1209	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1210-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1110-1209	●
1	HARNESS; CAB MZW6P M/T(RSZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98198-680-0	01	1	1110-1209		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1210-	●
1	HARNESS; CAB MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98198-680-0	01	1	1210-		●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1110-1209	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1210-	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-902-0	01	1	1110-1209		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-902-0	01	1	1210-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1110-1209	●
1	HARNESS; CAB MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1110-1209		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98083-931-2	01	1	1001-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98083-931-2	01	1	1110-1110	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1110-1209	●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1001-1109	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1110-1110	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1110-1209	●
1	HARNESS; CAB	8-98154-796-0	01	1	1001-1105		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98154-796-0	01	1	1106-1109		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98154-796-0	01	1	1110-1209		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO3 SPECIFICATION<NT3>	8-98198-385-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO3 SPECIFICATION<NT3>	8-98198-384-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98194-078-3	01	1	1107-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W)	8-98172-501-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98172-501-3	01	1	1110-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W)	8-98172-502-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98172-502-3	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1008-1010	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98168-947-1	01	1	1011-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98168-947-1	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W)	8-98064-960-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W)	8-98064-960-4	01	1	1008-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98064-960-4	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98155-995-3	01	1	1001-1105		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98155-995-3	01	1	1106-		●

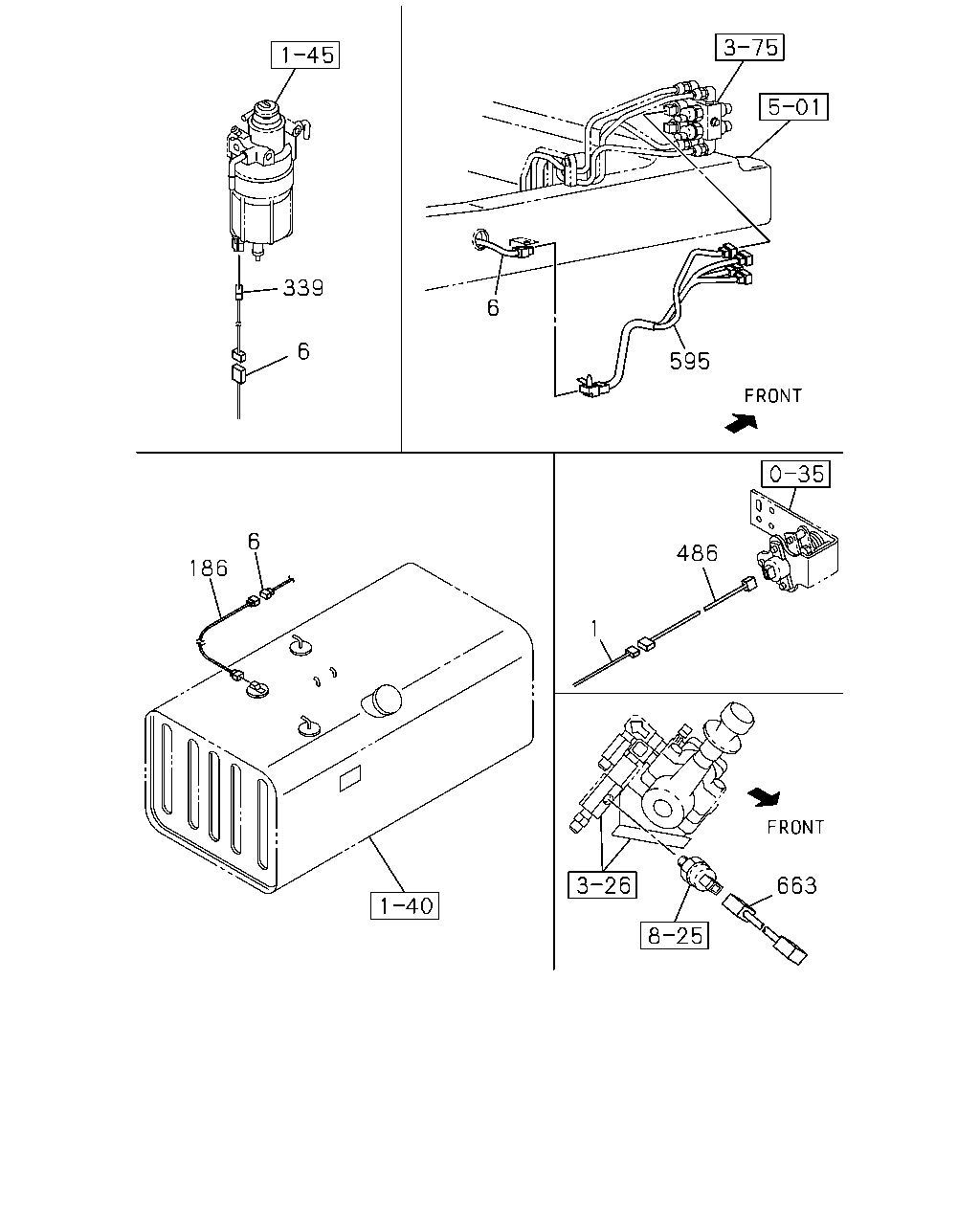

186	HARNESS; FUEL TANK WHEEL BASE 3700MM(37W)	8-97619-079-0	01	1	1001-1010	●
339	HARNESS; EXT,FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W)	8-98118-331-1	01	1	1012-	●
339	HARNESS; EXT,FUEL WHEEL BASE 5100MM(51W)	8-98124-758-0	01	1	1001-1011	●
339	HARNESS; EXT,FUEL 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W)	8-98124-758-0	01	1	1012-	●
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	1001-	●	●
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-005-3	01	1	1106-1109		●
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-005-3	01	1	1110-	●	●
595	HARNESS; WARNING,BRK	8-97621-003-3	01	1	1001-1105	●	●
595	HARNESS; WARNING,BRK	8-97621-003-3	01	1	1106-1109	●
595	HARNESS; WARNING,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-003-3	01	1	1106-1109		●
595	HARNESS; WARNING,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-003-3	01	1	1110-	●	●
663	HARNESS; EXTENSION,RR WHEEL PARKING	8-98126-779-2	01	1	1008-	●	●

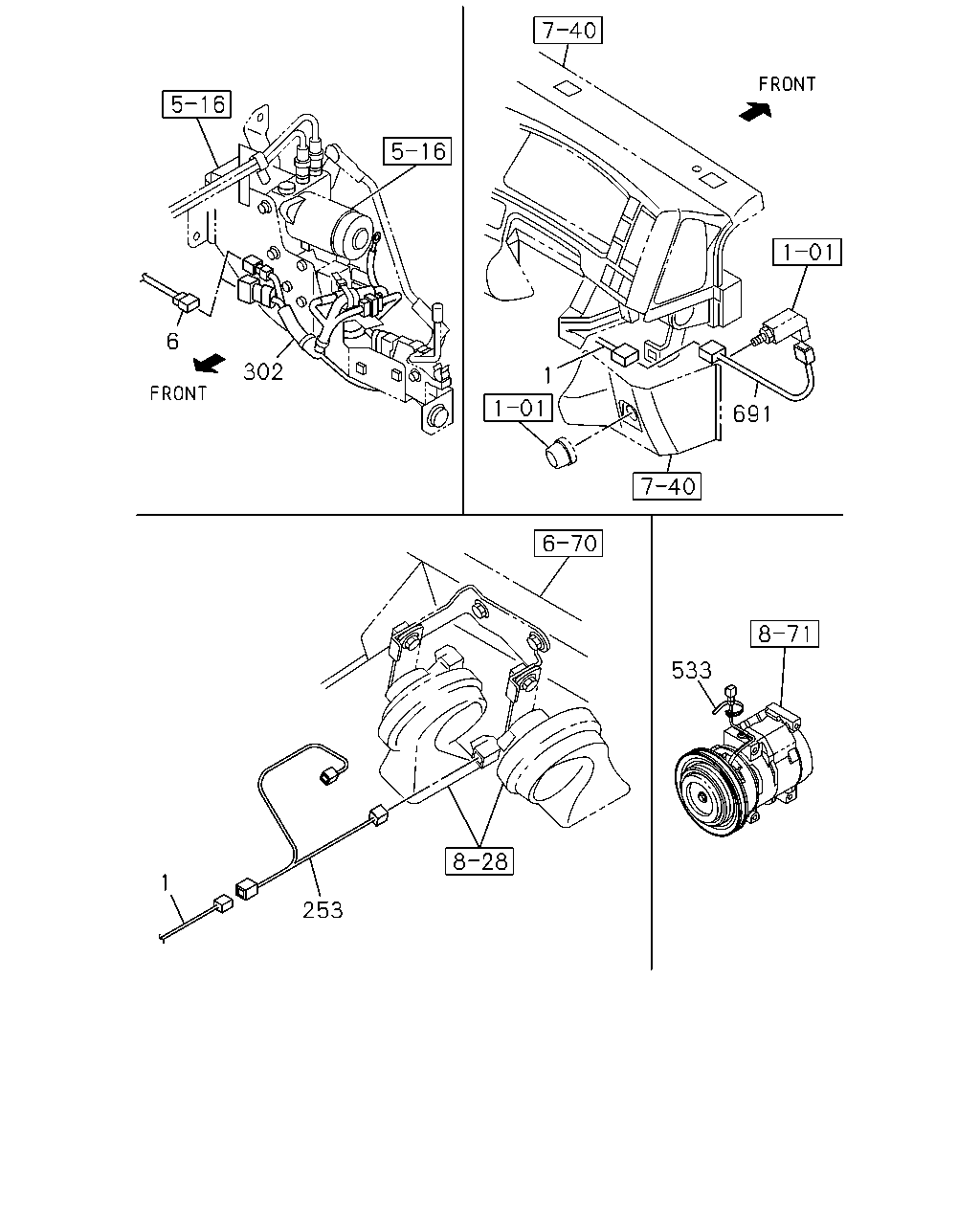

6 302 1 691 533 1 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1110-1209	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1210-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1110-1209	●
1	HARNESS; CAB MZW6P M/T(RSZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98198-680-0	01	1	1110-1209		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1210-	●
1	HARNESS; CAB MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98198-680-0	01	1	1210-		●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1110-1209	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1210-	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-902-0	01	1	1110-1209		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-902-0	01	1	1210-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1110-1209	●
1	HARNESS; CAB MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1110-1209		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98083-931-2	01	1	1001-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98083-931-2	01	1	1110-1110	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1110-1209	●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1001-1109	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1110-1110	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1110-1209	●
1	HARNESS; CAB	8-98154-796-0	01	1	1001-1105		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98154-796-0	01	1	1106-1109		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98154-796-0	01	1	1110-1209		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO3 SPECIFICATION<NT3>	8-98198-385-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO3 SPECIFICATION<NT3>	8-98198-384-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98194-078-3	01	1	1107-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W)	8-98172-501-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98172-501-3	01	1	1110-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W)	8-98172-502-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98172-502-3	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1008-1010	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98168-947-1	01	1	1011-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98168-947-1	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W)	8-98064-960-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W)	8-98064-960-4	01	1	1008-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98064-960-4	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98155-995-3	01	1	1001-1105		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98155-995-3	01	1	1106-		●
253	HARNESS; EXT,HORN	8-98074-080-3	01	1	1001-	●	●
302	HARNESS; POWER CAB TILT	8-97622-116-0	01	1	1001-		●
533	CLIP L=180 SOU	1-09707-162-1	01	1	1001-1011	●	●
533	CLIP 6HK1-TCN ENG(82L) L=180 SOU	1-09707-162-1	01	1	1012-1206	●
533	CLIP L=180 SOU	1-09707-162-1	01	1	1012-1206		●
533	CLIP 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) L=180 SOU	1-09707-162-1	01	1	1207-	●	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1001-	●	●

13 6 6 13 558 6 700 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO3 SPECIFICATION<NT3>	8-98198-385-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO3 SPECIFICATION<NT3>	8-98198-384-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98194-078-3	01	1	1107-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W)	8-98172-501-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98172-501-3	01	1	1110-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W)	8-98172-502-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98172-502-3	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1008-1010	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98168-947-1	01	1	1011-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98168-947-1	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W)	8-98064-960-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W)	8-98064-960-4	01	1	1008-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98064-960-4	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98155-995-3	01	1	1001-1105		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98155-995-3	01	1	1106-		●

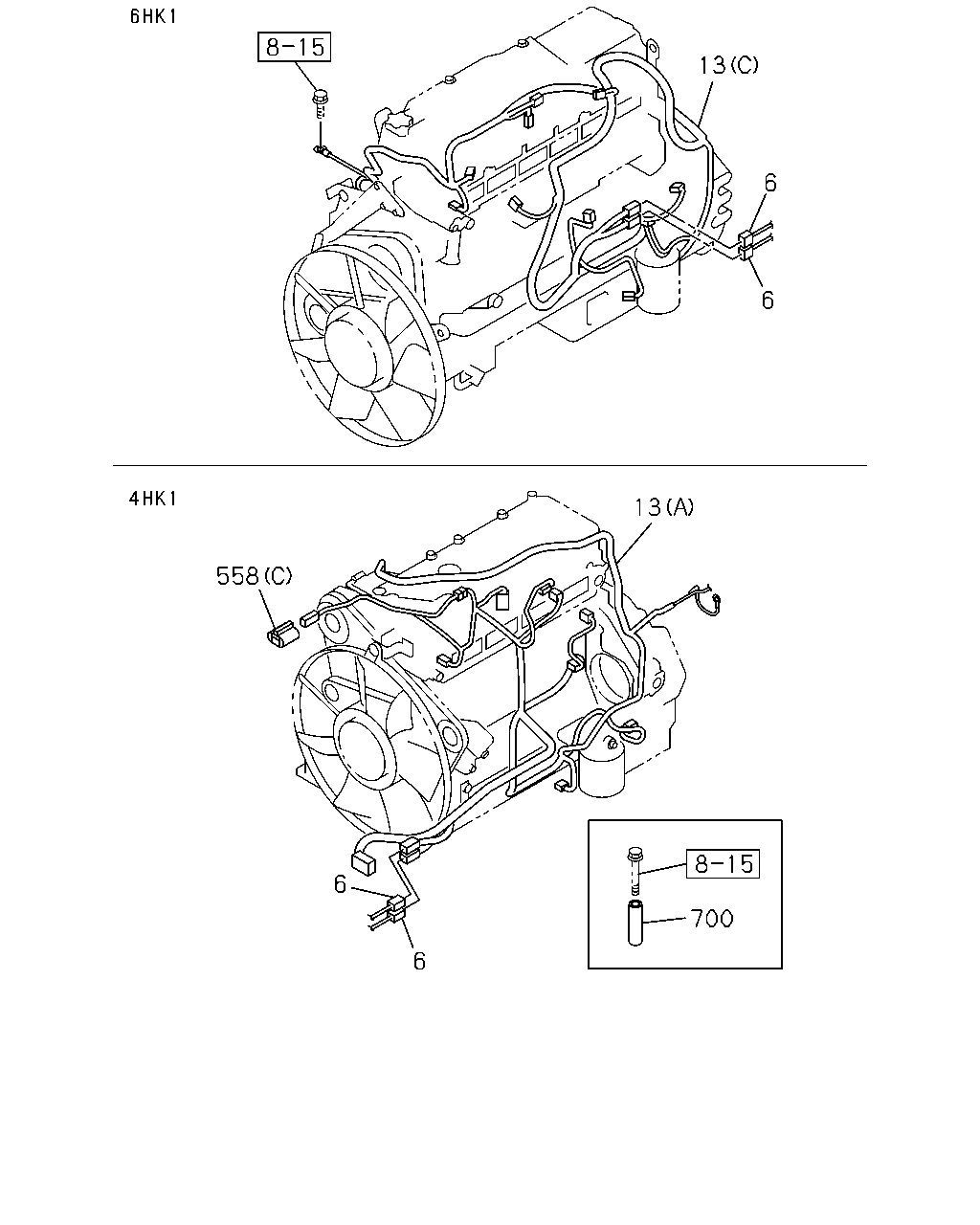

13	HARNESS; ENG HEATER & DEFROSTER(C41) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98177-188-0	01	1	1109-1201		●
13	HARNESS; ENG GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) (C)	8-98177-188-0	01	1	1109-1201		●
13	HARNESS; ENG GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) (C)	8-98177-187-0	01	1	1109-1201		●
13	HARNESS; ENG GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) HEATER & DEFROSTER(C41) (C)	8-98177-187-0	01	1	1109-1201		●

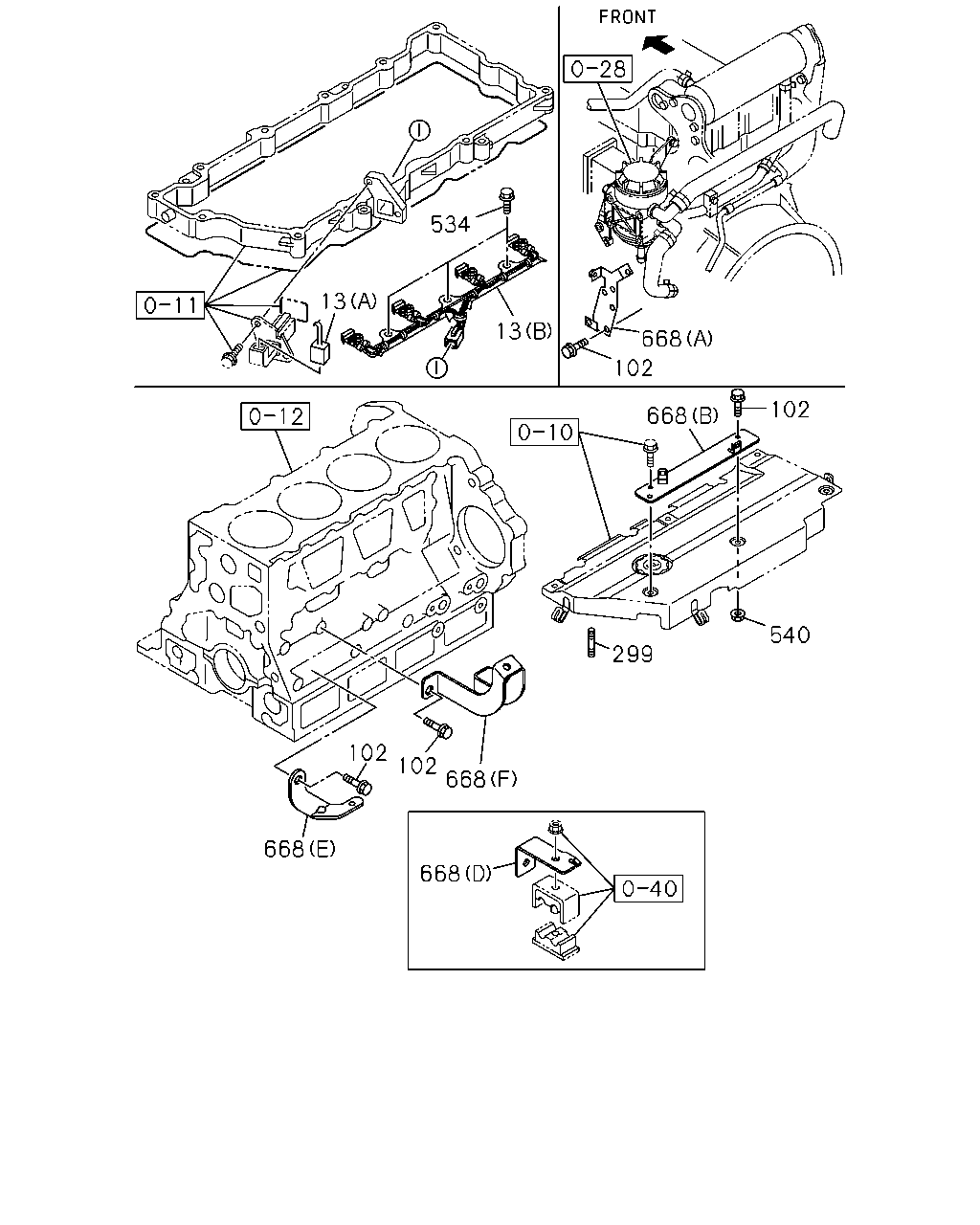

13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) (A)	8-98077-325-4	01	1	1012-1405	●
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) (A)	8-98274-014-0	01	1	1406-	●
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1012-	●
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A)	8-98075-901-4	01	1	1012-1405	●
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A)	8-98274-013-0	01	1	1406-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98075-770-5	01	1	1001-1011	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (C)	8-98075-770-5	01	1	1012-1109	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98075-770-5	01	1	1110-1311	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> GENERATOR 24V50A(K89) (C)	8-98075-770-5	01	1	1312-	●
13	HARNESS; ENG GENERATOR 24V60A(KG2) (C)	8-98075-771-5	01	1	1001-1011	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (C)	8-98075-771-5	01	1	1012-1109	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98075-771-5	01	1	1110-1311	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2) (C)	8-98075-771-5	01	1	1312-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98148-975-0	01	1	1001-1010		●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98177-185-0	01	1	1011-1105		●
13	HARNESS; ENG GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98177-185-0	01	1	1106-1109		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98177-185-0	01	1	1110-1201	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) (C)	8-98177-185-0	01	1	1110-1201	●
13	HARNESS; ENG GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98177-185-0	01	1	1110-1201		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) (C)	8-98177-185-0	01	1	1202-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98177-185-0	01	1	1202-		●
13	HARNESS; ENG GENERATOR 24V60A(KG2) (C)	8-98148-976-0	01	1	1001-1010		●
13	HARNESS; ENG GENERATOR 24V60A(KG2) (C)	8-98177-186-0	01	1	1011-1105		●
13	HARNESS; ENG GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98177-186-0	01	1	1106-1109		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98177-186-0	01	1	1110-1201	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) HEATER & DEFROSTER(C41) (C)	8-98177-186-0	01	1	1110-1201	●
13	HARNESS; ENG GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98177-186-0	01	1	1110-1201		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2) (C)	8-98177-186-0	01	1	1202-	●
13	HARNESS; ENG GENERATOR 24V60A(KG2) (C)	8-98177-186-0	01	1	1202-		●
558	CONNECTOR; HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) SOU	1-82690-668-0	01	1	1102-	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1001-	●	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1001-	●	●
558	CONNECTOR; HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) SOU	1-82690-668-0	01	1	1012-	●
700	TUBE; DISTANCE 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51	1-11369-157-0	01	1	1102-	●

535 441 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	1001-	●	●
535	BOLT; BRKT FIX M8X10 W/LK WASHER	8-98029-928-0	02	1	1001-	●	●
638	BRACKET; SPD SENSOR	8-98012-580-1	02	1	1001-	●	●

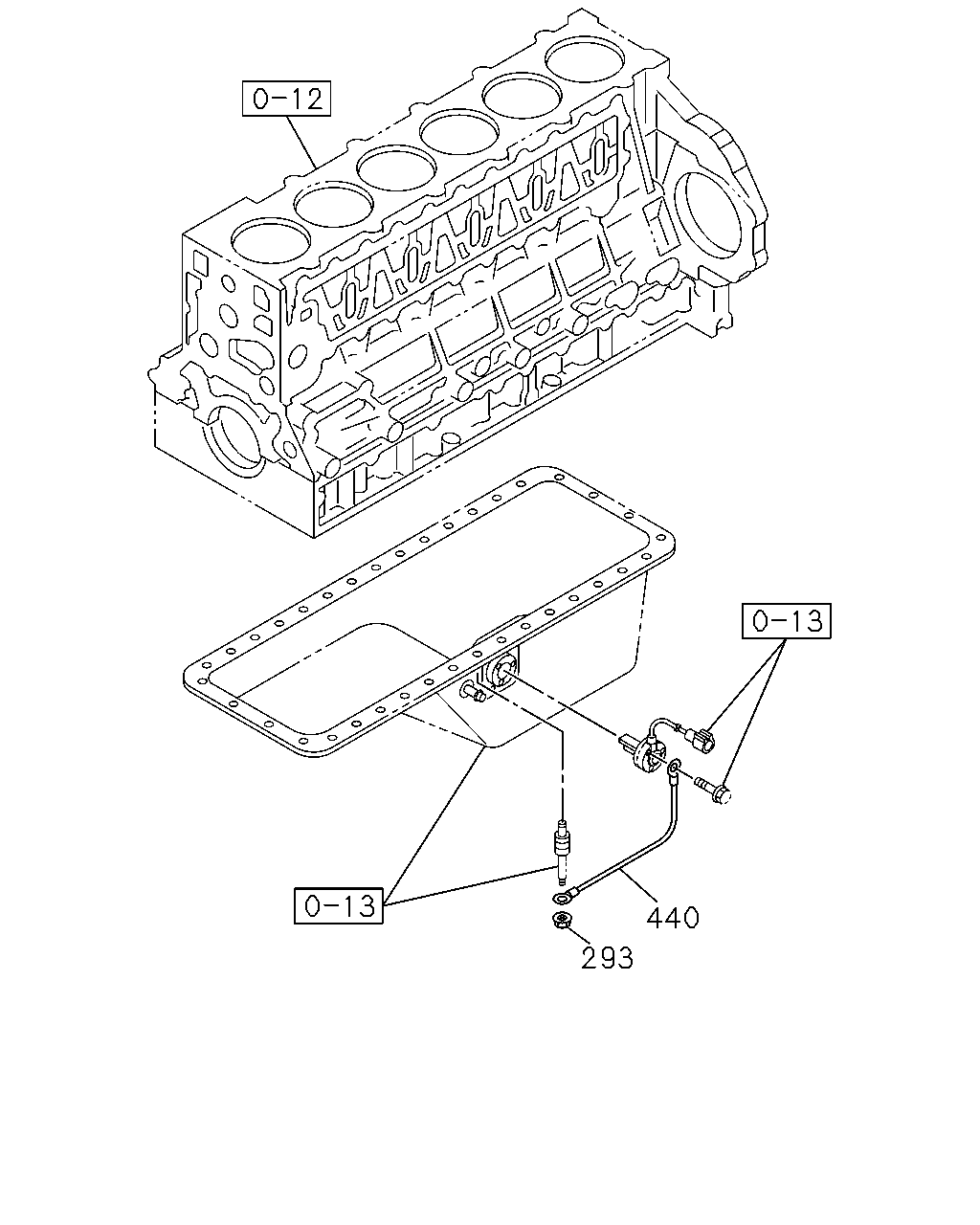

440 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
293	NUT 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> M8 FLANGE SOU	0-91180-108-0	01	1	1001-1105	●
293	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	0-91180-108-0	01	1	1106-1109		●
293	NUT TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	01	1	1110-1201	●
293	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE SOU	0-91180-108-0	01	1	1110-1201		●
293	NUT 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> M8 FLANGE SOU	0-91180-108-0	01	1	1202-	●
440	CABLE; EARTH 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>	8-97606-639-0	01	1	1001-1105	●
440	CABLE; EARTH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97606-639-0	01	1	1106-1109		●
440	CABLE; EARTH TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97606-639-0	01	1	1110-1201	●
440	CABLE; EARTH TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97606-639-0	01	1	1110-1201		●
440	CABLE; EARTH 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>	8-97606-639-0	01	1	1202-	●

534 13 13 668 102 102 668 540 299 102 102 668 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG HEATER & DEFROSTER(C41) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98177-188-0	01	1	1109-1201		●
13	HARNESS; ENG GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) (C)	8-98177-188-0	01	1	1109-1201		●
13	HARNESS; ENG GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) (C)	8-98177-187-0	01	1	1109-1201		●
13	HARNESS; ENG GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) HEATER & DEFROSTER(C41) (C)	8-98177-187-0	01	1	1109-1201		●
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) (A)	8-98077-325-4	01	1	1012-1405	●
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) (A)	8-98274-014-0	01	1	1406-	●
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1012-	●
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A)	8-98075-901-4	01	1	1012-1405	●
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A)	8-98274-013-0	01	1	1406-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98075-770-5	01	1	1001-1011	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (C)	8-98075-770-5	01	1	1012-1109	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98075-770-5	01	1	1110-1311	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> GENERATOR 24V50A(K89) (C)	8-98075-770-5	01	1	1312-	●
13	HARNESS; ENG GENERATOR 24V60A(KG2) (C)	8-98075-771-5	01	1	1001-1011	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (C)	8-98075-771-5	01	1	1012-1109	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98075-771-5	01	1	1110-1311	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2) (C)	8-98075-771-5	01	1	1312-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98148-975-0	01	1	1001-1010		●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98177-185-0	01	1	1011-1105		●
13	HARNESS; ENG GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98177-185-0	01	1	1106-1109		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98177-185-0	01	1	1110-1201	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HEATER & DEFROSTER(C41) (C)	8-98177-185-0	01	1	1110-1201	●
13	HARNESS; ENG GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98177-185-0	01	1	1110-1201		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) (C)	8-98177-185-0	01	1	1202-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98177-185-0	01	1	1202-		●
13	HARNESS; ENG GENERATOR 24V60A(KG2) (C)	8-98148-976-0	01	1	1001-1010		●
13	HARNESS; ENG GENERATOR 24V60A(KG2) (C)	8-98177-186-0	01	1	1011-1105		●
13	HARNESS; ENG GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98177-186-0	01	1	1106-1109		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98177-186-0	01	1	1110-1201	●
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) TRANSMISSION CONTROL-SMOOTHER(8GF) HEATER & DEFROSTER(C41) (C)	8-98177-186-0	01	1	1110-1201	●
13	HARNESS; ENG GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98177-186-0	01	1	1110-1201		●
13	HARNESS; ENG 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2) (C)	8-98177-186-0	01	1	1202-	●
13	HARNESS; ENG GENERATOR 24V60A(KG2) (C)	8-98177-186-0	01	1	1202-		●
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M6X25 FLANGE	0-28050-625-0	01	1	1012-	●
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M8X16 FLANGE SOU	0-28050-816-0	03	1	1012-	●
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M10X16 FLANGE	0-28151-016-0	03	1	1012-	●
299	STUD; BRKT 4HK1-TCS ENG(RJS) M6X20 L=28	0-41010-620-0	02	1	1110-1110	●
534	BOLT 4HK1-TCS ENG(RJS) M10X55 FLANGE	8-97365-449-0	03	1	1012-	●
540	NUT; BRKT FIX 4HK1-TCS ENG(RJS) M6 FLANGE SOU	0-91180-106-0	01	1	1012-	●
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (D)	8-98001-095-0	01	1	1012-1408	●
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98009-245-0	01	1	1012-1408	●
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98273-295-0	01	1	1409-	●
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (F)	8-98011-484-0	01	1	1012-	●
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (B)	8-98022-106-2	01	1	1012-	●
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (A)	8-98024-765-0	01	1	1012-	●
668	BRACKET; HARNESS (C)	8-98095-653-2	01	1	1001-	●	●

18 12 18 204 12 204 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC>	8-98163-917-0	01	1	1002-		●
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC>	8-98084-247-0	01	1	1001-	●
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC>	8-98041-948-2	01	1	1001-	●
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC>	8-98085-264-0	01	1	1001-		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98084-288-3	01	1	1001-1202	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98108-440-1	01	1	1203-	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98084-283-3	01	1	1001-1202	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98108-439-1	01	1	1203-	●
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-287-3	01	1	1001-1202	●
18	HARNESS; DOOR	8-98084-287-3	01	1	1001-1202		●
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98076-305-3	01	1	1203-	●
18	HARNESS; DOOR	8-98076-305-3	01	1	1203-		●
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-282-3	01	1	1001-1202	●
18	HARNESS; DOOR	8-98084-282-3	01	1	1001-1202		●
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98076-304-3	01	1	1203-	●
18	HARNESS; DOOR	8-98076-304-3	01	1	1203-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-208-1	01	1	1110-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-209-1	01	1	1110-	●
204	HARNESS; CABLE,FLOOR AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98084-204-0	01	1	1110-	●
204	HARNESS; CABLE,FLOOR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98084-205-1	01	1	1110-	●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98199-016-0	01	1	1110-		●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98084-194-0	01	1	1001-1109	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-194-0	01	1	1110-	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98084-195-1	01	1	1001-1109	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-195-1	01	1	1110-	●
204	HARNESS; CABLE,FLOOR AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3)	8-98084-188-0	01	1	1001-1109	●
204	HARNESS; CABLE,FLOOR AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98084-188-0	01	1	1110-	●
204	HARNESS; CABLE,FLOOR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. AIR BAG DRIVER(AJ3)	8-98084-191-1	01	1	1001-1109	●
204	HARNESS; CABLE,FLOOR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98084-191-1	01	1	1110-	●
204	HARNESS; CABLE,FLOOR	8-98154-951-0	01	1	1001-1001		●
204	HARNESS; CABLE,FLOOR	8-98164-277-0	01	1	1002-1105		●
204	HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98164-277-0	01	1	1106-		●

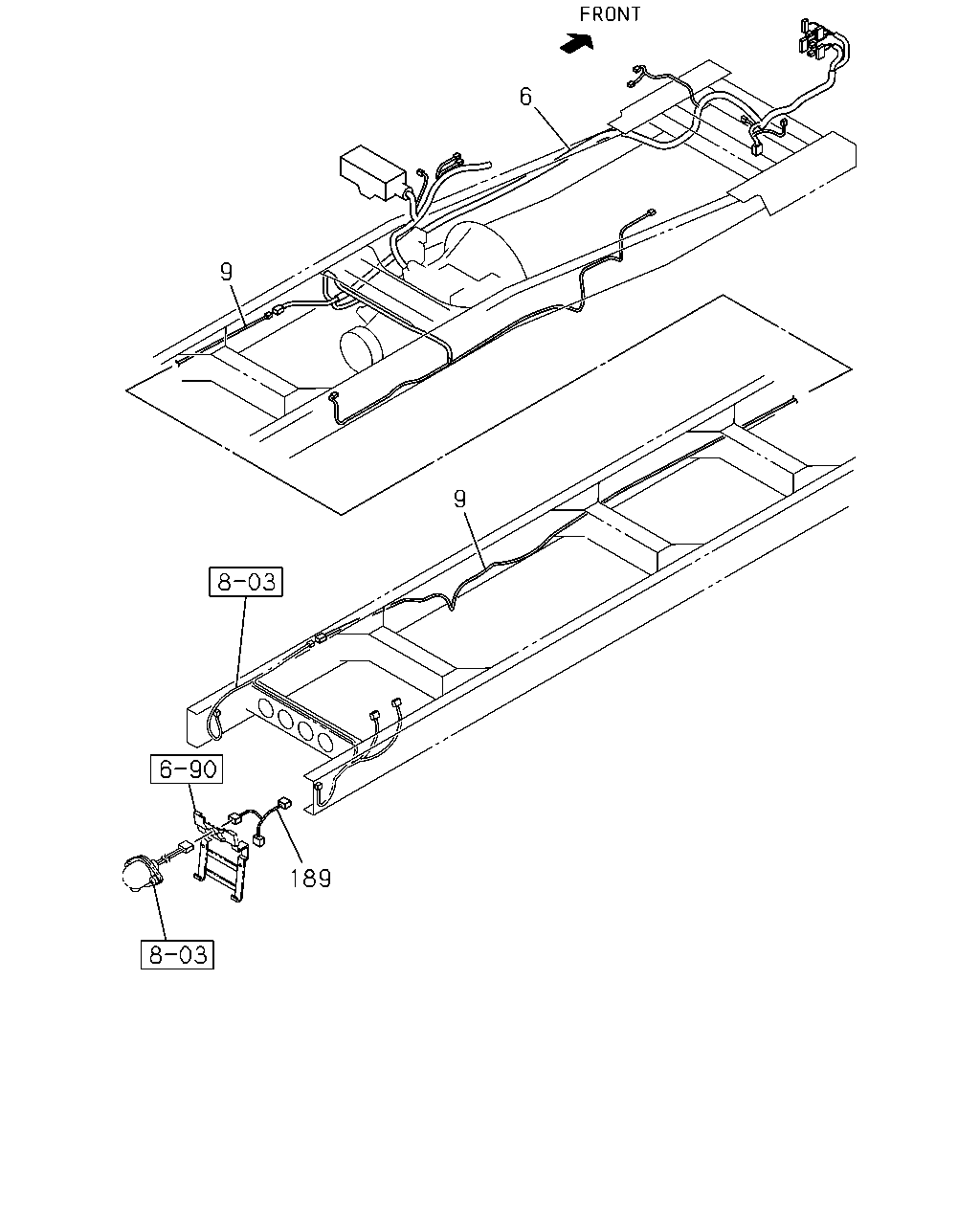

6 9 9 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO3 SPECIFICATION<NT3>	8-98198-385-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO3 SPECIFICATION<NT3>	8-98198-384-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98194-078-3	01	1	1107-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W)	8-98172-501-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98172-501-3	01	1	1110-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W)	8-98172-502-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98172-502-3	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1008-1010	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98168-947-1	01	1	1011-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98168-947-1	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W)	8-98064-960-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W)	8-98064-960-4	01	1	1008-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98064-960-4	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98155-995-3	01	1	1001-1105		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98155-995-3	01	1	1106-		●
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98128-927-0	01	1	1001-1007	●
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98168-602-0	01	1	1008-	●
9	HARNESS; FRAME,RR WHEEL BASE 5100MM(51W)	8-98079-242-1	01	1	1001-1007	●
9	HARNESS; FRAME,RR WHEEL BASE 5100MM(51W)	8-98168-597-1	01	1	1008-	●
9	HARNESS; FRAME,RR	8-98064-330-1	01	1	1001-1007		●
9	HARNESS; FRAME,RR	8-98168-585-0	01	1	1008-		●
189	HARNESS; EXT	8-98131-066-0	01	1	1001-	●	●

6 10 27 174 184 453 431 431 388 431 431 431 720 184 389 698

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO3 SPECIFICATION<NT3>	8-98198-385-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO3 SPECIFICATION<NT3>	8-98198-384-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98194-078-3	01	1	1107-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W)	8-98172-501-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98172-501-3	01	1	1110-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W)	8-98172-502-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98172-502-3	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1008-1010	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98168-947-1	01	1	1011-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98168-947-1	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W)	8-98064-960-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W)	8-98064-960-4	01	1	1008-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98064-960-4	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98155-995-3	01	1	1001-1105		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98155-995-3	01	1	1106-		●

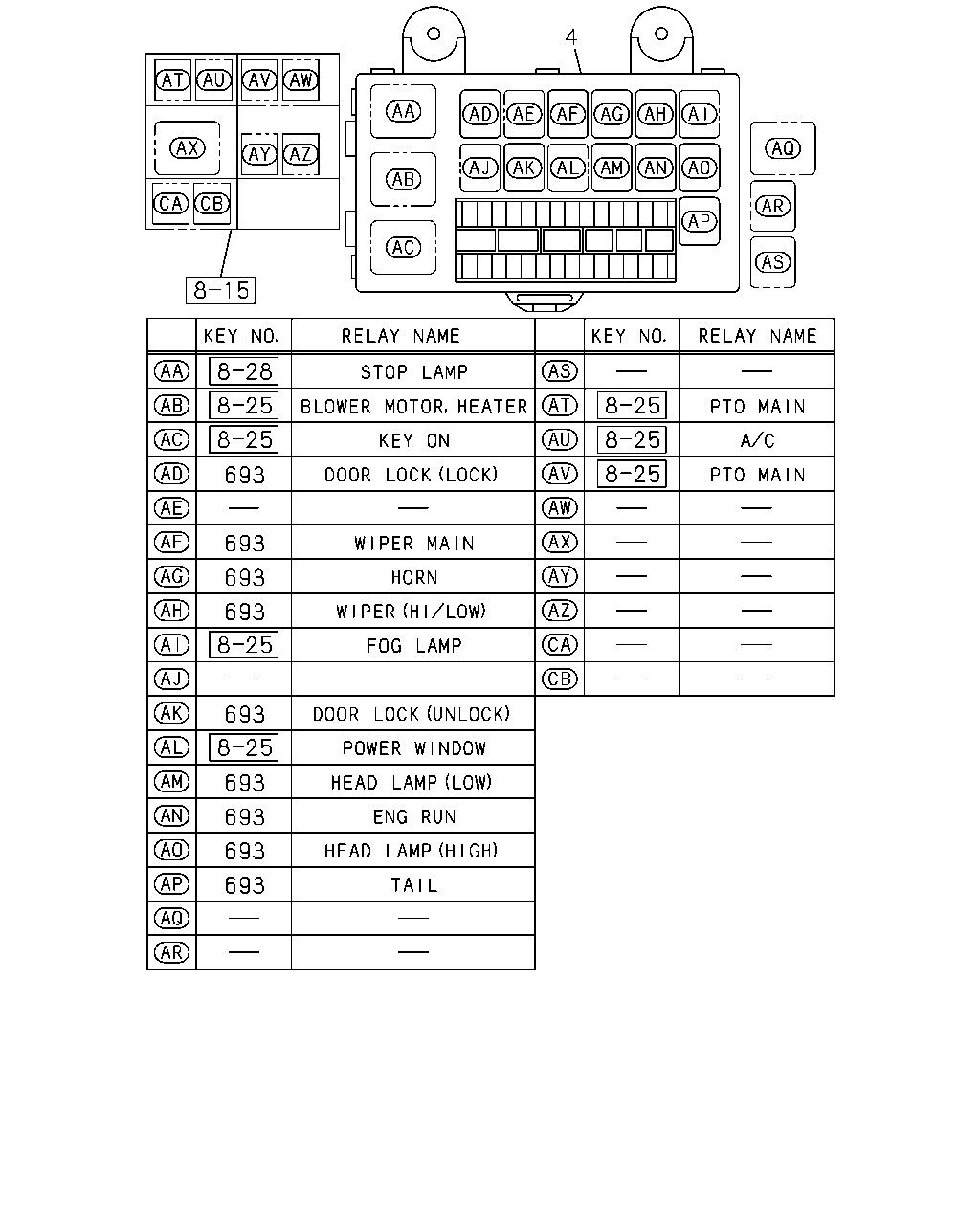

10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1001-	●	●
27	FUSE UNIT 10A RED SOU	8-98054-257-0	01	1	1001-	●	●
27	FUSE UNIT 15A BLUE SOU	8-98054-258-0	02	1	1001-	●	●
174	FUSE; SLOW BLOW 4HK1-TCS ENG(RJS) 30A PINK SOU	8-98079-191-0	01	1	1012-	●
174	FUSE; SLOW BLOW 4HK1-TCS ENG(RJS) 60A YELLOW SOU	8-97219-407-0	01	1	1107-1109	●
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	01	1	1107-1109		●
174	FUSE; SLOW BLOW 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2> 60A YELLOW SOU	8-97219-407-0	01	1	1110-1405	●
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W),WHEEL BASE 5100MM(51W) EURO3 SPECIFICATION<NT3> 60A YELLOW SOU	8-97219-407-0	01	1	1110-1405	●
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) 60A YELLOW SOU	8-97219-407-0	01	1	1110-1405		●
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	01	1	1406-	●	●
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) 60A YELLOW SOU	8-97219-407-0	04	1	1107-1109	●
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> 60A YELLOW SOU	8-97219-407-0	04	1	1110-1405	●
174	FUSE; SLOW BLOW 30A PINK SOU	8-98079-191-0	02	1	1001-1105	●	●
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) 30A PINK SOU	8-98079-191-0	02	1	1106-1106	●
174	FUSE; SLOW BLOW 30A PINK SOU	8-98079-191-0	02	1	1106-1106		●
174	FUSE; SLOW BLOW 30A PINK SOU	8-98079-191-0	02	1	1107-1109	●	●
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) 30A PINK SOU	8-98079-191-0	02	1	1110-	●	●
174	FUSE; SLOW BLOW 40A GREEN SOU	8-98079-192-0	02	1	1001-	●	●
174	FUSE; SLOW BLOW 50A RED SOU	8-98079-193-0	03	1	1001-	●	●
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	03	1	1001-1106	●	●
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	02	1	1107-	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1001-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1001-	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A SOU	8-94422-639-1	01	1	1001-	●	●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1001-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1001-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1001-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1001-1105	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 10P BLUE	1-82699-598-0	01	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 10P BLUE	1-82699-598-0	01	1	1110-1110	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1110-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1001-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1001-1105	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 10P GREEN	1-82699-599-0	01	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 10P GREEN	1-82699-599-0	01	1	1110-1110	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1110-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1001-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1001-1105	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 10P BROWN SOU	1-82699-601-0	09	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 10P BROWN SOU	1-82699-601-0	09	1	1110-1110	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1110-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1001-1105	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 10P	8-97077-943-0	02	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 10P	8-97077-943-0	02	1	1110-1110	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1110-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1001-1011	●	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) (H) 6P BLACK	8-97616-194-0	02	1	1012-1106	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1012-1106		●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1107-1109	●	●
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) (H) 6P BLACK	8-97616-194-0	02	1	1110-	●	●
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) (H) 6P BLACK	8-97616-194-0	01	1	1012-	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1001-1105	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) WHITE	8-98056-374-0	01	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) WHITE	8-98056-374-0	01	1	1110-1110	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1110-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1001-1105	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1106-1109	●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) WHITE	8-98056-375-0	01	1	1106-1109		●
431	CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) WHITE	8-98056-375-0	01	1	1110-1110	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1110-	●	●
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	1001-	●	●
698	NUT; COVER,RELAY BOX M8 FLANGE SOU	0-91180-108-0	02	1	1001-	●	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1001-	●	●

4 693 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1001-1105	●	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1106-1109	●
4	BOX ASM; FUSE,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98065-666-0	01	1	1106-1109		●
4	BOX ASM; FUSE,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98065-666-0	01	1	1110-1110	●	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1110-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1001-1105	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1106-1109	●
693	RELAY; FUSE BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC	8-97173-035-1	AR	1	1106-1109		●
693	RELAY; FUSE BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC	8-97173-035-1	AR	1	1110-1110	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1110-	●	●

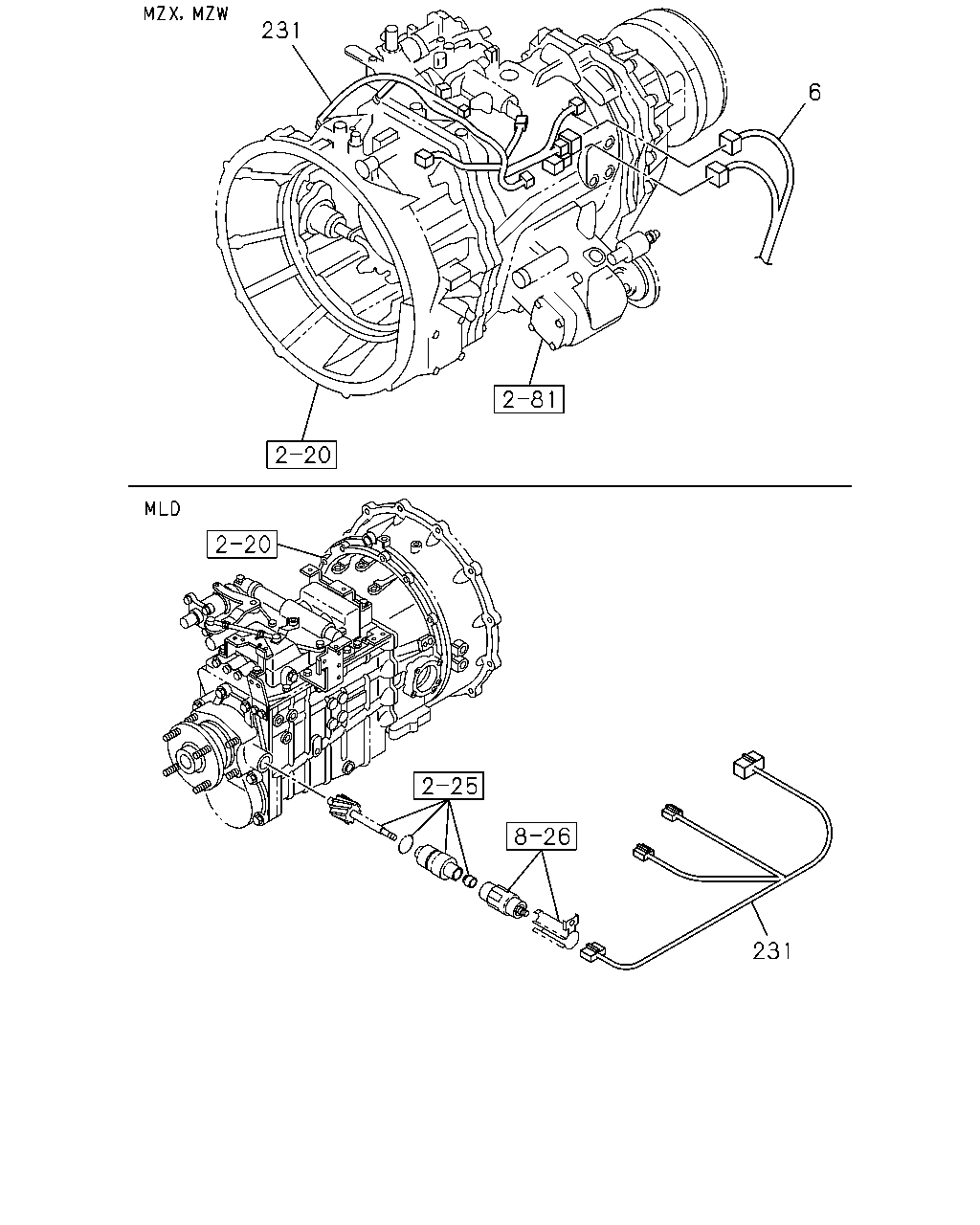

231 6 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO3 SPECIFICATION<NT3>	8-98198-385-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO3 SPECIFICATION<NT3>	8-98198-384-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98194-078-3	01	1	1107-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W)	8-98172-501-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98172-501-3	01	1	1110-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W)	8-98172-502-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98172-502-3	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1008-1010	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98168-947-1	01	1	1011-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98168-947-1	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W)	8-98064-960-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W)	8-98064-960-4	01	1	1008-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98064-960-4	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98155-995-3	01	1	1001-1105		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98155-995-3	01	1	1106-		●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97620-317-3	01	1	1106-1109		●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97620-317-3	01	1	1110-	●	●
231	HARNESS; TRANS 4HK1-TCS ENG(RJS)	8-97618-933-2	01	1	1012-	●
231	HARNESS; TRANS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C)	8-97626-769-1	01	1	1001-	●
231	HARNESS; TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-97618-932-2	01	1	1001-1011	●
231	HARNESS; TRANS	8-97618-932-2	01	1	1001-1011		●
231	HARNESS; TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-97618-932-2	01	1	1012-1105	●
231	HARNESS; TRANS	8-97618-932-2	01	1	1012-1105		●
231	HARNESS; TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-97618-932-2	01	1	1106-1109	●
231	HARNESS; TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97618-932-2	01	1	1106-1109		●
231	HARNESS; TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97618-932-2	01	1	1110-	●
231	HARNESS; TRANS 6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97618-932-2	01	1	1110-		●

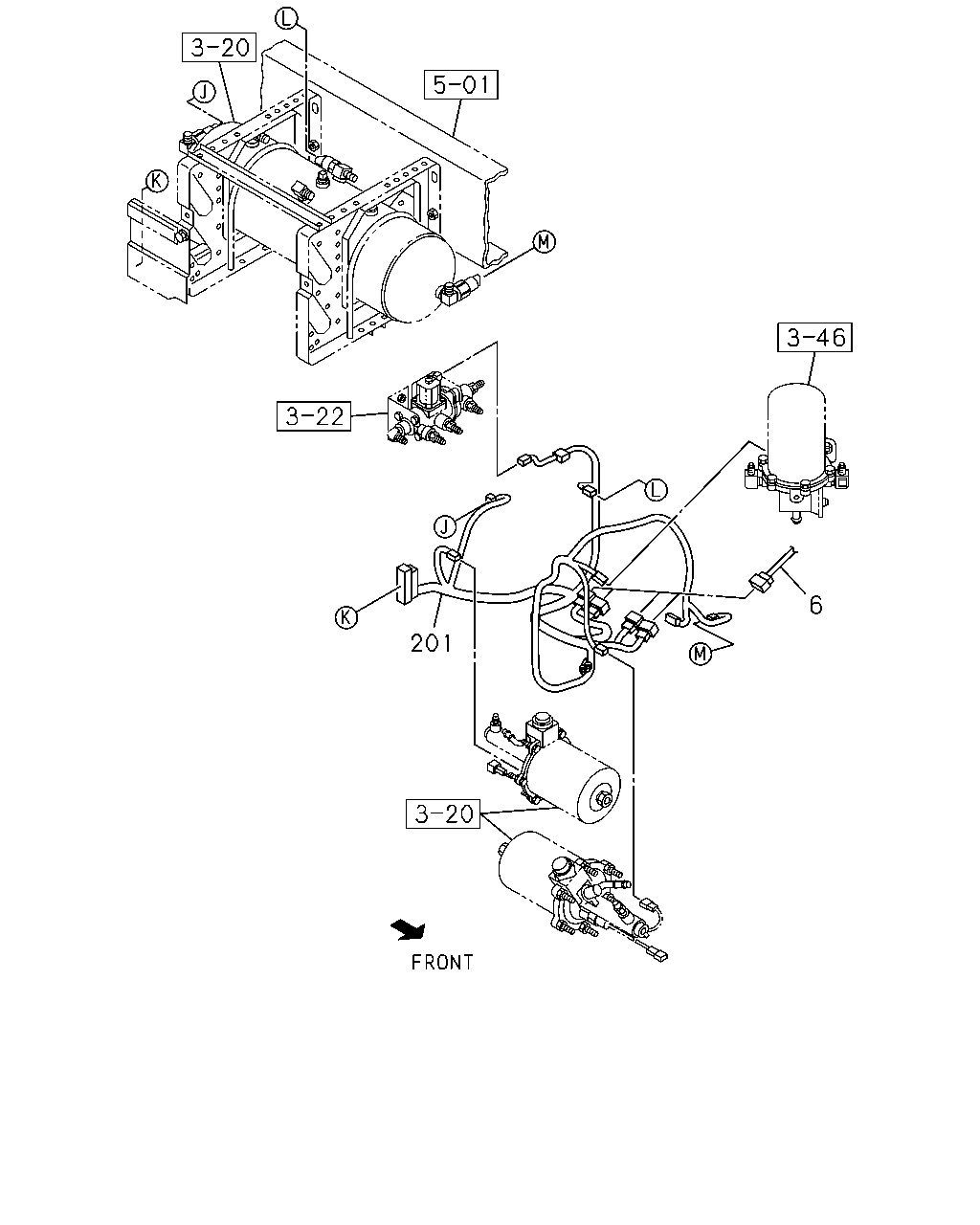

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO3 SPECIFICATION<NT3>	8-98198-385-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO3 SPECIFICATION<NT3>	8-98198-384-1	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98194-078-3	01	1	1107-		●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W)	8-98172-501-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98172-501-3	01	1	1110-	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W)	8-98172-502-3	01	1	1012-1109	●
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98172-502-3	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98124-483-2	01	1	1008-1010	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W)	8-98168-947-1	01	1	1011-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2>	8-98168-947-1	01	1	1110-	●
6	HARNESS; FRAME WHEEL BASE 5100MM(51W)	8-98064-960-2	01	1	1001-1007	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W)	8-98064-960-4	01	1	1008-1109	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) EURO2 SPECIFICATION<NT2>	8-98064-960-4	01	1	1110-	●
6	HARNESS; FRAME 6HK1-TCN ENG(82L)	8-98155-995-3	01	1	1001-1105		●
6	HARNESS; FRAME 6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98155-995-3	01	1	1106-		●
201	HARNESS; AIR TANK EURO3 SPECIFICATION<NT3> THROTTLE CONTROL SYSTEM(6XH)	8-98156-704-2	01	1	1110-	●
201	HARNESS; AIR TANK EURO3 SPECIFICATION<NT3> EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-705-2	01	1	1110-	●
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH)	8-98111-494-0	01	1	1001-1001	●
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH)	8-98156-711-2	01	1	1002-1109	●
201	HARNESS; AIR TANK EURO2 SPECIFICATION<NT2> THROTTLE CONTROL SYSTEM(6XH)	8-98156-711-2	01	1	1110-	●
201	HARNESS; AIR TANK EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98111-493-0	01	1	1001-1001	●
201	HARNESS; AIR TANK EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-710-2	01	1	1002-1109	●
201	HARNESS; AIR TANK EURO2 SPECIFICATION<NT2> EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-710-2	01	1	1110-	●
201	HARNESS; AIR TANK 6HK1-TCN ENG(82L)	8-98085-546-2	01	1	1001-		●

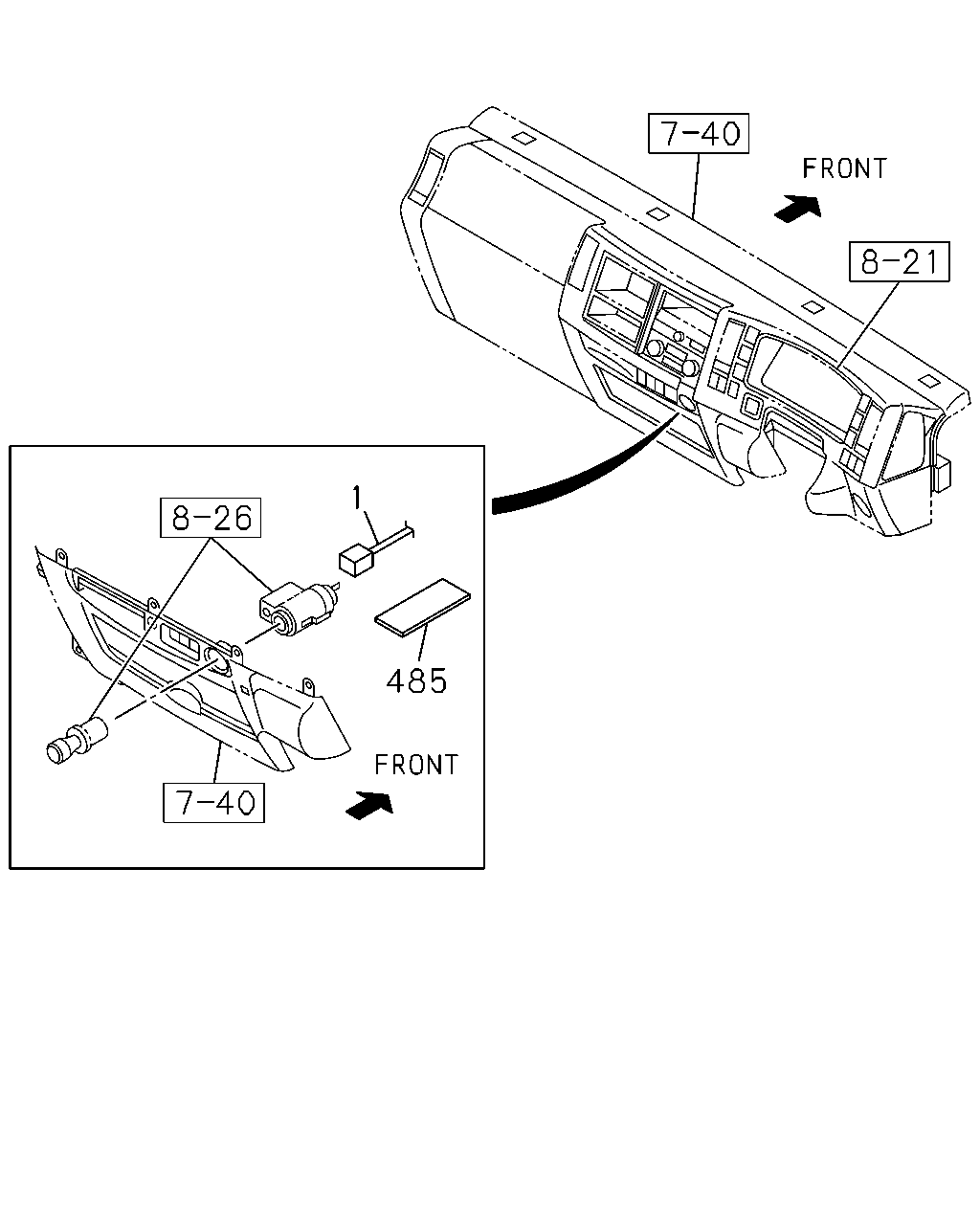

1 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1110-1209	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1210-	●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1110-1209	●
1	HARNESS; CAB MZW6P M/T(RSZ) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98198-680-0	01	1	1110-1209		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1210-	●
1	HARNESS; CAB MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98198-680-0	01	1	1210-		●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1110-1209	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1210-	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-902-0	01	1	1110-1209		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-902-0	01	1	1210-		●
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1110-1209	●
1	HARNESS; CAB MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1110-1209		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98083-931-2	01	1	1001-1109	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98083-931-2	01	1	1110-1110	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1110-1209	●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1001-1109	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1110-1110	●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1110-1209	●
1	HARNESS; CAB	8-98154-796-0	01	1	1001-1105		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98154-796-0	01	1	1106-1109		●
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98154-796-0	01	1	1110-1209		●
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	1001-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
