7-70 — SEPARATER AND BED (#56024) — 69 parça

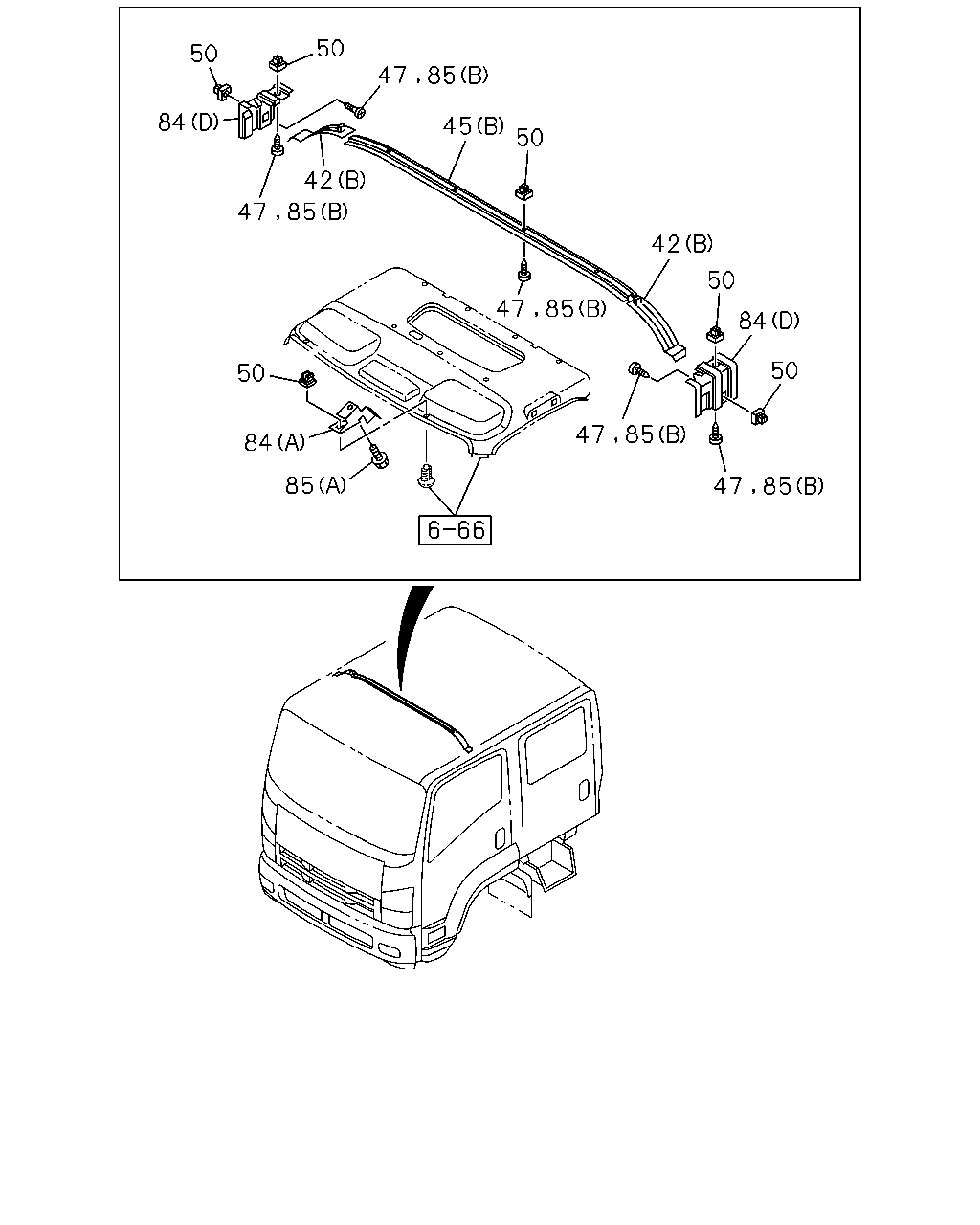

50 50 84 45 50 42 42 50 84 50 50 84 85 47 85 47 85 85 47 85 47 47 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	1001-	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	1001-	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1001-	●	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1001-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-672-0	01	1	1001-	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-671-0	01	1	1001-	●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-485-0	01	1	1001-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20 SOU	5-09981-059-0	08	1	1001-	●
47	SCREW; CURTAIN RAIL M5X20 SOU	5-09981-059-0	06	1	1001-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20 SOU	5-09981-059-0	06	1	1001-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 SOU	8-94279-078-0	04	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 SOU	8-94279-078-0	08	1	1001-1405	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 SOU	8-94279-078-0	14	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5 SOU	8-94279-078-0	06	1	1001-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5 SOU	8-94279-078-0	06	1	1001-1405	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 SOU	8-94279-078-0	06	1	1001-1405	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5 SOU	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 SOU	8-94279-078-0	06	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5 SOU	8-94279-078-0	02	1	1001-		●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	1001-	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	1001-	●	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	1001-1405	●
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (C)	8-98028-326-1	02	1	1406-	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	1001-	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	1001-		●
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> (B) M5X20 SOU	5-09981-059-0	04	1	1406-	●
85	SCREW; BRKT (B) M5X20 SOU	5-09981-059-0	06	1	1001-1405	●
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> (B) M5X20 SOU	5-09981-059-0	06	1	1406-	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	1001-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	1001-	●
85	SCREW; BRKT (B) M5X20 SOU	5-09981-059-0	02	1	1001-		●

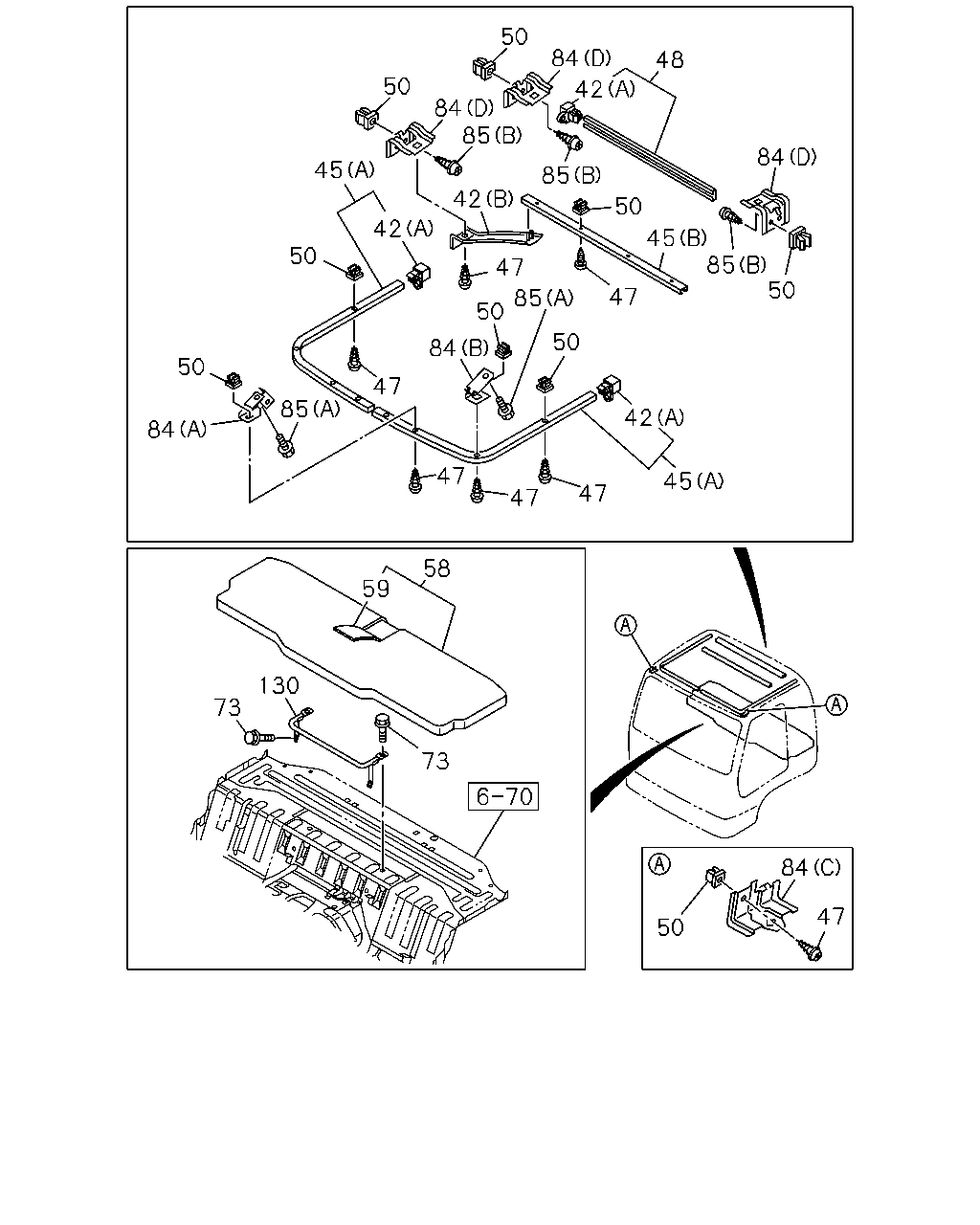

50 84 48 50 42 84 85 84 45 85 42 50 42 45 85 50 50 47 47 85 50 50 84 50 47 85 42 84 47 47 45 47 58 59 130 73 73 84 47 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	1001-	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	1001-	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1001-	●	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1001-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-672-0	01	1	1001-	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-671-0	01	1	1001-	●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-485-0	01	1	1001-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20 SOU	5-09981-059-0	08	1	1001-	●
47	SCREW; CURTAIN RAIL M5X20 SOU	5-09981-059-0	06	1	1001-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20 SOU	5-09981-059-0	06	1	1001-	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	1001-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 SOU	8-94279-078-0	04	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 SOU	8-94279-078-0	08	1	1001-1405	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 SOU	8-94279-078-0	14	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5 SOU	8-94279-078-0	06	1	1001-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5 SOU	8-94279-078-0	06	1	1001-1405	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 SOU	8-94279-078-0	06	1	1001-1405	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5 SOU	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 SOU	8-94279-078-0	06	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5 SOU	8-94279-078-0	02	1	1001-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-382-2	01	1	1001-	●
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-772-1	01	1	1001-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-045-1	01	1	1001-	●
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-106-0	01	1	1001-	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1001-	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	1001-	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	1001-	●	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	1001-1405	●
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (C)	8-98028-326-1	02	1	1406-	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	1001-	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	1001-		●
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> (B) M5X20 SOU	5-09981-059-0	04	1	1406-	●
85	SCREW; BRKT (B) M5X20 SOU	5-09981-059-0	06	1	1001-1405	●
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> (B) M5X20 SOU	5-09981-059-0	06	1	1406-	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	1001-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	1001-	●
85	SCREW; BRKT (B) M5X20 SOU	5-09981-059-0	02	1	1001-		●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1001-	●
