◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#56023) — 44 parça

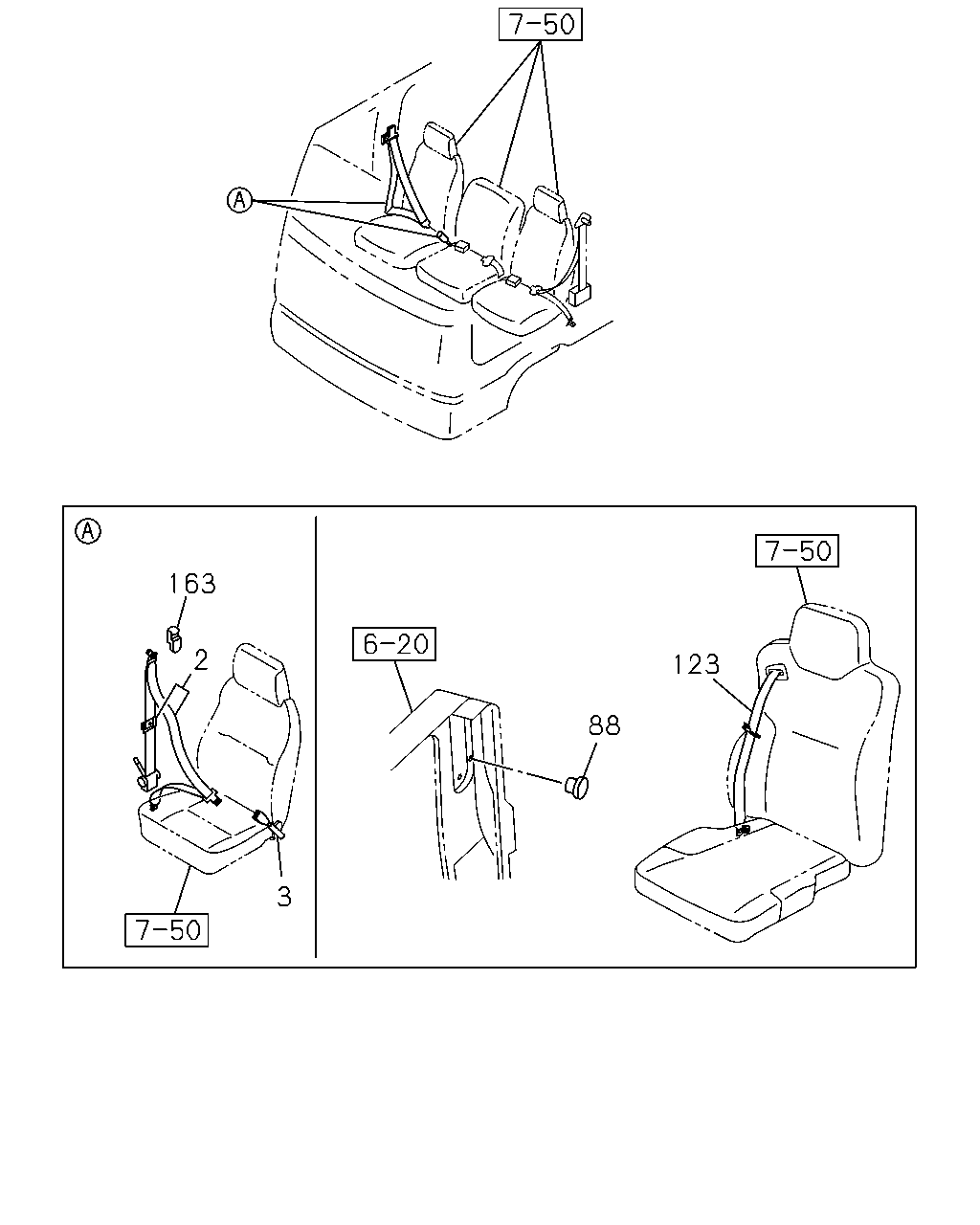

çizim 162461
163 2 123 88 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-771-5 01 1 1001-1209 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97423-521-2 01 1 1210-1310 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97423-521-2 01 1 1311-1407 ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97428-394-0 01 1 1408- ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER(AJ3),DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-770-4 01 1 1001-1209 ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97407-770-4 01 1 1001-1209 ●
2 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER(AJ3),DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97423-516-1 01 1 1210-1310 ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1310 ●
2 BELT; SEAT,TONGUE SIDE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97423-516-1 01 1 1311-1407 ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1311-1407 ●
2 BELT; SEAT,TONGUE SIDE
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97428-435-0 01 1 1408- ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1408- ●
3 BELT; SEAT,BUCKLE SIDE
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-374-2 01 1 1001- ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97407-374-2 01 1 1001- ●
88 PLUG; HOLE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97411-466-0 01 1 1001- ●
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-971-0 01 1 1001- ●
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-969-0 01 1 1001- ●
163 COVER; ADJUSTER
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97405-991-0 01 1 1001- ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1001- ●

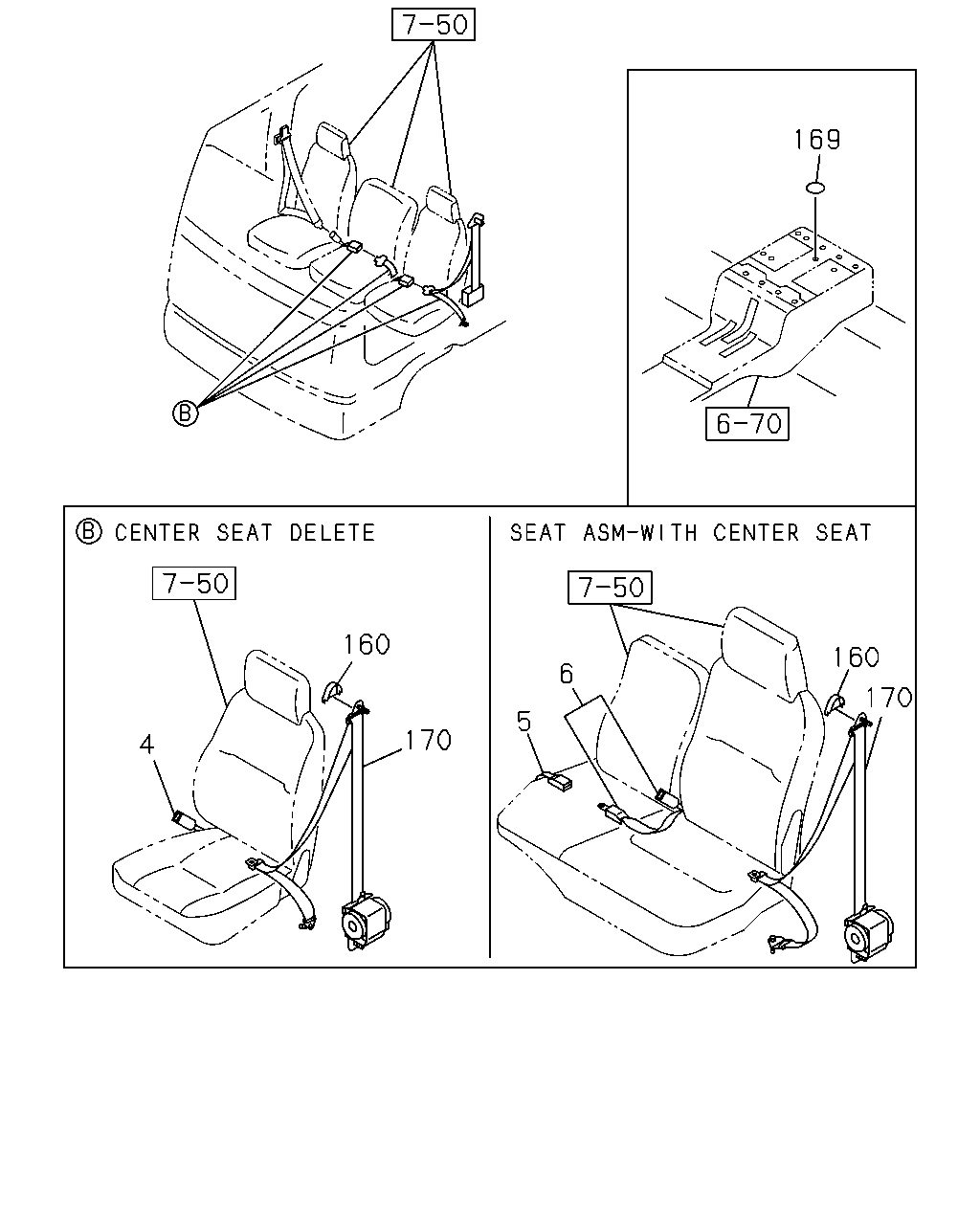

çizim 162463
169 160 160 6 170 5 170 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-376-1 01 1 1001-1310 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-376-1 01 1 1311- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1001- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97407-377-1 01 1 1001- ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-768-3 01 1 1001-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97409-768-3 01 1 1001-1209 ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1210- ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97423-515-1 01 1 1210- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1001- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1001- ●
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK SOU 		1-76798-019-0 01 1 1001- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97407-770-4 01 1 1001-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1408- ● ●

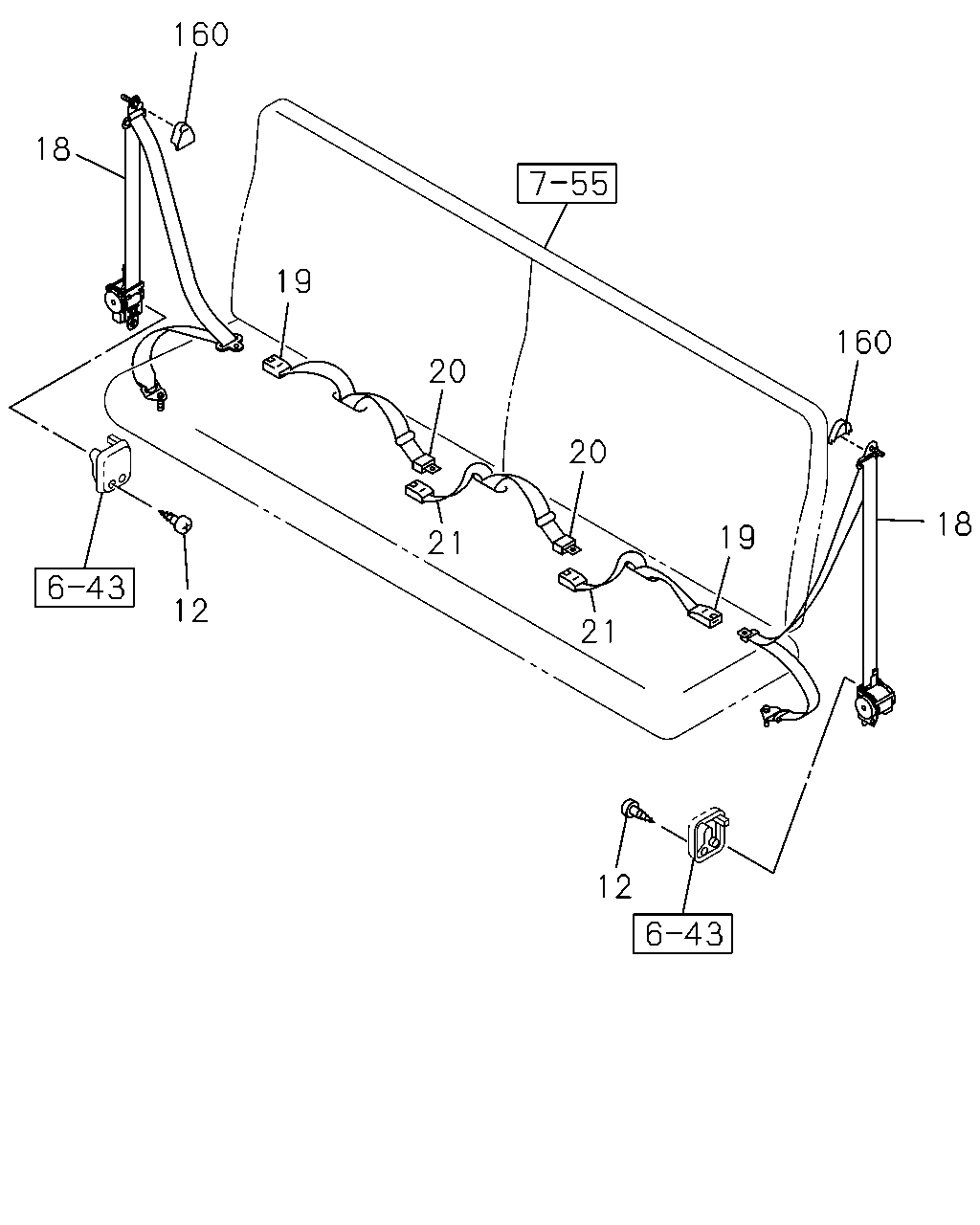

çizim 162464
160 18 19 160 20 20 18 19 21 12 21 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1001- ●
18 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 1001- ●
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97407-379-0 02 1 1001- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-771-2 01 1 1001-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-710-1 01 1 1210- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97409-770-2 01 1 1001-1209 ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97423-709-1 01 1 1210- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-381-1 01 1 1001- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-380-0 01 1 1001- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1001- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1001- ●
