7-20 — MIRROR AND MIRROR STAY (#56015) — 132 parça

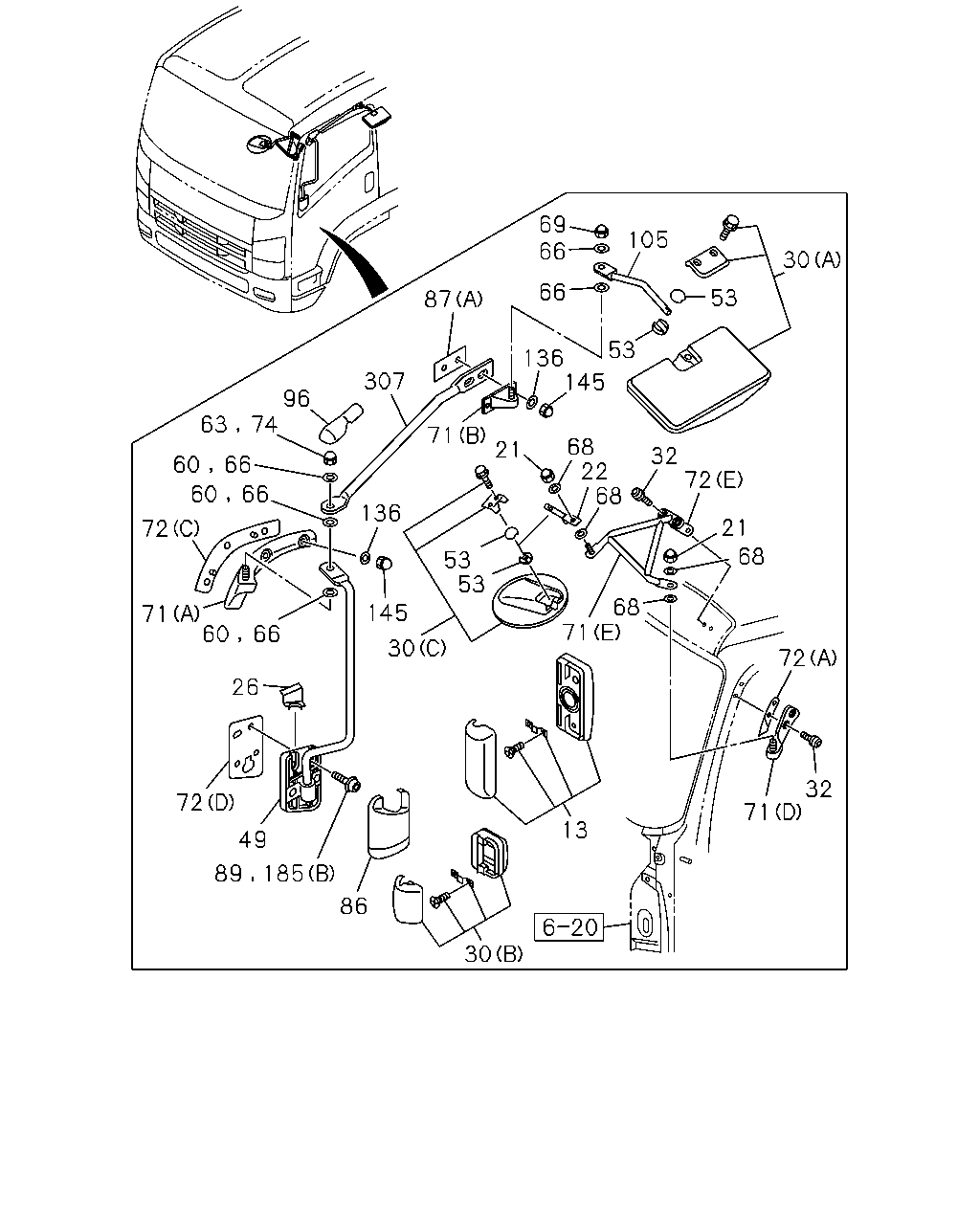

çizim 162435
69 66 105 30 66 53 87 53 136 145 307 96 74 63 71 21 68 22 68 32 72 60 66 60 66 136 21 72 68 53 53 68 71 145 71 60 66 30 72 26 32 71 72 13 49 89 185 86 30
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 1001- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 1001- ● ●
21 NUT; MIRROR
M10 CAP NUT SOU 		1-09984-134-0 02 1 1001- ● ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1001- ● ●
26 COVER; OUTSIDE MIRROR
SOU 		8-98031-806-0 01 1 1001- ● ●
26 COVER; OUTSIDE MIRROR
SOU 		8-98031-805-0 01 1 1001- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1001- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1001- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1001-1504 ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1001- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98060-218-1 01 1 1001-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-195-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-777-1 01 1 1001-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-194-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-051-1 01 1 1001-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-181-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-050-1 01 1 1001-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-180-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-065-1 01 1 1001-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-207-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-064-1 01 1 1001-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-206-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1001- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 1001- ● ●
60 WASHER; PL,OUTSIDE MIRROR
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 06 1 1001- ●
63 NUT; STAY
M10 CAP NUT SOU 		1-09984-134-0 02 1 1001- ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 06 1 1001- ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 02 1 1001- ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 04 1 1001- ● ●
69 NUT; CAP
M10 CAP NUT SOU 		1-09984-134-0 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1001-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) SOU 		1-71798-484-1 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) SOU 		8-98031-794-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) SOU 		8-98031-793-2 01 1 1001- ● ●
72 SHEET
(C) SOU 		8-98031-797-0 01 1 1001- ● ●
72 SHEET
(E) 		8-98060-245-1 01 1 1001- ● ●
72 SHEET
(A) 		8-98064-776-0 01 1 1001- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1001-1202 ● ●
72 SHEET
(D) 		8-98116-605-0 01 1 1203- ● ●
72 SHEET
(B) SOU 		8-98031-796-0 01 1 1001- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1001-1202 ● ●
72 SHEET
(D) 		8-98116-604-0 01 1 1203- ● ●
74 NUT
M10 CAP NUT SOU 		1-09984-134-0 02 1 1001- ●
86 COVER; STAY,OUTSIDE MIRROR
SOU 		8-98031-803-2 01 1 1001- ● ●
86 COVER; STAY,OUTSIDE MIRROR
SOU 		8-98031-802-2 01 1 1001- ● ●
87 SPACER
(A) SOU 		8-98063-786-0 02 1 1001- ● ●
87 SPACER
(B) SOU 		8-98063-789-0 01 1 1001- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 SOU 		8-97310-216-1 08 1 1001- ●
96 CAP; MIRROR STAY
SOU 		8-98080-173-0 02 1 1001- ● ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1001- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 SOU 		1-09985-191-0 10 1 1001- ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 SOU 		1-09985-191-0 04 1 1001- ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 SOU 		1-09985-191-0 06 1 1001- ●
145 NUT; CAP,SUB STAY
M8 CAP NUT SOU 		8-98059-914-0 10 1 1001- ●
145 NUT; CAP,SUB STAY
M8 CAP NUT SOU 		8-98059-914-0 04 1 1001- ●
145 NUT; CAP,SUB STAY
M8 CAP NUT SOU 		8-98059-914-0 06 1 1001- ●
185 BOLT; BRKT
(A) M8X16 FLANGE SOU 		0-28050-816-0 02 1 1001-1202 ● ●
185 BOLT; BRKT
(B) M8X23 SOU 		8-97310-216-1 08 1 1001- ●
307 STAY; MIRROR SUPPORT
SOU 		8-98063-785-2 01 1 1001- ● ●
307 STAY; MIRROR SUPPORT
SOU 		8-98063-784-2 01 1 1001- ● ●

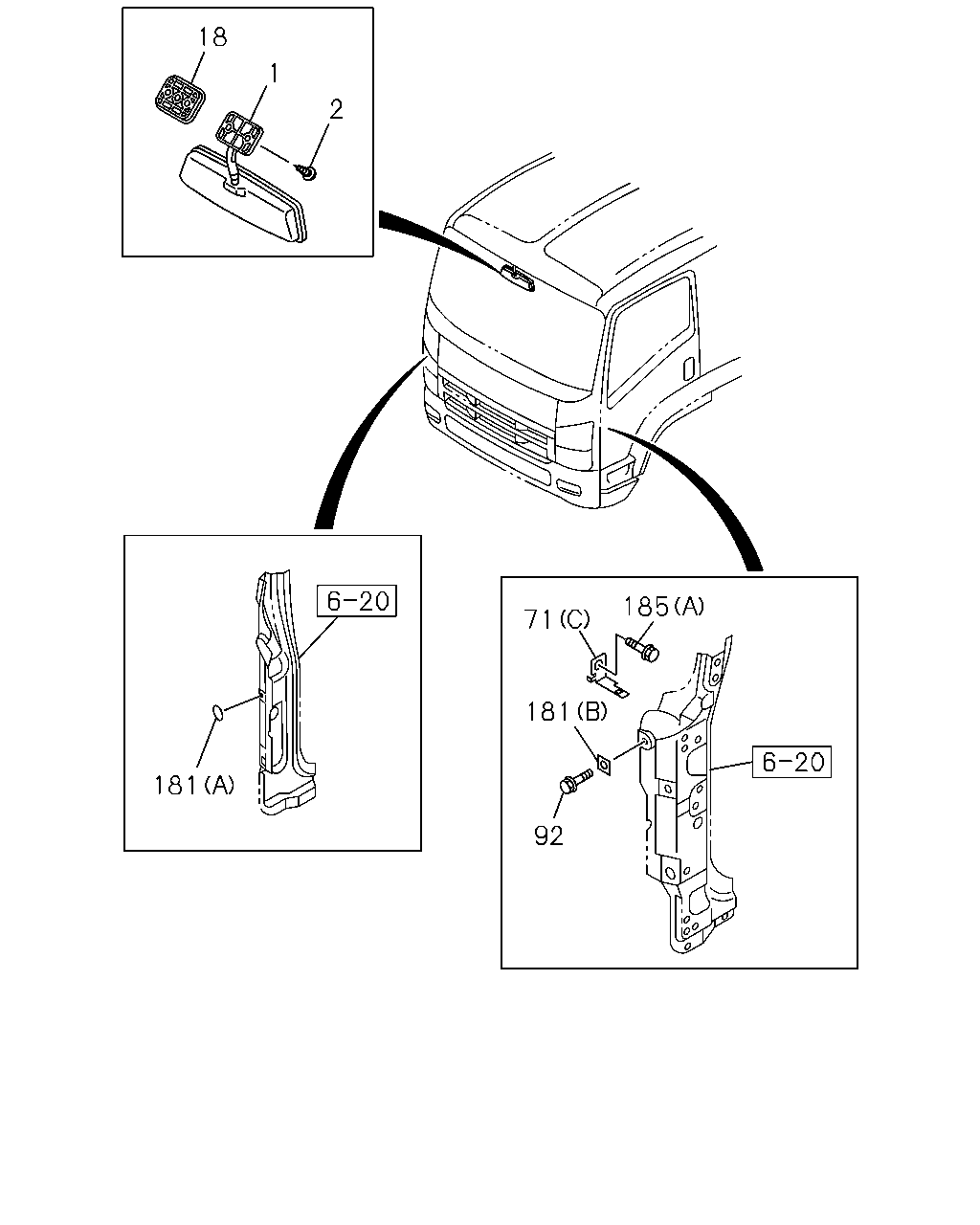

çizim 162436
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1001- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1001- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1001-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) SOU 		1-71798-484-1 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) SOU 		8-98031-794-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) SOU 		8-98031-793-2 01 1 1001- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1001- ● ●
181 SEAL; BRKT
(B) 25X25 SOU 		8-94272-533-0 01 1 1001- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK SOU 		1-76798-019-0 01 1 1001- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE SOU 		0-28050-816-0 02 1 1001-1202 ● ●
185 BOLT; BRKT
(B) M8X23 SOU 		8-97310-216-1 08 1 1001- ●

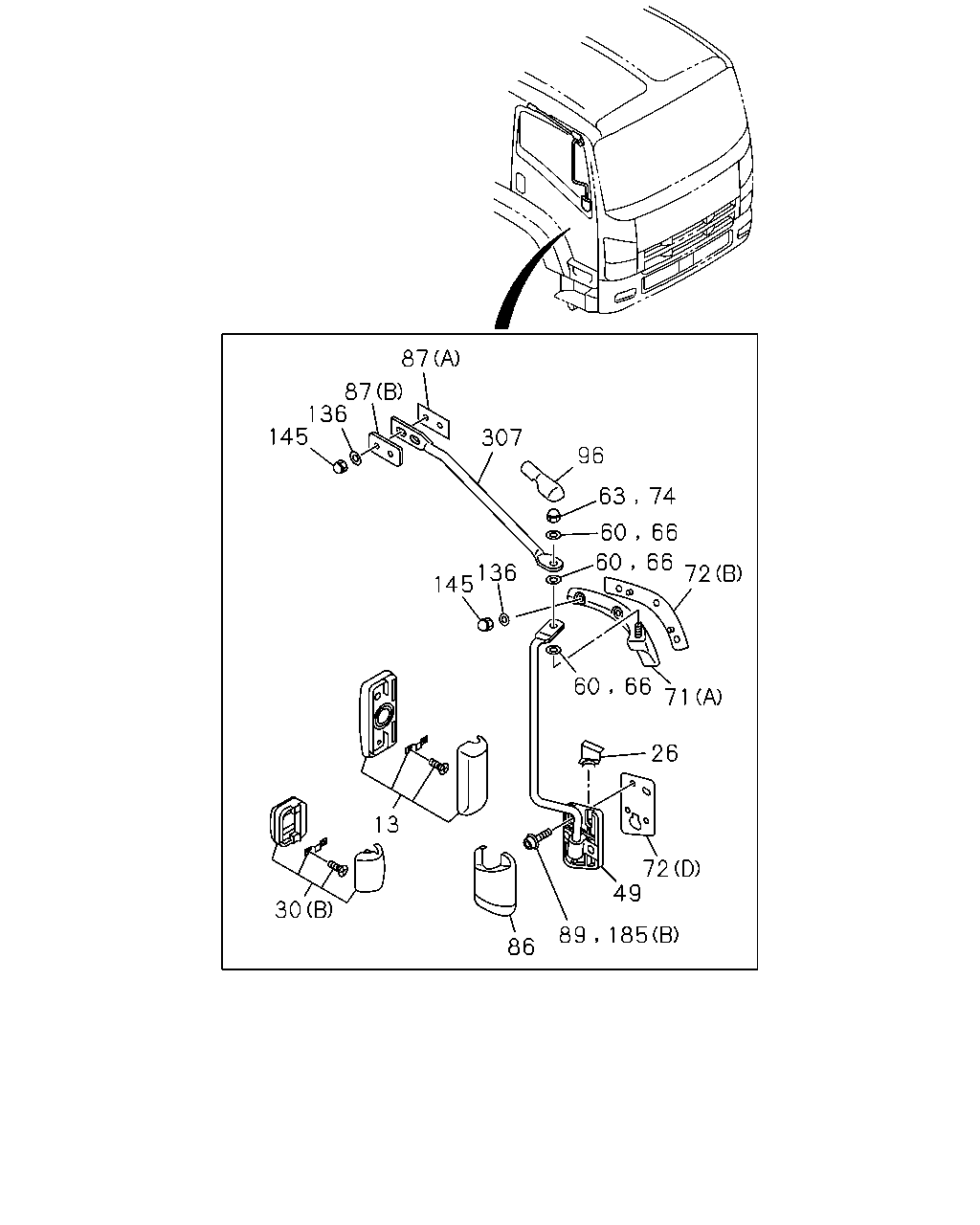

çizim 162437
87 87 136 145 307 96 63 74 60 66 60 66 136 145 72 60 66 71 26 13 72 49 30 89 185 86
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-992-1 01 1 1001- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW 8-98055-991-1 01 1 1001- ● ●
26 COVER; OUTSIDE MIRROR
SOU 		8-98031-806-0 01 1 1001- ● ●
26 COVER; OUTSIDE MIRROR
SOU 		8-98031-805-0 01 1 1001- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1001- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1001- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1001-1504 ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98060-218-1 01 1 1001-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-195-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-777-1 01 1 1001-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-194-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-051-1 01 1 1001-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-181-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-050-1 01 1 1001-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-180-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-065-1 01 1 1001-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-207-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-064-1 01 1 1001-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-206-0 01 1 1203- ● ●
60 WASHER; PL,OUTSIDE MIRROR
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 06 1 1001- ●
63 NUT; STAY
M10 CAP NUT SOU 		1-09984-134-0 02 1 1001- ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 06 1 1001- ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 02 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 1001-1202 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) SOU 		1-71798-484-1 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) SOU 		8-98031-794-2 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1001- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) SOU 		8-98031-793-2 01 1 1001- ● ●
72 SHEET
(C) SOU 		8-98031-797-0 01 1 1001- ● ●
72 SHEET
(E) 		8-98060-245-1 01 1 1001- ● ●
72 SHEET
(A) 		8-98064-776-0 01 1 1001- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1001-1202 ● ●
72 SHEET
(D) 		8-98116-605-0 01 1 1203- ● ●
72 SHEET
(B) SOU 		8-98031-796-0 01 1 1001- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1001-1202 ● ●
72 SHEET
(D) 		8-98116-604-0 01 1 1203- ● ●
74 NUT
M10 CAP NUT SOU 		1-09984-134-0 02 1 1001- ●
86 COVER; STAY,OUTSIDE MIRROR
SOU 		8-98031-803-2 01 1 1001- ● ●
86 COVER; STAY,OUTSIDE MIRROR
SOU 		8-98031-802-2 01 1 1001- ● ●
87 SPACER
(A) SOU 		8-98063-786-0 02 1 1001- ● ●
87 SPACER
(B) SOU 		8-98063-789-0 01 1 1001- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 SOU 		8-97310-216-1 08 1 1001- ●
96 CAP; MIRROR STAY
SOU 		8-98080-173-0 02 1 1001- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 SOU 		1-09985-191-0 10 1 1001- ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 SOU 		1-09985-191-0 04 1 1001- ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 SOU 		1-09985-191-0 06 1 1001- ●
145 NUT; CAP,SUB STAY
M8 CAP NUT SOU 		8-98059-914-0 10 1 1001- ●
145 NUT; CAP,SUB STAY
M8 CAP NUT SOU 		8-98059-914-0 04 1 1001- ●
145 NUT; CAP,SUB STAY
M8 CAP NUT SOU 		8-98059-914-0 06 1 1001- ●
185 BOLT; BRKT
(A) M8X16 FLANGE SOU 		0-28050-816-0 02 1 1001-1202 ● ●
185 BOLT; BRKT
(B) M8X23 SOU 		8-97310-216-1 08 1 1001- ●
307 STAY; MIRROR SUPPORT
SOU 		8-98063-785-2 01 1 1001- ● ●
307 STAY; MIRROR SUPPORT
SOU 		8-98063-784-2 01 1 1001- ● ●
