◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11161 - FSR(SOUTH AFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#56014) — 14 parça

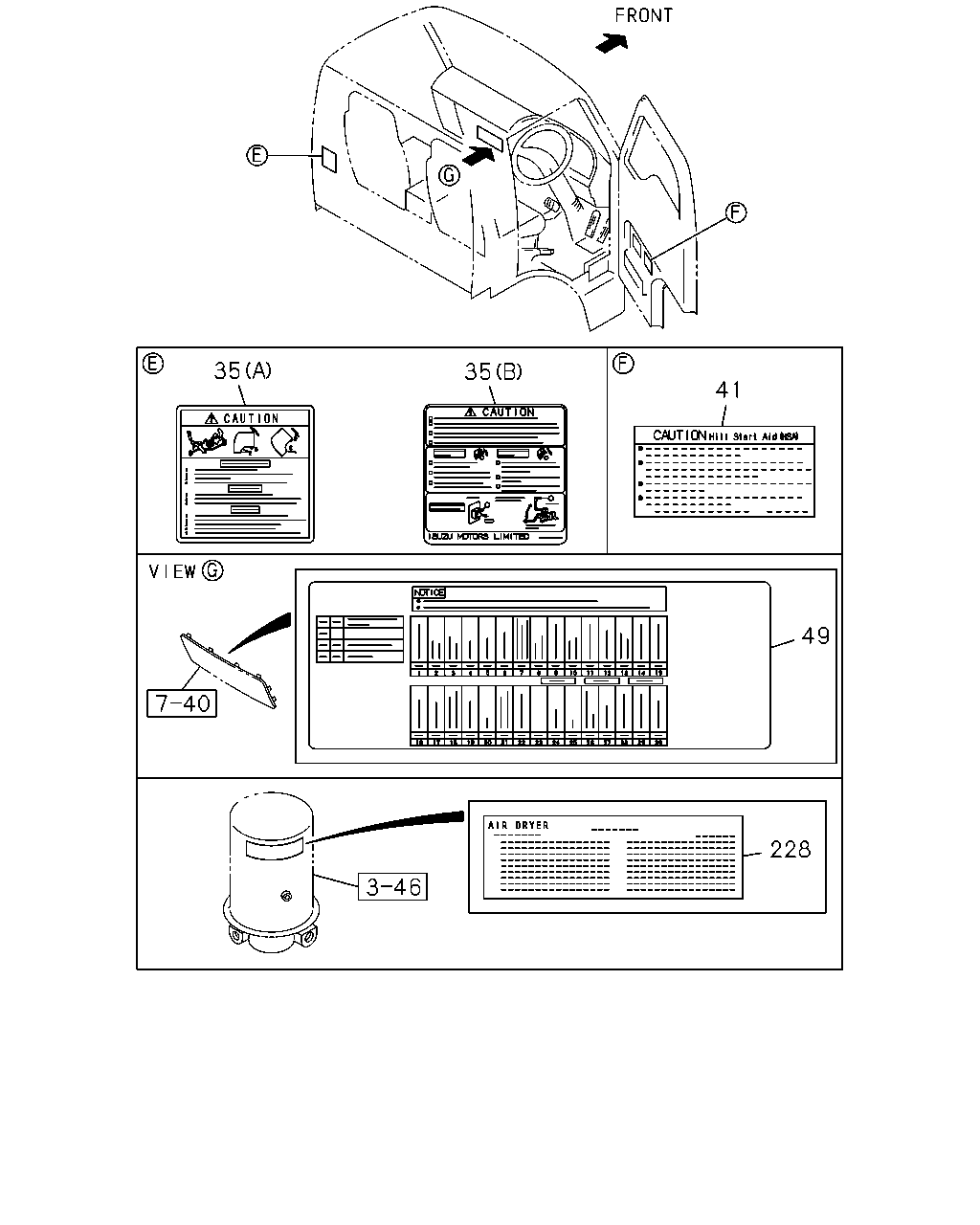

çizim 162572
35 35 41 49 228
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB
(A) 		8-98065-363-0 01 1 1001- ●
35 PLATE; CAUTION,CAB
(B) 		8-98069-325-0 01 1 1001- ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> 		8-98141-836-0 01 1 1001-1109 ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> 		8-98141-836-0 01 1 1110-1205 ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> 		8-98141-836-0 01 1 1206- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 1001- ● ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> 		1-48199-325-0 01 1 1001-1001 ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 1001-1001 ●

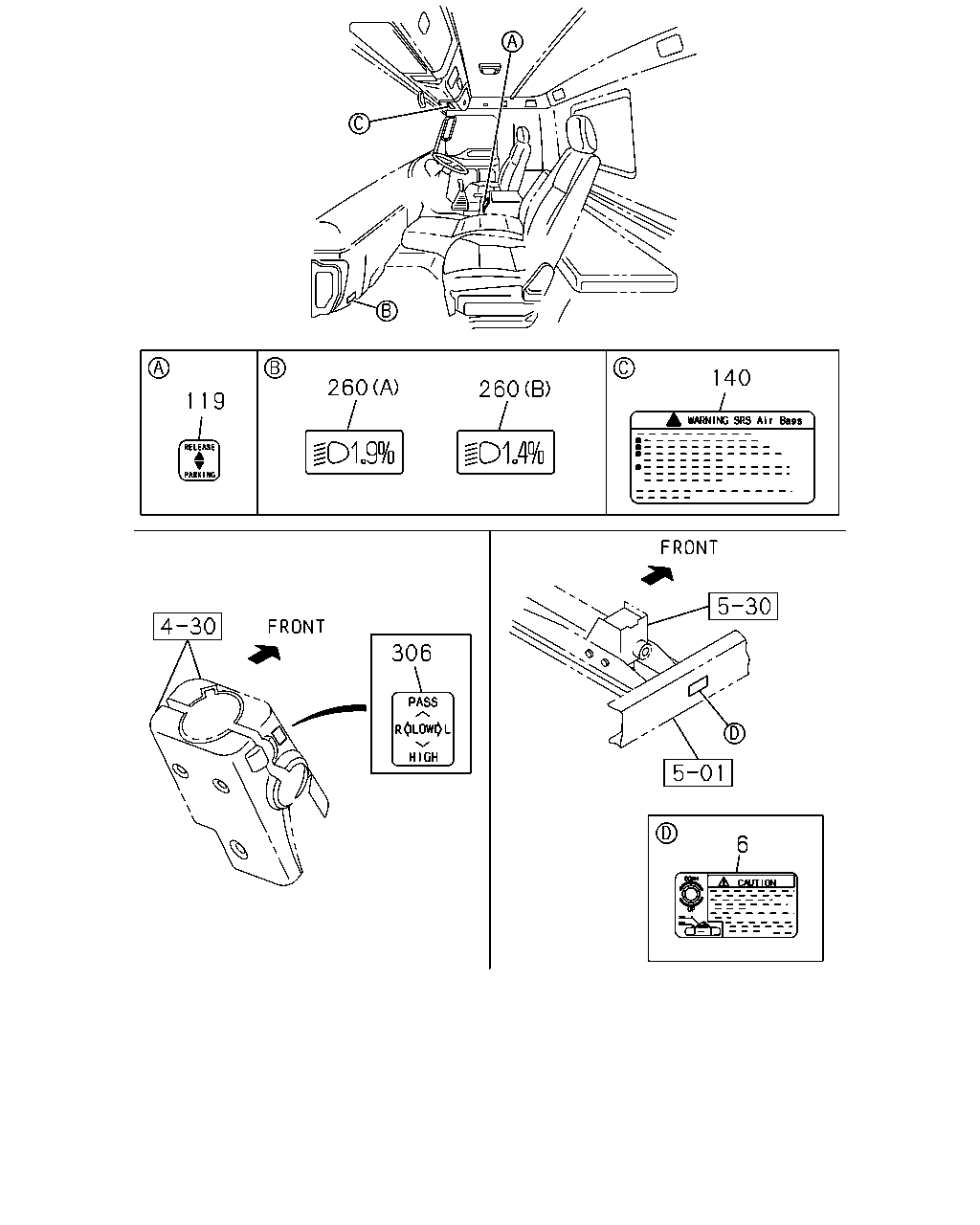

çizim 162810
140 260 260 119 306 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 1001- ● ●
119 PLATE; CAUTION,HAND BRK LEVER
SOU 		1-85881-759-0 01 1 1001- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3) 		8-98139-964-0 01 1 1001- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
4HK1-TCS ENG(RJS) (B) 		8-98008-779-0 01 1 1012- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
6HK1-TCN ENG(82L) (A) 		1-85878-501-1 01 1 1001- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1001- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
