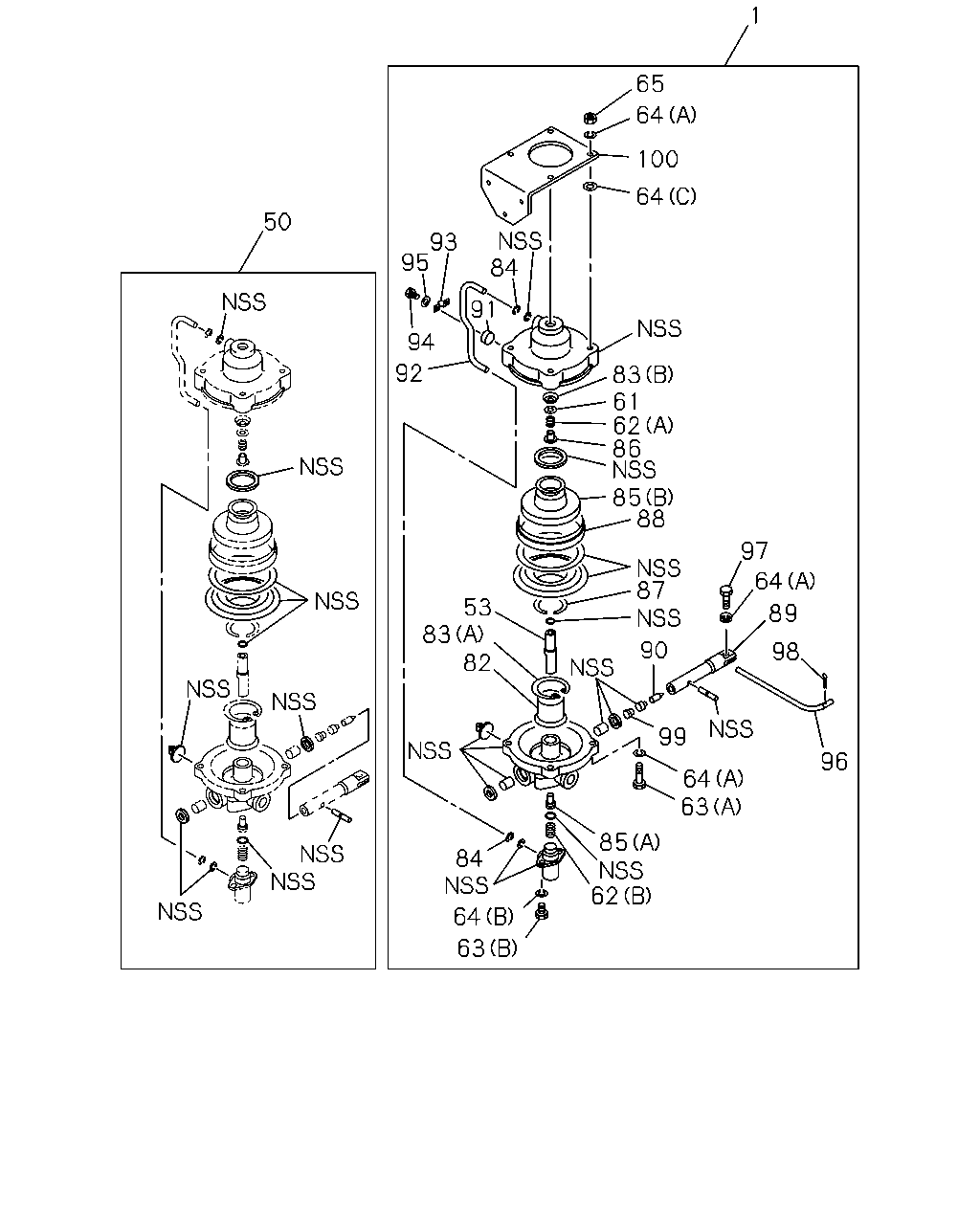

3-45 — LOAD SENSING PROPORTIONING VALVE (#5601) — 55 parça
çizim 6418
1 65 64 100 64 50 84 93 95 91 94 92 83 61 62 86 85 88 97 87 64 53 83 82 89 90 98 99 96 64 63 85 62 84 64 63
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-053-0 01 1 9603-
50 REPAIR KIT; LSPV 1-87830-263-0 01 1 9603-
53 PLUNGER; LSPV 1-47769-033-0 01 1 9603-
61 RETAINER; SPRING 1-47769-091-0 01 1 9603-
62 SPRING; LSPV
(A) 		1-47769-025-0 01 1 9603-
62 SPRING; LSPV
(B) 		1-47769-042-0 01 1 9603-
63 BOLT; LSPV
(A) 		1-47769-094-0 04 1 9603-
63 BOLT; LSPV
(B) 		1-47769-098-0 02 1 9603-
64 WASHER; LSPV
(A) 		1-47769-036-0 09 1 9603-
64 WASHER; LSPV
(B) 		1-47769-099-0 02 1 9603-
64 WASHER; LSPV
(C) 		1-47769-107-0 04 1 9603-
65 NUT; LSPV 1-47769-095-0 03 1 9603-
82 GUIDE; PISTON,LSPV 1-47769-016-0 01 1 9603-
83 RING; SNAP,RET
(A) 		1-47769-089-0 01 1 9603-
83 RING; SNAP,RET
(B) 		1-47769-092-0 01 1 9603-
84 RETAINER; GASKET 1-47769-021-0 02 1 9603-
85 PISTON; LSPV
(A) 		1-47769-043-0 01 1 9603-
85 PISTON; LSPV
(B) 		1-47769-090-0 01 1 9603-
86 VALVE; LSPV 1-47769-024-0 01 1 9603-
87 RETAINER; DIAPH 1-47769-031-0 01 1 9603-
88 GUIDE; DIAPH 1-47769-093-0 01 1 9603-
89 ROD; CONN,LSPV 1-47769-076-0 01 1 9603-
90 SCREW; CAM 1-47769-097-0 01 1 9603-
91 FILTER; LSPV 1-47769-100-0 01 1 9603-
92 PIPE; LSPV 1-47769-101-0 01 1 9603-
93 CLIP; PIPE 1-47769-102-0 01 1 9603-
94 SCREW; CLIP 1-47769-051-0 02 1 9603-
95 WASHER; CLIP 1-47769-052-0 02 1 9603-
96 ARM; OPERATING 1-47769-110-0 01 1 9603-
97 BOLT; OPERATING ARM 1-47769-104-0 01 1 9603-
98 PIN; SPLIT 1-47769-105-0 01 1 9603-
99 CAP; SCREW 1-47769-055-0 01 1 9603-
100 BRACKET; LSPV 1-47769-111-0 01 1 9603-
çizim 39296
58 101 13 1 101 21 30 8 114 33 30 114 3 6 5 7 4 2 8 26
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-053-0 01 1 9603-
2 DAMPER 1-47725-012-0 01 1 9603-
3 ROD; UPR 1-09765-071-0 01 1 9603-
4 ROD; LWR 1-09765-212-0 01 1 9603-
5 JOINT 1-09768-004-0 01 1 9603-
6 NUT; LK,UPR
M8 		9-09111-408-0 01 1 9603-
7 NUT; LK,LWR
LH THREAD 		1-09409-002-0 01 1 9603-
8 ROD END 1-47723-001-0 02 1 9603-
13 NUT; LSPV TO BRKT
M8 		9-09110-408-0 03 1 9603-9606
13 NUT; LSPV TO BRKT
M8 FLANGE 		0-91150-108-0 03 1 9607-
21 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 03 1 9603-9606
21 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 9607-
26 BOLT; DAMPER
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9611
26 BOLT; DAMPER
M8X12 FLANGE 		0-28080-812-0 02 1 9612-
30 WASHER; PL
ID=8.4 		9-09160-508-0 02 1 9603-9611
33 PIN; SPLIT
OD=1.8 L=25 		9-08112-025-0 01 1 9603-
58 CONNECTOR; LSPV
DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9603-9904
58 CONNECTOR; LSPV
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 9905-
101 CONNECTOR; LSPV
(A) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9603-9904
101 CONNECTOR; LSPV
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9905-
101 CONNECTOR; LSPV
(B) 		1-09660-778-1 01 1 9603-
114 WASHER; PL,JOINT RUBBER
ID=8.4 		9-09160-508-0 02 1 9905-
