6-35 — FRONT DOOR TRIM (#560) — 147 parça

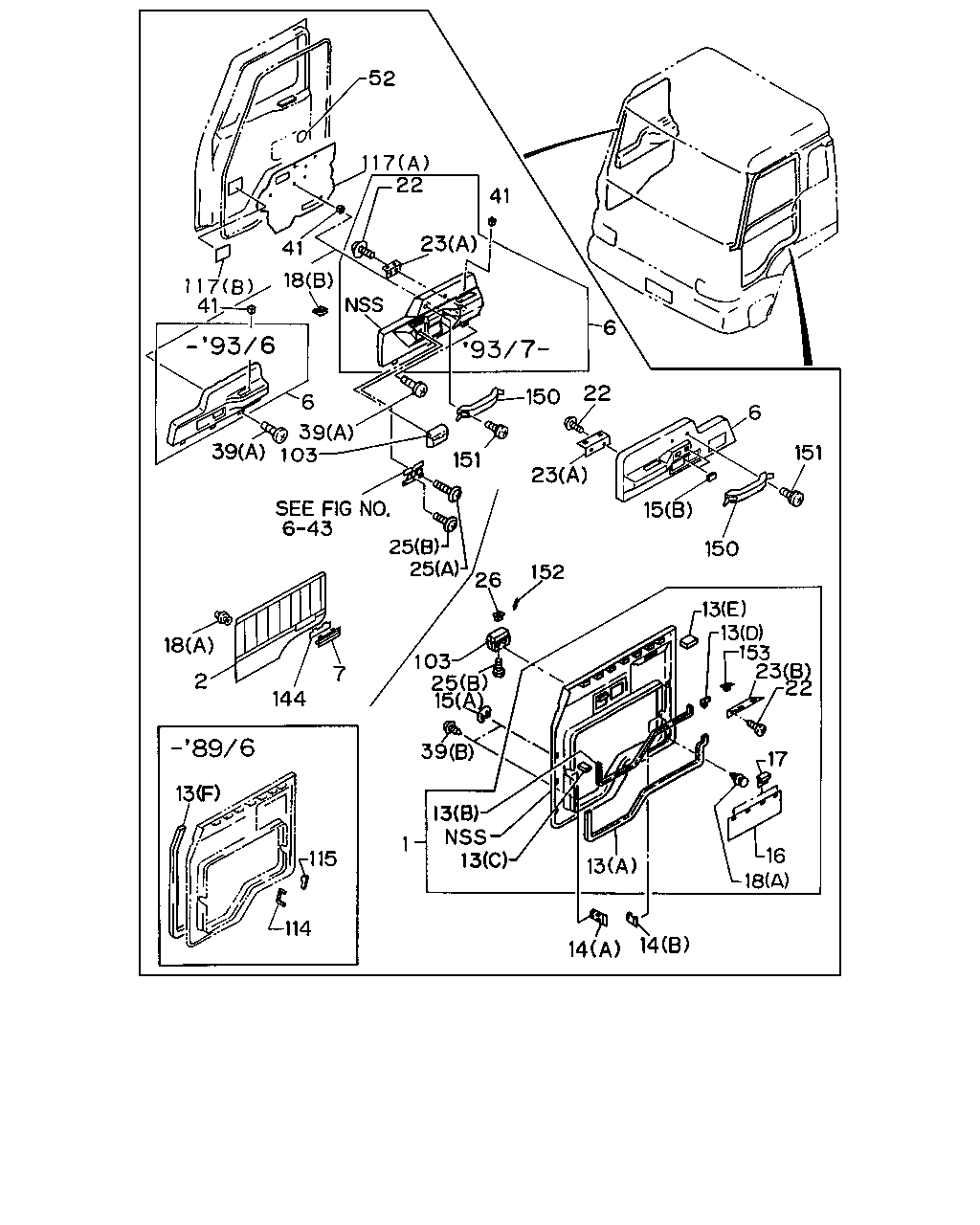

52 117 22 41 23 41 18 117 41 6 6 22 150 6 151 150 15 23 151 39 39 103 25 25 26 152 13 13 153 23 22 17 16 18 14 14 13 13 13 1 39 15 25 103 7 144 2 18 13 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-279-5	01	1	8712-9001
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-352-3	01	1	9002-9306
1	PAD; TRIM,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-435-2	01	1	9307-
2	TRIM; DOOR,LWR	1-73338-248-3	01	1	8712-9001
2	TRIM; DOOR,LWR	1-73337-347-0	01	1	9002-9204
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>	1-73337-347-0	01	1	9205-9306
2	TRIM; DOOR,LWR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-249-3	01	1	8712-9001
2	TRIM; DOOR,LWR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-310-0	01	1	9002-9204
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-310-0	01	1	9205-9306
2	TRIM; DOOR,LWR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-466-0	01	1	9205-9306
2	TRIM; DOOR,LWR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-429-0	01	1	9205-9306
2	TRIM; DOOR,LWR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-446-0	01	1	9307-
2	TRIM; DOOR,LWR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-445-0	01	1	9307-
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>	1-73337-468-0	01	1	9307-
2	TRIM; DOOR,LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-344-0	01	1	9307-
6	TRIM; DOOR,UPR	1-73337-283-1	01	1	8712-9001
6	TRIM; DOOR,UPR	1-73337-282-1	01	1	8712-9001
6	TRIM; DOOR,UPR	1-73338-309-0	01	1	9002-9204
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73338-309-0	01	1	9205-9306
6	TRIM; DOOR,UPR	1-73338-314-0	01	1	9002-9204
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73338-314-0	01	1	9205-9306
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-464-3	01	1	9205-9306
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-373-5	01	1	9205-9306
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-462-1	01	1	9307-
6	TRIM; DOOR,UPR POWER WINDOW<A30>	1-73337-423-3	01	1	9307-
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73337-467-2	01	1	9307-
6	TRIM; DOOR,UPR EXC. POWER WINDOW<A30>	1-73337-432-1	01	1	9307-
7	COVER; DOOR OUTLET VENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-261-3	01	1	8712-9001
7	COVER; DOOR OUTLET VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-261-3	02	1	8712-9001
7	COVER; DOOR OUTLET VENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-310-0	01	1	9002-9306
7	COVER; DOOR OUTLET VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-310-0	02	1	9002-9306
7	COVER; DOOR OUTLET VENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-345-0	01	1	9307-
7	COVER; DOOR OUTLET VENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73338-345-0	02	1	9307-
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (F) L=2000	1-73337-251-3	01	1	8712-8906
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=935	1-73337-353-4	01	1	8907-
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (C) L=90	1-73337-354-3	01	1	8907-
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (D) L=180	1-73337-355-3	01	1	8907-
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (E) L=85	1-73337-356-4	01	1	8907-
13	SEAL; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=1125	1-73337-358-3	01	1	8907-
14	COVER; DOOR TRIM FRT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73337-267-1	01	1	8712-9001
14	COVER; DOOR TRIM FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-269-1	01	1	8712-9001
14	COVER; DOOR TRIM FRT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73337-308-0	01	1	9002-
14	COVER; DOOR TRIM FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-309-0	01	1	9002-
15	COVER; HOLE,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73337-270-0	02	1	8712-9001
15	COVER; HOLE,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73337-307-0	02	1	9002-
15	COVER; HOLE,DOOR TRIM POWER WINDOW<A30> (B)	1-73337-471-2	01	1	9304-
15	COVER; HOLE,DOOR TRIM EXC. POWER WINDOW<A30> (B)	1-73337-471-2	02	1	9307-
16	RUBBER; SHUTTER,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-254-2	01	1	8712-
17	HOLDER; SHUTTER RUBBER,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-281-0	02	1	8712-
18	CLIP; DOOR PAD (A)	1-09987-119-1	11	1	8712-
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09987-119-1	11	1	8712-
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-09987-119-1	05	1	8712-
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	02	1	8712-9205
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	02	1	9206-9306
18	CLIP; DOOR PAD POWER WINDOW<A30> (B)	1-73337-276-0	02	1	9206-9306
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	04	1	8712-9205
18	CLIP; DOOR PAD EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	04	1	9206-9306
18	CLIP; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	01	1	9307-
18	CLIP; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-276-0	02	1	9307-
22	SCREW; DOOR TRIM BRKT M4X12 TAPPING	9-07076-412-0	04	1	9307-
22	SCREW; DOOR TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8> M4X12 TAPPING	9-07076-412-0	02	1	8712-
22	SCREW; DOOR TRIM BRKT POWER WINDOW<A30> M4X12 TAPPING	9-07076-412-0	04	1	9205-9306
23	BRACKET; DOOR TRIM (A)	1-73337-311-1	02	1	9307-
23	BRACKET; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73337-237-1	01	1	8712-
23	BRACKET; DOOR TRIM POWER WINDOW<A30> (A)	1-73337-311-1	02	1	9205-9306
25	SCREW; ASH TRAY,DOOR (B) M6X16 TAPPING	0-71180-616-0	04	1	8712-9205
25	SCREW; ASH TRAY,DOOR POWER WINDOW<A30> (B) M6X16 TAPPING	0-71180-616-0	03	1	9206-9306
25	SCREW; ASH TRAY,DOOR (B) M6X16 TAPPING	0-71180-616-0	03	1	9307-
25	SCREW; ASH TRAY,DOOR (A) M6X30	0-74110-630-0	01	1	9307-
25	SCREW; ASH TRAY,DOOR POWER WINDOW<A30> (A) M6X30	0-74110-630-0	01	1	9206-9306
25	SCREW; ASH TRAY,DOOR EXC. POWER WINDOW<A30> (B) M6X16 TAPPING	0-71180-616-0	04	1	9206-9306
26	GROMMET; SCREW,ASH TRAY DOOR	1-09983-061-0	04	1	8712-9205
26	GROMMET; SCREW,ASH TRAY DOOR EXC. POWER WINDOW<A30>	1-09983-061-0	04	1	9206-9306
26	GROMMET; SCREW,ASH TRAY DOOR POWER WINDOW<A30>	1-09983-061-0	03	1	9206-
39	SCREW; DOOR PAD (B) M6X16 TAPPING W/PL WASHER	0-74110-616-0	08	1	8712-9001
39	SCREW; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) M6X16 TAPPING W/PL WASHER	0-74110-616-0	08	1	9002-9306
39	SCREW; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (B) M6X16 TAPPING W/PL WASHER	0-74110-616-0	04	1	8712-
39	SCREW; DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8> (A) M6X16 TAPPING W/PL WASHER	1-09981-452-0	02	1	8712-
39	SCREW; DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) M6X16 TAPPING W/PL WASHER	0-74110-616-0	08	1	9307-
41	GROMMET; SCREW,DOOR PAD	1-09983-061-0	08	1	8712-9001
41	GROMMET; SCREW,DOOR PAD EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	08	1	9002-
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	02	1	8712-9001
41	GROMMET; SCREW,DOOR PAD DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	06	1	9002-
52	SEAL; WATER,DOOR LWR OD=25 BLACK	1-76798-019-0	03	1	9002-9205
52	SEAL; WATER,DOOR LWR DOOR WITH UNDER VIEW WINDOW<YD8> EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	02	1	9206-
52	SEAL; WATER,DOOR LWR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK	1-76798-019-0	04	1	9206-
103	TRAY ASM; ASH,DOOR BLACK	1-76457-036-2	02	1	8712-9205
103	TRAY ASM; ASH,DOOR POWER WINDOW<A30> BLACK	1-76457-036-2	01	1	9206-9306
103	TRAY ASM; ASH,DOOR BLACK	1-76457-036-2	01	1	9307-
103	TRAY ASM; ASH,DOOR	1-76457-046-1	01	1	9307-
103	TRAY ASM; ASH,DOOR POWER WINDOW<A30>	1-76457-047-1	01	1	9206-9306
103	TRAY ASM; ASH,DOOR EXC. POWER WINDOW<A30> BLACK	1-76457-036-2	02	1	9206-9306
114	SEAL; DOOR TRIM,FRT DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-286-1	01	1	8712-8906
115	SEAL; DOOR TRIM,REAR DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-287-1	01	1	8712-8906
117	SEAL ASM; WATER DOOR (A)	1-76777-082-0	01	1	8712-8903
117	SEAL ASM; WATER DOOR (A)	1-76777-090-0	01	1	8904-9204
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-090-0	01	1	9205-9210
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30> (A)	1-76777-086-1	01	1	9211-
117	SEAL ASM; WATER DOOR (B)	1-76797-023-0	01	1	8712-
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76797-023-0	01	1	8712-
117	SEAL ASM; WATER DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-083-0	01	1	8712-9204
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-083-1	01	1	9205-9210
117	SEAL ASM; WATER DOOR EXC. POWER WINDOW<A30>,DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-087-1	01	1	9211-
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> (A)	1-76777-106-0	01	1	9205-
117	SEAL ASM; WATER DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76777-110-0	01	1	9205-
144	SHUTTER; DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-288-0	01	1	8712-
144	SHUTTER; DOOR TRIM EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-288-0	02	1	8712-
150	GRIP; ASSIST,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73617-042-0	01	1	8712-9001
150	GRIP; ASSIST,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73617-057-0	01	1	9002-9306
150	GRIP; ASSIST,DOOR TRIM POWER WINDOW<A30>	1-73618-167-0	01	1	9205-9306
150	GRIP; ASSIST,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73618-161-0	01	1	9307-
150	GRIP; ASSIST,DOOR TRIM POWER WINDOW<A30>	1-73618-161-0	01	1	9307-
151	SCREW; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8> M6X20 W/LK&PL WASHER	1-09981-374-0	02	1	8712-
151	SCREW; ASSIST GRIP,DOOR TRIM POWER WINDOW<A30> M6X30 W/PL WASHER	1-09981-495-0	02	1	9205-9208
151	SCREW; ASSIST GRIP,DOOR TRIM POWER WINDOW<A30> M6X20	1-09980-550-0	02	1	9209-
152	PLUG; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73617-043-0	02	1	8712-8802
152	PLUG; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73337-298-0	02	1	8803-8904
152	PLUG; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73617-043-0	02	1	8905-9001
152	PLUG; ASSIST GRIP,DOOR TRIM DOOR WITH UNDER VIEW WINDOW<YD8>	1-73617-038-0	02	1	9002-9306
153	GROMMET; SCREW,TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8> M4X12 TAPPING	9-07076-412-0	02	1	8712-8906
153	GROMMET; SCREW,TRIM BRKT DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	02	1	8907-

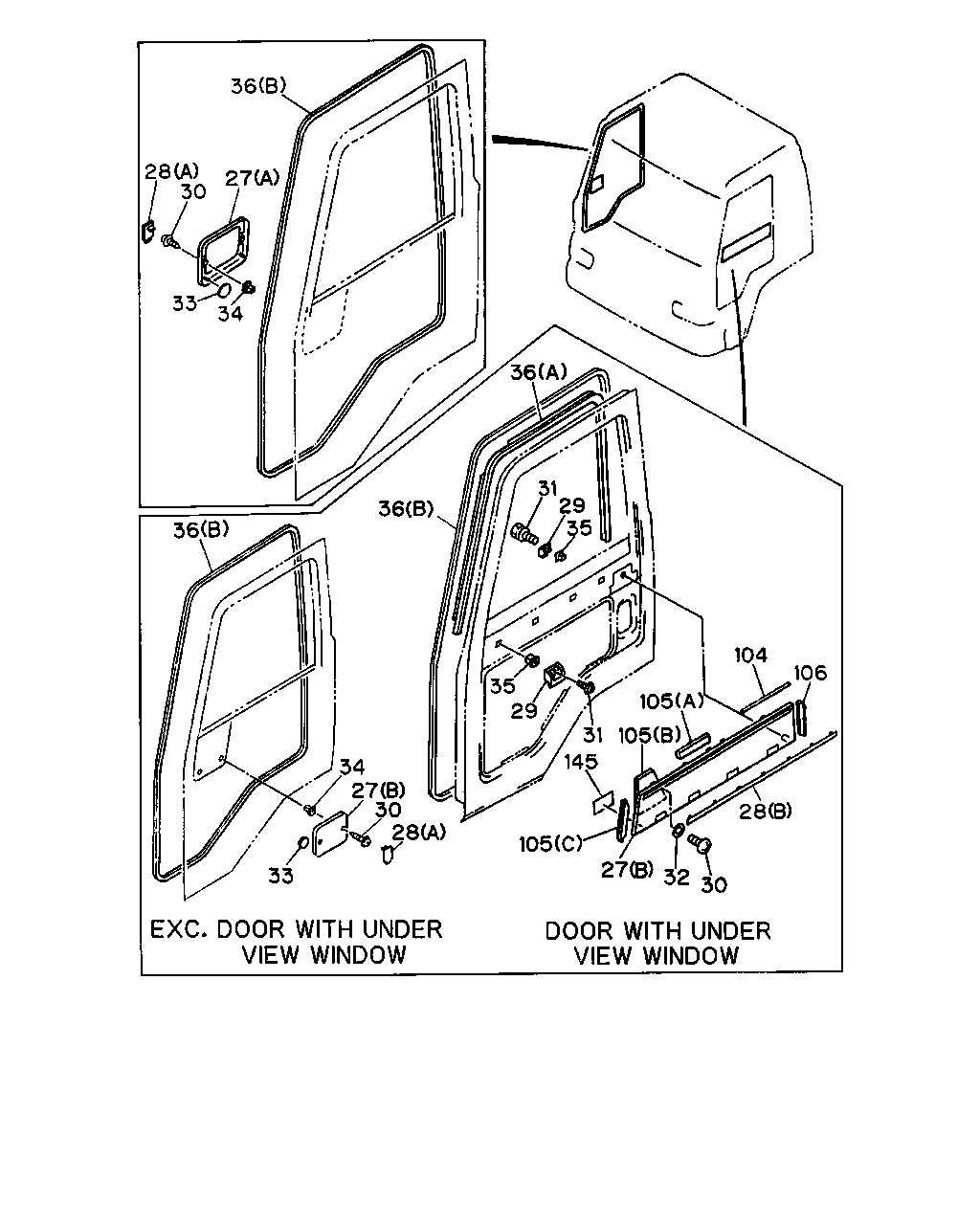

36 28 30 27 33 34 36 33 28 30 27 34 36 36 31 29 35 35 29 145 31 105 105 104 106 28 30 32 27 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	PANEL; ORNAMENT,DOOR (A)	1-71997-510-0	01	1	8712-
27	PANEL; ORNAMENT,DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-71997-512-2	01	1	8712-
27	PANEL; ORNAMENT,DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-71997-511-0	01	1	8712-
28	MOLDING; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-71997-530-1	01	1	8712-
28	MOLDING; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-71997-524-1	02	1	8712-
28	MOLDING; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-71997-524-1	04	1	8712-
29	HOLDER; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-71997-523-0	04	1	8712-
30	SCREW; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> M6X16	1-09981-453-0	04	1	8712-
30	SCREW; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	1-09981-452-0	02	1	8712-
30	SCREW; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 TAPPING W/PL WASHER	1-09981-452-0	04	1	8712-
31	SCREW; HOLDER,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> M5X20	1-09981-454-0	04	1	8712-
32	WASHER; RUBBER,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.5	1-71997-525-1	04	1	8712-
32	WASHER; RUBBER,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8> ID=7X14	1-71997-541-0	04	1	8712-
33	GROMMET; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-090-0	02	1	8712-
33	GROMMET; DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-090-0	04	1	8712-
34	GROMMET; SCREW,DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	02	1	8712-
34	GROMMET; SCREW,DOOR ORNAMENT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-061-0	04	1	8712-
35	GROMMET; SCREW,DOOR ORNAMENT HOLDER DOOR WITH UNDER VIEW WINDOW<YD8>	1-09983-081-0	04	1	8712-
36	SEAL; DOOR,MAIN,CAB SIDE (B) L=3060	1-76717-063-4	02	1	8712-
36	SEAL; DOOR,MAIN,CAB SIDE DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=1830	1-76737-112-6	01	1	8712-
104	SEAL; DOOR ORNAMENT,UPR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76777-059-4	01	1	8712-
105	SEAL; DOOR ORNAMENT,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (A) L=161	1-71997-602-1	01	1	8712-
105	SEAL; DOOR ORNAMENT,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B) L=121	1-71997-972-0	01	1	8712-
105	SEAL; DOOR ORNAMENT,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (C) L=90	1-71997-973-0	01	1	8712-
106	SEAL; DOOR ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-71997-603-0	01	1	8712-
145	CUSHION; BASE TO ORNAMENT DOOR WITH UNDER VIEW WINDOW<YD8>	1-74617-030-0	01	1	8712-
