Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#56) — 210 parça

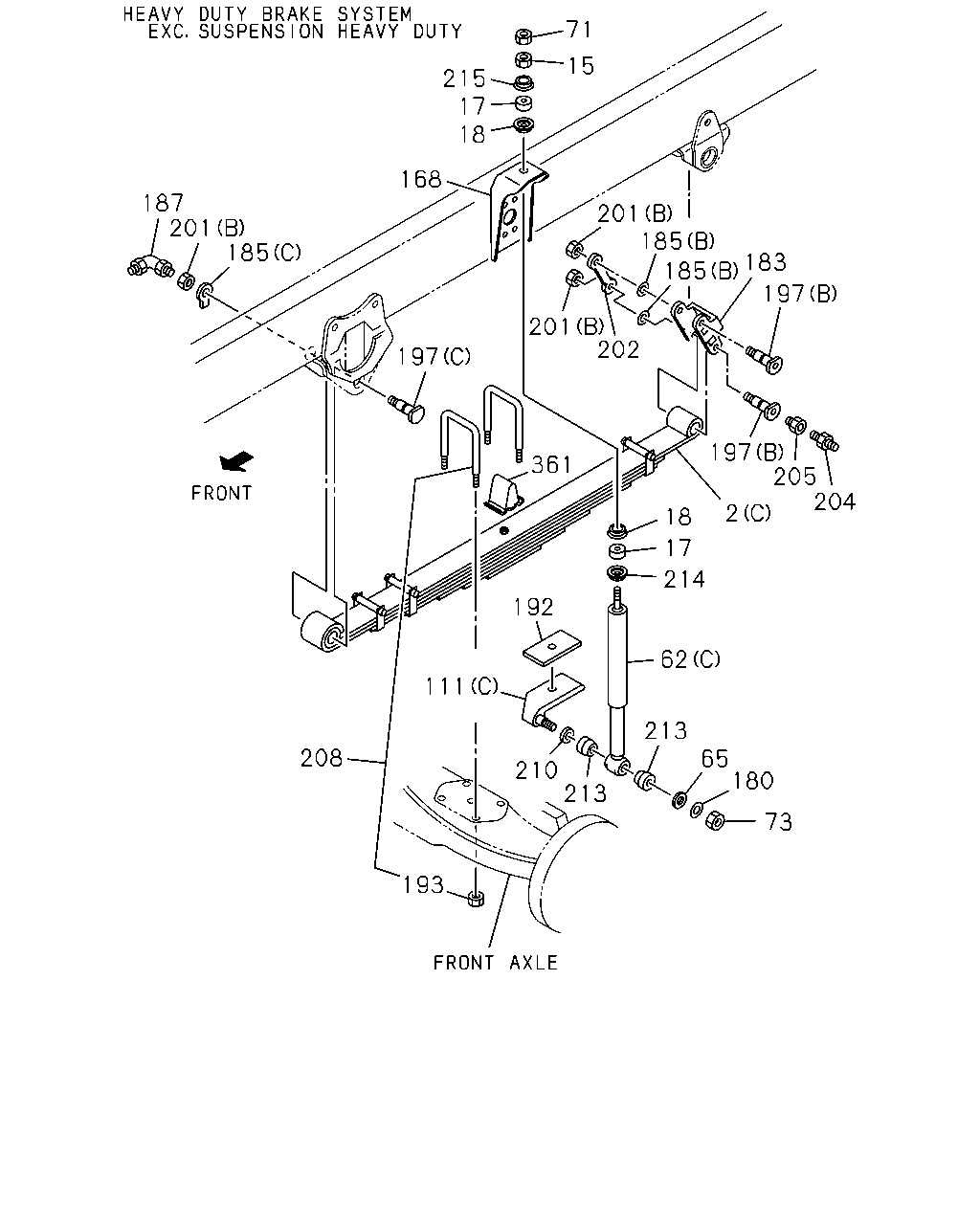

71 15 215 17 18 168 201 185 187 201 185 183 185 197 201 202 197 197 205 204 361 2 18 17 214 192 62 111 213 208 65 180 210 213 73 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-51130-111-0	02	1	9202-9210	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7-LEAF	1-51130-264-0	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7-LEAF	1-51130-265-0	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B)	1-51130-221-0	02	1	9202-9210	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B) 8-LEAF	1-51130-266-0	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B)	1-51130-267-0	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51130-159-1	02	1	9202-9210	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C) 7-LEAF	1-51130-155-1	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C) 7-LEAF	1-51130-156-1	01	1	9211-	●	●
15	NUT; S/ABS,UPR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 M12	1-09400-006-0	02	1	9202-	●	●
15	NUT; S/ABS,UPR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 FLANGE	0-91150-110-0	02	1	9202-	●	●
17	BUSHING; RUBBER,S/ABS BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-51631-050-0	04	1	9202-	●	●
17	BUSHING; RUBBER,S/ABS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-51631-004-0	04	1	9202-	●	●
18	WASHER; CENTERING,S/ABS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16.8	1-51631-022-0	04	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-51630-391-0	02	1	9408-	●	●
62	ABSORBER ASM; SHOCK,FRT SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-51630-180-3	02	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51630-302-0	02	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-51630-290-1	02	1	9202-9407	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-51630-290-1	02	1	9408-	●	●
65	WASHER; S/ABS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=23	1-51631-019-0	02	1	9202-	●	●
65	WASHER; S/ABS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.5 OD=26	9-09164-612-0	02	1	9202-	●	●
71	NUT; LK,S/ABS,UPR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12	1-09400-006-0	02	1	9202-	●	●
71	NUT; LK,S/ABS,UPR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-09111-410-0	02	1	9202-	●	●
73	NUT; BRKT,SHOCK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16	9-99110-416-0	02	1	9202-	●	●
73	NUT; BRKT,SHOCK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12	9-99110-512-0	02	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY<F40> (A)	1-51681-559-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY<F40> (A)	1-51681-558-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B)	1-51681-573-5	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B)	1-51681-572-5	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51681-642-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51681-641-1	01	1	9202-	●	●
168	BRACKET; S/ABS,FRT SUSP BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-51681-306-0	02	1	9202-	●	●
168	BRACKET; S/ABS,FRT SUSP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-51681-522-0	02	1	9202-	●	●
180	WASHER; PL,PIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17	9-09160-516-0	02	1	9202-	●	●
183	SHACKLE; FRT SUSP SUSPENSION HEAVY DUTY<F40>	1-51162-029-4	02	1	9202-	●	●
183	SHACKLE; FRT SUSP EXC. SUSPENSION HEAVY DUTY<F40>	1-51162-037-0	02	1	9202-	●	●
185	WASHER; LK,PIN SUSPENSION HEAVY DUTY<F40> (A) ID=12.2	9-09150-512-0	12	1	9202-9209	●	●
185	WASHER; LK,PIN SUSPENSION HEAVY DUTY<F40> (A) ID=12.2	9-09150-612-0	12	1	9210-	●	●
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY<F40> (B) ID=25.5	1-09503-011-0	04	1	9202-	●	●
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY<F40> (C) ID=23	1-51169-003-0	02	1	9202-	●	●
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	9202-	●	●
192	PIECE; DIST SUSPENSION HEAVY DUTY<F40> T=6	1-51177-094-0	AR	1	9202-9211	●	●
192	PIECE; DIST SUSPENSION HEAVY DUTY<F40> 80X144 ID=17.5	1-51177-284-1	AR	1	9212-	●	●
192	PIECE; DIST EXC. SUSPENSION HEAVY DUTY<F40> T=4.5	1-51177-149-0	AR	1	9202-	●	●
193	NUT; U BOLT SUSPENSION HEAVY DUTY<F40> M22	9-09112-822-0	08	1	9202-	●	●
193	NUT; U BOLT EXC. SUSPENSION HEAVY DUTY<F40> M16	1-09440-028-1	08	1	9202-	●	●
197	PIN; FRT SPR,FRT SUSPENSION HEAVY DUTY<F40> (A)	1-51161-031-0	06	1	9202-	●	●
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY<F40> (B)	1-51161-004-3	02	1	9202-	●	●
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51161-005-3	04	1	9202-	●	●
201	NUT; PIN LK SUSPENSION HEAVY DUTY<F40> (A) M12	9-99110-512-0	12	1	9202-	●	●
201	NUT; PIN LK EXC. SUSPENSION HEAVY DUTY<F40> (B) M22	9-09111-522-0	06	1	9202-	●	●
202	PLATE; LK,SPR PIN EXC. SUSPENSION HEAVY DUTY<F40>	1-51169-016-0	02	1	9202-	●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	04	1	9202-	●	●
205	ATTACHMENT; GREASE NIPPLE SUSPENSION HEAVY DUTY<F40>	9-43165-001-0	06	1	9202-	●	●
205	ATTACHMENT; GREASE NIPPLE EXC. SUSPENSION HEAVY DUTY<F40>	9-43165-001-0	04	1	9202-	●	●
208	U-BOLT SET; FRT SPRING SUSPENSION HEAVY DUTY<F40> L=210	1-87870-118-3	04	1	9202-9307	●	●
208	U-BOLT SET; FRT SPRING SUSPENSION HEAVY DUTY<F40> L=210	1-87870-380-0	04	1	9308-	●	●
208	U-BOLT SET; FRT SPRING EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) L=175	1-87870-350-0	04	1	9202-	●	●
208	U-BOLT SET; FRT SPRING BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> L=190	1-87870-361-0	04	1	9202-	●	●
210	WASHER; S/ABS,OUTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17	1-51631-020-0	02	1	9202-	●	●
210	WASHER; S/ABS,OUTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17	9-09164-516-0	02	1	9202-	●	●
213	BUSHING; RUBBER,LWR BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-51631-009-1	04	1	9202-	●	●
214	WASHER; S/ABS,UPR,INNER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.5	9-51631-051-0	02	1	9202-	●	●
214	WASHER; S/ABS,UPR,INNER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.5 OD=40 T=3.2	9-09651-094-0	04	1	9202-	●	●
215	WASHER; S/ABS,UPR,OUTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.5	9-51631-051-0	02	1	9202-	●	●
215	WASHER; S/ABS,UPR,OUTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=15	1-51631-023-0	02	1	9202-	●	●
361	CLAMP; LEAF SPR SUSPENSION HEAVY DUTY<F40>	1-51172-085-0	02	1	9202-	●	●
361	CLAMP; LEAF SPR EXC. SUSPENSION HEAVY DUTY<F40>	1-51172-080-2	02	1	9202-9307	●	●
361	CLAMP; LEAF SPR EXC. SUSPENSION HEAVY DUTY<F40>	1-51172-098-0	02	1	9308-9408	●	●
361	CLAMP; LEAF SPR EXC. SUSPENSION HEAVY DUTY<F40>	1-51172-107-0	02	1	9409-	●	●

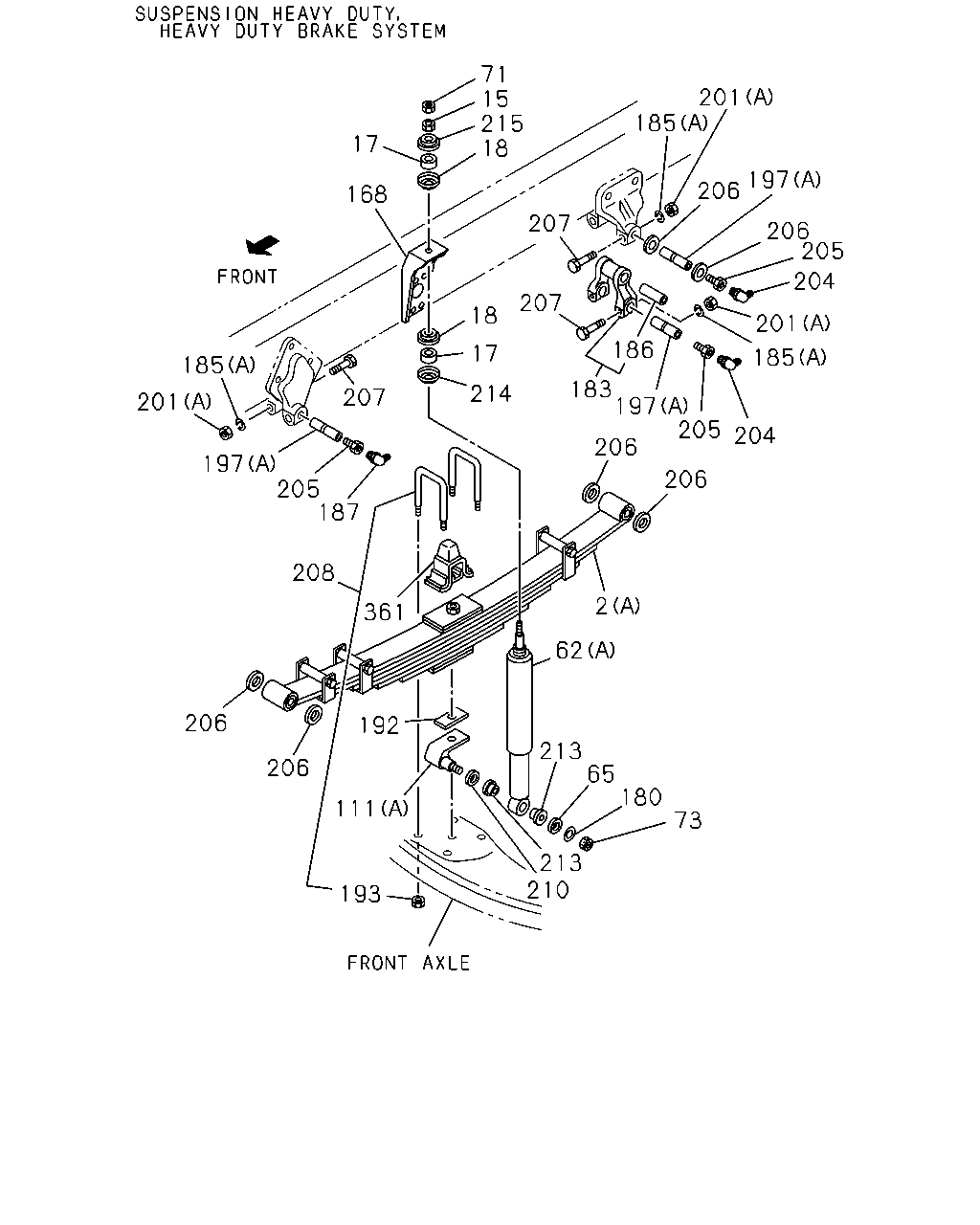

71 15 215 18 201 185 17 197 206 168 207 206 205 204 207 18 201 186 17 185 185 183 197 214 207 201 205 204 206 197 205 187 206 208 2 361 62 206 192 213 65 180 206 111 73 213 210 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-51130-111-0	02	1	9202-9210	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7-LEAF	1-51130-264-0	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7-LEAF	1-51130-265-0	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B)	1-51130-221-0	02	1	9202-9210	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B) 8-LEAF	1-51130-266-0	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B)	1-51130-267-0	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51130-159-1	02	1	9202-9210	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C) 7-LEAF	1-51130-155-1	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C) 7-LEAF	1-51130-156-1	01	1	9211-	●	●
15	NUT; S/ABS,UPR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 M12	1-09400-006-0	02	1	9202-	●	●
15	NUT; S/ABS,UPR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 FLANGE	0-91150-110-0	02	1	9202-	●	●
17	BUSHING; RUBBER,S/ABS BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-51631-050-0	04	1	9202-	●	●
17	BUSHING; RUBBER,S/ABS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-51631-004-0	04	1	9202-	●	●
18	WASHER; CENTERING,S/ABS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16.8	1-51631-022-0	04	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-51630-391-0	02	1	9408-	●	●
62	ABSORBER ASM; SHOCK,FRT SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-51630-180-3	02	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51630-302-0	02	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-51630-290-1	02	1	9202-9407	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-51630-290-1	02	1	9408-	●	●
65	WASHER; S/ABS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=23	1-51631-019-0	02	1	9202-	●	●
65	WASHER; S/ABS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.5 OD=26	9-09164-612-0	02	1	9202-	●	●
71	NUT; LK,S/ABS,UPR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12	1-09400-006-0	02	1	9202-	●	●
71	NUT; LK,S/ABS,UPR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-09111-410-0	02	1	9202-	●	●
73	NUT; BRKT,SHOCK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16	9-99110-416-0	02	1	9202-	●	●
73	NUT; BRKT,SHOCK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12	9-99110-512-0	02	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY<F40> (A)	1-51681-559-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY<F40> (A)	1-51681-558-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B)	1-51681-573-5	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B)	1-51681-572-5	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51681-642-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51681-641-1	01	1	9202-	●	●
168	BRACKET; S/ABS,FRT SUSP BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-51681-306-0	02	1	9202-	●	●
168	BRACKET; S/ABS,FRT SUSP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-51681-522-0	02	1	9202-	●	●
180	WASHER; PL,PIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17	9-09160-516-0	02	1	9202-	●	●
183	SHACKLE; FRT SUSP SUSPENSION HEAVY DUTY<F40>	1-51162-029-4	02	1	9202-	●	●
183	SHACKLE; FRT SUSP EXC. SUSPENSION HEAVY DUTY<F40>	1-51162-037-0	02	1	9202-	●	●
185	WASHER; LK,PIN SUSPENSION HEAVY DUTY<F40> (A) ID=12.2	9-09150-512-0	12	1	9202-9209	●	●
185	WASHER; LK,PIN SUSPENSION HEAVY DUTY<F40> (A) ID=12.2	9-09150-612-0	12	1	9210-	●	●
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY<F40> (B) ID=25.5	1-09503-011-0	04	1	9202-	●	●
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY<F40> (C) ID=23	1-51169-003-0	02	1	9202-	●	●
186	BUSHING; SHACKLE SUSPENSION HEAVY DUTY<F40> OD=38	1-51351-009-0	02	1	9202-	●	●
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	9202-	●	●
192	PIECE; DIST SUSPENSION HEAVY DUTY<F40> T=6	1-51177-094-0	AR	1	9202-9211	●	●
192	PIECE; DIST SUSPENSION HEAVY DUTY<F40> 80X144 ID=17.5	1-51177-284-1	AR	1	9212-	●	●
192	PIECE; DIST EXC. SUSPENSION HEAVY DUTY<F40> T=4.5	1-51177-149-0	AR	1	9202-	●	●
193	NUT; U BOLT SUSPENSION HEAVY DUTY<F40> M22	9-09112-822-0	08	1	9202-	●	●
193	NUT; U BOLT EXC. SUSPENSION HEAVY DUTY<F40> M16	1-09440-028-1	08	1	9202-	●	●
197	PIN; FRT SPR,FRT SUSPENSION HEAVY DUTY<F40> (A)	1-51161-031-0	06	1	9202-	●	●
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY<F40> (B)	1-51161-004-3	02	1	9202-	●	●
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51161-005-3	04	1	9202-	●	●
201	NUT; PIN LK SUSPENSION HEAVY DUTY<F40> (A) M12	9-99110-512-0	12	1	9202-	●	●
201	NUT; PIN LK EXC. SUSPENSION HEAVY DUTY<F40> (B) M22	9-09111-522-0	06	1	9202-	●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	04	1	9202-	●	●
205	ATTACHMENT; GREASE NIPPLE SUSPENSION HEAVY DUTY<F40>	9-43165-001-0	06	1	9202-	●	●
205	ATTACHMENT; GREASE NIPPLE EXC. SUSPENSION HEAVY DUTY<F40>	9-43165-001-0	04	1	9202-	●	●
206	WASHER; LK,SPRING PIN SUSPENSION HEAVY DUTY<F40> ID=32.4	1-51169-018-0	12	1	9202-	●	●
207	BOLT; SPR TO SHACKLE SUSPENSION HEAVY DUTY<F40> M12X80	0-10806-280-0	12	1	9202-	●	●
208	U-BOLT SET; FRT SPRING SUSPENSION HEAVY DUTY<F40> L=210	1-87870-118-3	04	1	9202-9307	●	●
208	U-BOLT SET; FRT SPRING SUSPENSION HEAVY DUTY<F40> L=210	1-87870-380-0	04	1	9308-	●	●
208	U-BOLT SET; FRT SPRING EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) L=175	1-87870-350-0	04	1	9202-	●	●
208	U-BOLT SET; FRT SPRING BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> L=190	1-87870-361-0	04	1	9202-	●	●
210	WASHER; S/ABS,OUTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17	1-51631-020-0	02	1	9202-	●	●
210	WASHER; S/ABS,OUTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17	9-09164-516-0	02	1	9202-	●	●
213	BUSHING; RUBBER,LWR BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-51631-009-1	04	1	9202-	●	●
214	WASHER; S/ABS,UPR,INNER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.5	9-51631-051-0	02	1	9202-	●	●
214	WASHER; S/ABS,UPR,INNER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.5 OD=40 T=3.2	9-09651-094-0	04	1	9202-	●	●
215	WASHER; S/ABS,UPR,OUTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.5	9-51631-051-0	02	1	9202-	●	●
215	WASHER; S/ABS,UPR,OUTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=15	1-51631-023-0	02	1	9202-	●	●
361	CLAMP; LEAF SPR SUSPENSION HEAVY DUTY<F40>	1-51172-085-0	02	1	9202-	●	●
361	CLAMP; LEAF SPR EXC. SUSPENSION HEAVY DUTY<F40>	1-51172-080-2	02	1	9202-9307	●	●
361	CLAMP; LEAF SPR EXC. SUSPENSION HEAVY DUTY<F40>	1-51172-098-0	02	1	9308-9408	●	●
361	CLAMP; LEAF SPR EXC. SUSPENSION HEAVY DUTY<F40>	1-51172-107-0	02	1	9409-	●	●

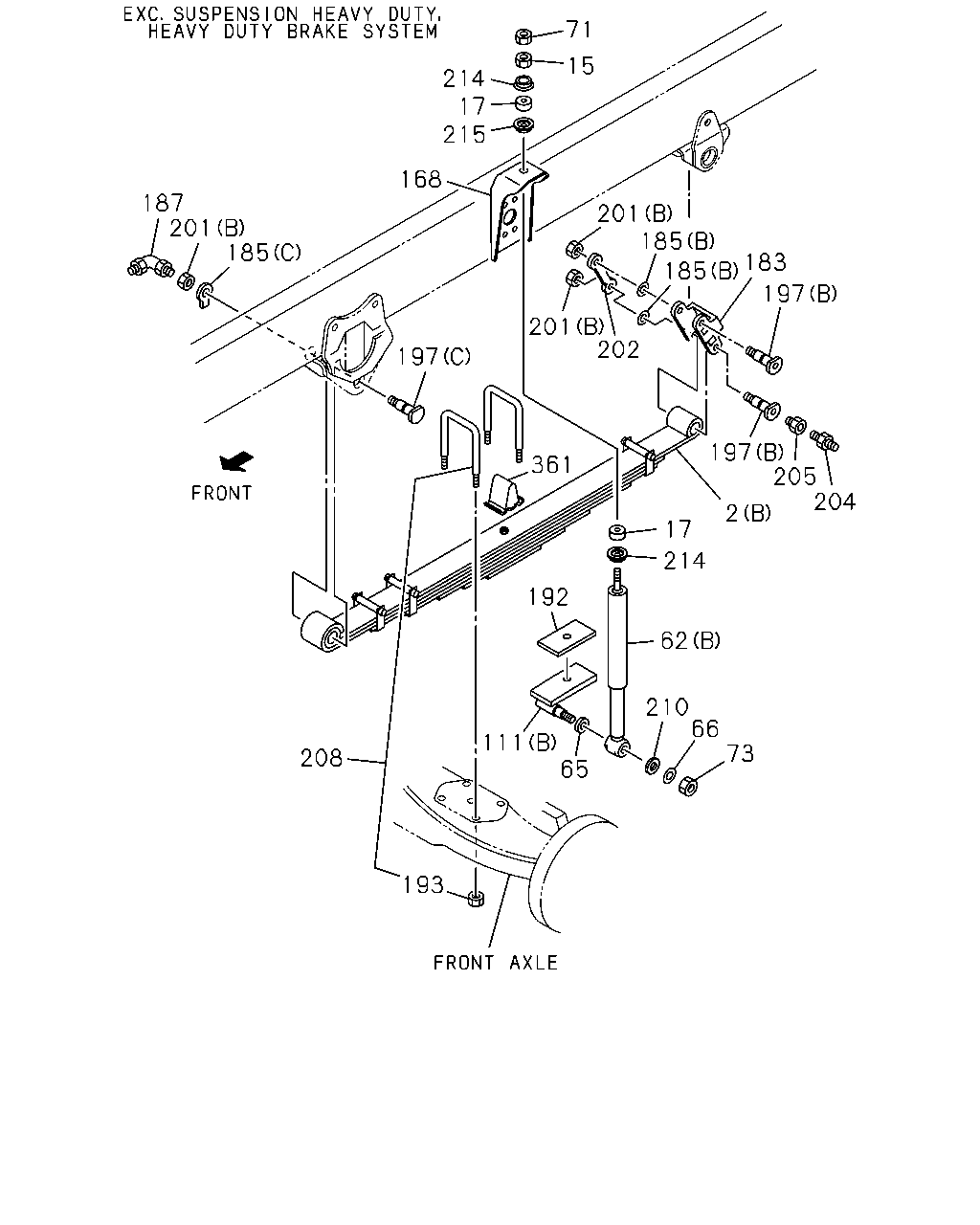

71 15 214 17 215 168 201 185 187 201 185 183 185 197 201 202 197 197 205 204 361 2 17 214 192 62 210 66 73 111 65 208 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-51130-111-0	02	1	9202-9210	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7-LEAF	1-51130-264-0	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7-LEAF	1-51130-265-0	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B)	1-51130-221-0	02	1	9202-9210	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B) 8-LEAF	1-51130-266-0	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B)	1-51130-267-0	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51130-159-1	02	1	9202-9210	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C) 7-LEAF	1-51130-155-1	01	1	9211-	●	●
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C) 7-LEAF	1-51130-156-1	01	1	9211-	●	●
15	NUT; S/ABS,UPR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12 M12	1-09400-006-0	02	1	9202-	●	●
15	NUT; S/ABS,UPR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 FLANGE	0-91150-110-0	02	1	9202-	●	●
17	BUSHING; RUBBER,S/ABS BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-51631-050-0	04	1	9202-	●	●
17	BUSHING; RUBBER,S/ABS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-51631-004-0	04	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-51630-391-0	02	1	9408-	●	●
62	ABSORBER ASM; SHOCK,FRT SUSPENSION HEAVY DUTY<F40> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-51630-180-3	02	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51630-302-0	02	1	9202-	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-51630-290-1	02	1	9202-9407	●	●
62	ABSORBER ASM; SHOCK,FRT EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-51630-290-1	02	1	9408-	●	●
65	WASHER; S/ABS BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=23	1-51631-019-0	02	1	9202-	●	●
65	WASHER; S/ABS EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.5 OD=26	9-09164-612-0	02	1	9202-	●	●
66	WASHER; LK,S/ABS SETTING EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=12.2	9-09150-512-0	02	1	9202-	●	●
71	NUT; LK,S/ABS,UPR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12	1-09400-006-0	02	1	9202-	●	●
71	NUT; LK,S/ABS,UPR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-09111-410-0	02	1	9202-	●	●
73	NUT; BRKT,SHOCK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16	9-99110-416-0	02	1	9202-	●	●
73	NUT; BRKT,SHOCK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12	9-99110-512-0	02	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY<F40> (A)	1-51681-559-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP SUSPENSION HEAVY DUTY<F40> (A)	1-51681-558-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B)	1-51681-573-5	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) (B)	1-51681-572-5	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51681-642-1	01	1	9202-	●	●
111	SUPPORTER; S/ABS,FRT SUSP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51681-641-1	01	1	9202-	●	●
168	BRACKET; S/ABS,FRT SUSP BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-51681-306-0	02	1	9202-	●	●
168	BRACKET; S/ABS,FRT SUSP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-51681-522-0	02	1	9202-	●	●
183	SHACKLE; FRT SUSP SUSPENSION HEAVY DUTY<F40>	1-51162-029-4	02	1	9202-	●	●
183	SHACKLE; FRT SUSP EXC. SUSPENSION HEAVY DUTY<F40>	1-51162-037-0	02	1	9202-	●	●
185	WASHER; LK,PIN SUSPENSION HEAVY DUTY<F40> (A) ID=12.2	9-09150-512-0	12	1	9202-9209	●	●
185	WASHER; LK,PIN SUSPENSION HEAVY DUTY<F40> (A) ID=12.2	9-09150-612-0	12	1	9210-	●	●
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY<F40> (B) ID=25.5	1-09503-011-0	04	1	9202-	●	●
185	WASHER; LK,PIN EXC. SUSPENSION HEAVY DUTY<F40> (C) ID=23	1-51169-003-0	02	1	9202-	●	●
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	9-09031-210-0	02	1	9202-	●	●
192	PIECE; DIST SUSPENSION HEAVY DUTY<F40> T=6	1-51177-094-0	AR	1	9202-9211	●	●
192	PIECE; DIST SUSPENSION HEAVY DUTY<F40> 80X144 ID=17.5	1-51177-284-1	AR	1	9212-	●	●
192	PIECE; DIST EXC. SUSPENSION HEAVY DUTY<F40> T=4.5	1-51177-149-0	AR	1	9202-	●	●
193	NUT; U BOLT SUSPENSION HEAVY DUTY<F40> M22	9-09112-822-0	08	1	9202-	●	●
193	NUT; U BOLT EXC. SUSPENSION HEAVY DUTY<F40> M16	1-09440-028-1	08	1	9202-	●	●
197	PIN; FRT SPR,FRT SUSPENSION HEAVY DUTY<F40> (A)	1-51161-031-0	06	1	9202-	●	●
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY<F40> (B)	1-51161-004-3	02	1	9202-	●	●
197	PIN; FRT SPR,FRT EXC. SUSPENSION HEAVY DUTY<F40> (C)	1-51161-005-3	04	1	9202-	●	●
201	NUT; PIN LK SUSPENSION HEAVY DUTY<F40> (A) M12	9-99110-512-0	12	1	9202-	●	●
201	NUT; PIN LK EXC. SUSPENSION HEAVY DUTY<F40> (B) M22	9-09111-522-0	06	1	9202-	●	●
202	PLATE; LK,SPR PIN EXC. SUSPENSION HEAVY DUTY<F40>	1-51169-016-0	02	1	9202-	●	●
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	9-09031-010-0	04	1	9202-	●	●
205	ATTACHMENT; GREASE NIPPLE SUSPENSION HEAVY DUTY<F40>	9-43165-001-0	06	1	9202-	●	●
205	ATTACHMENT; GREASE NIPPLE EXC. SUSPENSION HEAVY DUTY<F40>	9-43165-001-0	04	1	9202-	●	●
208	U-BOLT SET; FRT SPRING SUSPENSION HEAVY DUTY<F40> L=210	1-87870-118-3	04	1	9202-9307	●	●
208	U-BOLT SET; FRT SPRING SUSPENSION HEAVY DUTY<F40> L=210	1-87870-380-0	04	1	9308-	●	●
208	U-BOLT SET; FRT SPRING EXC. SUSPENSION HEAVY DUTY<F40>,BRAKE SYSTEM HEAVYDUTY VAR2(WG3) L=175	1-87870-350-0	04	1	9202-	●	●
208	U-BOLT SET; FRT SPRING BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. SUSPENSION HEAVY DUTY<F40> L=190	1-87870-361-0	04	1	9202-	●	●
210	WASHER; S/ABS,OUTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17	1-51631-020-0	02	1	9202-	●	●
210	WASHER; S/ABS,OUTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=17	9-09164-516-0	02	1	9202-	●	●
214	WASHER; S/ABS,UPR,INNER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.5	9-51631-051-0	02	1	9202-	●	●
214	WASHER; S/ABS,UPR,INNER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.5 OD=40 T=3.2	9-09651-094-0	04	1	9202-	●	●
215	WASHER; S/ABS,UPR,OUTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.5	9-51631-051-0	02	1	9202-	●	●
215	WASHER; S/ABS,UPR,OUTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=15	1-51631-023-0	02	1	9202-	●	●
361	CLAMP; LEAF SPR SUSPENSION HEAVY DUTY<F40>	1-51172-085-0	02	1	9202-	●	●
361	CLAMP; LEAF SPR EXC. SUSPENSION HEAVY DUTY<F40>	1-51172-080-2	02	1	9202-9307	●	●
361	CLAMP; LEAF SPR EXC. SUSPENSION HEAVY DUTY<F40>	1-51172-098-0	02	1	9308-9408	●	●
361	CLAMP; LEAF SPR EXC. SUSPENSION HEAVY DUTY<F40>	1-51172-107-0	02	1	9409-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
