Isuzu WW
▶
TRUCKS
▶
FRR
▶
11362 - FRR RHD EURO4 SPACECAB WITH DOC
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

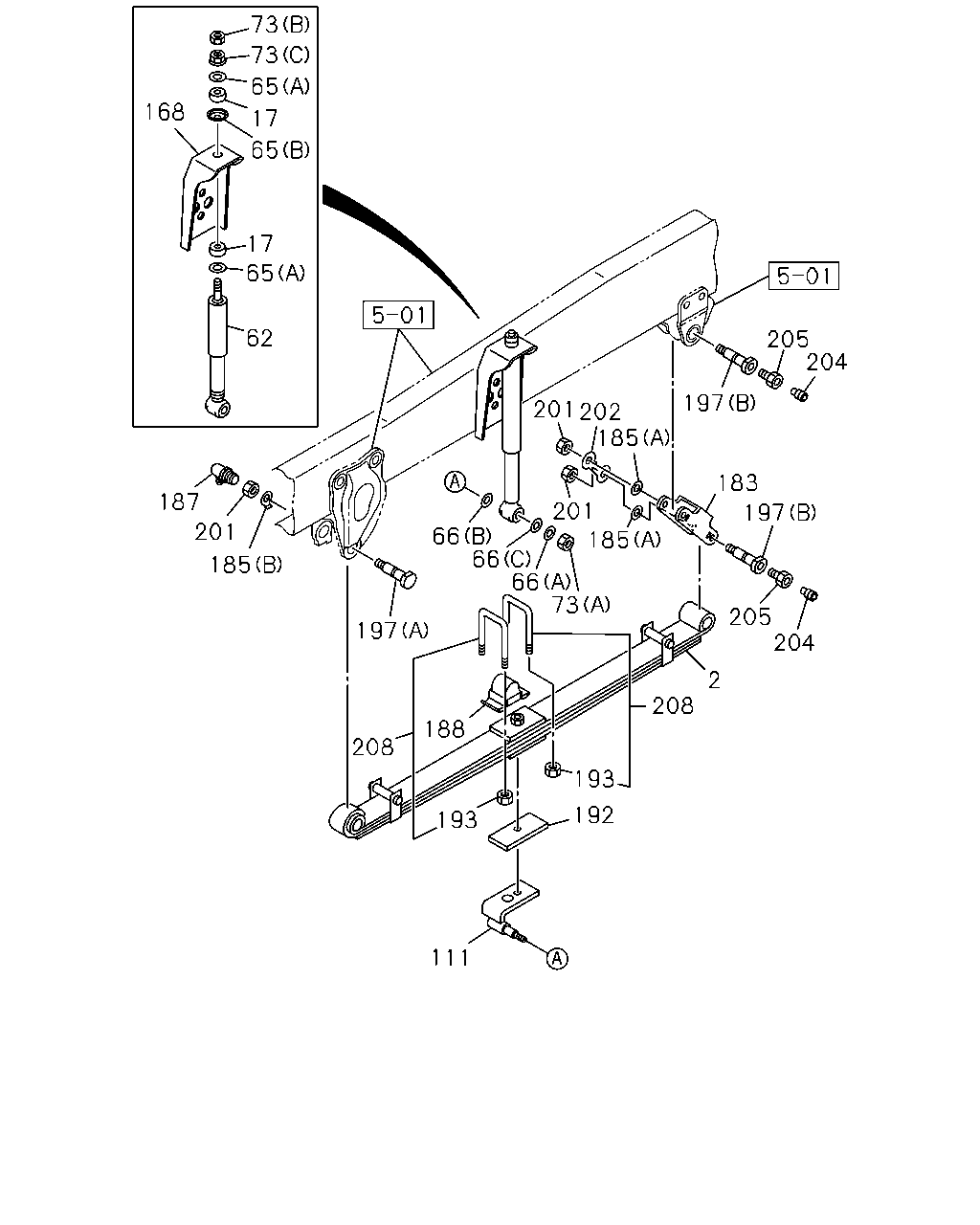

4-50 — FRONT SUSPENSION
(#55996) — 31 parça
73
73
65
168
17
65
17
65
62
205
204
197
201
202
185
183
187
201
197
201
66
66
66
73
185
185
205
204
197
2
208
188
208
193
192
193
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF
8-98111-360-0
01
1
1012-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF
8-98111-361-0
01
1
1012-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF
8-98017-554-0
01
1
1012-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF
8-98017-555-0
01
1
1012-
17
BUSHING; RUBBER,S/ABS
1-51631-004-0
04
1
1012-
62
ABSORBER ASM; SHOCK,FRT
8-98060-332-0
02
1
1012-
65
WASHER; S/ABS
(B)
1-51631-023-0
02
1
1012-
65
WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2
8-98010-405-0
04
1
1012-
66
WASHER; LK,S/ABS SETTING
(A) ID=12.2
0-91510-812-0
02
1
1012-
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
1012-
66
WASHER; LK,S/ABS SETTING
(C) ID=12.5
1-09503-171-0
02
1
1012-
73
NUT; BRKT,SHOCK
(A) M12
0-91110-512-0
02
1
1012-
73
NUT; BRKT,SHOCK
(B) M10
0-91111-510-0
02
1
1012-
73
NUT; BRKT,SHOCK
(C) M10 FLANGE
0-91180-210-0
02
1
1012-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-587-4
01
1
1012-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-586-4
01
1
1012-
168
BRACKET; S/ABS,FRT SUSP
8-98060-258-0
02
1
1012-
183
SHACKLE; FRT SUSP
1-51162-037-0
02
1
1012-
185
WASHER; LK,PIN
(A) ID=25.5
8-98010-404-0
04
1
1012-
185
WASHER; LK,PIN
(B) ID=23
8-98010-411-0
02
1
1012-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1012-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-112-0
02
1
1012-
192
PIECE; DIST
T=4.5
1-51177-149-0
AR
1
1012-
193
NUT; U BOLT
M16
8-97360-121-0
08
1
1012-
197
PIN; FRT SPR,FRT
(B)
8-98060-333-0
04
1
1012-
197
PIN; FRT SPR,FRT
(A)
8-98060-335-0
02
1
1012-
201
NUT; PIN LK
M22
0-91111-522-0
06
1
1012-
202
PLATE; LK,SPR PIN
8-98010-648-0
02
1
1012-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
1012-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
04
1
1012-
208
U-BOLT SET; FRT SPRING
L=150
1-87870-466-0
04
1
1012-
