3-40 — FRONT BRAKE POWER CHAMBER (#5599) — 169 parça

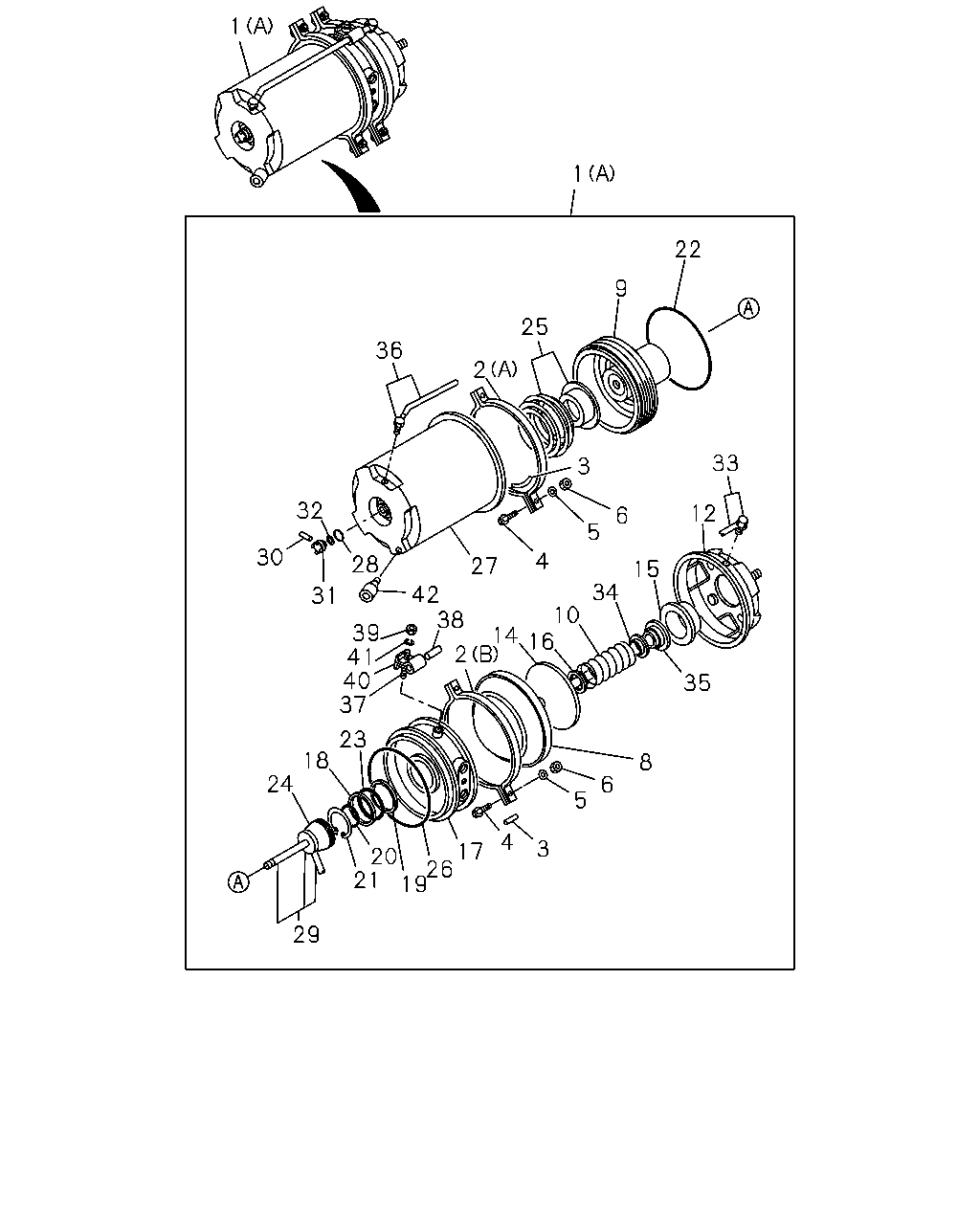

1 1 22 9 25 36 2 33 3 32 12 6 5 30 4 28 27 15 34 42 38 31 10 16 39 41 40 37 14 2 35 23 18 8 24 6 5 4 3 17 20 26 21 19 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48250-523-1	01	1	9603-
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48250-522-1	01	1	9603-
1	CHAMBER ASM; POWER,FRT BRK EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48250-338-0	02	1	9603-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48259-016-0	04	1	9603-9904
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48259-016-0	02	1	9905-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48259-016-0	02	1	9905-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48259-031-0	04	1	9603-9904
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48259-031-0	02	1	9905-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48259-031-0	02	1	9905-
2	RING; CLAMP,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-001-0	02	1	9603-
3	RETAINER; DIAPH BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-044-0	04	1	9603-9904
3	RETAINER; DIAPH BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-044-0	02	1	9905-
3	RETAINER; DIAPH BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-044-0	02	1	9905-
3	RETAINER; DIAPH EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	9-48259-016-0	04	1	9603-
4	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-092-0	08	1	9603-9904
4	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-092-0	04	1	9905-
4	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-092-0	04	1	9905-
4	BOLT; CLAMP RING EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-002-0	04	1	9603-
5	WASHER; LK,CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2	9-09150-510-0	08	1	9603-9904
5	WASHER; LK,CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2	9-09150-510-0	04	1	9905-
5	WASHER; LK,CLAMP RING ID=10.2	9-09150-510-0	04	1	9905-
5	WASHER; LK,CLAMP RING EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2	9-09150-510-0	04	1	9603-9904
6	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	9-83315-080-0	08	1	9603-9904
6	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	9-83315-080-0	04	1	9905-
6	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	9-83315-080-0	04	1	9905-
6	NUT; CLAMP RING EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M10	9-09110-010-0	04	1	9603-
8	DIAPHRAGM; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-011-0	02	1	9603-9904
8	DIAPHRAGM; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-011-0	01	1	9905-
8	DIAPHRAGM; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-011-0	01	1	9905-
8	DIAPHRAGM; SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48252-006-0	02	1	9603-
9	PISTON; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48262-005-0	02	1	9603-9904
9	PISTON; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48262-005-0	01	1	9905-
9	PISTON; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48262-005-0	01	1	9905-
9	PISTON; SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48253-001-0	02	1	9603-
10	SPRING; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-003-0	02	1	9603-9904
10	SPRING; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-003-0	01	1	9905-
10	SPRING; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-003-0	01	1	9905-
10	SPRING; PISTON,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-001-0	02	1	9603-
12	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-242-0	01	1	9603-
12	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-243-0	01	1	9603-
12	COVER ASM; LWR,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48251-019-0	02	1	9603-
14	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48253-045-0	02	1	9603-9904
14	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48253-045-0	01	1	9905-
14	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48253-045-0	01	1	9905-
15	RETAINER; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-043-0	02	1	9603-9904
15	RETAINER; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-043-0	01	1	9905-
15	RETAINER; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-043-0	01	1	9905-
16	RETAINER; SPRING,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-033-0	02	1	9603-9904
16	RETAINER; SPRING,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-033-0	01	1	9905-
16	RETAINER; SPRING,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-033-0	01	1	9905-
17	PLATE; PRESS,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-088-0	01	1	9603-
17	PLATE; PRESS,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-087-0	01	1	9603-
18	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-019-0	02	1	9603-9904
18	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-019-0	01	1	9905-
18	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-019-0	01	1	9905-
19	BEARING; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-020-0	02	1	9603-9904
19	BEARING; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-020-0	01	1	9905-
19	BEARING; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-020-0	01	1	9905-
20	GASKET; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-047-0	02	1	9603-9904
20	GASKET; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-047-0	01	1	9905-
20	GASKET; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-047-0	01	1	9905-
21	RING; SNAP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-060-0	02	1	9603-9904
21	RING; SNAP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-060-0	01	1	9905-
21	RING; SNAP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-060-0	01	1	9905-
22	GASKET; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-048-0	02	1	9603-9904
22	GASKET; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-048-0	01	1	9905-
22	GASKET; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-048-0	01	1	9905-
23	GASKET; COVER,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-049-0	02	1	9603-9904
23	GASKET; COVER,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-049-0	01	1	9905-
23	GASKET; COVER,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-049-0	01	1	9905-
24	COVER; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48269-011-0	02	1	9603-9904
24	COVER; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48269-011-0	01	1	9905-
24	COVER; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48269-011-0	01	1	9905-
25	SPRING & SEAT SET BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-037-0	02	1	9603-9904
25	SPRING & SEAT SET BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-037-1	01	1	9905-
25	SPRING & SEAT SET BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-037-1	01	1	9905-
26	GASKET; PRESS PLATE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-053-0	02	1	9603-9904
26	GASKET; PRESS PLATE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-053-0	01	1	9905-
26	GASKET; PRESS PLATE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-053-0	01	1	9905-
27	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-232-0	01	1	9603-
27	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-233-0	01	1	9603-
28	GASKET; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	9-09920-268-0	02	1	9603-9904
28	GASKET; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	9-09920-268-0	01	1	9905-
28	GASKET; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	9-09920-268-0	01	1	9905-
29	BOLT ASM; EMARGENCY BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-073-0	02	1	9603-9904
29	BOLT ASM; EMARGENCY BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-073-0	01	1	9905-
29	BOLT ASM; EMARGENCY BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-073-0	01	1	9905-
30	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-056-0	04	1	9603-9904
30	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-056-0	02	1	9905-
30	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-056-0	02	1	9905-
31	NUT; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-054-0	02	1	9603-9904
31	NUT; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-054-0	01	1	9905-
31	NUT; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-054-0	01	1	9905-
32	GASKET; BOLT BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-055-0	02	1	9603-9904
32	GASKET; BOLT BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-055-0	01	1	9905-
32	GASKET; BOLT BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-055-0	01	1	9905-
33	PIPE ASM; LWR COVER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-080-0	02	1	9603-9904
33	PIPE ASM; LWR COVER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-080-0	01	1	9905-
33	PIPE ASM; LWR COVER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-080-0	01	1	9905-
34	COVER; RETAINER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-065-0	02	1	9603-9904
34	COVER; RETAINER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-065-0	01	1	9905-
34	COVER; RETAINER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-065-0	01	1	9905-
35	COVER; ROD & PLATE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-066-0	02	1	9603-9904
35	COVER; ROD & PLATE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-066-0	01	1	9905-
35	COVER; ROD & PLATE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-066-0	01	1	9905-
36	PIPE ASM; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	1-89922-126-1	02	1	9603-9904
36	PIPE ASM; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	1-89922-126-1	01	1	9905-
36	PIPE ASM; SHELL BRAKE SYSTEM SPRING BRAKE(BCR)	1-89922-126-1	01	1	9905-
37	STUD; BRKT BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-050-0	02	1	9603-9904
37	STUD; BRKT BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-050-0	01	1	9905-
37	STUD; BRKT BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-050-0	01	1	9905-
38	HOSE; AIR BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-051-0	02	1	9603-9904
38	HOSE; AIR BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-051-0	01	1	9905-
38	HOSE; AIR BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-051-0	01	1	9905-
39	NUT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR)	8-94311-428-0	04	1	9603-9904
39	NUT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR)	8-94311-428-0	02	1	9905-
39	NUT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR)	8-94311-428-0	02	1	9905-
40	BRACKET; AIR HOSE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-244-0	02	1	9603-9904
40	BRACKET; AIR HOSE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-244-0	01	1	9905-
40	BRACKET; AIR HOSE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-244-0	01	1	9905-
41	WASHER; LK,BRKT BRAKE SYSTEM SPRING BRAKE(BCR) ID=8.2	9-09150-508-0	02	1	9603-9904
41	WASHER; LK,BRKT BRAKE SYSTEM SPRING BRAKE(BCR) ID=8.2	9-09150-508-0	01	1	9905-
41	WASHER; LK,BRKT BRAKE SYSTEM SPRING BRAKE(BCR) ID=8.2	9-09150-508-0	01	1	9905-
42	COVER; EXH BRAKE SYSTEM SPRING BRAKE(BCR)	1-89966-127-3	02	1	9603-9904
42	COVER; EXH BRAKE SYSTEM SPRING BRAKE(BCR)	1-89966-127-3	01	1	9905-
42	COVER; EXH BRAKE SYSTEM SPRING BRAKE(BCR)	1-89966-127-3	01	1	9905-

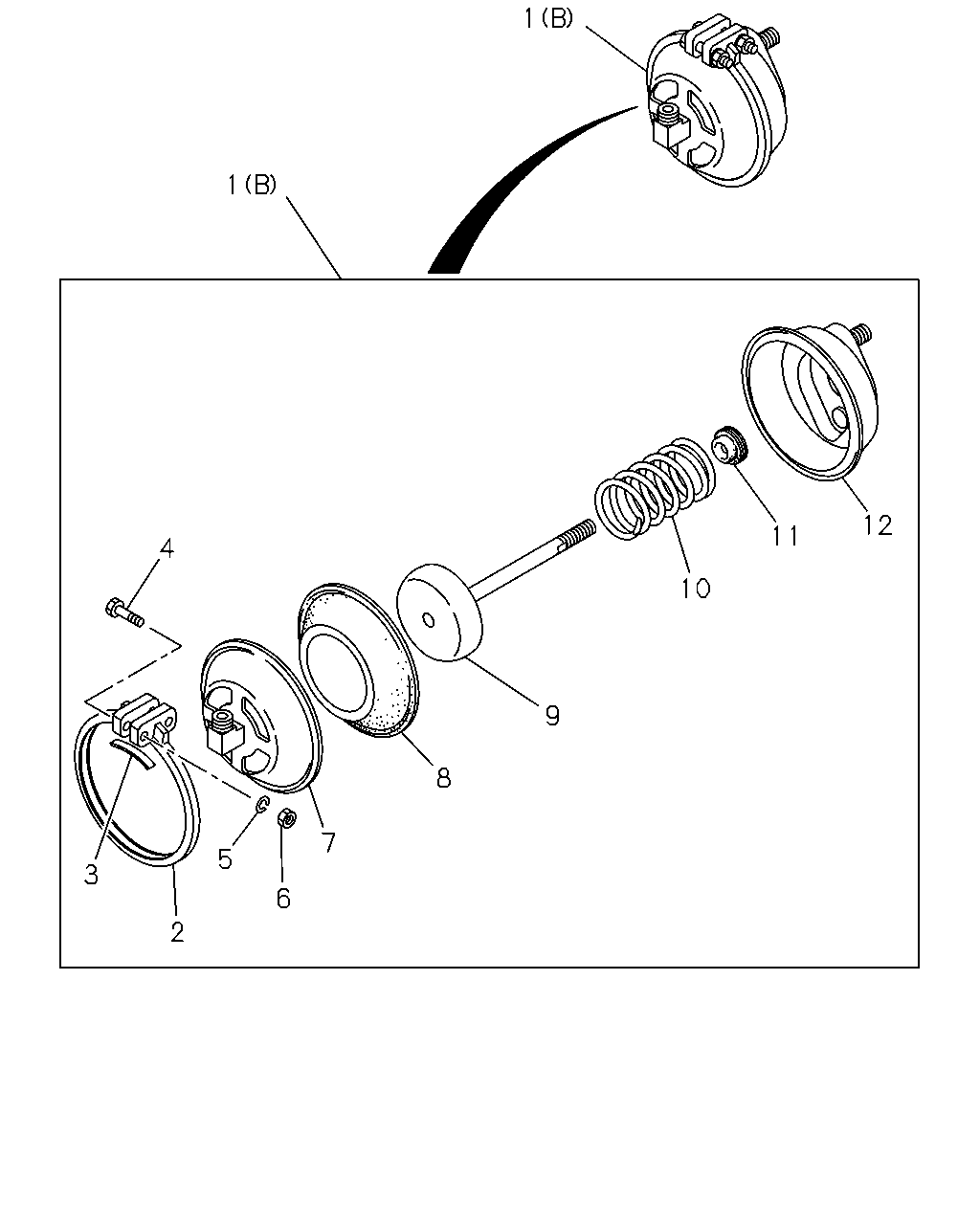

1 1 12 11 4 10 9 8 7 5 3 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48250-523-1	01	1	9603-
1	CHAMBER ASM; POWER,FRT BRK BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48250-522-1	01	1	9603-
1	CHAMBER ASM; POWER,FRT BRK EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48250-338-0	02	1	9603-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48259-016-0	04	1	9603-9904
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48259-016-0	02	1	9905-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48259-016-0	02	1	9905-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48259-031-0	04	1	9603-9904
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48259-031-0	02	1	9905-
2	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48259-031-0	02	1	9905-
2	RING; CLAMP,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-001-0	02	1	9603-
3	RETAINER; DIAPH BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-044-0	04	1	9603-9904
3	RETAINER; DIAPH BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-044-0	02	1	9905-
3	RETAINER; DIAPH BRAKE SYSTEM SPRING BRAKE(BCR)	1-48250-044-0	02	1	9905-
3	RETAINER; DIAPH EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	9-48259-016-0	04	1	9603-
4	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-092-0	08	1	9603-9904
4	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-092-0	04	1	9905-
4	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-092-0	04	1	9905-
4	BOLT; CLAMP RING EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-002-0	04	1	9603-
5	WASHER; LK,CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2	9-09150-510-0	08	1	9603-9904
5	WASHER; LK,CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2	9-09150-510-0	04	1	9905-
5	WASHER; LK,CLAMP RING ID=10.2	9-09150-510-0	04	1	9905-
5	WASHER; LK,CLAMP RING EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2	9-09150-510-0	04	1	9603-9904
6	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	9-83315-080-0	08	1	9603-9904
6	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	9-83315-080-0	04	1	9905-
6	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE(BCR)	9-83315-080-0	04	1	9905-
6	NUT; CLAMP RING EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M10	9-09110-010-0	04	1	9603-
7	COVER ASM; UPR,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48251-039-0	02	1	9603-
8	DIAPHRAGM; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-011-0	02	1	9603-9904
8	DIAPHRAGM; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-011-0	01	1	9905-
8	DIAPHRAGM; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-011-0	01	1	9905-
8	DIAPHRAGM; SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48252-006-0	02	1	9603-
9	PISTON; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48262-005-0	02	1	9603-9904
9	PISTON; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48262-005-0	01	1	9905-
9	PISTON; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48262-005-0	01	1	9905-
9	PISTON; SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48253-001-0	02	1	9603-
10	SPRING; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-003-0	02	1	9603-9904
10	SPRING; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-003-0	01	1	9905-
10	SPRING; PISTON,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-003-0	01	1	9905-
10	SPRING; PISTON,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48255-001-0	02	1	9603-
11	SEAL; PISTON,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48252-025-0	02	1	9603-
12	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-242-0	01	1	9603-
12	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48259-243-0	01	1	9603-
12	COVER ASM; LWR,SPR CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48251-019-0	02	1	9603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
