◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11362 - FRR RHD EURO4 SPACECAB WITH DOC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#55984) — 108 parça

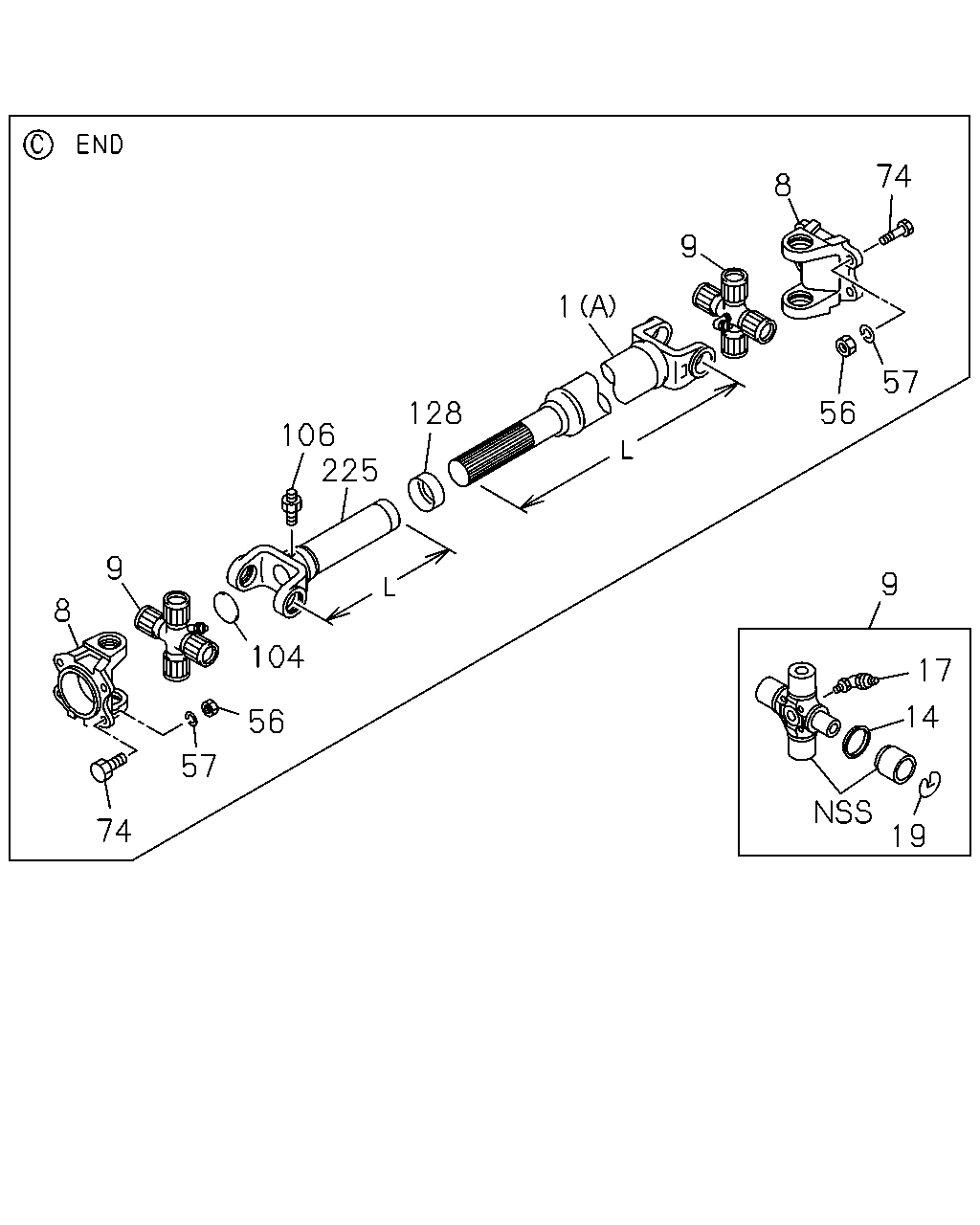

çizim 173709
74 8 9 1 57 56 128 106 225 9 9 8 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(C) L=629 		8-98069-609-0 01 1 1012-
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1012-
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) (B) L=1264 		8-98105-706-0 01 1 1012-
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1281 		1-37151-577-1 01 1 1012-
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1012-
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1012-
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1012-
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1012-
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST 		1-37300-102-1 01 1 1012-
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 8.5"(B1S) 1ST 		8-98048-925-0 01 1 1012-
9 JOURNAL ASM; PROP SHAFT
2ND 		8-98048-925-0 01 1 1012-
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1012-
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST 		1-37319-012-0 04 1 1012-1505
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 8.5"(B1S) 1ST 		8-98020-800-0 04 1 1012-
14 COVER; DUST,SPIDER
2ND 		8-98020-800-0 04 1 1012-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1012-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1012-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1012-
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1012-
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1012-
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1012-
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1012-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1012-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1012-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1012-
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 1012-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 01 1 1012-
128 SEAL; SLEEVE 1-37247-024-0 01 1 1012-
225 YOKE; SLEEVE,PROP SHAFT
L=254 		8-98020-885-0 01 1 1012-

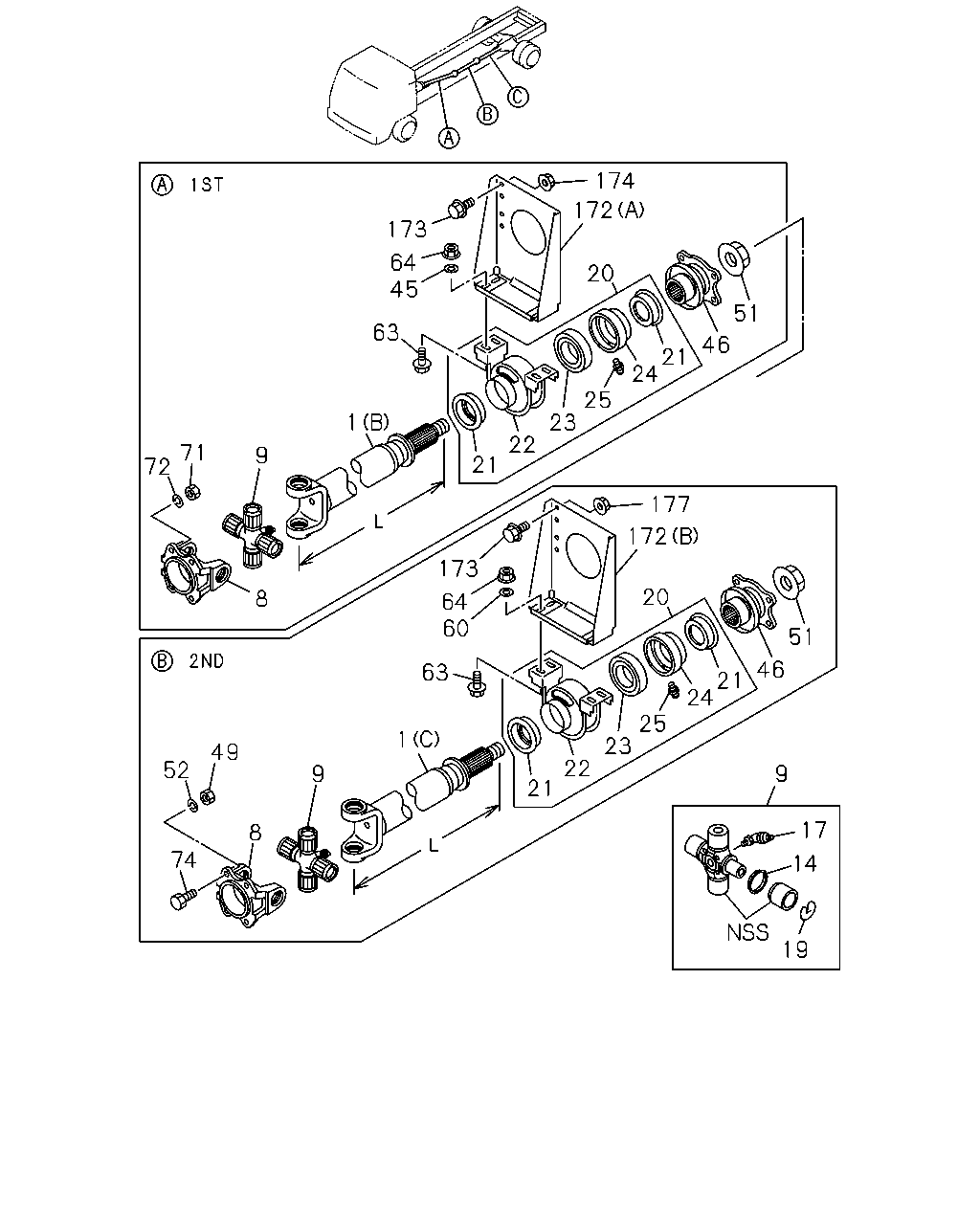

çizim 173726
174 172 173 64 45 20 51 63 46 21 24 25 23 1 22 71 72 9 21 177 172 173 20 8 64 60 51 46 63 21 24 25 23 1 49 22 52 9 9 21 17 8 74 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(C) L=629 		8-98069-609-0 01 1 1012-
1 SHAFT; PROP
(A) L=1271 		8-98069-657-0 01 1 1012-
1 SHAFT; PROP
PARKING BRAKE DRUM 8.5"(B1S) (B) L=1264 		8-98105-706-0 01 1 1012-
1 SHAFT; PROP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1281 		1-37151-577-1 01 1 1012-
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 1012-
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1012-
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 01 1 1012-
9 JOURNAL ASM; PROP SHAFT
END 		8-98048-925-1 02 1 1012-
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST 		1-37300-102-1 01 1 1012-
9 JOURNAL ASM; PROP SHAFT
PARKING BRAKE DRUM 8.5"(B1S) 1ST 		8-98048-925-0 01 1 1012-
9 JOURNAL ASM; PROP SHAFT
2ND 		8-98048-925-0 01 1 1012-
14 COVER; DUST,SPIDER
END 		8-98020-800-0 08 1 1012-
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST 		1-37319-012-0 04 1 1012-1505
14 COVER; DUST,SPIDER
PARKING BRAKE DRUM 8.5"(B1S) 1ST 		8-98020-800-0 04 1 1012-
14 COVER; DUST,SPIDER
2ND 		8-98020-800-0 04 1 1012-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1012-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1012-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1012-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1012-
20 BEARING ASM; CTR,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST 		1-37510-105-0 01 1 1012-
20 BEARING ASM; CTR,PROP SHAFT
PARKING BRAKE DRUM 8.5"(B1S) 1ST 		8-98020-881-0 01 1 1012-
20 BEARING ASM; CTR,PROP SHAFT
2ND 		8-98020-881-0 01 1 1012-
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1012-
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 1012-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1012-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 1012-
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1012-
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1012-
24 RETAINER; CENTER BRG,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST 		1-37529-068-0 01 1 1012-
24 RETAINER; CENTER BRG,1ST
PARKING BRAKE DRUM 8.5"(B1S) 1ST 		8-98020-882-0 01 1 1012-
24 RETAINER; CENTER BRG,1ST
2ND 		8-98020-882-0 01 1 1012-
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1012-
25 NIPPLE; GREASE,CENTER BRG
PARKING BRAKE DRUM 8.5"(B1S) 1ST 		8-98020-889-0 01 1 1012-
25 NIPPLE; GREASE,CENTER BRG
2ND 		8-98020-889-0 01 1 1012-
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1012-
46 FLANGE; SPLINED,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST 		1-37245-071-0 01 1 1012-
46 FLANGE; SPLINED,PROP SHAFT,1ST
PARKING BRAKE DRUM 8.5"(B1S) 1ST 		8-98020-815-0 01 1 1012-
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		8-98020-815-0 01 1 1012-
49 NUT; YOKE
M14 		0-91110-514-0 04 1 1012-
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1012-
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 1012-
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1012-
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1012-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1012-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 1012-
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1012-
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 1012-
71 NUT; YOKE
M14 		0-91110-514-0 04 1 1012-
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1012-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1012-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1012-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1012-
172 BRACKET; CENTER BRG
(A) 		1-37515-119-0 01 1 1012-
172 BRACKET; CENTER BRG
(B) 		1-37515-121-0 01 1 1012-
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1012-
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1012-
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1012-
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 1012-
