11362 - FRR RHD EURO4 SPACECAB WITH DOC
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#55979) — 16 parça
◀

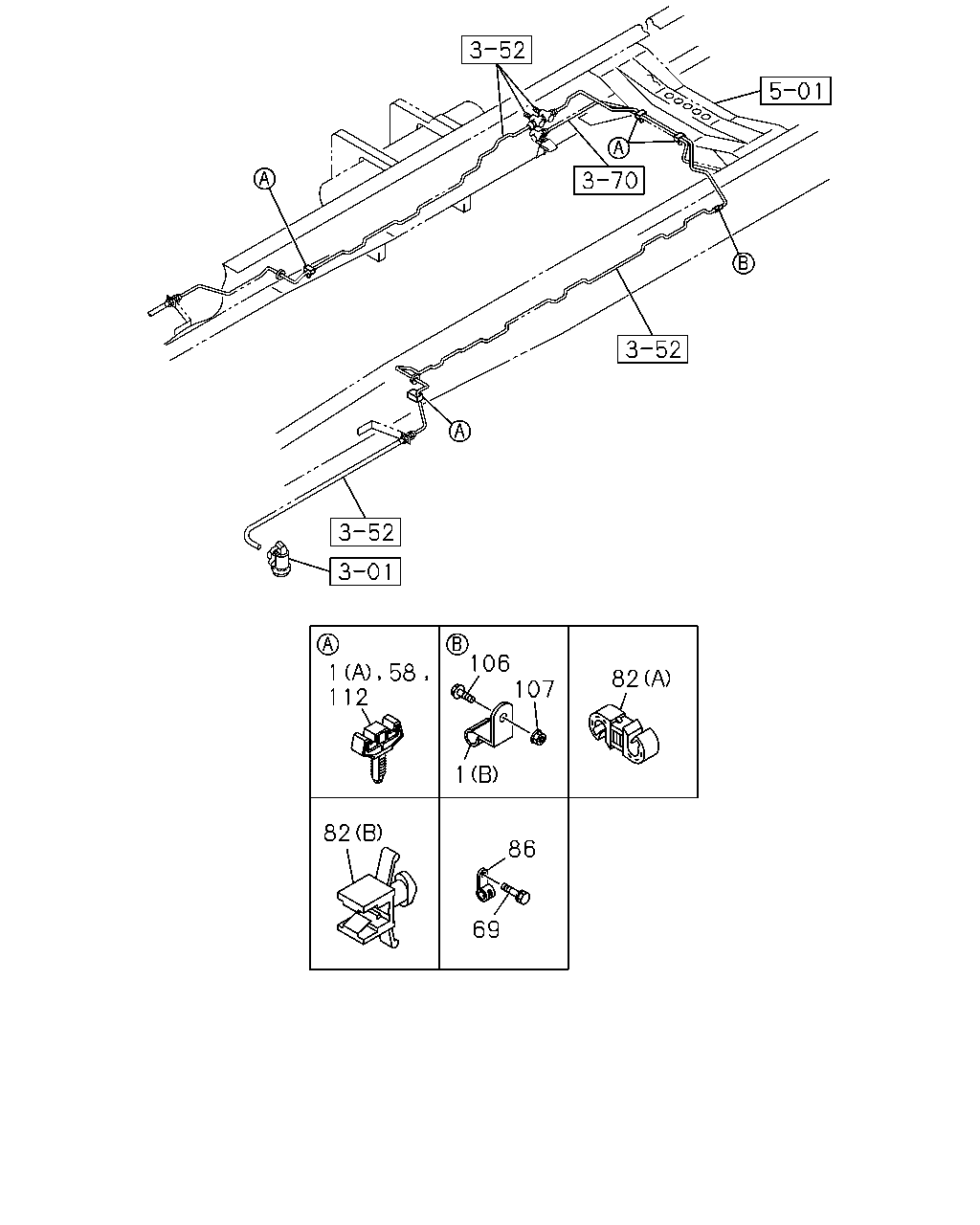

[358A] FRAME SIDE (13 parça)

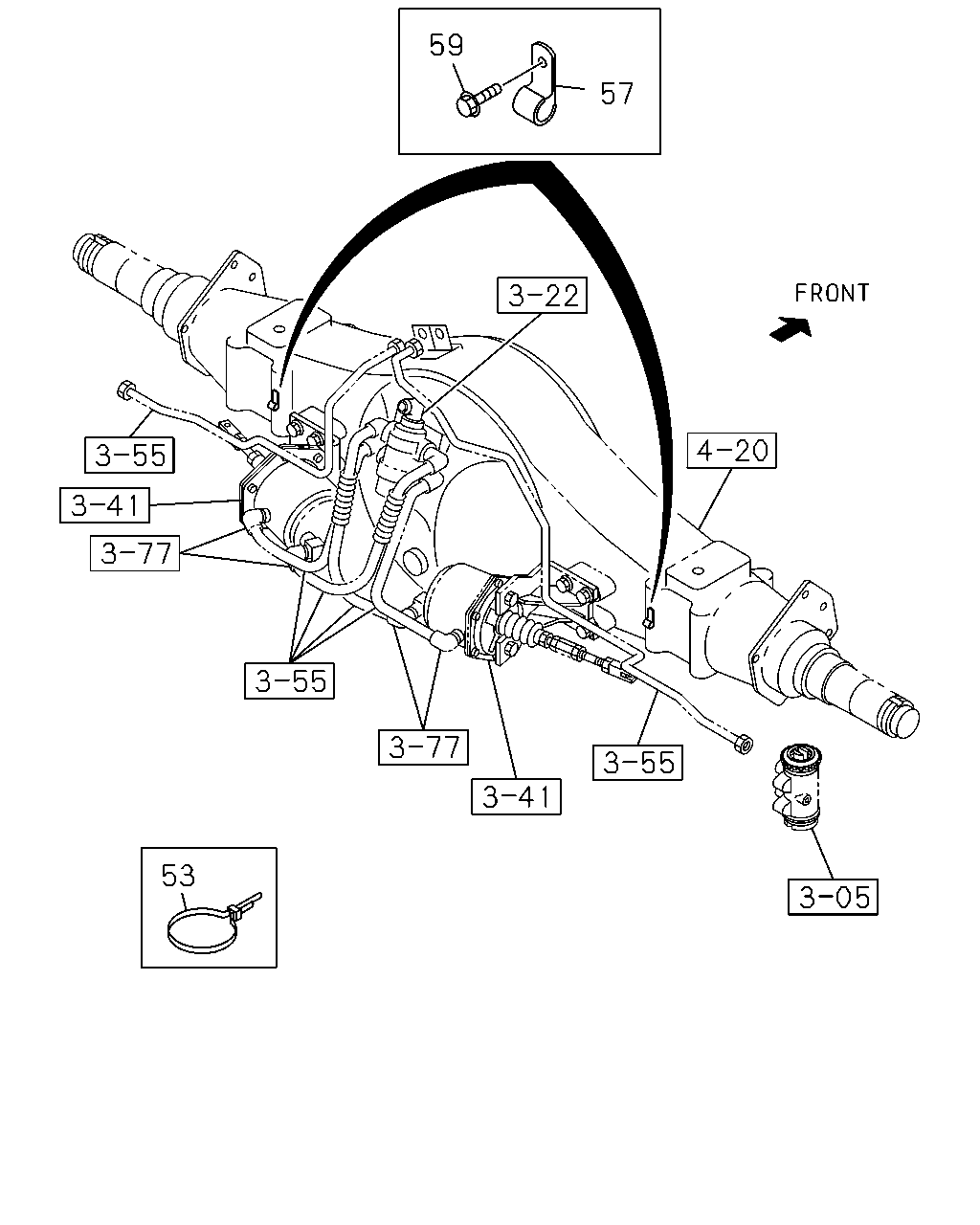

[358A] REAR AXLE SIDE (3 parça)
▶
106
107
112
82
1
82
86
69
1
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
1012-
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
04
1
1012-
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
04
1
1012-
58
CLIP; OIL PIPE
8-98012-254-1
05
1
1012-
69
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1012-
82
CLIP; OIL PIPE
(A) ID=4.76 & 4.76
1-09709-303-0
02
1
1012-
82
CLIP; OIL PIPE
(A) ID=4.76 & 6.35
1-09709-304-0
04
1
1012-
82
CLIP; OIL PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
01
1
1012-
82
CLIP; OIL PIPE
(B) ID=4.8X2
8-94316-410-0
01
1
1012-
86
CLIP; OIL PIPE
8-98085-372-0
02
1
1012-
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
04
1
1012-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
04
1
1012-
112
CLIP; OIL PIPE
8-98012-254-1
08
1
1012-
59
57
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250
1-09707-126-0
05
1
1012-
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
02
1
1012-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
02
1
1012-
