11362 - FRR RHD EURO4 SPACECAB WITH DOC
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#55978) — 23 parça
◀

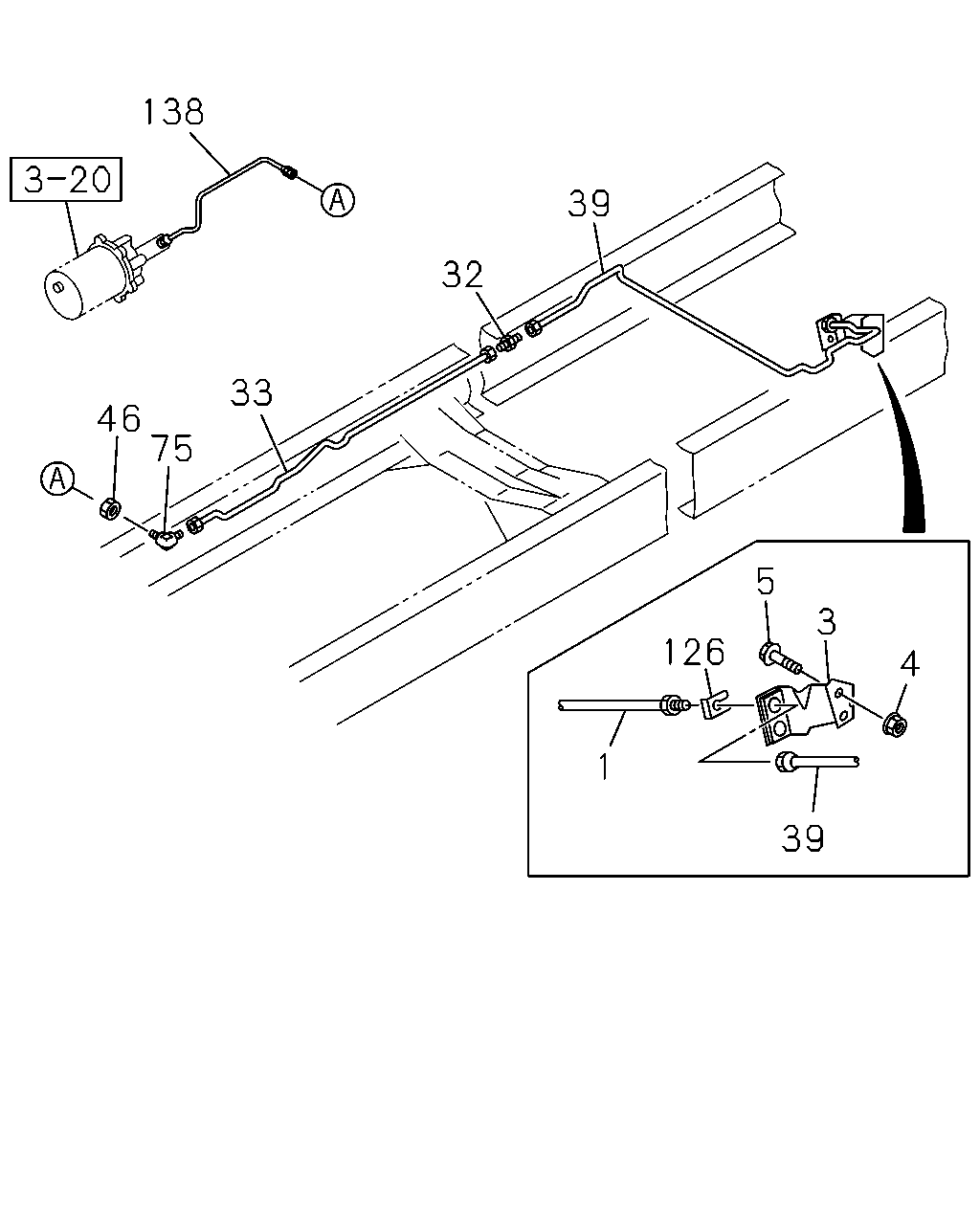

[355A] FRAME SIDE (12 parça)

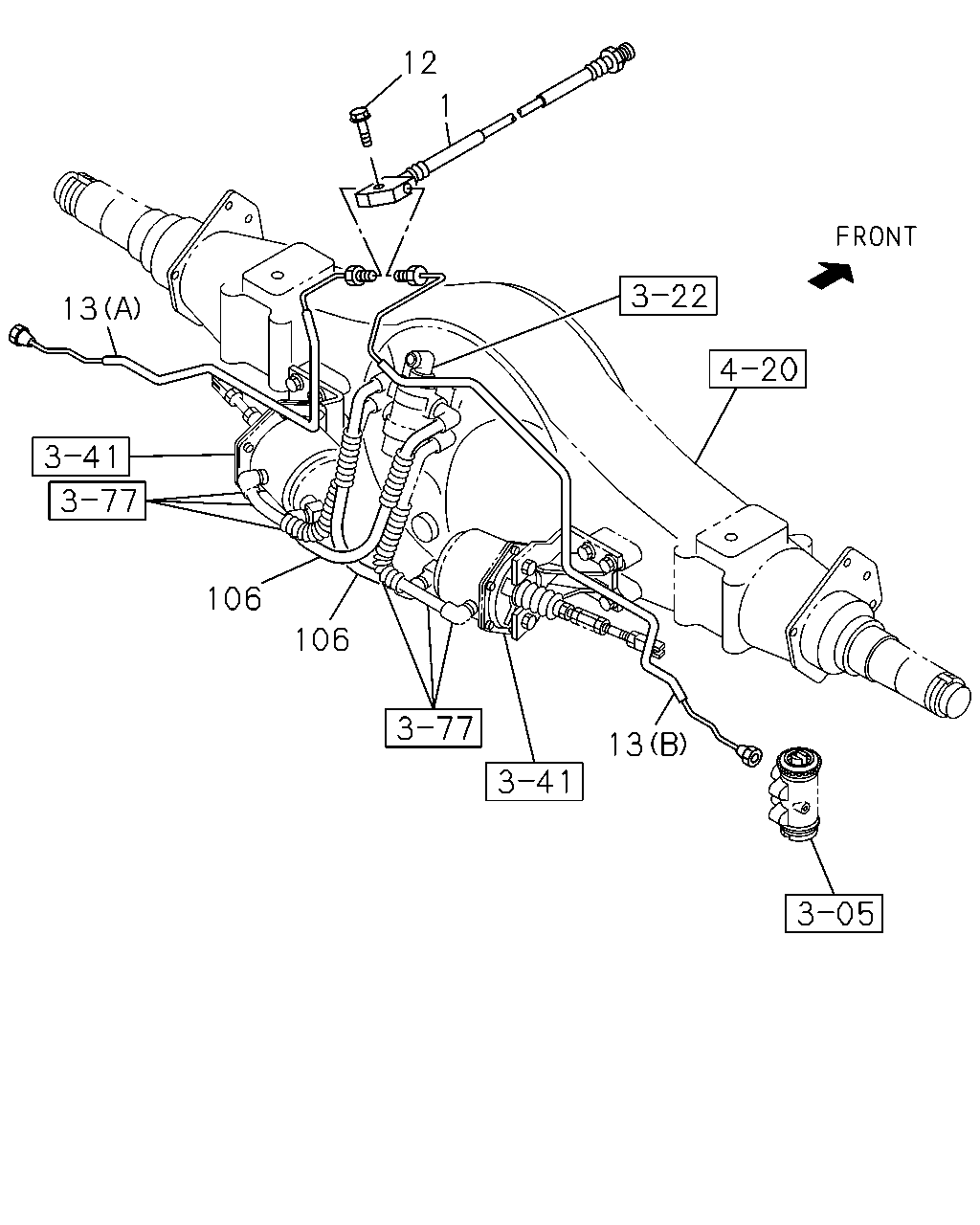

[355A] REAR AXLE SIDE (11 parça)
▶
138
39
32
33
46
75
5
3
126
4
1
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=485
8-98057-386-1
01
1
1012-
3
BRACKET; FLEX HOSE,RR BRK
8-98065-999-2
01
1
1012-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
1012-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
1012-
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
01
1
1012-
33
PIPE; OIL,UNION TO UNION
L=2930
8-98071-250-0
01
1
1012-1107
33
PIPE; OIL,UNION TO UNION
L=2923
8-98183-304-0
01
1
1108-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1710
8-98106-485-0
01
1
1012-
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
01
1
1012-
75
UNION; OIL PIPE
8-98018-438-0
01
1
1012-
126
CLIP; FLEX HOSE
8-97360-054-0
01
1
1012-
138
PIPE; HYDRAULIC UNIT
L=497
8-98108-125-0
01
1
1012-
12
1
13
106
106
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=485
8-98057-386-1
01
1
1012-
12
BOLT; FLEX HOSE TO RR AXLE
M8X35 FLANGE
0-28650-835-0
01
1
1012-
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) RH LINE
8-98029-679-0
01
1
1410-1410
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) LH LINE
8-98029-680-0
01
1
1410-1410
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) RH LINE
8-98107-930-0
01
1
1012-1409
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) RH LINE L=1030
8-98281-559-0
01
1
1410-
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) LH LINE
8-98107-931-0
01
1
1012-1409
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) LH LINE L=645
8-98281-560-0
01
1
1410-
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) RH LINE L=1115
8-98071-761-0
01
1
1012-
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) LH LINE L=738
8-98071-762-0
01
1
1012-
106
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98061-971-0
02
1
1012-
