3-52 — BRAKE PIPING; OIL,FRONT (#55977) — 19 parça

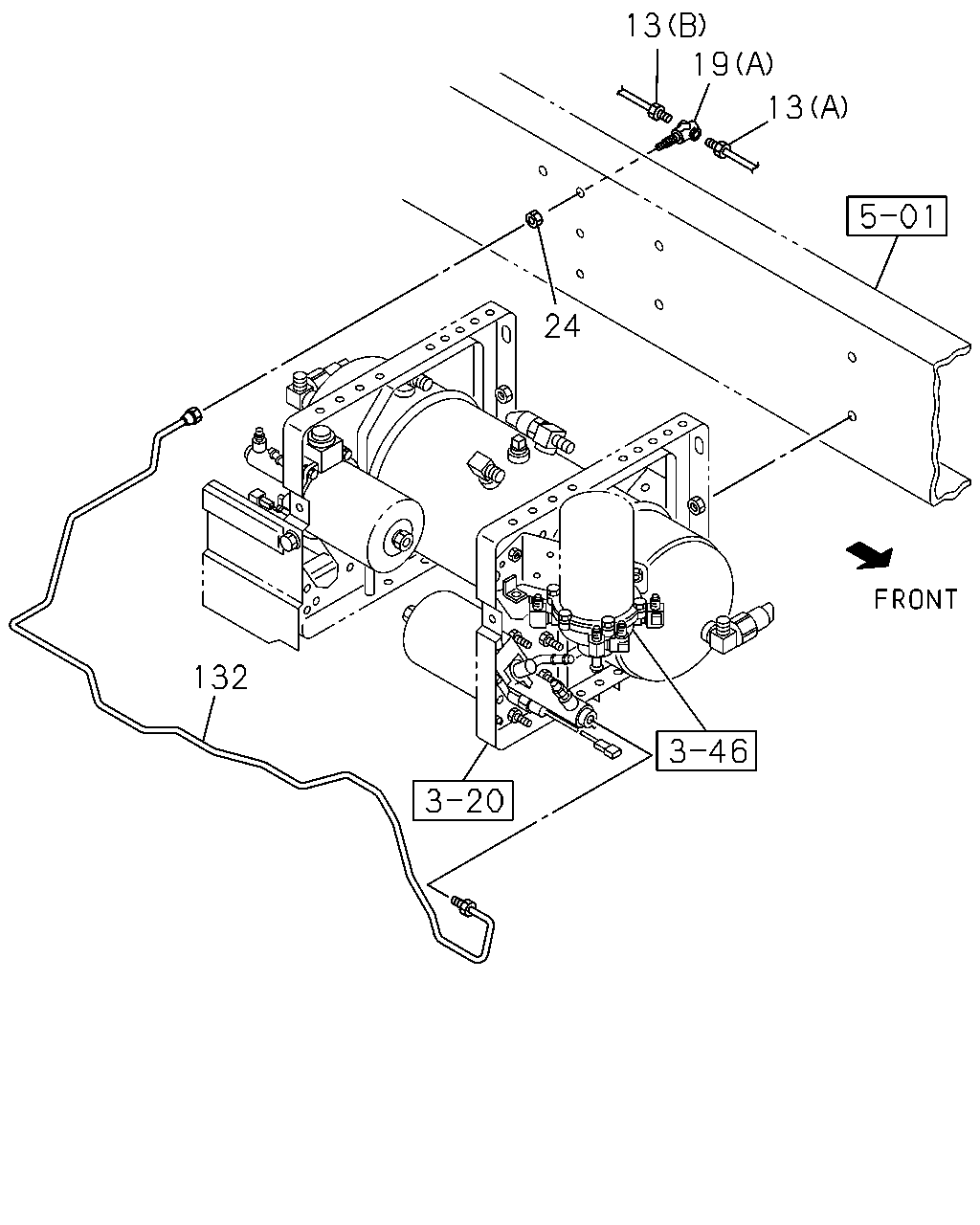

13 19 13 24 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION (B) L=1891	8-98113-684-0	01	1	1012-
13	PIPE; OIL,UNION TO UNION (A) L=967	8-98067-417-0	01	1	1012-
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1012-
19	UNION; OIL PIPE (A)	8-98113-738-0	01	1	1012-
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	1012-
132	PIPE; OIL,BRK,HYD UNIT L=1467	8-98135-796-0	01	1	1012-

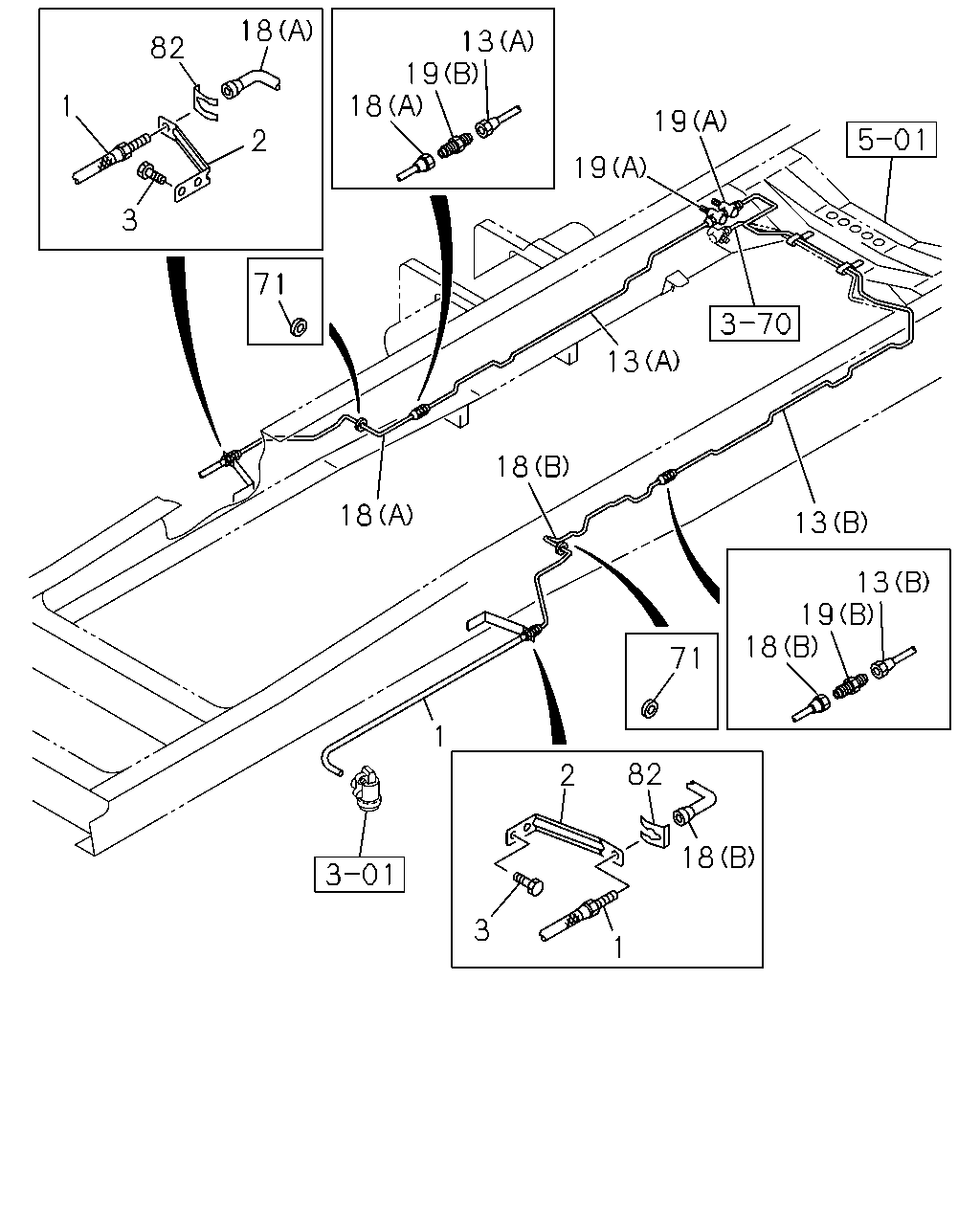

18 13 19 18 82 1 19 2 19 3 71 13 18 18 13 13 19 18 71 1 82 2 18 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK L=640	8-98085-202-0	02	1	1012-1109
1	HOSE; FLEX,FRT BRK L=660	8-98202-875-0	02	1	1110-1210
1	HOSE; FLEX,FRT BRK L=660	8-98232-626-0	02	1	1211-
2	BRACKET; FLEX HOSE,FRT BRK	8-98011-946-1	02	1	1012-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1012-
13	PIPE; OIL,UNION TO UNION (B) L=1891	8-98113-684-0	01	1	1012-
13	PIPE; OIL,UNION TO UNION (A) L=967	8-98067-417-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) L=1016	8-98065-376-0	01	1	1012-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) L=567	8-98067-426-0	01	1	1012-
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1012-
19	UNION; OIL PIPE (A)	8-98113-738-0	01	1	1012-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1012-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	1012-
