Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#5597) — 273 parça

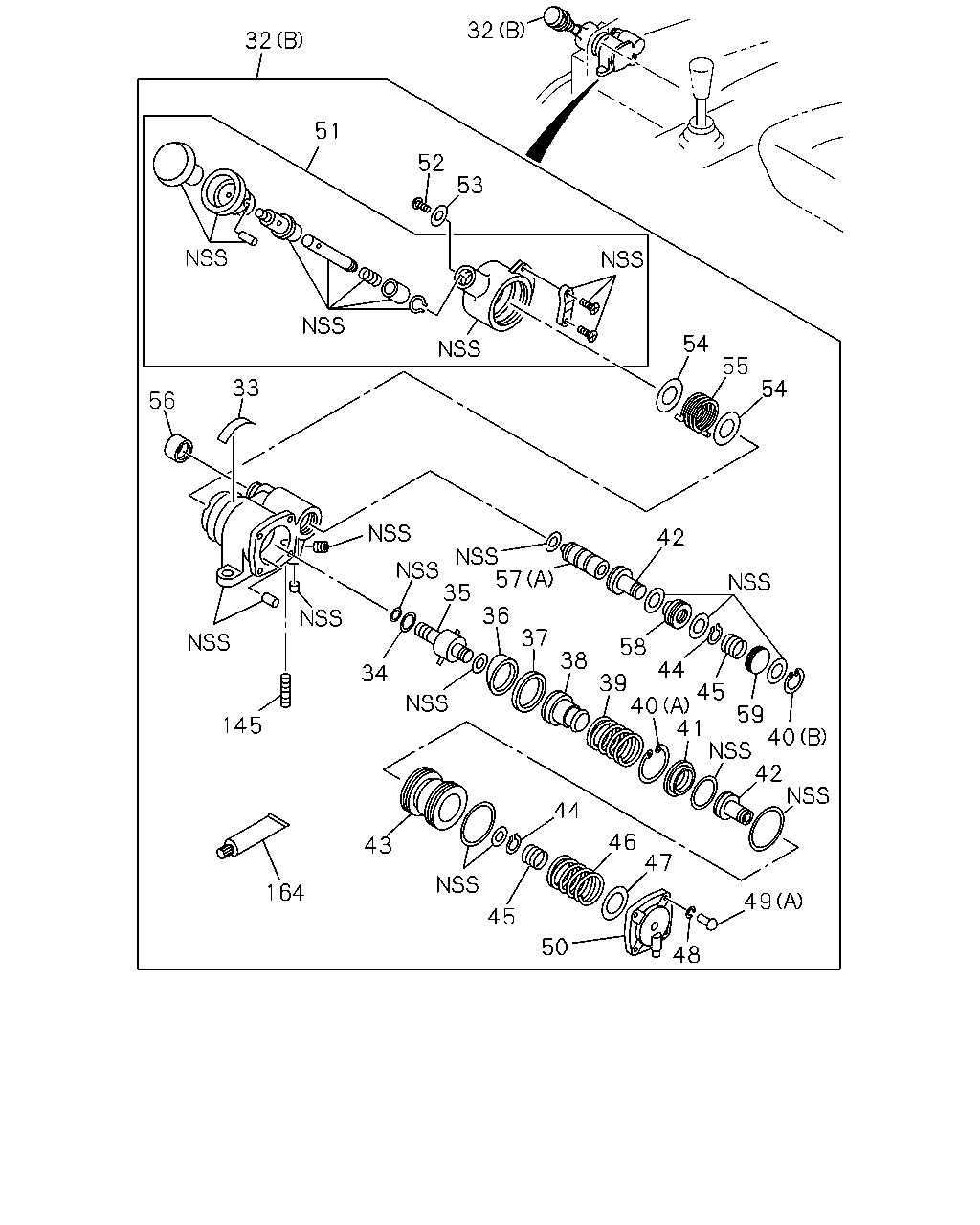

32 32 51 52 53 54 55 33 54 56 42 57 35 36 37 58 38 44 34 39 45 40 41 42 59 40 145 44 46 47 43 164 49 45 50 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-315-0	01	1	9603-
32	VALVE; BRK,HAND CONT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-184-0	01	1	9603-
33	PLATE; CAUTION BRAKE REGULATION HONG KONG<TCZ>	1-48469-081-0	01	1	9603-
34	SHIM; CAM HOLDER BRAKE REGULATION HONG KONG<TCZ>	1-48469-055-0	AR	1	9603-
35	HOLDER; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-054-0	01	1	9603-
36	RING; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-056-0	01	1	9603-
37	GUIDE; CAM RING BRAKE REGULATION HONG KONG<TCZ>	1-48469-058-0	01	1	9603-
38	SEAT; EXH VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-057-0	01	1	9603-
39	SPRING; RETURN,CAM RING BRAKE REGULATION HONG KONG<TCZ>	1-48469-063-0	01	1	9603-
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-067-0	01	1	9603-
40	RING; SNAP BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-079-0	01	1	9603-
41	SEAT; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-066-0	01	1	9603-
42	VALVE; FEED BRAKE REGULATION HONG KONG<TCZ>	1-48469-065-0	02	1	9603-
43	PISTON; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-064-0	01	1	9603-
44	RING; SNAP,FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-068-0	02	1	9603-
45	SPRING; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-070-0	02	1	9603-
46	SPRING; MAIN,PISTON BRAKE REGULATION HONG KONG<TCZ>	1-48469-071-0	01	1	9603-
47	SHIM; MAIN SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-072-0	AR	1	9603-
48	WASHER; COVER BRAKE REGULATION HONG KONG<TCZ>	1-48469-074-0	04	1	9603-
49	SCREW; COVER BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-075-0	04	1	9603-
49	SCREW; COVER EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	01	1	9603-9904
49	SCREW; COVER EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	02	1	9905-
50	COVER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-073-0	01	1	9603-
51	HANDLE ASM; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-060-0	01	1	9603-
52	SCREW; HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-062-0	01	1	9603-
53	WASHER; HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-061-0	01	1	9603-
54	SEAT; SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-082-0	02	1	9603-
55	SPRING; RETURN,HANDLE BRAKE REGULATION HONG KONG<TCZ>	1-48469-059-0	01	1	9603-
56	BOOT; PLUNGER BRAKE REGULATION HONG KONG<TCZ>	1-48469-080-0	01	1	9603-
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-076-0	01	1	9603-
57	PLUNGER; HAND BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9603-
58	HOLDER; FEED VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-077-0	01	1	9603-
59	HOLDER; SPRING BRAKE REGULATION HONG KONG<TCZ>	1-48469-078-0	01	1	9603-
145	STUD; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-069-0	01	1	9603-
164	GREASE; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-084-0	01	1	9603-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

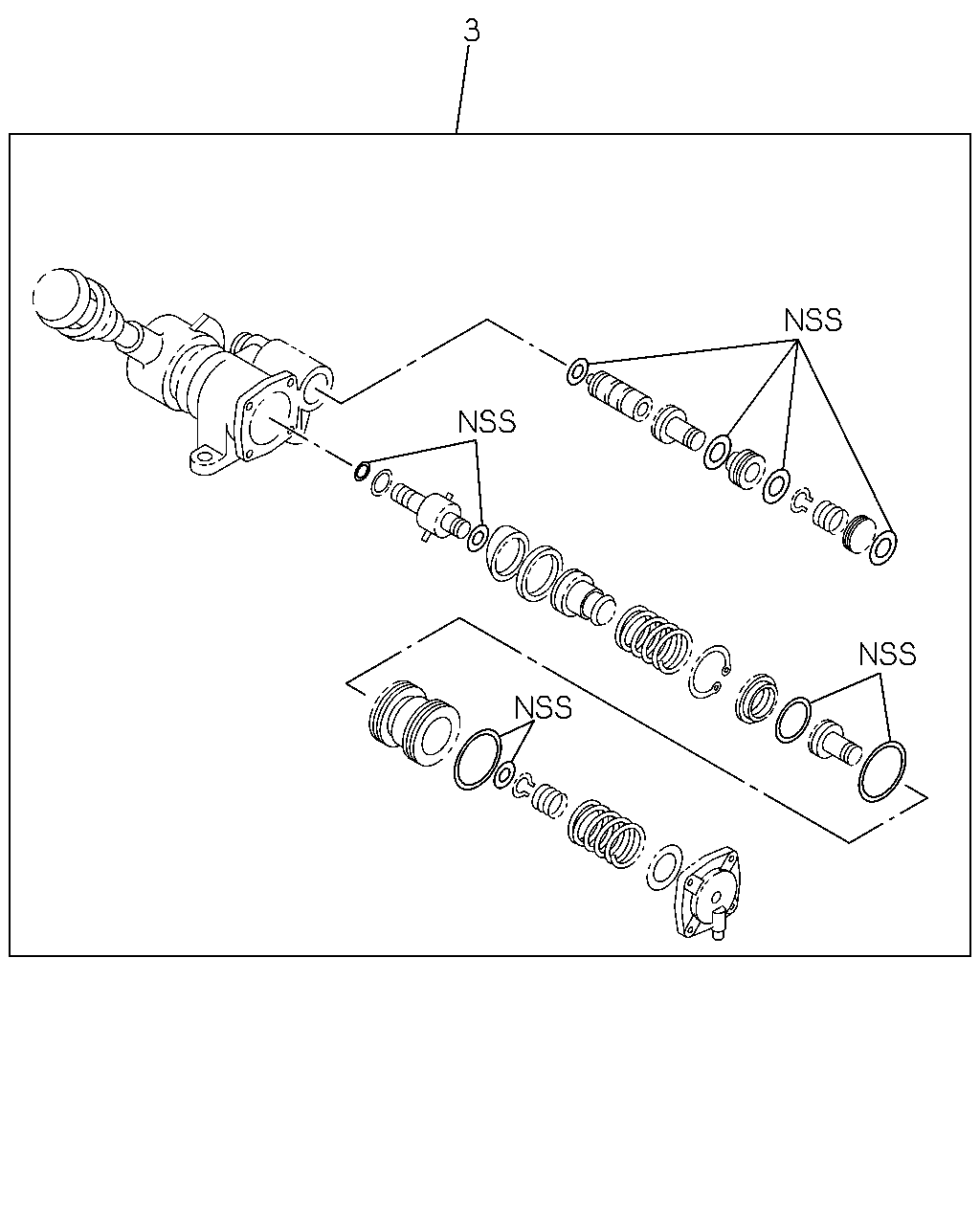

	3	REPAIR KIT; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-083-0	01	1	9603-

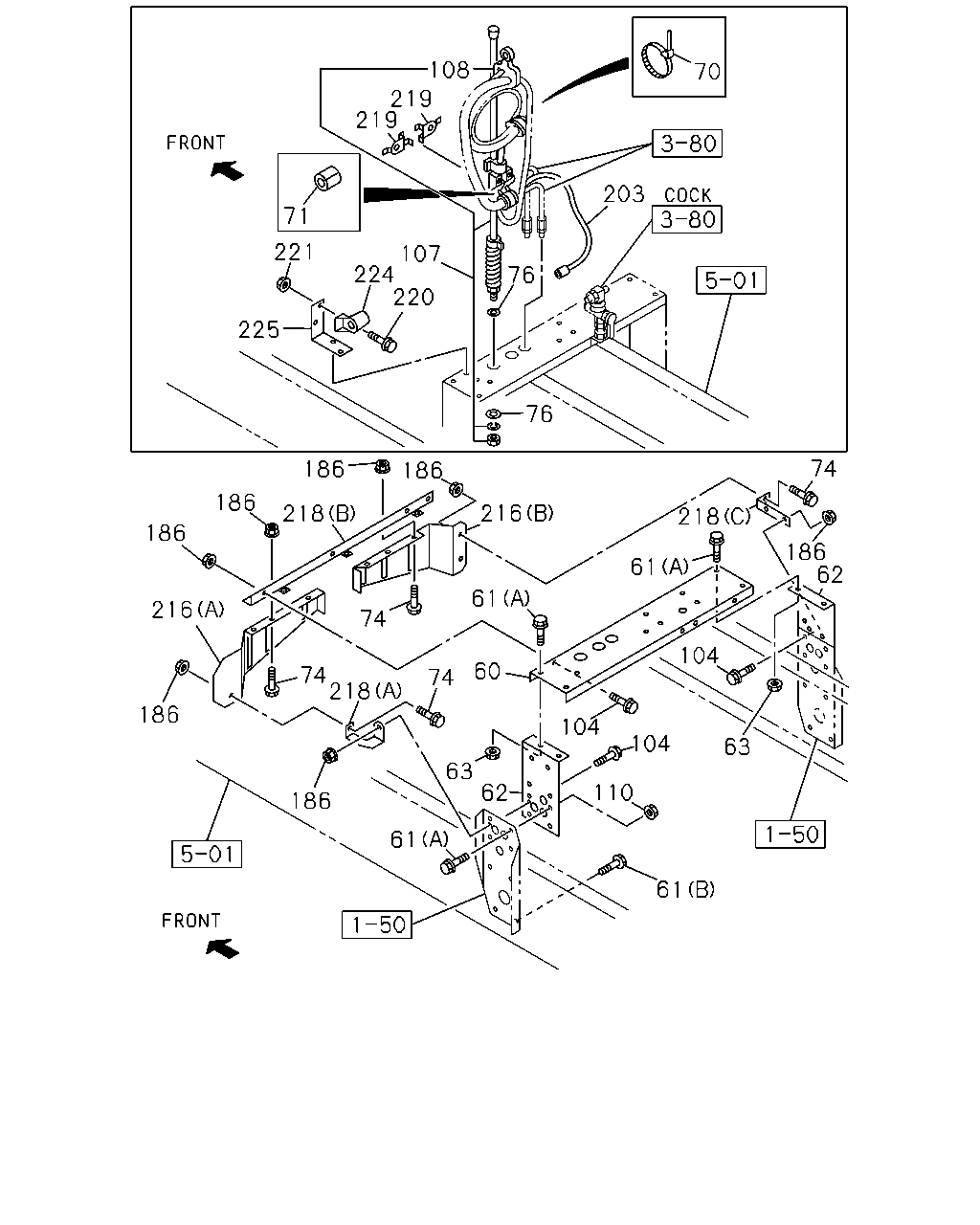

108 70 219 219 203 71 221 107 224 220 76 225 76 74 186 186 186 218 216 218 186 186 62 61 61 216 74 104 60 74 218 74 186 104 104 63 63 62 110 186 61 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	BOARD; STEP,TRAILER	1-53497-541-5	01	1	9603-9702
60	BOARD; STEP,TRAILER	1-53497-600-0	01	1	9703-9905
60	BOARD; STEP,TRAILER	1-53497-645-0	01	1	9906-
61	BOLT; STEP BOARD (A) M12X30 FLANGE	0-28081-230-0	12	1	9603-9606
61	BOLT; STEP BOARD (A) M12X30 FLANGE	0-28681-230-0	12	1	9607-0103
61	BOLT; STEP BOARD (A) M12X30 FLANGE	0-28681-230-0	04	1	0104-
61	BOLT; STEP BOARD (B) M12X35 FLANGE	0-28081-235-0	08	1	9603-9606
61	BOLT; STEP BOARD (B) M12X40 FLANGE	0-28681-240-0	08	1	9607-
61	BOLT; STEP BOARD (A) M12X30 FLANGE	0-28681-230-0	08	1	0104-
62	BRACKET; BOARD,HANGER	1-48495-175-2	02	1	9603-
63	NUT; STEP BOARD M12	9-99110-512-0	04	1	9603-9606
63	NUT; STEP BOARD M12 FLANGE	0-91150-212-0	04	1	9607-
70	CLIP; BAND,JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK> L=250	5-09707-030-1	08	1	9603-
71	RUBBER; STEP BOARD EXC. JUMPER HOSE & CABLE DELETE<SJK> ID=38.1 L=50	5-09360-835-0	02	1	9603-
74	BOLT; HOLDER M8X20 FLANGE	0-28080-820-0	05	1	9603-9606
74	BOLT; HOLDER M8X25 FLANGE	0-28680-825-0	05	1	9607-
74	BOLT; HOLDER V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	04	1	9603-9606
74	BOLT; HOLDER V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	04	1	9607-
76	WASHER; PL,HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK> ID=17 OD=32	9-09160-616-0	02	1	9603-9904
104	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	04	1	9603-9606
104	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9603-
104	BOLT; BRKT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606
104	BOLT; BRKT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) M10X25 FLANGE	0-28681-025-0	02	1	9607-9607
104	BOLT; BRKT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M10X25 FLANGE	0-28681-025-0	02	1	9607-
104	BOLT; BRKT V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
104	BOLT; BRKT V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	01	1	9607-
107	HANGER; JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-017-0	01	1	9603-9702
107	HANGER; JUMPER HOSE EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-027-1	01	1	9703-
108	CLAMP; HOSE HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-018-0	01	1	9603-9702
108	CLAMP; HOSE HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-023-2	01	1	9703-
110	NUT; BRKT TO FRAME M12	9-99110-512-0	08	1	9603-9606
110	NUT; BRKT TO FRAME M12 FLANGE	0-91150-212-0	08	1	9607-
186	NUT; COVER M8	9-09110-408-0	08	1	9603-9606
186	NUT; COVER M8 FLANGE	0-91150-108-0	08	1	9607-
186	NUT; COVER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) M10	9-09110-510-0	02	1	9603-9606
186	NUT; COVER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) M10 FLANGE	0-91150-210-0	02	1	9607-9607
186	NUT; COVER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M10 FLANGE	0-91150-210-0	02	1	9607-
186	NUT; COVER V TYPE ENG<91L> M8	9-09110-408-0	05	1	9603-9606
186	NUT; COVER V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	05	1	9607-
203	CABLE; JUMPER EXC. JUMPER HOSE & CABLE DELETE<SJK> L=6000	1-82659-035-1	01	1	9603-
216	PROTECTOR; HEAT (B)	1-22159-297-0	01	1	9603-9612
216	PROTECTOR; HEAT (B)	1-22159-309-0	01	1	9701-9907
216	PROTECTOR; HEAT (B)	1-22159-335-0	01	1	9908-
216	PROTECTOR; HEAT V TYPE ENG<91L> (A)	1-22159-296-0	01	1	9603-
218	BRACKET; PROTECTOR (B)	1-22159-298-0	01	1	9603-
218	BRACKET; PROTECTOR (C)	1-22159-299-0	01	1	9603-
218	BRACKET; PROTECTOR V TYPE ENG<91L> (A)	1-22159-300-0	01	1	9603-
219	COUPLING; HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-024-0	02	1	9703-
220	BOLT; HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK> M6X16 FLANGE	0-28680-616-0	02	1	9703-
220	BOLT; HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK> M8X20 FLANGE	0-28680-820-0	02	1	9709-
221	NUT; HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK> M6 FLANGE	0-91150-106-0	02	1	9703-
221	NUT; HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK> M8 FLANGE	0-91150-108-0	02	1	9709-
224	HANGER; TRAILER SOCKET EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-57550-022-0	01	1	9703-
225	BRACKET; HANGER EXC. JUMPER HOSE & CABLE DELETE<SJK>	1-82699-943-0	01	1	9703-

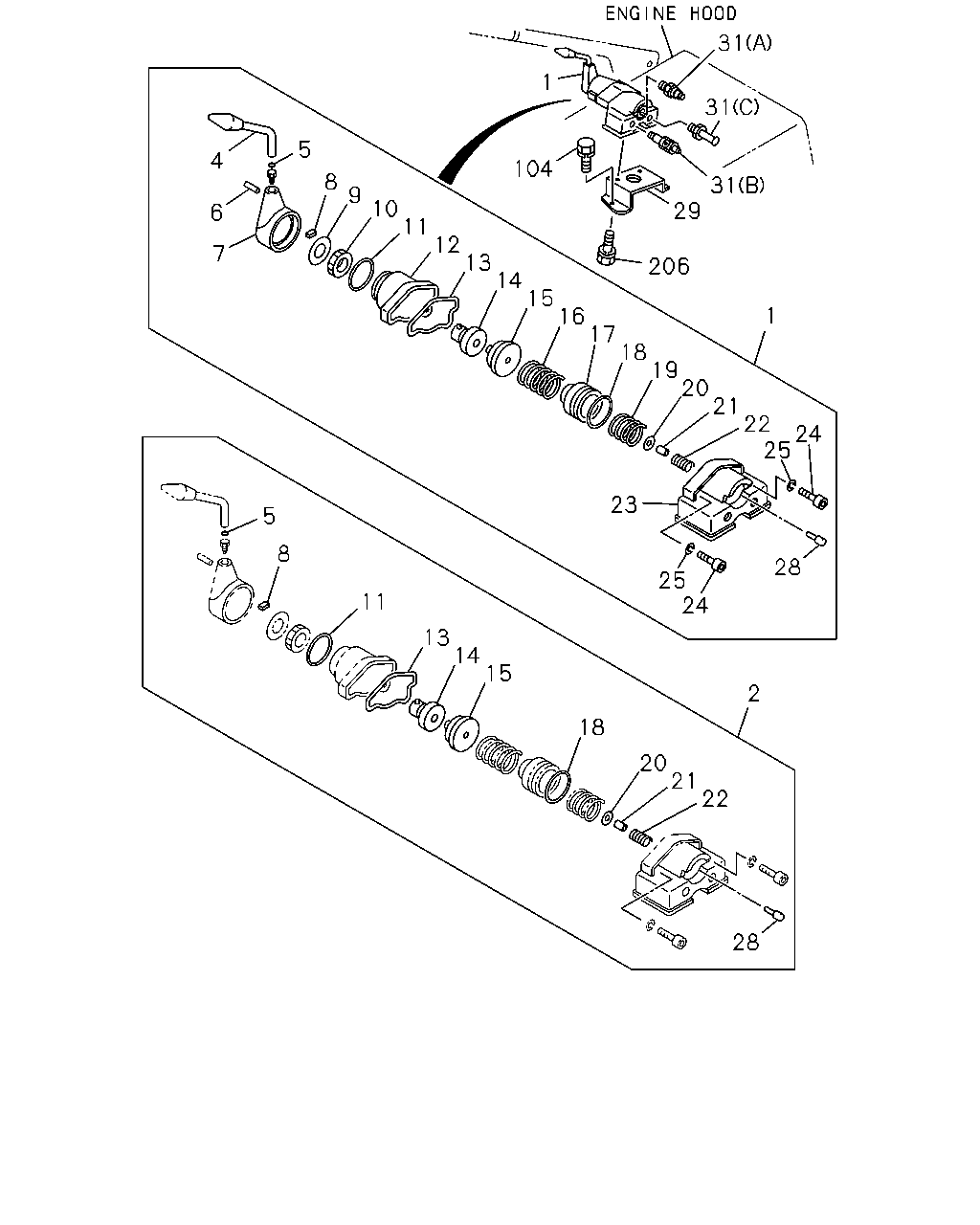

31 1 31 5 4 104 8 31 9 10 11 29 6 12 13 14 15 16 17 18 19 20 21 22 24 25 7 206 1 23 5 28 25 24 11 13 14 15 2 18 20 21 22 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-761-1	01	1	9603-
2	REPAIR KIT; HAND BRK VLV	1-85576-180-0	01	1	9603-
4	HANDLE ASM; BRK VLV	1-48119-360-0	01	1	9603-
5	GASKET; HANDLE	1-48119-128-0	01	1	9603-
6	PIN; SPR	1-48119-143-0	01	1	9603-
7	HEAD; BRK VLV	1-48119-131-0	01	1	9603-
8	STOPPER; BRK VLV	1-48119-136-0	01	1	9603-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	9603-
10	RING; ADJ	1-48119-122-0	01	1	9603-
11	GASKET; HD TO COVER	1-48119-130-0	01	1	9603-
12	COVER; BRK VLV	1-48129-097-0	01	1	9603-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	9603-
14	FOLLOWER; CAM	1-48129-109-0	01	1	9603-
15	CAM; FOLLOWER	1-48129-110-0	01	1	9603-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	9603-
17	PISTON; SPR	1-48129-095-0	01	1	9603-
18	GASKET; BODY	1-48129-096-0	01	1	9603-
19	SPRING; PISTON	1-48129-094-0	01	1	9603-
20	GUIDE; VLV	1-48129-090-0	01	1	9603-
21	VALVE; IN & EXH	1-48121-017-0	01	1	9603-
22	SPRING; VLV	1-48123-024-0	01	1	9603-
23	BODY; BRK VLV	1-48111-061-0	01	1	9603-
24	BOLT; EXH VLV	1-48129-092-0	02	1	9603-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	9603-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	9603-
29	BRACKET; HAND BRK	1-79996-131-1	01	1	9603-
31	CONNECTOR; HAND BRK VLV (B) M14	1-09656-391-2	01	1	9603-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	9603-
31	CONNECTOR; HAND BRK VLV (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9603-
104	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	04	1	9603-9606
104	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9603-
104	BOLT; BRKT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606
104	BOLT; BRKT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) M10X25 FLANGE	0-28681-025-0	02	1	9607-9607
104	BOLT; BRKT EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M10X25 FLANGE	0-28681-025-0	02	1	9607-
104	BOLT; BRKT V TYPE ENG<91L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
104	BOLT; BRKT V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	01	1	9607-
206	BOLT; HAND BRK VALVE BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M10X20 W/LK WASHER	0-50041-020-0	02	1	9603-
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	9603-

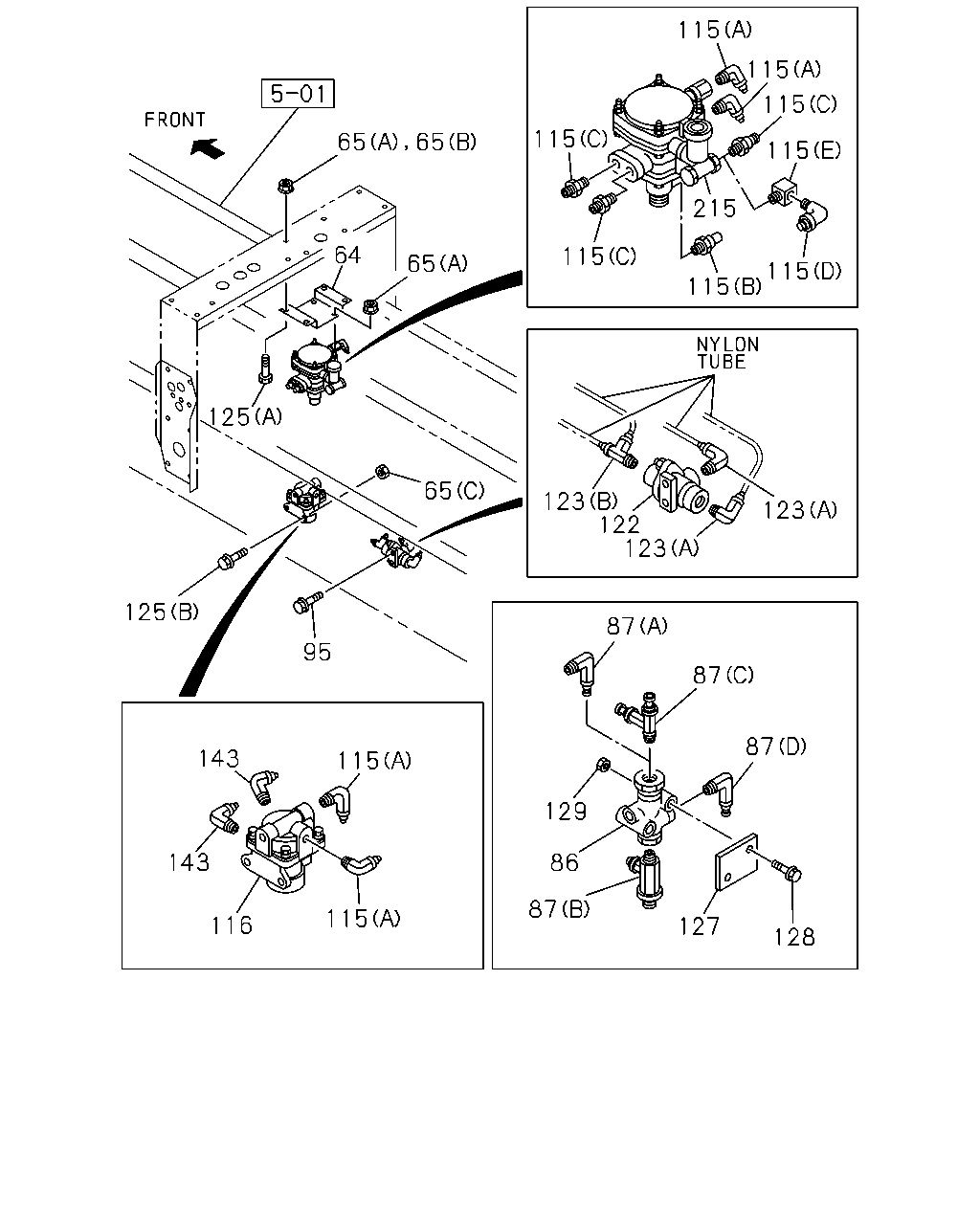

115 115 115 115 65 6 115 215 64 115 65 115 115 125 65 123 122 123 123 125 87 95 87 87 143 115 129 143 86 87 115 116 127 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PIN; SPR	1-48119-143-0	01	1	9603-
64	BRACKET; RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48495-174-0	01	1	9603-9912
64	BRACKET; RELAY VLV BRAKE REGULATION HONG KONG<TCZ>	1-48495-174-0	01	1	0001-
64	BRACKET; RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48495-174-0	01	1	0001-
65	NUT; RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M8 FLANGE	0-91150-108-0	04	1	9603-9606
65	NUT; RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M8 FLANGE	0-91150-108-0	08	1	9607-9912
65	NUT; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) M8 FLANGE	0-91150-108-0	08	1	0001-
65	NUT; RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M8 FLANGE	0-91150-108-0	08	1	0001-
65	NUT; RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M8	9-09110-408-0	04	1	9603-9606
65	NUT; RELAY VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (C) M10	9-09110-510-0	02	1	9603-9606
65	NUT; RELAY VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (C) M10 FLANGE	0-91150-210-0	02	1	9607-9912
65	NUT; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ> (C) M10 FLANGE	0-91150-210-0	02	1	0001-
86	VALVE; SYN EXC. DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48460-173-0	01	1	9603-9912
86	VALVE; SYN EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48460-173-0	01	1	0001-
87	CONNECTOR; DBL CHECK VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9904
87	CONNECTOR; DBL CHECK VLV CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-
87	CONNECTOR; DBL CHECK VLV EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C)	1-09660-718-1	01	1	9603-9904
87	CONNECTOR; DBL CHECK VLV EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9912
87	CONNECTOR; DBL CHECK VLV EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), BRAKE REGULATION HONG KONG<TCZ>,CHINA EQUIPMENT(YT2) (C) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0001-
87	CONNECTOR; DBL CHECK VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN12 & R1/4 ELBOW	1-09660-655-1	01	1	9603-9904
87	CONNECTOR; DBL CHECK VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9905-9912
87	CONNECTOR; DBL CHECK VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0001-
87	CONNECTOR; DBL CHECK VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12X2 & R1/4 3WAY	1-09660-656-0	01	1	9603-9904
87	CONNECTOR; DBL CHECK VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12X2 & R1/4 3WAY	1-09661-071-0	01	1	9905-9912
87	CONNECTOR; DBL CHECK VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN12X2 & R1/4 3WAY	1-09661-071-0	01	1	0001-
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28080-816-0	02	1	9603-
115	CONNECTOR; DUAL RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9603-9606
115	CONNECTOR; DUAL RELAY VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9607-9611
115	CONNECTOR; DUAL RELAY VLV PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9607-9611
115	CONNECTOR; DUAL RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9612-9904
115	CONNECTOR; DUAL RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9905-9912
115	CONNECTOR; DUAL RELAY VLV 6WA1 TC-S(56L) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0001-
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9603-9606
115	CONNECTOR; DUAL RELAY VLV PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9607-9611
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9612-9904
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-9912
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0001-
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0001-
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	03	1	9603-9606
115	CONNECTOR; DUAL RELAY VLV PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	03	1	9607-9611
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (C) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9612-9904
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9905-9912
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0001-
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0001-
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9612-9904
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-9912
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (E) PT3/8 ELBOW	1-09660-696-0	01	1	9612-9912
115	CONNECTOR; DUAL RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (E) PT3/8 ELBOW	1-09660-696-0	01	1	0001-
115	CONNECTOR; DUAL RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (E) PT3/8 ELBOW	1-09660-696-0	01	1	0001-
116	VALVE; DUAL RELAY EXC. DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48210-157-1	01	1	9603-9912
116	VALVE; DUAL RELAY EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48210-157-1	01	1	0001-
122	VALVE ASM; DOUBLE CHECK	1-48410-050-0	01	1	9603-9902
122	VALVE ASM; DOUBLE CHECK	1-48410-531-0	01	1	9903-
123	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9603-9904
123	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9905-
123	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & R3/8 3WAY	1-09660-658-1	01	1	9603-9904
123	CONNECTOR; DBL CHECK VLV (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9905-
125	BOLT; RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606
125	BOLT; RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M8X25 FLANGE	0-28680-825-0	04	1	9607-9912
125	BOLT; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) M8X25 FLANGE	0-28680-825-0	04	1	0001-
125	BOLT; RELAY VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M8X25 FLANGE	0-28680-825-0	04	1	0001-
125	BOLT; RELAY VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M10X30 FLANGE	0-28081-030-0	02	1	9603-9606
125	BOLT; RELAY VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-9912
125	BOLT; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M10X35 FLANGE	0-28681-035-0	02	1	0001-
127	DISTANCE; SYN VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48499-002-0	01	1	9603-9912
127	DISTANCE; SYN VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48499-002-0	01	1	0001-
128	BOLT; VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> M6X60 FLANGE	0-28080-660-0	02	1	9603-9912
128	BOLT; VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ> M6X60 FLANGE	0-28080-660-0	02	1	0001-
129	NUT; VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> M6	9-09110-406-0	02	1	9603-9912
129	NUT; VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ> M6	9-09110-406-0	02	1	0001-
143	CONNECTOR; CONT EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> DIN12 & R1/2 ELBOW	1-09660-654-1	02	1	9603-9904
143	CONNECTOR; CONT EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-9912
143	CONNECTOR; CONT EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ> DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0001-
215	VALVE; TRAILER CONT DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48210-628-0	01	1	9603-9606
215	VALVE; TRAILER CONT PARKING BRAKE VALVE LEVER TYPE<W48>	1-48210-628-0	01	1	9607-9611
215	VALVE; TRAILER CONT DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48210-628-0	01	1	9612-9912
215	VALVE; TRAILER CONT BRAKE REGULATION HONG KONG<TCZ>	1-48210-628-0	01	1	0001-
215	VALVE; TRAILER CONT DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48210-628-0	01	1	0001-

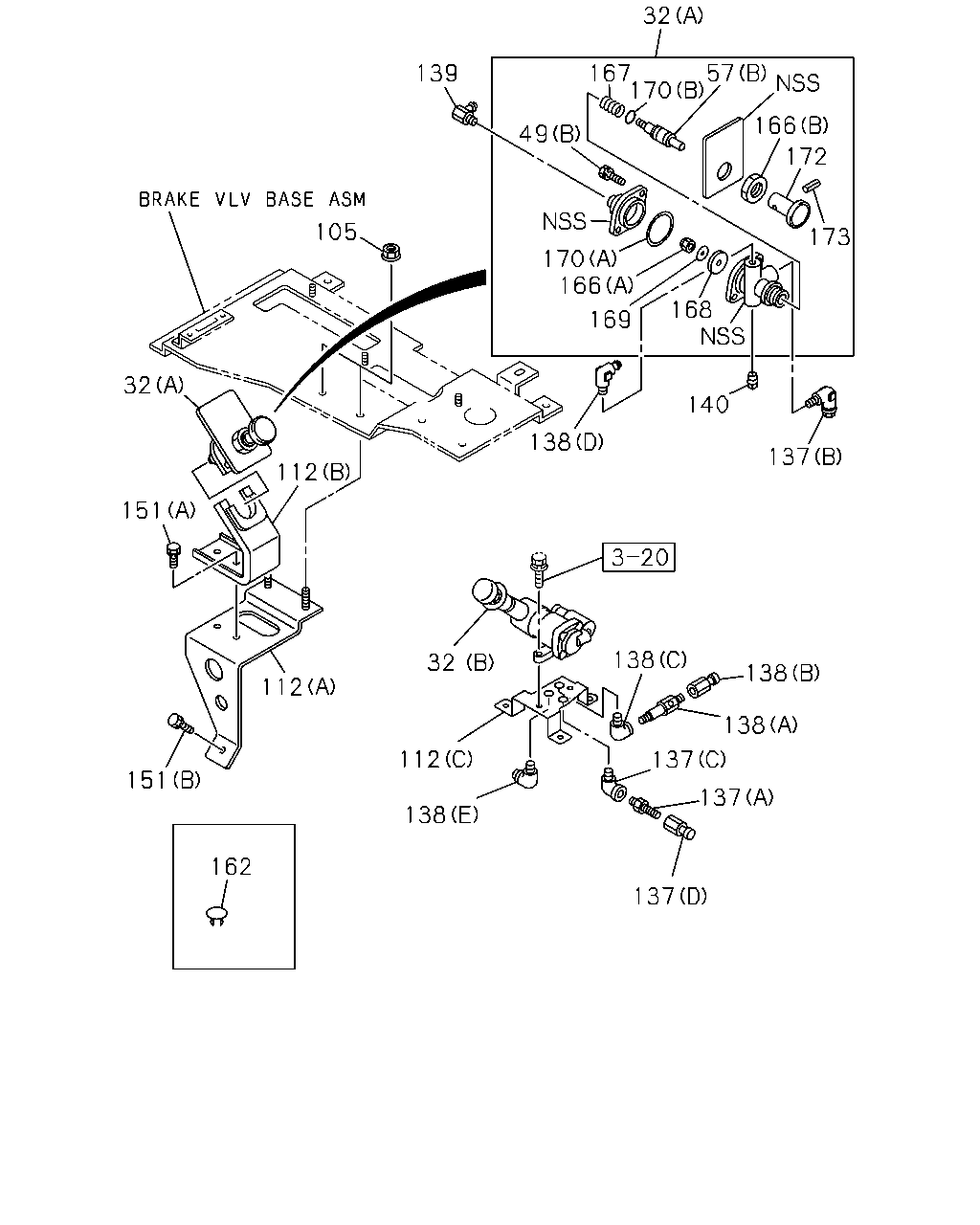

32 167 57 170 139 166 49 172 105 173 170 166 168 169 32 140 138 137 112 151 138 32 138 112 138 112 137 151 137 138 162 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ> (B)	1-48460-315-0	01	1	9603-
32	VALVE; BRK,HAND CONT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-184-0	01	1	9603-
49	SCREW; COVER BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-075-0	04	1	9603-
49	SCREW; COVER EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	01	1	9603-9904
49	SCREW; COVER EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-52139-005-0	02	1	9905-
57	PLUNGER; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ> (A)	1-48469-076-0	01	1	9603-
57	PLUNGER; HAND BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-097-0	01	1	9603-
105	NUT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> M8 FLANGE	0-91150-108-0	02	1	9603-
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9603-
105	NUT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8 FLANGE	0-91150-108-0	03	1	9603-
112	BRACKET; CONT VLV BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (A)	1-79996-113-2	01	1	9603-
112	BRACKET; CONT VLV DUAL LICENCE CHINA & HONG KONG<TEZ> (C)	1-79996-112-1	01	1	9603-
112	BRACKET; CONT VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (B)	1-47475-260-2	01	1	9603-
137	CONNECTOR; SUPPLY DUAL LICENCE CHINA & HONG KONG<TEZ> (C) PT1/4 2WAY	1-09660-693-0	01	1	9603-
137	CONNECTOR; SUPPLY DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9603-0007
137	CONNECTOR; SUPPLY DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-0009
137	CONNECTOR; SUPPLY DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0010-
137	CONNECTOR; SUPPLY DUAL LICENCE CHINA & HONG KONG<TEZ> (D) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007
137	CONNECTOR; SUPPLY EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9603-
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-09650-352-1	01	1	9603-
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M14	1-09656-391-2	01	1	9603-
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (E) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9911
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9912-
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (B) PT1/4 2WAY	1-09660-693-0	01	1	9603-
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9603-9911
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (C) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0007
138	CONNECTOR; DELIVERY DUAL LICENCE CHINA & HONG KONG<TEZ> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-
138	CONNECTOR; DELIVERY EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (D) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9603-
139	CONNECTOR; EXH EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=45	8-94338-874-0	01	1	9603-
140	PLUG EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> PT1/4	9-99204-513-0	01	1	9603-
151	BOLT; VLV BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9603-
151	BOLT; VLV BRKT EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9603-
162	SWITCH; PARKING BRK VLV BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9)	1-72447-390-0	01	1	9603-9911
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	9912-
166	NUT; PLUNGER EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48129-069-0	01	1	9603-
166	NUT; PLUNGER EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-101-0	01	1	9603-
167	SPRING; VALVE EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-098-0	01	1	9603-
168	VALVE; INL EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-099-0	01	1	9603-
169	WASHER; PL,VALVE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=6.4	9-09164-506-0	01	1	9603-
170	GASKET; VALVE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48469-100-0	01	1	9603-
170	GASKET; VALVE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	9-19519-094-0	01	1	9603-
172	KNOB; VALVE EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-102-0	01	1	9603-
173	PIN; SPR,KNOB EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	8-94124-044-0	01	1	9603-

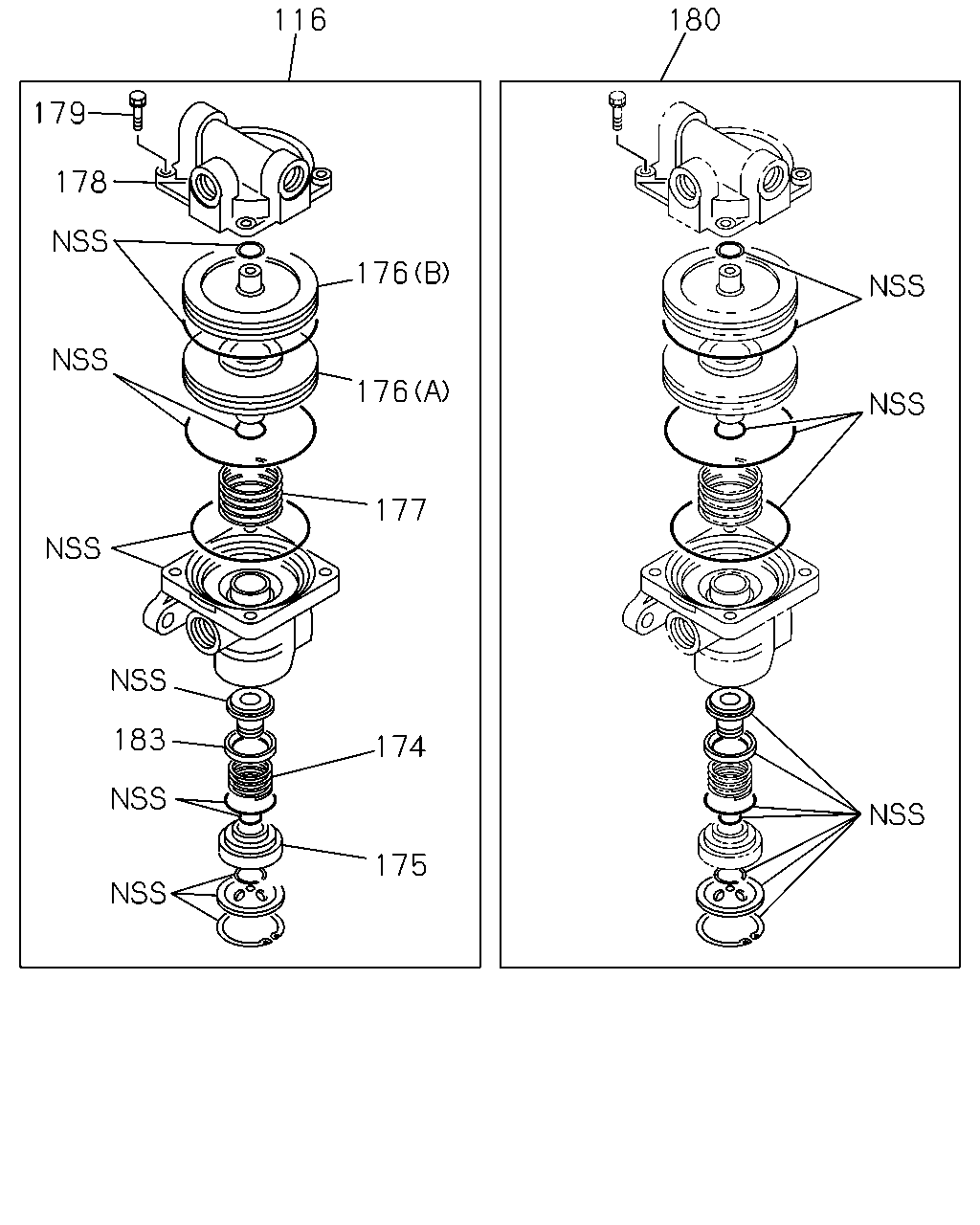

116 180 179 178 176 176 177 183 174 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	VALVE; DUAL RELAY EXC. DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48210-157-1	01	1	9603-9912
116	VALVE; DUAL RELAY EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48210-157-1	01	1	0001-
174	SPRING; INL VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ>	1-47819-040-0	01	1	9603-9912
174	SPRING; INL VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ>	1-47819-040-0	01	1	0001-
175	GUIDE; VLV,RELAY VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48129-078-0	01	1	9603-9912
175	GUIDE; VLV,RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48129-078-0	01	1	0001-
176	PISTON; RELAY VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (A)	1-48219-032-0	01	1	9603-9912
176	PISTON; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ> (A)	1-48219-032-0	01	1	0001-
176	PISTON; RELAY VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ> (B)	1-48219-047-0	01	1	9603-9912
176	PISTON; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ> (B)	1-48219-047-0	01	1	0001-
177	SPRING; RELAY VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48219-048-0	01	1	9603-9912
177	SPRING; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48219-048-0	01	1	0001-
178	COVER; RELAY VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48219-050-1	01	1	9603-9912
178	COVER; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48219-050-1	01	1	0001-
179	BOLT; COVER,RELAY VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48219-041-0	04	1	9603-9912
179	BOLT; COVER,RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48219-041-0	04	1	0001-
180	REPAIR KIT; RELAY VLV EXC. DUAL LICENCE CHINA & HONG KONG<TEZ>	1-85576-035-0	01	1	9603-9912
180	REPAIR KIT; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ>	1-85576-035-0	01	1	0001-
183	RETAINER; VALVE EXC. DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48213-002-0	01	1	9603-9912
183	RETAINER; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>,DUAL LICENCE CHINA & HONG KONG<TEZ>	1-48213-002-0	01	1	0001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
