◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11362 - FRR RHD EURO4 SPACECAB WITH DOC ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#55969) — 55 parça
çizim 173649
97 336 336 228
BalonParca AdiParca NoAdetTipApplied Date
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 1012-
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 1012-
228 BOLT; CLIP RAD MTG
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1012-
228 BOLT; CLIP RAD MTG
GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 01 1 1012-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
228 BOLT; CLIP RAD MTG
GENERATOR 24V90A(K44) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) M8X16 FLANGE 		0-28050-816-0 01 1 1012-
336 BRACKET; RADIATOR
GENERATOR 24V90A(K44) (C) 		8-98080-965-0 01 1 1012-1309
336 BRACKET; RADIATOR
GENERATOR 24V90A(K44) (C) 		8-98251-969-0 01 1 1310-
336 BRACKET; RADIATOR
GENERATOR 24V90A(K44) (B) 		8-98139-517-0 01 1 1012-
336 BRACKET; RADIATOR
EXC. GENERATOR 24V90A(K44) (A) 		8-98065-276-0 01 1 1012-

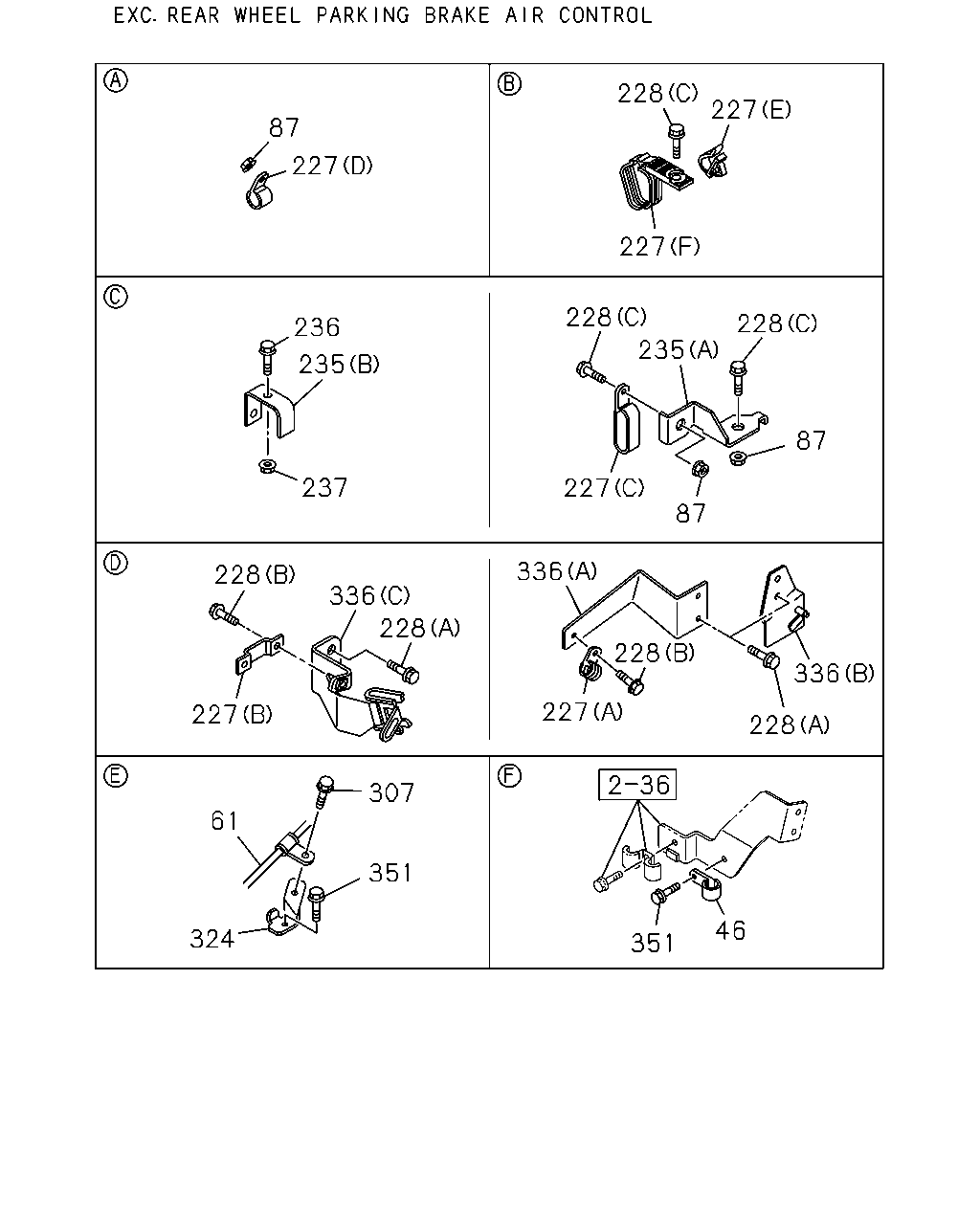

çizim 173659
87 227 228 227 227 236 235 237 228 235 228 87 87 227 336 228 227 228 336 228 336 228 227 307 61 351 324 351 46
BalonParca AdiParca NoAdetTipApplied Date
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 01 1 1012-
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4253 		8-98171-946-2 01 1 1012-
87 NUT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1012-
87 NUT
GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1012-
227 CLIP; RAD
GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1012-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 1012-
227 CLIP; RAD
GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98080-966-0 01 1 1012-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=16 L=20 		0-95235-535-0 01 1 1012-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5 		5-09709-020-0 01 1 1012-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1012-1504
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=13 & 10 & 10 L=43.5 		8-98292-921-0 01 1 1505-
227 CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (A) ID=26 L=26 		1-09701-236-0 01 1 1012-
228 BOLT; CLIP RAD MTG
(A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1012-
228 BOLT; CLIP RAD MTG
GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 01 1 1012-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
228 BOLT; CLIP RAD MTG
GENERATOR 24V90A(K44) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (B) M8X16 FLANGE 		0-28050-816-0 01 1 1012-
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98126-426-0 01 1 1012-
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98100-152-0 01 1 1012-
236 BOLT; BRKT TO FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 01 1 1012-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 03 1 1012-
237 NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1012-
307 BOLT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 01 1 1012-
324 BRACKET
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-482-1 01 1 1012-
336 BRACKET; RADIATOR
GENERATOR 24V90A(K44) (C) 		8-98080-965-0 01 1 1012-1309
336 BRACKET; RADIATOR
GENERATOR 24V90A(K44) (C) 		8-98251-969-0 01 1 1310-
336 BRACKET; RADIATOR
GENERATOR 24V90A(K44) (B) 		8-98139-517-0 01 1 1012-
336 BRACKET; RADIATOR
EXC. GENERATOR 24V90A(K44) (A) 		8-98065-276-0 01 1 1012-
351 BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 03 1 1012-

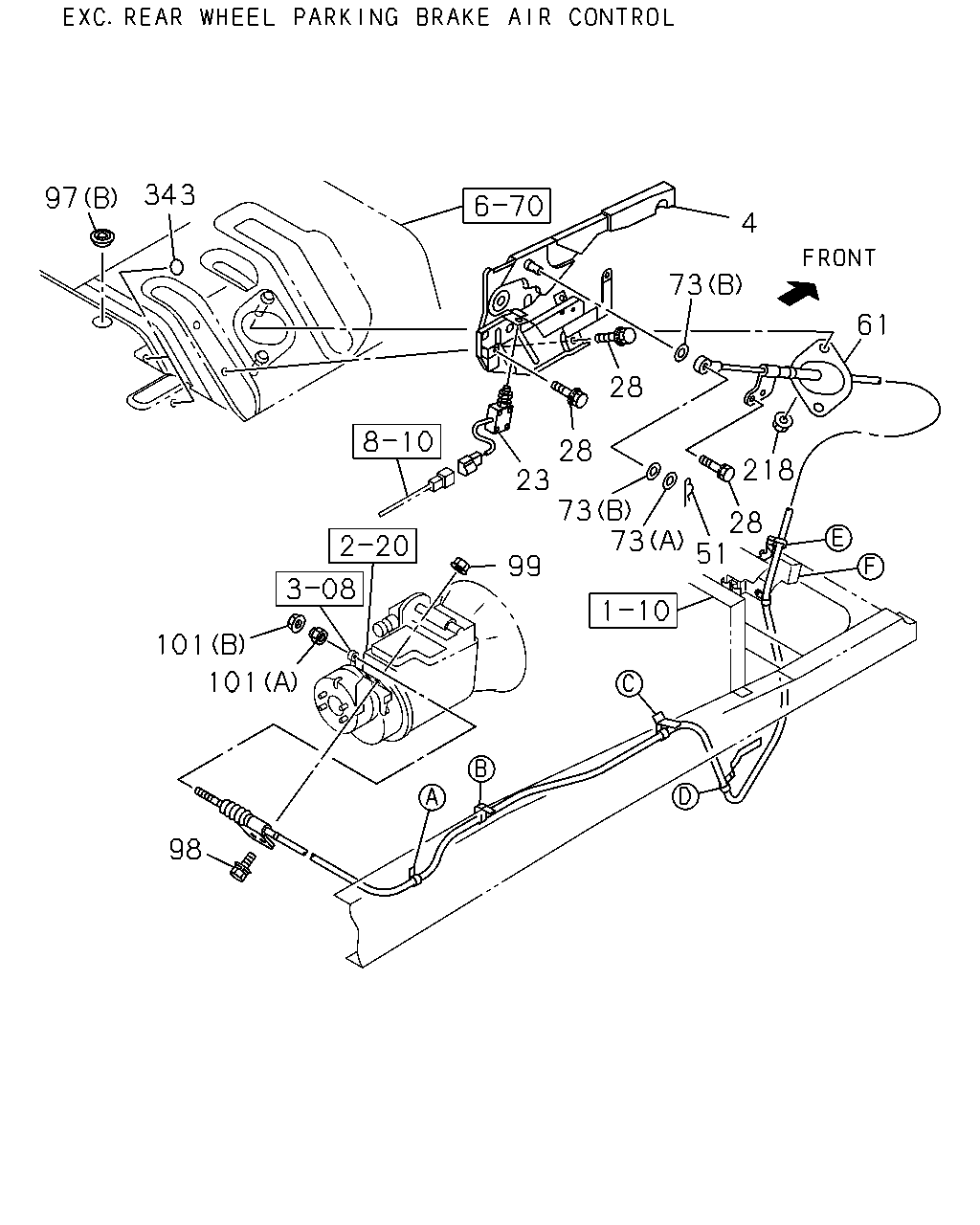

çizim 173668
97 343 101 101 98 99 23 28 28 28 218 73 73 4 61 73 51
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79996-548-0 01 1 1012-
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-82440-100-0 01 1 1012-
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1012-
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 1012-
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4253 		8-98171-946-2 01 1 1012-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30 		0-91610-516-0 01 1 1012-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19 		8-94206-429-1 02 1 1012-
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98029-219-1 01 1 1012-
97 GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35 		8-94122-971-0 01 1 1012-
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 01 1 1012-
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 1012-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE 		0-91180-108-0 01 1 1012-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-46259-007-0 01 1 1012-
218 NUT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1012-
343 SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 05 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
