Isuzu WW
▶
TRUCKS
▶
FRR
▶
11362 - FRR RHD EURO4 SPACECAB WITH DOC
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#55931) — 41 parça
◀
[060A] NO.1 (29 parça)
[060A] NO.2 (3 parça)
[060A] NO.3 (7 parça)
[060A] NO.4 (2 parça)
▶
2
16
23
16
17
17
23
24
19
23
17
4
1
4
293
26
21
26
26
26
21
129
460
737
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

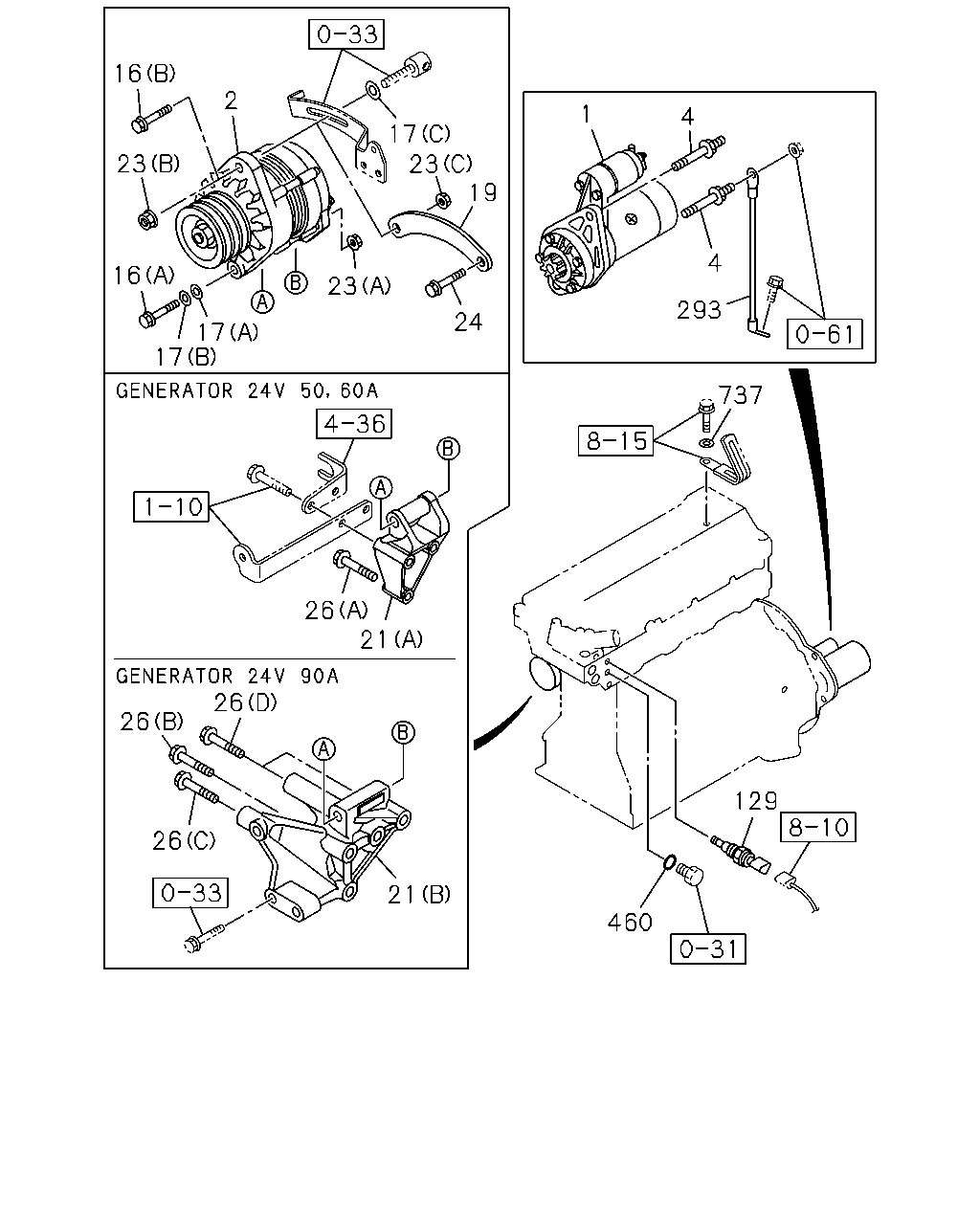

1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI
8-98009-043-2
01
1
1012-1207
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI
8-98222-023-0
01
1
1208-1311
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI
8-98245-260-0
01
1
1312-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO
8-98013-455-4
01
1
1012-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO
8-98013-456-4
01
1
1012-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO
8-98013-459-3
01
1
1012-1508
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO
8-98330-085-0
01
1
1509-
4
BOLT; STARTER
M10X15,M14X82 L=110
8-98029-095-0
02
1
1012-
16
BOLT; GEN
(A) M14X135
1-09000-133-1
01
1
1012-
16
BOLT; GEN
GENERATOR 24V90A(K44) (B) M10X45 FLANGE
0-28051-045-0
01
1
1012-
17
WASHER; PL,GEN
(A) ID=14.2
0-91510-514-0
01
1
1012-
17
WASHER; PL,GEN
(B) ID=15
0-91610-514-0
01
1
1012-
17
WASHER; PL,GEN
EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32
9-09160-712-0
01
1
1012-
19
BRACKET; GEN
GENERATOR 24V90A(K44)
8-98032-273-0
01
1
1012-
21
BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)
8-97381-404-0
01
1
1012-
21
BRACKET; GEN
GENERATOR 24V90A(K44) (B)
8-98075-340-0
01
1
1012-
23
NUT; GEN
(A) M14
0-91110-514-0
01
1
1012-
23
NUT; GEN
GENERATOR 24V90A(K44) (C) M10 FLANGE
8-97065-439-0
01
1
1012-
23
NUT; GEN
EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE
0-91180-112-0
01
1
1012-
24
BOLT; GEN BRKT
GENERATOR 24V90A(K44) M10X20 FLANGE
0-28151-020-0
01
1
1012-
26
BOLT; GEN BRKT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE
0-28151-050-0
01
1
1012-
26
BOLT; GEN BRKT
GENERATOR 24V90A(K44) (C) M8X70 FLANGE
0-28050-870-0
01
1
1012-
26
BOLT; GEN BRKT
GENERATOR 24V90A(K44) (D) M10X60 FLANGE
0-28151-060-0
02
1
1012-
26
BOLT; GEN BRKT
GENERATOR 24V90A(K44) (B) M10X70 FLANGE
0-28151-070-0
01
1
1012-
129
SENSOR; GLOW PLUG,THERMO
MITSUBISHI
8-98023-883-0
01
1
1012-1503
129
SENSOR; GLOW PLUG,THERMO
NISHIDA
8-98260-257-0
01
1
1504-
293
CABLE; STARTER EARTH
L=410
8-97620-375-0
01
1
1012-
460
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2
1-09630-086-0
01
1
1012-
737
WASHER; PL
ID=6.4 OD=18
0-91610-706-0
02
1
1012-
10
46
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

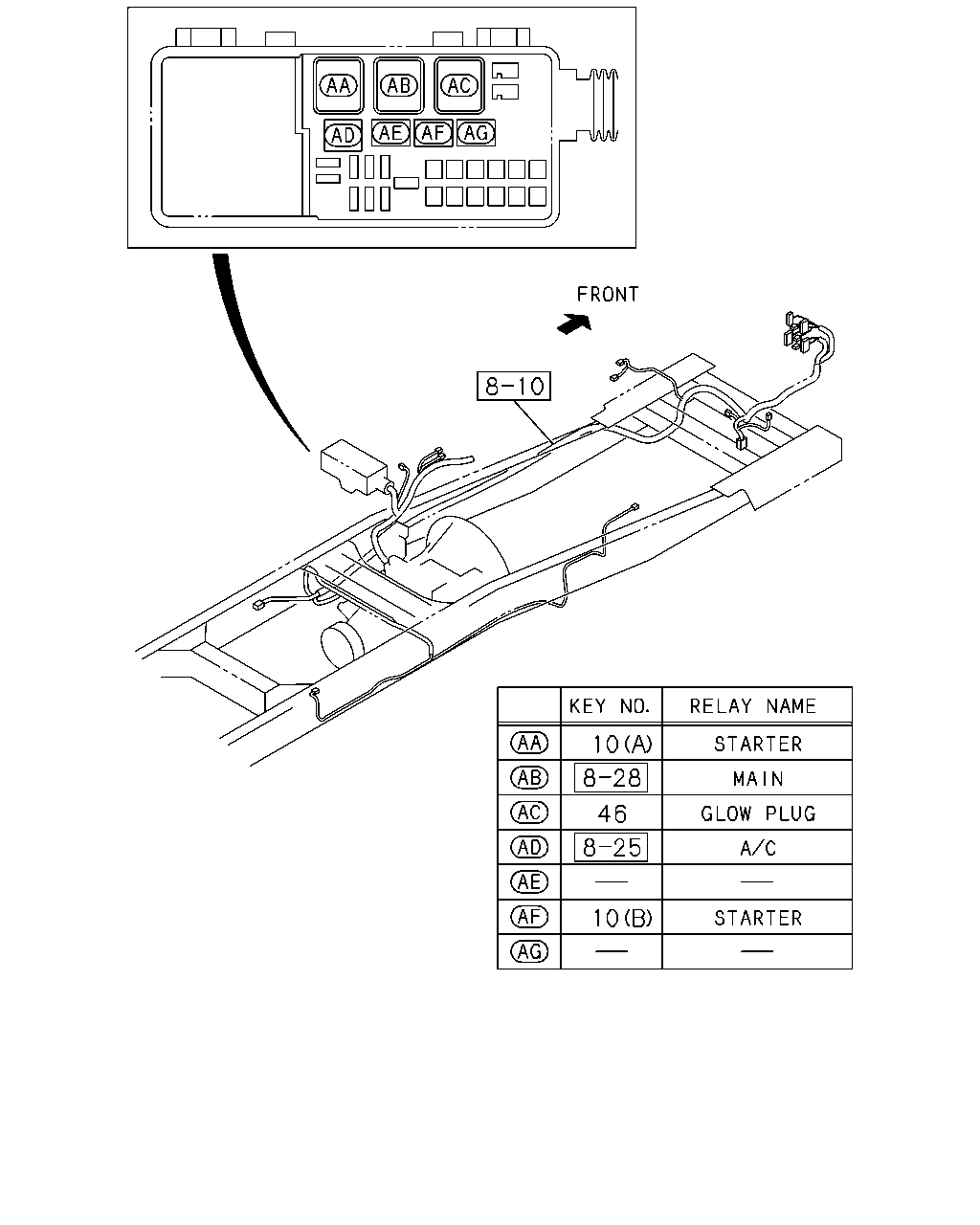

10
RELAY; STARTER
(A) 24V 50A
8-97264-947-0
01
1
1012-
10
RELAY; STARTER
(B) 24V 10A PANASONIC
8-98167-173-0
01
1
1012-
46
RELAY; GLOW PLUG
24V 50A
8-97173-947-0
01
1
1012-
587
301
748
613
748
749
732
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

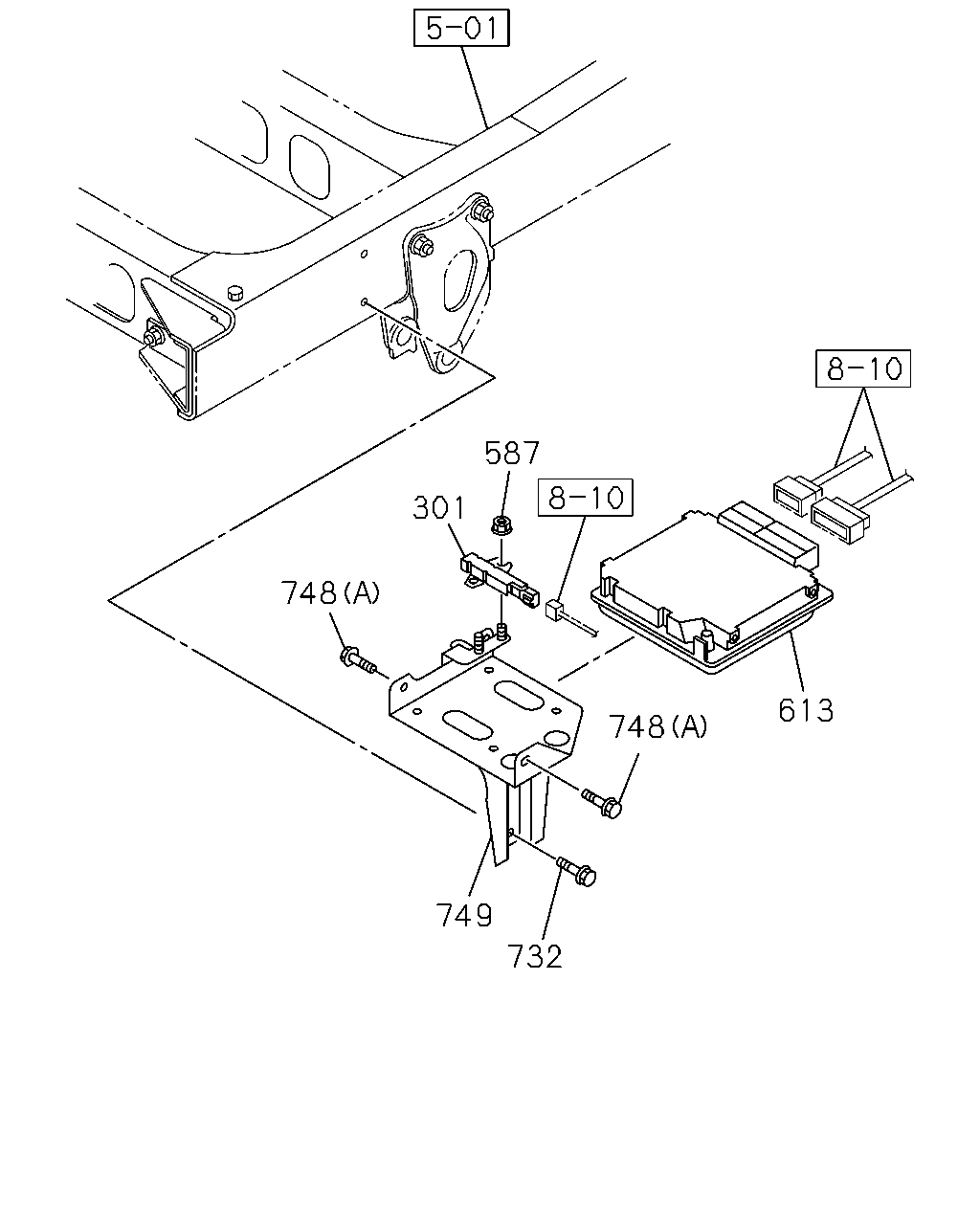

301
RESISTOR; DROPPING
8-97357-613-0
01
1
1012-
587
NUT; RESISTOR & RELAY
M6 FLANGE
0-91180-106-0
02
1
1012-
613
CONTROL UNIT; ENG
8-98171-894-1
01
1
1012-
732
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
1012-
748
BOLT; CONT UNIT
(A) M6X12 FLANGE
0-28050-612-0
03
1
1012-
748
BOLT; CONT UNIT
(B) M6X16 FLANGE
0-28650-616-0
02
1
1012-
749
STAY; CONT UNIT
1-53194-594-1
01
1
1012-

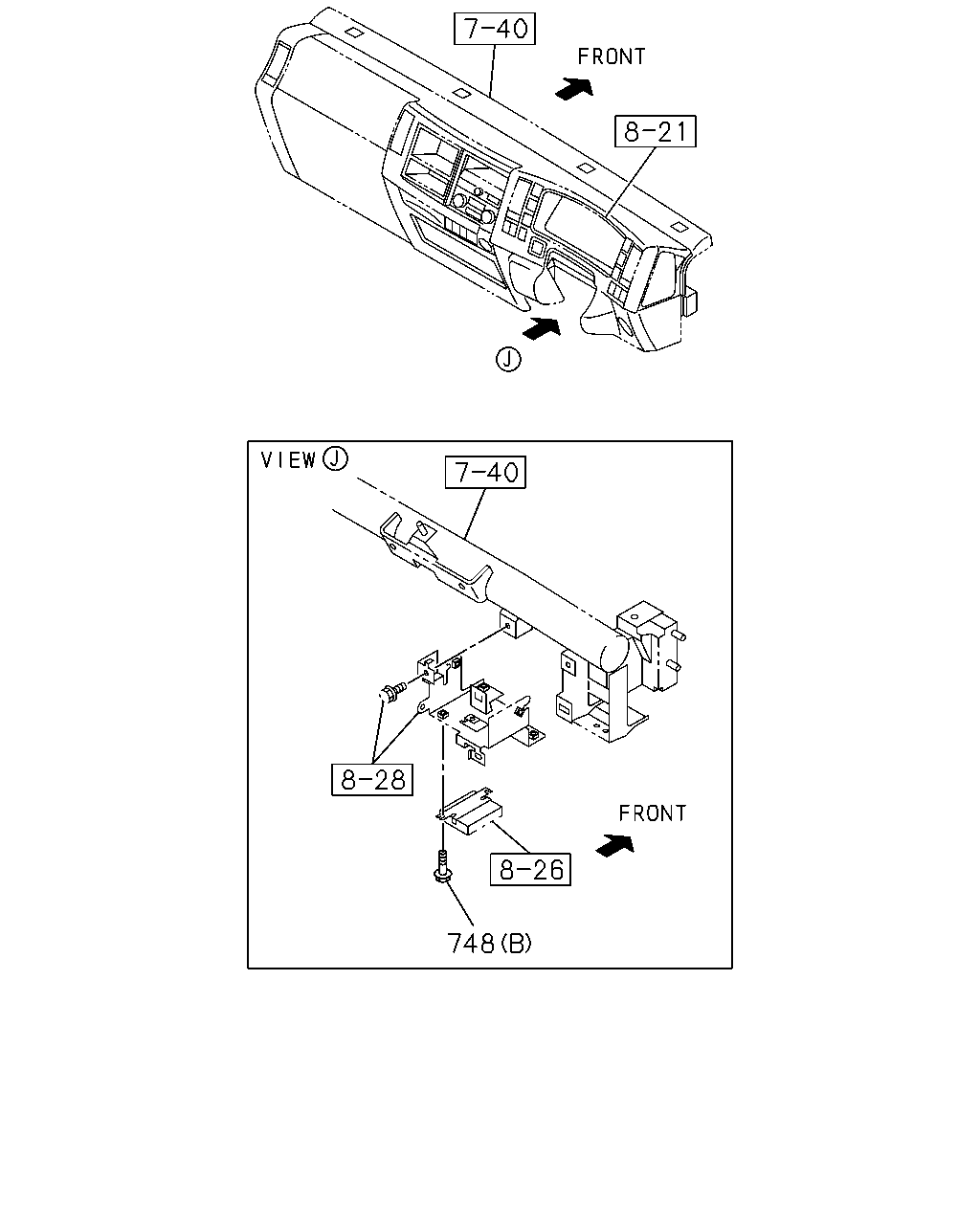

748
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
748
BOLT; CONT UNIT
(A) M6X12 FLANGE
0-28050-612-0
03
1
1012-
748
BOLT; CONT UNIT
(B) M6X16 FLANGE
0-28650-616-0
02
1
1012-
