Isuzu WW
▶
TRUCKS
▶
FRR
▶
11362 - FRR RHD EURO4 SPACECAB WITH DOC
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

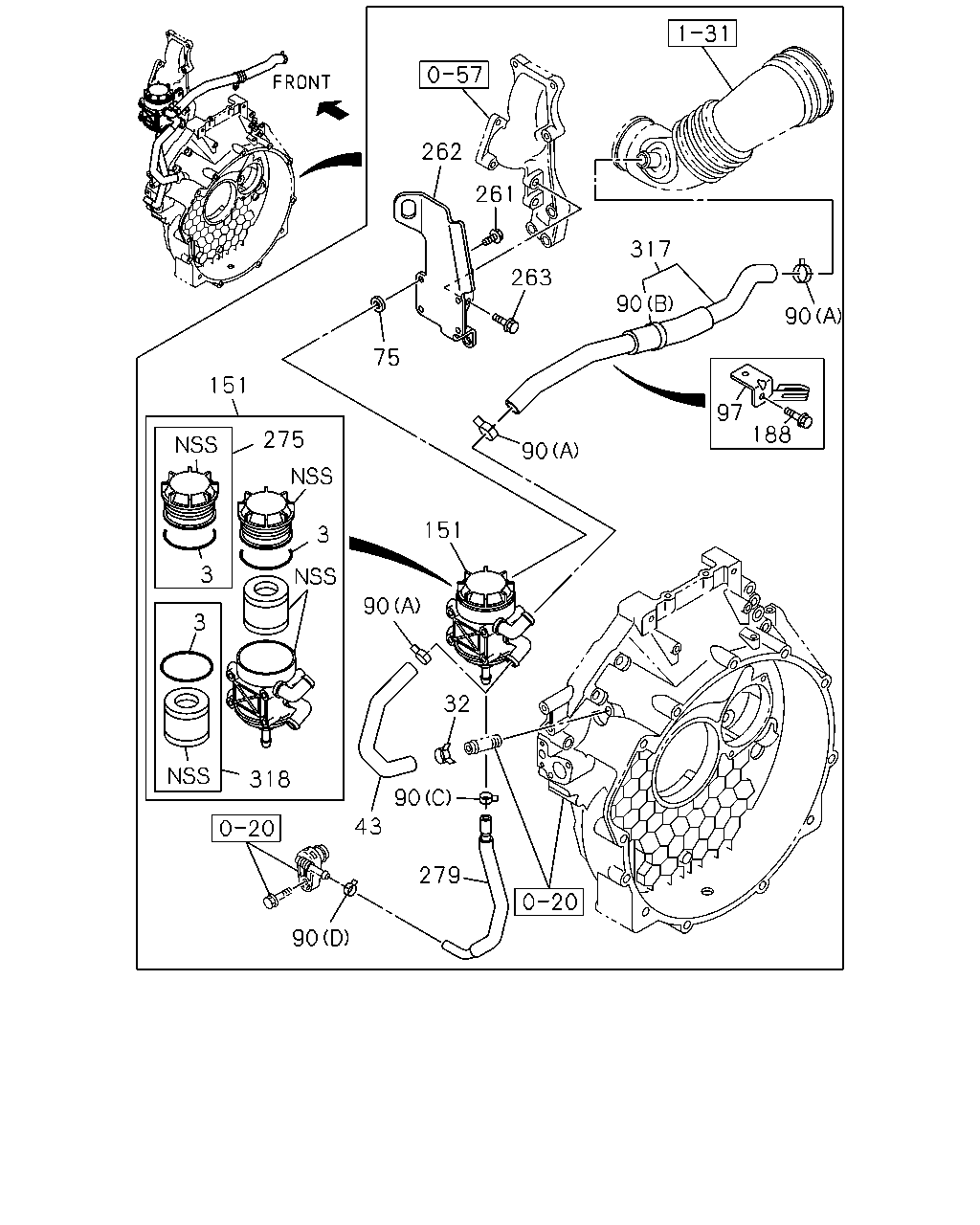

0-28 — VENTILATION SYSTEM
(#55916) — 19 parça
317
90
263
261
262
90
188
97
90
75
151
3
275
151
90
3
3
318
43
90
279
32
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
1012-
32
CLIP; VENT HOSE
ID=21
8-94242-034-0
01
1
1012-
43
HOSE; PCV
8-98057-033-0
01
1
1012-
75
WASHER
ID=9 OD=18 T=5
9-14149-173-0
04
1
1012-
90
CLIP; RUBBER HOSE
(A) ID=28
1-09707-124-0
03
1
1012-
90
CLIP; RUBBER HOSE
(B) L=212
8-94107-652-0
01
1
1012-
90
CLIP; RUBBER HOSE
(C) ID=13
8-94238-571-0
01
1
1012-
90
CLIP; RUBBER HOSE
(D) ID=11.5
8-97138-011-0
01
1
1012-
97
BRACKET; HOSE
8-98093-946-3
01
1
1012-
151
SEPARATOR; OIL,PCV
8-97324-682-1
01
1
1012-
188
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
01
1
1012-
261
BOLT; SEPARETOR
M8X30 FLANGE
0-28650-830-0
04
1
1012-
262
BRACKET; OIL SEPARETOR
8-98036-498-0
01
1
1012-1501
262
BRACKET; OIL SEPARETOR
8-98296-130-0
01
1
1502-
263
BOLT; BRKT,OIL SEPARETOR
M12X30 FLANGE
0-28151-230-0
03
1
1012-
275
CAP; PCV
8-97389-360-0
01
1
1012-
279
HOSE; RUBBER,OIL DRAIN
8-97386-653-1
01
1
1012-
317
HOSE; RUBBER,OIL SEPARATOR
8-98095-931-1
01
1
1012-
318
ELEMENT KIT; PCV
8-98002-346-0
01
1
1012-
