Isuzu WW
▶
TRUCKS
▶
FTR
▶
11360 - FTR(MALAYSIA)W/B6000
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#55895) — 50 parça
◀

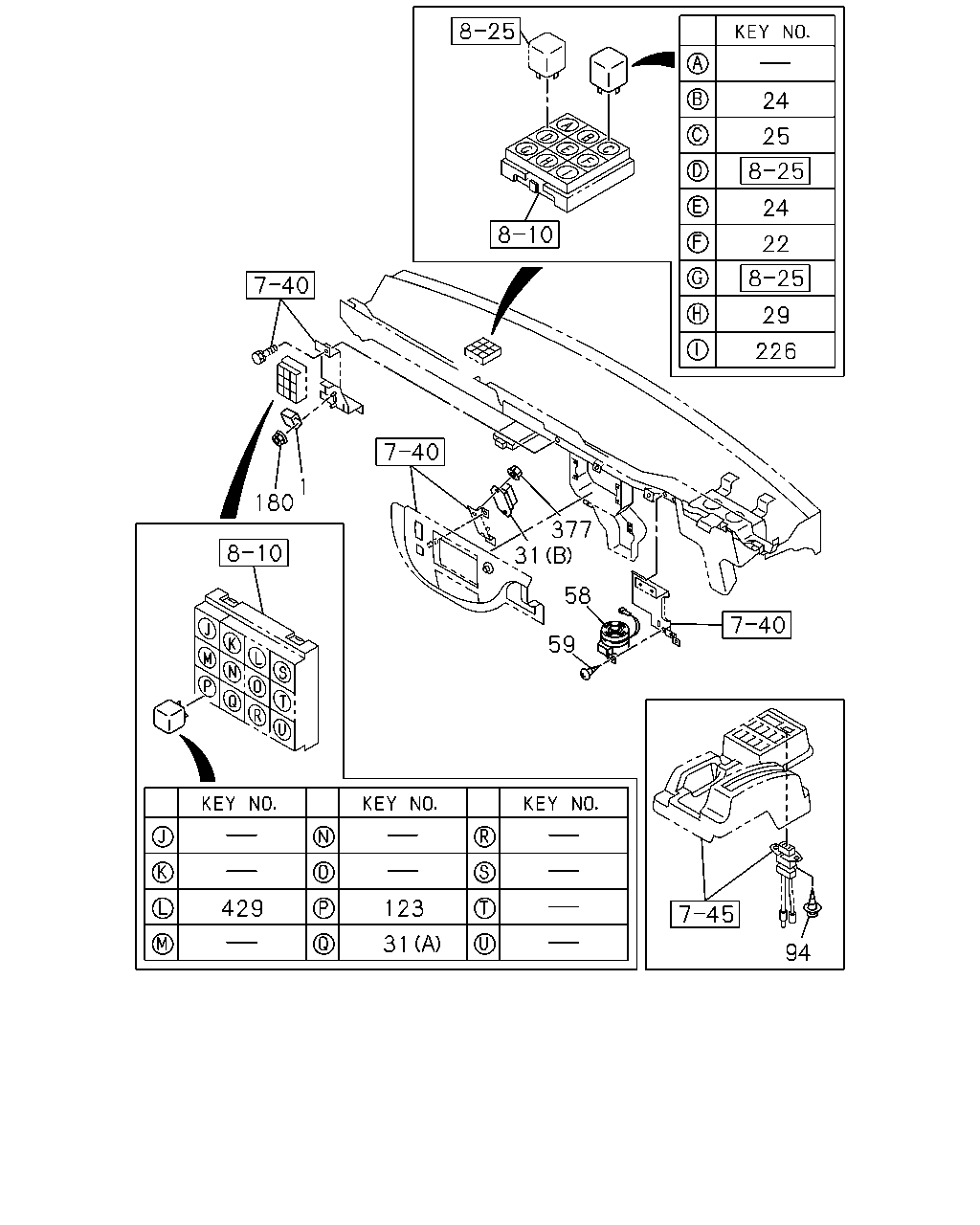

[828A] RELAY,TIMER AND WARNING BUZZER (26 parça)

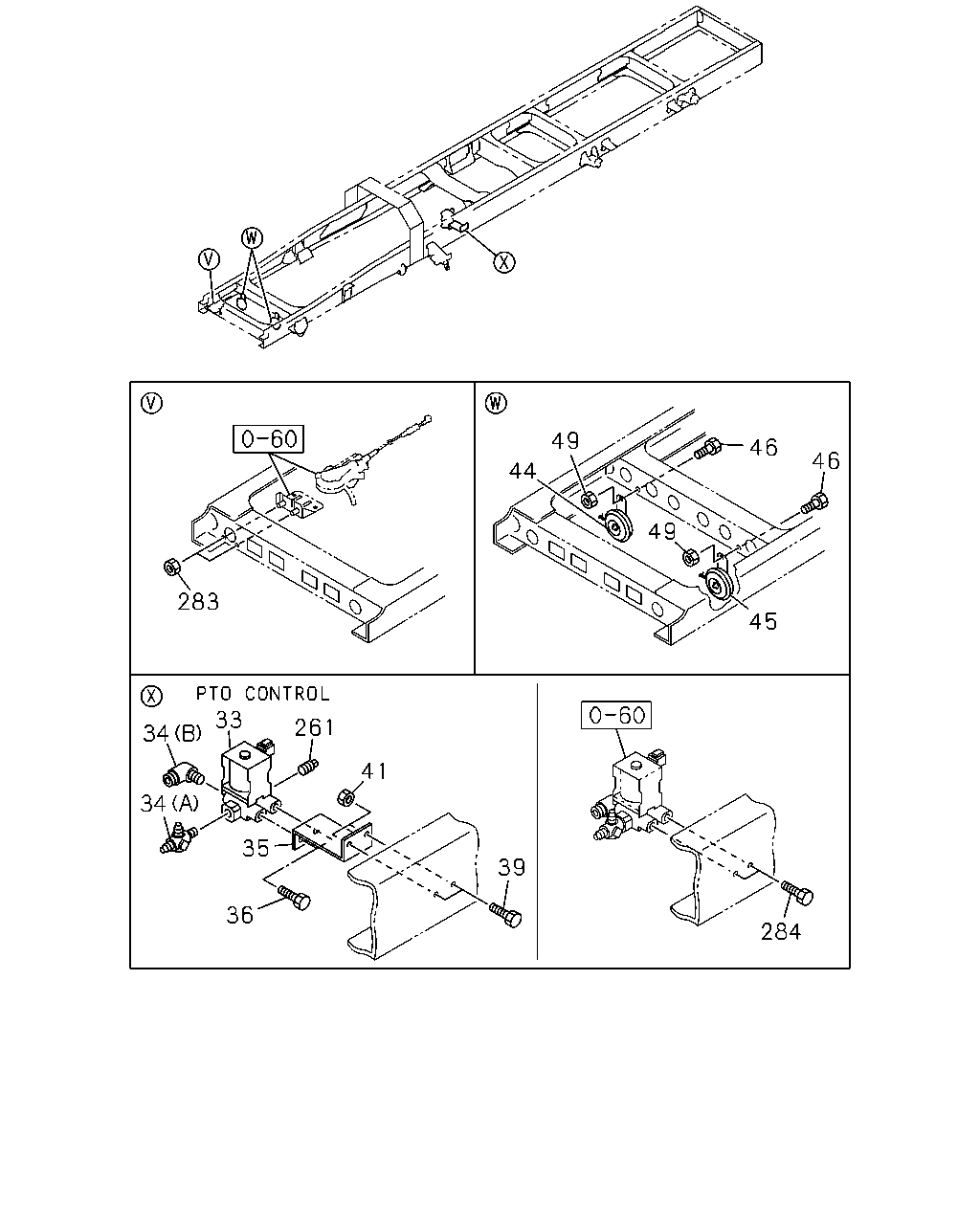

[828A] PTO VALVE AND HORN (24 parça)
▶
24
25
24
22
29
226
1
180
377
31
58
59
123
429
31
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
MAL
1-83470-060-1
01
1
0110-
22
RELAY; STOP LAMP
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0110-0111
22
RELAY; STOP LAMP
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
24
RELAY; LIGHTING
24V 12.5A MITUBA MAL
8-97062-815-1
02
1
0110-0111
24
RELAY; LIGHTING
24V 12.5A PANASONIC MAL
8-97262-933-0
02
1
0112-
25
RELAY; TAIL LAMP
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0110-0111
25
RELAY; TAIL LAMP
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
29
RELAY; HORN
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0110-0111
29
RELAY; HORN
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
31
RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V
1-82550-187-1
01
1
0110-
31
RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0110-0111
31
RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
58
BUZZER; AIR PRESSURE WARNING
METRO DENSO
1-83460-074-1
01
1
0110-0612
58
BUZZER; AIR PRESSURE WARNING
METRO DENSO
8-98069-865-0
01
1
0701-
59
SCREW; BUZZER
M5X14 MAL
8-94279-325-0
01
1
0110-
94
SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER
0-74110-510-0
02
1
0110-0604
94
SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER
0-74160-510-0
02
1
0605-
123
RELAY; HTR
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0110-0111
123
RELAY; HTR
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
180
NUT; FLASHER UNIT
M6 FLANGE
0-91150-106-0
01
1
0110-0602
180
NUT; FLASHER UNIT
M6 FLANGE MAL
0-91180-106-0
01
1
0603-
226
RELAY; EXH BRK
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0110-0111
226
RELAY; EXH BRK
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
377
NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE
0-91150-106-0
02
1
0110-0602
377
NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE MAL
0-91180-106-0
02
1
0603-
429
RELAY; POWER CUT
EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0511-
49
46
46
44
49
283
45
33
261
34
41
34
35
39
36
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
PTO CONTROL<SV6>
1-82563-600-5
01
1
0110-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW MAL
1-09660-956-0
01
1
0110-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY
1-09661-006-0
01
1
0110-
35
BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6>
1-47477-953-1
01
1
0110-
36
BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE MAL
0-28680-820-0
02
1
0110-0512
36
BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE MAL
0-28650-820-0
02
1
0601-
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE
0-28680-830-0
02
1
0110-0512
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE
0-28650-830-0
02
1
0601-
41
NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE
0-91150-108-0
02
1
0110-0602
41
NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE MAL
0-91180-108-0
02
1
0603-
44
HORN; HIGH NOTE
MAL
1-83410-057-1
01
1
0110-0210
44
HORN; HIGH NOTE
MAL
1-83410-065-1
01
1
0211-
45
HORN; LOW NOTE
MAL
1-83410-058-1
01
1
0110-0210
45
HORN; LOW NOTE
MAL
1-83410-064-1
01
1
0211-
46
BOLT; HORN TO BODY
M8X25 FLANGE MAL
0-28680-825-0
02
1
0110-0512
46
BOLT; HORN TO BODY
M8X25 FLANGE MAL
0-28650-825-0
02
1
0601-
49
NUT; HORN TO BODY
M8 FLANGE
0-91150-108-0
02
1
0110-0602
49
NUT; HORN TO BODY
M8 FLANGE MAL
0-91180-108-0
02
1
0603-
261
PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4 MAL
9-99204-513-0
01
1
0110-
283
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0110-0602
283
NUT; BRKT
M8 FLANGE MAL
0-91180-108-0
02
1
0602-0602
283
NUT; BRKT
M8 FLANGE MAL
0-91180-108-0
04
1
0603-
284
BOLT; MAG VLV
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X30 FLANGE
0-28680-830-0
02
1
0511-0512
284
BOLT; MAG VLV
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X30 FLANGE
0-28650-830-0
02
1
0601-
